Page 195 of 350

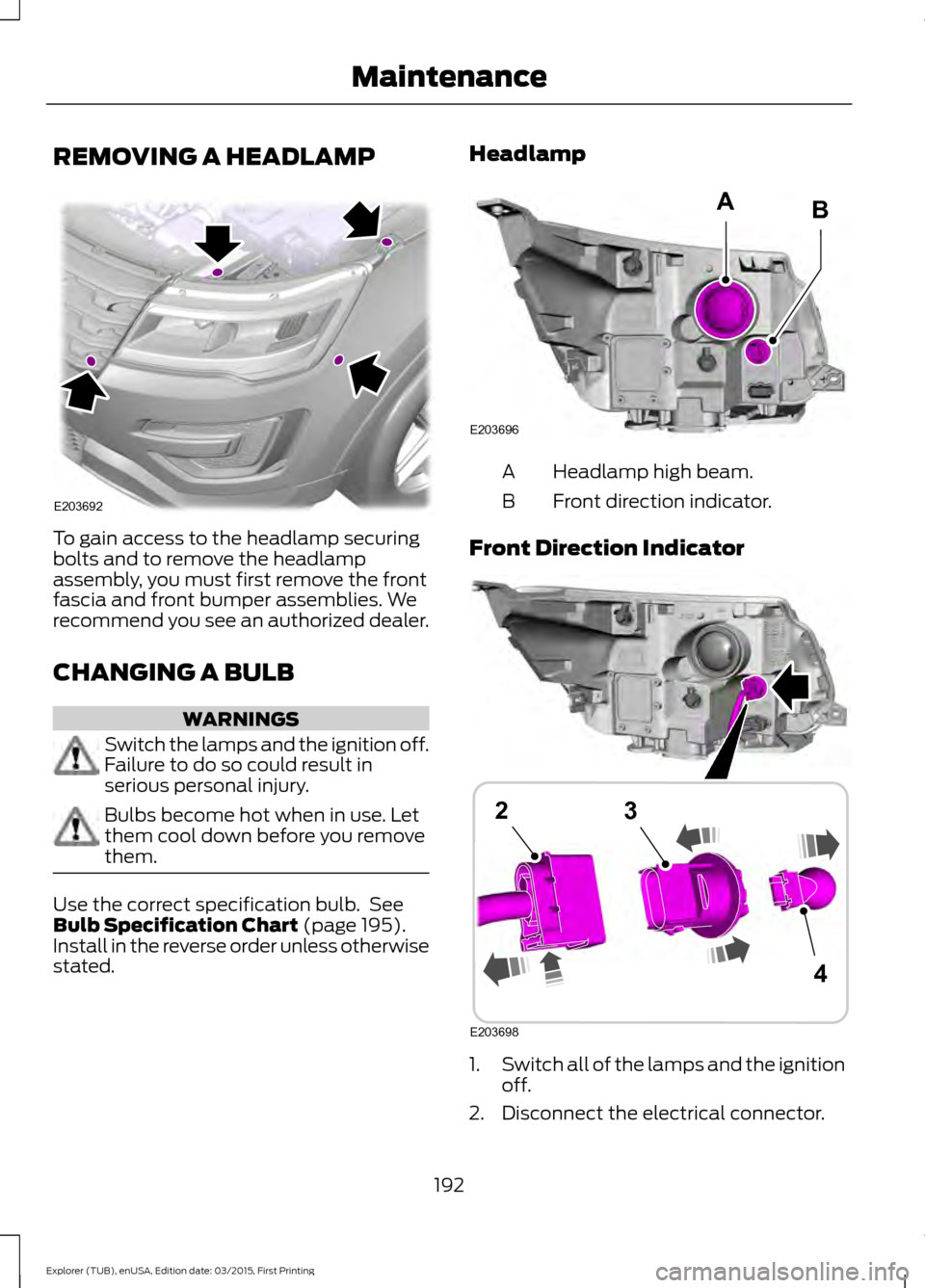

REMOVING A HEADLAMP
To gain access to the headlamp securing
bolts and to remove the headlamp
assembly, you must first remove the front
fascia and front bumper assemblies. We
recommend you see an authorized dealer.
CHANGING A BULB
WARNINGS
Switch the lamps and the ignition off.
Failure to do so could result in
serious personal injury.
Bulbs become hot when in use. Let
them cool down before you remove
them.
Use the correct specification bulb. See
Bulb Specification Chart (page 195).
Install in the reverse order unless otherwise
stated. Headlamp
Headlamp high beam.
A
Front direction indicator.
B
Front Direction Indicator 1.
Switch all of the lamps and the ignition
off.
2. Disconnect the electrical connector.
192
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing MaintenanceE203692 E203696
AB E203698
4
23
Page 196 of 350
3.
Turn the bulb holder counterclockwise
and remove it.
4. Remove the bulb by pulling it straight out.
Headlamp High Beam 1.
Switch all of the lamps and the ignition
off.
2. Carefully remove the cover.
3. Disconnect the electrical connector.
4. Turn the bulb holder counterclockwise
and remove it.
Note: You cannot separate the bulb from
the bulb holder.
Note: Do not touch the bulb glass. Front Fog Lamp (If Equipped)
1. Use a suitable tool, for example a
screwdriver, to carefully remove the
housing cover.
Note: To remove push pins, use a
flat-bladed screwdriver to pull up the center
release pin.
2. Disconnect the electrical connector. 3.
Turn the bulb holder counterclockwise
and remove it.
Note: You cannot separate the bulb from
the bulb holder.
Note: Do not touch the bulb glass.
193
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing MaintenanceE203697
2
3
4
4 E203699 E174588
Page 197 of 350

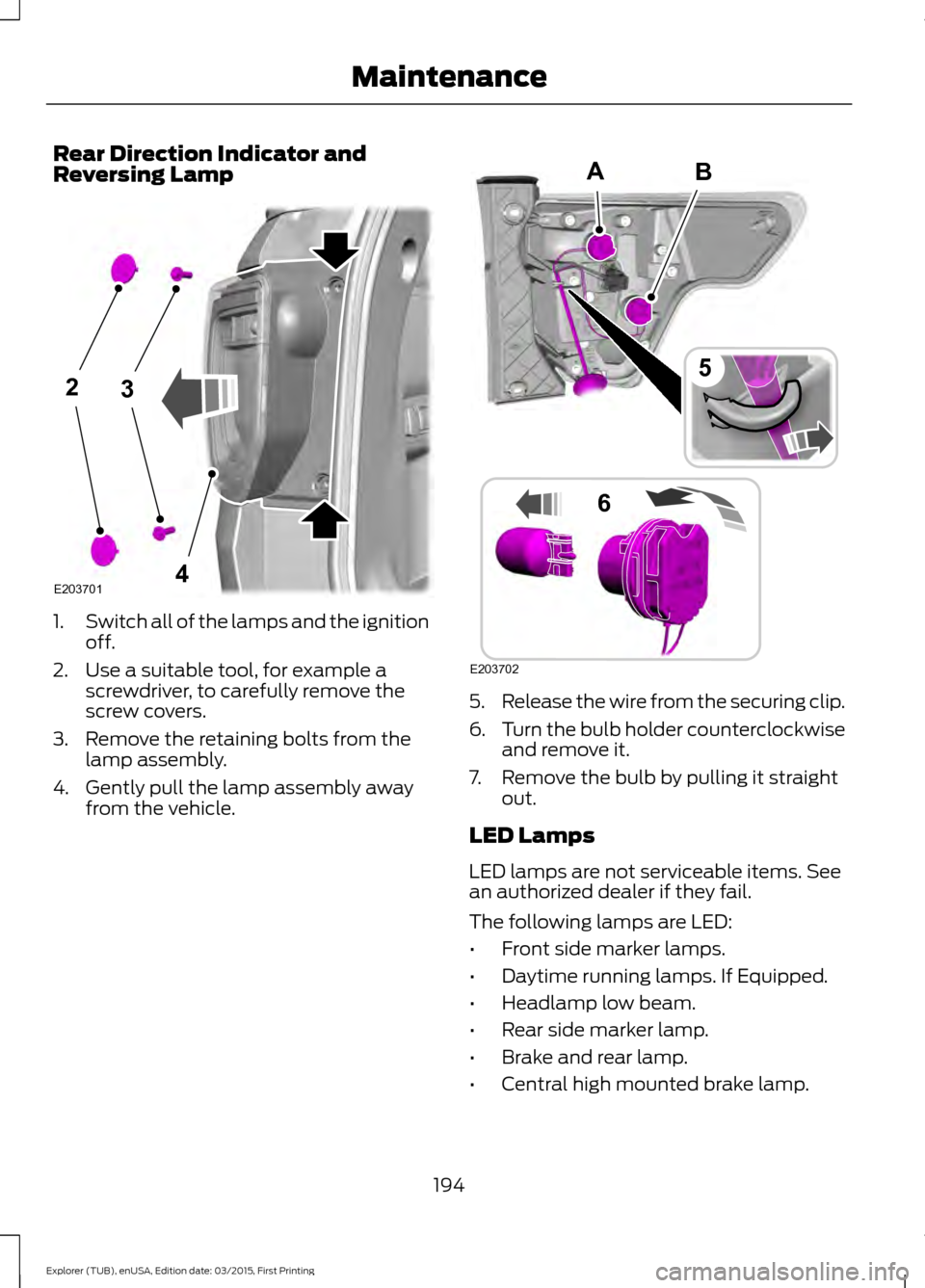

Rear Direction Indicator and
Reversing Lamp
1.
Switch all of the lamps and the ignition
off.
2. Use a suitable tool, for example a screwdriver, to carefully remove the
screw covers.
3. Remove the retaining bolts from the lamp assembly.
4. Gently pull the lamp assembly away from the vehicle. 5.
Release the wire from the securing clip.
6. Turn the bulb holder counterclockwise
and remove it.
7. Remove the bulb by pulling it straight out.
LED Lamps
LED lamps are not serviceable items. See
an authorized dealer if they fail.
The following lamps are LED:
• Front side marker lamps.
• Daytime running lamps. If Equipped.
• Headlamp low beam.
• Rear side marker lamp.
• Brake and rear lamp.
• Central high mounted brake lamp.
194
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Maintenance23
4E203701 B
E203702
5
6
A
Page 198 of 350

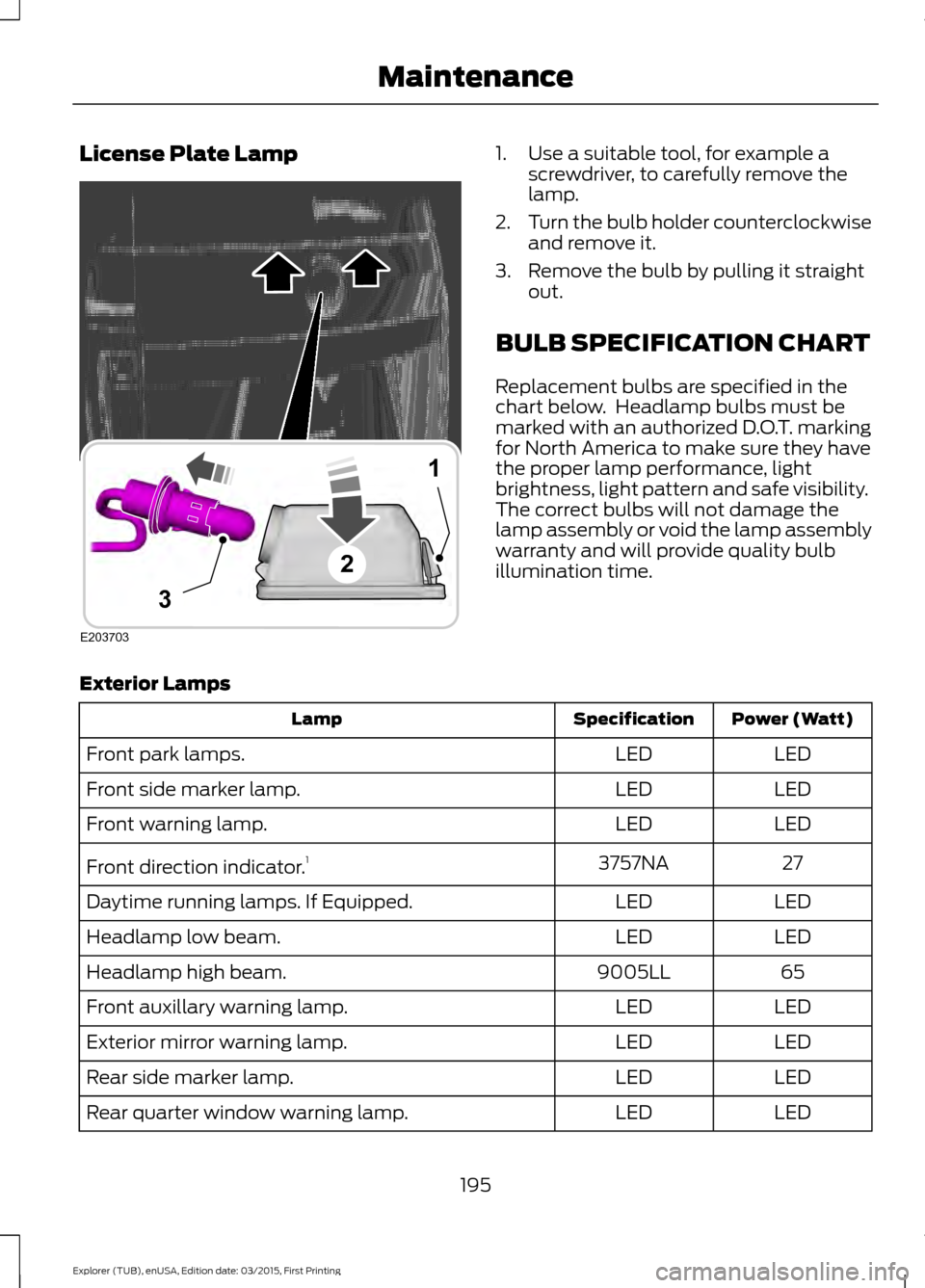

License Plate Lamp 1. Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight out.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.
Exterior Lamps Power (Watt)
Specification
Lamp
LED
LED
Front park lamps.
LED
LED
Front side marker lamp.
LED
LED
Front warning lamp.
27
3757NA
Front direction indicator. 1
LED
LED
Daytime running lamps. If Equipped.
LED
LED
Headlamp low beam.
65
9005LL
Headlamp high beam.
LED
LED
Front auxillary warning lamp.
LED
LED
Exterior mirror warning lamp.
LED
LED
Rear side marker lamp.
LED
LED
Rear quarter window warning lamp.
195
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing MaintenanceE203703
1
3
2
Page 342 of 350

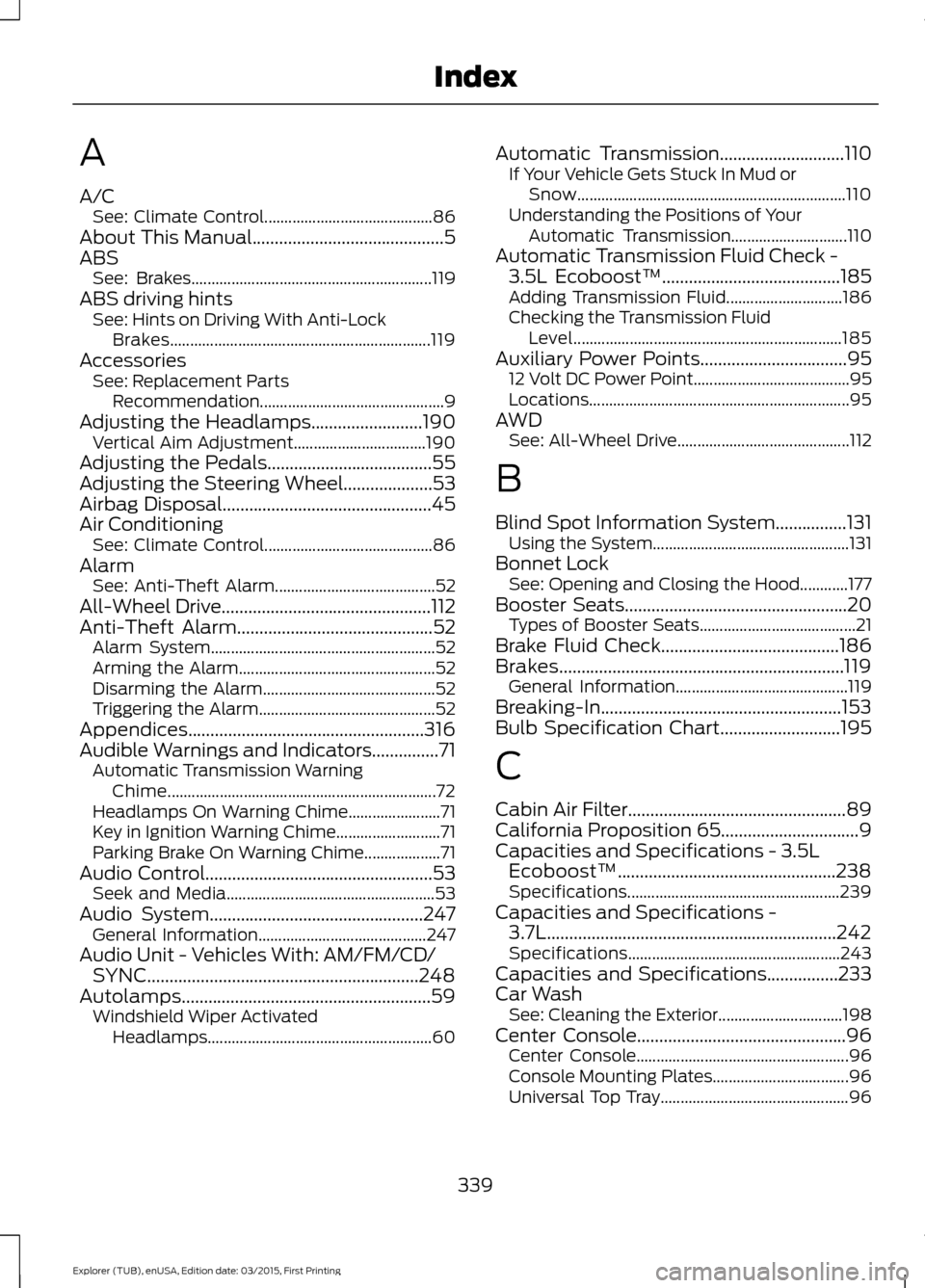

A
A/C
See: Climate Control.......................................... 86
About This Manual...........................................5
ABS See: Brakes............................................................ 119
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 119
Accessories See: Replacement Parts
Recommendation.............................................. 9
Adjusting the Headlamps.........................190
Vertical Aim Adjustment................................. 190
Adjusting the Pedals
.....................................55
Adjusting the Steering Wheel....................53
Airbag Disposal...............................................45
Air Conditioning See: Climate Control.......................................... 86
Alarm See: Anti-Theft Alarm........................................ 52
All-Wheel Drive...............................................112
Anti-Theft Alarm
............................................52
Alarm System........................................................ 52
Arming the Alarm................................................. 52
Disarming the Alarm........................................... 52
Triggering the Alarm............................................ 52
Appendices.....................................................316
Audible Warnings and Indicators
...............71
Automatic Transmission Warning
Chime................................................................... 72
Headlamps On Warning Chime....................... 71
Key in Ignition Warning Chime.......................... 71
Parking Brake On Warning Chime................... 71
Audio Control
...................................................53
Seek and Media.................................................... 53
Audio System................................................247 General Information.......................................... 247
Audio Unit - Vehicles With: AM/FM/CD/ SYNC.............................................................248
Autolamps........................................................59 Windshield Wiper Activated
Headlamps........................................................ 60Automatic Transmission............................110
If Your Vehicle Gets Stuck In Mud or
Snow................................................................... 110
Understanding the Positions of Your Automatic Transmission............................. 110
Automatic Transmission Fluid Check - 3.5L Ecoboost™........................................185
Adding Transmission Fluid............................. 186
Checking the Transmission Fluid Level................................................................... 185
Auxiliary Power Points
.................................95
12 Volt DC Power Point....................................... 95
Locations................................................................. 95
AWD See: All-Wheel Drive........................................... 112
B
Blind Spot Information System
................131
Using the System................................................. 131
Bonnet Lock See: Opening and Closing the Hood............177
Booster Seats
..................................................20
Types of Booster Seats....................................... 21
Brake Fluid Check........................................186
Brakes................................................................119 General Information........................................... 119
Breaking-In......................................................153
Bulb Specification Chart
...........................195
C
Cabin Air Filter.................................................89
California Proposition 65...............................9
Capacities and Specifications - 3.5L Ecoboost™.................................................238
Specifications..................................................... 239
Capacities and Specifications - 3.7L.................................................................242
Specifications..................................................... 243
Capacities and Specifications................233
Car Wash See: Cleaning the Exterior............................... 198
Center Console
...............................................96
Center Console..................................................... 96
Console Mounting Plates.................................. 96
Universal Top Tray............................................... 96
339
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Index
Page 343 of 350

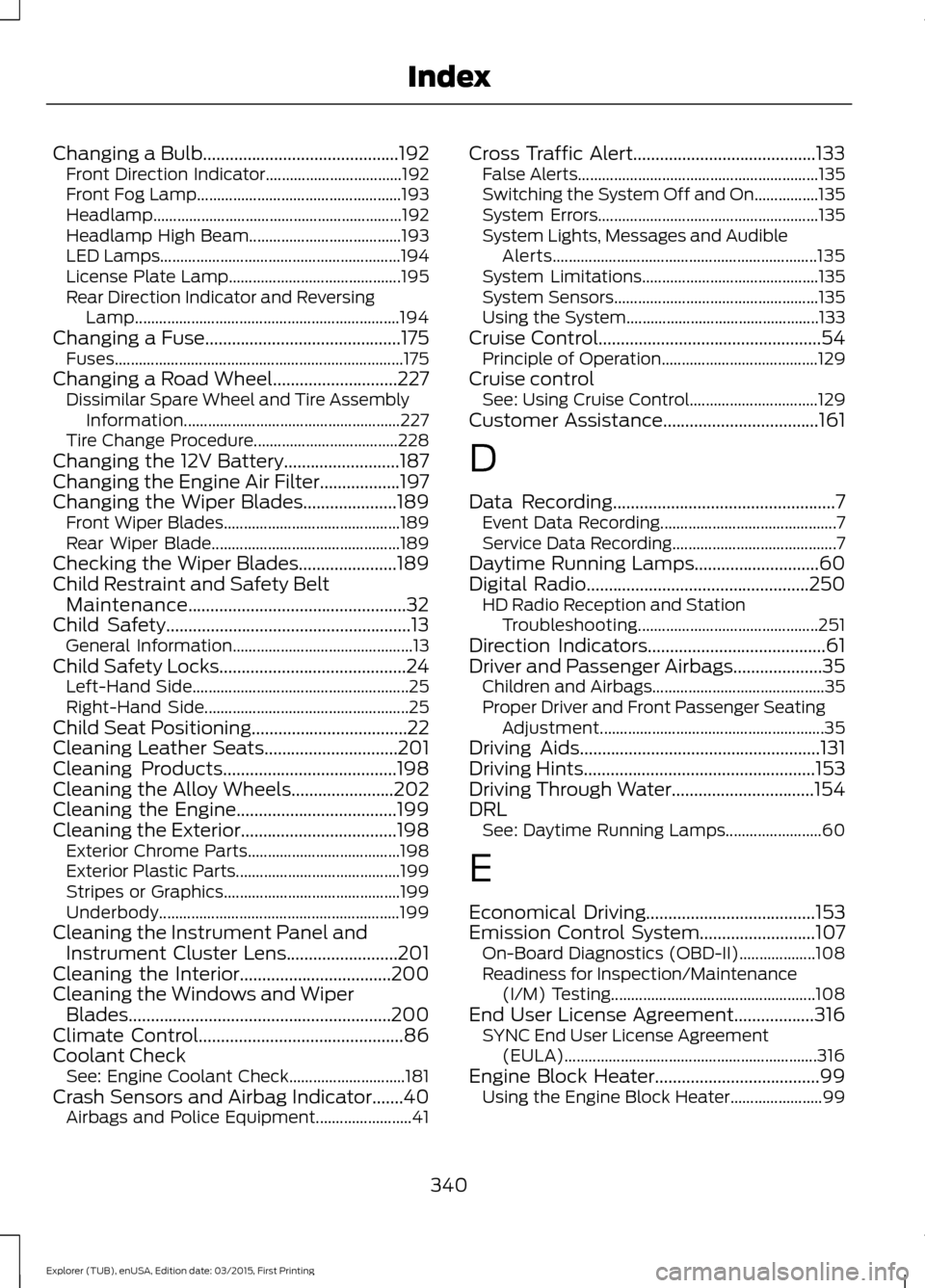

Changing a Bulb............................................192
Front Direction Indicator.................................. 192
Front Fog Lamp................................................... 193
Headlamp.............................................................. 192
Headlamp High Beam...................................... 193
LED Lamps............................................................ 194
License Plate Lamp........................................... 195
Rear Direction Indicator and Reversing Lamp.................................................................. 194
Changing a Fuse............................................175
Fuses........................................................................\
175
Changing a Road Wheel............................227 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 227
Tire Change Procedure.................................... 228
Changing the 12V Battery..........................187
Changing the Engine Air Filter..................197
Changing the Wiper Blades
.....................189
Front Wiper Blades............................................ 189
Rear Wiper Blade............................................... 189
Checking the Wiper Blades
......................189
Child Restraint and Safety Belt Maintenance.................................................32
Child Safety
.......................................................13
General Information............................................. 13
Child Safety Locks
..........................................24
Left-Hand Side...................................................... 25
Right-Hand Side................................................... 25
Child Seat Positioning...................................22
Cleaning Leather Seats..............................201
Cleaning Products
.......................................198
Cleaning the Alloy Wheels.......................202
Cleaning the Engine
....................................199
Cleaning the Exterior...................................198 Exterior Chrome Parts...................................... 198
Exterior Plastic Parts......................................... 199
Stripes or Graphics............................................ 199
Underbody............................................................ 199
Cleaning the Instrument Panel and Instrument Cluster Lens.........................201
Cleaning the Interior
..................................200
Cleaning the Windows and Wiper Blades...........................................................200
Climate Control
..............................................86
Coolant Check See: Engine Coolant Check............................. 181
Crash Sensors and Airbag Indicator.......40 Airbags and Police Equipment........................ 41Cross Traffic Alert.........................................133
False Alerts............................................................ 135
Switching the System Off and On................135
System Errors....................................................... 135
System Lights, Messages and Audible Alerts.................................................................. 135
System Limitations............................................ 135
System Sensors................................................... 135
Using the System................................................ 133
Cruise Control
..................................................54
Principle of Operation....................................... 129
Cruise control See: Using Cruise Control................................ 129
Customer Assistance
...................................161
D
Data Recording
..................................................7
Event Data Recording............................................ 7
Service Data Recording......................................... 7
Daytime Running Lamps............................60
Digital Radio
..................................................250
HD Radio Reception and Station
Troubleshooting............................................. 251
Direction Indicators
........................................61
Driver and Passenger Airbags....................35 Children and Airbags........................................... 35
Proper Driver and Front Passenger Seating Adjustment........................................................ 35
Driving Aids
......................................................131
Driving Hints....................................................153
Driving Through Water................................154
DRL See: Daytime Running Lamps........................ 60
E
Economical Driving
......................................153
Emission Control System..........................107 On-Board Diagnostics (OBD-II)................... 108
Readiness for Inspection/Maintenance (I/M) Testing................................................... 108
End User License Agreement..................316 SYNC End User License Agreement
(EULA)............................................................... 316
Engine Block Heater.....................................99 Using the Engine Block Heater....................... 99
340
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Index

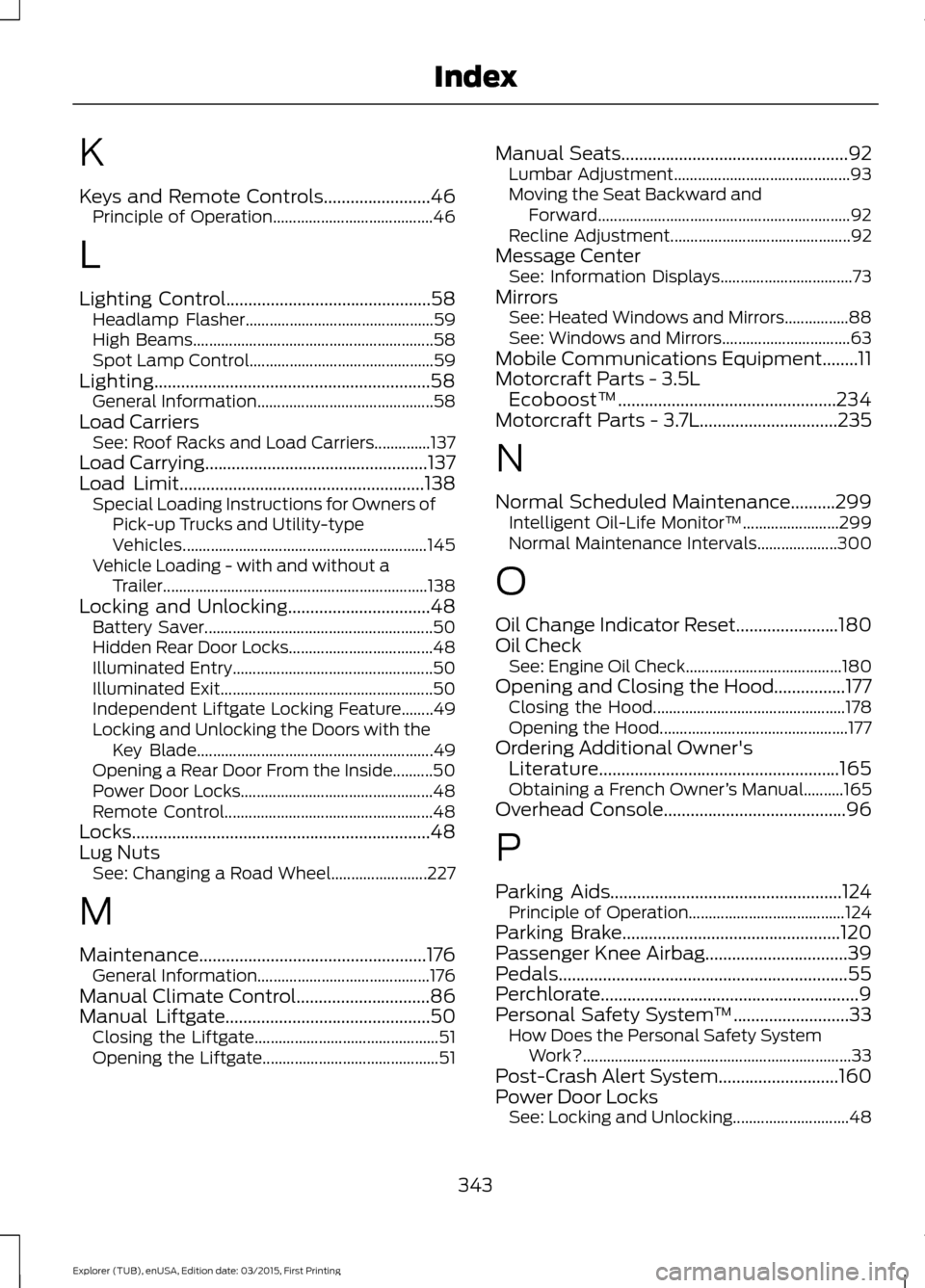

Page 346 of 350
K
Keys and Remote Controls........................46
Principle of Operation........................................ 46
L
Lighting Control..............................................58
Headlamp Flasher............................................... 59
High Beams............................................................ 58
Spot Lamp Control.............................................. 59
Lighting..............................................................58 General Information............................................ 58
Load Carriers See: Roof Racks and Load Carriers..............137
Load Carrying
..................................................137
Load Limit.......................................................138
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 145
Vehicle Loading - with and without a Trailer .................................................................. 138
Locking and Unlocking
................................48
Battery Saver......................................................... 50
Hidden Rear Door Locks.................................... 48
Illuminated Entry.................................................. 50
Illuminated Exit..................................................... 50
Independent Liftgate Locking Feature........49
Locking and Unlocking the Doors with the Key Blade........................................................... 49
Opening a Rear Door From the Inside..........50
Power Door Locks................................................ 48
Remote Control.................................................... 48
Locks...................................................................48
Lug Nuts See: Changing a Road Wheel........................ 227
M
Maintenance...................................................176 General Information........................................... 176
Manual Climate Control..............................86
Manual Liftgate
..............................................50
Closing the Liftgate.............................................. 51
Opening the Liftgate............................................ 51Manual Seats
...................................................92
Lumbar Adjustment............................................ 93
Moving the Seat Backward and Forward............................................................... 92
Recline Adjustment............................................. 92
Message Center See: Information Displays................................. 73
Mirrors See: Heated Windows and Mirrors................88
See: Windows and Mirrors................................ 63
Mobile Communications Equipment........11
Motorcraft Parts - 3.5L Ecoboost™.................................................234
Motorcraft Parts - 3.7L...............................235
N
Normal Scheduled Maintenance
..........299
Intelligent Oil-Life Monitor™........................ 299
Normal Maintenance Intervals.................... 300
O
Oil Change Indicator Reset.......................180
Oil Check See: Engine Oil Check....................................... 180
Opening and Closing the Hood
................177
Closing the Hood................................................ 178
Opening the Hood............................................... 177
Ordering Additional Owner's Literature......................................................165
Obtaining a French Owner ’s Manual..........165
Overhead Console
.........................................96
P
Parking Aids
....................................................124
Principle of Operation....................................... 124
Parking Brake.................................................120
Passenger Knee Airbag................................39
Pedals.................................................................55
Perchlorate..........................................................9
Personal Safety System ™
..........................33
How Does the Personal Safety System
Work?................................................................... 33
Post-Crash Alert System
...........................160
Power Door Locks See: Locking and Unlocking............................. 48
343
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Index

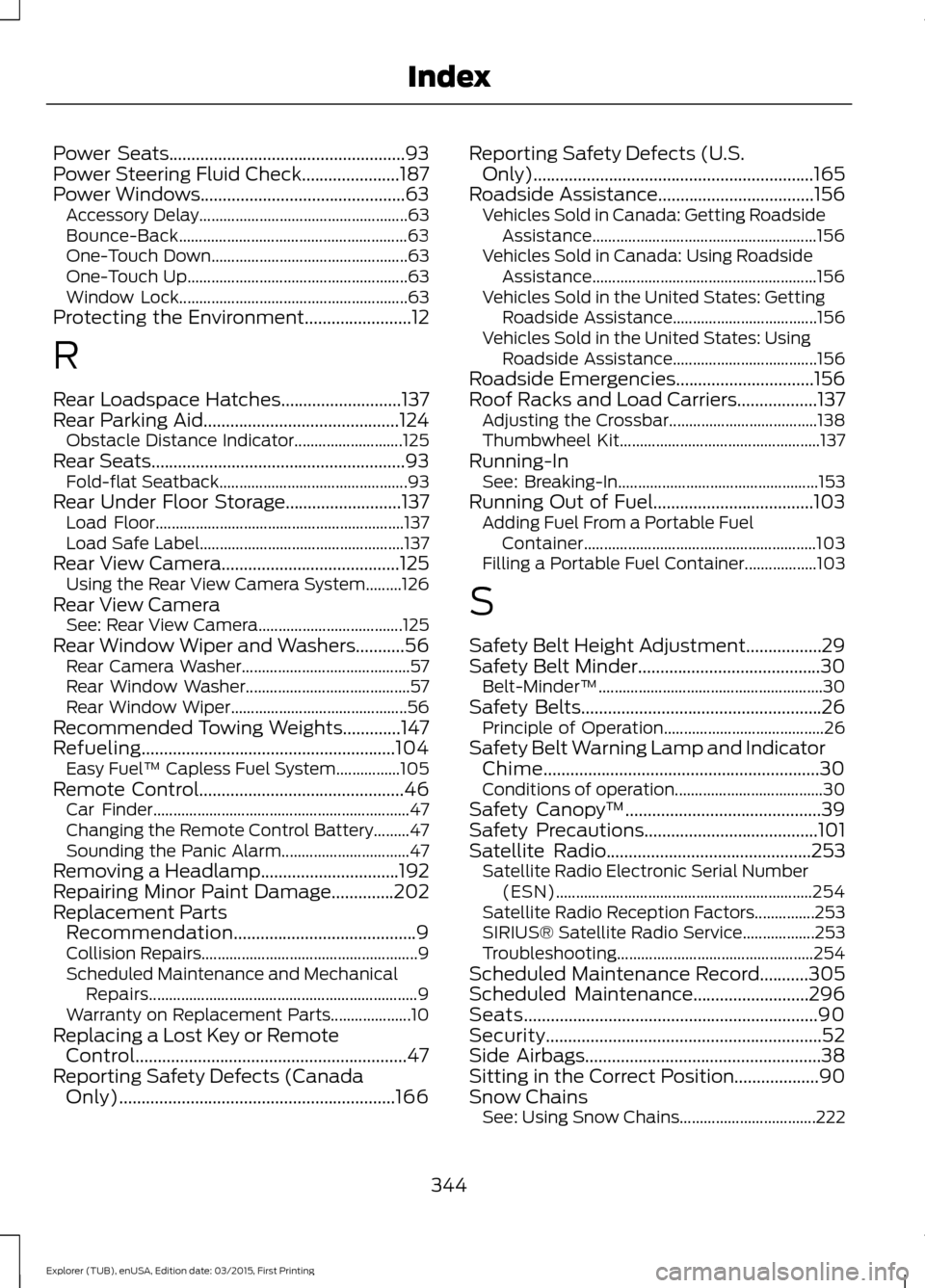

Page 347 of 350
Power Seats.....................................................93
Power Steering Fluid Check......................187
Power Windows
..............................................63
Accessory Delay.................................................... 63
Bounce-Back......................................................... 63
One-Touch Down................................................. 63
One-Touch Up....................................................... 63
Window Lock......................................................... 63
Protecting the Environment
........................12
R
Rear Loadspace Hatches
...........................137
Rear Parking Aid............................................124 Obstacle Distance Indicator........................... 125
Rear Seats.........................................................93 Fold-flat Seatback............................................... 93
Rear Under Floor Storage
..........................137
Load Floor.............................................................. 137
Load Safe Label................................................... 137
Rear View Camera
........................................125
Using the Rear View Camera System.........126
Rear View Camera See: Rear View Camera.................................... 125
Rear Window Wiper and Washers...........56 Rear Camera Washer.......................................... 57
Rear Window Washer......................................... 57
Rear Window Wiper............................................ 56
Recommended Towing Weights.............147
Refueling.........................................................104 Easy Fuel ™ Capless Fuel System................105
Remote Control
..............................................46
Car Finder................................................................ 47
Changing the Remote Control Battery.........47
Sounding the Panic Alarm................................ 47
Removing a Headlamp
...............................192
Repairing Minor Paint Damage..............202
Replacement Parts Recommendation.........................................9
Collision Repairs...................................................... 9
Scheduled Maintenance and Mechanical Repairs................................................................... 9
Warranty on Replacement Parts.................... 10
Replacing a Lost Key or Remote Control.............................................................47
Reporting Safety Defects (Canada Only)..............................................................166 Reporting Safety Defects (U.S.
Only)...............................................................165
Roadside Assistance
...................................156
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 156
Vehicles Sold in Canada: Using Roadside Assistance........................................................ 156
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 156
Vehicles Sold in the United States: Using Roadside Assistance.................................... 156
Roadside Emergencies
...............................156
Roof Racks and Load Carriers..................137 Adjusting the Crossbar..................................... 138
Thumbwheel Kit.................................................. 137
Running-In See: Breaking-In.................................................. 153
Running Out of Fuel....................................103 Adding Fuel From a Portable Fuel
Container.......................................................... 103
Filling a Portable Fuel Container.................. 103
S
Safety Belt Height Adjustment.................29
Safety Belt Minder.........................................30 Belt-Minder™........................................................ 30
Safety Belts......................................................26 Principle of Operation........................................ 26
Safety Belt Warning Lamp and Indicator Chime..............................................................30
Conditions of operation..................................... 30
Safety Canopy ™
............................................39
Safety Precautions.......................................101
Satellite Radio
..............................................253
Satellite Radio Electronic Serial Number
(ESN)................................................................ 254
Satellite Radio Reception Factors...............253
SIRIUS® Satellite Radio Service.................. 253
Troubleshooting................................................. 254
Scheduled Maintenance Record...........305
Scheduled Maintenance
..........................296
Seats..................................................................90
Security..............................................................52
Side Airbags
.....................................................38
Sitting in the Correct Position...................90
Snow Chains See: Using Snow Chains.................................. 222
344
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Index
