Using Stability Control................................123
Parking Aids
Principle of Operation.................................124
Rear Parking Aid............................................124
Rear View Camera
........................................125
Cruise Control
Principle of Operation.................................129
Using Cruise Control
....................................129
Driving Aids
Blind Spot Information System
................131
Cross Traffic Alert.........................................133
Steering............................................................136
Load Carrying
Rear Loadspace Hatches
...........................137
Rear Under Floor Storage..........................137
Roof Racks and Load Carriers
..................137
Load Limit
.......................................................138
Towing
Towing a Trailer.............................................146
Recommended Towing Weights
.............147
Essential Towing Checks
...........................148
Transporting the Vehicle...........................150
Towing the Vehicle on Four Wheels - 3.5L Ecoboost™/3.7L..............................151
Driving Hints
Breaking-In......................................................153
Economical Driving
......................................153
Driving Through Water
................................154
Floor Mats
.......................................................154
Roadside Emergencies
Roadside Assistance
...................................156
Hazard Warning Flashers...........................157 Fuel Shutoff....................................................157
Jump Starting the Vehicle
.........................158
Post-Crash Alert System...........................160
Customer Assistance
Getting the Services You Need.................161
In California (U.S. Only).............................162
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)......................163
Utilizing the Mediation/Arbitration Program (Canada Only)........................163
Getting Assistance Outside the U.S. and Canada
.........................................................164
Ordering Additional Owner's Literature.....................................................165
Reporting Safety Defects (U.S. Only).............................................................165
Reporting Safety Defects (Canada Only)
.............................................................166
Fuses
Fuse Specification Chart
............................167
Changing a Fuse............................................175
Maintenance
General Information....................................176
Opening and Closing the Hood................177
Under Hood Overview.................................179
Engine Oil Dipstick.......................................180
Engine Oil Check..........................................180
Oil Change Indicator Reset.......................180
Engine Coolant Check.................................181
Automatic Transmission Fluid Check - 3.5L Ecoboost™
.......................................185
Brake Fluid Check........................................186
Power Steering Fluid Check......................187
Washer Fluid Check
.....................................187
Fuel Filter
.........................................................187
Changing the 12V Battery..........................187
Checking the Wiper Blades......................189
Changing the Wiper Blades
.....................189
3
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Table of Contents
Page 43 of 350
The Safety Canopy will deploy during
significant side crashes or when a certain
likelihood of a rollover event is detected
by the rollover sensor. The Safety Canopy
is mounted to the roof side-rail sheet
metal, behind the headliner, above each
row of seats. In certain sideways crashes
or rollover events, the Safety Canopy will
be activated, regardless of which seats are
occupied. The Safety Canopy is designed
to inflate between the side window area
and occupants to further enhance
protection provided in side impact crashes
and rollover events.
The system consists of the following:
•
Safety canopy curtain airbags located
above the trim panels over the front
and rear side windows identified by a
label or wording on the headliner or
roof-pillar trim.
• A flexible headliner which opens above
the side doors to allow air curtain
deployment · Crash sensors and monitoring
system with readiness indicator.
See Crash Sensors and Airbag
Indicator (page 40). Children 12 years old and under should
always be properly restrained in the rear
seats. The Safety Canopy will not interfere
with children restrained using a properly
installed child or booster seat because it
is designed to inflate downward from the
headliner above the doors along the side
window opening.
The design and development of the Safety
Canopy included recommended testing
procedures that were developed by a
group of automotive safety experts known
as the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of injuries
related to the deployment of side airbags
(including the Safety Canopy).
CRASH SENSORS AND
AIRBAG INDICATOR
WARNING
Modifying or adding equipment to
the front end of the vehicle (including
frame, bumper, front end body
structure and tow hooks) may affect the
performance of the airbag system,
increasing the risk of injury. Do not modify
the front end of the vehicle. Your vehicle has a collection of crash and
occupant sensors which provide
information to the restraints control
module. The restraints control module
deploys (activates) the front safety belt
pretensioners, driver airbag, passenger
airbag, knee airbag(s), seat mounted side
airbags and the Safety Canopy. Based on
the type of crash (frontal impact or side
impact), the restraints control module will
deploy the appropriate safety devices.
40
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Supplementary Restraints SystemE75004
Page 52 of 350

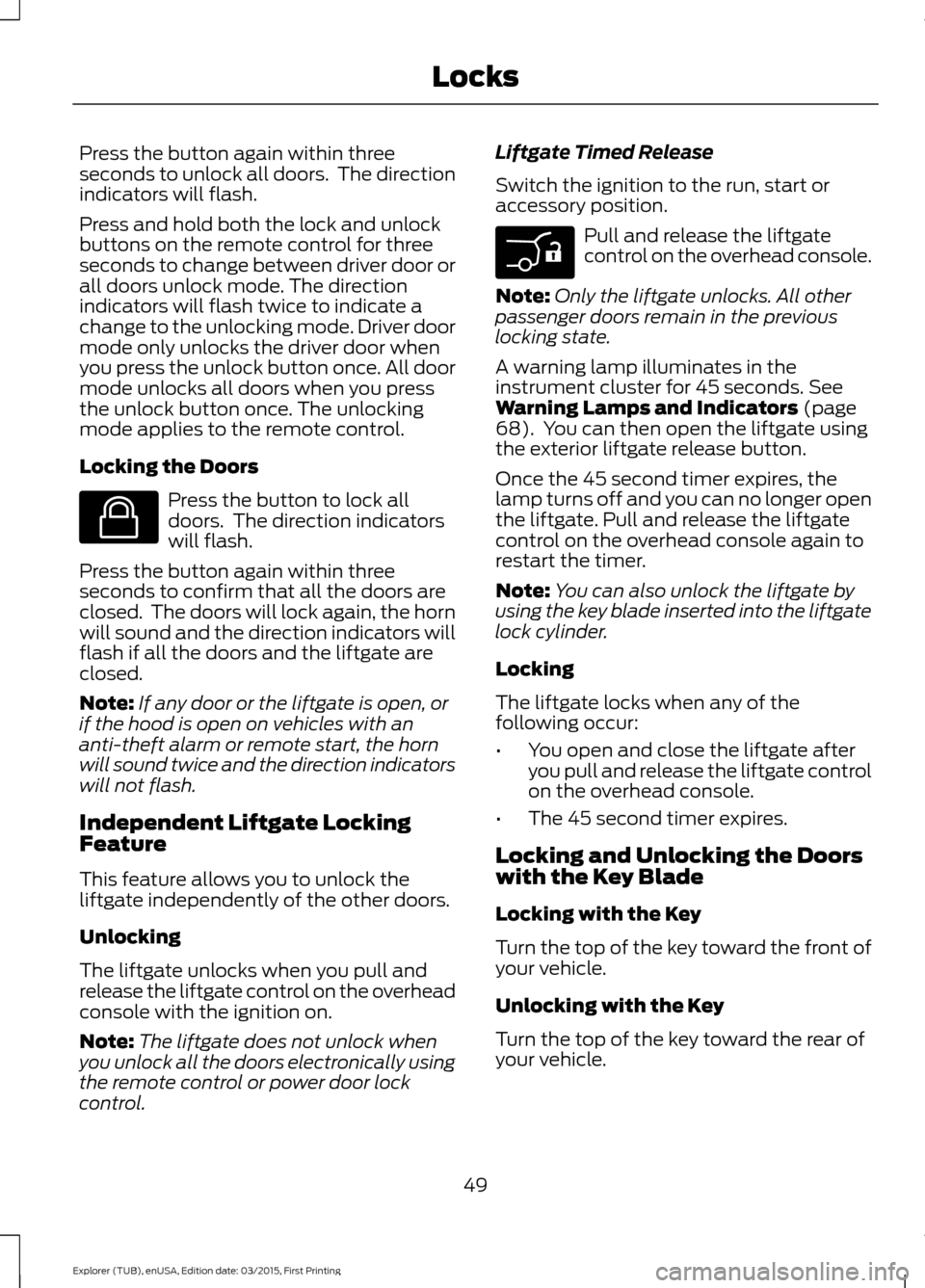

Press the button again within three
seconds to unlock all doors. The direction
indicators will flash.
Press and hold both the lock and unlock
buttons on the remote control for three
seconds to change between driver door or
all doors unlock mode. The direction
indicators will flash twice to indicate a
change to the unlocking mode. Driver door
mode only unlocks the driver door when
you press the unlock button once. All door
mode unlocks all doors when you press
the unlock button once. The unlocking
mode applies to the remote control.
Locking the Doors
Press the button to lock all
doors. The direction indicators
will flash.
Press the button again within three
seconds to confirm that all the doors are
closed. The doors will lock again, the horn
will sound and the direction indicators will
flash if all the doors and the liftgate are
closed.
Note: If any door or the liftgate is open, or
if the hood is open on vehicles with an
anti-theft alarm or remote start, the horn
will sound twice and the direction indicators
will not flash.
Independent Liftgate Locking
Feature
This feature allows you to unlock the
liftgate independently of the other doors.
Unlocking
The liftgate unlocks when you pull and
release the liftgate control on the overhead
console with the ignition on.
Note: The liftgate does not unlock when
you unlock all the doors electronically using
the remote control or power door lock
control. Liftgate Timed Release
Switch the ignition to the run, start or
accessory position. Pull and release the liftgate
control on the overhead console.
Note: Only the liftgate unlocks. All other
passenger doors remain in the previous
locking state.
A warning lamp illuminates in the
instrument cluster for 45 seconds. See
Warning Lamps and Indicators (page
68). You can then open the liftgate using
the exterior liftgate release button.
Once the 45 second timer expires, the
lamp turns off and you can no longer open
the liftgate. Pull and release the liftgate
control on the overhead console again to
restart the timer.
Note: You can also unlock the liftgate by
using the key blade inserted into the liftgate
lock cylinder.
Locking
The liftgate locks when any of the
following occur:
• You open and close the liftgate after
you pull and release the liftgate control
on the overhead console.
• The 45 second timer expires.
Locking and Unlocking the Doors
with the Key Blade
Locking with the Key
Turn the top of the key toward the front of
your vehicle.
Unlocking with the Key
Turn the top of the key toward the rear of
your vehicle.
49
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing LocksE138623
Page 55 of 350
ANTI-THEFT ALARM
Alarm System
The perimeter alarm is a deterrent against
unauthorized access to your vehicle
through the doors, luggage compartment
and the hood.
Triggering the Alarm
Once armed, the alarm is triggered in any
of the following ways:
•
If someone opens a door, cargo area
or the hood without a valid key or
remote control.
• If you switch the ignition on without a
valid key.
If the alarm is triggered, the horn will sound
for 30 seconds and the hazard warning
flasher will flash for five minutes.
Any further attempts to perform one of the
above will trigger the alarm again.
Arming the Alarm
To arm the alarm, lock your vehicle. See
Locks (page 48).
Disarming the Alarm
Disarm and silence the alarm by unlocking
the doors with the key and switching the
ignition on within 12 seconds, or by
unlocking the doors or the cargo area with
the remote control.
52
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Security
Page 102 of 350
Important Ventilating Information
If you stop your vehicle and then leave the
engine idling for long periods, we
recommend that you do one of the
following:
•
Open the windows at least 1 in
(2.5 cm).
• Set your climate control to outside air.
ENGINE BLOCK HEATER
(If
Equipped) WARNINGS
Failure to follow engine block heater
instructions could result in property
damage or serious personal injury.
Do not use your heater with
ungrounded electrical systems or
two-pronged adapters. There is a risk
of electrical shock. Do not fully close the hood, or allow
it to drop under its own weight when
using the engine block heater. This
could damage the power cable and may
cause an electrical short resulting in fire,
injury and property damage. Note:
The heater is most effective when
outdoor temperatures are below 0°F
(-18°C).
The heater acts as a starting aid by
warming the engine coolant. This allows
the climate control system to respond
quickly. The equipment includes a heater
element (installed in the engine block) and
a wire harness. You can connect the
system to a grounded 120-volt AC
electrical source. We recommend that you do the following
for a safe and correct operation:
•
Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter ’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.
• Use as short an extension cord as
possible.
• Do not use multiple extension cords.
• Make sure that when in operation, the
extension cord plug and heater cord
plug connections are free and clear of
water. This could cause an electric
shock or fire.
• Make sure your vehicle is parked in a
clean area, clear of combustibles.
• Make sure the heater, heater cord and
extension cord are firmly connected.
• Check for heat anywhere in the
electrical hookup once the system has
been operating for approximately 30
minutes.
• Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.
• Make sure the heater system is
checked for proper operation before
winter.
Using the Engine Block Heater
Make sure the receptacle terminals are
clean and dry prior to use. Clean them with
a dry cloth if necessary.
99
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Starting and Stopping the Engine
Page 180 of 350

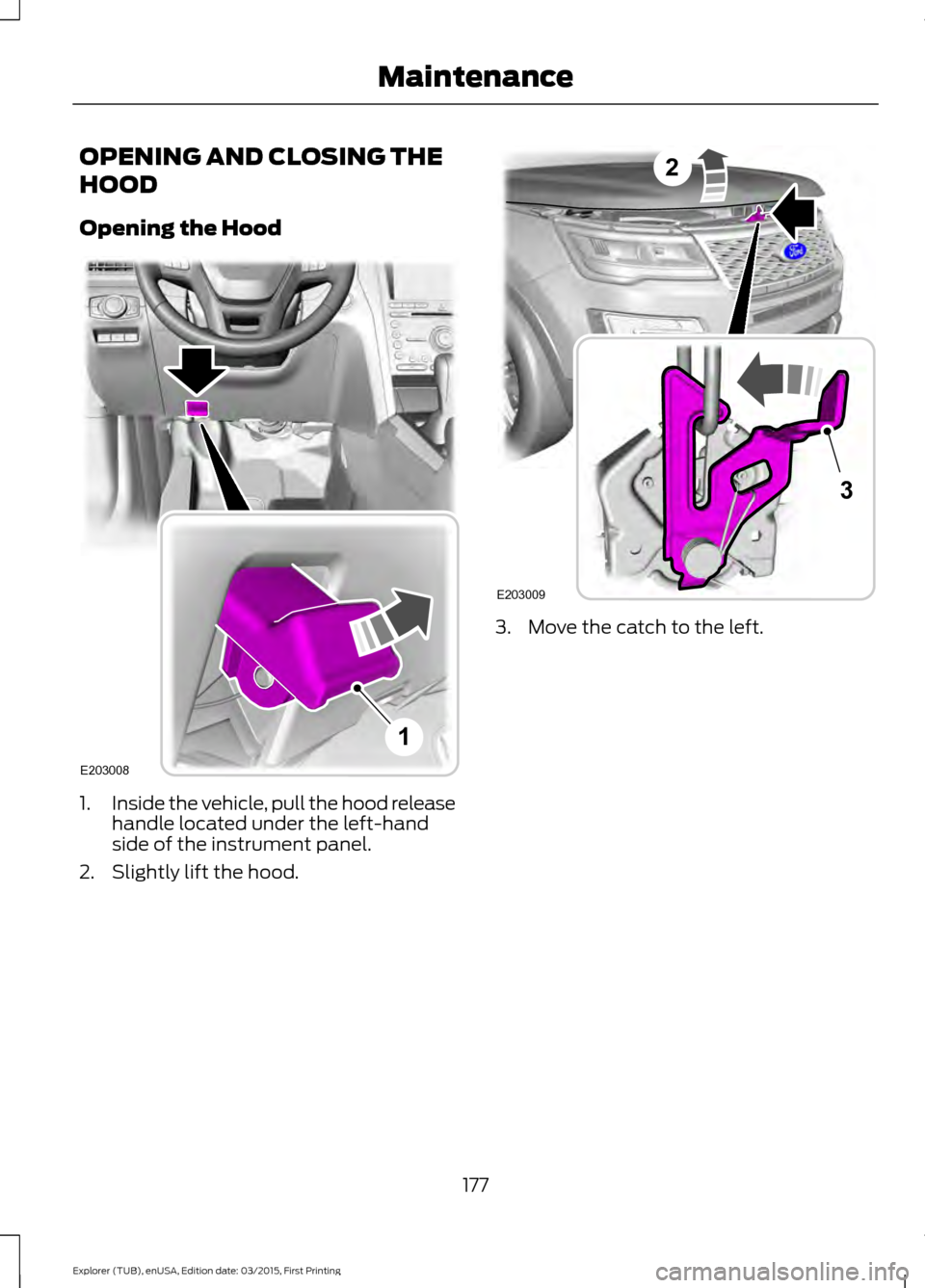

OPENING AND CLOSING THE
HOOD
Opening the Hood
1.
Inside the vehicle, pull the hood release
handle located under the left-hand
side of the instrument panel.
2. Slightly lift the hood. 3. Move the catch to the left.
177
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing MaintenanceE203008
1 2
E203009
3
Page 181 of 350

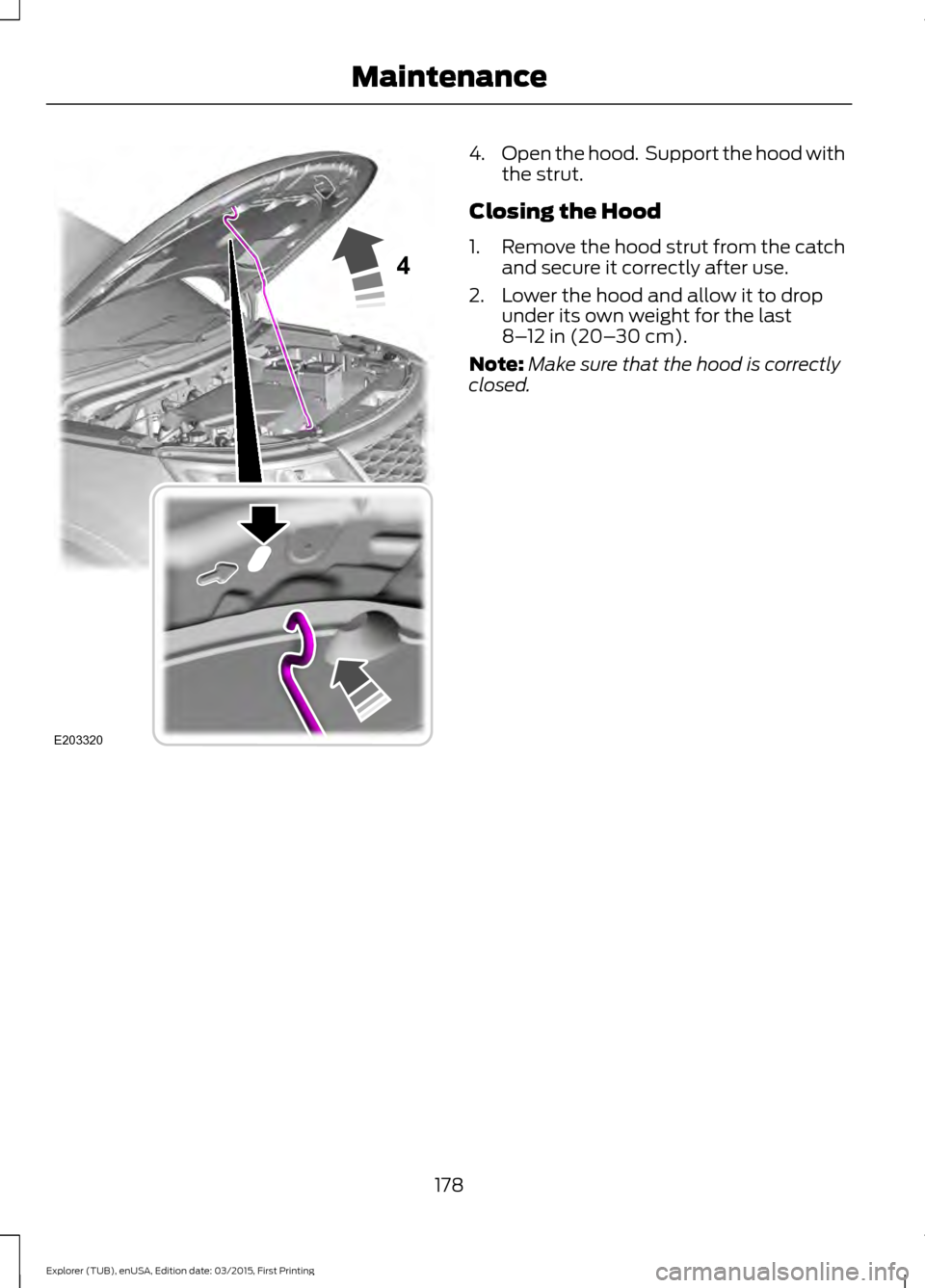

4.
Open the hood. Support the hood with
the strut.
Closing the Hood
1. Remove the hood strut from the catch
and secure it correctly after use.
2. Lower the hood and allow it to drop under its own weight for the last
8–12 in (20– 30 cm).
Note: Make sure that the hood is correctly
closed.
178
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Maintenance4
E203320
Page 193 of 350
1. Remove the wiper blade.
2. Install in the reverse order.
Note:
Make sure that the wiper blade locks
into place.
ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer. 8 ft (2.4 m)
A
Ground to the center of the
headlamp high beam bulb
B
25 ft (7.6 m)
C
Horizontal reference line
D
Vertical Aim Adjustment Procedure
1. Park your vehicle on level ground approximately 25 ft (7.6 m) from a wall
or screen.
2. Measure the distance from the ground
to the center of the headlamp high
beam bulb and mark an 8 ft (2.4 m)
long horizontal reference line on the
wall or screen at this height.
Note: There may be an identifying mark on
the lens to help you locate the center line
of the headlamp high beam bulb. Refer to
the graphic below step 4.
Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.
3. Switch on the low beam headlamps and open the hood.
190
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing MaintenanceE183236 E142592
Page 342 of 350
A
A/C
See: Climate Control.......................................... 86
About This Manual...........................................5
ABS See: Brakes............................................................ 119
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 119
Accessories See: Replacement Parts
Recommendation.............................................. 9
Adjusting the Headlamps.........................190
Vertical Aim Adjustment................................. 190
Adjusting the Pedals
.....................................55
Adjusting the Steering Wheel....................53
Airbag Disposal...............................................45
Air Conditioning See: Climate Control.......................................... 86
Alarm See: Anti-Theft Alarm........................................ 52
All-Wheel Drive...............................................112
Anti-Theft Alarm
............................................52
Alarm System........................................................ 52
Arming the Alarm................................................. 52
Disarming the Alarm........................................... 52
Triggering the Alarm............................................ 52
Appendices.....................................................316
Audible Warnings and Indicators
...............71
Automatic Transmission Warning
Chime................................................................... 72
Headlamps On Warning Chime....................... 71
Key in Ignition Warning Chime.......................... 71
Parking Brake On Warning Chime................... 71
Audio Control
...................................................53
Seek and Media.................................................... 53
Audio System................................................247 General Information.......................................... 247
Audio Unit - Vehicles With: AM/FM/CD/ SYNC.............................................................248
Autolamps........................................................59 Windshield Wiper Activated
Headlamps........................................................ 60Automatic Transmission............................110
If Your Vehicle Gets Stuck In Mud or
Snow................................................................... 110
Understanding the Positions of Your Automatic Transmission............................. 110
Automatic Transmission Fluid Check - 3.5L Ecoboost™........................................185
Adding Transmission Fluid............................. 186
Checking the Transmission Fluid Level................................................................... 185
Auxiliary Power Points
.................................95
12 Volt DC Power Point....................................... 95
Locations................................................................. 95
AWD See: All-Wheel Drive........................................... 112
B
Blind Spot Information System
................131
Using the System................................................. 131
Bonnet Lock See: Opening and Closing the Hood............177
Booster Seats
..................................................20
Types of Booster Seats....................................... 21
Brake Fluid Check........................................186
Brakes................................................................119 General Information........................................... 119
Breaking-In......................................................153
Bulb Specification Chart
...........................195
C
Cabin Air Filter.................................................89
California Proposition 65...............................9
Capacities and Specifications - 3.5L Ecoboost™.................................................238
Specifications..................................................... 239
Capacities and Specifications - 3.7L.................................................................242
Specifications..................................................... 243
Capacities and Specifications................233
Car Wash See: Cleaning the Exterior............................... 198
Center Console
...............................................96
Center Console..................................................... 96
Console Mounting Plates.................................. 96
Universal Top Tray............................................... 96
339
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Index
Page 345 of 350
Head Restraints..............................................90
Adjusting the Head Restraint........................... 91
Tilting Head Restraints ...................................... 91
Heated Windows and Mirrors...................88 Heated Exterior Mirror........................................ 88
Heated Rear Window......................................... 88
Heating See: Climate Control.......................................... 86
Hints on Controlling the Interior Climate
............................................................87
Cooling the Interior Quickly.............................. 87
General Hints......................................................... 87
Heating the Interior Quickly.............................. 87
Maximum Cooling Performance in Instrument Panel or Instrument Panel
and Footwell Positions................................. 88
Recommended Settings for Cooling ...........88
Recommended Settings for Heating............87
Side Window Defogging in Cold Weather.............................................................. 88
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures................................................... 88
Hints on Driving With Anti-Lock Brakes.............................................................119
Hood Lock See: Opening and Closing the Hood............177
I
Ignition Switch
.................................................97
In California (U.S. Only).............................162
Information Display Control.......................54 Information Display Control Features..........54
Information Displays.....................................73 General Information............................................ 73Information Messages..................................76
AdvanceTrac ™....................................................... 77
Alarm........................................................................\
. 77
AWD........................................................................\
... 77
Battery and Charging System.......................... 78
Blind Spot Information and Cross Traffic Alert System...................................................... 78
Brake System......................................................... 79
Doors and Locks................................................... 79
Electronic Stability Control............................... 79
Engine...................................................................... 80
Fuel........................................................................\
... 80
Keys and Intelligent Access............................. 80
Lane Keeping System.......................................... 81
Maintenance........................................................... 81
Park Aid.................................................................... 82
Park Brake............................................................... 82
Power Steering...................................................... 83
Seats........................................................................\
. 83
Starting System.................................................... 83
Tire Pressure Monitoring System................... 84
Traction Control.................................................... 84
Transmission......................................................... 84
Installing Child Seats.....................................14 Child Seats............................................................... 14
Using Lap and Shoulder Belts.......................... 15
Using Lower Anchors and Tethers for CHildren (LATCH)............................................. 17
Using Tether Straps.............................................. 19
Instrument Cluster.........................................67
Instrument Lighting Dimmer.....................60
Interior Lamps..................................................61 Dome Lamp............................................................ 61
Dome Task Lamp.................................................. 61
Front Map Lamps.................................................. 61
Rear Interior Lamp............................................... 62
Interior Mirror
...................................................65
Auto-Dimming Mirror......................................... 65
Introduction........................................................5
J
Jump Starting the Vehicle
.........................158
Connecting the Jumper Cables..................... 158
Jump Starting....................................................... 159
Preparing Your Vehicle..................................... 158
Removing the Jumper Cables........................ 159
342
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Index
