height FORD RANGER 1996 2.G Owners Manual

14
%*
[SR03534(ALL)08/95]
Shoulder Belt Height Adjustment
*
[SR03535(ALL)08/95]
Driver and right front passenger
[SR03536(R )08/95]
The driver and right front passenger shoulder belt height is
adjustable to one of four (4) positions (Regular cab model) or
five (5) positions (Super cab model).
[SR03537(R )08/95]
To adjust the belt down, push the release button on the adjuster
down and slide the adjuster down. Then release the button and
make sure the adjuster is firmly in one of the positions. To
adjust the belt up, slide the adjuster up. (You do not have to
push the release button.) Slide it up or down until the belt rests
across the middle of your shoulder.
*
[SR03540(ALL)06/95]
RWARNING
Position the shoulder belt height adjuster so that the belt
rests across the middle of your shoulder. Be sure the
shoulder belt is properly positioned on your shoulder
each time you use the belt. If the shoulder belt is off
your shoulder, on your upper arm or neck, there is a
greater risk of severe injury in a collision.
[SR03550(ALL)09/95]
NOTE: Be sure the belt is properly positioned on your
shoulder each time you use the belt.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

Safety Restraints
15
[SR03552(R )06/95]
17-1/2 pica
art:0090166-B

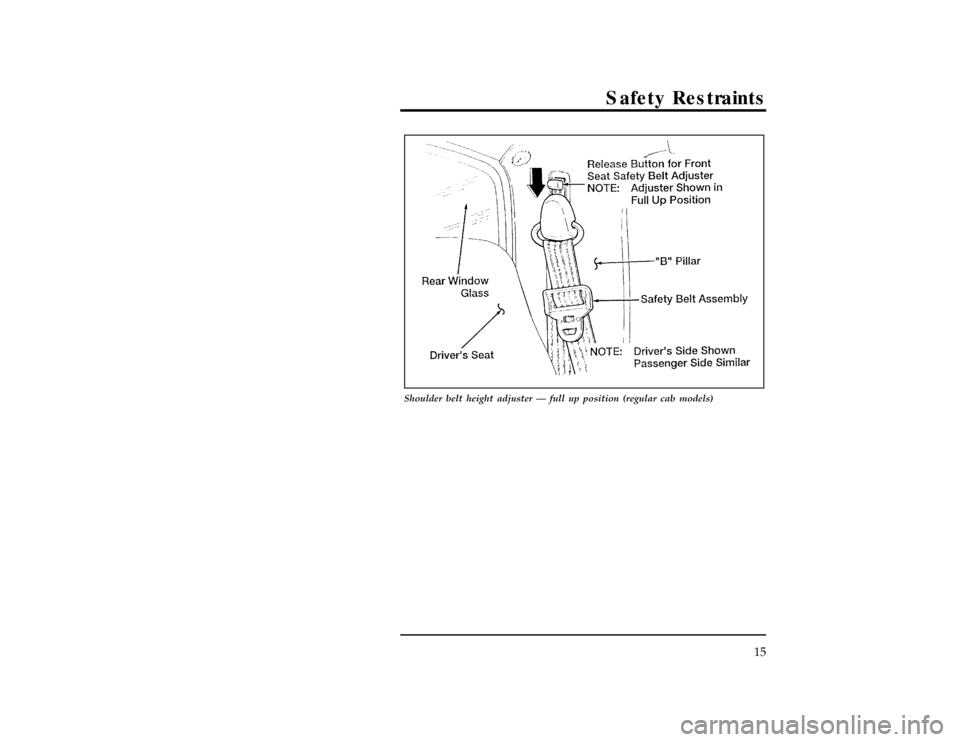

Shoulder belt height adjuster Ð full up position (regular cab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

16
[SR03554(R )06/95]
17-1/2 pica
art:0021277-A

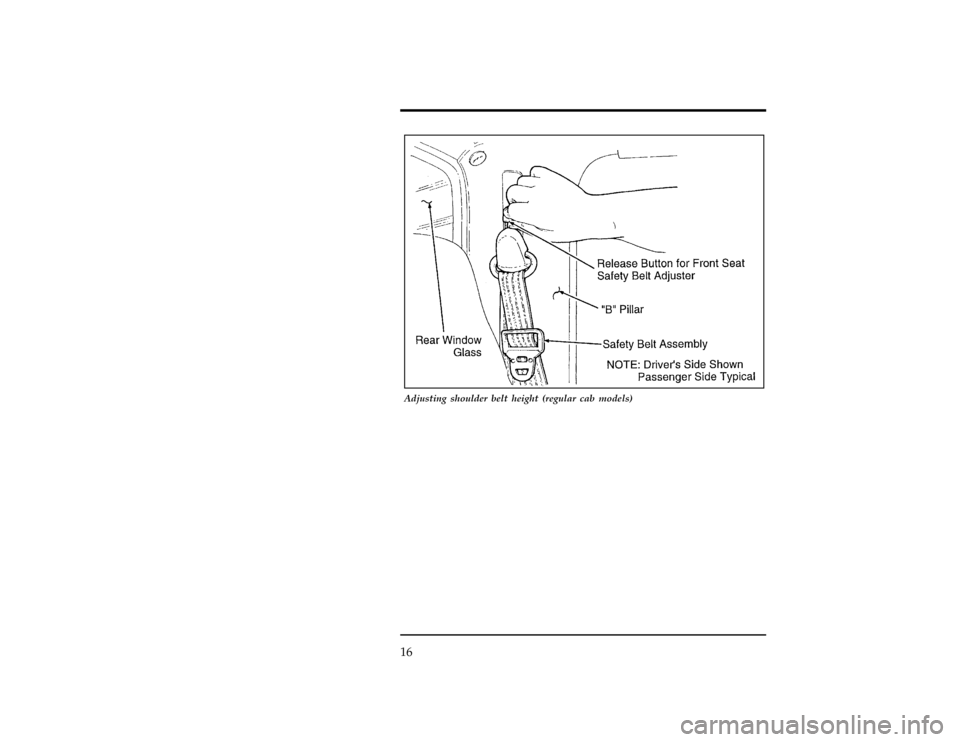

Adjusting shoulder belt height (regular cab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

Safety Restraints
17
[SR03556(R )06/95]
17-1/2 pica
art:0021278-A

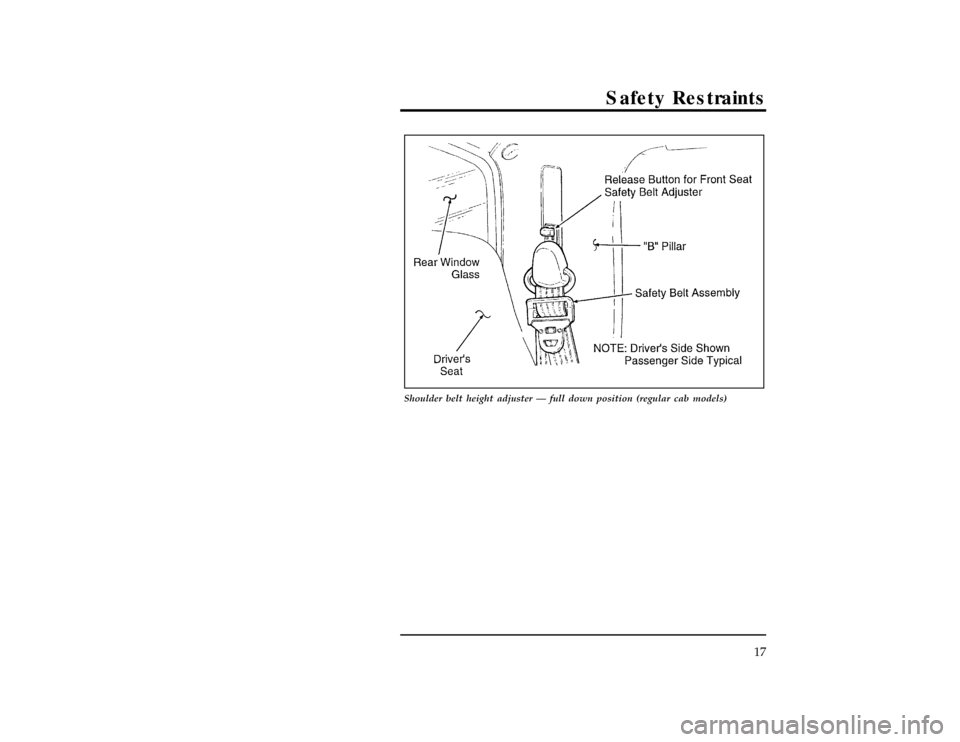

Shoulder belt height adjuster Ð full down position (regular cab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

18
[SR03558(R )06/95]
17-1/2 pica
art:0021279-B

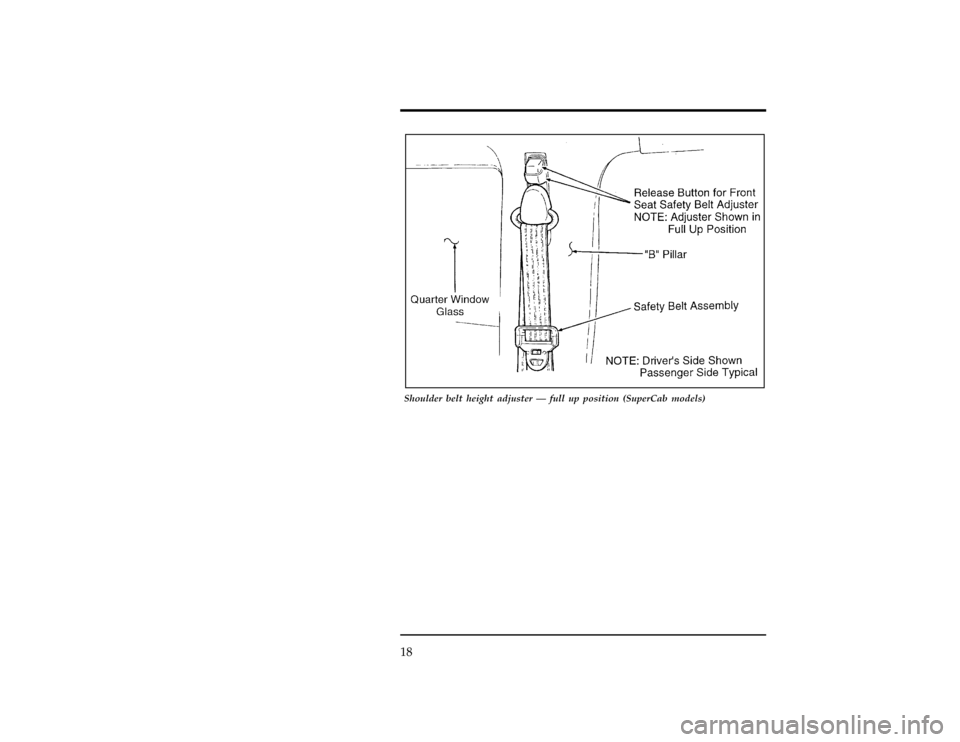

Shoulder belt height adjuster Ð full up position (SuperCab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

Safety Restraints
19
[SR03560(R )05/95]
17-1/2 pica
art:0090167-A

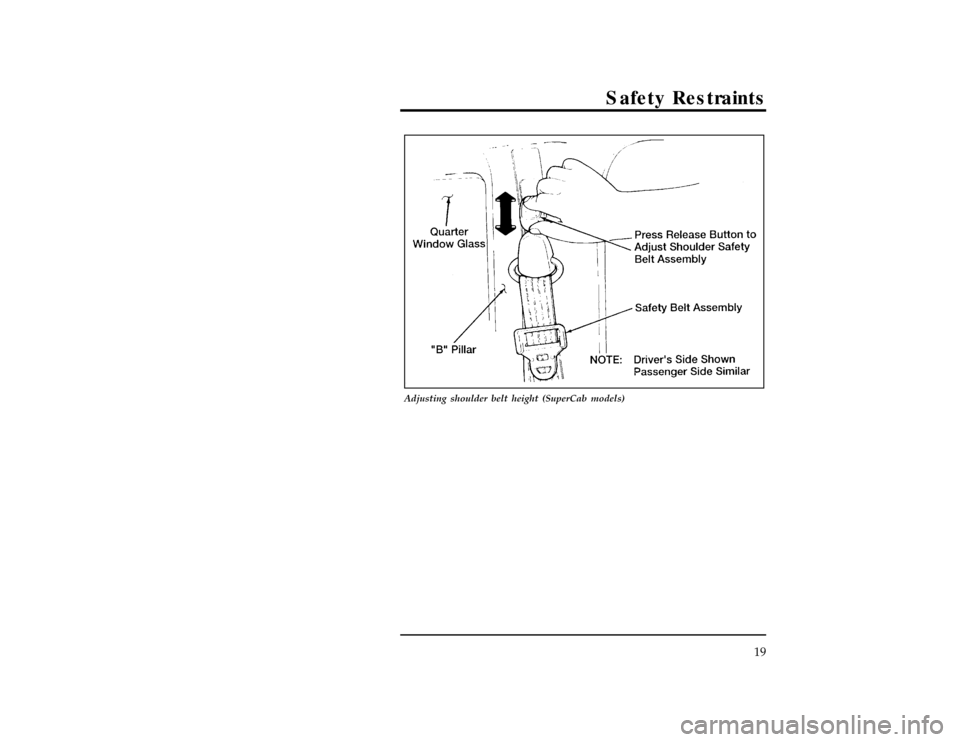

Adjusting shoulder belt height (SuperCab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

20
[SR03562(R )06/95]
17-1/2 pica
art:0021281-B

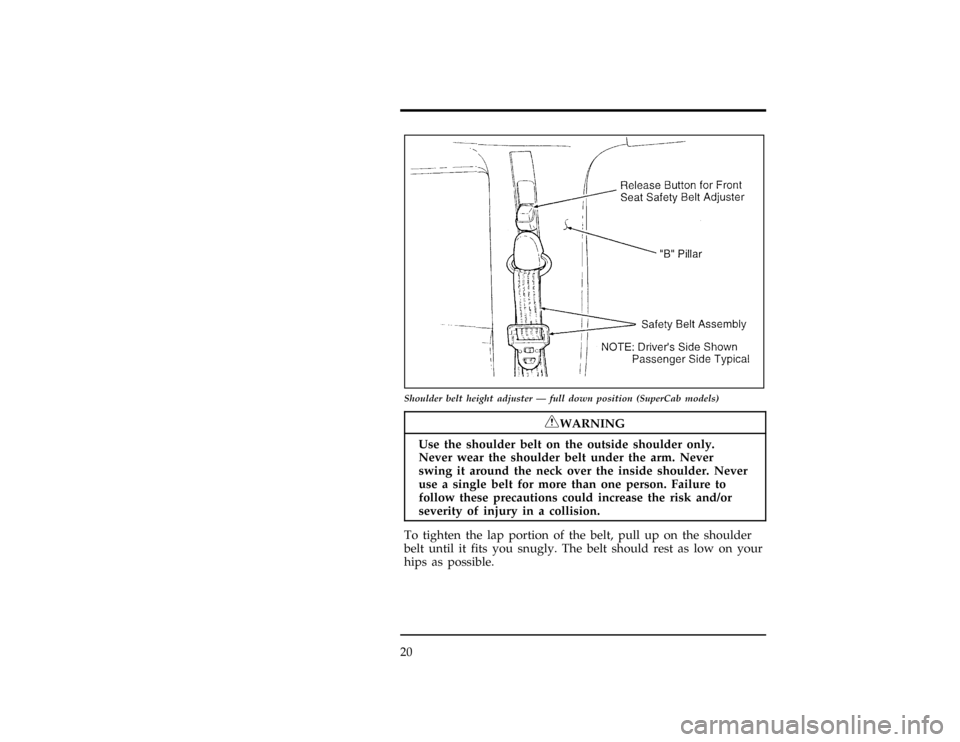

Shoulder belt height adjuster Ð full down position (SuperCab models)
*
[SR03600(ALL)05/95]
RWARNING
Use the shoulder belt on the outside shoulder only.
Never wear the shoulder belt under the arm. Never
swing it around the neck over the inside shoulder. Never
use a single belt for more than one person. Failure to
follow these precautions could increase the risk and/or
severity of injury in a collision.
*
[SR03700(ALL)05/95]
To tighten the lap portion of the belt, pull up on the shoulder
belt until it fits you snugly. The belt should rest as low on your
hips as possible.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

124
[FV59800(ALL)04/94]
17-1/2 pica
art:0020896-C

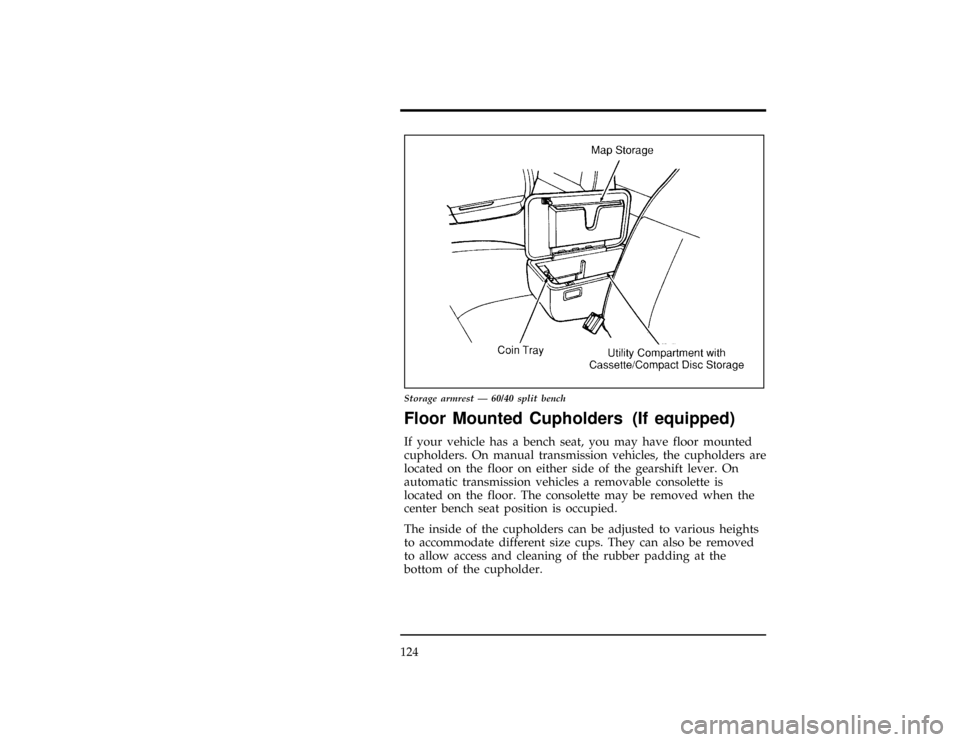

Storage armrest Ð 60/40 split bench
[FV66700(R )08/95]
Floor Mounted Cupholders (If equipped)
[FV66900(R )08/94]
If your vehicle has a bench seat, you may have floor mounted
cupholders. On manual transmission vehicles, the cupholders are
located on the floor on either side of the gearshift lever. On
automatic transmission vehicles a removable consolette is
located on the floor. The consolette may be removed when the
center bench seat position is occupied.
[FV67000(R )09/92]
The inside of the cupholders can be adjusted to various heights
to accommodate different size cups. They can also be removed
to allow access and cleaning of the rubber padding at the
bottom of the cupholder.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

Driving Your Ranger
181
%*
[DR23000(ALL)12/89]
If Brakes Do Not Grip Well or Pedal is ªLowº
%*
[DR23200(R )07/95]
If brakes do not grip well, it may indicate the rear drum brakes
need adjustment. To do this, drive the vehicle in reverse at
5 mph (8 km/h) on level, dry pavement. Stop the vehicle by
firmly applying the brakes. Repeat this procedure four or five
times.
*
[DR23250(ALL)11/89]
If during normal operation the brake pedal seems ªlowº, it may
indicate the need for a brake system inspection and/or service.
You should have your brakes checked as soon as possible.
%*
[DR23300(ALL)10/95]
Occasional brake squeal during light to moderate stops does not
affect the function of the brake system and is normal. However,
if the squeal becomes louder or more frequent, have your
brakes inspected by your dealer or a qualified service technician.
*
[DR23400(ALL)11/89]
RWARNING
Modifications to the suspension spring rates and/or
vehicle ride height may adversely affect vehicle stopping
ability.
*
[DR23500(ALL)07/92]
If Brakes Pull
*
[DR23600(ALL)05/95]
n
Check tire pressure.
*
[DR23700(R )07/95]
n
Perform the self-adjustment procedure described underIf
Brakes Do Not Grip Well or Pedal is ªLow.º
*
[DR23800(ALL)05/95]
If pull occurs during the first 500 miles (800 km), make 10
moderately fast stops from 40 mph (65 km/h) and then
perform the self-adjustment procedure above. It may be
necessary to repeat this operation to properly seat new brake
linings and pads.
