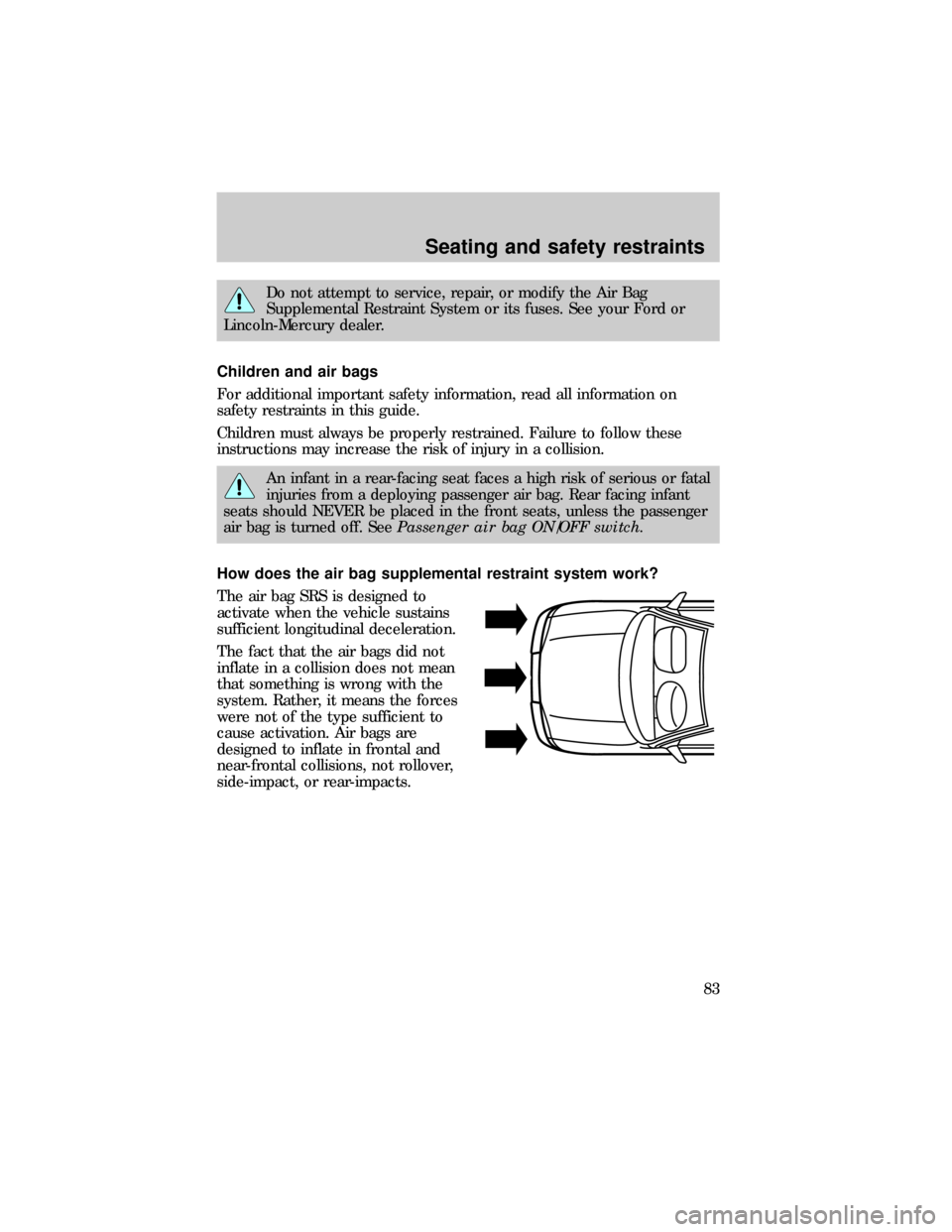

FORD RANGER 1999 2.G Owners Manual Do not attempt to service, repair, or modify the Air Bag
Supplemental Restraint System or its fuses. See your Ford or
Lincoln-Mercury dealer.
Children and air bags
For additional important safety info

Page 107 of 216

FORD RANGER 1999 2.G Owners Manual TRANSMISSION OPERATION
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift from being moved from P (Park) unless the brake pedal is
depresse

Page 134 of 216

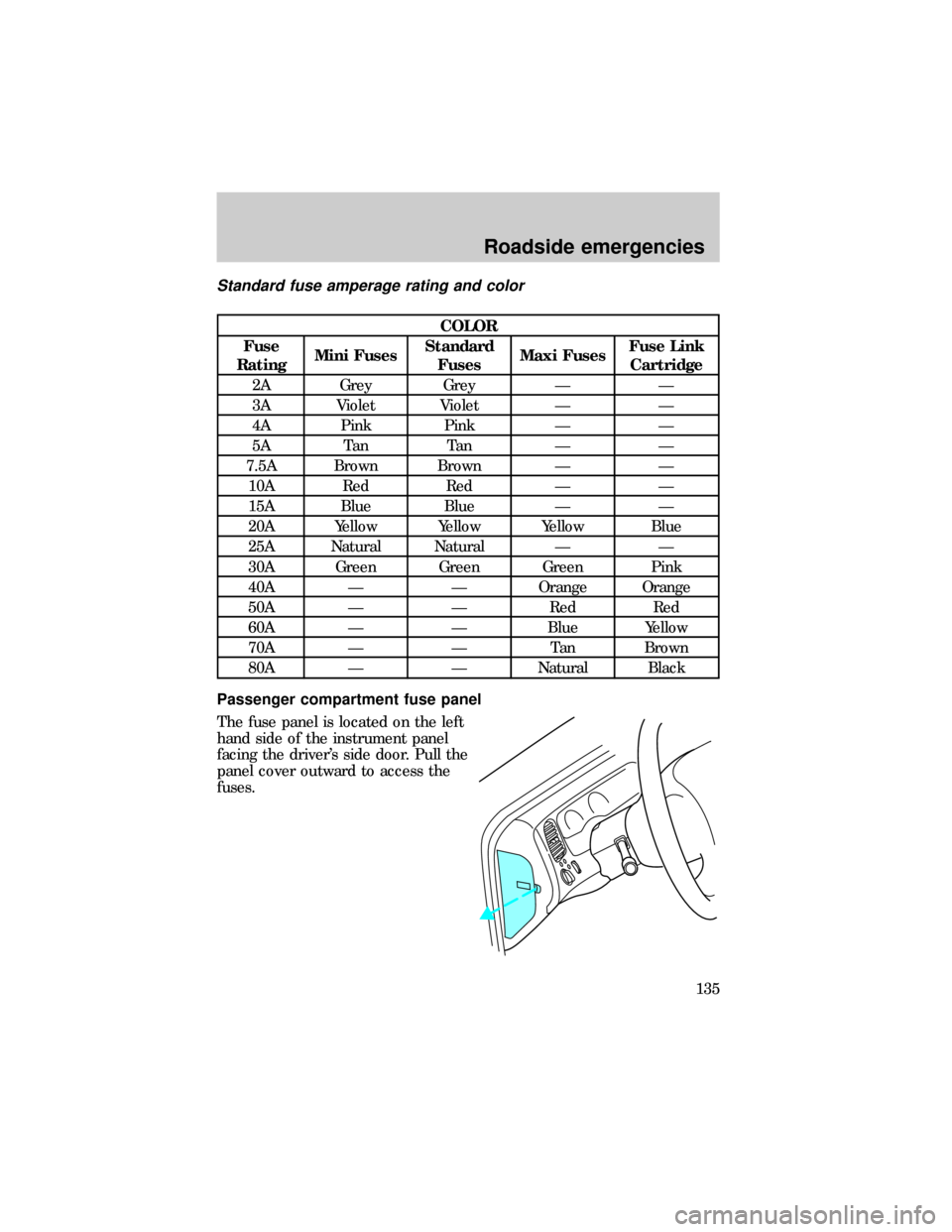

FORD RANGER 1999 2.G Owners Manual The fuel pump shut-off switch is
located in the passengers foot well,
behind the kick panel.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blo

Page 135 of 216

FORD RANGER 1999 2.G Owners Manual Standard fuse amperage rating and color
COLOR
Fuse
RatingMini FusesStandard
FusesMaxi FusesFuse Link
Cartridge
2A Grey Grey Ð Ð
3A Violet Violet Ð Ð
4A Pink Pink Ð Ð
5A Tan Tan Ð Ð
7.5A Brown

Page 136 of 216

FORD RANGER 1999 2.G Owners Manual To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingDescription
1 7.5A Power Mirror Switch
2 7.5A Blower Motor

Page 137 of 216

FORD RANGER 1999 2.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingDescription
10 7.5A Speed Control Servo/Amplifier Assembly,
Generic Electronic Module (GEM), Shift Lock
Actuator, Blend Door Actuator, A/C-Heater
Assembly, Turn Signa

Page 138 of 216

FORD RANGER 1999 2.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingDescription
27 15A Electric Shift, Backup Lamps, Daytime
Running Lamps (DRL), Transmission Control
Switch, Pulse Vacuum Hub Lock
28 7.5A Generic Electronic Module (GE

Page 139 of 216

FORD RANGER 1999 2.G Owners Manual Always replace the cover to the Power Distribution Box before
reconnecting the battery or refilling fluid reservoirs.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingDes

Page 140 of 216

FORD RANGER 1999 2.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingDescription
6 10A* Powertrain Control Module
7 30A* 4 Wheel Anti-lock Brake System (4WABS)
Module
8 30A* PCM Relay
9 20A* Fuel Pump Relay and RAP Module
10 15A* Horn

Page 211 of 216

FORD RANGER 1999 2.G Owners Manual filling your vehicle
with fuel ...........................178,180
gauge .........................................12
quality ......................................182
running out of fuel ..............
