FORD RANGER 2002 2.G Owners Manual

* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
** Two spark plugs per cylinder required (eight total).
*** If any spark plug needs to be removed for inspection, it must be
re-installed in the same cylinder. Cylinders No.1, 2 and 3 have a ªPGº
suffix. Cylinders No. 4, 5 and 6 have a ªPº suffix. If any spark plug needs
to be replaced, use only spark plugs with the service part number suffix
letters ªPPº as shown on the engine decal.
REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Engine oil
(includes filter
change)Motorcraft SAE
5W- 20 Super
Premium Motor
Oil2.3L engine 3.8L
(4.0 quarts)
3.0L V6 engine 4.3L
(4.5 quarts)
Motorcraft SAE
5W- 30 Super
Premium Motor
Oil4.0L V6 engine 4.7L
(5.0 quarts)
Brake fluid and
Clutch fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line or
step (for clutch)
on reservoir
Power steering
fluidMotorcraft
MERCONtAT FAll Fill to range on
dipstick or
reservoir
Maintenance and Specifications
271

Fluid Ford Part
NameApplication Capacity
Transmission
fluid
1Motorcraft
MERCONtAT F5-speed manual 2.65L
(2.8 quarts)3
Motorcraft
MERCONtV
AT F4x2 vehicles
with automatic
and 2.3L I4
engine9.4L
(9.9 quarts)2
4x2 vehicles
with automatic
and 3.0L or 4.0L
engines9.5L
(10.0 quarts)2
4x4 vehicles
with automatic
and 3.0L or 4.0L9.8L
(10.3 quarts)2
Engine coolant4Motorcraft
Premium Engine
Coolant
(green-colored)
orMotorcraft
Premium Gold
Engine Coolant
(yellow-colored)2.3 L I4 engine
with manual
transmission10.0L
(10.5 quarts)
2.3L I4 engine
with automatic
transmission9.7L
(10.2 quarts)
3.0L V6 engine
with manual
transmission14.3L
(15.1 quarts)
3.0L V6 engine
with automatic
transmission14.0L
(14.8 quarts)
4.0L V6 engine
with manual
transmission13.0L
(13.7 quarts)
4.0L V6 engine
with automatic
transmission12.5L
(13.2 quarts)
Maintenance and Specifications
272

Fluid Ford Part
NameApplication Capacity
Fuel tank N/A Regular cab
(Short wheel
base)62.4L
(16.5 gallons)
Regular cab
(Long wheel
base)75.7L
(20.0 gallons)
SuperCab 73.8L
(19.5 gallons)
Transfer case
FluidMotorcraft
MERCONtAT F4x4 Vehicles 1.2L
(1.25 quarts)
Front axle
lubricantMotorcraft SAE
80W-90
Premium Rear
Axle Lubricant4x4 Vehicles 1.7L
(3.6 pints)
Rear axle
lubricant
5Motorcraft SAE
80W-90
Premium Rear
Axle LubricantAll 2.4-2.5L
(5.0-5.3 pints)
Windshield
washer fluidUltra-Clear
Windshield
Washer
ConcentrateAll 2.6L
(2.75 quarts)
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONtand MERCONtV are not interchangeable. DO NOT
mix MERCONtand MERCONtV. Refer to the scheduled maintenance
guide to determine the correct service interval.
2Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick's normal operating range.
3Service refill capacity for the manual transmission is determined by
filling the transmission to the bottom of the filler hole with the vehicle
on a level surface.
Maintenance and Specifications
273

4Add the coolant type originally equipped in your vehicle.
5Traction-Lok axles use 2.2±2.4L (4.75±5.0 pints) of rear axle lubricant.
Add 118 ml (4 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118±A for complete refill
of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle 6 mm to
14 mm (1/4 inch to 9/16 inch) below the bottom of the filler hole.
LUBRICANT SPECIFICATIONS
ItemFord part
name or
equivalentFord part
numberFord
specification
Front axle
(4X4)Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Rear axleMotorcraft SAE
80W-90
Premium Rear
Axle Lubricant
1
XY-80W90-QL WSP-M2C197-A
Brake fluid and
clutch fluid (if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door weather
stripsSilicone
LubricantF7AZ-19G208-BA ESR-M13P4-A
Engine coolant Motorcraft
Premium Engine
Coolant
(green-colored)VC-4±A (US) or
CXC-10
(Canada)ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7±A WSS-M97B51-A1
Maintenance and Specifications
274

ItemFord part
name or
equivalentFord part
numberFord
specification
Engine oil2.3L and 3.0L
engines
Motorcraft SAE
5W-20 Super
Premium Motor
OilXO-5W20-QSP WSS-M2C153-H
and API
Certification
Mark
4.0L engines
Motorcraft SAE
5W-30 Super
Premium Motor
OilXO-5W30-QSP WSS-M2C205±A
and API
Certification
Mark
Hinges, door
checks, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4 or
F5AZ-19G209-AAESB-M1C159-A
Transmission
/steering/parking
brake linkages
and pivots,
brake and clutch
pedal shaft,
clutch pilot
bearing and.
input shaft
spline (manual
transmission)Motorcraft
Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Maintenance and Specifications
275

ItemFord part
name or
equivalentFord part
numberFord
specification
Power steering
fluid, transfer
case fluid (4X4)
and transmission
fluid (manual)Motorcraft
MERCONtAT FXT-2-QDX MERCONt
Automatic
transmission
(5R44E and
5R55E)Motorcraft
MERCONtV
AT F
2
XT-5-QM MERCONtV
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
1Add 118 ml (4 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118±A for complete refill
of Traction-Lok axles.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONtand MERCONtV are not interchangeable. DO NOT
mix MERCONtand MERCONtV. Refer to your scheduled maintenance
guide to determine the correct service interval.
ENGINE DATA
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap1.04-1.19 mm
(0.041-0.047
inch)1.07-1.1 7mm
(0.042-0.046
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition system EDIS EDIS EDIS
Compression
ratio9.7:19.7:1 9.0:1
Maintenance and Specifications
276

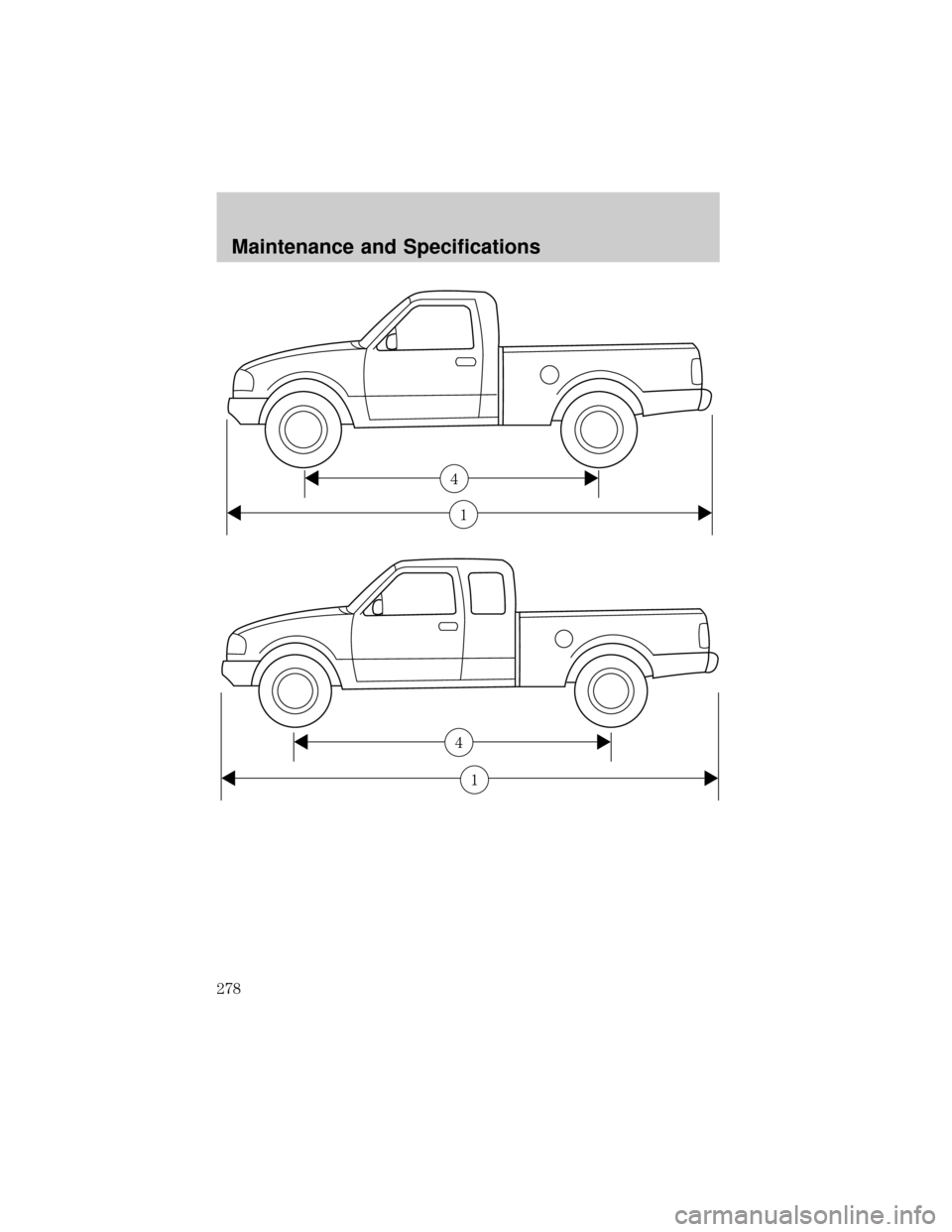

VEHICLE DIMENSIONS
Vehicle
dimensionsRegular Cab
Short Wheel
Base (SWB) mm
(in)Regular Cab
Long Wheel
Base (LWB)
mm (in)Supercab mm
(in)
(1) Overall
length4 763 (187.5) 5 093 (200.5) 5 153 (202.9)
(2) Overall
width1 785 (70.3) 1 785 (70.3) 1 785 (70.3)
(3) Overall
height 4x2/4x41 593.5 (62.7) /
1 655 (65.2)1 596 (62.8) /
1 655 (65.2)1 599 (62.9) /
1 657 (65.2)
(4) Wheelbase 2 831 (111.4) 2 983 (117.4) 3 192 (125.7)
(5) Track -
Front1 486 (58.5) 1 486 (58.5) 1 485 (58.5)
(5) Track -
Rear1 455 (57.3) 1 455 (57.3) 1 455 (57.3)
2
5
3
Maintenance and Specifications
277

1
4
1
4
Maintenance and Specifications
278

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver's side.
Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
279

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford, Lincoln Mercury or Ford of
Canada dealer. These quality accessories have been specifically
engineered to fulfill your automotive needs; they are custom designed to
complement the style and aerodynamic appearance of your vehicle. In
addition, each accessory is made from high quality materials and meets
or exceeds Ford's rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
²12 months or 20 000 km (12 000 miles) (whichever occurs first), or
²The remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle's Limited Warranty Ð 3 years or 60 000 km (36 000 miles)
(whichever occurs first). Contact your dealer for details and a copy of
the warranty.
Not all accessories are available for all models.
Vehicle Security
Cargo security shade
Keyless entry system
Styled wheel protector locks
Vehicle security systems
Comfort and convenience
Air conditioning
Cargo cage / bed extender
Cargo organizers
Cargo retainer net
Engine block heaters
Manual sliding rear window
Remote start
Accessories
