snow chains FORD RANGER 2002 2.G Owners Manual
[x] Cancel search | Manufacturer: FORD, Model Year: 2002, Model line: RANGER, Model: FORD RANGER 2002 2.GPages: 288, PDF Size: 3.03 MB
Page 269 of 288

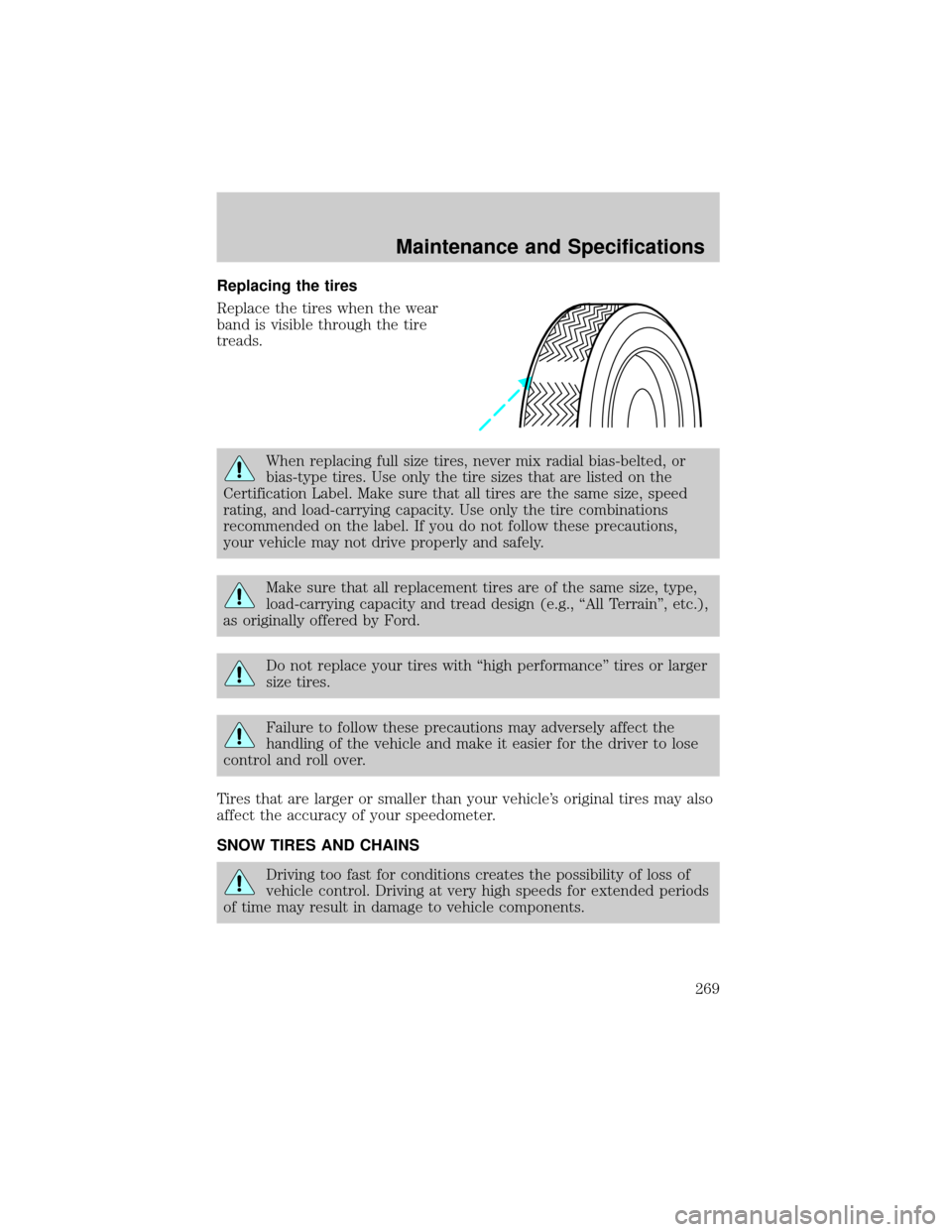

Replacing the tires
Replace the tires when the wear
band is visible through the tire
treads.
When replacing full size tires, never mix radial bias-belted, or
bias-type tires. Use only the tire sizes that are listed on the
Certification Label. Make sure that all tires are the same size, speed
rating, and load-carrying capacity. Use only the tire combinations
recommended on the label. If you do not follow these precautions,
your vehicle may not drive properly and safely.
Make sure that all replacement tires are of the same size, type,
load-carrying capacity and tread design (e.g., ªAll Terrainº, etc.),
as originally offered by Ford.
Do not replace your tires with ªhigh performanceº tires or larger
size tires.
Failure to follow these precautions may adversely affect the
handling of the vehicle and make it easier for the driver to lose
control and roll over.
Tires that are larger or smaller than your vehicle's original tires may also
affect the accuracy of your speedometer.
SNOW TIRES AND CHAINS
Driving too fast for conditions creates the possibility of loss of
vehicle control. Driving at very high speeds for extended periods
of time may result in damage to vehicle components.
Maintenance and Specifications
269
Page 270 of 288

Snow tires must be the same size and grade as the tires you
currently have on your vehicle.
The tires on your vehicle have all weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use snow tires and chains, it is
recommended that steel wheels are used of the same size and
specifications as those originally installed.
Follow these guidelines when using snow tires and chains:
²Do not use tire chains on aluminum wheels. Chains may chip the
wheels.
²Use only SAE Class S chains.
²Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
²Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and re-tighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
²If possible, avoid fully loading your vehicle.
²Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
²The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when
using snow tires and chains.
MOTORCRAFT PART NUMBERS
Component 2.3L I4
engine3.0L V6 engine 4.0L V6 engine
Air filter
elementFA-1658 FA-1658 FA-1658
FA1665
(FX4 only)
Fuel filter FG±1002 FG±1002 FG±1002
Battery BXT-59 BXT-59 BXT-59
Oil filter FL-400S FL-400S FL-820S
PCV valve EV-227 EV-130 EV-225
Spark plugs*
AWSF-32FEM**AWSF-32PP*** AGSF-34FP
Maintenance and Specifications
270
Page 288 of 288

Specification chart,
lubricants ...........................274, 276
Speed control ..............................87
Speedometer ...............................17
Starting your
vehicle ........................144±145, 147
jump starting ..........................206
Steering wheel
controls ................................84, 87
tilting .........................................84
T
Tachometer .................................17
Temperature control
(see Climate control) .................68
Tires ...........................200, 266±267
changing ..................200±201, 204
checking the pressure ............267
replacing ..................................269
rotating ....................................268
snow tires and chains ............269
tire grades ...............................267
treadwear ................................266
Tonneau cover .............................95
Towing .......................................175
recreational towing .................185
trailer towing ..........................175
wrecker ....................................211
Traction-lok rear axle ...............151
Transfer case
fluid checking .........................265
Transmission
automatic operation ...............153
fluid, checking and adding
(automatic) .............................261fluid, checking and adding
(manual) .................................264
fluid, refill capacities ..............271
lubricant specifications ..274, 276
manual operation ....................157
Trip odometer .............................17
Trunk .........................................100
Turn signal ............................13, 75
V
Vehicle dimensions ...................277
Vehicle Identification Number
(VIN) ..........................................279
Vehicle loading ..........................173
camper bodies ........................186
Ventilating your vehicle ...........148
W
Warning chimes ...........................14
Warning lights (see Lights) .......10
Washer fluid ..............................235
Water, Driving through .............173
Windows
power .........................................86
Windshield washer fluid and
wipers
checking and adding fluid .....235
checking and cleaning ..............83
operation ...................................83
replacing wiper blades .............84
Wrecker towing .........................211
Index
288
