check engine light FORD RANGER 2005 2.G User Guide

Board Diagnostics System (OBD-II). This OBD-II system protects the
environment by ensuring that your vehicle continues to meet
government emission standards. The OBD-II system also assists the
service technician in properly servicing your vehicle. When theCheck
enginelight illuminates, the OBD-II system has detected a malfunction.
Temporary malfunctions may cause yourCheck enginelight to
illuminate. Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run
poorly.)
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been securely tightened. In which case, the
fuel filler cap light will also be illuminated.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel and/or properly tightening the fuel cap. After three
driving cycles without these or any other temporary malfunctions
present, theCheck enginelight should turn off. (A driving cycle consists
of a cold engine startup followed by mixed city/highway driving.) No
additional vehicle service is required.
If theCheck enginelight remains on, have your vehicle serviced at the
first available opportunity.
Readiness for Inspection/Maintenance (I/M) testing
In some localities, it may be a legal requirement to pass an I/M test of
the on-board diagnostics system. If yourCheck engine/Service engine
soonlight is on, refer to the description in theWarning lights and
chimessection of theInstrument Clusterchapter. Your vehicle may not
pass the I/M test with theCheck engine/Service engine soonlight on.
If the vehicle’s powertrain system or its battery has just been serviced,
the on-board diagnostics system is reset to a“not ready for I/M test”
condition. To ready the on-board diagnostics system for I/M testing, a
minimum of 30 minutes of city and highway driving is necessary as
described below:
•First, at least 10 minutes of driving on an expressway or highway.
•Next, at least 20 minutes driving in stop-and-go, city-type traffic with
at least four idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete.
REVIEW COPY
2005 Ranger(ran), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
225

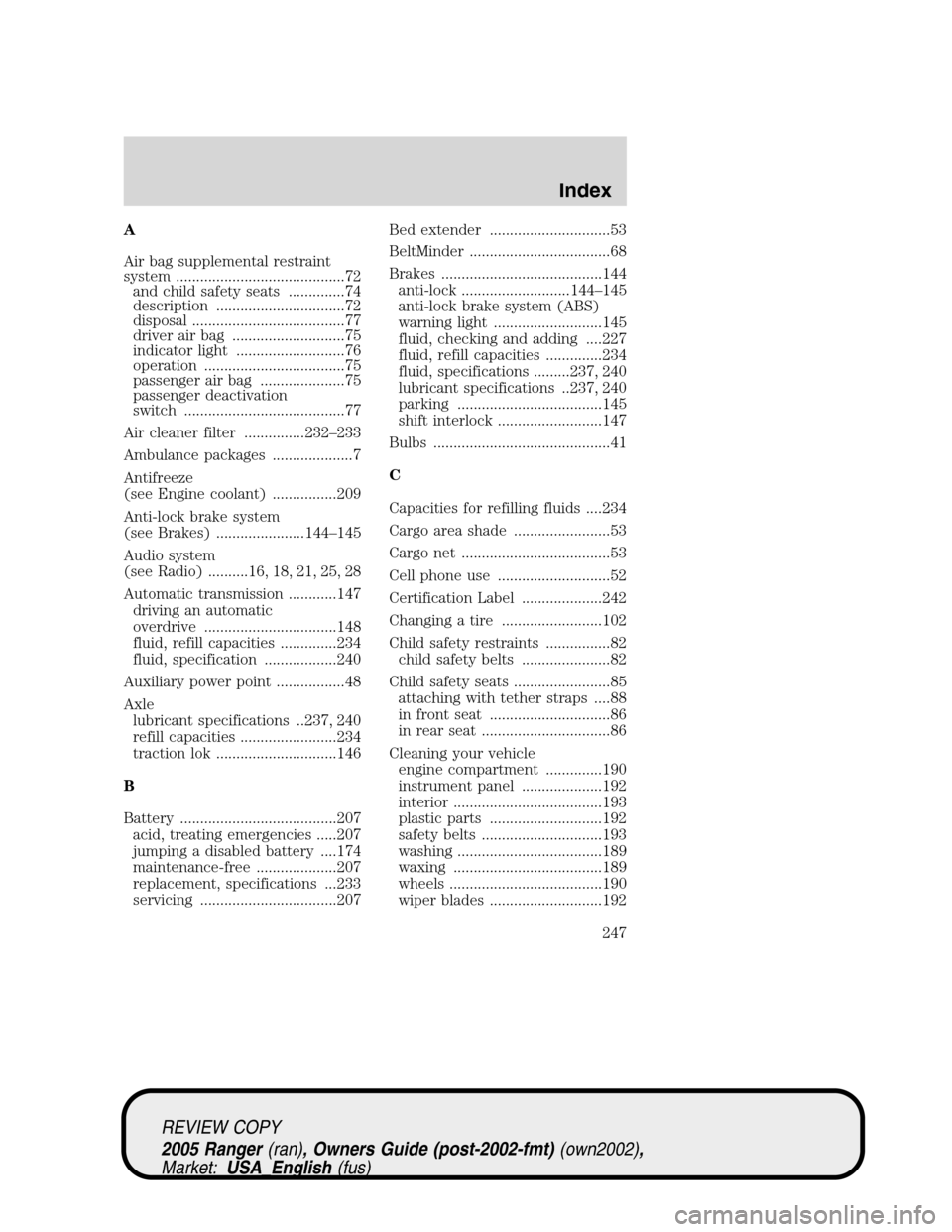

A
Air bag supplemental restraint
system ..........................................72
and child safety seats ..............74
description ................................72
disposal ......................................77
driver air bag ............................75
indicator light ...........................76
operation ...................................75
passenger air bag .....................75
passenger deactivation
switch ........................................77
Air cleaner filter ...............232–233
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................209
Anti-lock brake system
(see Brakes) ......................144–145
Audio system
(see Radio) ..........16, 18, 21, 25, 28
Automatic transmission ............147
driving an automatic
overdrive .................................148
fluid, refill capacities ..............234
fluid, specification ..................240
Auxiliary power point .................48
Axle
lubricant specifications ..237, 240
refill capacities ........................234
traction lok ..............................146
B
Battery .......................................207
acid, treating emergencies .....207
jumping a disabled battery ....174
maintenance-free ....................207
replacement, specifications ...233
servicing ..................................207Bed extender ..............................53
BeltMinder ...................................68
Brakes ........................................144
anti-lock ...........................144–145
anti-lock brake system (ABS)
warning light ...........................145
fluid, checking and adding ....227
fluid, refill capacities ..............234
fluid, specifications .........237, 240
lubricant specifications ..237, 240
parking ....................................145
shift interlock ..........................147
Bulbs ............................................41
C
Capacities for refilling fluids ....234
Cargo area shade ........................53
Cargo net .....................................53
Cell phone use ............................52
Certification Label ....................242
Changing a tire .........................102
Child safety restraints ................82
child safety belts ......................82
Child safety seats ........................85
attaching with tether straps ....88
in front seat ..............................86
in rear seat ................................86
Cleaning your vehicle
engine compartment ..............190
instrument panel ....................192
interior .....................................193
plastic parts ............................192
safety belts ..............................193
washing ....................................189
waxing .....................................189
wheels ......................................190
wiper blades ............................192
REVIEW COPY
2005 Ranger(ran), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
Index
247

L
Lamps
bulb replacement
specifications chart ..................41
daytime running light ...............37
fog lamps ...................................37
headlamps .................................37
headlamps, flash to pass ..........38
instrument panel, dimming .....38
interior lamps .....................41–42
replacing bulbs ....... 41–43, 45–46
Lane change indicator
(see Turn signal) ........................40
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........145
Load limits .................................124
Loading instructions .................128
Lubricant specifications ...237, 240
Lug nuts ....................................109
Lumbar support, seats ...............60
M
Manual transmission .................150
fluid capacities ........................234
lubricant specifications ..........240
reverse .....................................152
Mirrors
fold away ...................................50
side view mirrors (power) .......49
Motorcraft parts ................220, 233
O
Octane rating ............................219
Oil (see Engine oil) ..................201
P
Parking brake ............................145Parts (see Motorcraft parts) ....233
Power distribution box
(see Fuses) ...............................168
Power door locks ........................55
Power mirrors .............................49
Power point .................................48
Power steering ..........................146
fluid, checking and adding ....226
fluid, refill capacity ................234
fluid, specifications .........237, 240
Power Windows ...........................49
Preparing to drive your
vehicle ........................................147
R
Radio ....................16, 18, 21, 25, 28
CD-MP3 .....................................29
Relays ........................................164
Remote entry system .................56
illuminated entry ......................58
locking/unlocking doors .....55–56
Roadside assistance ..................162
S
Safety Belt Maintenance ............71
Safety belts (see Safety
restraints) ........................61, 63–65
Safety defects, reporting ..........188
Safety restraints ..............61, 63–65
belt minder ...............................68
extension assembly ..................67
for adults .............................63–65
for children .........................81–82
lap belt ......................................66
safety belt maintenance ...........71
warning light and chime ....67–68
REVIEW COPY
2005 Ranger(ran), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
250
