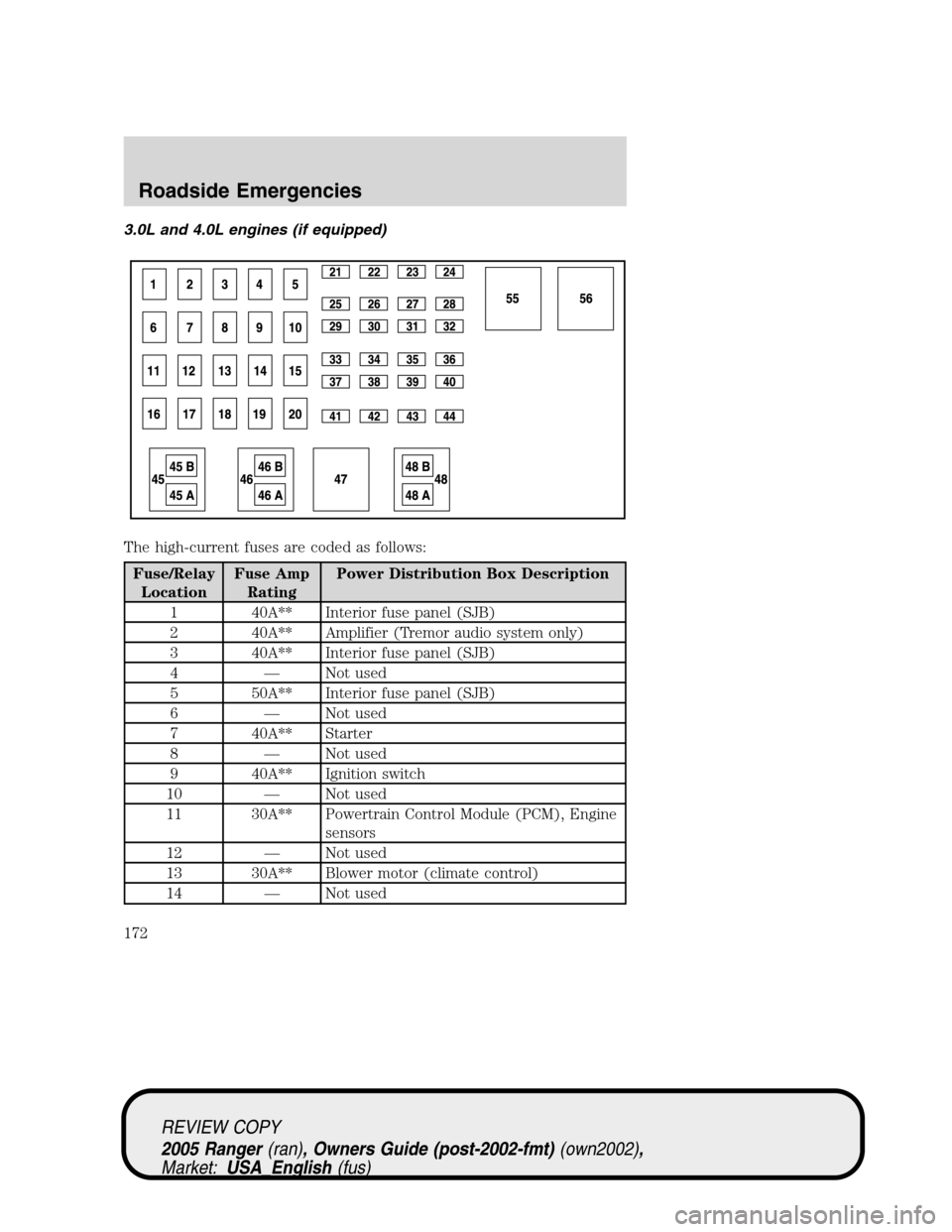

3.0L and 4.0L engines (if equipped)
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 40A** Interior fuse panel (SJB)
2 40A** Amplifier (Tremor audio system only)
3 40A** Interior fuse panel (SJB)
4—Not used
5 50A** Interior fuse panel (SJB)
6—Not used
7 40A** Starter
8—Not used
9 40A** Ignition switch
10—Not used
11 30A** Powertrain Control Module (PCM), Engine
sensors
12—Not used
13 30A** Blower motor (climate control)
14—Not used
REVIEW COPY
2005 Ranger(ran), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
172

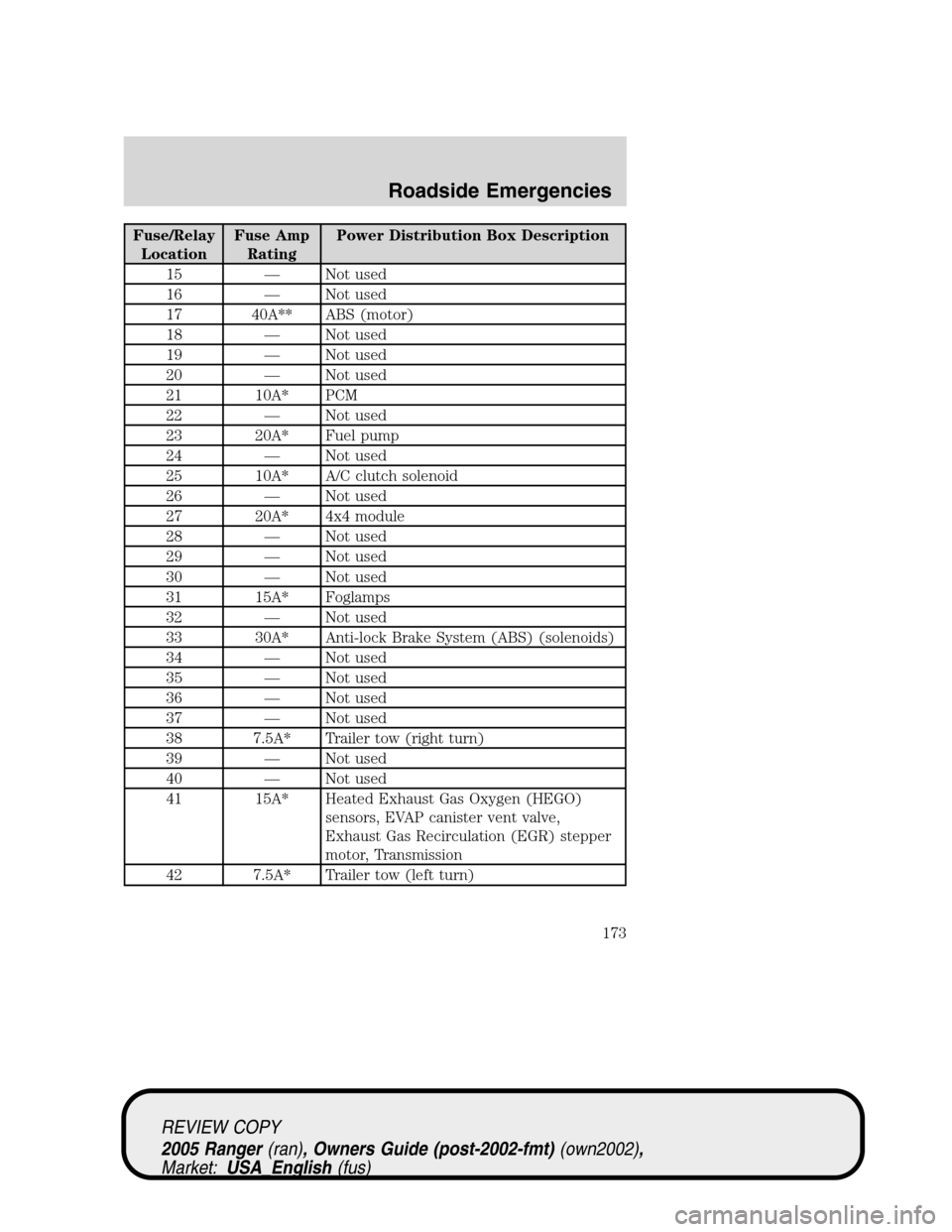

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
15—Not used
16—Not used
17 40A** ABS (motor)
18—Not used
19—Not used
20—Not used
21 10A* PCM
22—Not used
23 20A* Fuel pump
24—Not used
25 10A* A/C clutch solenoid
26—Not used
27 20A* 4x4 module
28—Not used
29—Not used
30—Not used
31 15A* Foglamps
32—Not used
33 30A* Anti-lock Brake System (ABS) (solenoids)
34—Not used
35—Not used
36—Not used
37—Not used
38 7.5A* Trailer tow (right turn)
39—Not used
40—Not used
41 15A* Heated Exhaust Gas Oxygen (HEGO)
sensors, EVAP canister vent valve,
Exhaust Gas Recirculation (EGR) stepper
motor, Transmission
42 7.5A* Trailer tow (left turn)
