compression ratio FORD RANGER 2006 2.G Owners Manual

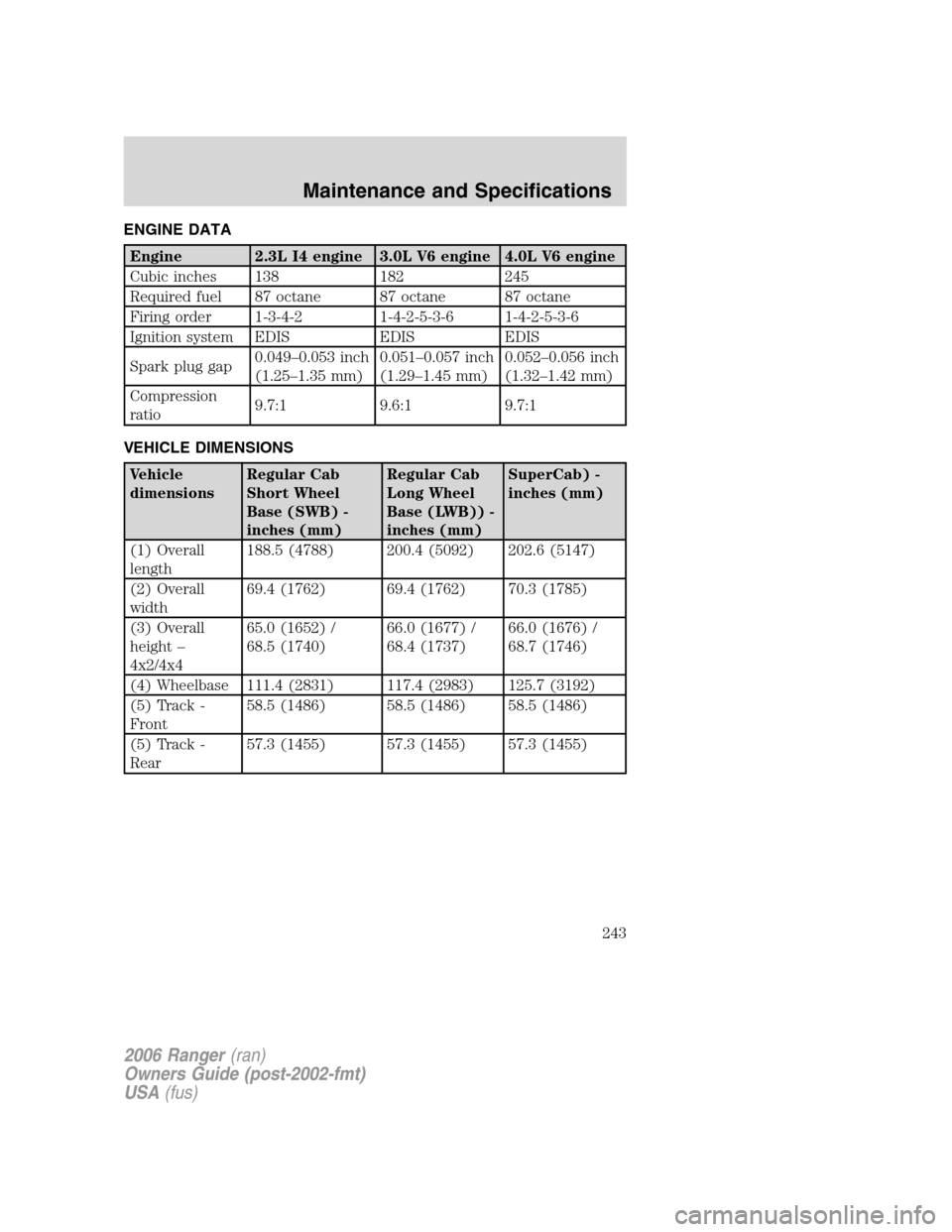

ENGINE DATA
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Ignition system EDIS EDIS EDIS
Spark plug gap0.049–0.053 inch
(1.25–1.35 mm)0.051–0.057 inch
(1.29–1.45 mm)0.052–0.056 inch
(1.32–1.42 mm)
Compression
ratio9.7:1 9.6:1 9.7:1
VEHICLE DIMENSIONS
Vehicle
dimensionsRegular Cab
Short Wheel
Base (SWB) -
inches (mm)Regular Cab
Long Wheel
Base (LWB)) -
inches (mm)SuperCab) -
inches (mm)
(1) Overall
length188.5 (4788) 200.4 (5092) 202.6 (5147)
(2) Overall
width69.4 (1762) 69.4 (1762) 70.3 (1785)
(3) Overall
height –
4x2/4x465.0 (1652) /
68.5 (1740)66.0 (1677) /
68.4 (1737)66.0 (1676) /
68.7 (1746)
(4) Wheelbase 111.4 (2831) 117.4 (2983) 125.7 (3192)
(5) Track -
Front58.5 (1486) 58.5 (1486) 58.5 (1486)
(5) Track -
Rear57.3 (1455) 57.3 (1455) 57.3 (1455)
2006 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
243
