engine FORD RANGER 2007 2.G Owners Manual

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Engine coolant (2.3L engine
with manual transmission)10.5 quarts
(10.0L)
Motorcraft Premium
Gold Engine Coolant
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant (2.3L engine
with automatic
transmission)10.2 quarts
(9.7L)
Engine coolant (3.0L engine
with manual transmission)15.1 quarts
(14.3L)
Engine coolant (3.0L engine
with automatic
transmission)14.8 quarts
(14.0L)
Engine coolant (4.0L engine
with manual transmission)13.7 quarts
(13.0L)
Engine coolant (4.0L engine
with automatic
transmission)13.2 quarts
(12.5L)
Cooling system stop leak
pellets—Motorcraft Cooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Engine oil (2.3L engine) 4.0 quarts (3.8L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
2
XO-5W20-QSP (US)
CXO-5W20-LSP12
(Canada) /
WSS-M2C930-A and
API Certification Mark Engine oil (3.0L engine) 4.5 quarts (4.3L)
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
260

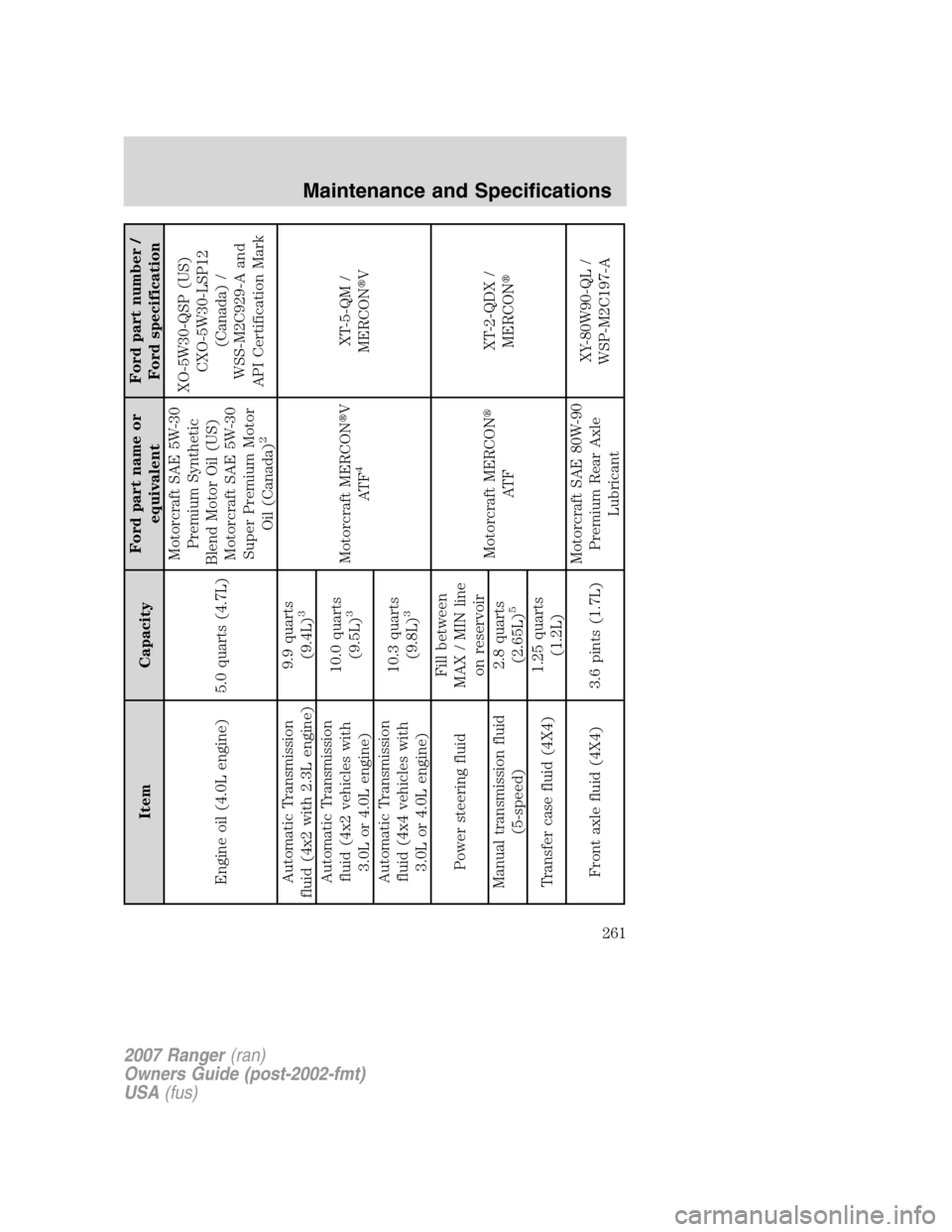

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Engine oil (4.0L engine) 5.0 quarts (4.7L)Motorcraft SAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-30
Super Premium Motor
Oil (Canada)
2
XO-5W30-QSP (US)
CXO-5W30-LSP12
(Canada) /
WSS-M2C929-A and
API Certification Mark
Automatic Transmission
fluid (4x2 with 2.3L engine)9.9 quarts
(9.4L)
3
Motorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V Automatic Transmission
fluid (4x2 vehicles with
3.0L or 4.0L engine)10.0 quarts
(9.5L)
3
Automatic Transmission
fluid (4x4 vehicles with
3.0L or 4.0L engine)10.3 quarts
(9.8L)
3
Power steering fluidFill between
MAX / MIN line
on reservoir
Motorcraft MERCON

AT FXT-2-QDX /
MERCON
Manual transmission fluid
(5-speed)2.8 quarts
(2.65L)
5
Transfer case fluid (4X4)1.25 quarts
(1.2L)
Front axle fluid (4X4) 3.6 pints (1.7L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
261

1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C929-A (4.0L) or
WSS-M2C930-A (2.3L and 3.0L).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick or on the dipstick handle. MERCON
and MERCON
V are not
interchangeable. DO NOT mix MERCON
and MERCON
V. Refer to yourscheduled maintenance
informationto determine the correct service interval.5Service refill capacity for the manual transmission is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.6Traction-Lok axles use 4.75-5.0 pints (2.2-2.4L) of rear axle lubricant.7Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6mm to
14mm) below the bottom of the filler hole.8Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok axles.
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
263

ENGINE DATA
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Ignition system EDIS EDIS EDIS
Spark plug gap0.049–0.053 inch
(1.25–1.35 mm)0.051–0.057 inch
(1.29–1.45 mm)0.052–0.056 inch
(1.32–1.42 mm)
Compression
ratio9.7:1 9.6:1 9.7:1
Engine drivebelt routing
•2.3L I4 Engine without A/C (with A/C similar)
•3.0L V6 Engine without A/C
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
264

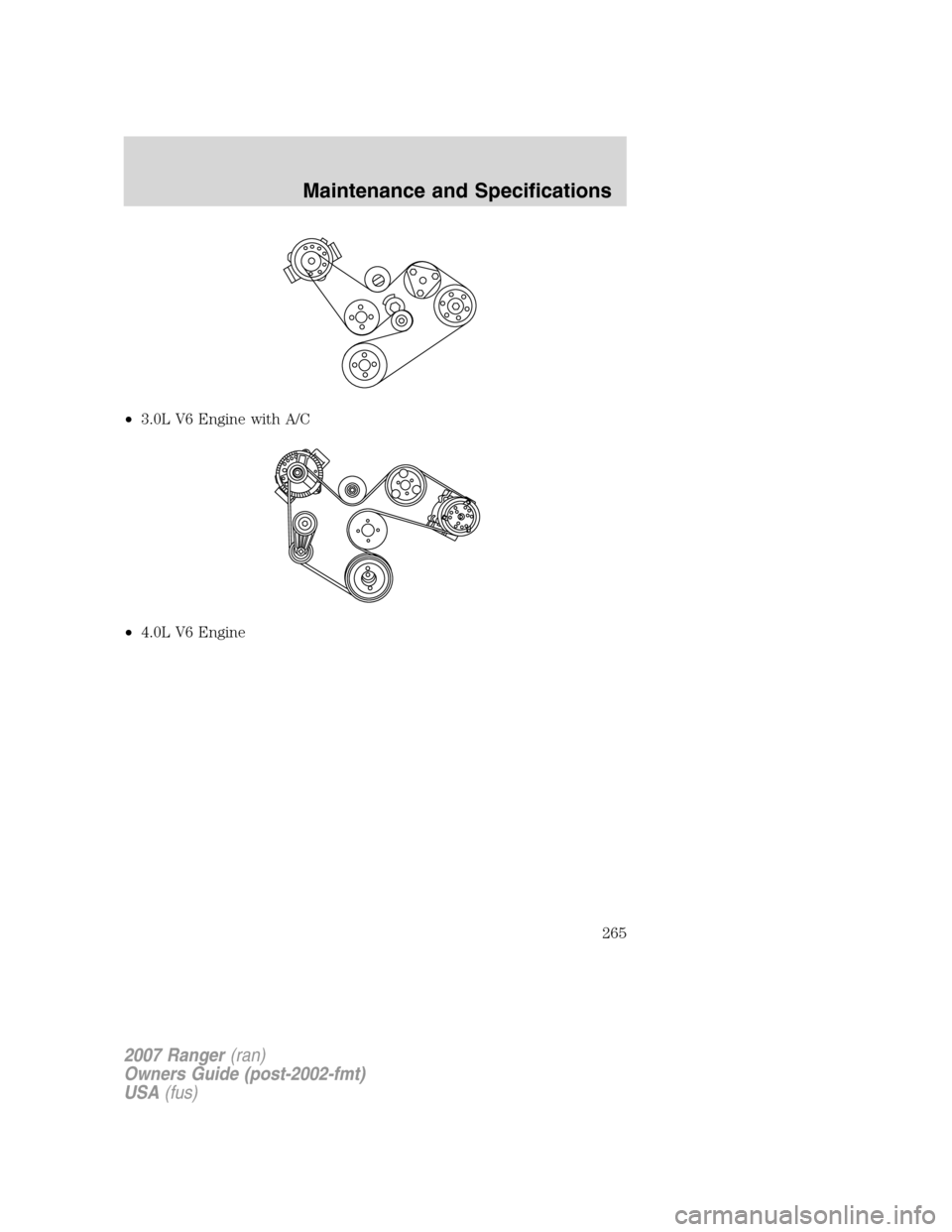

•3.0L V6 Engine with A/C
•4.0L V6 Engine
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
265

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic (5R44E/5R55E) D
Five-speed manual (HD) J
Five-speed manual (R1) R
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
267

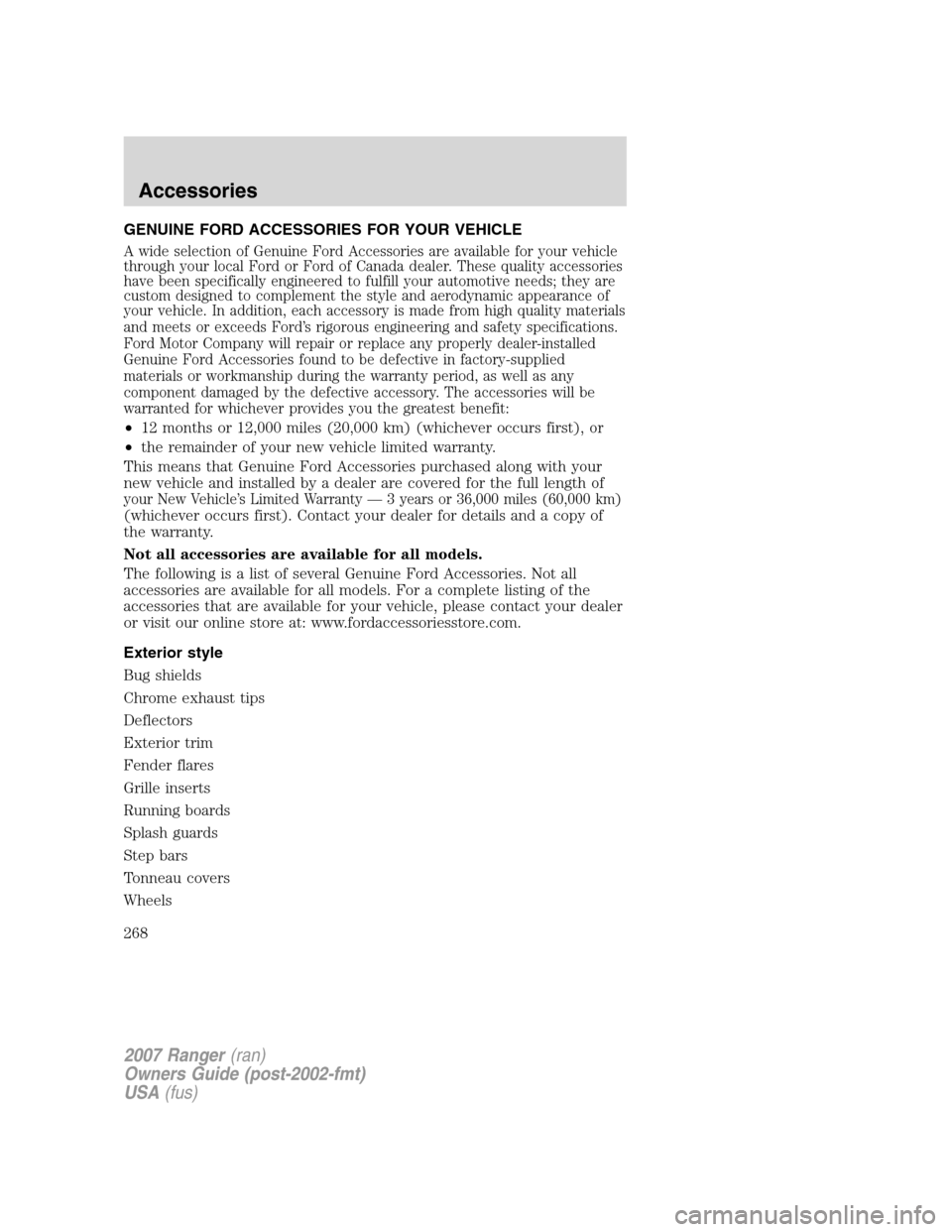

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your vehicle
through your local Ford or Ford of Canada dealer. These quality accessories
have been specifically engineered to fulfill your automotive needs; they are
custom designed to complement the style and aerodynamic appearance of
your vehicle. In addition, each accessory is made from high quality materials
and meets or exceeds Ford’s rigorous engineering and safety specifications.
Ford Motor Company will repair or replace any properly dealer-installed
Genuine Ford Accessories found to be defective in factory-supplied
materials or workmanship during the warranty period, as well as any
component damaged by the defective accessory. The accessories will be
warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by a dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000 km)
(whichever occurs first). Contact your dealer for details and a copy of
the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim
Fender flares
Grille inserts
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
