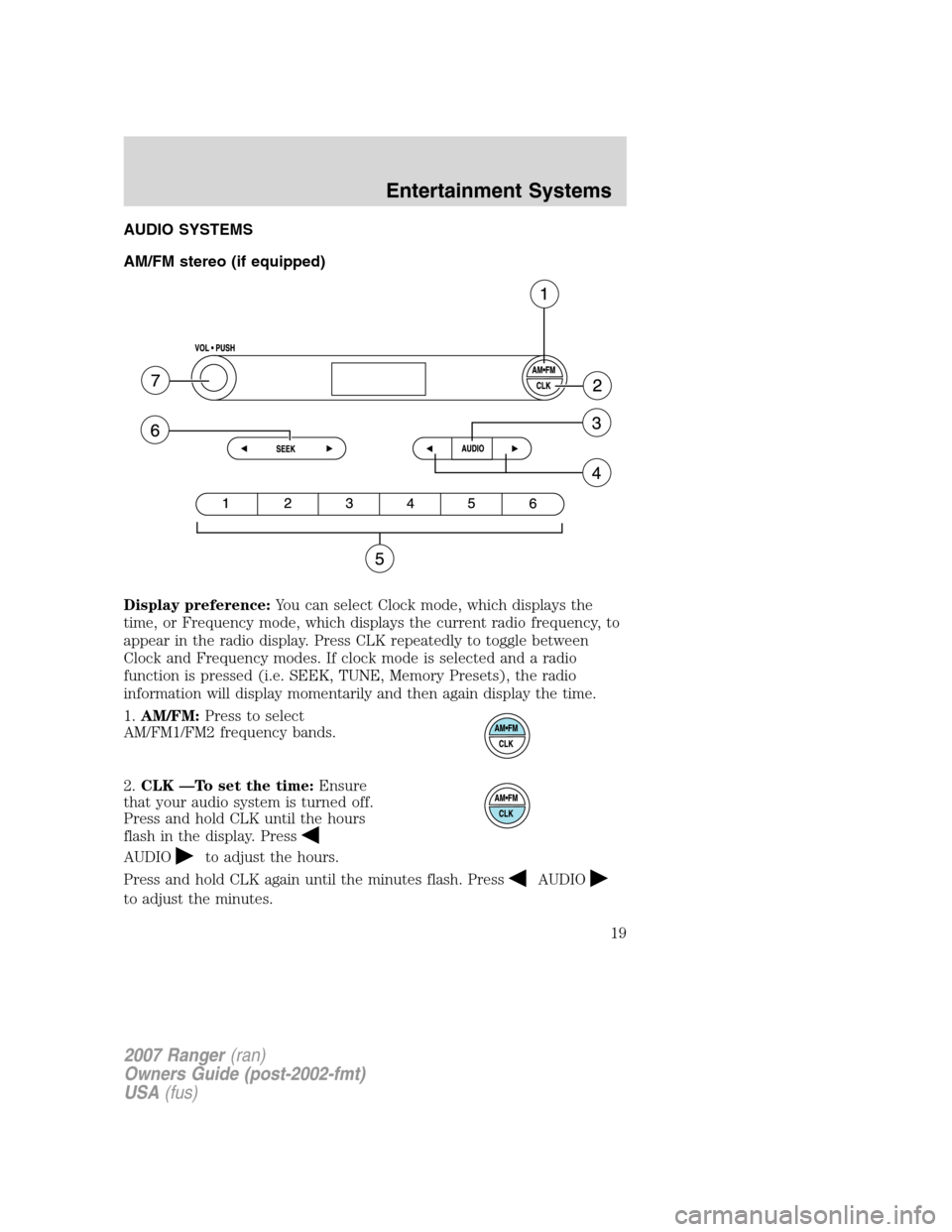

Page 19 of 280
AUDIO SYSTEMS
AM/FM stereo (if equipped)
Display preference:You can select Clock mode, which displays the
time, or Frequency mode, which displays the current radio frequency, to
appear in the radio display. Press CLK repeatedly to toggle between
Clock and Frequency modes. If clock mode is selected and a radio
function is pressed (i.e. SEEK, TUNE, Memory Presets), the radio
information will display momentarily and then again display the time.
1.AM/FM:Press to select
AM/FM1/FM2 frequency bands.
2.CLK —To set the time:Ensure
that your audio system is turned off.
Press and hold CLK until the hours
flash in the display. Press
AUDIOto adjust the hours.
Press and hold CLK again until the minutes flash. Press
AUDIO
to adjust the minutes.
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
19

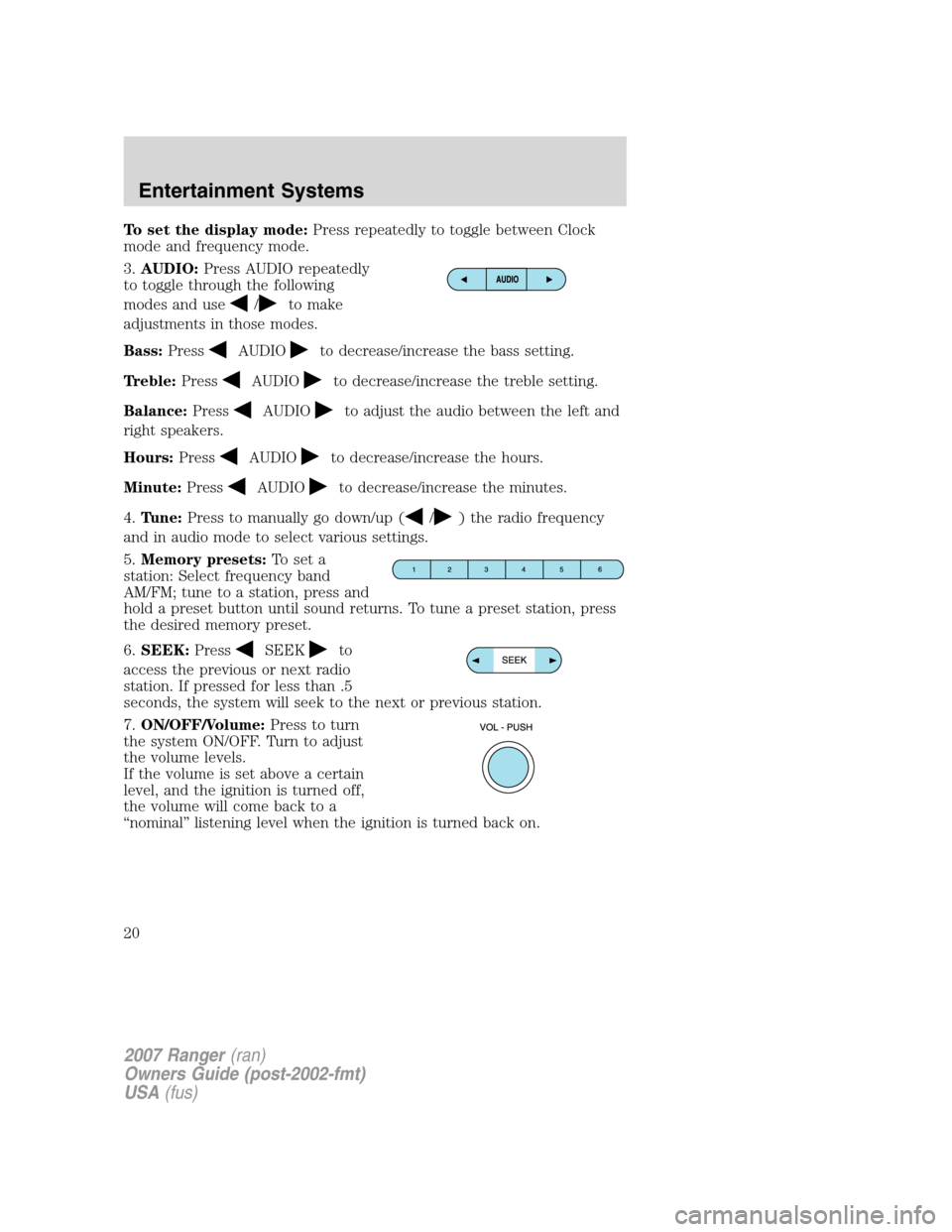

Page 20 of 280
To set the display mode:Press repeatedly to toggle between Clock
mode and frequency mode.
3.AUDIO:Press AUDIO repeatedly
to toggle through the following
modes and use
/to make
adjustments in those modes.
Bass:Press
AUDIOto decrease/increase the bass setting.
Treble:Press
AUDIOto decrease/increase the treble setting.
Balance:Press
AUDIOto adjust the audio between the left and
right speakers.
Hours:Press
AUDIOto decrease/increase the hours.
Minute:Press
AUDIOto decrease/increase the minutes.
4.Tune:Press to manually go down/up (
/) the radio frequency
and in audio mode to select various settings.
5.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns. To tune a preset station, press
the desired memory preset.
6.SEEK:Press
SEEKto
access the previous or next radio
station. If pressed for less than .5
seconds, the system will seek to the next or previous station.
7.ON/OFF/Volume:Press to turn
the system ON/OFF. Turn to adjust
the volume levels.
If the volume is set above a certain
level, and the ignition is turned off,
the volume will come back to a
“nominal” listening level when the ignition is turned back on.
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
20

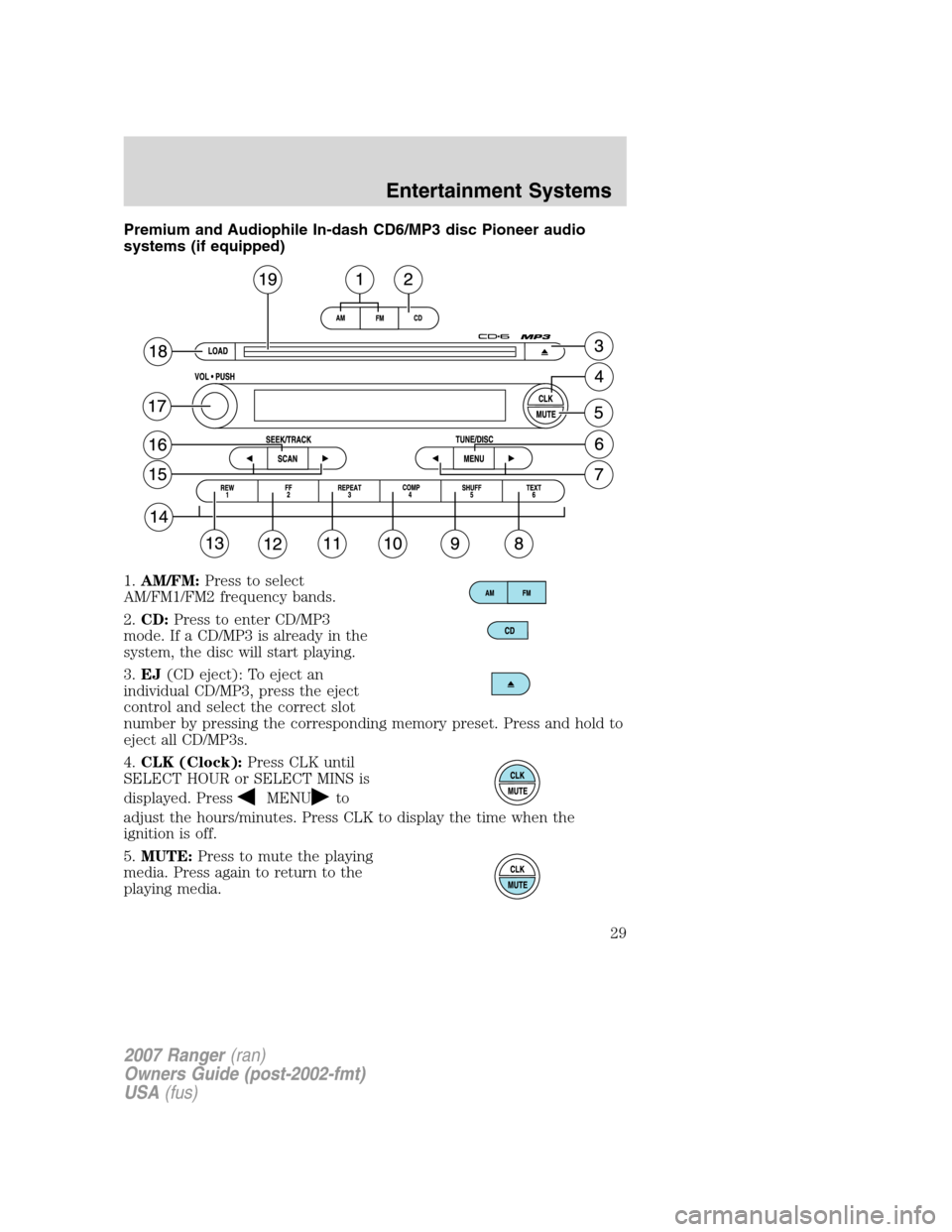

Page 29 of 280
Premium and Audiophile In-dash CD6/MP3 disc Pioneer audio
systems (if equipped)
1.AM/FM: Press to select
AM/FM1/FM2 frequency bands.
2. CD: Press to enter CD/MP3
mode. If a CD/MP3 is already in the
system, the disc will start playing.
3. EJ (CD eject): To eject an
individual CD/MP3, press the eject
control and select the correct slot
number by pressing the corresponding memory preset. Press and hold to
eject all CD/MP3s.
4. CLK (Clock): Press CLK until
SELECT HOUR or SELECT MINS is
displayed. Press
MENUto
adjust the hours/minutes. Press CLK to display the time when the
ignition is off.
5. MUTE: Press to mute the playing
media. Press again to return to the
playing media.
2007 Ranger (ran)
Owners Guide (post-2002-fmt)
USA (fus)
Entertainment Systems
29

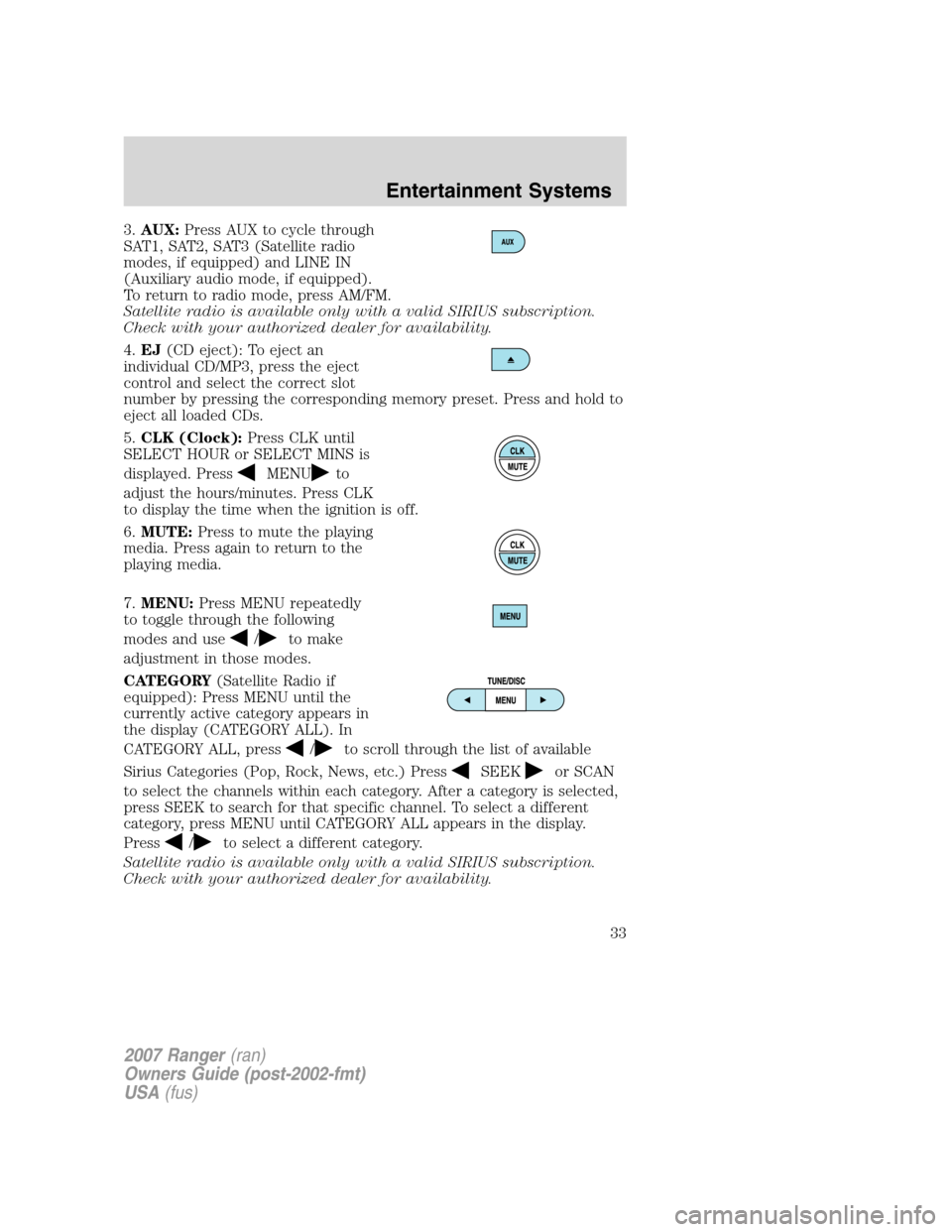

Page 33 of 280
3.AUX: Press AUX to cycle through
SAT1, SAT2, SAT3 (Satellite radio
modes, if equipped) and LINE IN
(Auxiliary audio mode, if equipped).
To return to radio mode, press AM/FM.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
4. EJ (CD eject): To eject an
individual CD/MP3, press the eject
control and select the correct slot
number by pressing the corresponding memory preset. Press and hold to
eject all loaded CDs.
5. CLK (Clock): Press CLK until
SELECT HOUR or SELECT MINS is
displayed. Press
MENUto
adjust the hours/minutes. Press CLK
to display the time when the ignition is off.
6. MUTE: Press to mute the playing
media. Press again to return to the
playing media.
7. MENU: Press MENU repeatedly
to toggle through the following
modes and use
/to make
adjustment in those modes.
CATEGORY (Satellite Radio if
equipped): Press MENU until the
currently active category appears in
the display (CATEGORY ALL). In
CATEGORY ALL, press
/to scroll through the list of available
Sirius Categories (Pop, Rock, News, etc.) Press
SEEKor SCAN
to select the channels within each category. After a category is selected,
press SEEK to search for that specific channel. To select a different
category, press MENU until CATEGORY ALL appears in the display.
Press
/to select a different category.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
2007 Ranger (ran)
Owners Guide (post-2002-fmt)
USA (fus)
Entertainment Systems
33

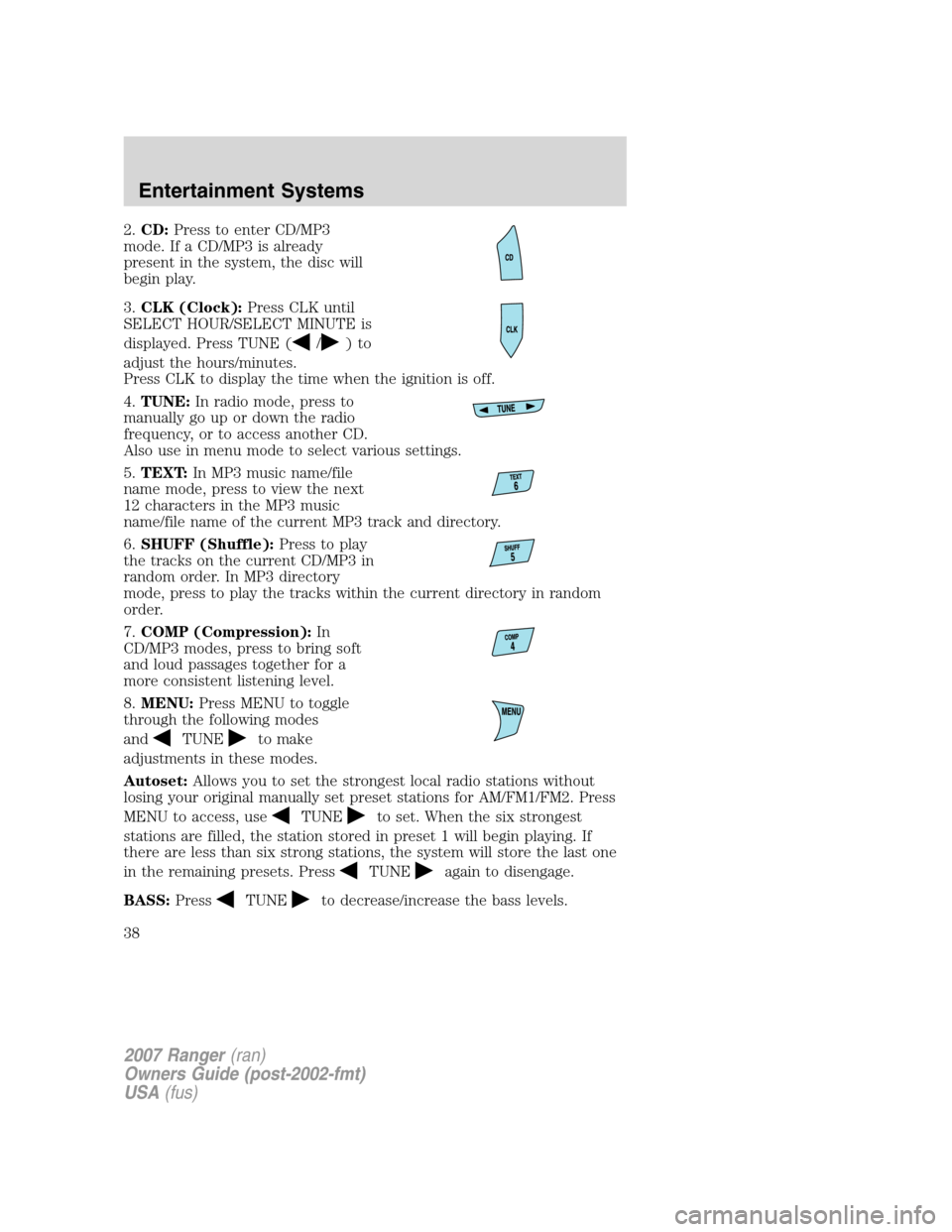

Page 38 of 280
2.CD: Press to enter CD/MP3
mode. If a CD/MP3 is already
present in the system, the disc will
begin play.
3. CLK (Clock): Press CLK until
SELECT HOUR/SELECT MINUTE is
displayed. Press TUNE (
/)to
adjust the hours/minutes.
Press CLK to display the time when the ignition is off.
4. TUNE: In radio mode, press to
manually go up or down the radio
frequency, or to access another CD.
Also use in menu mode to select various settings.
5. TEXT: In MP3 music name/file
name mode, press to view the next
12 characters in the MP3 music
name/file name of the current MP3 track and directory.
6. SHUFF (Shuffle): Press to play
the tracks on the current CD/MP3 in
random order. In MP3 directory
mode, press to play the tracks within the current directory in random
order.
7. COMP (Compression): In
CD/MP3 modes, press to bring soft
and loud passages together for a
more consistent listening level.
8. MENU: Press MENU to toggle
through the following modes
and
TUNEto make
adjustments in these modes.
Autoset: Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2. Press
MENU to access, use
TUNEto set. When the six strongest
stations are filled, the station stored in preset 1 will begin playing. If
there are less than six strong stations, the system will store the last one
in the remaining presets. Press
TUNEagain to disengage.
BASS: Press
TUNEto decrease/increase the bass levels.
2007 Ranger (ran)
Owners Guide (post-2002-fmt)
USA (fus)
Entertainment Systems
38

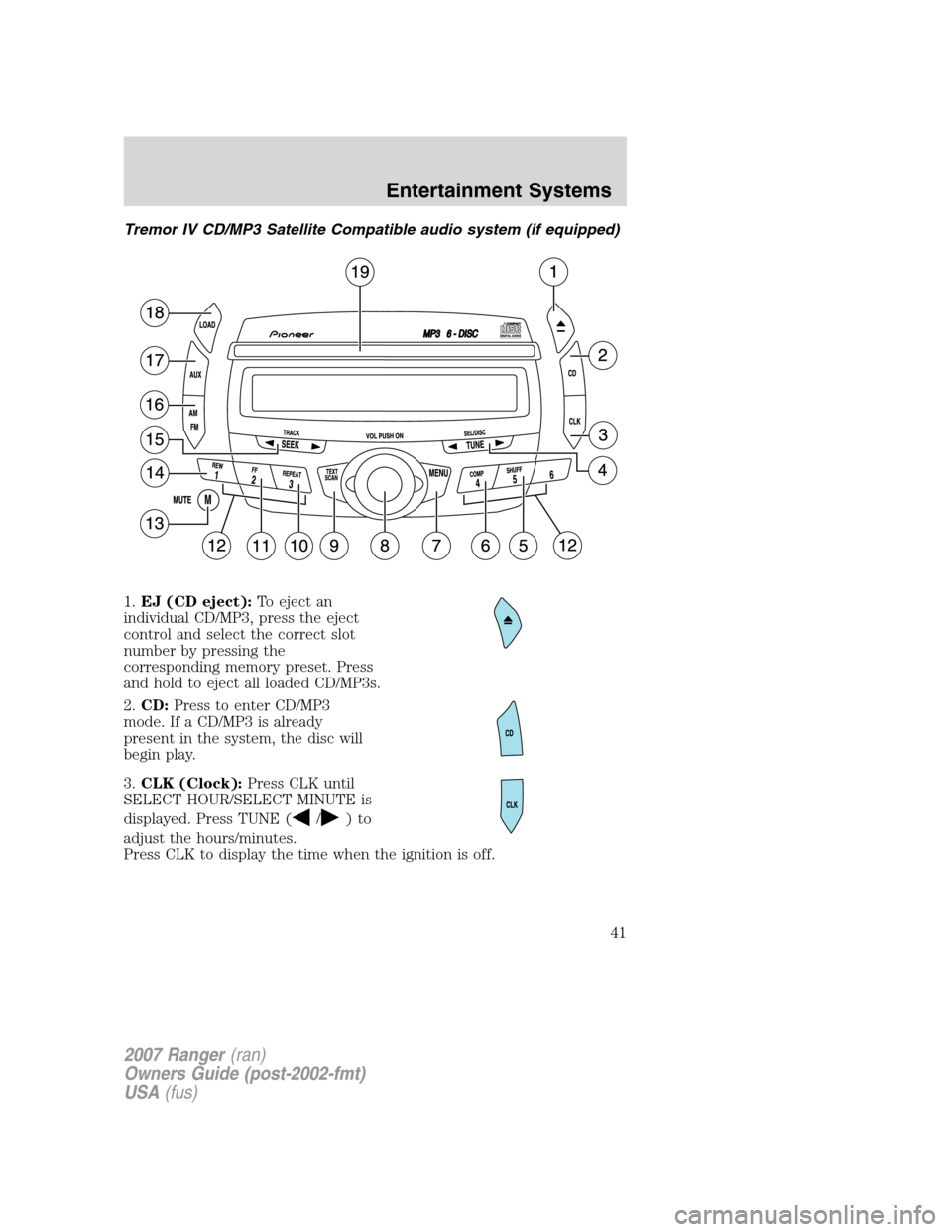

Page 41 of 280
Tremor IV CD/MP3 Satellite Compatible audio system (if equipped)
1.EJ (CD eject): To eject an
individual CD/MP3, press the eject
control and select the correct slot
number by pressing the
corresponding memory preset. Press
and hold to eject all loaded CD/MP3s.
2. CD: Press to enter CD/MP3
mode. If a CD/MP3 is already
present in the system, the disc will
begin play.
3. CLK (Clock): Press CLK until
SELECT HOUR/SELECT MINUTE is
displayed. Press TUNE (
/)to
adjust the hours/minutes.
Press CLK to display the time when the ignition is off.
2007 Ranger (ran)
Owners Guide (post-2002-fmt)
USA (fus)
Entertainment Systems
41

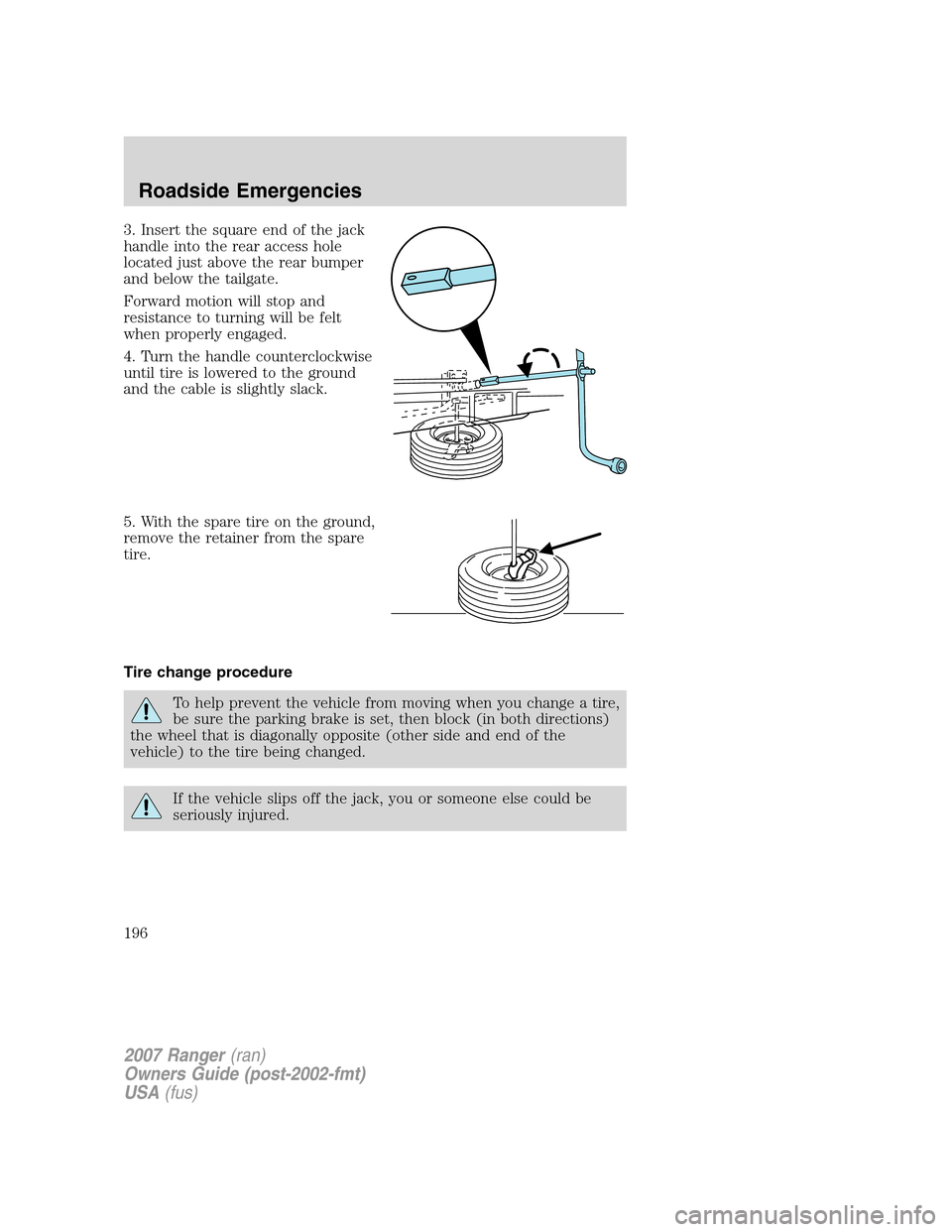

Page 196 of 280
3. Insert the square end of the jack
handle into the rear access hole
located just above the rear bumper
and below the tailgate.
Forward motion will stop and
resistance to turning will be felt
when properly engaged.
4. Turn the handle counterclockwise
until tire is lowered to the ground
and the cable is slightly slack.
5. With the spare tire on the ground,
remove the retainer from the spare
tire.
Tire change procedure
To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)
the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.
If the vehicle slips off the jack, you or someone else could be
seriously injured.
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
196

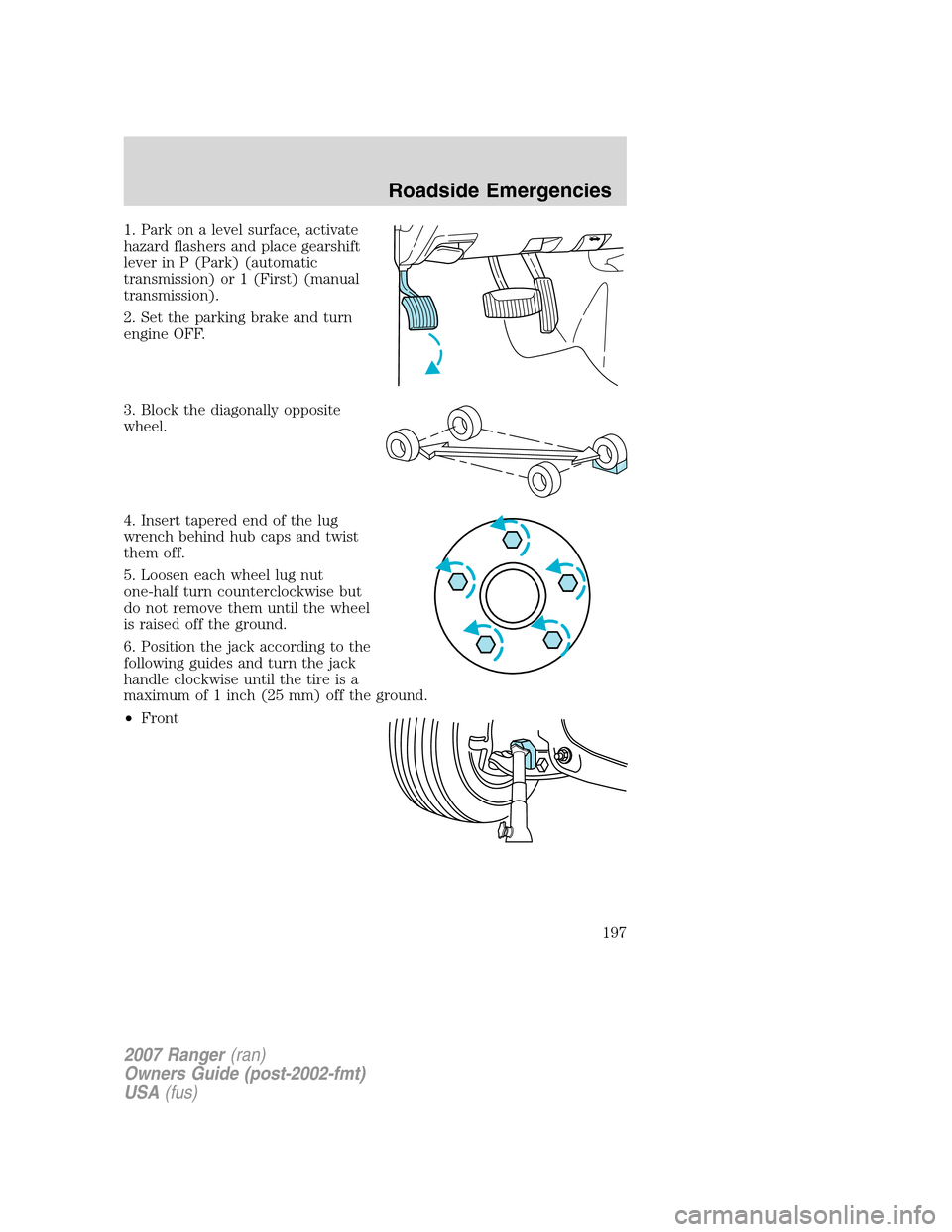

Page 197 of 280
1. Park on a level surface, activate
hazard flashers and place gearshift
lever in P (Park) (automatic
transmission) or 1 (First) (manual
transmission).
2. Set the parking brake and turn
engine OFF.
3. Block the diagonally opposite
wheel.
4. Insert tapered end of the lug
wrench behind hub caps and twist
them off.
5. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
6. Position the jack according to the
following guides and turn the jack
handle clockwise until the tire is a
maximum of 1 inch (25 mm) off the ground.
•Front
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
197

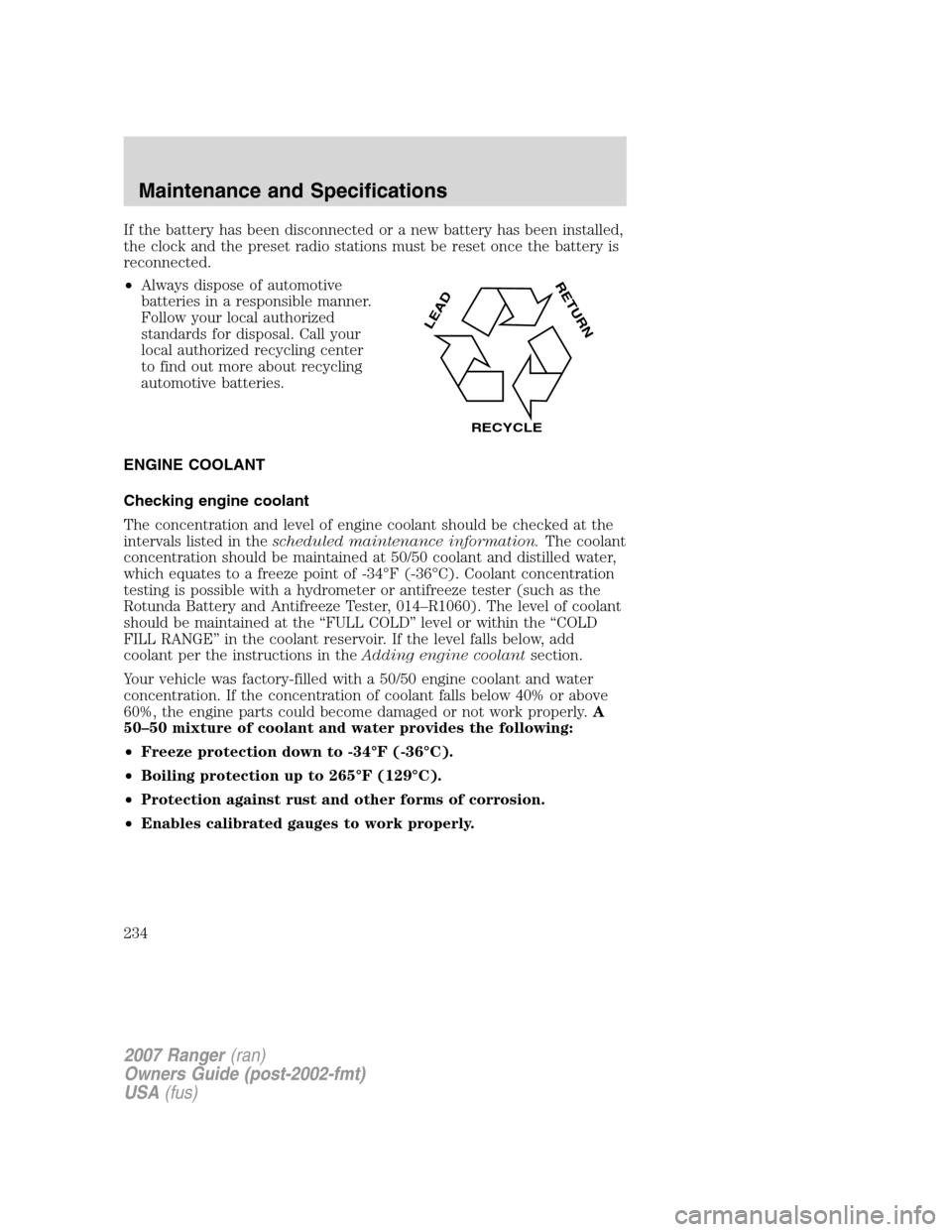

Page 234 of 280
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed in thescheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
L
E
A
D
RETURN
RECYCLE
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
234

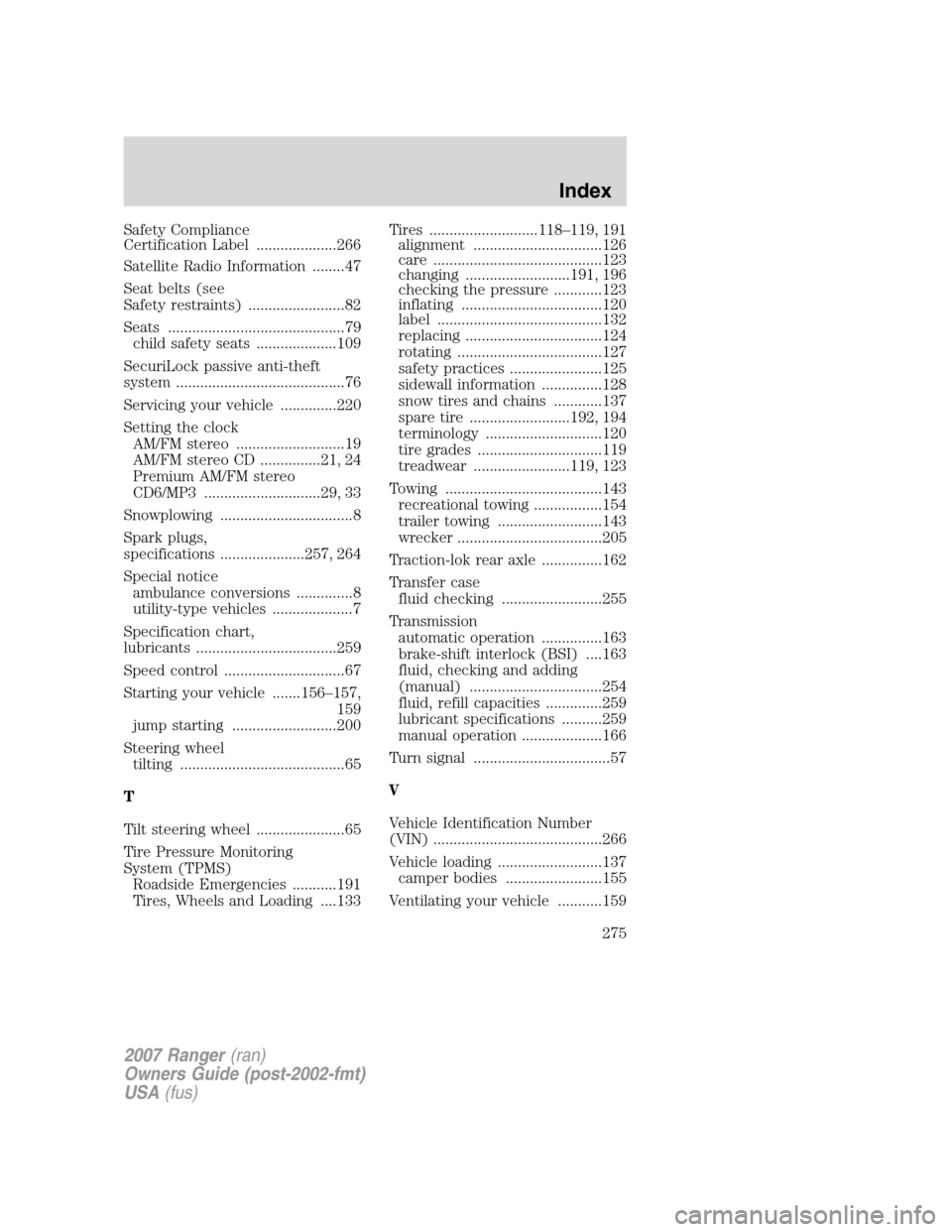

Page 275 of 280
Safety Compliance
Certification Label ....................266
Satellite Radio Information ........47
Seat belts (see
Safety restraints) ........................82
Seats ............................................79
child safety seats ....................109
SecuriLock passive anti-theft
system ..........................................76
Servicing your vehicle ..............220
Setting the clock
AM/FM stereo ...........................19
AM/FM stereo CD ...............21, 24
Premium AM/FM stereo
CD6/MP3 .............................29, 33
Snowplowing .................................8
Spark plugs,
specifications .....................257, 264
Special notice
ambulance conversions ..............8
utility-type vehicles ....................7
Specification chart,
lubricants ...................................259
Speed control ..............................67
Starting your vehicle .......156–157,
159
jump starting ..........................200
Steering wheel
tilting .........................................65
T
Tilt steering wheel ......................65
Tire Pressure Monitoring
System (TPMS)
Roadside Emergencies ...........191
Tires, Wheels and Loading ....133Tires ...........................118–119, 191
alignment ................................126
care ..........................................123
changing ..........................191, 196
checking the pressure ............123
inflating ...................................120
label .........................................132
replacing ..................................124
rotating ....................................127
safety practices .......................125
sidewall information ...............128
snow tires and chains ............137
spare tire .........................192, 194
terminology .............................120
tire grades ...............................119
treadwear ........................119, 123
Towing .......................................143
recreational towing .................154
trailer towing ..........................143
wrecker ....................................205
Traction-lok rear axle ...............162
Transfer case
fluid checking .........................255
Transmission
automatic operation ...............163
brake-shift interlock (BSI) ....163
fluid, checking and adding
(manual) .................................254
fluid, refill capacities ..............259
lubricant specifications ..........259
manual operation ....................166
Turn signal ..................................57
V
Vehicle Identification Number
(VIN) ..........................................266
Vehicle loading ..........................137
camper bodies ........................155
Ventilating your vehicle ...........159
2007 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
275
