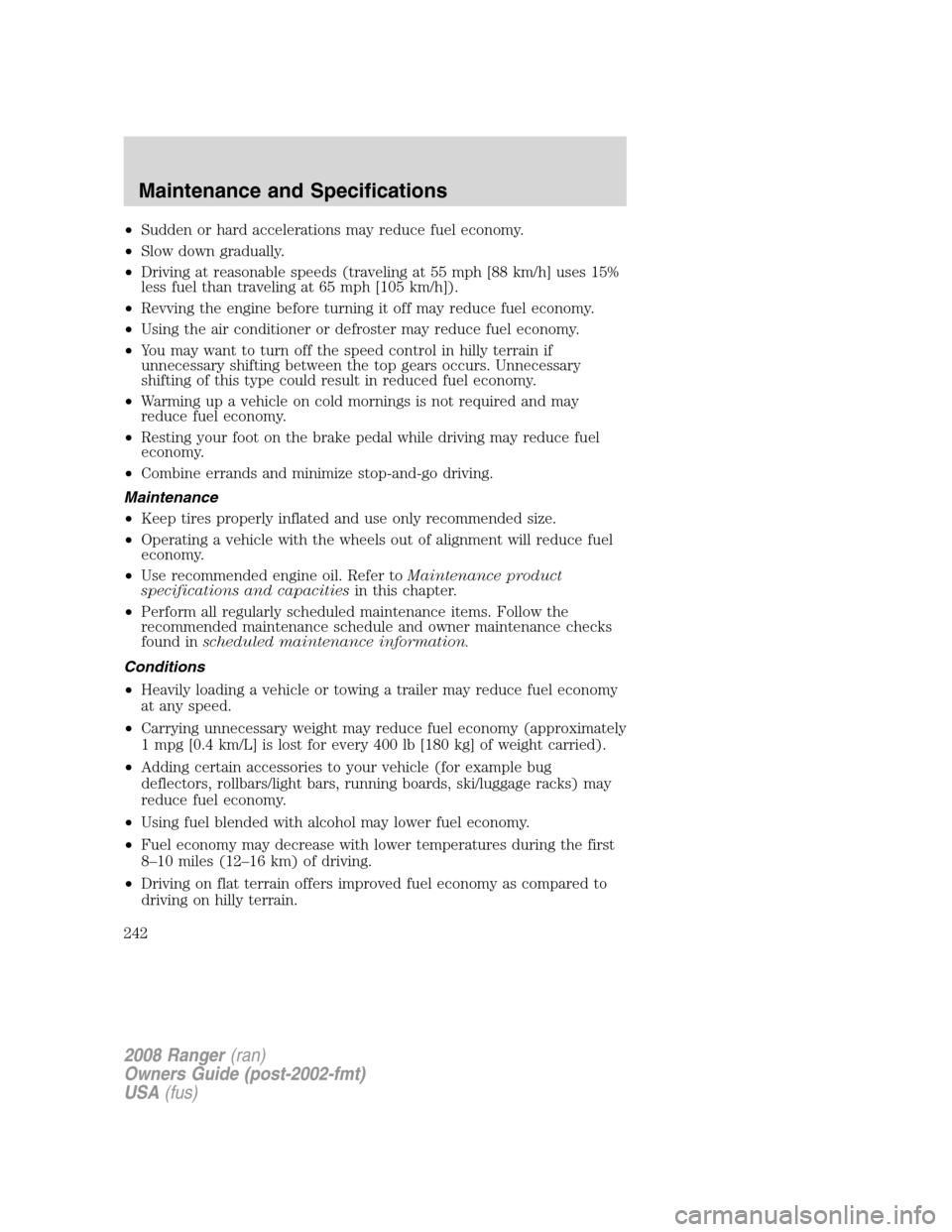

•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
242

These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel, properly tightening the fuel cap or letting the
electrical system dry out. After three driving cycles without these or any
other temporary malfunctions present, the
indicator should stay off
the next time the engine is started. A driving cycle consists of a cold
engine startup followed by mixed city/highway driving. No additional
vehicle service is required.
If the
indicator remains on, have your vehicle serviced at the first
available opportunity. Although some malfunctions detected by the
OBD-II may not have symptoms that are apparent, continued driving
with the
indicator on can result in increased emissions, lower fuel
economy, reduced engine and transmission smoothness, and lead to more
costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the
indicator is on or not working properly (bulb is burned
out), or if the OBD-II system has determined that some of the emission
control systems have not been properly checked. In this case, the vehicle
is considered not ready for I/M testing.
If the
indicator is on or the bulb does not work, the vehicle may
need to be serviced. Refer to the On board diagnostics (OBD-II)
description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the ON position
for 15 seconds without cranking the engine. If the
indicator blinks
eight times, it means that the vehicle is not ready for I/M testing; if
the
indicator stays on solid, it means that the vehicle is ready for
I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by 20
minutes of stop-and-go driving with at least four 30-second idle periods.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
245

•4.0L V6 engine
Check the power steering fluid. Refer to the scheduled maintenance
guide for the service interval schedules.
1. Start the engine and let it run until it reaches normal operating
temperature (the engine coolant temperature gauge indicator will be
near the center of the normal area between H and C).
2. While the engine idles, turn the steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is within this range.
5. If the fluid is low, add fluid in small amounts, until it reaches between
the MIN and MAX lines. Refer toMaintenance product specifications
and capacitiesin this chapter for the proper fluid type.
DONOTOVERFILLPOWERSTEERINGFLUID
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
247

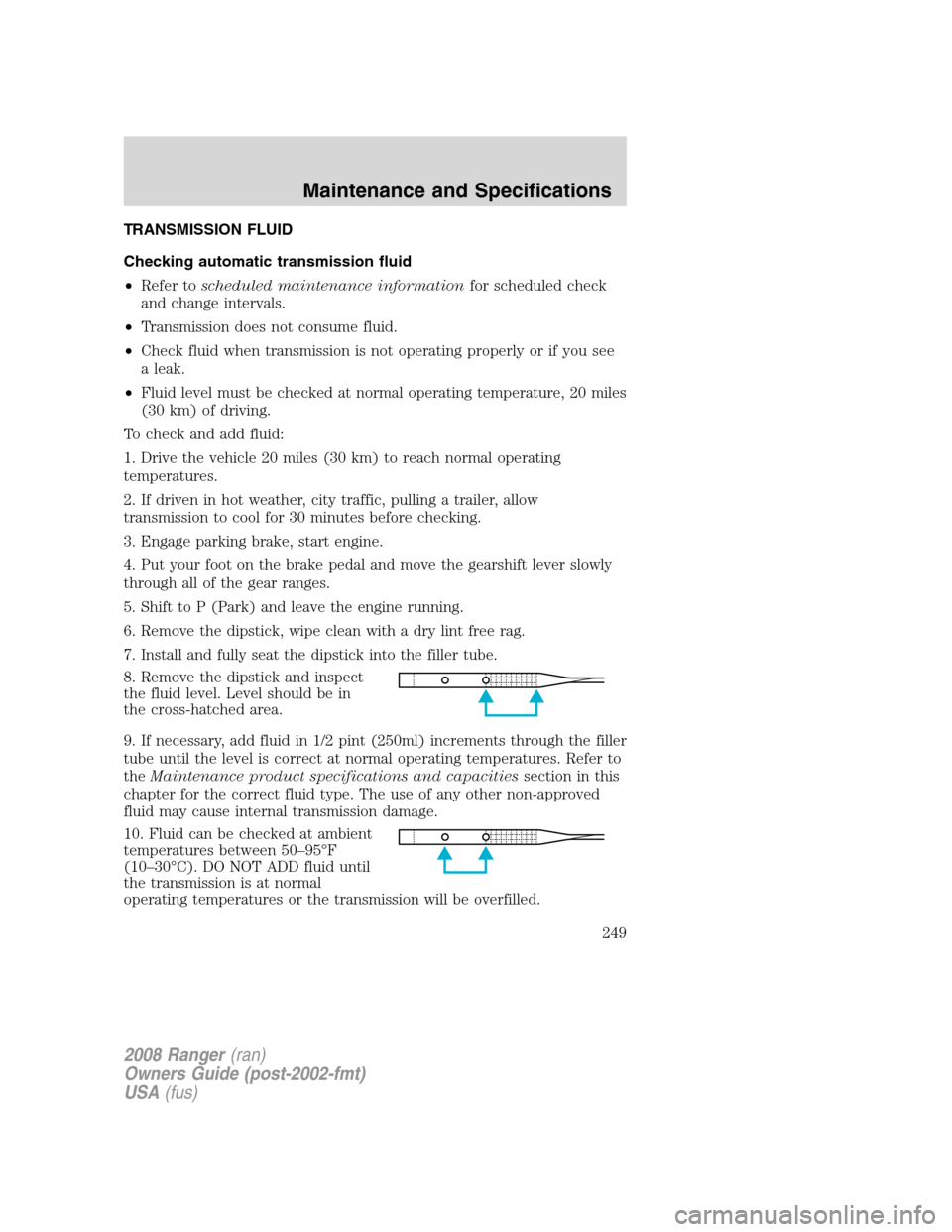

TRANSMISSION FLUID
Checking automatic transmission fluid
•Refer toscheduled maintenance informationfor scheduled check
and change intervals.
•Transmission does not consume fluid.
•Check fluid when transmission is not operating properly or if you see
a leak.
•Fluid level must be checked at normal operating temperature, 20 miles
(30 km) of driving.
To check and add fluid:
1. Drive the vehicle 20 miles (30 km) to reach normal operating
temperatures.
2. If driven in hot weather, city traffic, pulling a trailer, allow
transmission to cool for 30 minutes before checking.
3. Engage parking brake, start engine.
4. Put your foot on the brake pedal and move the gearshift lever slowly
through all of the gear ranges.
5. Shift to P (Park) and leave the engine running.
6. Remove the dipstick, wipe clean with a dry lint free rag.
7. Install and fully seat the dipstick into the filler tube.
8. Remove the dipstick and inspect
the fluid level. Level should be in
the cross-hatched area.
9. If necessary, add fluid in 1/2 pint (250ml) increments through the filler
tube until the level is correct at normal operating temperatures. Refer to
theMaintenance product specifications and capacitiessection in this
chapter for the correct fluid type. The use of any other non-approved
fluid may cause internal transmission damage.
10. Fluid can be checked at ambient
temperatures between 50–95°F
(10–30°C). DO NOT ADD fluid until
the transmission is at normal
operating temperatures or the transmission will be overfilled.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
249

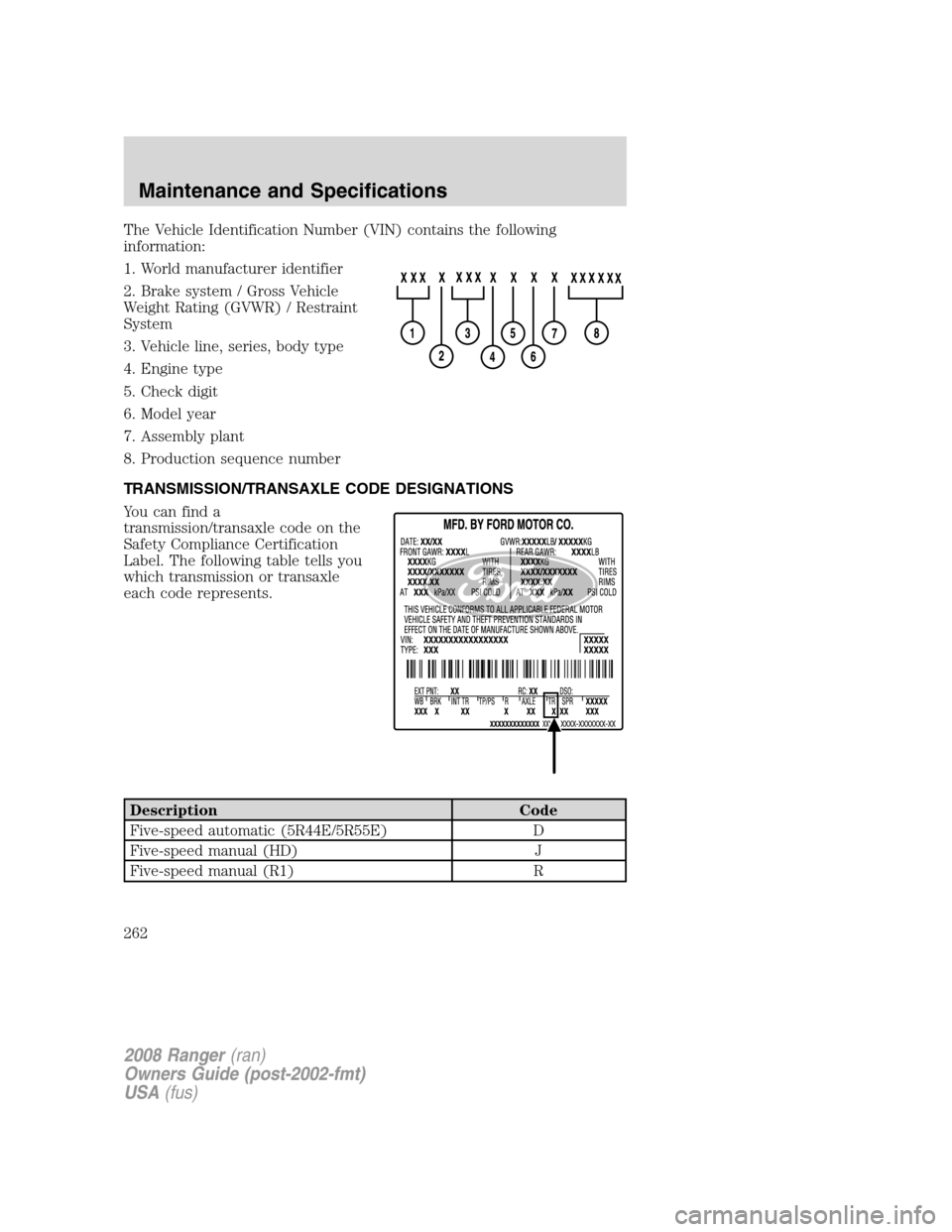

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic (5R44E/5R55E) D
Five-speed manual (HD) J
Five-speed manual (R1) R
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
262

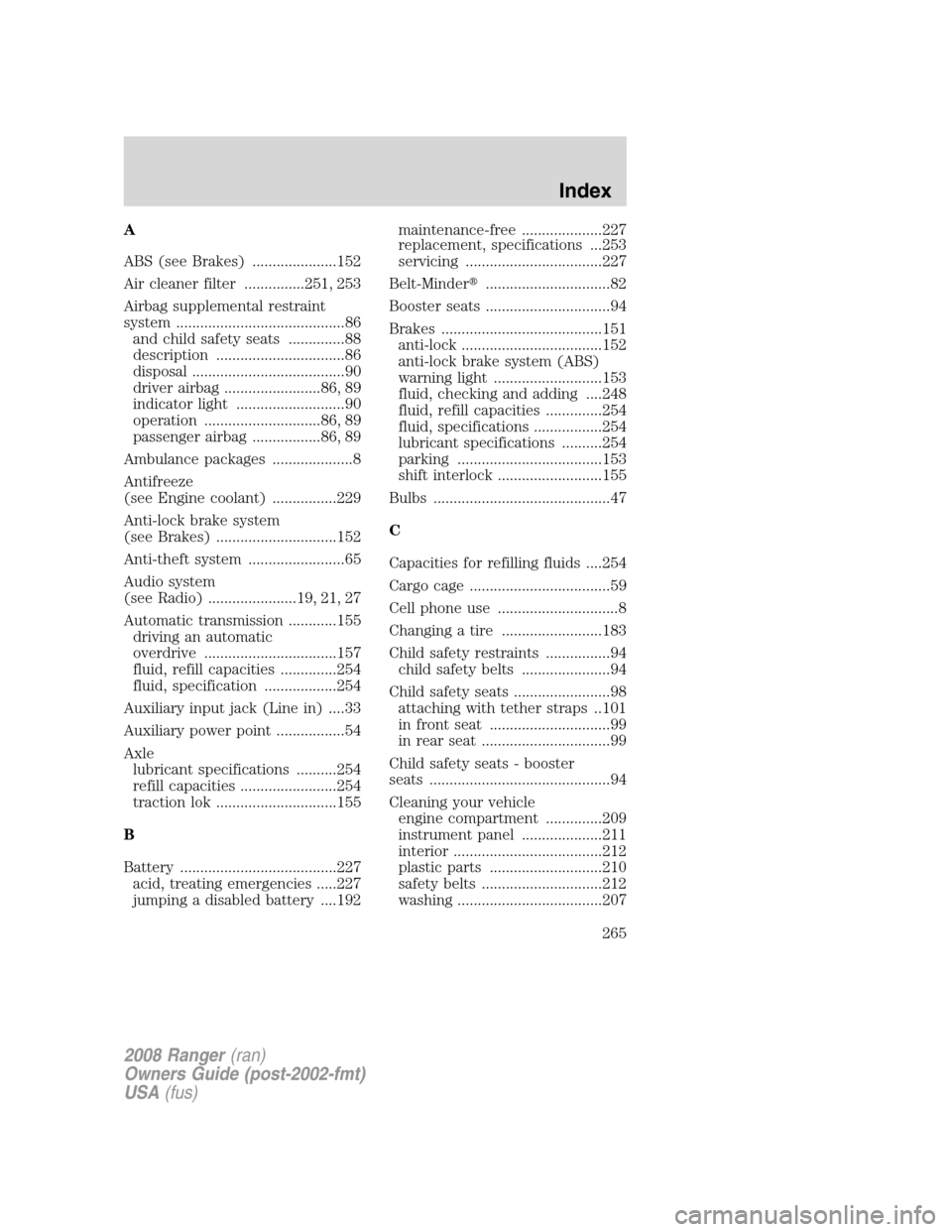

A
ABS (see Brakes) .....................152
Air cleaner filter ...............251, 253
Airbag supplemental restraint
system ..........................................86
and child safety seats ..............88
description ................................86
disposal ......................................90
driver airbag ........................86, 89
indicator light ...........................90
operation .............................86, 89
passenger airbag .................86, 89
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................229
Anti-lock brake system
(see Brakes) ..............................152
Anti-theft system ........................65
Audio system
(see Radio) ......................19, 21, 27
Automatic transmission ............155
driving an automatic
overdrive .................................157
fluid, refill capacities ..............254
fluid, specification ..................254
Auxiliary input jack (Line in) ....33
Auxiliary power point .................54
Axle
lubricant specifications ..........254
refill capacities ........................254
traction lok ..............................155
B
Battery .......................................227
acid, treating emergencies .....227
jumping a disabled battery ....192maintenance-free ....................227
replacement, specifications ...253
servicing ..................................227
Belt-Minder...............................82
Booster seats ...............................94
Brakes ........................................151
anti-lock ...................................152
anti-lock brake system (ABS)
warning light ...........................153
fluid, checking and adding ....248
fluid, refill capacities ..............254
fluid, specifications .................254
lubricant specifications ..........254
parking ....................................153
shift interlock ..........................155
Bulbs ............................................47
C
Capacities for refilling fluids ....254
Cargo cage ...................................59
Cell phone use ..............................8
Changing a tire .........................183
Child safety restraints ................94
child safety belts ......................94
Child safety seats ........................98
attaching with tether straps ..101
in front seat ..............................99
in rear seat ................................99
Child safety seats - booster
seats .............................................94
Cleaning your vehicle
engine compartment ..............209
instrument panel ....................211
interior .....................................212
plastic parts ............................210
safety belts ..............................212
washing ....................................207
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
265

waxing .....................................208
wheels ......................................208
wiper blades ............................211
Clock adjust
AM/FM Stereo ...........................20
AM/FM stereo CD .....................22
Premium AM/FM stereo
CD6/MP3 ...................................28
Clutch
fluid ..........................................248
operation while driving ..........159
recommended shift speeds ....160
Console ........................................54
Coolant
checking and adding ..............229
refill capacities ................233, 254
specifications ..........................254
Cruise control
(see Speed control) ....................57
Customer Assistance ................170
Ford Extended Service
Plan ..........................................203
Getting assistance outside the
U.S. and Canada .....................204
Getting roadside assistance ...170
Getting the service you
need .........................................199
Ordering additional owner’s
literature .................................205
Utilizing the
Mediation/Arbitration
Program ...................................203
D
Daytime running lamps
(see Lamps) ................................44
Dipstick
engine oil .................................221Driveline universal joint and
slip yoke ....................................251
Driving under special
conditions ..................161, 164, 167
sand .........................................166
snow and ice ...........................168
through water .................166, 169
E
Emergencies, roadside
jump-starting ..........................192
Emergency Flashers .................172
Emission control system ..........243
Engine ........................................259
cleaning ...................................209
coolant .....................................229
idle speed control ...................227
lubrication specifications .......254
refill capacities ........................254
service points ..................217–219
starting after a collision .........172
Engine block heater .................150
Engine oil ..................................221
checking and adding ..............221
dipstick ....................................221
filter, specifications ........225, 253
recommendations ...................225
refill capacities ........................254
specifications ..........................254
Event data recording ....................7
Exhaust fumes ..........................149
F
Fluid capacities .........................254
Foglamps .....................................43
Four-Wheel Drive vehicles .......161
driving off road .......................163
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
266

headlamps, flash to pass ..........44
instrument panel, dimming .....44
interior lamps .....................47–48
replacing bulbs .........................49
Lane change indicator
(see Turn signal) ........................47
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........153
Load limits .................................127
Loading instructions .................133
Locks
doors ..........................................61
Lubricant specifications ...........254
Lug nuts ....................................192
Lumbar support, seats ...............70
M
Manual transmission .................159
fluid capacities ........................254
lubricant specifications ..........254
reverse .....................................160
Mirrors .........................................56
fold away ...................................57
side view mirrors
(power) ...............................56–57
Motorcraft parts ........213, 234, 253
O
Octane rating ............................239
Oil (see Engine oil) ..................221
P
Parking brake ............................153
Parts (see Motorcraft parts) ....253Passenger Occupant
Classification Sensor ...................73
Power distribution box
(see Fuses) ...............................177
Power door locks ........................61
Power mirrors .......................56–57
Power point .................................54
Power steering ..........................154
fluid, checking and adding ....246
fluid, refill capacity ................254
fluid, specifications .................254
Power Windows ...........................55
Preparing to drive your
vehicle ........................................155
R
Radio ................................19, 21, 27
Relays ........................................173
Remote entry system ...........61–62
illuminated entry ......................65
locking/unlocking doors ...........62
panic alarm ...............................62
replacing the batteries .............63
Roadside assistance ..................170
S
Safety Belt Maintenance ............80
Safety belts
(see Safety restraints) ...71, 75–79
Safety defects, reporting ..205–206
Safety restraints ..............71, 75–79
Belt-Minder.............................82
extension assembly ..................80
for adults .............................76–78
for children .........................93–94
lap belt ......................................76
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
268
