jump start FORD RANGER 2008 2.G Owners Manual

Seating and Safety Restraints 68
Seating 68
Safety restraints 71
Airbags 86
Child restraints 93
Tires, Wheels and Loading 105
Tire information 107
Tire inflation 110
Tire Pressure Monitoring System (TPMS) 122
Vehicle loading 127
Trailer towing 133
Recreational towing 144
Driving 146
Starting 146
Brakes 151
Transmission operation 155
Roadside Emergencies 170
Getting roadside assistance 170
Hazard flasher switch 172
Fuel pump shut-off switch 172
Fuses and relays 173
Changing tires 183
Lug nut torque 192
Jump starting 192
Wrecker towing 198
Customer Assistance 199
Reporting safety defects (U.S. only) 205
Reporting safety defects (Canada only) 206
Cleaning 207
Table of Contents
2
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)

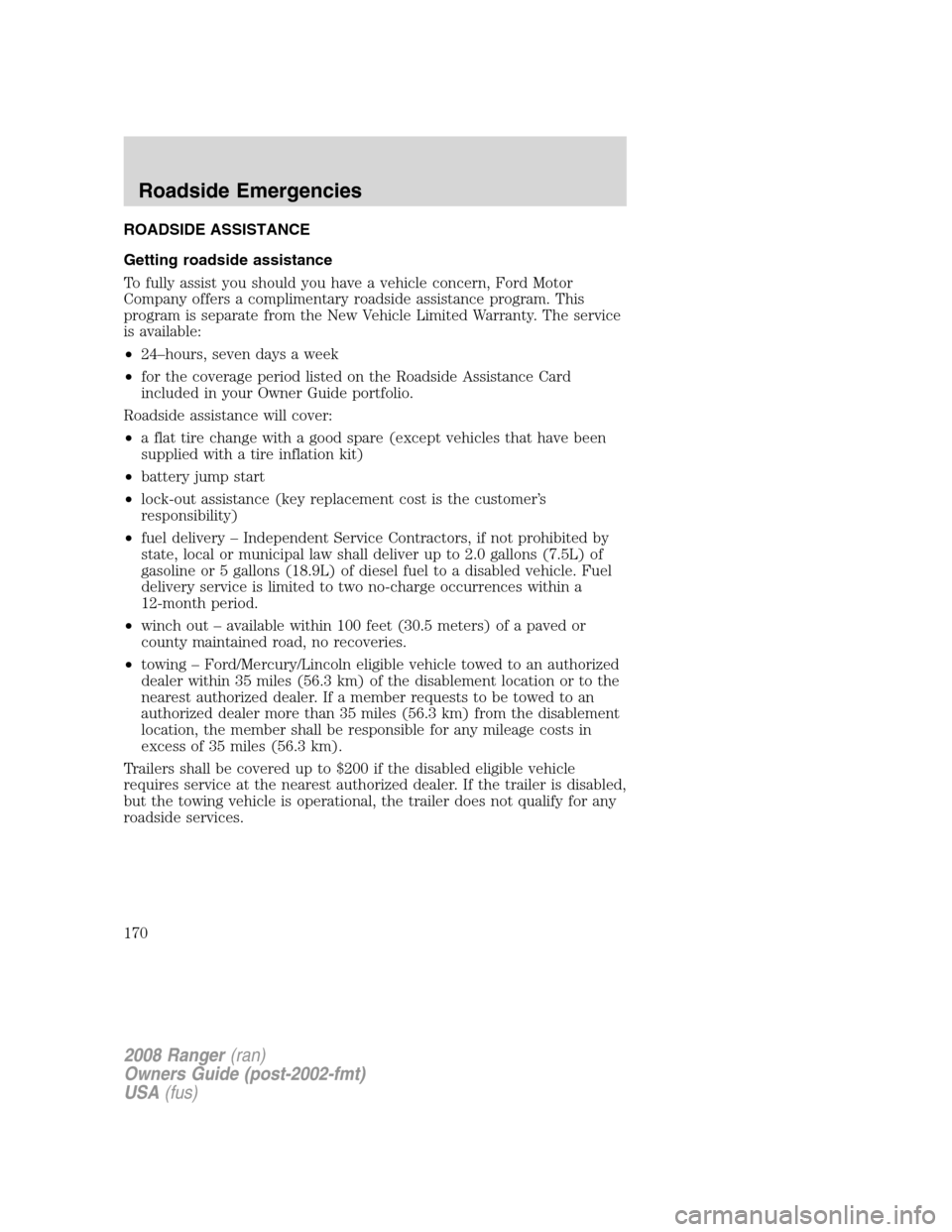

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
170

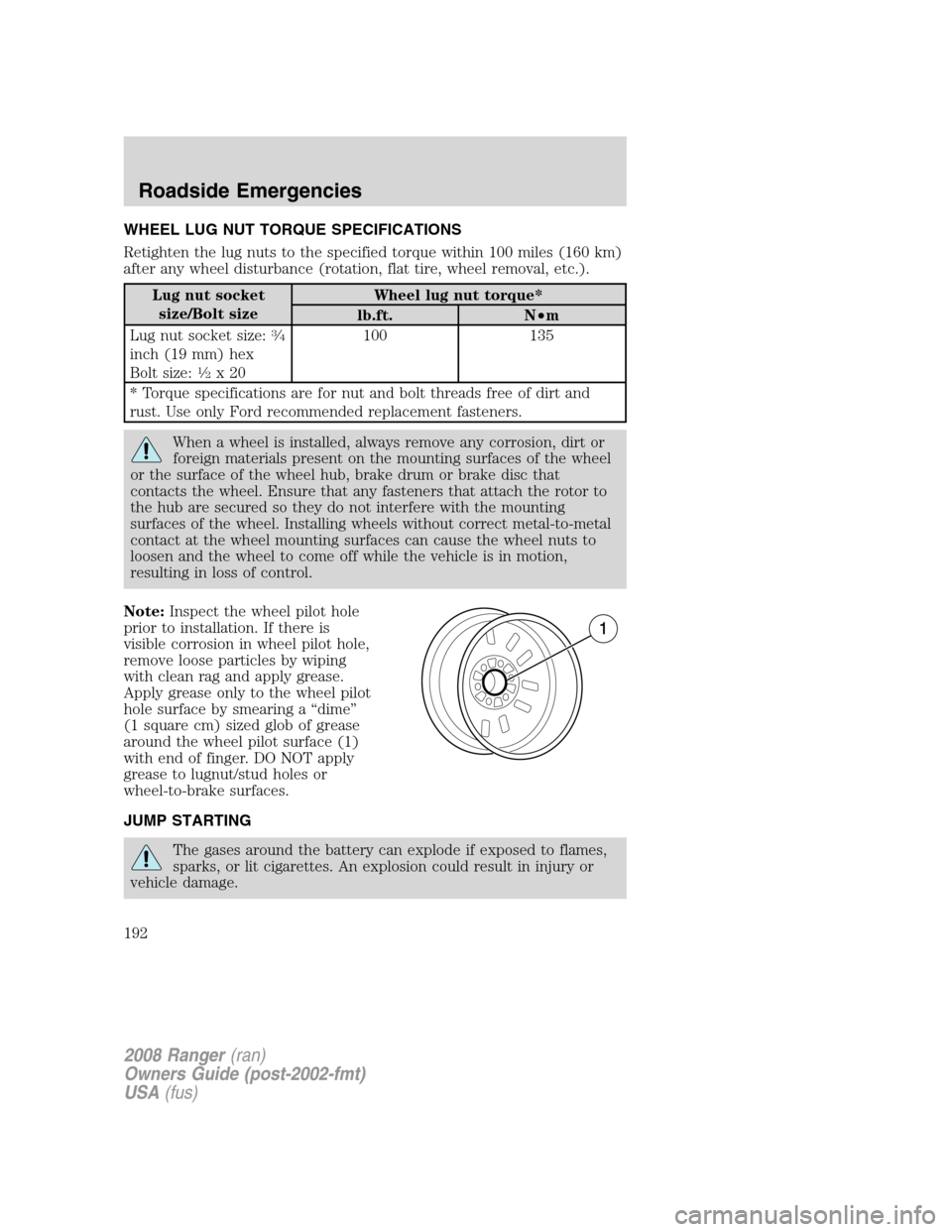

WHEEL LUG NUT TORQUE SPECIFICATIONS
Retighten the lug nuts to the specified torque within 100 miles (160 km)
after any wheel disturbance (rotation, flat tire, wheel removal, etc.).
Lug nut socket
size/Bolt sizeWheel lug nut torque*
lb.ft. N•m
Lug nut socket size:
34
inch (19 mm) hex
Bolt size:12x20100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
When a wheel is installed, always remove any corrosion, dirt or
foreign materials present on the mounting surfaces of the wheel
or the surface of the wheel hub, brake drum or brake disc that
contacts the wheel. Ensure that any fasteners that attach the rotor to
the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal
contact at the wheel mounting surfaces can cause the wheel nuts to
loosen and the wheel to come off while the vehicle is in motion,
resulting in loss of control.
Note:Inspect the wheel pilot hole
prior to installation. If there is
visible corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lugnut/stud holes or
wheel-to-brake surfaces.
JUMP STARTING
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
192

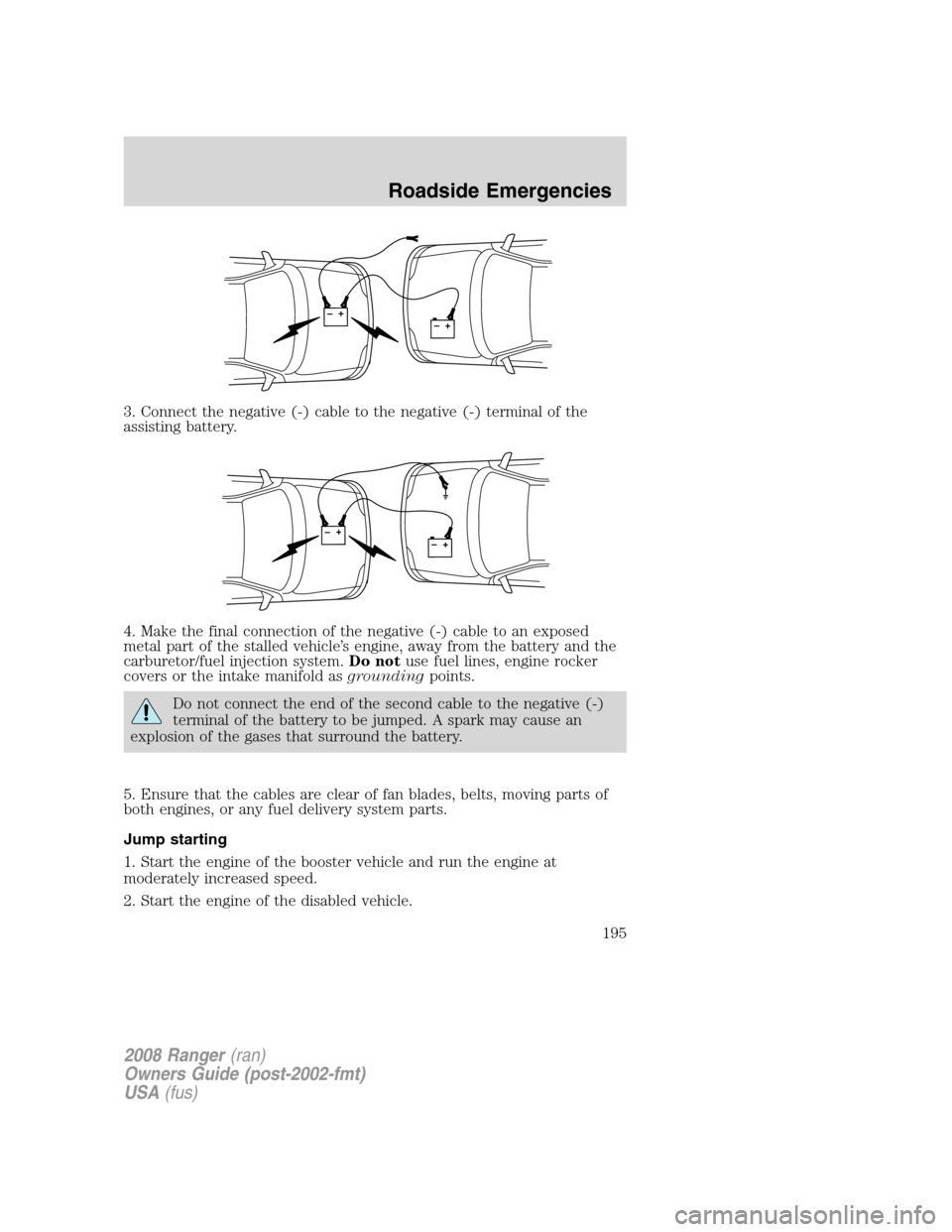

3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel lines, engine rocker
covers or the intake manifold asgroundingpoints.
Do not connect the end of the second cable to the negative (-)
terminal of the battery to be jumped. A spark may cause an
explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
+–+–
+–+–
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
195

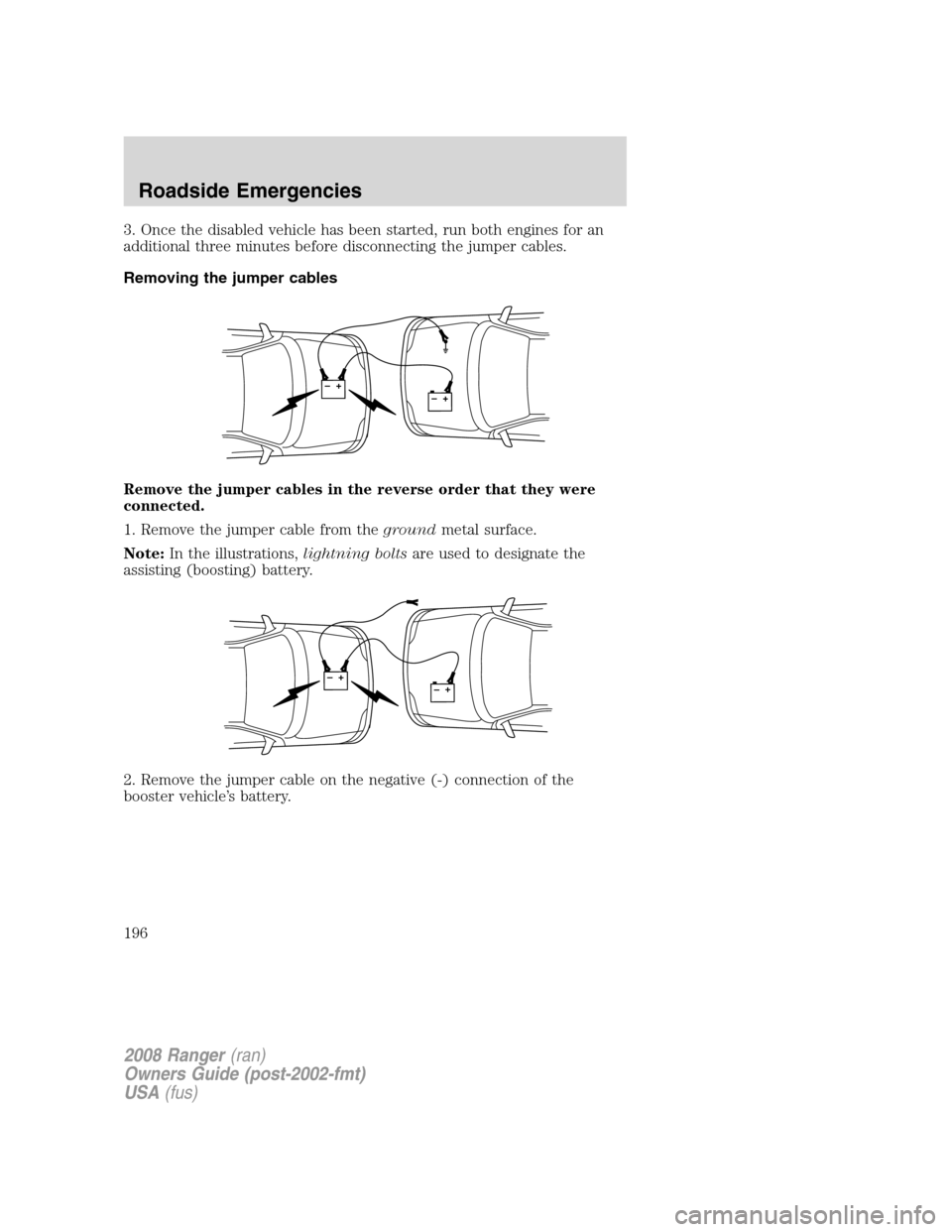

3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from thegroundmetal surface.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Remove the jumper cable on the negative (-) connection of the
booster vehicle’s battery.
+–+–
+–+–
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
196

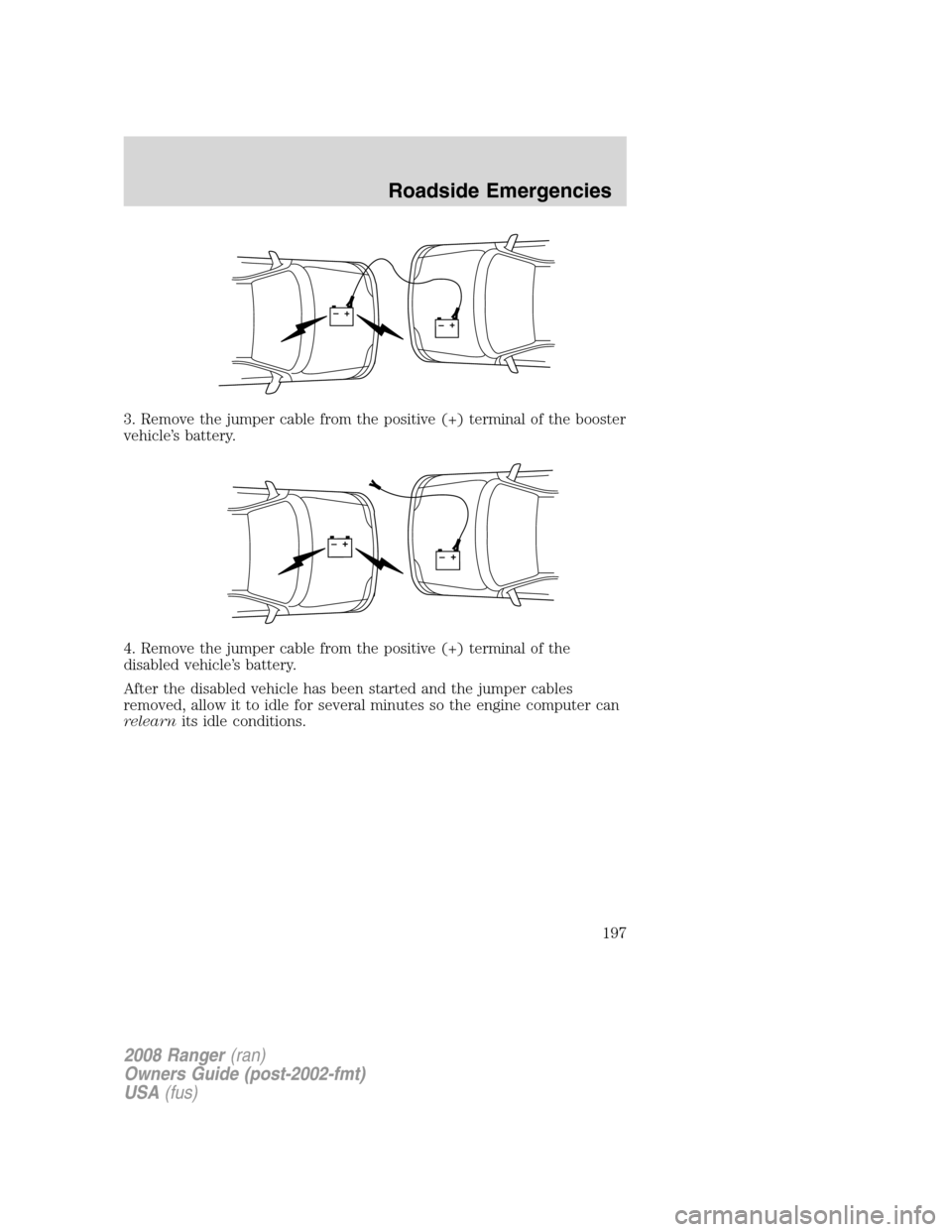

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
197

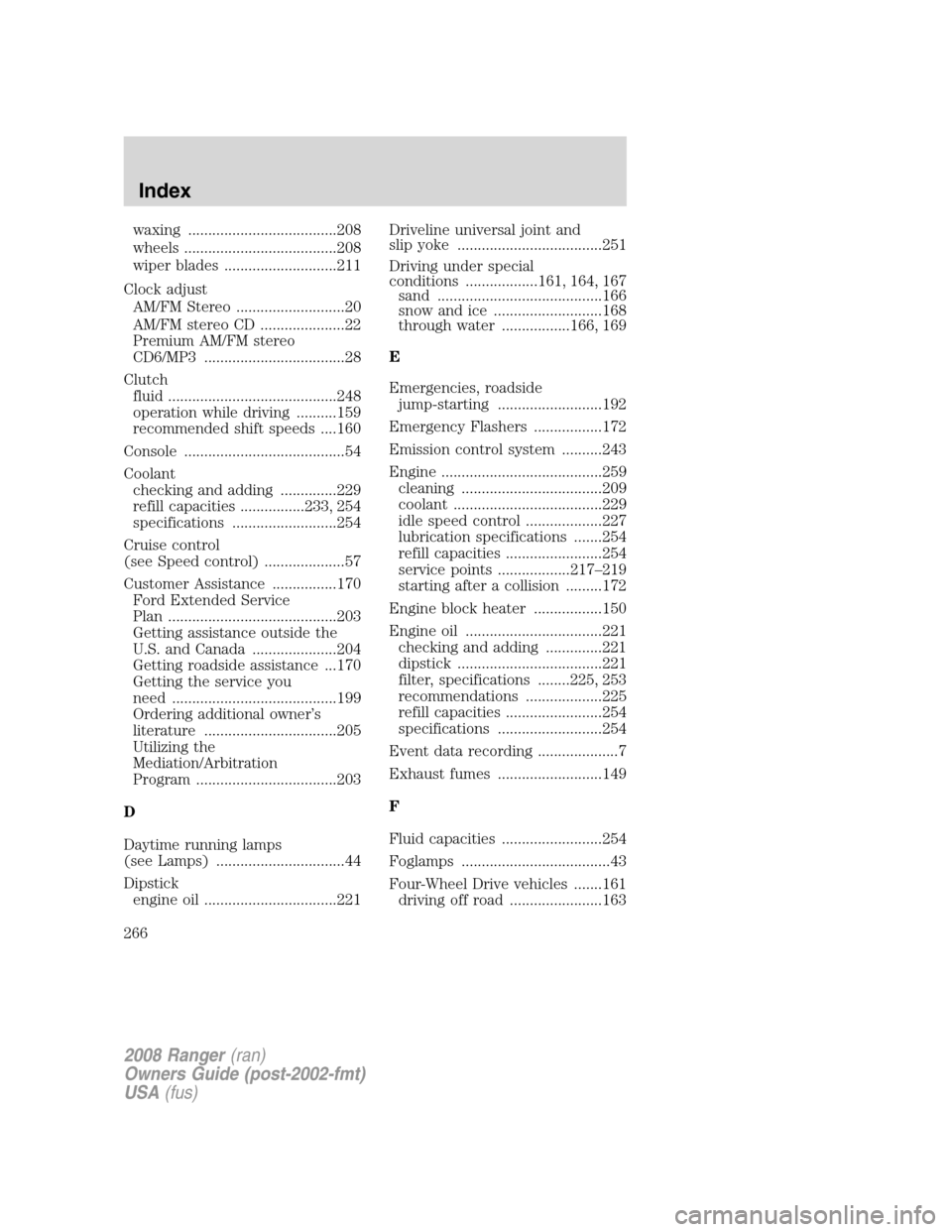

waxing .....................................208
wheels ......................................208
wiper blades ............................211
Clock adjust
AM/FM Stereo ...........................20
AM/FM stereo CD .....................22
Premium AM/FM stereo
CD6/MP3 ...................................28
Clutch
fluid ..........................................248
operation while driving ..........159
recommended shift speeds ....160
Console ........................................54
Coolant
checking and adding ..............229
refill capacities ................233, 254
specifications ..........................254
Cruise control
(see Speed control) ....................57
Customer Assistance ................170
Ford Extended Service
Plan ..........................................203
Getting assistance outside the
U.S. and Canada .....................204
Getting roadside assistance ...170
Getting the service you
need .........................................199
Ordering additional owner’s
literature .................................205
Utilizing the
Mediation/Arbitration
Program ...................................203
D
Daytime running lamps
(see Lamps) ................................44
Dipstick
engine oil .................................221Driveline universal joint and
slip yoke ....................................251
Driving under special
conditions ..................161, 164, 167
sand .........................................166
snow and ice ...........................168
through water .................166, 169
E
Emergencies, roadside
jump-starting ..........................192
Emergency Flashers .................172
Emission control system ..........243
Engine ........................................259
cleaning ...................................209
coolant .....................................229
idle speed control ...................227
lubrication specifications .......254
refill capacities ........................254
service points ..................217–219
starting after a collision .........172
Engine block heater .................150
Engine oil ..................................221
checking and adding ..............221
dipstick ....................................221
filter, specifications ........225, 253
recommendations ...................225
refill capacities ........................254
specifications ..........................254
Event data recording ....................7
Exhaust fumes ..........................149
F
Fluid capacities .........................254
Foglamps .....................................43
Four-Wheel Drive vehicles .......161
driving off road .......................163
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
266

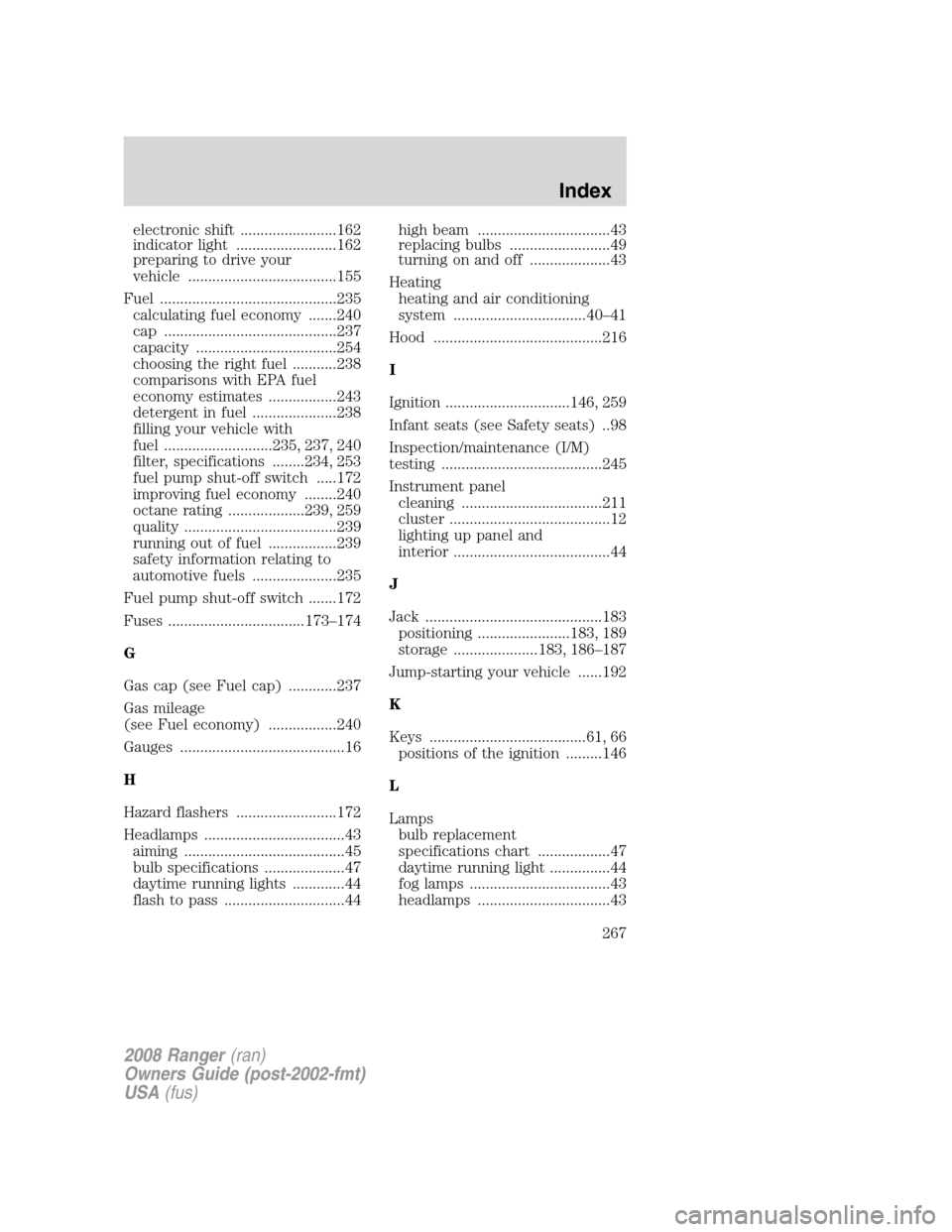

electronic shift ........................162
indicator light .........................162
preparing to drive your
vehicle .....................................155
Fuel ............................................235
calculating fuel economy .......240
cap ...........................................237
capacity ...................................254
choosing the right fuel ...........238
comparisons with EPA fuel
economy estimates .................243
detergent in fuel .....................238
filling your vehicle with
fuel ...........................235, 237, 240
filter, specifications ........234, 253
fuel pump shut-off switch .....172
improving fuel economy ........240
octane rating ...................239, 259
quality ......................................239
running out of fuel .................239
safety information relating to
automotive fuels .....................235
Fuel pump shut-off switch .......172
Fuses ..................................173–174
G
Gas cap (see Fuel cap) ............237
Gas mileage
(see Fuel economy) .................240
Gauges .........................................16
H
Hazard flashers .........................172
Headlamps ...................................43
aiming ........................................45
bulb specifications ....................47
daytime running lights .............44
flash to pass ..............................44high beam .................................43
replacing bulbs .........................49
turning on and off ....................43
Heating
heating and air conditioning
system .................................40–41
Hood ..........................................216
I
Ignition ...............................146, 259
Infant seats (see Safety seats) ..98
Inspection/maintenance (I/M)
testing ........................................245
Instrument panel
cleaning ...................................211
cluster ........................................12
lighting up panel and
interior .......................................44
J
Jack ............................................183
positioning .......................183, 189
storage .....................183, 186–187
Jump-starting your vehicle ......192
K
Keys .......................................61, 66
positions of the ignition .........146
L
Lamps
bulb replacement
specifications chart ..................47
daytime running light ...............44
fog lamps ...................................43
headlamps .................................43
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
267

Occupant Classification
Sensor ........................................73
safety belt maintenance ...........80
warning light and chime ..........81
Safety seats for children ............98
Safety Compliance
Certification Label ....................261
Satellite Radio Information ........36
Seats ............................................68
child safety seats ......................98
SecuriLock passive anti-theft
system ..........................................65
Servicing your vehicle ..............215
Setting the clock
AM/FM stereo ...........................20
AM/FM stereo CD .....................22
Premium AM/FM stereo
CD6/MP3 ...................................28
Snowplowing .................................8
Spark plugs,
specifications .....................253, 259
Special notice
ambulance conversions ..............8
utility-type vehicles ....................7
Specification chart,
lubricants ...................................254
Speed control ..............................57
Starting your
vehicle ........................146–147, 149
jump starting ..........................192
Steering wheel
tilting .........................................54
T
Tilt steering wheel ......................54Tire Pressure Monitoring
System (TPMS)
Roadside Emergencies ...........183
Tires, Wheels and Loading ....122
Tires ...........................107–109, 183
alignment ................................116
care ..........................................112
changing ..........................183, 189
checking the pressure ............112
inflating ...................................110
label .........................................121
replacing ..................................113
rotating
....................................116
safety practices
.......................115
sidewall information
...............117
snow tires and chains
............126
spare tire
.................................184
terminology
.............................109
tire grades
...............................108
treadwear
........................108, 112
Towing
.......................................133
recreational towing
.................144
trailer towing
..........................133
wrecker
....................................198
Traction-lok rear axle
...............155
Transfer case
fluid checking
.........................251
Transmission
automatic operation
...............155
brake-shift interlock (BSI)
....155
fluid, checking and adding
(manual)
.................................250
fluid, refill capacities
..............254
lubricant specifications
..........254
manual operation
....................159
Turn signal
..................................47
2008 Ranger(ran)
Owners Guide (post-2002-fmt)
USA(fus)
Index
269
