Set clock FORD RANGER 2010 2.G Owners Manual

3.AM/FM:Press to choose a
frequency band in radio mode.
4.Memory preset buttons:To set
a station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns.
5.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels.
6.Tone:Press TONE until the
desired level — Bass, Treble, Bal
appears on the display. Turn the
volume control to raise/lower the
levels, or to move the audio sound
from the right to left.
7.CLK (Clock):To set the hours,
press and hold CLK until CLOCK
SET appears in the display.
Continue to hold CLK as you press
SEEK to decrease
or
increase
the hours.
To set the minutes, press and hold CLK until CLOCK SET appears in the
display. Continue to hold CLK as you press TUNE to decrease
or
increase
the minutes.
AM/FM
1234
TONE
CLK
Entertainment Systems
20
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

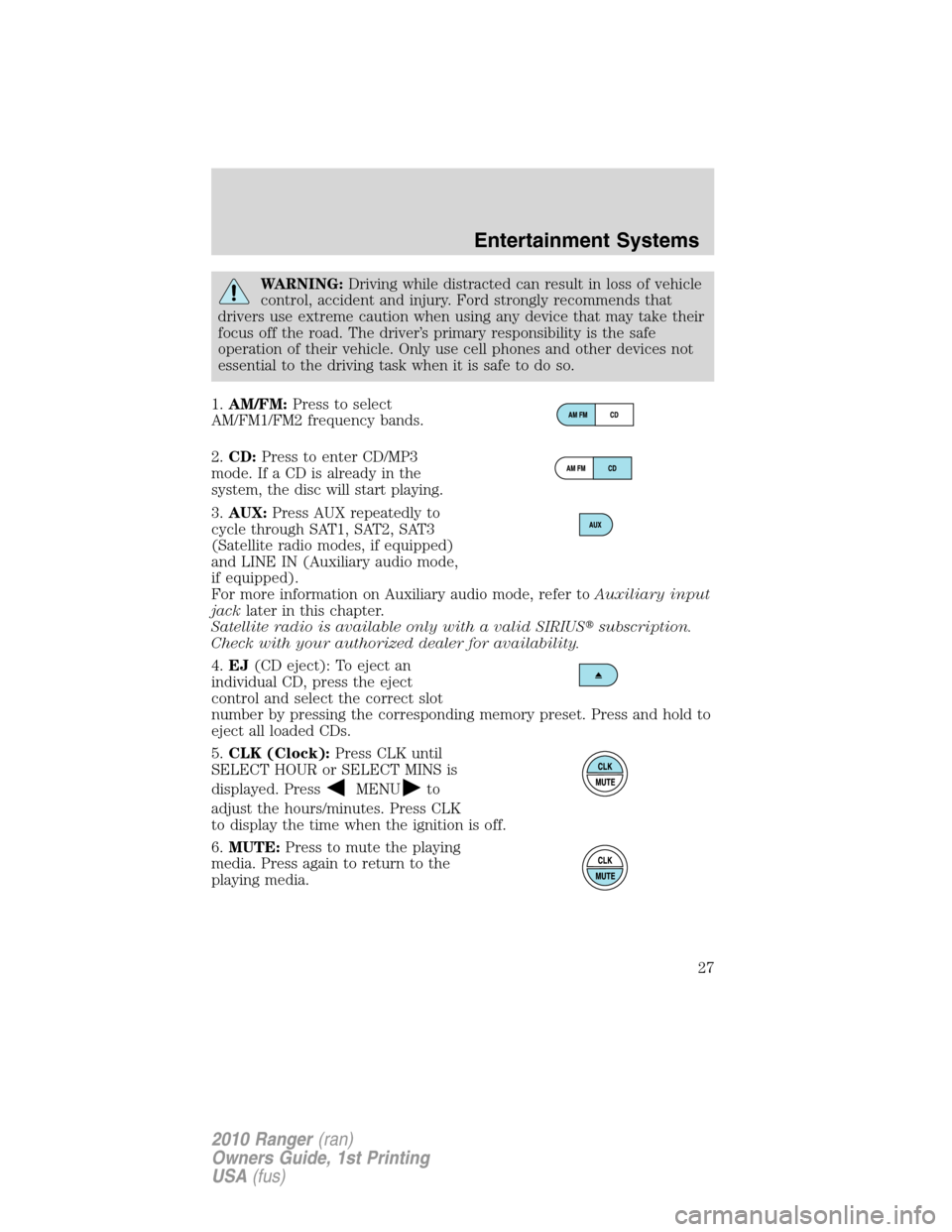

WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
1.AM/FM:Press to select
AM/FM1/FM2 frequency bands.
2.CD:Press to enter CD/MP3
mode. If a CD is already in the
system, the disc will start playing.
3.AUX:Press AUX repeatedly to
cycle through SAT1, SAT2, SAT3
(Satellite radio modes, if equipped)
and LINE IN (Auxiliary audio mode,
if equipped).
For more information on Auxiliary audio mode, refer toAuxiliary input
jacklater in this chapter.
Satellite radio is available only with a valid SIRIUS
subscription.
Check with your authorized dealer for availability.
4.EJ(CD eject): To eject an
individual CD, press the eject
control and select the correct slot
number by pressing the corresponding memory preset. Press and hold to
eject all loaded CDs.
5.CLK (Clock):Press CLK until
SELECT HOUR or SELECT MINS is
displayed. Press
MENUto
adjust the hours/minutes. Press CLK
to display the time when the ignition is off.
6.MUTE:Press to mute the playing
media. Press again to return to the
playing media.
Entertainment Systems
27
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

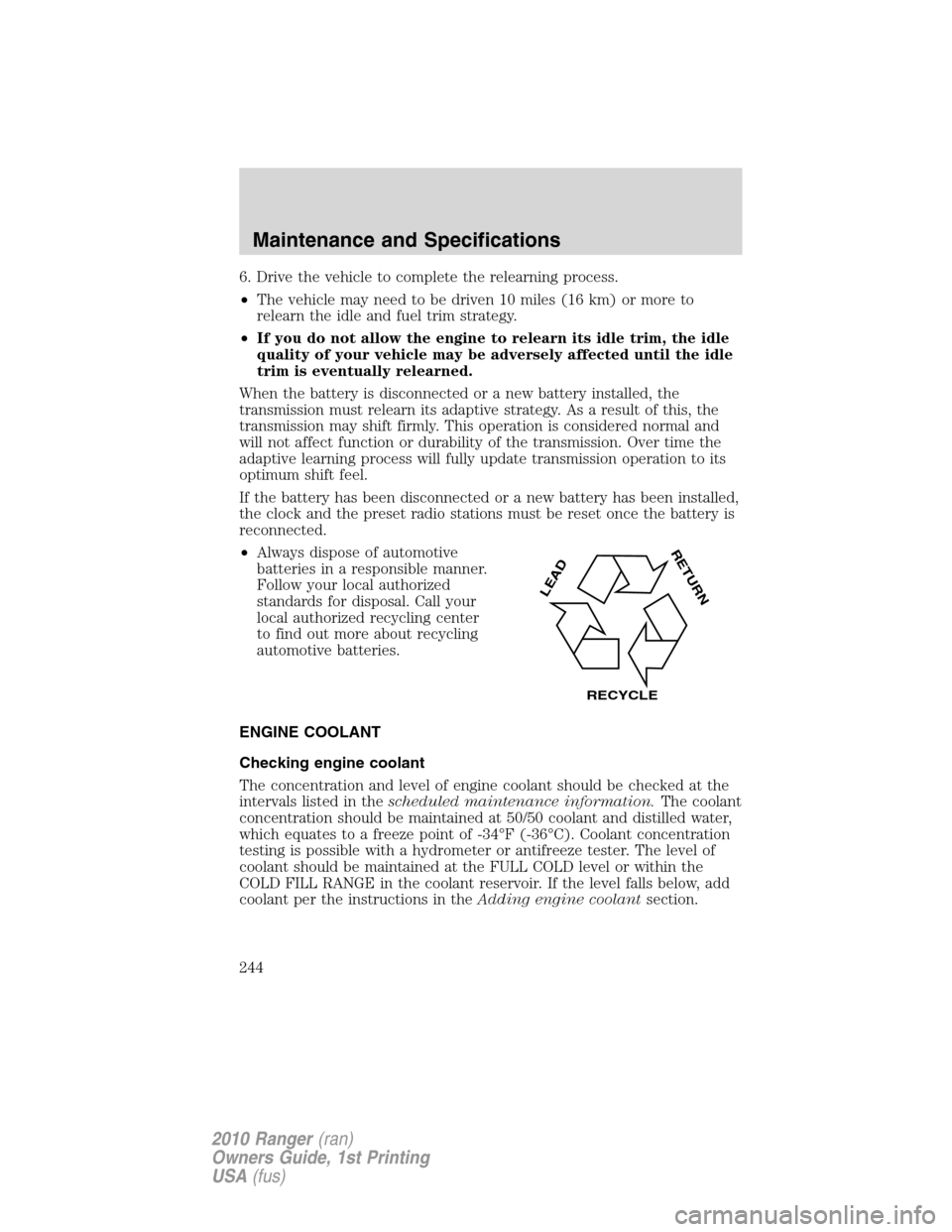

6. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
When the battery is disconnected or a new battery installed, the
transmission must relearn its adaptive strategy. As a result of this, the
transmission may shift firmly. This operation is considered normal and
will not affect function or durability of the transmission. Over time the
adaptive learning process will fully update transmission operation to its
optimum shift feel.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed in thescheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester. The level of
coolant should be maintained at the FULL COLD level or within the
COLD FILL RANGE in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
244
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

Refueling
WARNING:Fuel vapor burns violently and a fuel fire can cause
severe injuries. To help avoid injuries to you and others:
•Read and follow all the instructions on the pump island;
•Turn off your engine when you are refueling;
•Do not smoke if you are near fuel or refueling your vehicle;
•Keep sparks, flames and smoking materials away from fuel;
•Stay outside your vehicle and do not leave the fuel pump unattended
when refueling your vehicle — this is against the law in some places;
•Keep children away from the fuel pump; never let children pump
fuel.
Use the following guidelines to avoid electrostatic charge build-up when
filling an ungrounded fuel container:
•Place approved fuel container on the ground.
•DO NOT fill a fuel container while it is in the vehicle (including the
cargo area).
•Keep the fuel pump nozzle in contact with the fuel container while
filling.
•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Fuel filler cap
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the fuel filler cap counterclockwise until it spins off.
3. Carefully hang the cap from the tether.
4. To install the cap, place the cap into the filler pipe and rotate until
you hear at least one click.
If the check fuel cap light
comes on, the fuel filler cap may not be
properly installed. The light can come on after several driving events
after you’ve refueled your vehicle.
At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
may not reset immediately; it may take several driving cycles for
Maintenance and Specifications
252
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

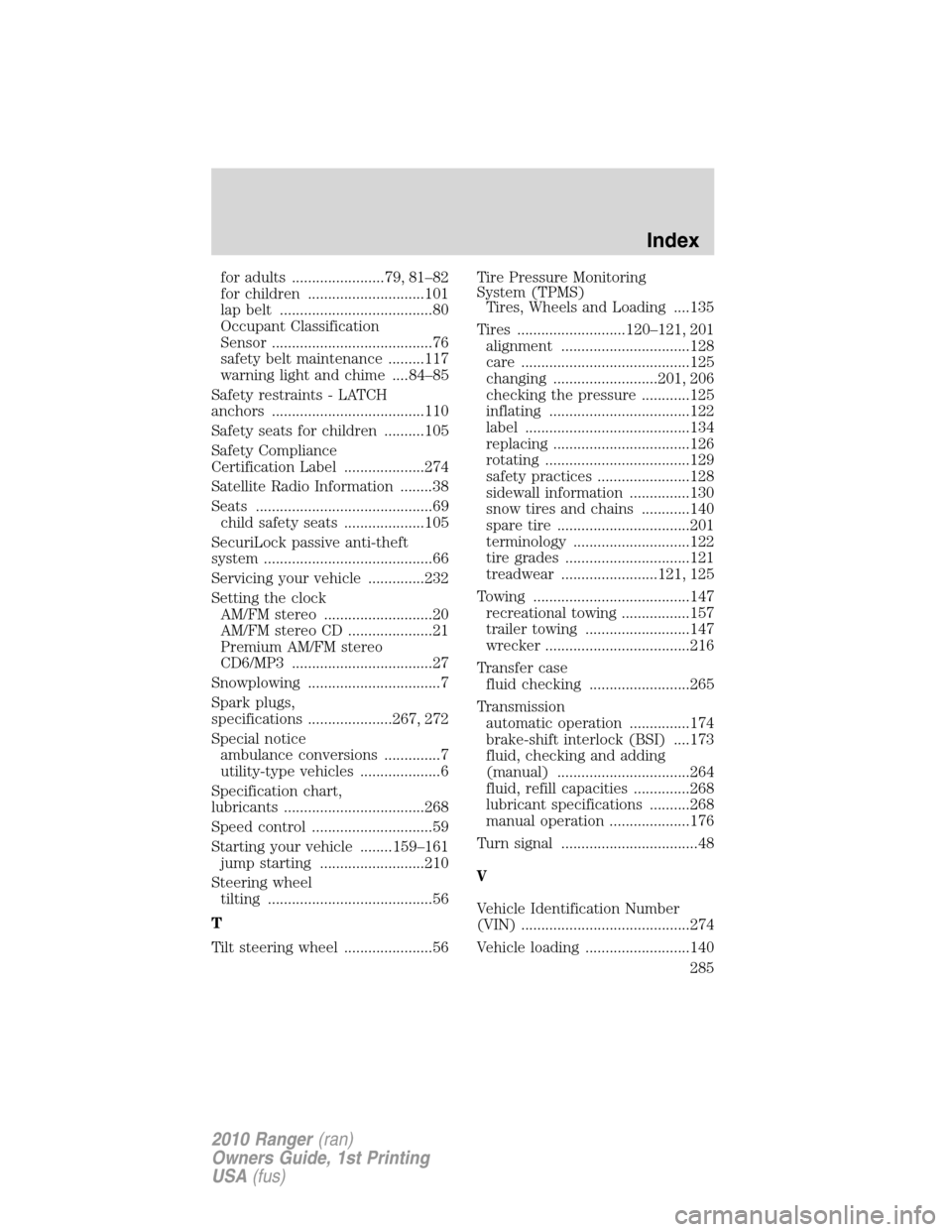

for adults .......................79, 81–82
for children .............................101
lap belt ......................................80
Occupant Classification
Sensor ........................................76
safety belt maintenance .........117
warning light and chime ....84–85
Safety restraints - LATCH
anchors ......................................110
Safety seats for children ..........105
Safety Compliance
Certification Label ....................274
Satellite Radio Information ........38
Seats ............................................69
child safety seats ....................105
SecuriLock passive anti-theft
system ..........................................66
Servicing your vehicle ..............232
Setting the clock
AM/FM stereo ...........................20
AM/FM stereo CD .....................21
Premium AM/FM stereo
CD6/MP3 ...................................27
Snowplowing .................................7
Spark plugs,
specifications .....................267, 272
Special notice
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart,
lubricants ...................................268
Speed control ..............................59
Starting your vehicle ........159–161
jump starting ..........................210
Steering wheel
tilting .........................................56
T
Tilt steering wheel ......................56Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....135
Tires ...........................120–121, 201
alignment ................................128
care ..........................................125
changing ..........................201, 206
checking the pressure ............125
inflating ...................................122
label .........................................134
replacing ..................................126
rotating ....................................129
safety practices .......................128
sidewall information ...............130
snow tires and chains ............140
spare tire .................................201
terminology .............................122
tire grades ...............................121
treadwear ........................121, 125
Towing .......................................147
recreational towing .................157
trailer towing ..........................147
wrecker ....................................216
Transfer case
fluid checking .........................265
Transmission
automatic operation ...............174
brake-shift interlock (BSI) ....173
fluid, checking and adding
(manual) .................................264
fluid, refill capacities ..............268
lubricant specifications ..........268
manual operation ....................176
Turn signal ..................................48
V
Vehicle Identification Number
(VIN) ..........................................274
Vehicle loading ..........................140
Index
285
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
