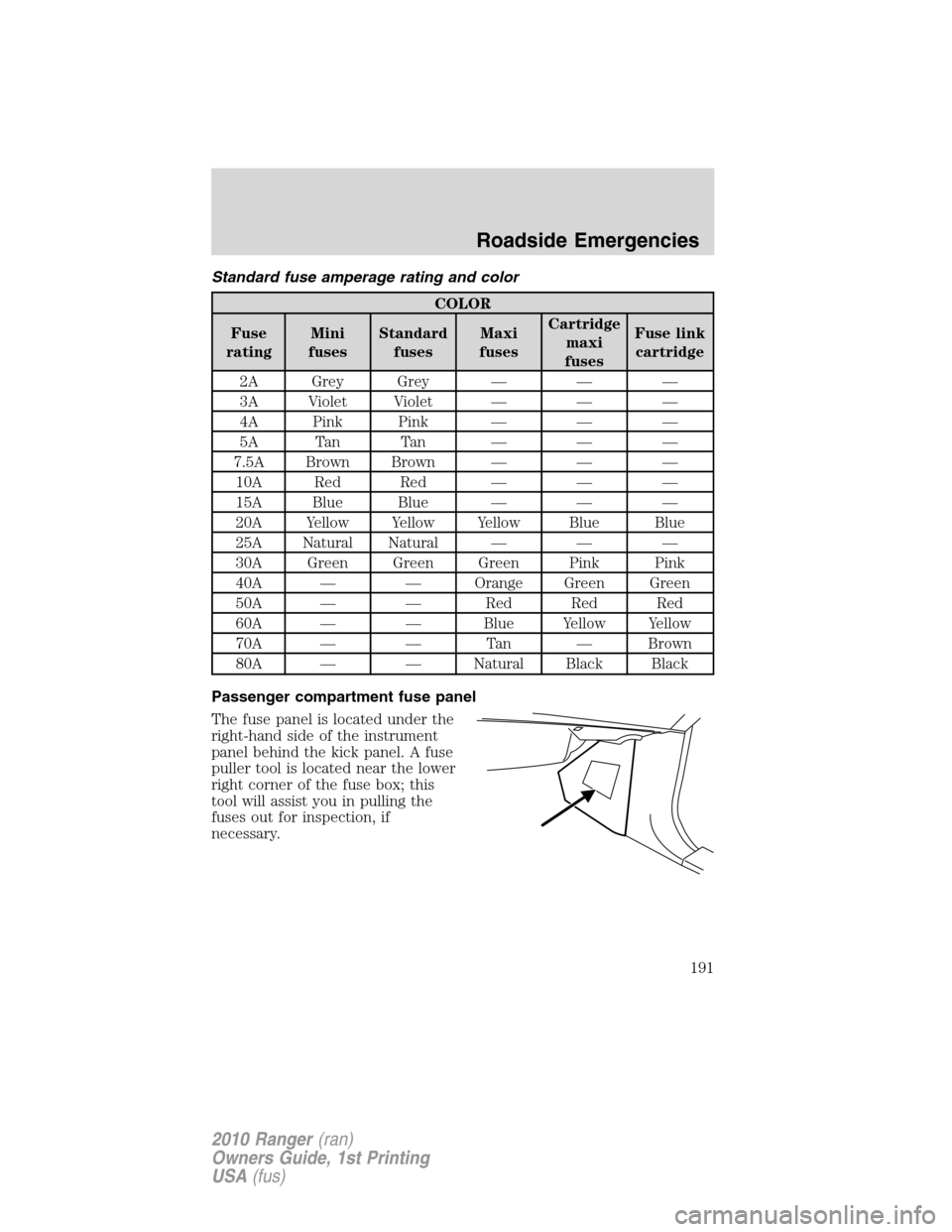

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black
Passenger compartment fuse panel
The fuse panel is located under the
right-hand side of the instrument
panel behind the kick panel. A fuse
puller tool is located near the lower
right corner of the fuse box; this
tool will assist you in pulling the
fuses out for inspection, if
necessary.
Roadside Emergencies
191
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description

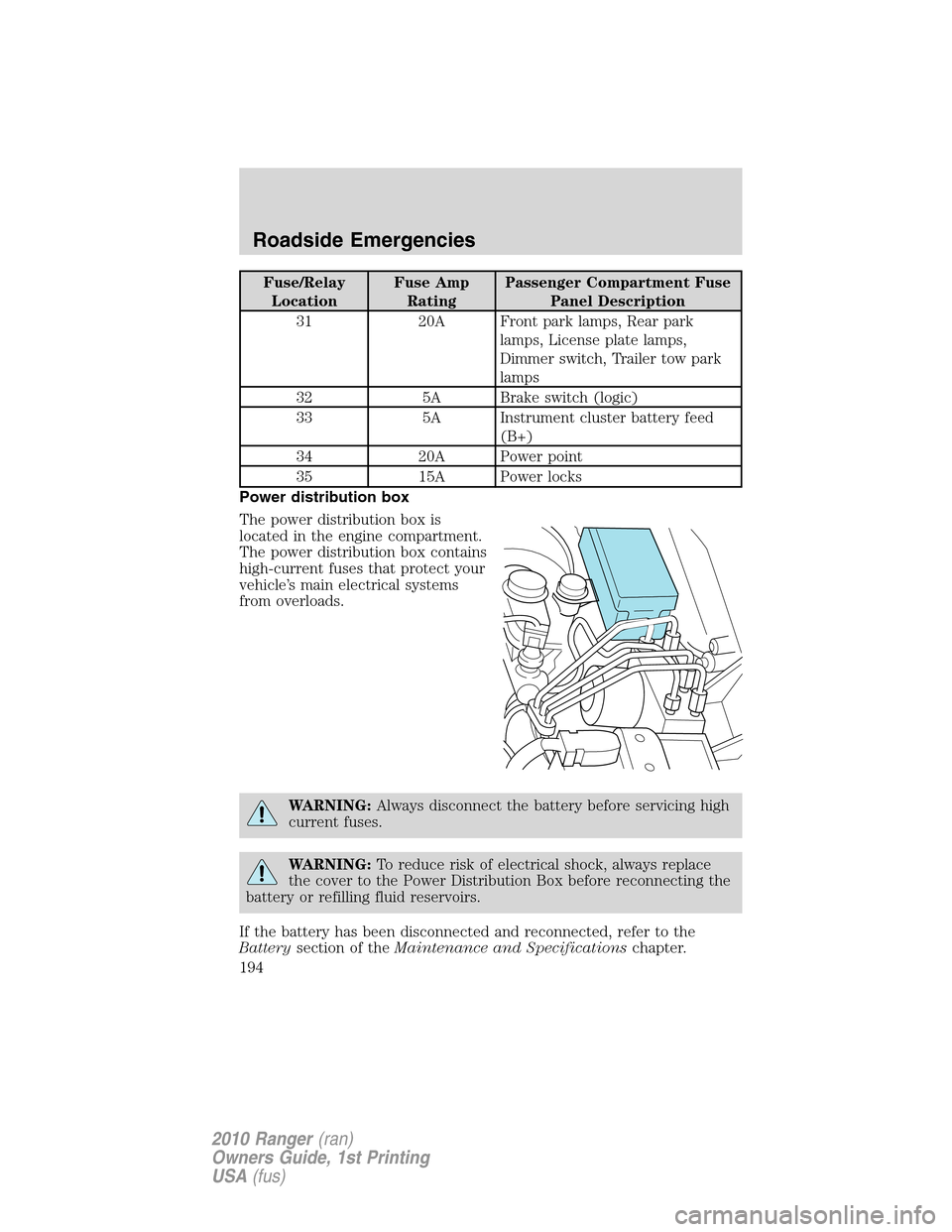

31 20A Front park lamps, Rear park
lamps, License plate lamps,
Dimmer switch, Trailer tow park
lamps
32 5A Brake switch (logic)
33 5A Instrument cluster battery feed
(B+)
34 20A Power point
35 15A Power locks
Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
194
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

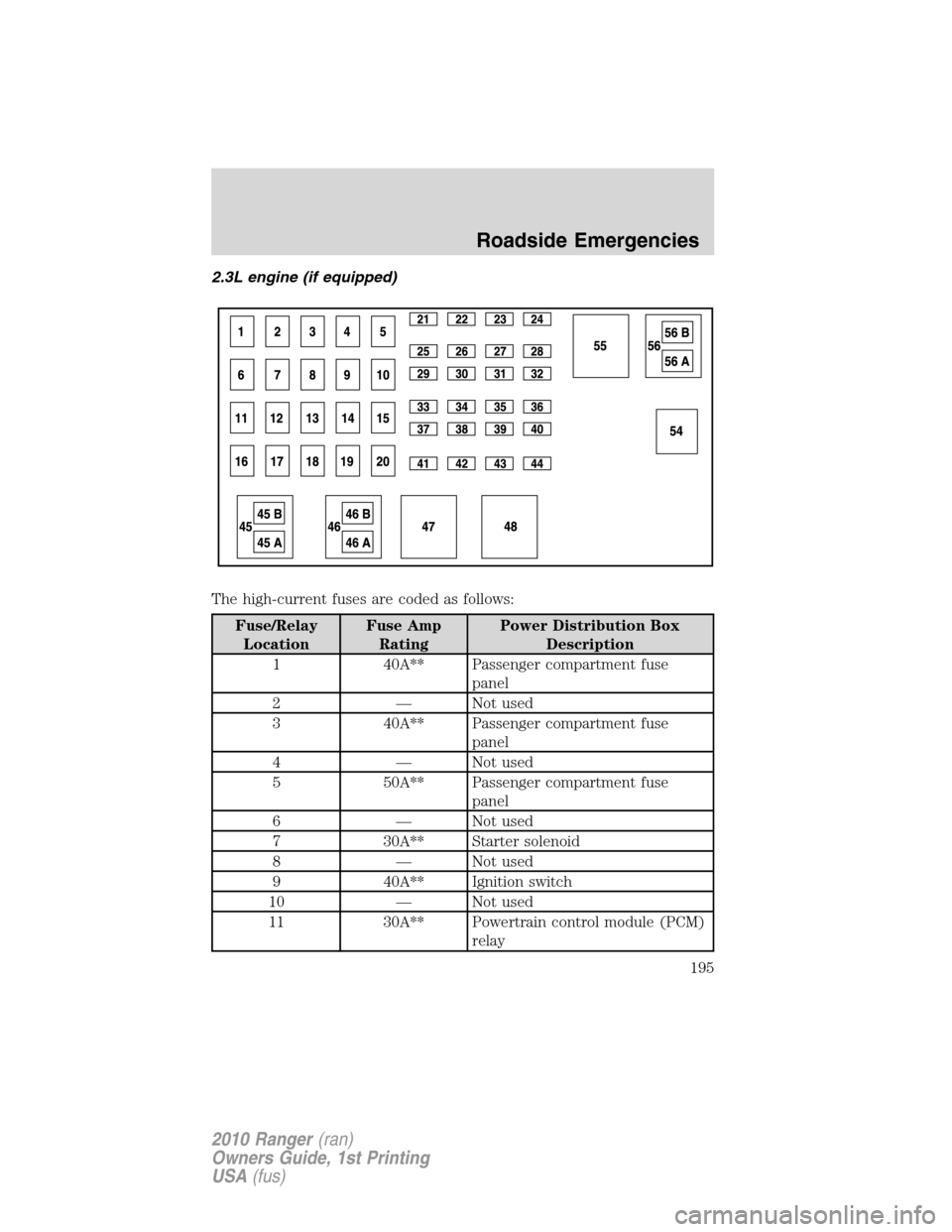

2.3L engine (if equipped)
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 40A** Passenger compartment fuse
panel
2 — Not used
3 40A** Passenger compartment fuse
panel
4 — Not used
5 50A** Passenger compartment fuse
panel
6 — Not used
7 30A** Starter solenoid
8 — Not used
9 40A** Ignition switch
10 — Not used
11 30A** Powertrain control module (PCM)
relay
Roadside Emergencies
195
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

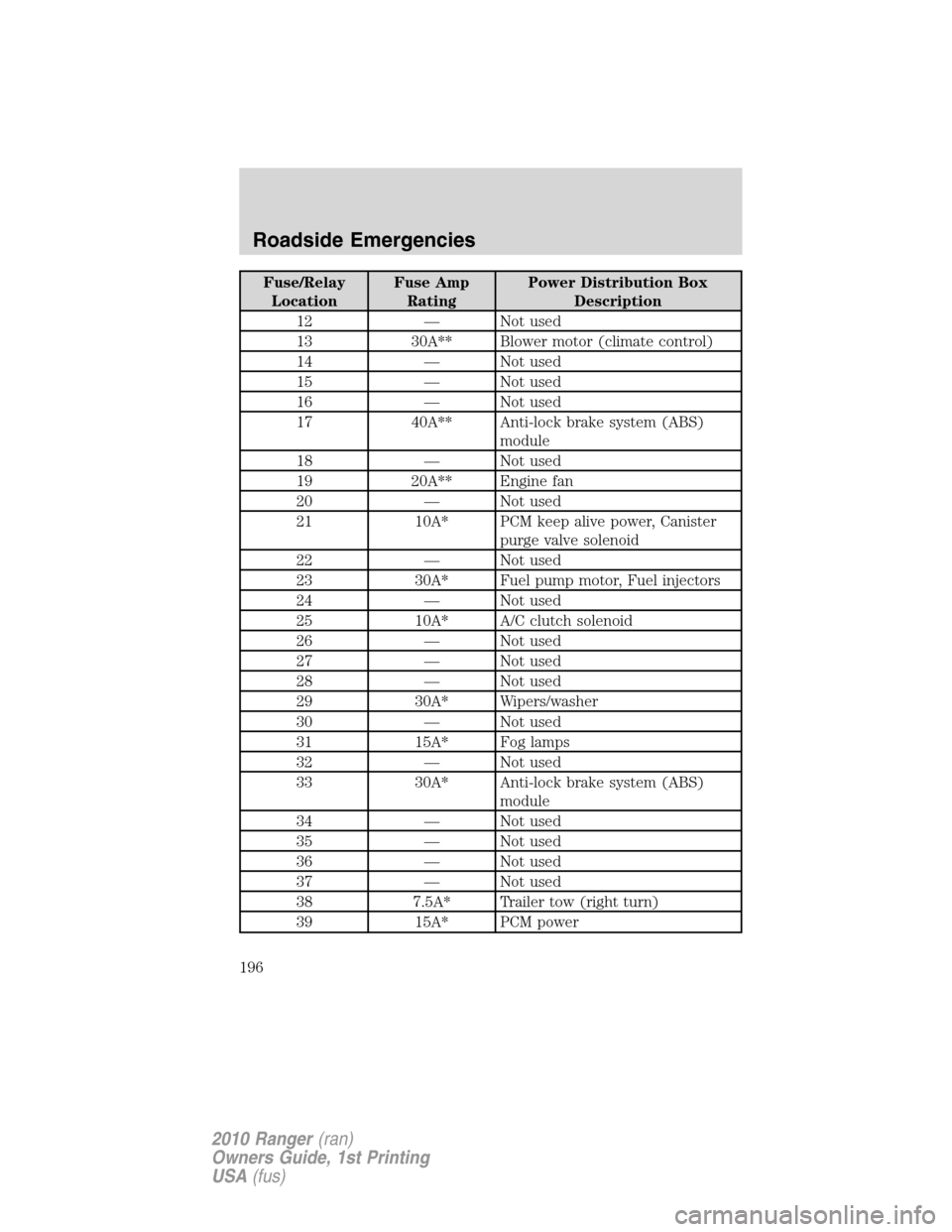

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
12 — Not used
13 30A** Blower motor (climate control)
14 — Not used
15 — Not used
16 — Not used
17 40A** Anti-lock brake system (ABS)
module
18 — Not used
19 20A** Engine fan
20 — Not used
21 10A* PCM keep alive power, Canister
purge valve solenoid
22 — Not used
23 30A* Fuel pump motor, Fuel injectors
24 — Not used
25 10A* A/C clutch solenoid
26 — Not used
27 — Not used
28 — Not used
29 30A* Wipers/washer
30 — Not used
31 15A* Fog lamps
32 — Not used
33 30A* Anti-lock brake system (ABS)
module
34 — Not used
35 — Not used
36 — Not used
37 — Not used
38 7.5A* Trailer tow (right turn)
39 15A* PCM power
Roadside Emergencies
196
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

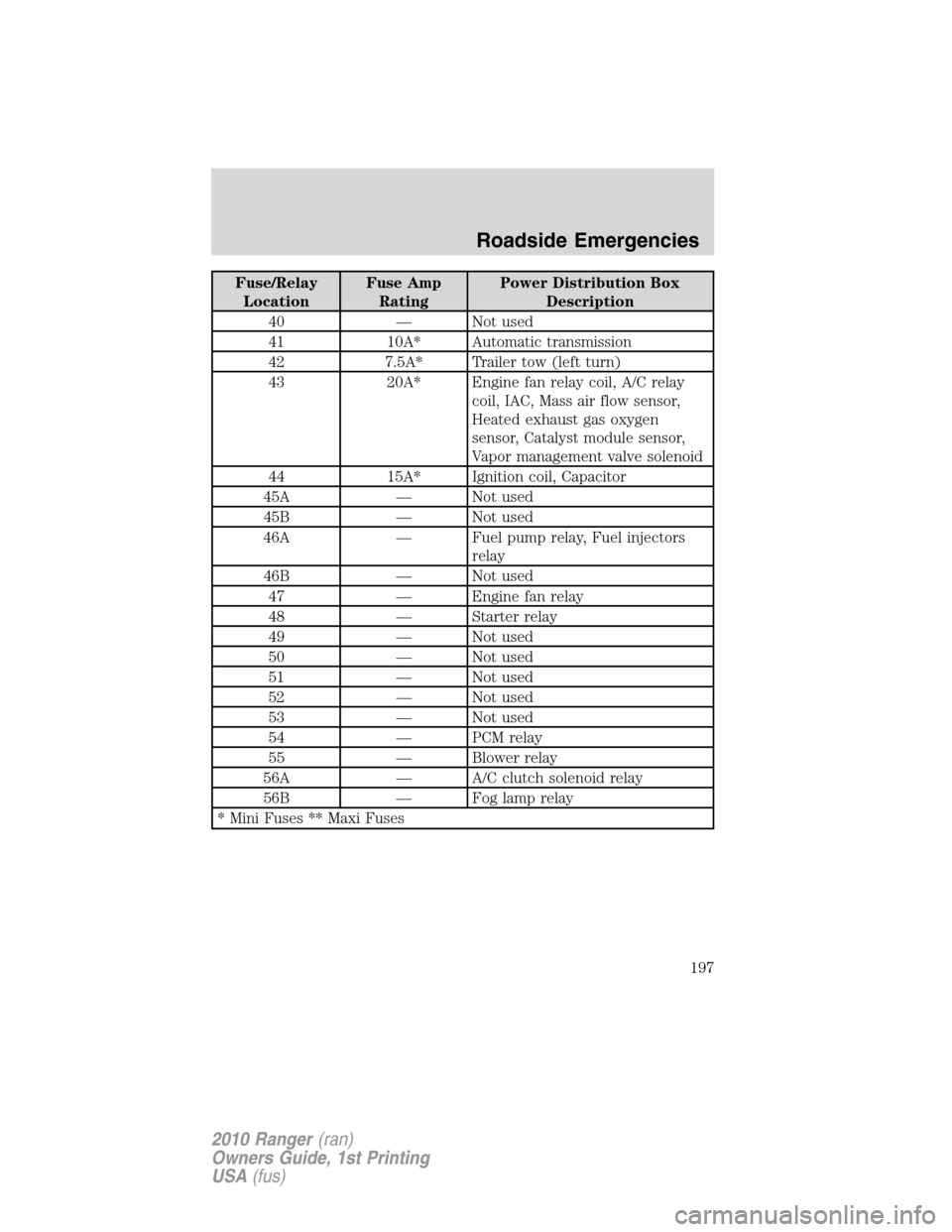

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
40 — Not used
41 10A* Automatic transmission
42 7.5A* Trailer tow (left turn)
43 20A* Engine fan relay coil, A/C relay
coil, IAC, Mass air flow sensor,
Heated exhaust gas oxygen
sensor, Catalyst module sensor,
Vapor management valve solenoid
44 15A* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — Fuel pump relay, Fuel injectors
relay
46B — Not used
47 — Engine fan relay
48 — Starter relay
49 — Not used
50 — Not used
51 — Not used
52 — Not used
53 — Not used
54 — PCM relay
55 — Blower relay
56A — A/C clutch solenoid relay
56B — Fog lamp relay
* Mini Fuses ** Maxi Fuses
Roadside Emergencies
197
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

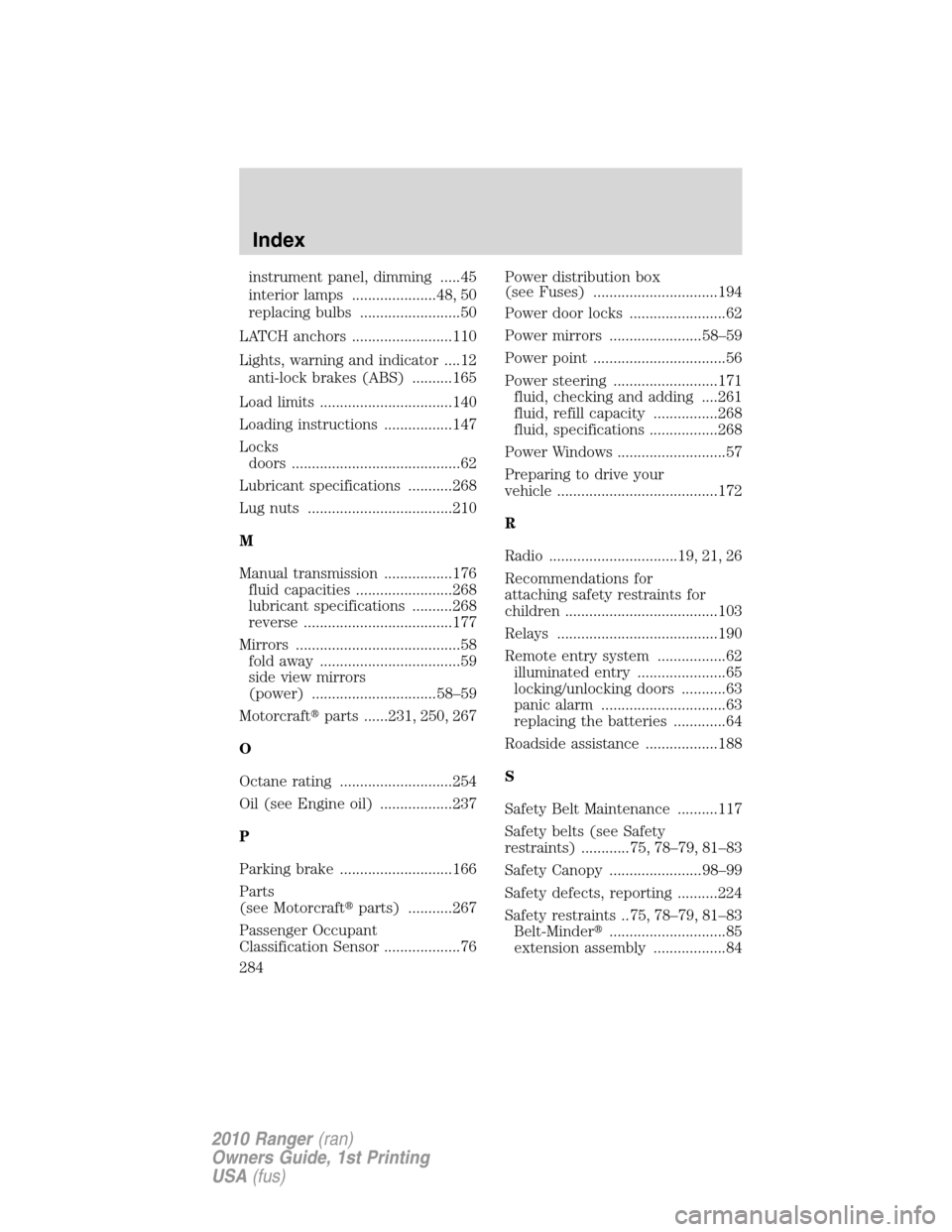

instrument panel, dimming .....45
interior lamps .....................48, 50
replacing bulbs .........................50
LATCH anchors .........................110
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........165
Load limits .................................140
Loading instructions .................147
Locks
doors ..........................................62
Lubricant specifications ...........268
Lug nuts ....................................210
M
Manual transmission .................176
fluid capacities ........................268
lubricant specifications ..........268
reverse .....................................177
Mirrors .........................................58
fold away ...................................59
side view mirrors
(power) ...............................58–59
Motorcraft
parts ......231, 250, 267
O
Octane rating ............................254
Oil (see Engine oil) ..................237
P
Parking brake ............................166
Parts
(see Motorcraft
parts) ...........267
Passenger Occupant
Classification Sensor ...................76Power distribution box
(see Fuses) ...............................194
Power door locks ........................62
Power mirrors .......................58–59
Power point .................................56
Power steering ..........................171
fluid, checking and adding ....261
fluid, refill capacity ................268
fluid, specifications .................268
Power Windows ...........................57
Preparing to drive your
vehicle ........................................172
R
Radio ................................19, 21, 26
Recommendations for
attaching safety restraints for
children ......................................103
Relays ........................................190
Remote entry system .................62
illuminated entry ......................65
locking/unlocking doors ...........63
panic alarm ...............................63
replacing the batteries .............64
Roadside assistance ..................188
S
Safety Belt Maintenance ..........117
Safety belts (see Safety
restraints) ............ 75, 78–79, 81–83
Safety Canopy .......................98–99
Safety defects, reporting ..........224
Safety restraints .. 75, 78–79, 81–83
Belt-Minder
.............................85
extension assembly ..................84
Index
284
2010 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
