WARNING:When mounting replacement tires and wheels, you
should not exceed the maximum pressure indicated on the
sidewall of the tire to set the beads without additional precautions
listed below. If the beads do not seat at the maximum pressure
indicated, re-lubricate and try again.
When inflating the tire for mounting pressures up to 20 psi (1.38 bar)
greater than the maximum pressure on the tire sidewall, the following
precautions must be taken to protect the person mounting the tire:
1. Make sure that you have the correct tire and wheel size.
2. Lubricate the tire bead and wheel bead seat area again.
3. Stand at a minimum of 12 ft (3.66 m) away from the tire wheel
assembly.
4. Use both eye and ear protection.
For a mounting pressure more than 20 psi (1.38 bar) greater than the
maximum pressure, a Ford dealer or other tire service professional
should do the mounting.
Always inflate steel carcass tires with a remote air fill with the person
inflating standing at a minimum of 12 ft (3.66 m) away from the tire
wheel assembly.
Important:Remember to replace the wheel valve stems when the road
tires are replaced on your vehicle.
It is recommended that the two front tires or two rear tires generally be
replaced as a pair.
The tire pressure sensors mounted in the wheels (originally installed on
your vehicle) are not designed to be used in aftermarket wheels.
The use of wheels or tires not recommended by Ford Motor Company
may affect the operation of your tire pressure monitoring system.
If the TPMS indicator is flashing, your TPMS is malfunctioning. Your
replacement tire might be incompatible with your TPMS, or some
component of the TPMS may be damaged.
Safety practices
Driving habits have a great deal to do with your tire mileage and safety.
•Observe posted speed limits
•Avoid fast starts, stops and turns
•Avoid potholes and objects on the road
Tires, Wheels and Loading
120
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
WARNING:The tire pressure monitoring system is NOT a
substitute for manually checking tire pressure. The tire pressure
should be checked periodically (at least monthly) using a tire gauge,
seeInflating your tiresin this chapter. Failure to properly maintain
your tire pressure could increase the risk of tire failure, loss of control,
vehicle rollover and personal injury.
Changing tires with TPMS
Each road tire is equipped with
a tire pressure sensor fastened
to the inside rim of the wheel.
The pressure sensor is covered
by the tire and is not visible
unless the tire is removed. The
pressure sensor is located
opposite (180 degrees) from the
valve stem. Care must be taken
when changing the tire to avoid
damaging the sensor.It is
recommended that you always have
your tires serviced by an authorized
dealer.
The tire pressure should be checked
periodically (at least monthly) using
an accurate tire gauge, refer to
Inflating your tiresin this chapter.
Understanding your tire pressure monitoring system (TPMS)
The tire pressure monitoring system measures pressure in your four road
tires and sends the tire pressure readings to your vehicle. The low tire
pressure warning lamp will turn on if the tire pressure is significantly
low. Once the light is illuminated, your tires are under inflated and need
to be inflated to the manufacturer’s recommended tire pressure. Even if
the light turns on and a short time later turns off, your tire pressure still
needs to be checked. Visit www.checkmytires.org for additional
information.
Tires, Wheels and Loading
129
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

ADVANCETRACWITH ROLL STABILITY CONTROL™ (RSC)
STABILITY ENHANCEMENT SYSTEM
Your vehicle is equipped with the AdvanceTracwith RSCsystem. The
AdvanceTracwith RSCsystem provides the following stability
enhancement features for certain driving situations:
•Traction control system (TCS), which functions to help avoid
drive-wheel spin and loss of traction.
•Electronic stability control (ESC), which functions to help avoid skids
or lateral slides
•Roll Stability Control™ (RSC), which functions to help avoid a
vehicle roll-over.
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracwith RSCsystem. In addition, installing any
stereo loudspeakers may interfere with and adversely affect the
AdvanceTracwith RSCsystem. Install any aftermarket stereo
loudspeaker as far as possible from the front center console, the
tunnel, and the front seats in order to minimize the risk of interfering
with the AdvanceTracwith RSCsensors. Reducing the effectiveness
of the AdvanceTracwith RSCsystem could lead to an increased risk
of loss of vehicle control, vehicle rollover, personal injury and death.
WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTracwith RSCsystem is an indication that
at least some of the tires have exceeded their ability to grip the road;
this could reduce the operator’s ability to control the vehicle,
potentially resulting in a loss of vehicle control, vehicle rollover,
personal injury and death. If your AdvanceTracwith RSCsystem
activates, SLOW DOWN.
Driving
158
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 5A Instrument panel dimmer switch
2 10A Trailer tow park lamps
3 10A Right low beam headlamp
4 10A Left low beam headlamp
5 5A Windshield wiper module
(run/accy)
6 10A Radio (run/accy), Door switch
illumination
7 — Not used
8 10A Restraints control module (RCM),
Passenger airbag deactivation
indicator (PADI), Occupant
classification sensor (OCS)
15
252
1
3
4
5 6
8 9
11
12 7
10
13
14
17
18
20 21
22
23
24 16 19
27 28 29
30 31
26
32
33
34 35
Roadside Emergencies
183
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

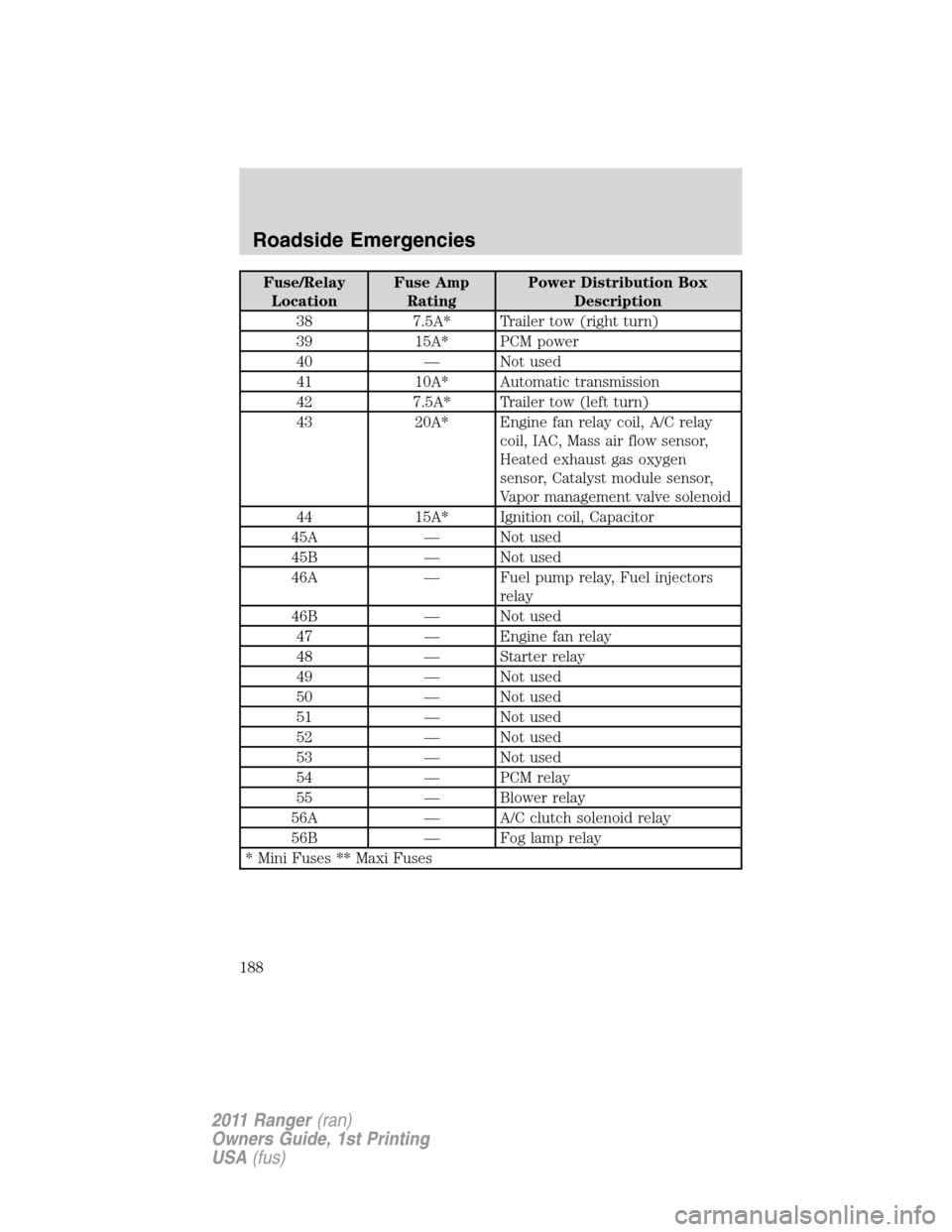

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
38 7.5A* Trailer tow (right turn)
39 15A* PCM power
40 — Not used
41 10A* Automatic transmission
42 7.5A* Trailer tow (left turn)
43 20A* Engine fan relay coil, A/C relay
coil, IAC, Mass air flow sensor,
Heated exhaust gas oxygen
sensor, Catalyst module sensor,
Vapor management valve solenoid
44 15A* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — Fuel pump relay, Fuel injectors
relay
46B — Not used
47 — Engine fan relay
48 — Starter relay
49 — Not used
50 — Not used
51 — Not used
52 — Not used
53 — Not used
54 — PCM relay
55 — Blower relay
56A — A/C clutch solenoid relay
56B — Fog lamp relay
* Mini Fuses ** Maxi Fuses
Roadside Emergencies
188
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
43 20A* A/C relay coil, IAC, Mass air flow
sensor, Heated exhaust gas oxygen
sensor, Catalyst module sensor, Vapor
management valve solenoid, EGR
solenoid, Heated PCV
44 15A* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — A/C clutch solenoid
46B — Not used
47 — PCM relay
48A — Fuel pump relay, Fuel injectors relay
48B — Fog lamp relay
51 — Not used
52 — Not used
53 — Not used
54 — Not used
55 — Blower relay
56 — Starter relay
* Mini Fuses ** Maxi Fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
Roadside Emergencies
191
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
Roadside Emergencies
192
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

Peace of mind
•Keyless entry keypad•Seat covers*
•Remote start•Windshield wiper shaker*
•Vehicle security systems•Back up camera*
•Wheel locks•Back up alarm*
•Vehicle tracking and recovery*•Hitch mounted parking sensor*
•Bumper mounted parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
270
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

replacing bulbs .........................44
LATCH anchors .........................102
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........156
Limited-slip axle .......................163
Load limits .................................132
Loading instructions .................139
Locks
doors ..........................................55
Lubricant specifications ...........260
Lug nuts ....................................200
M
Manual transmission .................168
fluid capacities ........................260
lubricant specifications ..........260
reverse .....................................170
Mirrors .........................................51
fold away ...................................52
side view mirrors
(power) ...............................51–52
Motorcraftparts ......221, 239, 259
O
Octane rating ............................243
Oil (see Engine oil) ..................227
P
Parking brake ............................157
Parts
(see Motorcraftparts) ...........259
Passenger Occupant
Classification Sensor ...................69Power distribution box
(see Fuses) ...............................185
Power door locks ........................55
Power mirrors .......................51–52
Power point .................................50
Power steering ..........................163
fluid, checking and adding ....250
fluid, refill capacity ................260
fluid, specifications .................260
Power Windows ...........................50
Preparing to drive your
vehicle ........................................164
R
Radio ......................................19, 21
Recommendations for
attaching safety restraints for
children ........................................96
Relays ........................................181
Remote entry system .................55
illuminated entry ......................58
locking/unlocking doors ...........56
panic alarm ...............................56
replacing the batteries .............57
Roadside assistance ..................179
S
Safety Belt Maintenance ..........109
Safety belts (see Safety
restraints) ......68, 71–72, 74, 76–77
Safety Canopy .............................91
Safety defects, reporting ..........213
Safety
restraints ............. 68, 71–74, 76–77
Belt-Minder.............................78
Index
300
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)

extension assembly ..................77
for adults .......................72, 74, 76
for children ...............................94
lap belt ......................................73
Occupant Classification
Sensor ........................................69
safety belt maintenance .........109
warning light and chime ..........78
Safety restraints - LATCH
anchors ......................................102
Safety seats for children ............98
Safety Compliance
Certification Label ....................267
Satellite Radio Information ........32
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............281
What Maintenance Schedule
Should You Follow? ................277
Seats ............................................62
child safety seats ......................98
cleaning ...................................220
SecuriLock passive anti-theft
system ..........................................59
Servicing your vehicle ..............222
Setting the clock
AM/FM stereo ...........................20
AM/FM stereo CD .....................21
Snowplowing .................................6
Spark plugs,
specifications .....................259, 265
Special notice
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart,
lubricants ...................................260
Speed control ..............................52Starting your vehicle ........150–152
jump starting ..........................201
Steering wheel
tilting .........................................49
T
Tilt steering wheel ......................49
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....128
Tires ...........................113–114, 191
alignment ................................121
care ..........................................117
changing ..........................191, 196
checking the pressure ............117
inflating ...................................115
label .........................................127
replacing ..................................119
rotating ....................................121
safety practices .......................120
sidewall information ...............122
snow tires and chains ............132
spare tire .................................192
terminology .............................114
tire grades ...............................114
treadwear ........................113, 118
Towing .......................................139
recreational towing .................148
trailer towing ..........................139
wrecker ....................................204
Transfer case
fluid checking .........................254
Transmission
automatic operation ...............166
brake-shift interlock (BSI) ....164
fluid, checking and adding
(manual) .................................253
fluid, refill capacities ..............260
lubricant specifications ..........260
Index
301
2011 Ranger(ran)
Owners Guide, 1st Printing
USA(fus)
