FORD SUPER DUTY 2010 2.G Diesel Supplement Manual

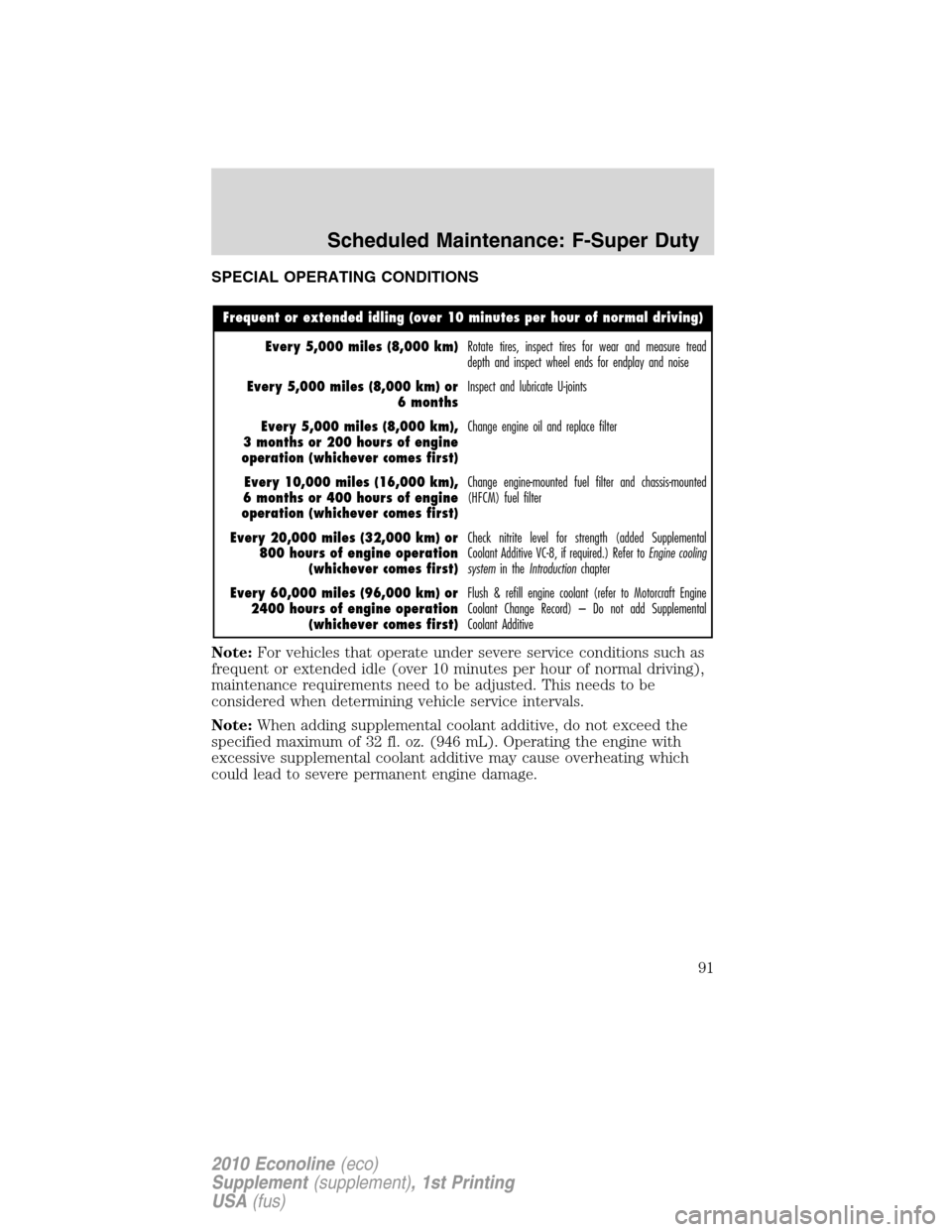

SPECIAL OPERATING CONDITIONS
Frequent or extended idling (over 10 minutes per hour of normal driving)
Every 5,000 miles (8,000 km)Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Every 5,000 miles (8,000 km) or
6 monthsInspect and lubricate U-joints
Every 5,000 miles (8,000 km),
3 months or 200 hours of engine
operation (whichever comes first)Change engine oil and replace filter
Every 10,000 miles (16,000 km),
6 months or 400 hours of engine
operation (whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 20,000 miles (32,000 km) or
800 hours of engine operation
(whichever comes first)Check nitrite level for strength (added Supplemental
Coolant Additive VC-8, if required.) Refer to
Engine cooling
systemin theIntroductionchapter
Every 60,000 miles (96,000 km) or
2400 hours of engine operation
(whichever comes first)Flush & refill engine coolant (refer to Motorcraft Engine
Coolant Change Record) – Do not add Supplemental
Coolant Additive
Note:For vehicles that operate under severe service conditions such as
frequent or extended idle (over 10 minutes per hour of normal driving),
maintenance requirements need to be adjusted. This needs to be
considered when determining vehicle service intervals.
Note:When adding supplemental coolant additive, do not exceed the
specified maximum of 32 fl. oz. (946 mL). Operating the engine with
excessive supplemental coolant additive may cause overheating which
could lead to severe permanent engine damage.
Scheduled Maintenance: F-Super Duty
91
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

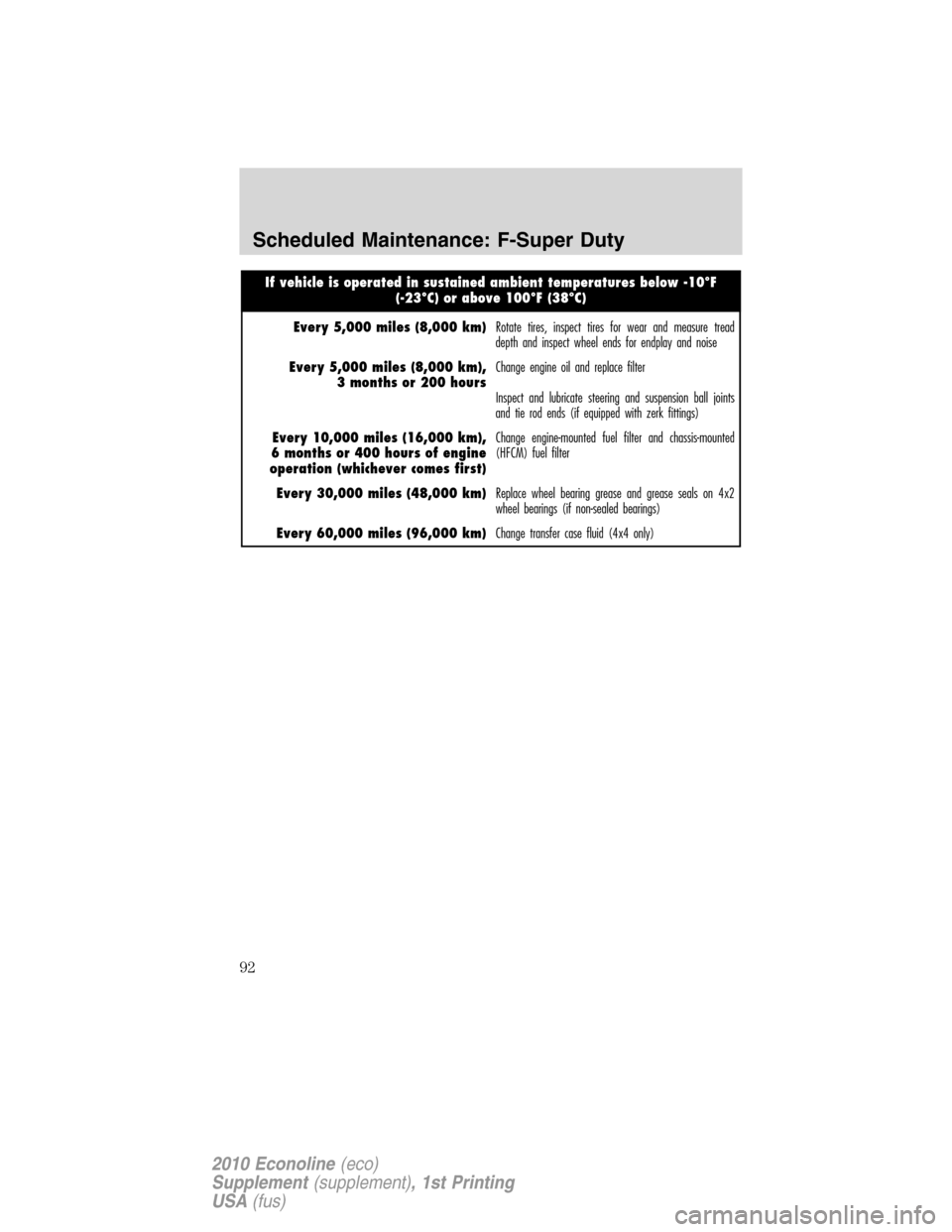

If vehicle is operated in sustained ambient temperatures below -10°F
(-23°C) or above 100°F (38°C)
Every 5,000 miles (8,000 km)Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Every 5,000 miles (8,000 km),
3 months or 200 hoursChange engine oil and replace filter
Inspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Every 10,000 miles (16,000 km),
6 months or 400 hours of engine
operation (whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 30,000 miles (48,000 km)Replace wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
Every 60,000 miles (96,000 km)Change transfer case fluid (4x4 only)
Scheduled Maintenance: F-Super Duty
92
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

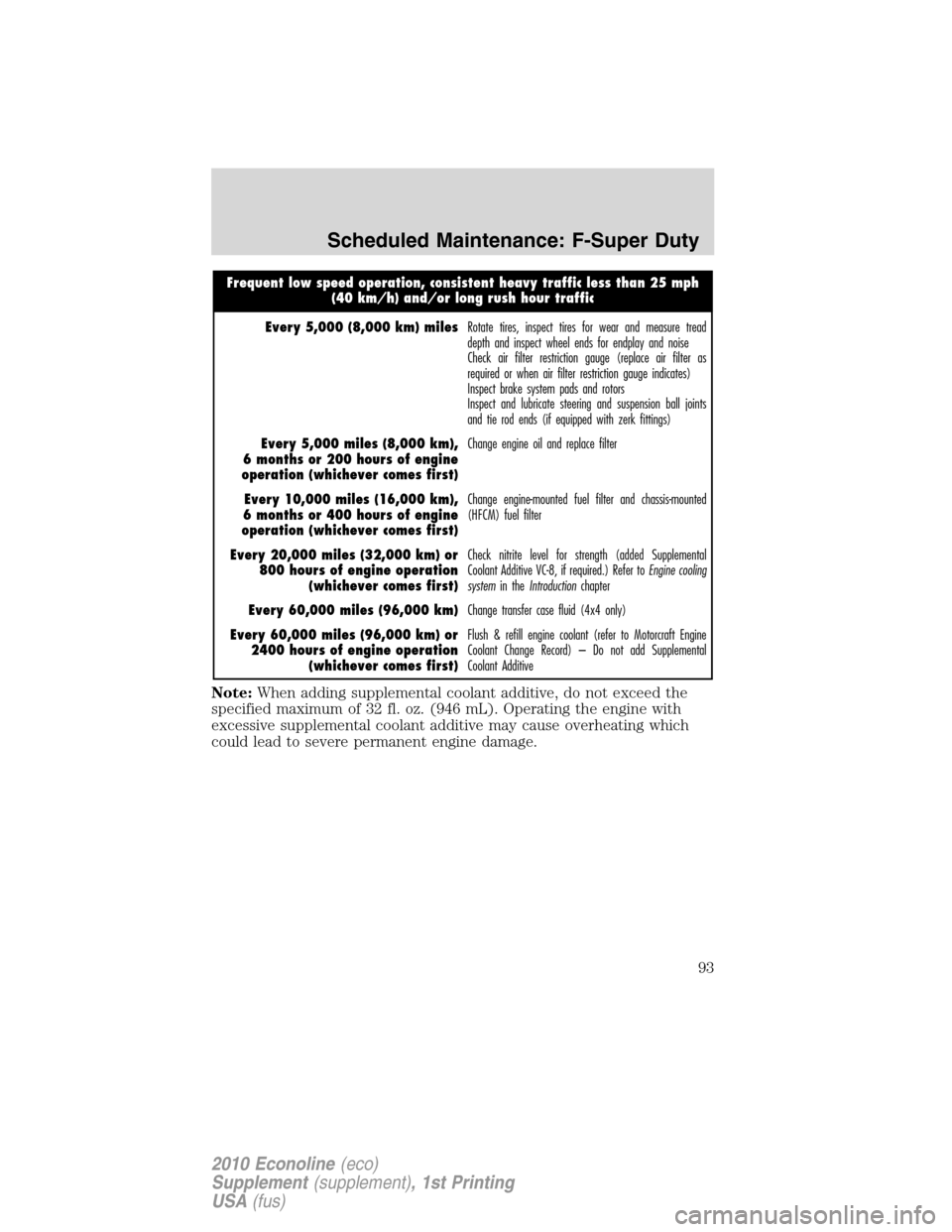

Frequent low speed operation, consistent heavy traffic less than 25 mph
(40 km/h) and/or long rush hour traffic
Every 5,000 (8,000 km) milesRotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Inspect brake system pads and rotors
Inspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Every 5,000 miles (8,000 km),
6 months or 200 hours of engine
operation (whichever comes first)Change engine oil and replace filter
Every 10,000 miles (16,000 km),
6 months or 400 hours of engine
operation (whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 20,000 miles (32,000 km) or
800 hours of engine operation
(whichever comes first)Check nitrite level for strength (added Supplemental
Coolant Additive VC-8, if required.) Refer to
Engine cooling
systemin theIntroductionchapter
Every 60,000 miles (96,000 km)Change transfer case fluid (4x4 only)
Every 60,000 miles (96,000 km) or
2400 hours of engine operation
(whichever comes first)Flush & refill engine coolant (refer to Motorcraft Engine
Coolant Change Record) – Do not add Supplemental
Coolant Additive
Note:When adding supplemental coolant additive, do not exceed the
specified maximum of 32 fl. oz. (946 mL). Operating the engine with
excessive supplemental coolant additive may cause overheating which
could lead to severe permanent engine damage.
Scheduled Maintenance: F-Super Duty
93
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

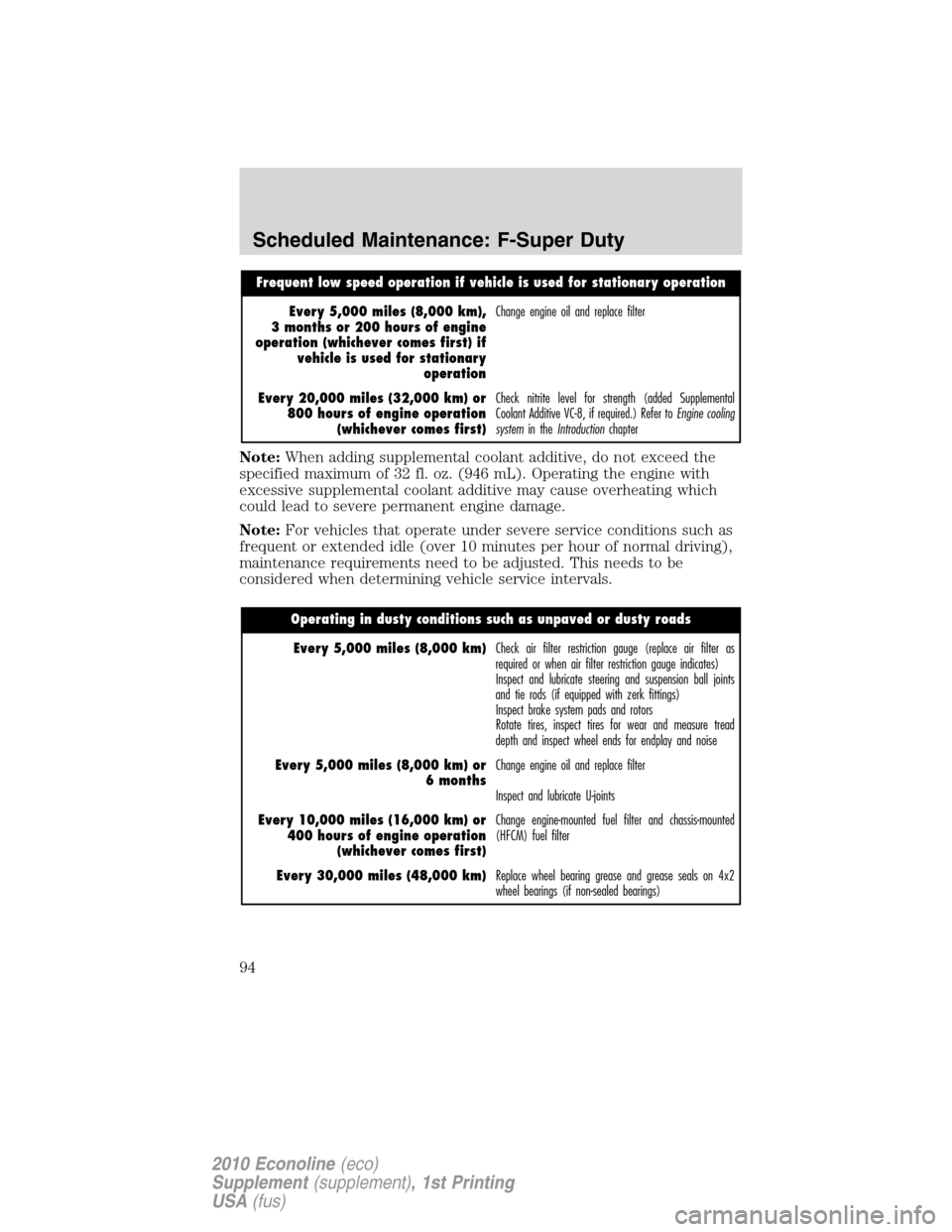

Frequent low speed operation if vehicle is used for stationary operation
Every 5,000 miles (8,000 km),
3 months or 200 hours of engine
operation (whichever comes first) if
vehicle is used for stationary
operationChange engine oil and replace filter
Every 20,000 miles (32,000 km) or
800 hours of engine operation
(whichever comes first)Check nitrite level for strength (added Supplemental
Coolant Additive VC-8, if required.) Refer to
Engine cooling
systemin theIntroductionchapter
Note:When adding supplemental coolant additive, do not exceed the
specified maximum of 32 fl. oz. (946 mL). Operating the engine with
excessive supplemental coolant additive may cause overheating which
could lead to severe permanent engine damage.
Note:For vehicles that operate under severe service conditions such as
frequent or extended idle (over 10 minutes per hour of normal driving),
maintenance requirements need to be adjusted. This needs to be
considered when determining vehicle service intervals.
Operating in dusty conditions such as unpaved or dusty roads
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Inspect and lubricate steering and suspension ball joints
and tie rods (if equipped with zerk fittings)
Inspect brake system pads and rotors
Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Every 5,000 miles (8,000 km) or
6 monthsChange engine oil and replace filter
Inspect and lubricate U-joints
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 30,000 miles (48,000 km)Replace wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
Scheduled Maintenance: F-Super Duty
94
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

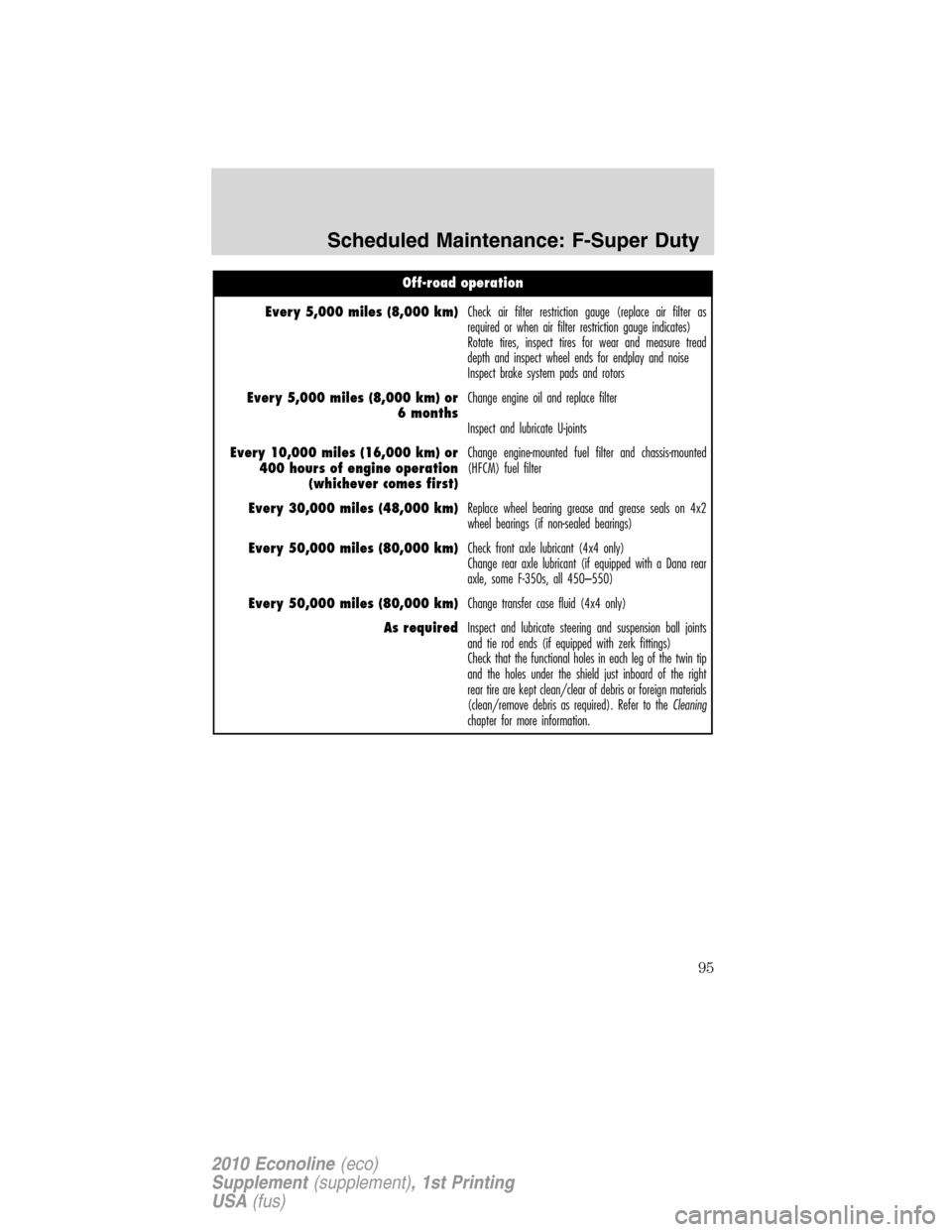

Off-road operation
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Inspect brake system pads and rotors
Every 5,000 miles (8,000 km) or
6 monthsChange engine oil and replace filter
Inspect and lubricate U-joints
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 30,000 miles (48,000 km)Replace wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
Every 50,000 miles (80,000 km)Check front axle lubricant (4x4 only)
Change rear axle lubricant (if equipped with a Dana rear
axle, some F-350s, all 450–550)
Every 50,000 miles (80,000 km)Change transfer case fluid (4x4 only)
As requiredInspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Check that the functional holes in each leg of the twin tip
and the holes under the shield just inboard of the right
rear tire are kept clean/clear of debris or foreign materials
(clean/remove debris as required). Refer to the
Cleaningchapter for more information.
Scheduled Maintenance: F-Super Duty
95
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

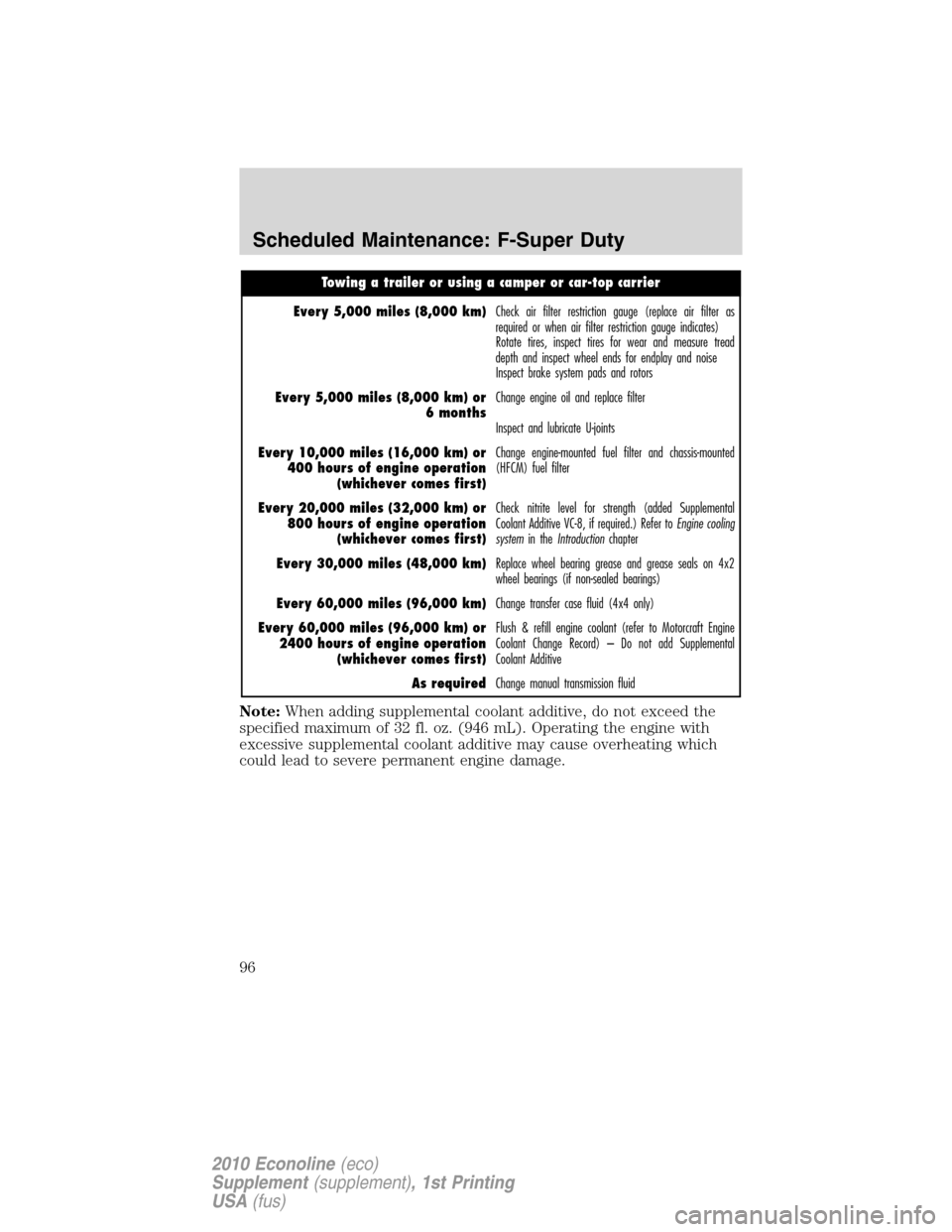

Towing a trailer or using a camper or car-top carrier
Every 5,000 miles (8,000 km)Check air filter restriction gauge (replace air filter as
required or when air filter restriction gauge indicates)
Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Inspect brake system pads and rotors
Every 5,000 miles (8,000 km) or
6 monthsChange engine oil and replace filter
Inspect and lubricate U-joints
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 20,000 miles (32,000 km) or
800 hours of engine operation
(whichever comes first)Check nitrite level for strength (added Supplemental
Coolant Additive VC-8, if required.) Refer to
Engine cooling
systemin theIntroductionchapter
Every 30,000 miles (48,000 km)Replace wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
Every 60,000 miles (96,000 km)Change transfer case fluid (4x4 only)
Every 60,000 miles (96,000 km) or
2400 hours of engine operation
(whichever comes first)Flush & refill engine coolant (refer to Motorcraft Engine
Coolant Change Record) – Do not add Supplemental
Coolant Additive
As requiredChange manual transmission fluid
Note:When adding supplemental coolant additive, do not exceed the
specified maximum of 32 fl. oz. (946 mL). Operating the engine with
excessive supplemental coolant additive may cause overheating which
could lead to severe permanent engine damage.
Scheduled Maintenance: F-Super Duty
96
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

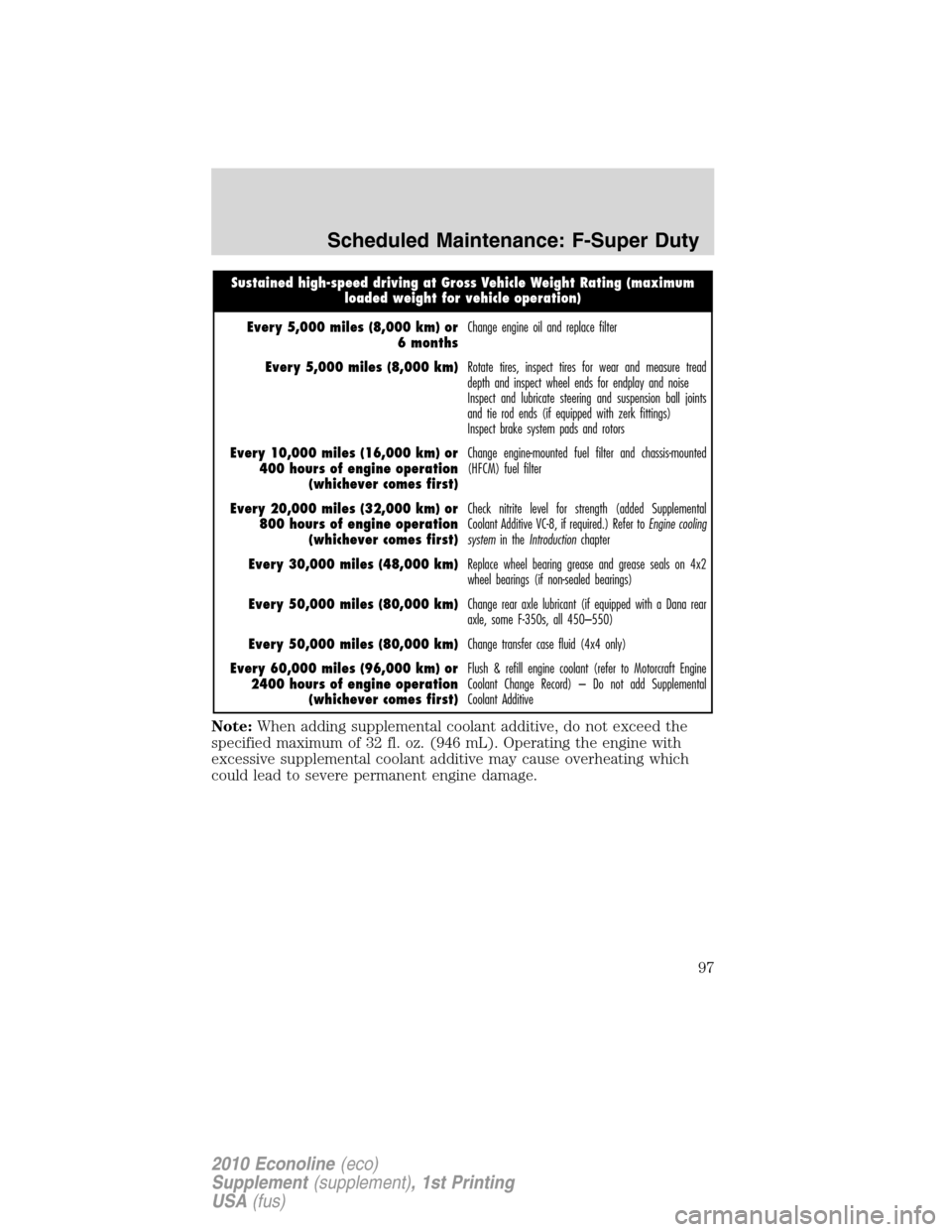

Sustained high-speed driving at Gross Vehicle Weight Rating (maximum
loaded weight for vehicle operation)
Every 5,000 miles (8,000 km) or
6 monthsChange engine oil and replace filter
Every 5,000 miles (8,000 km)Rotate tires, inspect tires for wear and measure tread
depth and inspect wheel ends for endplay and noise
Inspect and lubricate steering and suspension ball joints
and tie rod ends (if equipped with zerk fittings)
Inspect brake system pads and rotors
Every 10,000 miles (16,000 km) or
400 hours of engine operation
(whichever comes first)Change engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Every 20,000 miles (32,000 km) or
800 hours of engine operation
(whichever comes first)Check nitrite level for strength (added Supplemental
Coolant Additive VC-8, if required.) Refer to
Engine cooling
systemin theIntroductionchapter
Every 30,000 miles (48,000 km)Replace wheel bearing grease and grease seals on 4x2
wheel bearings (if non-sealed bearings)
Every 50,000 miles (80,000 km)Change rear axle lubricant (if equipped with a Dana rear
axle, some F-350s, all 450–550)
Every 50,000 miles (80,000 km)Change transfer case fluid (4x4 only)
Every 60,000 miles (96,000 km) or
2400 hours of engine operation
(whichever comes first)Flush & refill engine coolant (refer to Motorcraft Engine
Coolant Change Record) – Do not add Supplemental
Coolant Additive
Note:When adding supplemental coolant additive, do not exceed the
specified maximum of 32 fl. oz. (946 mL). Operating the engine with
excessive supplemental coolant additive may cause overheating which
could lead to severe permanent engine damage.
Scheduled Maintenance: F-Super Duty
97
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

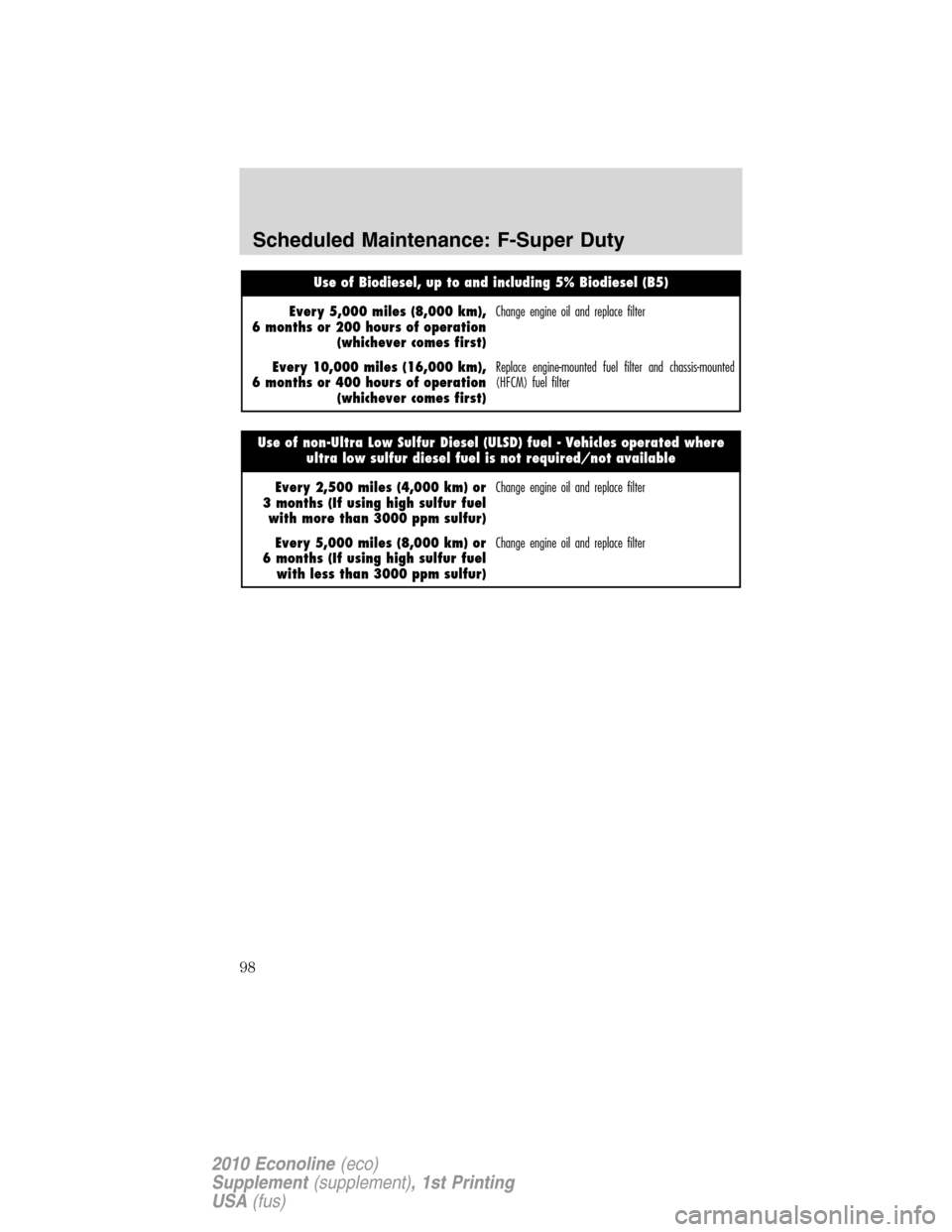

Use of Biodiesel, up to and including 5% Biodiesel (B5)
Every 5,000 miles (8,000 km),
6 months or 200 hours of operation
(whichever comes first)Change engine oil and replace filter
Every 10,000 miles (16,000 km),
6 months or 400 hours of operation
(whichever comes first)Replace engine-mounted fuel filter and chassis-mounted
(HFCM) fuel filter
Use of non-Ultra Low Sulfur Diesel (ULSD) fuel - Vehicles operated where
ultra low sulfur diesel fuel is not required/not available
Every 2,500 miles (4,000 km) or
3 months (If using high sulfur fuel
with more than 3000 ppm sulfur)Change engine oil and replace filter
Every 5,000 miles (8,000 km) or
6 months (If using high sulfur fuel
with less than 3000 ppm sulfur)Change engine oil and replace filter
Scheduled Maintenance: F-Super Duty
98
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

Special Operating Conditions Log
DEALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
Scheduled Maintenance: F-Super Duty
99
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)

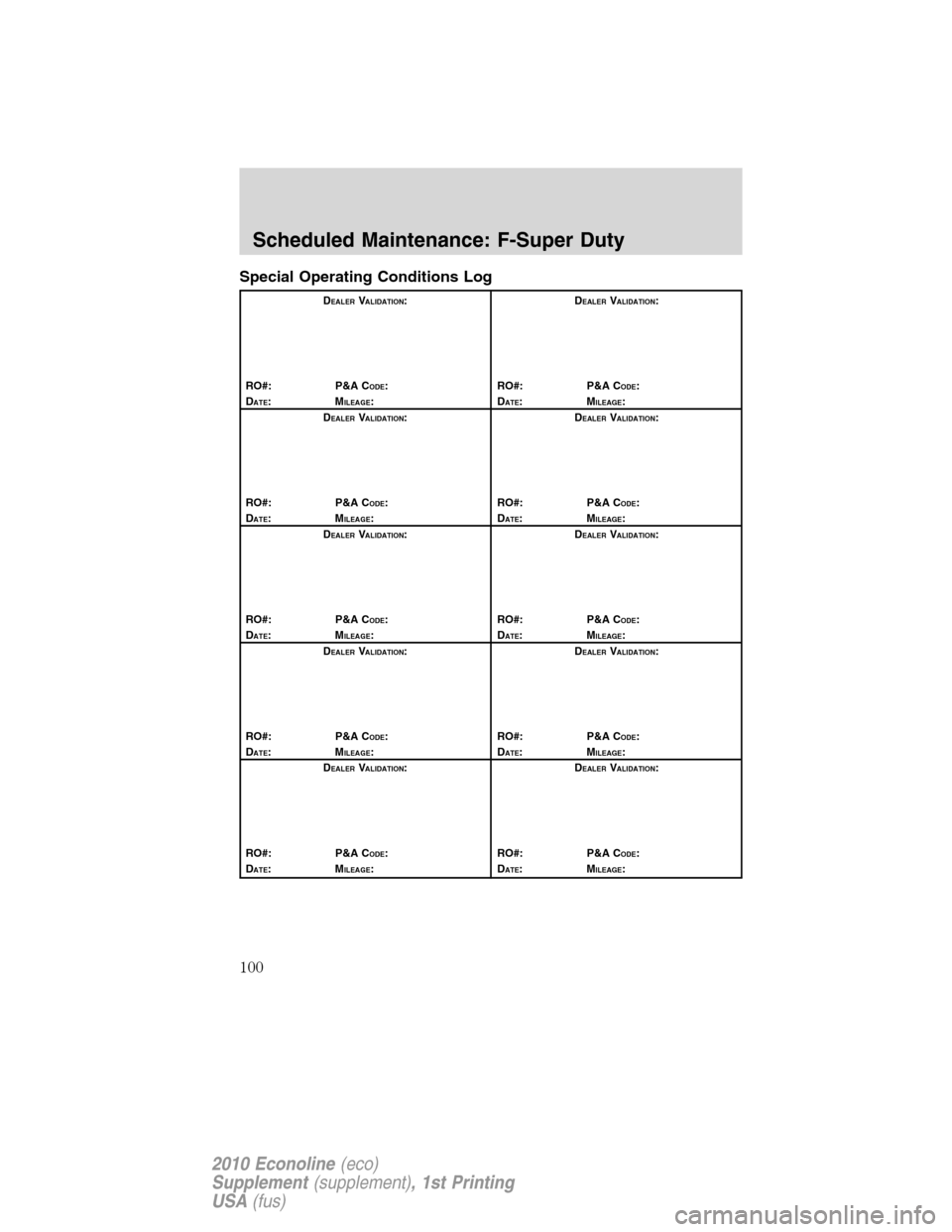

Special Operating Conditions Log
DEALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:D
EALERVALIDATION:
RO#: P&A C
ODE:
DATE:MILEAGE:
Scheduled Maintenance: F-Super Duty
100
2010 Econoline(eco)
Supplement(supplement), 1st Printing
USA(fus)
