Page 351 of 407

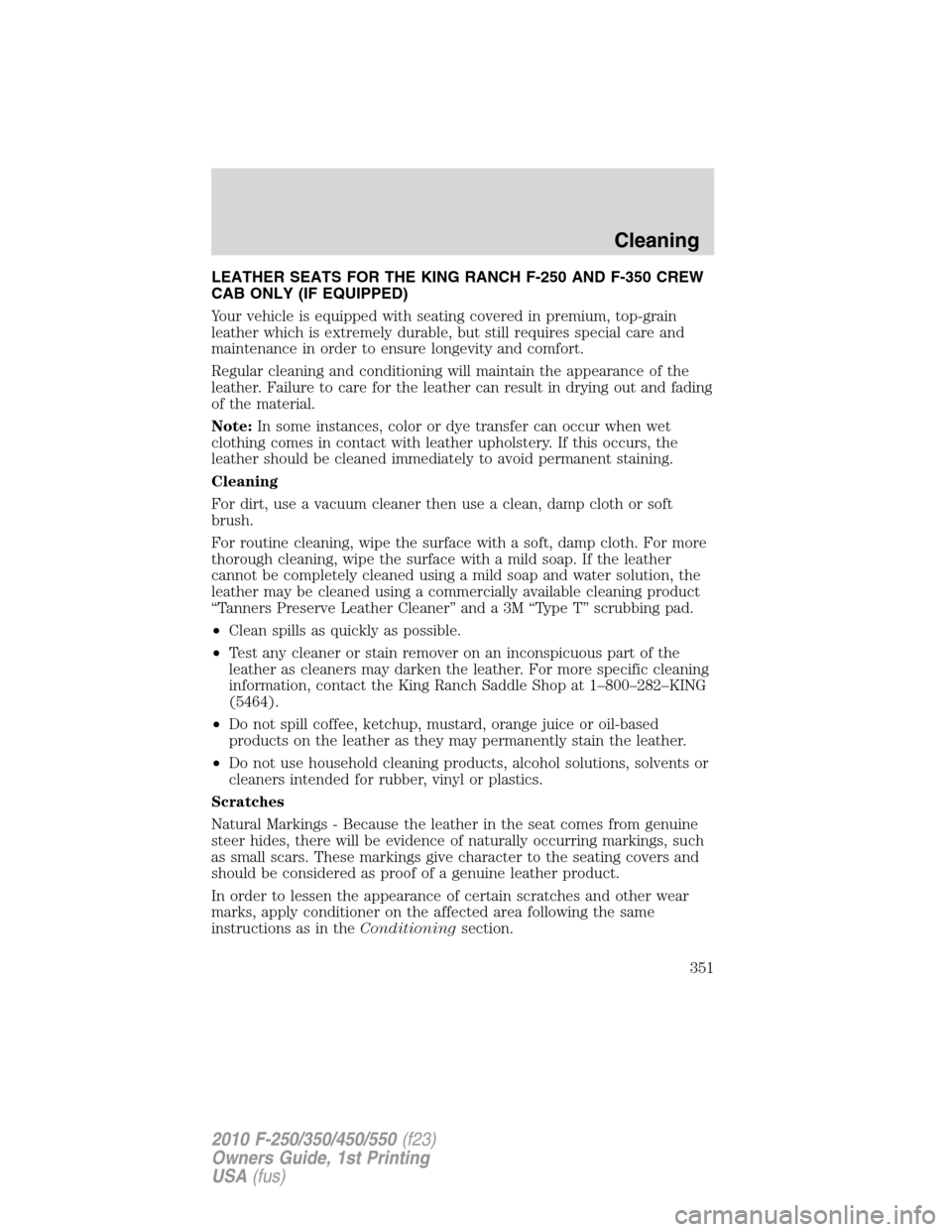

FORD SUPER DUTY 2010 2.G Owners Manual LEATHER SEATS FOR THE KING RANCH F-250 AND F-350 CREW
CAB ONLY (IF EQUIPPED)
Your vehicle is equipped with seating covered in premium, top-grain
leather which is extremely durable, but still requires

Page 352 of 407

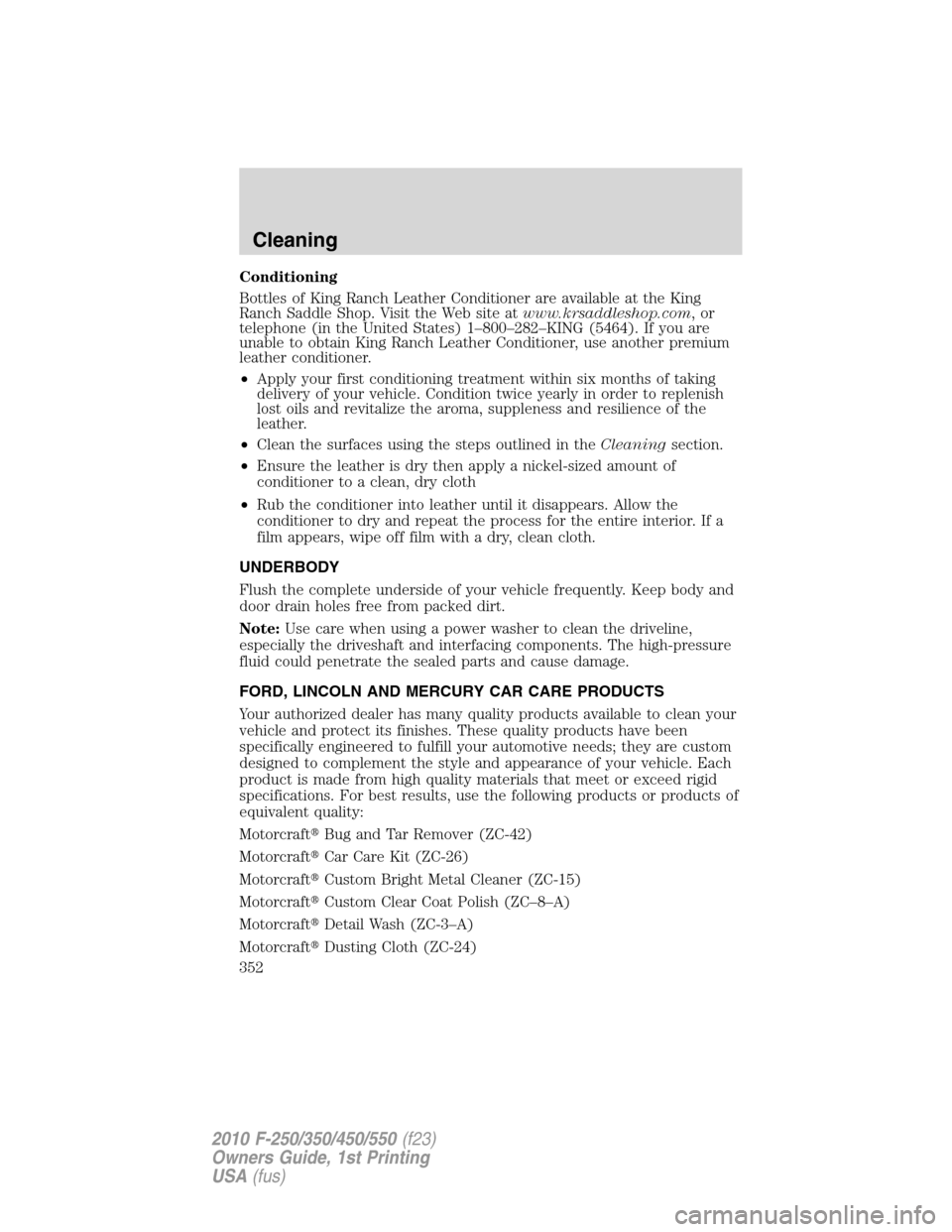

FORD SUPER DUTY 2010 2.G Owners Manual Conditioning
Bottles of King Ranch Leather Conditioner are available at the King
Ranch Saddle Shop. Visit the Web site atwww.krsaddleshop.com,or
telephone (in the United States) 1–800–282–KING (

Page 353 of 407

FORD SUPER DUTY 2010 2.G Owners Manual MotorcraftEngine Shampoo and Degreaser (U.S only) (ZC-20)
MotorcraftEngine Shampoo (Canada only) (CXC-66-A)
MotorcraftMulti-Purpose Cleaner (Canada only) (CXC-101)
MotorcraftPremium Car Wash Conce

Page 354 of 407

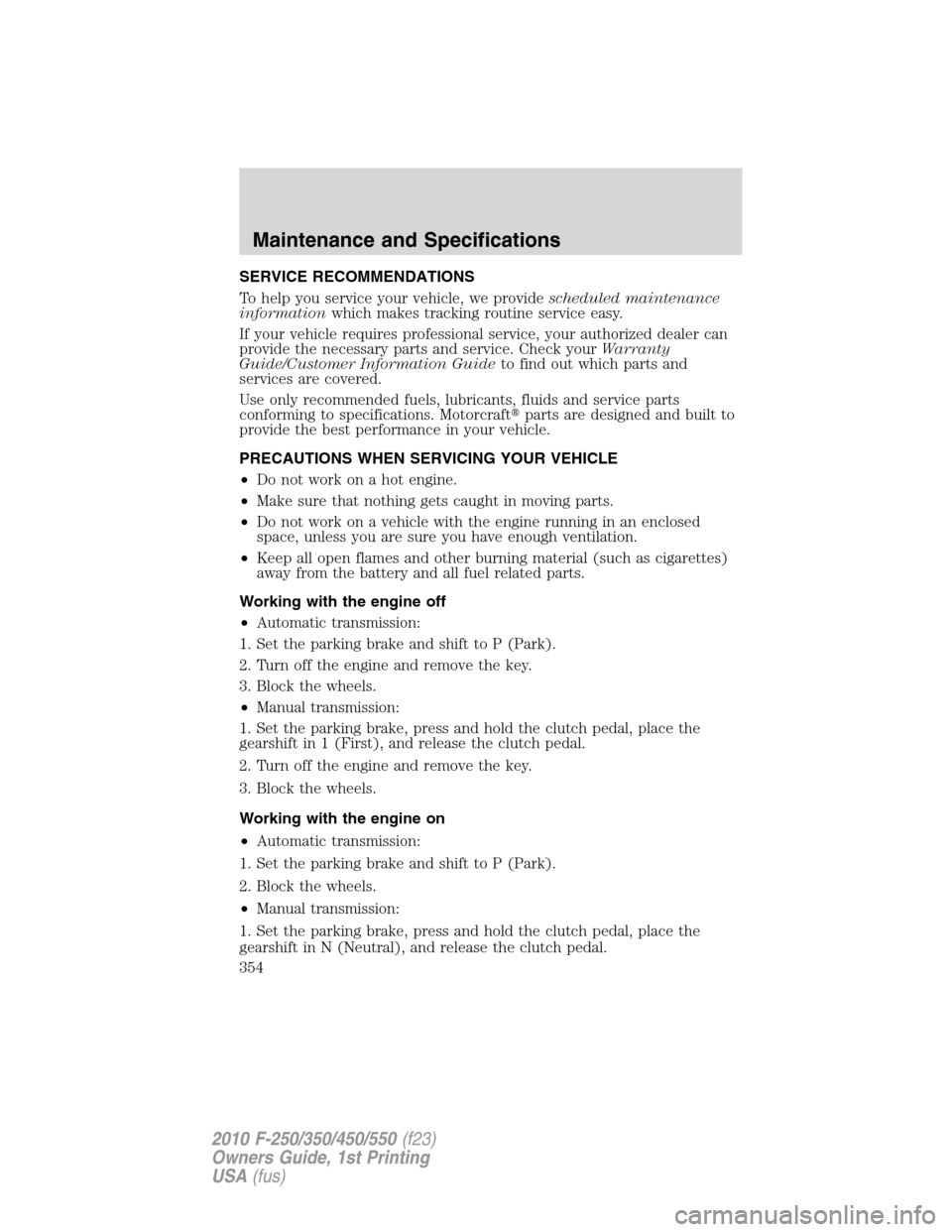

FORD SUPER DUTY 2010 2.G Owners Manual SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your auth

Page 355 of 407

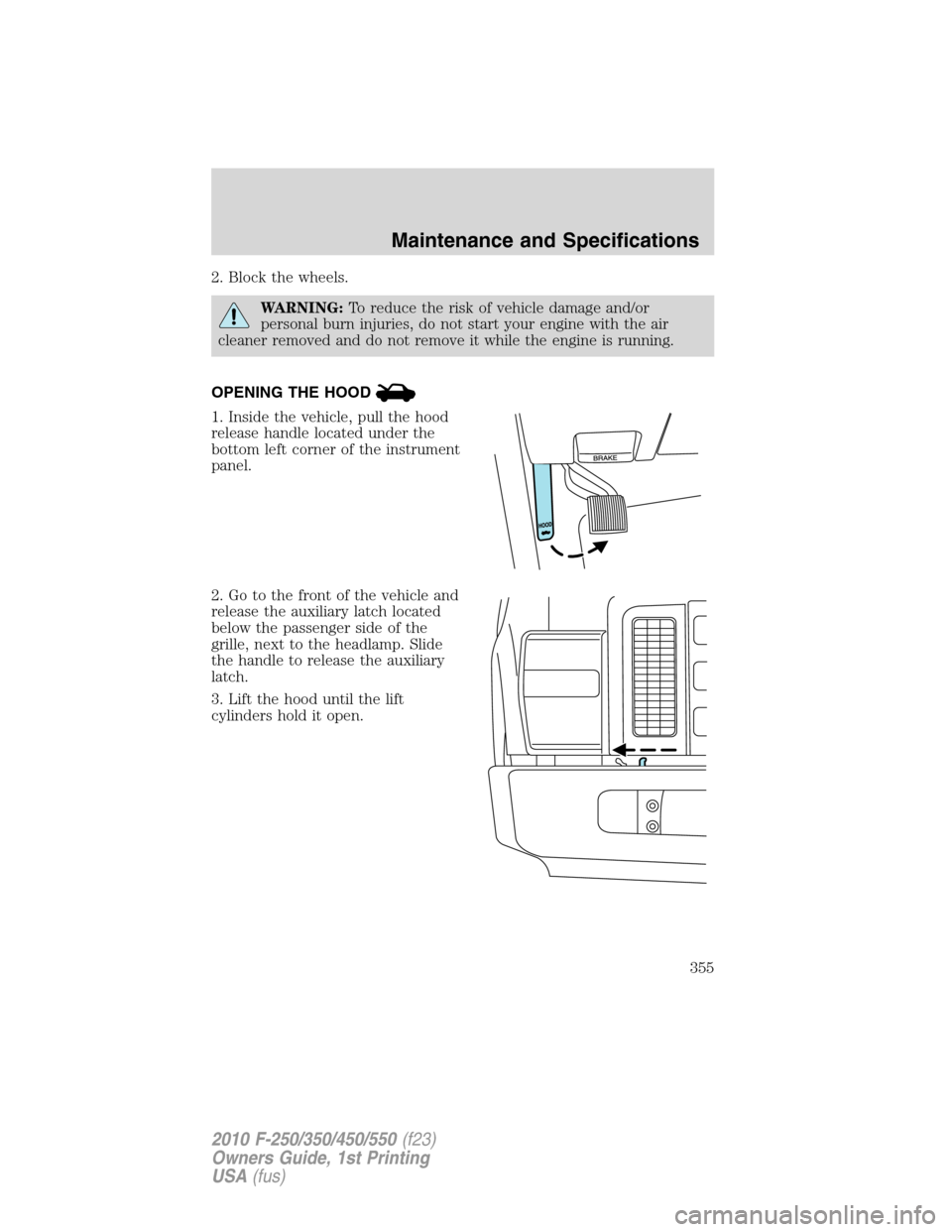

FORD SUPER DUTY 2010 2.G Owners Manual 2. Block the wheels.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries, do not start your engine with the air
cleaner removed and do not remove it while the engine is running.

Page 356 of 407

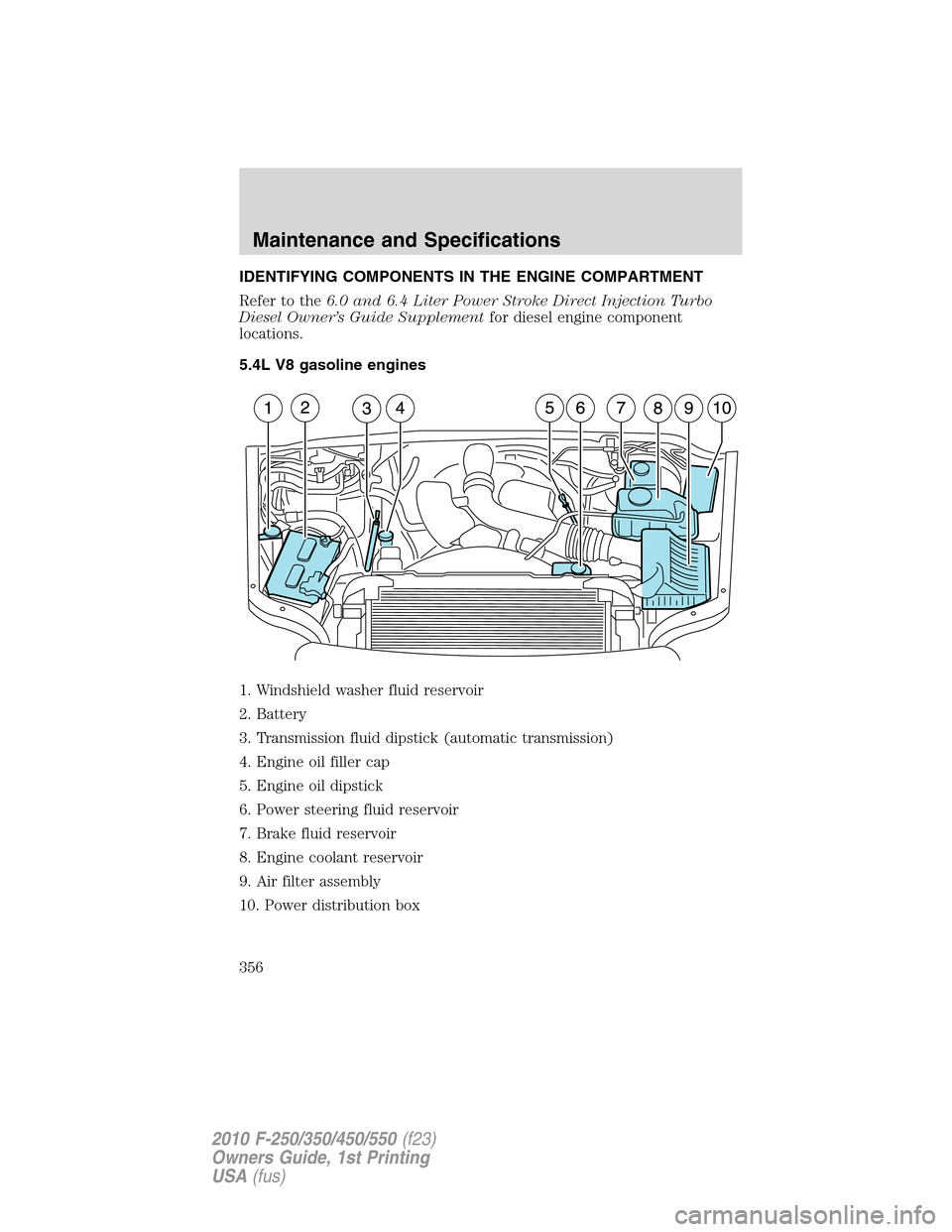

FORD SUPER DUTY 2010 2.G Owners Manual IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
Refer to the6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplementfor diesel engine component
locations.
5.4L V8 gasol

Page 357 of 407

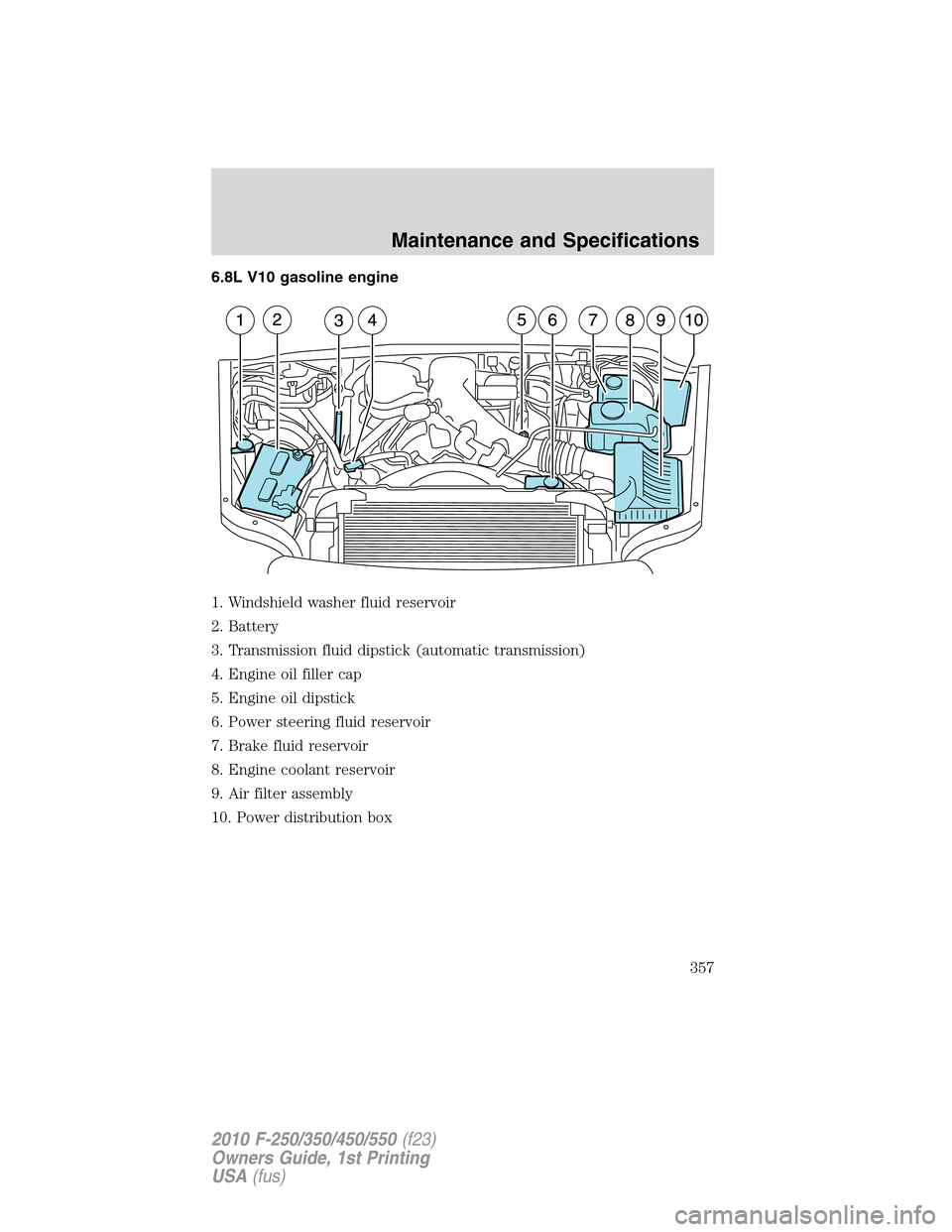

FORD SUPER DUTY 2010 2.G Owners Manual 6.8L V10 gasoline engine
1. Windshield washer fluid reservoir
2. Battery
3. Transmission fluid dipstick (automatic transmission)
4. Engine oil filler cap
5. Engine oil dipstick
6. Power steering fluid

Page 358 of 407

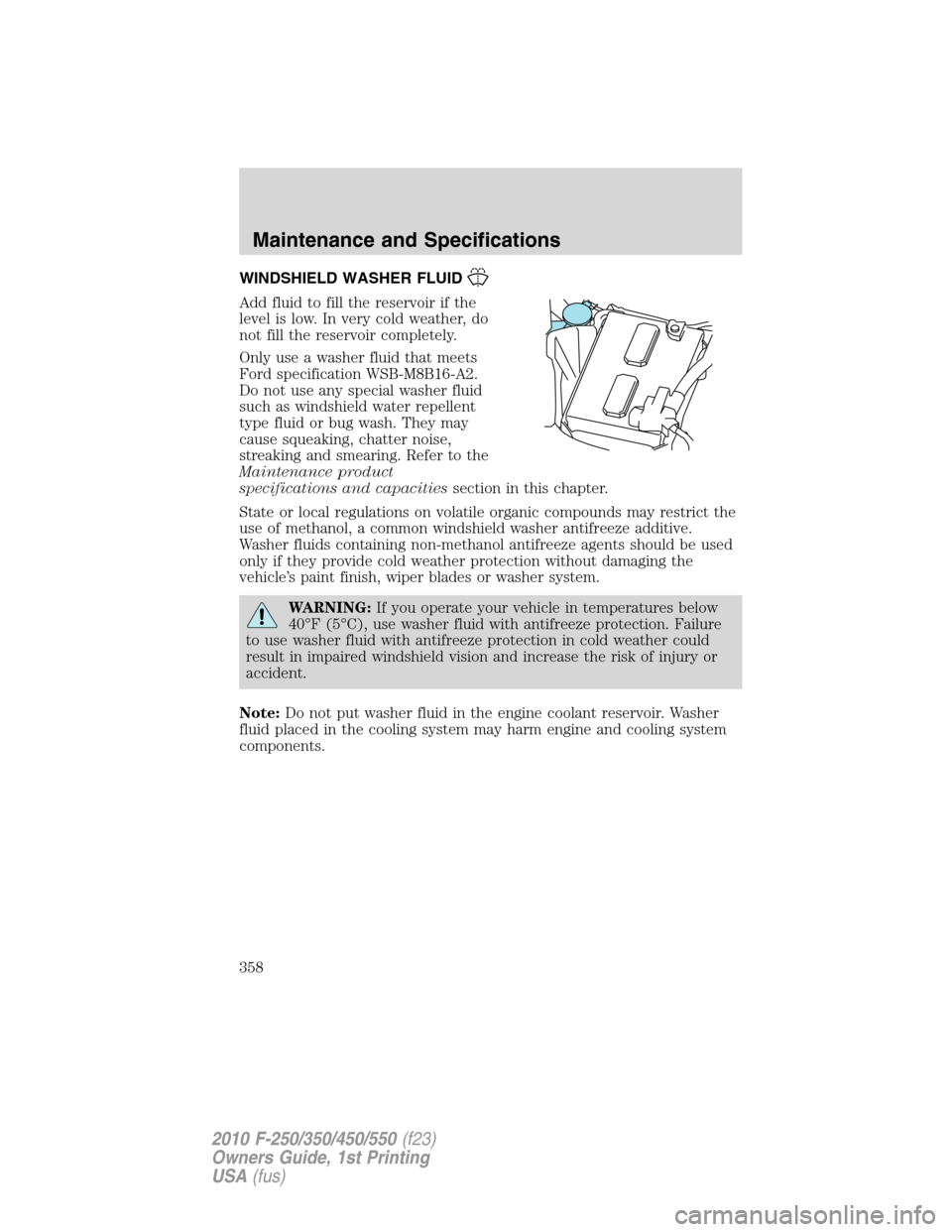

FORD SUPER DUTY 2010 2.G Owners Manual WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16

Page 359 of 407

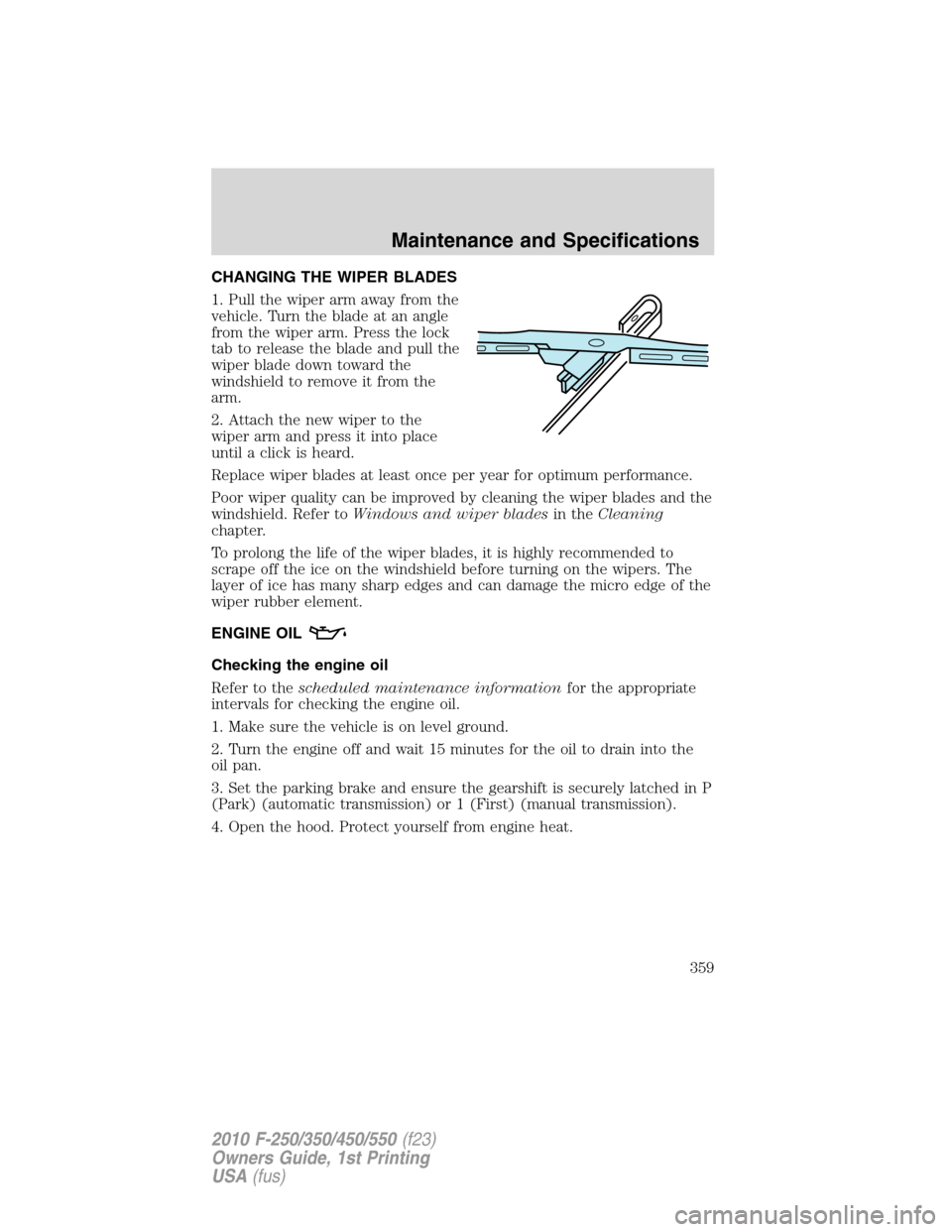

FORD SUPER DUTY 2010 2.G Owners Manual CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Press the lock
tab to release the blade and pull the
wiper blade down toward the
w

Page 360 of 407

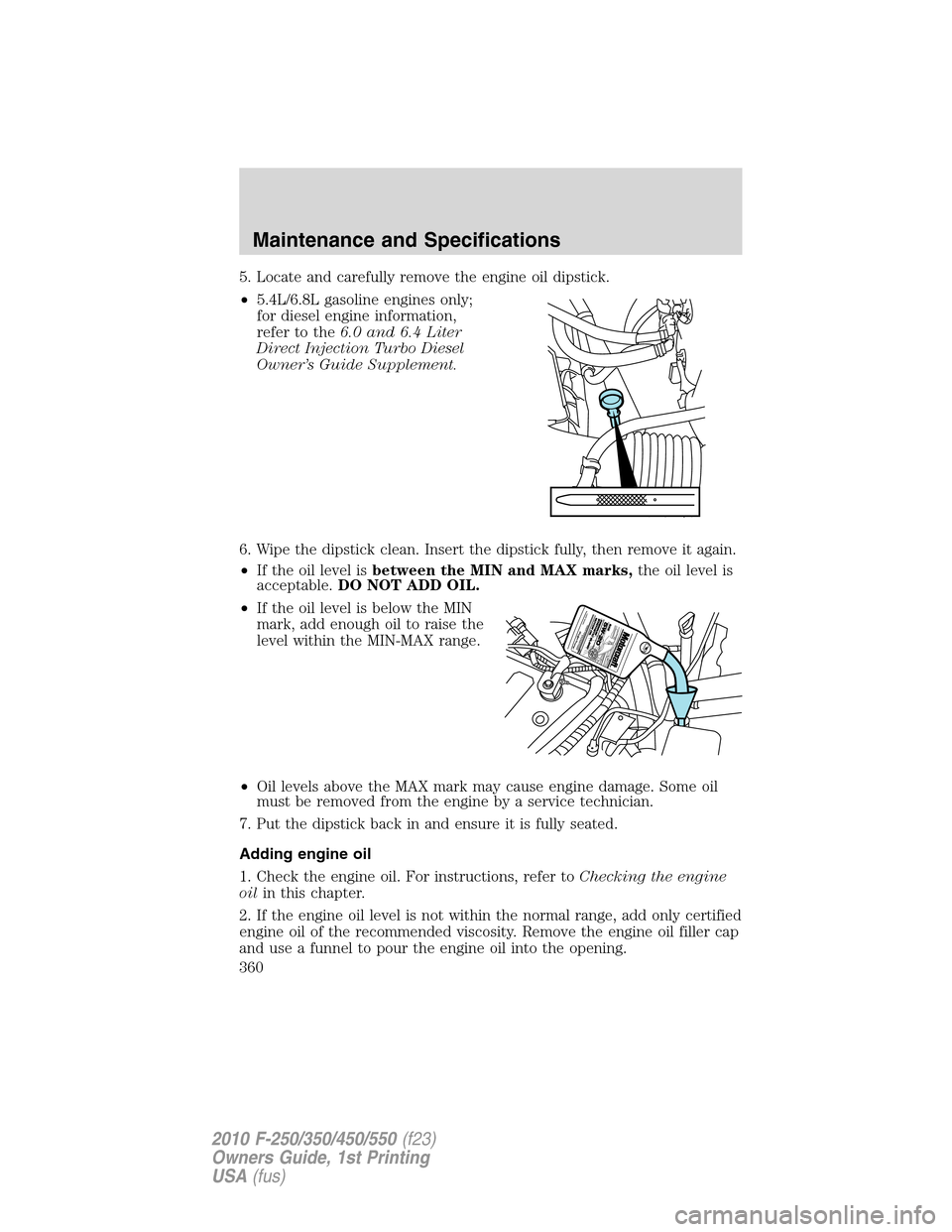

FORD SUPER DUTY 2010 2.G Owners Manual 5. Locate and carefully remove the engine oil dipstick.
•5.4L/6.8L gasoline engines only;
for diesel engine information,
refer to the6.0 and 6.4 Liter
Direct Injection Turbo Diesel
Owner’s Guide S
