set clock FORD SUPER DUTY 2012 3.G Navigation System Manual

Introduction
4
System introduction 4
Driving restrictions 4
How to get going 5
System overview
9
Map display options 12
Display voice commands 13
Status bars 13
Home screen 13
Loading pictures 14
Reverse camera 16
Quick reference chart 17
Setting the clock 19
Voice recognition system overview
23
How to use voice commands 25
Adjusting the voice prompt volume 26
Voice recognition tutorial 28
Tutorial voice commands 28
Voice name tags 29
User profiles 29
User profile voice commands 31
Audio features
33
AM/FM 34
HD Radio™ 36
Radio voice commands 36
CD 41
CD voice commands 44
Playing a DVD in the system 44
DVD voice commands 46
Video CD voice commands 46
Disc voice commands 47
Jukebox features 47
Recording (saving) music to your jukebox 48
Accessing the music in your jukebox 48
Table of Contents
1
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

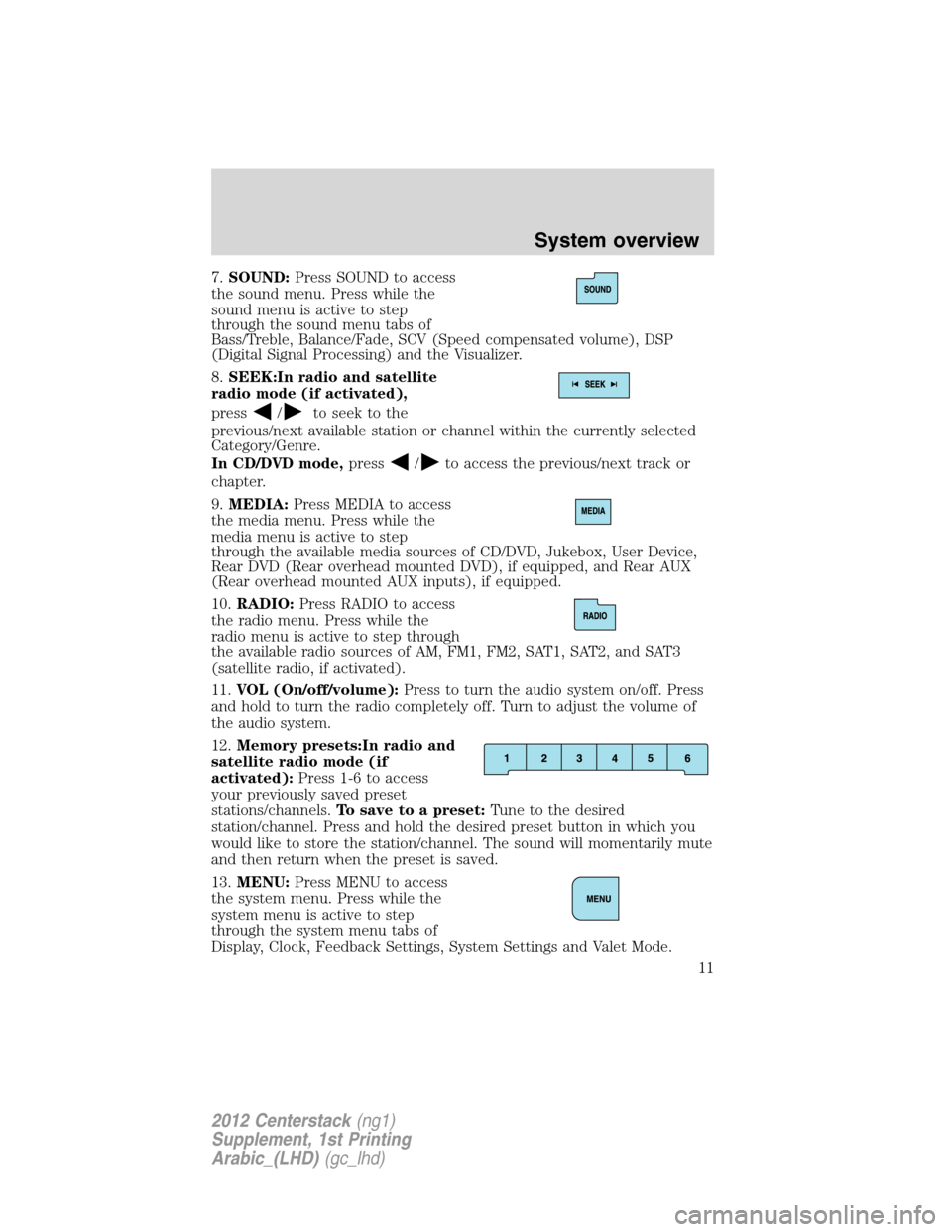

7.SOUND:Press SOUND to access
the sound menu. Press while the
sound menu is active to step
through the sound menu tabs of
Bass/Treble, Balance/Fade, SCV (Speed compensated volume), DSP
(Digital Signal Processing) and the Visualizer.
8.SEEK:In radio and satellite
radio mode (if activated),
press
/to seek to the
previous/next available station or channel within the currently selected
Category/Genre.
In CD/DVD mode,press
/to access the previous/next track or
chapter.
9.MEDIA:Press MEDIA to access
the media menu. Press while the
media menu is active to step
through the available media sources of CD/DVD, Jukebox, User Device,
Rear DVD (Rear overhead mounted DVD), if equipped, and Rear AUX
(Rear overhead mounted AUX inputs), if equipped.
10.RADIO:Press RADIO to access
the radio menu. Press while the
radio menu is active to step through
the available radio sources of AM, FM1, FM2, SAT1, SAT2, and SAT3
(satellite radio, if activated).
11.VOL (On/off/volume):Press to turn the audio system on/off. Press
and hold to turn the radio completely off. Turn to adjust the volume of
the audio system.
12.Memory presets:In radio and
satellite radio mode (if
activated):Press 1-6 to access
your previously saved preset
stations/channels.To save to a preset:Tune to the desired
station/channel. Press and hold the desired preset button in which you
would like to store the station/channel. The sound will momentarily mute
and then return when the preset is saved.
13.MENU:Press MENU to access
the system menu. Press while the
system menu is active to step
through the system menu tabs of
Display, Clock, Feedback Settings, System Settings and Valet Mode.
System overview
11
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

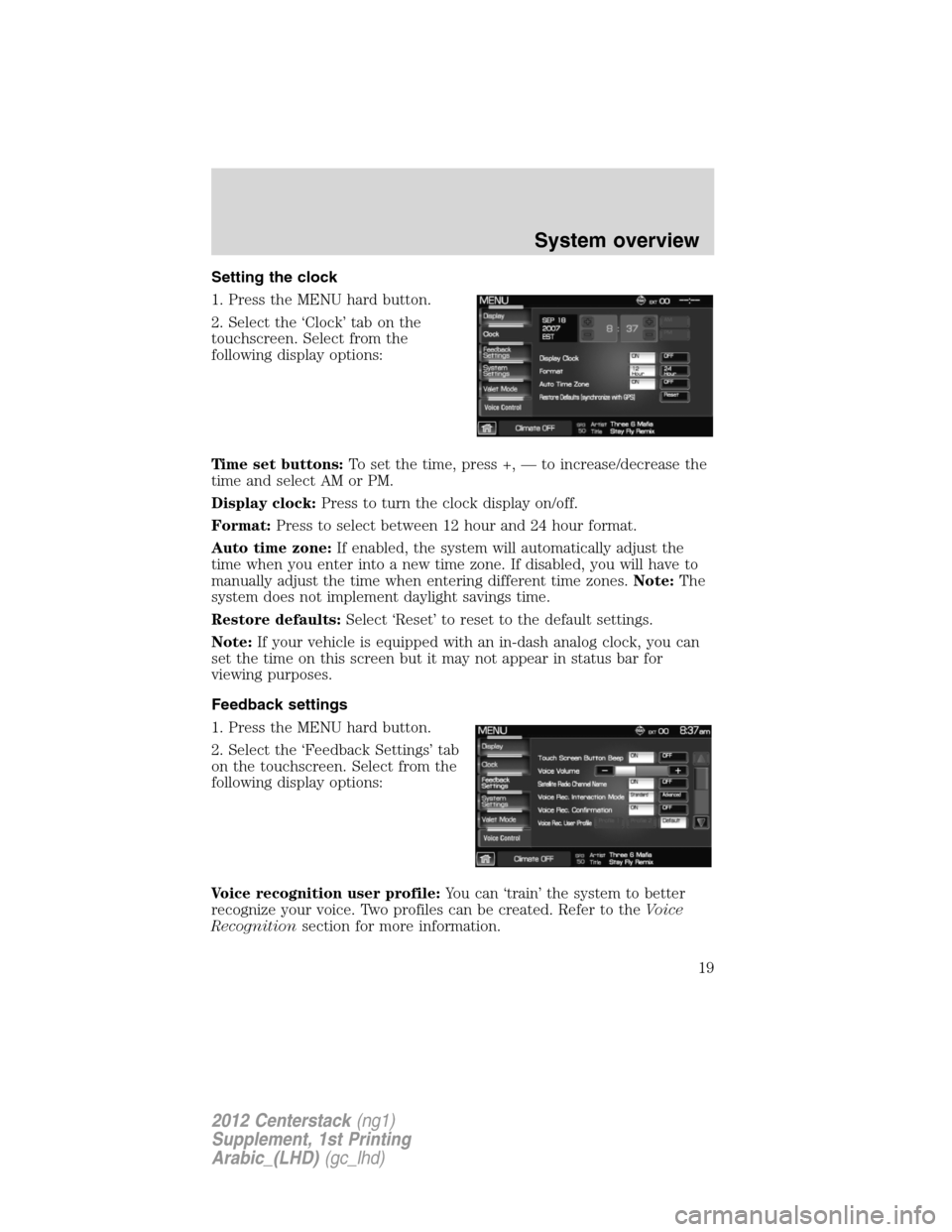

Setting the clock
1. Press the MENU hard button.
2. Select the ‘Clock’ tab on the
touchscreen. Select from the
following display options:
Time set buttons:To set the time, press +, — to increase/decrease the
time and select AM or PM.
Display clock:Press to turn the clock display on/off.
Format:Press to select between 12 hour and 24 hour format.
Auto time zone:If enabled, the system will automatically adjust the
time when you enter into a new time zone. If disabled, you will have to
manually adjust the time when entering different time zones.Note:The
system does not implement daylight savings time.
Restore defaults:Select ‘Reset’ to reset to the default settings.
Note:If your vehicle is equipped with an in-dash analog clock, you can
set the time on this screen but it may not appear in status bar for
viewing purposes.
Feedback settings
1. Press the MENU hard button.
2. Select the ‘Feedback Settings’ tab
on the touchscreen. Select from the
following display options:
Voice recognition user profile:You can ‘train’ the system to better
recognize your voice. Two profiles can be created. Refer to theVoice
Recognitionsection for more information.
System overview
19
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)

M
Making a call ...............................71
Map display options ....................12
Message notification ...................80
Modifying your phone book
and call history ...........................82
P
Pairing your phone through
your navigation system ..............69
Performing a master reset .........85
Phone dependent features .........69
Playing a DVD in the system .....44
Playing a specific track ............103
Privacy information ......................5
Q
Quick reference chart ................17
R
Radio voice commands .........36, 41
Rear DVD voice commands .......56
Returning to factory defaults ....84
Reverse camera ...........................16
S
Saving a contact or phone
number as Quick Dial .................72
Selecting and playing specific
albums .......................................101
Selecting and playing specific
artists .........................................100
Selecting different genres ........101Setting a ring tone ......................79
Setting the clock .........................19
Status bars ..................................13
Streaming music from your
phone ...........................................97
Supported player, media
formats and metadata
information ..................................96
SYNCmedia features ...............95
System introduction .....................4
System overview ...........................9
System settings ...........................74
T
Text messaging with your
navigation system .......................87
Turning Bluetooth on/off ............78
Turning prompts on/off ..............83
Tutorial voice commands ...........28
U
USB port ......................................96
User Device (if equipped) .........54
User profiles ................................29
User profile voice commands ....31
Using the Auxiliary input jack
(Line in) ......................................98
Using the play all feature ...........99
V
Video CD voice commands ........46
Voice commands in media
mode ..........................................106
Index
117
2012 Centerstack(ng1)
Supplement, 1st Printing
Arabic_(LHD)(gc_lhd)
