FORD TAURUS 2004 4.G Owners Manual

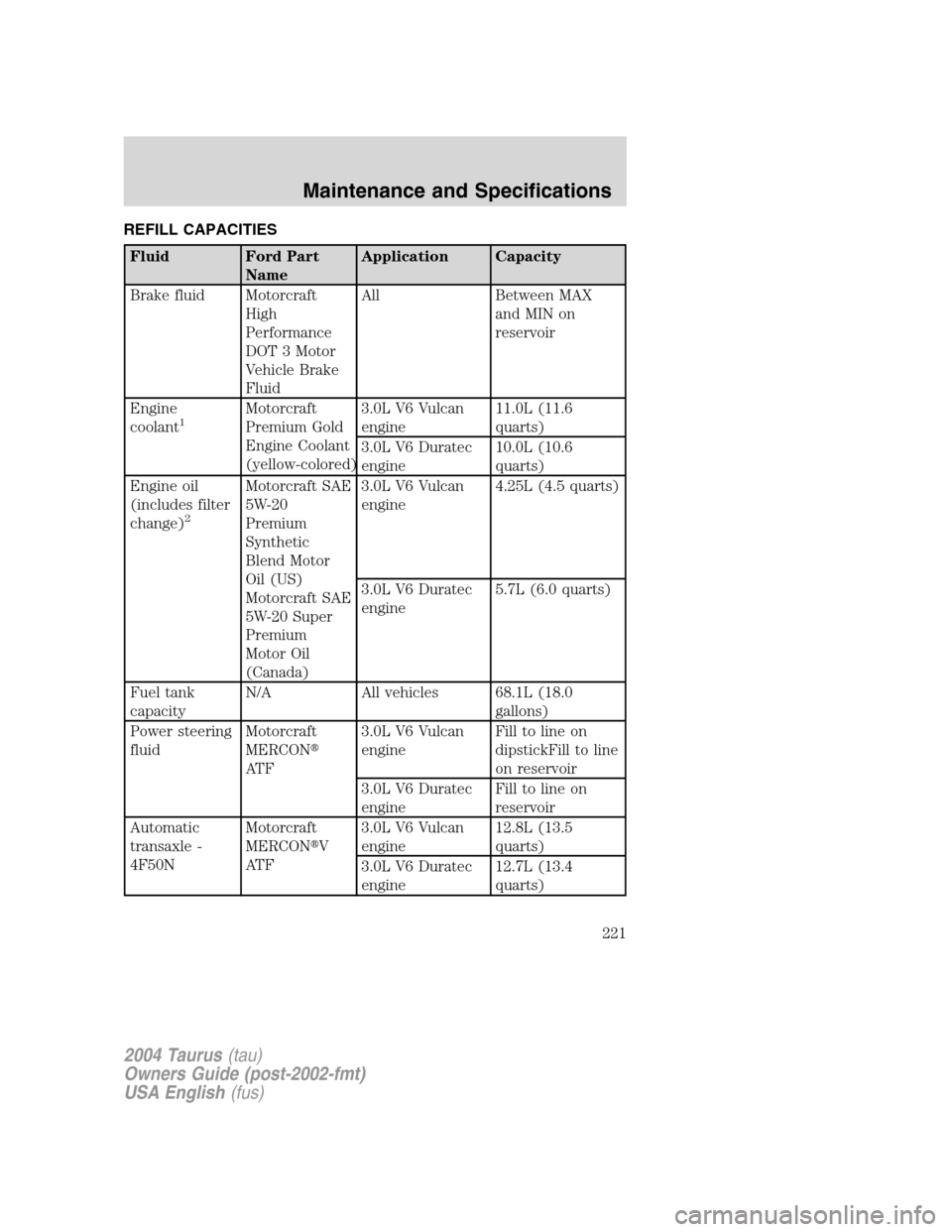

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft
High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MAX
and MIN on
reservoir
Engine
coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)3.0L V6 Vulcan
engine11.0L (11.6
quarts)
3.0L V6 Duratec
engine10.0L (10.6
quarts)
Engine oil
(includes filter
change)
2
Motorcraft SAE
5W-20
Premium
Synthetic
Blend Motor
Oil (US)
Motorcraft SAE
5W-20 Super
Premium
Motor Oil
(Canada)3.0L V6 Vulcan
engine4.25L (4.5 quarts)
3.0L V6 Duratec
engine5.7L (6.0 quarts)
Fuel tank
capacityN/A All vehicles 68.1L (18.0
gallons)
Power steering
fluidMotorcraft
MERCON
AT F3.0L V6 Vulcan
engineFill to line on
dipstickFill to line
on reservoir
3.0L V6 Duratec
engineFill to line on
reservoir
Automatic
transaxle -
4F50NMotorcraft
MERCONV
AT F3.0L V6 Vulcan
engine12.8L (13.5
quarts)
3.0L V6 Duratec
engine12.7L (13.4
quarts)
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
221

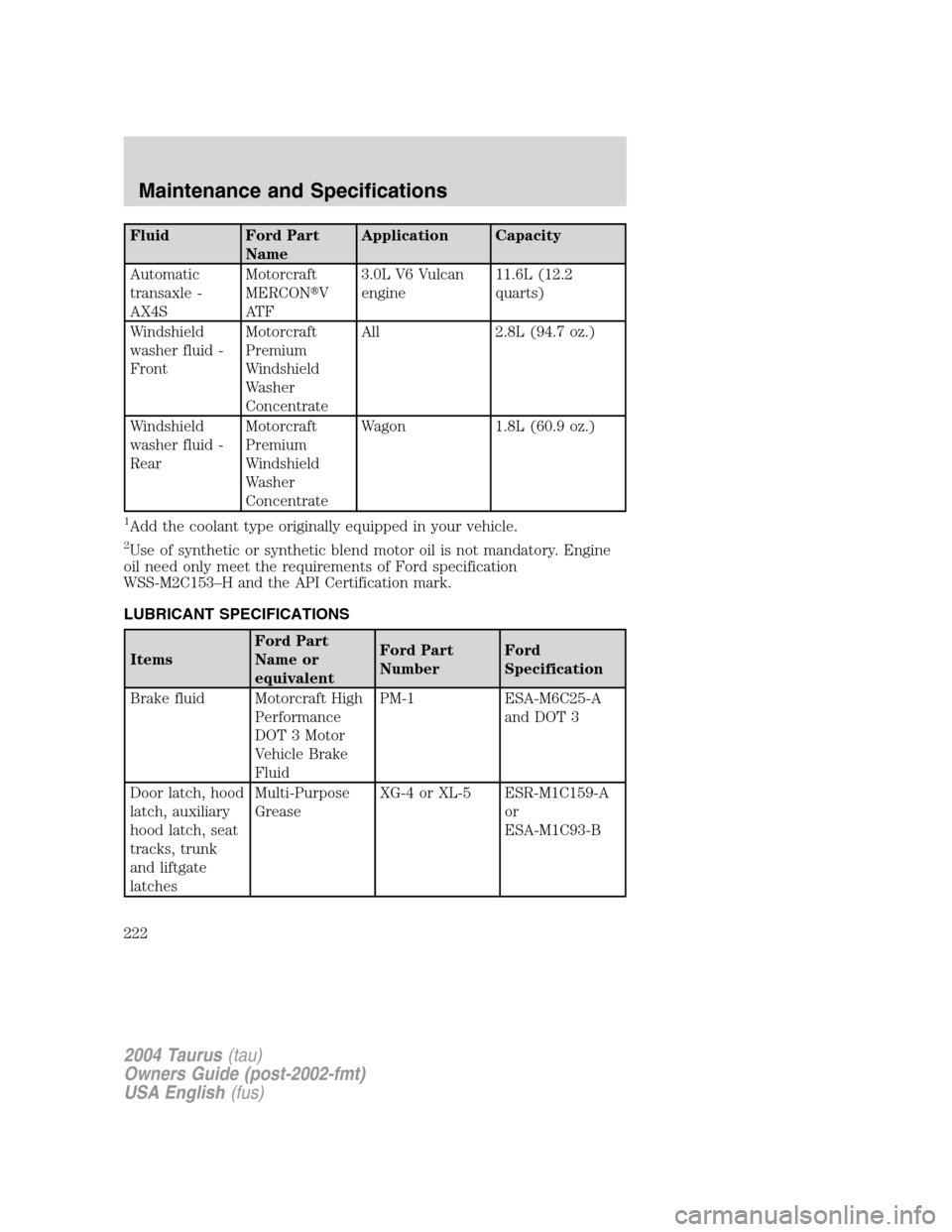

Fluid Ford Part
NameApplication Capacity
Automatic
transaxle -
AX4SMotorcraft
MERCONV
AT F3.0L V6 Vulcan
engine11.6L (12.2
quarts)
Windshield
washer fluid -
FrontMotorcraft
Premium
Windshield
Washer
ConcentrateAll 2.8L (94.7 oz.)
Windshield
washer fluid -
RearMotorcraft
Premium
Windshield
Washer
ConcentrateWagon 1.8L (60.9 oz.)
1Add the coolant type originally equipped in your vehicle.
2Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
LUBRICANT SPECIFICATIONS
ItemsFord Part
Name or
equivalentFord Part
NumberFord
Specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door latch, hood
latch, auxiliary
hood latch, seat
tracks, trunk
and liftgate
latchesMulti-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or
ESA-M1C93-B
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
222

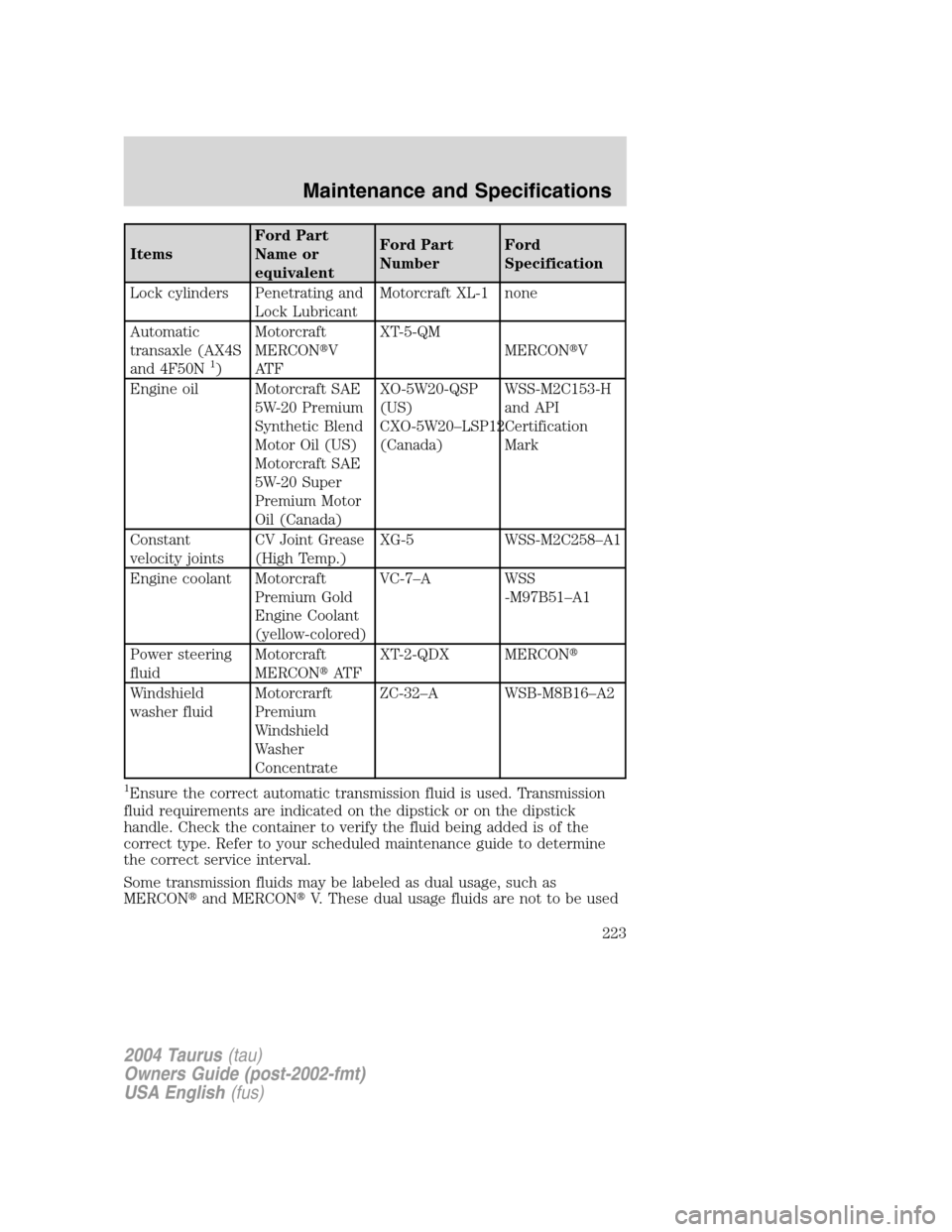

ItemsFord Part
Name or
equivalentFord Part
NumberFord
Specification
Lock cylinders Penetrating and
Lock LubricantMotorcraft XL-1 none
Automatic
transaxle (AX4S
and 4F50N
1)Motorcraft
MERCONV
AT FXT-5-QM
MERCONV
Engine oil Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C153-H
and API
Certification
Mark
Constant
velocity jointsCV Joint Grease
(High Temp.)XG-5 WSS-M2C258–A1
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS
-M97B51–A1
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidMotorcrarft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
223

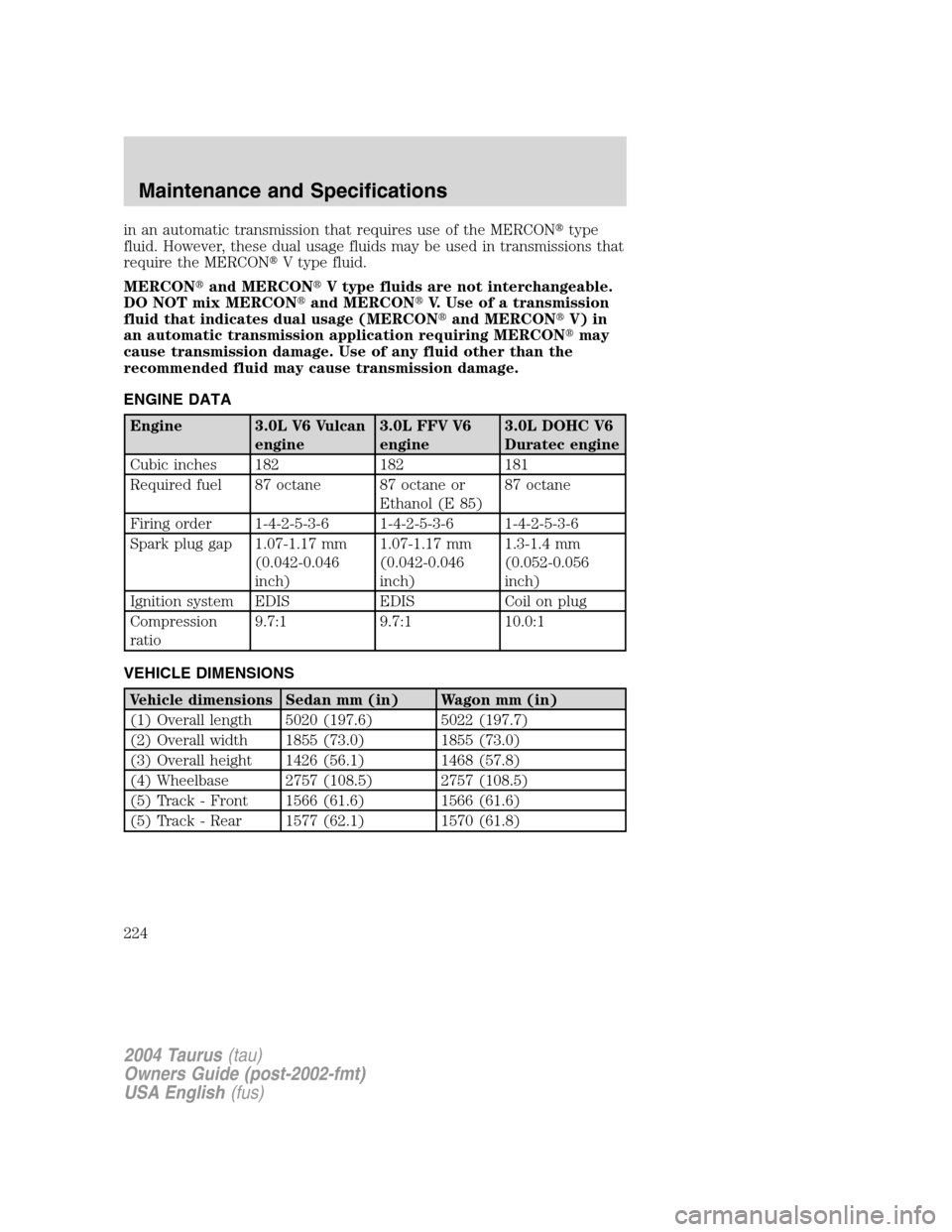

in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 3.0L V6 Vulcan
engine3.0L FFV V6
engine3.0L DOHC V6
Duratec engine
Cubic inches 182 182 181
Required fuel 87 octane 87 octane or
Ethanol (E 85)87 octane
Firing order 1-4-2-5-3-6 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap 1.07-1.17 mm
(0.042-0.046
inch)1.07-1.17 mm
(0.042-0.046
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition system EDIS EDIS Coil on plug
Compression
ratio9.7:1 9.7:1 10.0:1

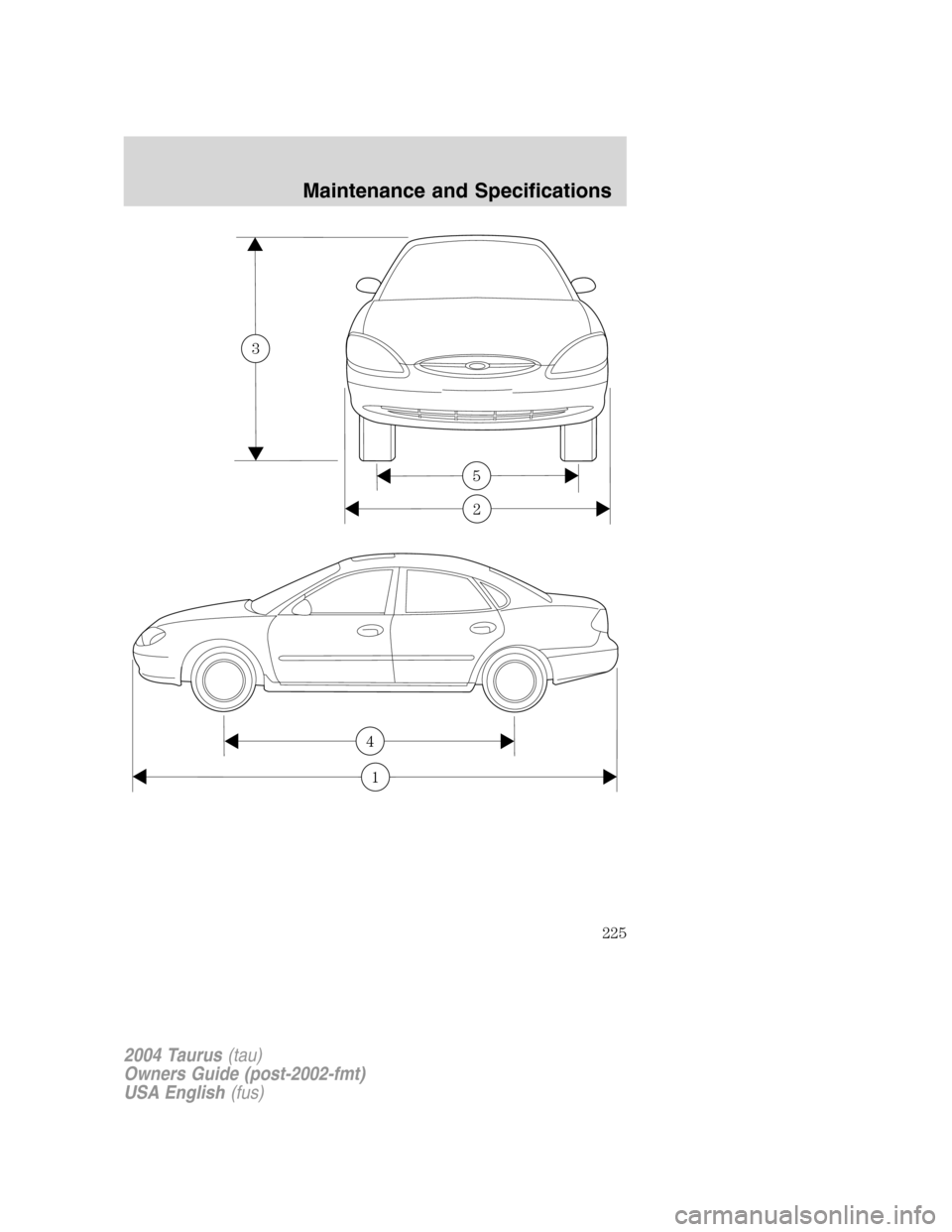

VEHICLE DIMENSIONS
Vehicle dimensions Sedan mm (in) Wagon mm (in)
(1) Overall length 5020 (197.6) 5022 (197.7)
(2) Overall width 1855 (73.0) 1855 (73.0)
(3) Overall height 1426 (56.1) 1468 (57.8)
(4) Wheelbase 2757 (108.5) 2757 (108.5)
(5) Track - Front 1566 (61.6) 1566 (61.6)
(5) Track - Rear 1577 (62.1) 1570 (61.8)
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
224

5
2
3
4
1
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
225

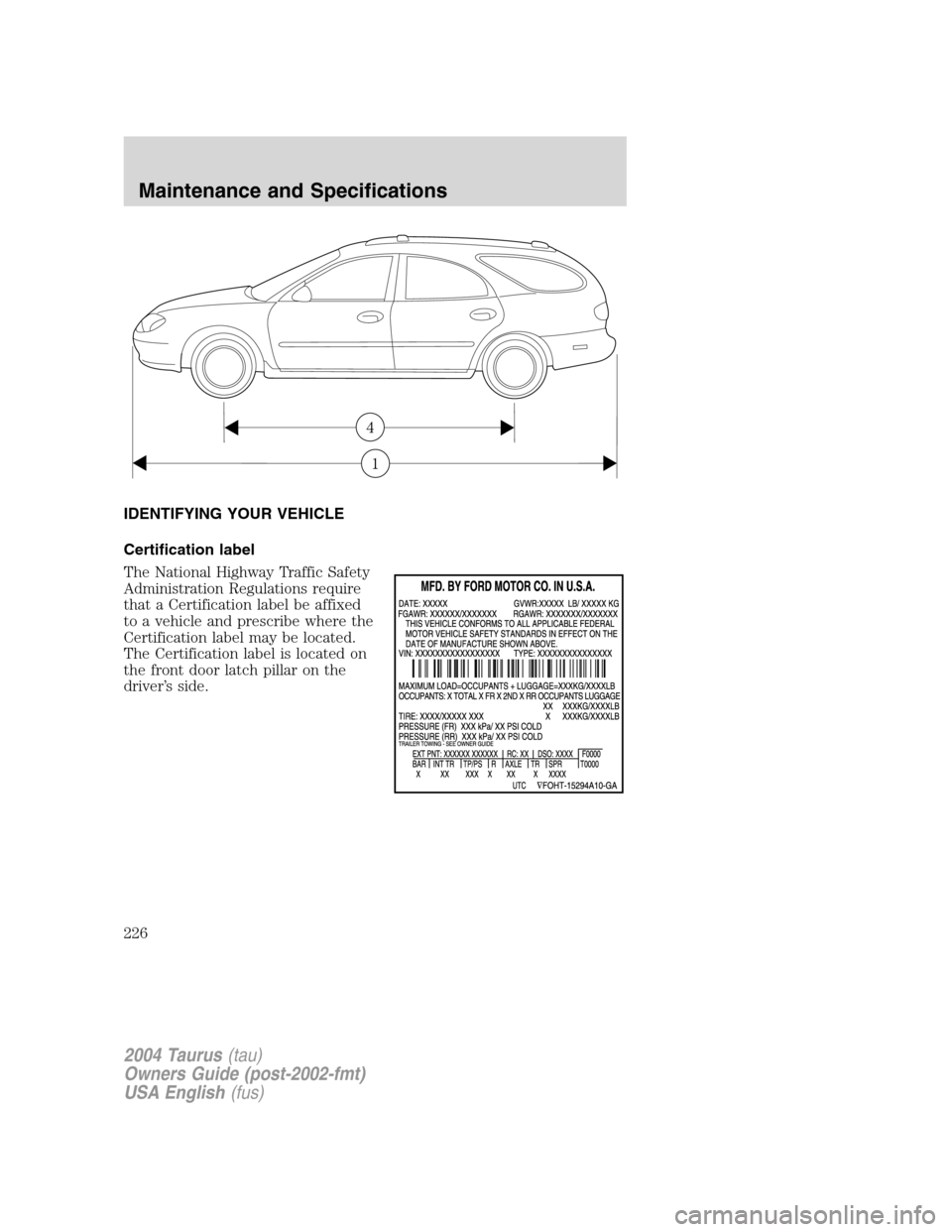

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
1
4
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
226

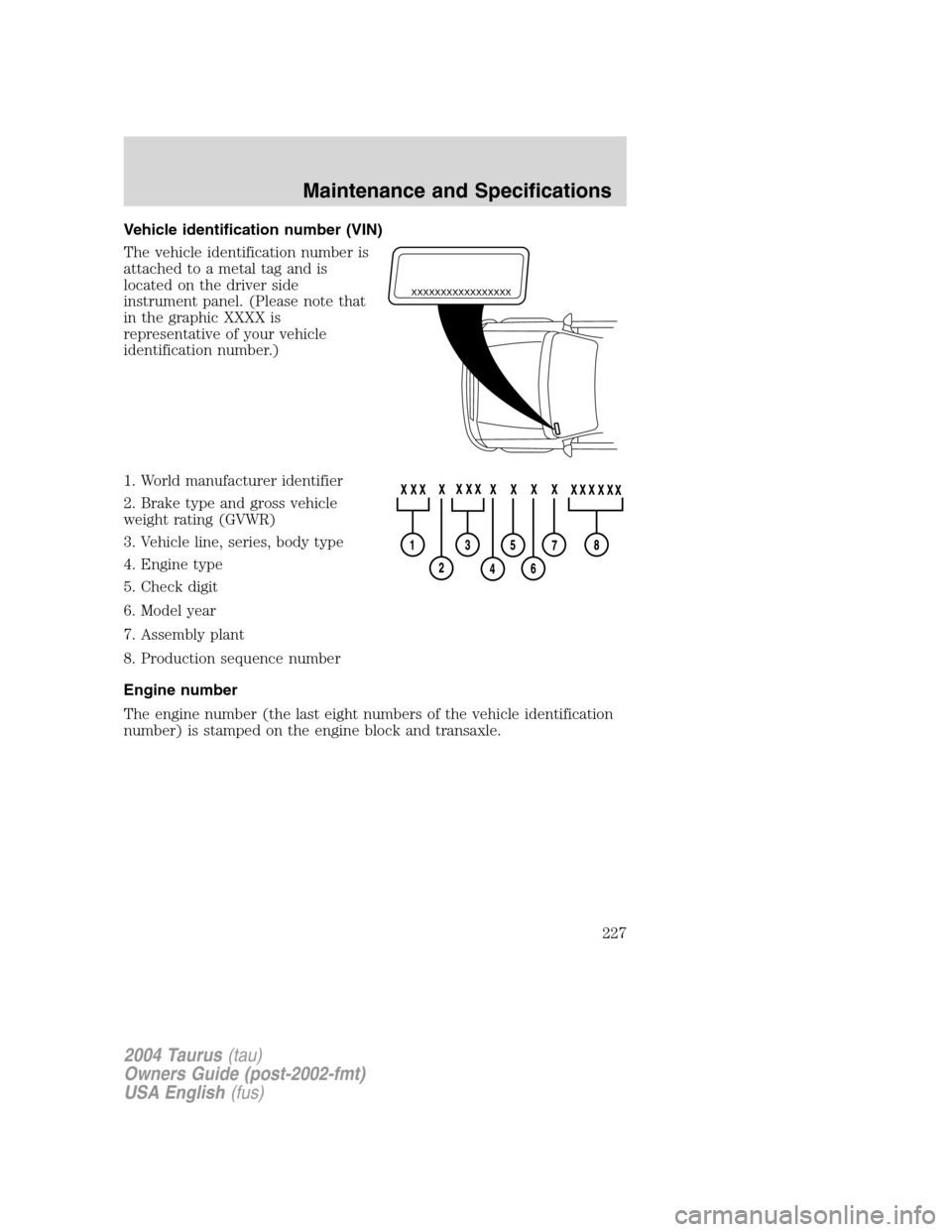

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transaxle.
XXXXXXXXXXXXXXXXX
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
227

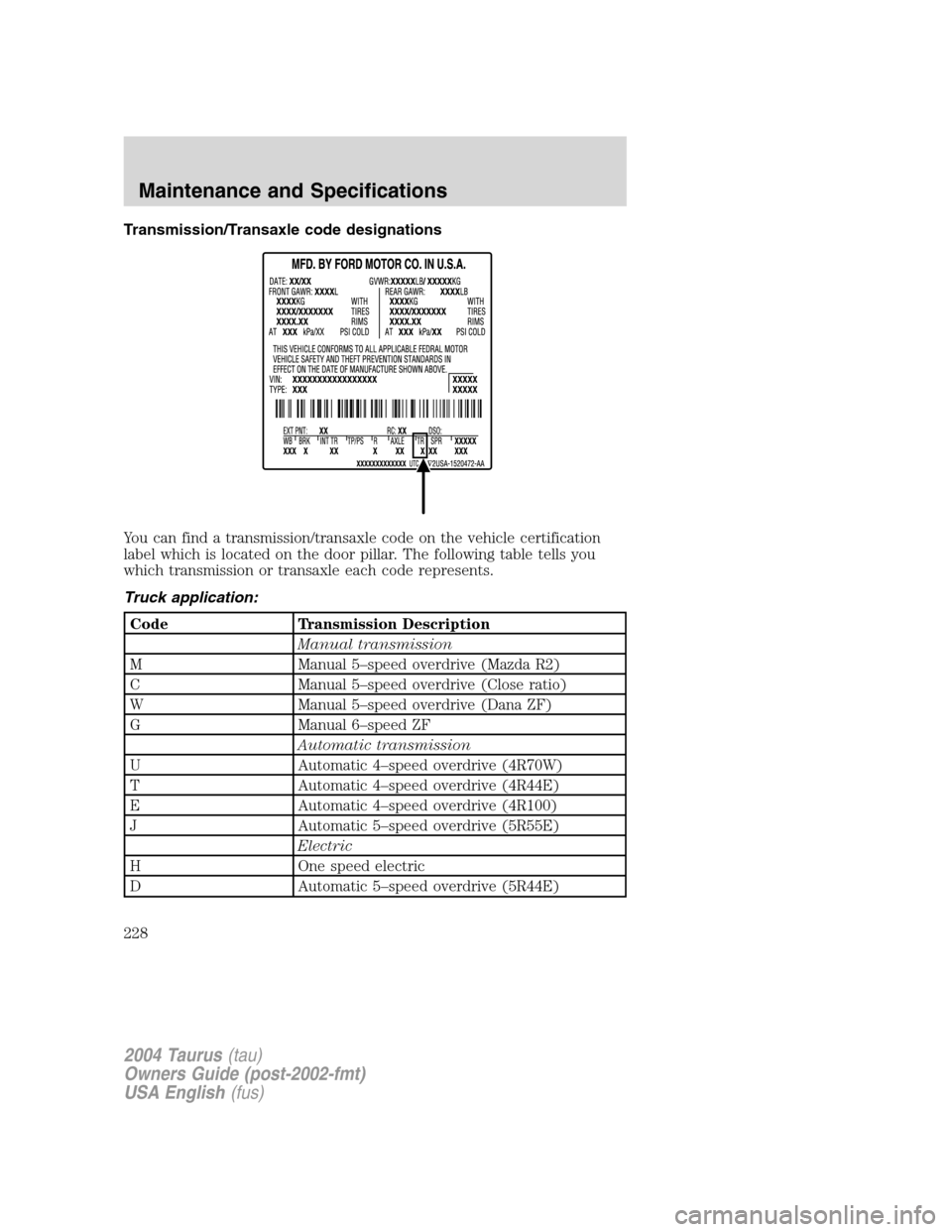

Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed overdrive (Mazda R2)
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
228

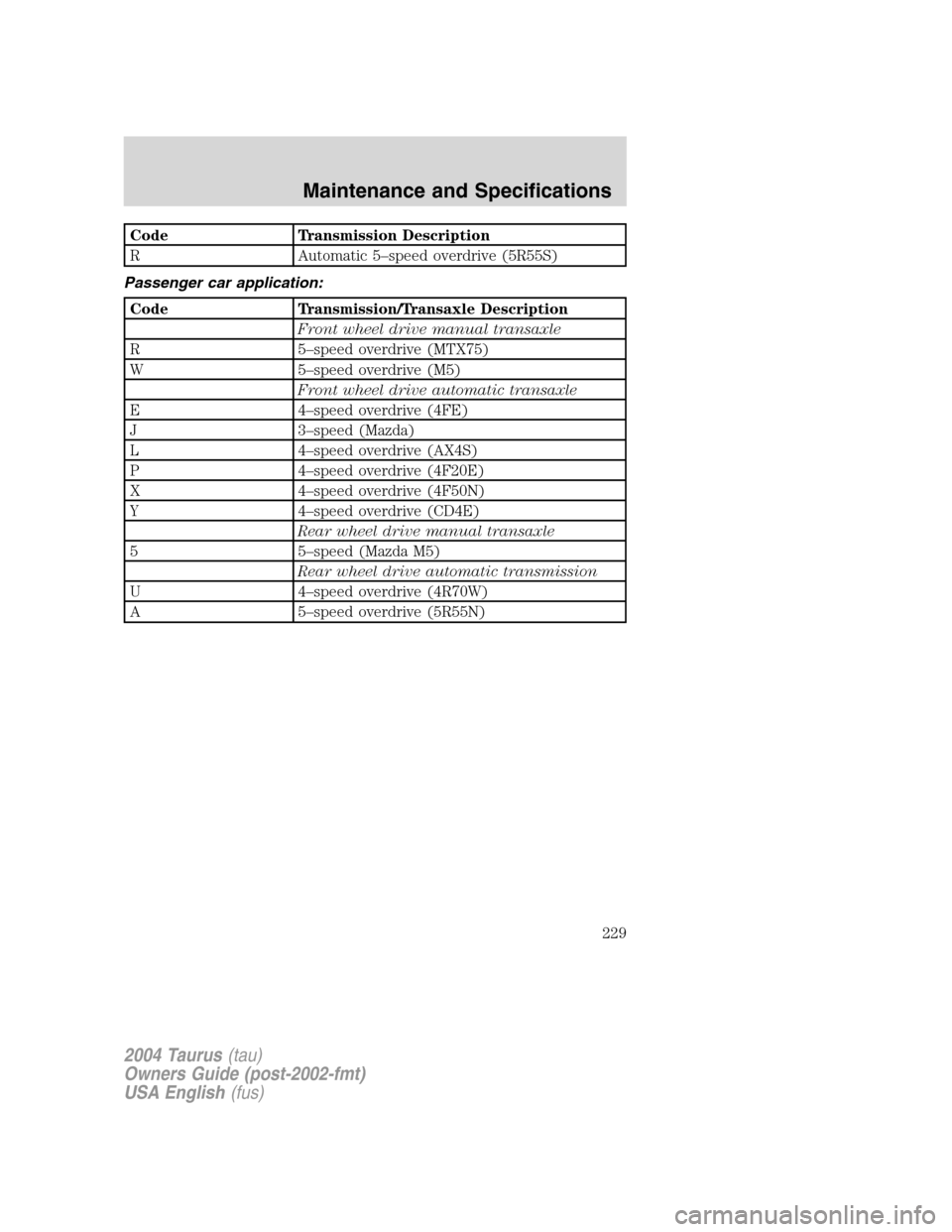

Code Transmission Description
R Automatic 5–speed overdrive (5R55S)
Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
2004 Taurus(tau)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
229

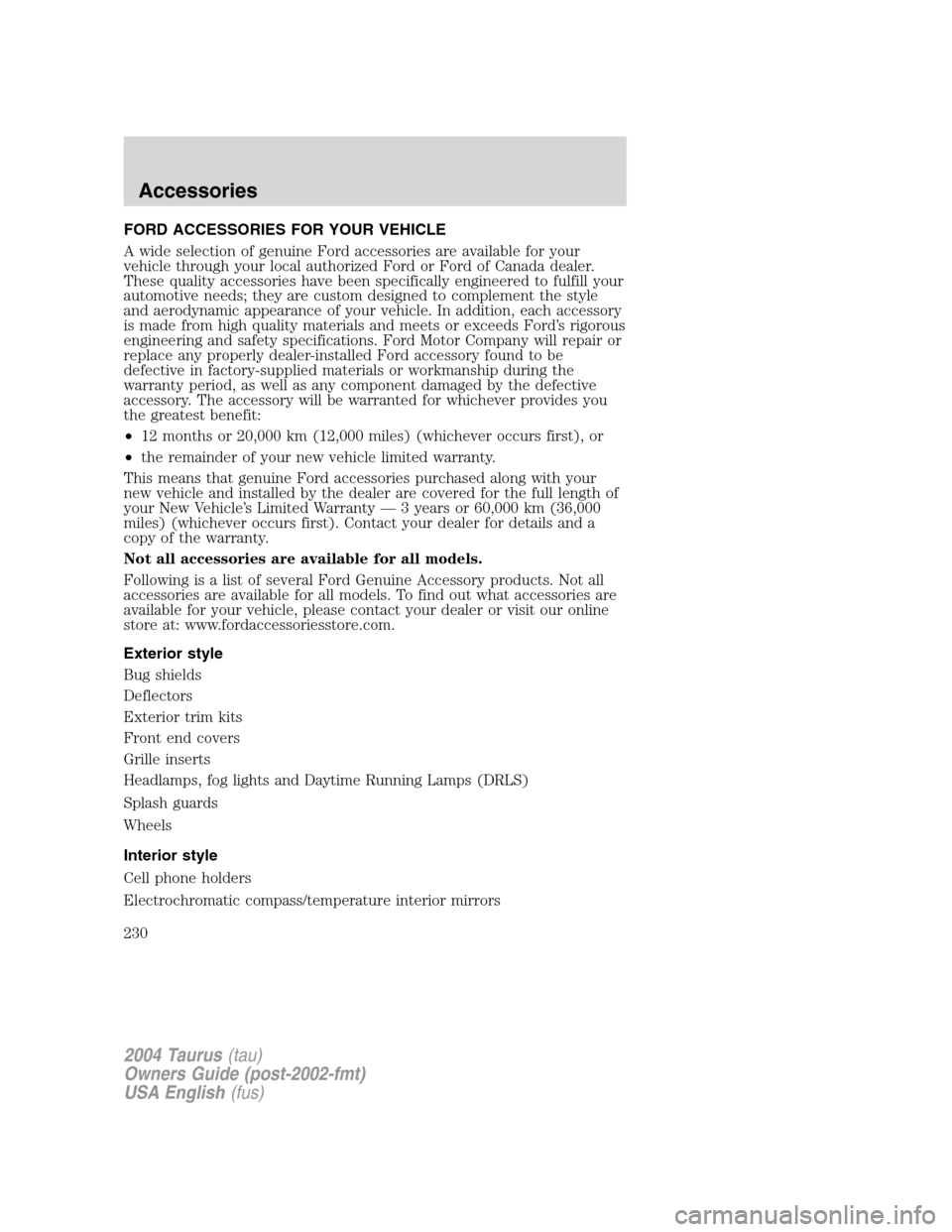

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford accessory found to be
defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Ford Genuine Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLS)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
