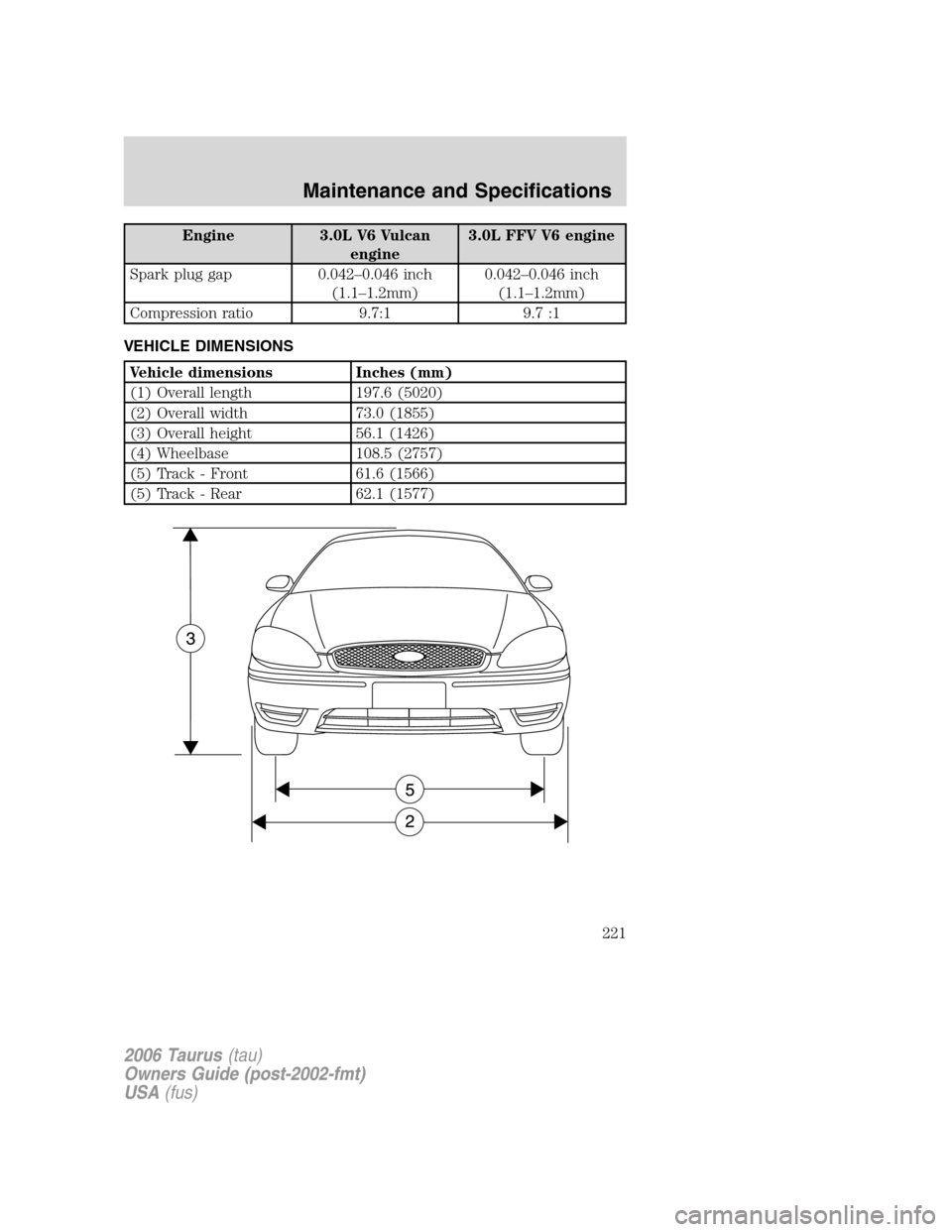

FORD TAURUS 2006 4.G Owners Manual

Engine 3.0L V6 Vulcan
engine3.0L FFV V6 engine
Spark plug gap 0.042–0.046 inch
(1.1–1.2mm)0.042–0.046 inch
(1.1–1.2mm)
Compression ratio 9.7:1 9.7 :1
VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 197.6 (5020)
(2) Overall width 73.0 (1855)
(3) Overall height 56.1 (1426)
(4) Wheelbase 108.5 (2757)
(5) Track - Front 61.6 (1566)
(5) Track - Rear 62.1 (1577)
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
221

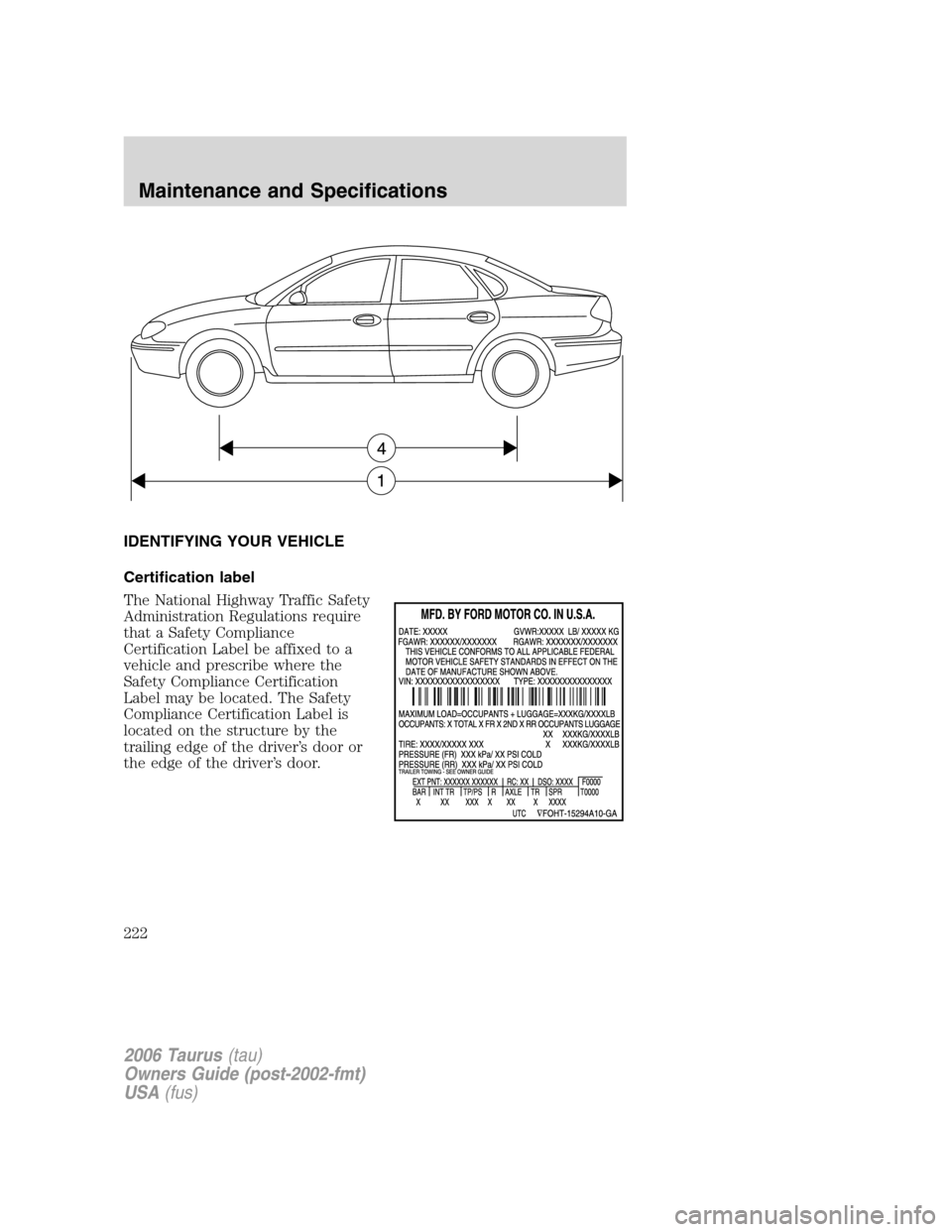

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
222

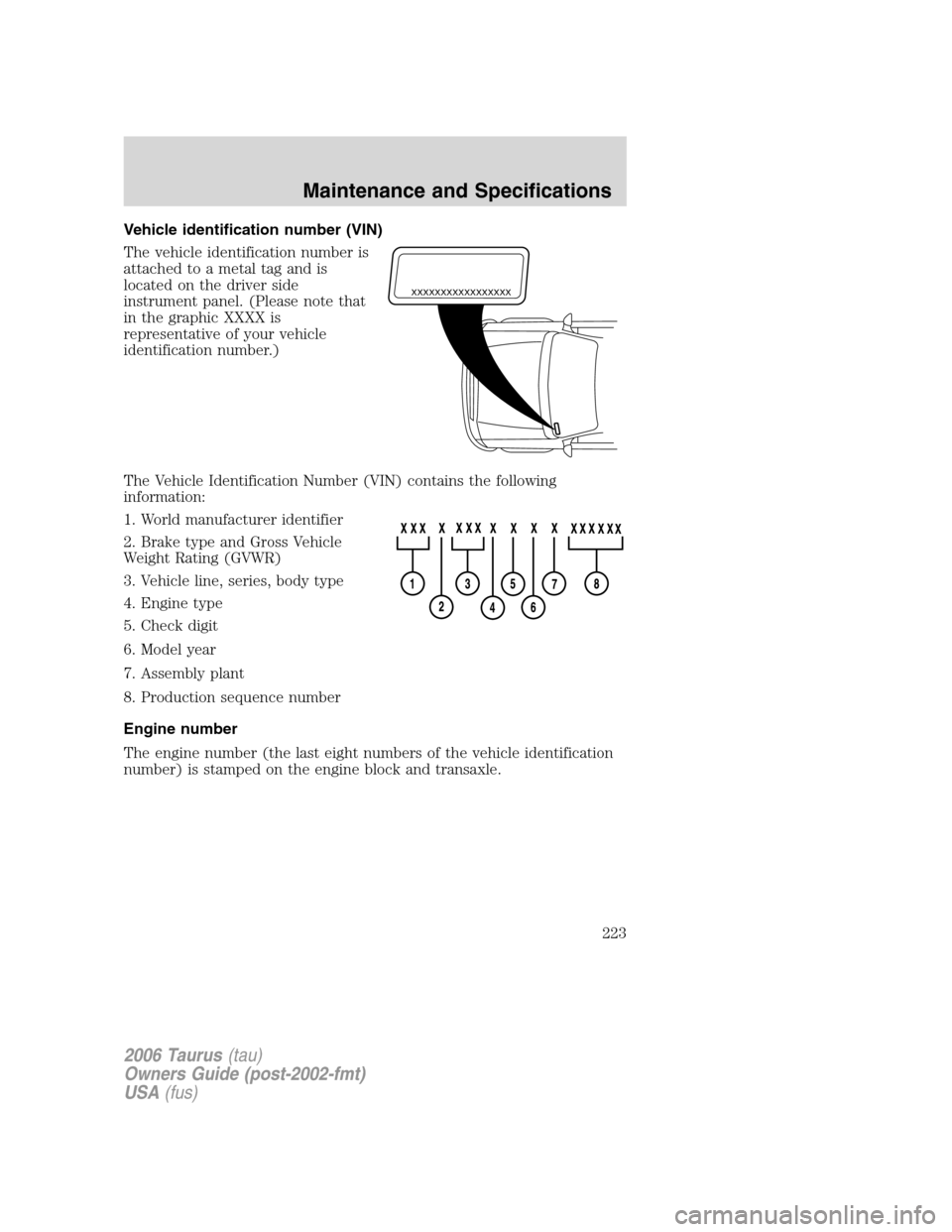

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transaxle.
XXXXXXXXXXXXXXXXX
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
223

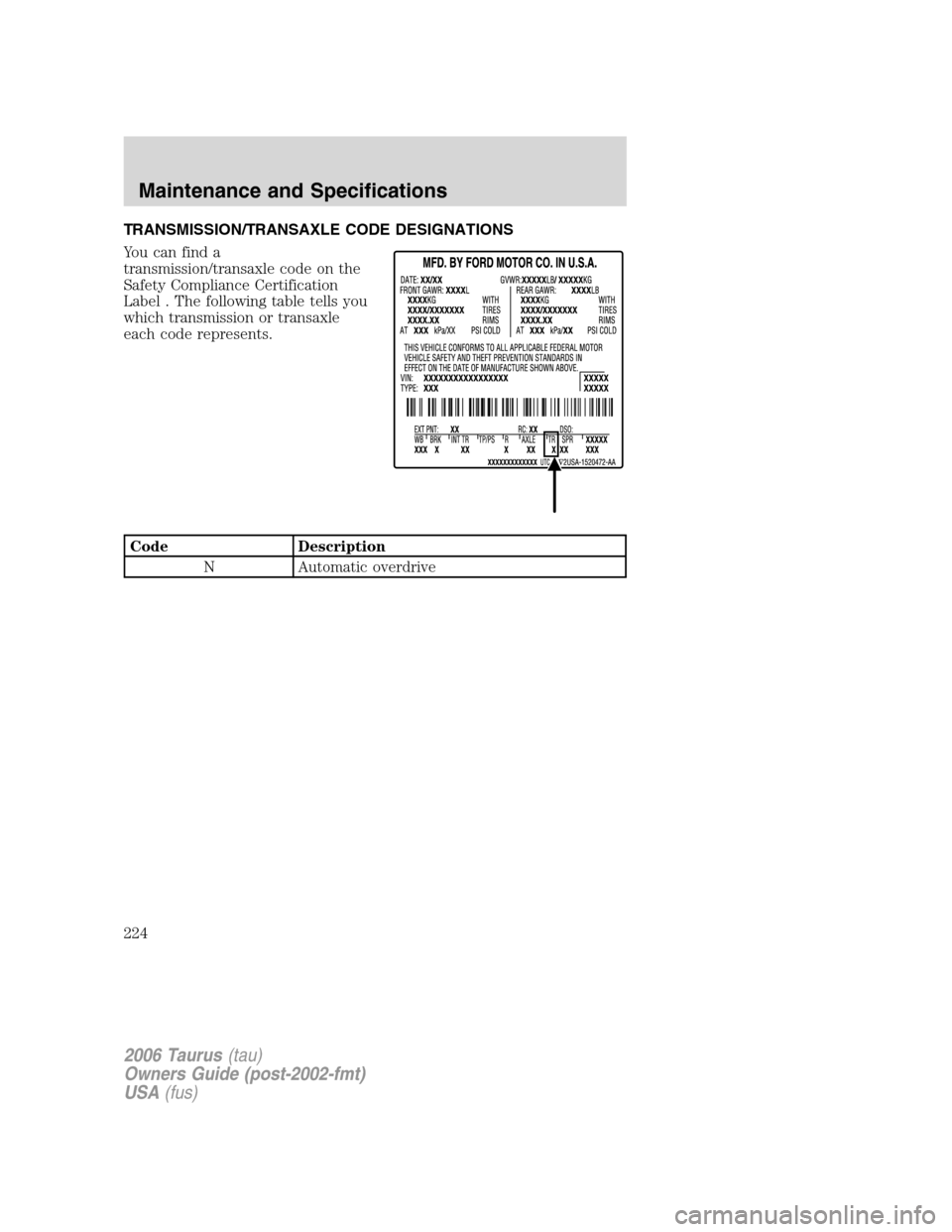

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.
Code Description
N Automatic overdrive
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
224

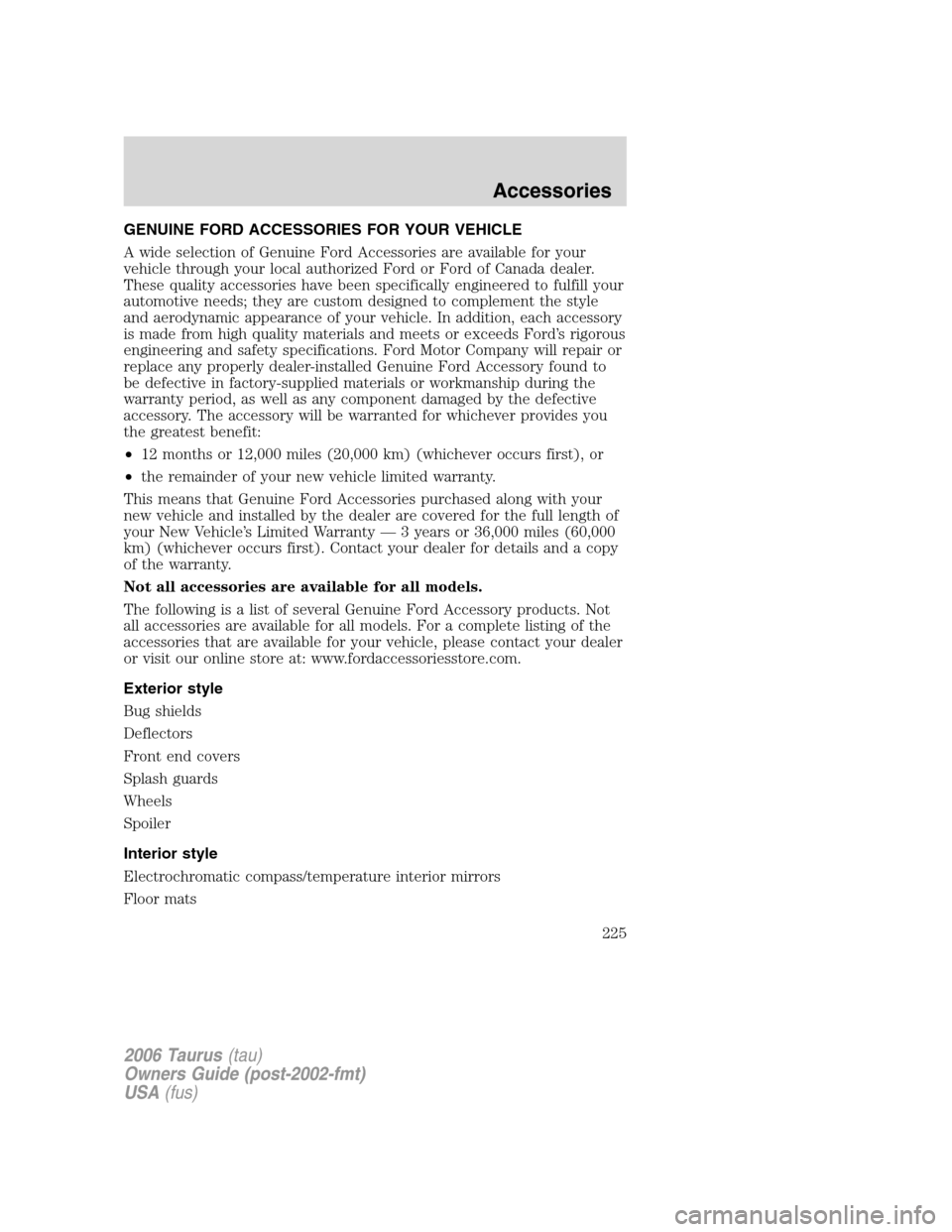

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products. Not
all accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Front end covers
Splash guards
Wheels
Spoiler
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
225

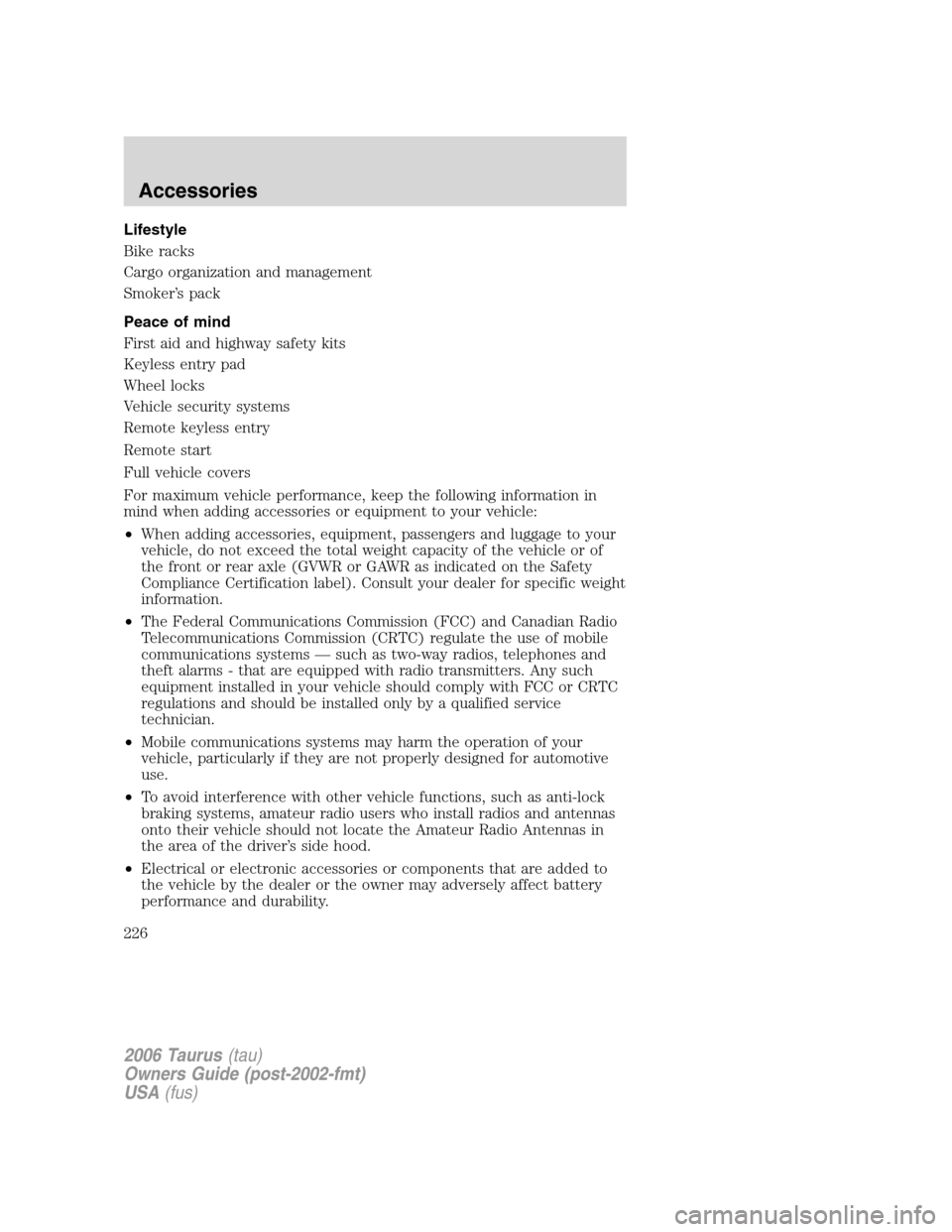

Lifestyle
Bike racks
Cargo organization and management
Smoker’s pack
Peace of mind
First aid and highway safety kits
Keyless entry pad
Wheel locks
Vehicle security systems
Remote keyless entry
Remote start
Full vehicle covers
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the dealer or the owner may adversely affect battery
performance and durability.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
226

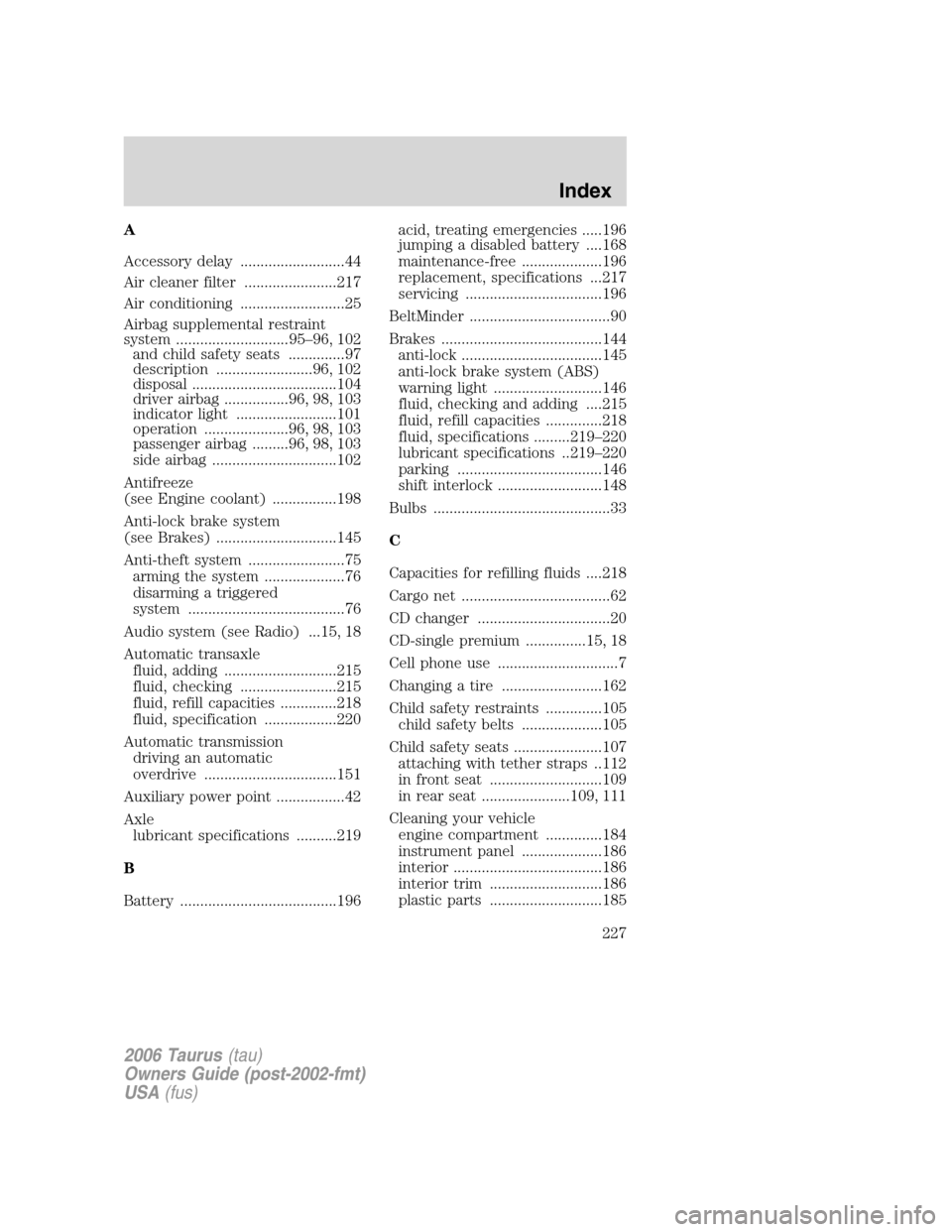

A
Accessory delay ..........................44
Air cleaner filter .......................217
Air conditioning ..........................25
Airbag supplemental restraint
system ............................95–96, 102
and child safety seats ..............97
description ........................96, 102
disposal ....................................104
driver airbag ................96, 98, 103
indicator light .........................101
operation .....................96, 98, 103
passenger airbag .........96, 98, 103
side airbag ...............................102
Antifreeze
(see Engine coolant) ................198
Anti-lock brake system
(see Brakes) ..............................145
Anti-theft system ........................75
arming the system ....................76
disarming a triggered
system .......................................76
Audio system (see Radio) ...15, 18
Automatic transaxle
fluid, adding ............................215
fluid, checking ........................215
fluid, refill capacities ..............218
fluid, specification ..................220
Automatic transmission
driving an automatic
overdrive .................................151
Auxiliary power point .................42
Axle
lubricant specifications ..........219
B
Battery .......................................196acid, treating emergencies .....196
jumping a disabled battery ....168
maintenance-free ....................196
replacement, specifications ...217
servicing ..................................196
BeltMinder ...................................90
Brakes ........................................144
anti-lock ...................................145
anti-lock brake system (ABS)
warning light ...........................146
fluid, checking and adding ....215
fluid, refill capacities ..............218
fluid, specifications .........219–220
lubricant specifications ..219–220
parking ....................................146
shift interlock ..........................148
Bulbs ............................................33
C
Capacities for refilling fluids ....218
Cargo net .....................................62
CD changer .................................20
CD-single premium ...............15, 18
Cell phone use ..............................7
Changing a tire .........................162
Child safety restraints ..............105
child safety belts ....................105
Child safety seats ......................107
attaching with tether straps ..112
in front seat ............................109
in rear seat ......................109, 111
Cleaning your vehicle
engine compartment ..............184
instrument panel ....................186
interior .....................................186
interior trim ............................186
plastic parts ............................185
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
227

washing ....................................183
waxing .....................................183
wheels ......................................184
wiper blades ............................185
Climate control (see Air
conditioning or Heating) ............25
Clock adjust
AM/FM/Cassette ........................15
AM/FM/CD .................................18
Compass
zone/calibration adjustment ....56
Compass Display .........................55
Console ........................................42
Controls
power seat .................................79
Coolant
checking and adding ..............198
refill capacities ................202, 218
specifications ..................219–220
Cruise control
(see Speed control) ....................45
Customer Assistance ................154
Ford Extended Service
Plan ..........................................180
Getting assistance outside the
U.S. and Canada .....................181
Getting roadside assistance ...154
Getting the service you
need .........................................174
Ordering additional owner’s
literature .................................182
The Dispute Settlement
Board .......................................177
Utilizing the
Mediation/Arbitration
Program ...................................179D
Daytime running lamps
(see Lamps) ................................29
Defrost
rear window ..............................27
Dipstick
automatic transmission
fluid ..........................................215
engine oil .................................193
Doors
lubricant specifications ..........219
Driving under special
conditions ..................................153
through water .........................153
E
Electronic message center .........53
Emergencies, roadside
jump-starting ..........................168
Emergency Flashers .................155
Emission control system ..........212
Engine ................................220–221
cleaning ...................................184
coolant .....................................198
idle speed control ...................196
lubrication
specifications ..................219–220
refill capacities ........................218
service points ..........................191
starting after a collision .........155
Engine block heater .................144
Engine oil ..................................193
checking and adding ..............193
dipstick ....................................193
filter, specifications ........195, 217
recommendations ...................195
refill capacities ........................218
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
228

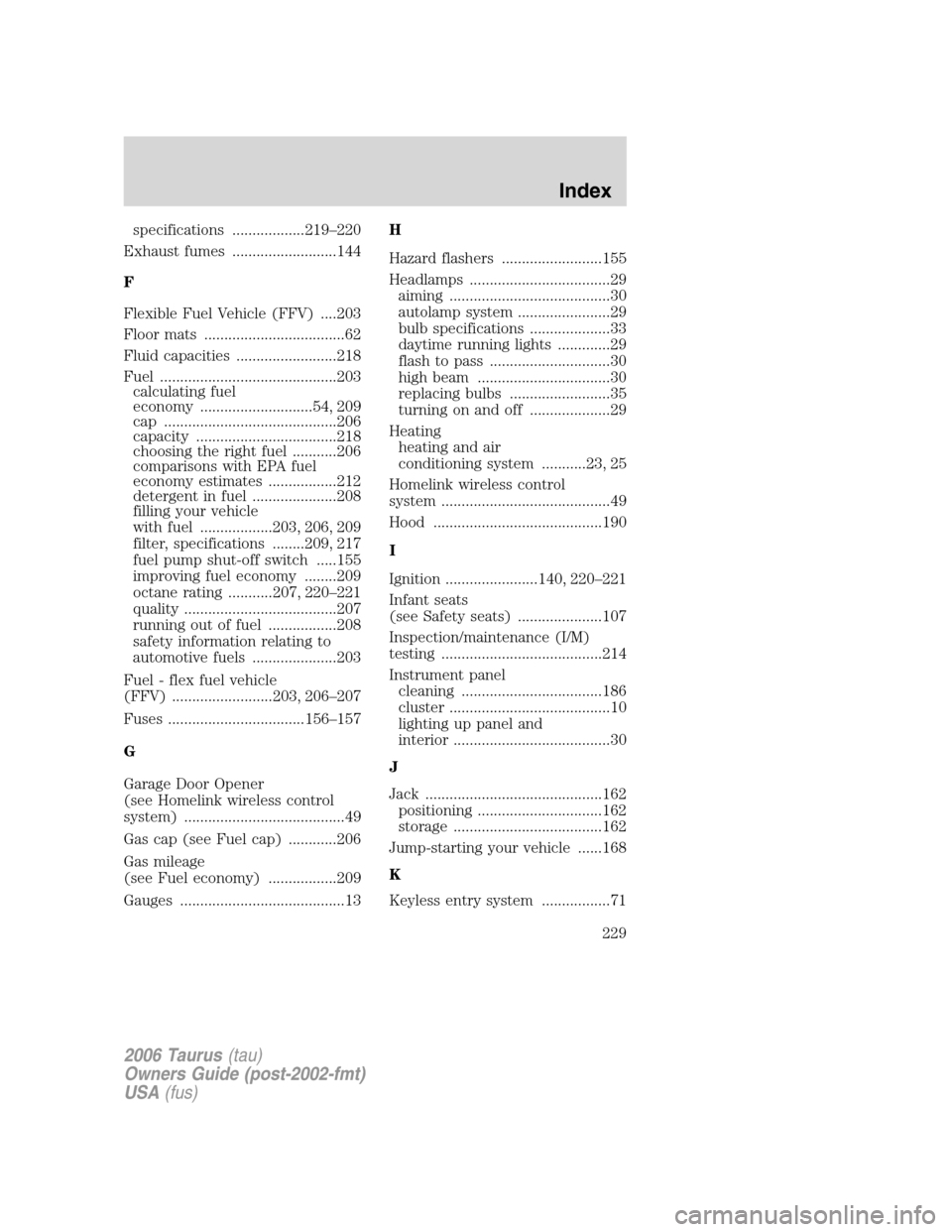

specifications ..................219–220
Exhaust fumes ..........................144
F
Flexible Fuel Vehicle (FFV) ....203
Floor mats ...................................62
Fluid capacities .........................218
Fuel ............................................203
calculating fuel
economy ............................54, 209
cap ...........................................206
capacity ...................................218
choosing the right fuel ...........206
comparisons with EPA fuel
economy estimates .................212
detergent in fuel .....................208
filling your vehicle
with fuel ..................203, 206, 209
filter, specifications ........209, 217
fuel pump shut-off switch .....155
improving fuel economy ........209
octane rating ...........207, 220–221
quality ......................................207
running out of fuel .................208
safety information relating to
automotive fuels .....................203
Fuel - flex fuel vehicle
(FFV) .........................203, 206–207
Fuses ..................................156–157
G
Garage Door Opener
(see Homelink wireless control
system) ........................................49
Gas cap (see Fuel cap) ............206
Gas mileage
(see Fuel economy) .................209
Gauges .........................................13H
Hazard flashers .........................155
Headlamps ...................................29
aiming ........................................30
autolamp system .......................29
bulb specifications ....................33
daytime running lights .............29
flash to pass ..............................30
high beam .................................30
replacing bulbs .........................35
turning on and off ....................29
Heating
heating and air
conditioning system ...........23, 25
Homelink wireless control
system ..........................................49
Hood ..........................................190
I
Ignition .......................140, 220–221
Infant seats
(see Safety seats) .....................107
Inspection/maintenance (I/M)
testing ........................................214
Instrument panel
cleaning ...................................186
cluster ........................................10
lighting up panel and
interior .......................................30
J
Jack ............................................162
positioning ...............................162
storage .....................................162
Jump-starting your vehicle ......168
K
Keyless entry system .................71
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
229

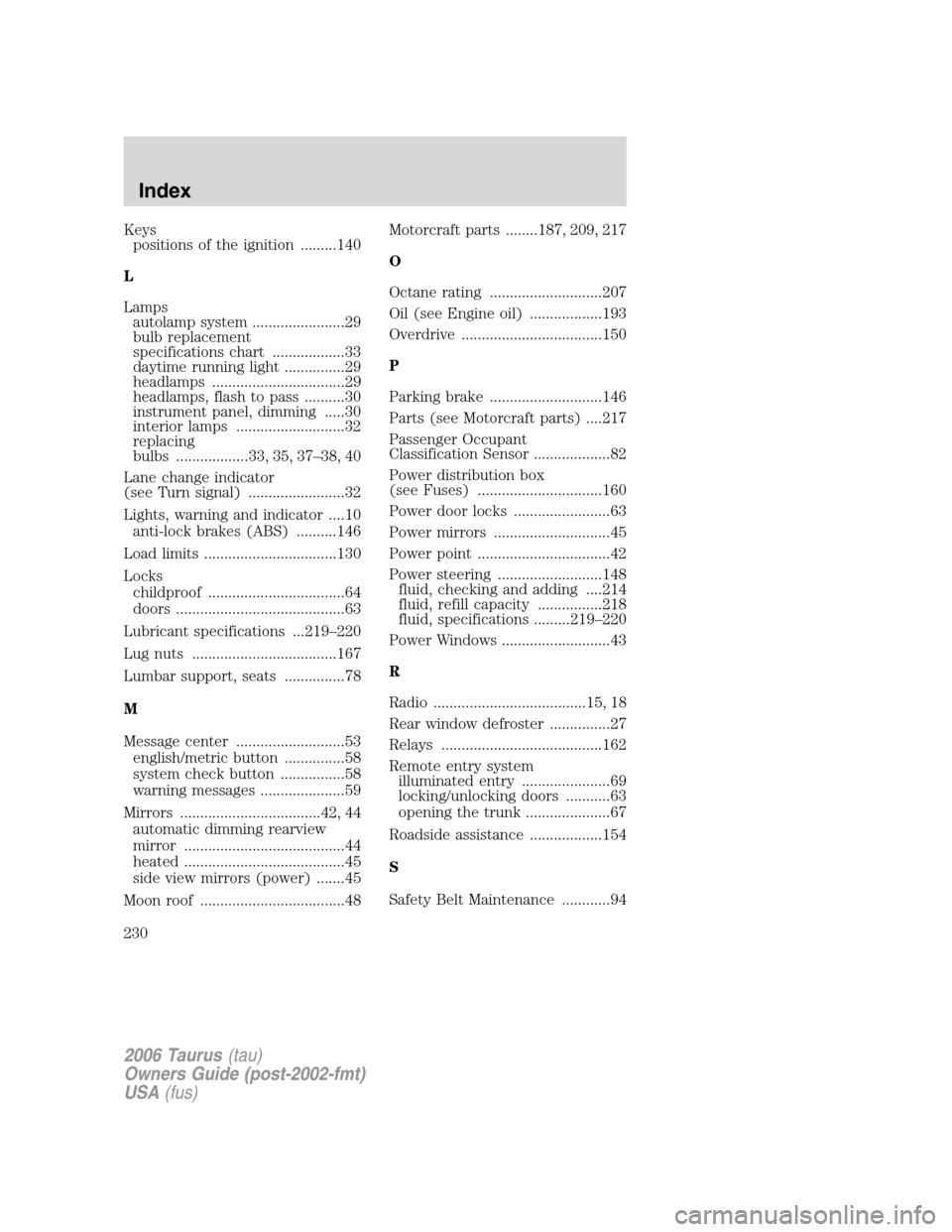

Keys
positions of the ignition .........140
L
Lamps
autolamp system .......................29
bulb replacement
specifications chart ..................33
daytime running light ...............29
headlamps .................................29
headlamps, flash to pass ..........30
instrument panel, dimming .....30
interior lamps ...........................32
replacing
bulbs ..................33, 35, 37–38, 40
Lane change indicator
(see Turn signal) ........................32
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........146
Load limits .................................130
Locks
childproof ..................................64
doors ..........................................63
Lubricant specifications ...219–220
Lug nuts ....................................167
Lumbar support, seats ...............78
M
Message center ...........................53
english/metric button ...............58
system check button ................58
warning messages .....................59
Mirrors ...................................42, 44
automatic dimming rearview
mirror ........................................44
heated ........................................45
side view mirrors (power) .......45
Moon roof ....................................48Motorcraft parts ........187, 209, 217
O
Octane rating ............................207
Oil (see Engine oil) ..................193
Overdrive ...................................150
P
Parking brake ............................146
Parts (see Motorcraft parts) ....217
Passenger Occupant
Classification Sensor ...................82
Power distribution box
(see Fuses) ...............................160
Power door locks ........................63
Power mirrors .............................45
Power point .................................42
Power steering ..........................148
fluid, checking and adding ....214
fluid, refill capacity ................218
fluid, specifications .........219–220
Power Windows ...........................43
R
Radio ......................................15, 18
Rear window defroster ...............27
Relays ........................................162
Remote entry system
illuminated entry ......................69
locking/unlocking doors ...........63
opening the trunk .....................67
Roadside assistance ..................154
S
Safety Belt Maintenance ............94
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
230
