FORD TAURUS 2007 4.G Owners Manual

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Power steering fluidFill to line on
dipstickMotorcraft MERCON
AT FXT-2-QDX /
MERCON
Windshield washer fluid 94.7 oz (2.8L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
1Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick or on the dipstick handle. Check the container to verify the fluid being
added is of the correct type. Refer toscheduled maintenance informationto determine the
correct service interval.
Some transmission fluids may be labeled as dual usage, such as MERCONand MERCONV.
These dual usage fluids are not to be used in an automatic transmission that requires use of the
MERCONtype fluid. However, these dual usage fluids may be used in transmissions that require
the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable. DO NOT mix MERCON
and MERCONV. Use of a transmission fluid that indicates dual usage (MERCONand
MERCONV) in an automatic transmission application requiring MERCONmay cause
transmission damage. Use of any fluid other than the recommended fluid may cause
transmission damage.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Add the coolant type originally equipped in your vehicle.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
221

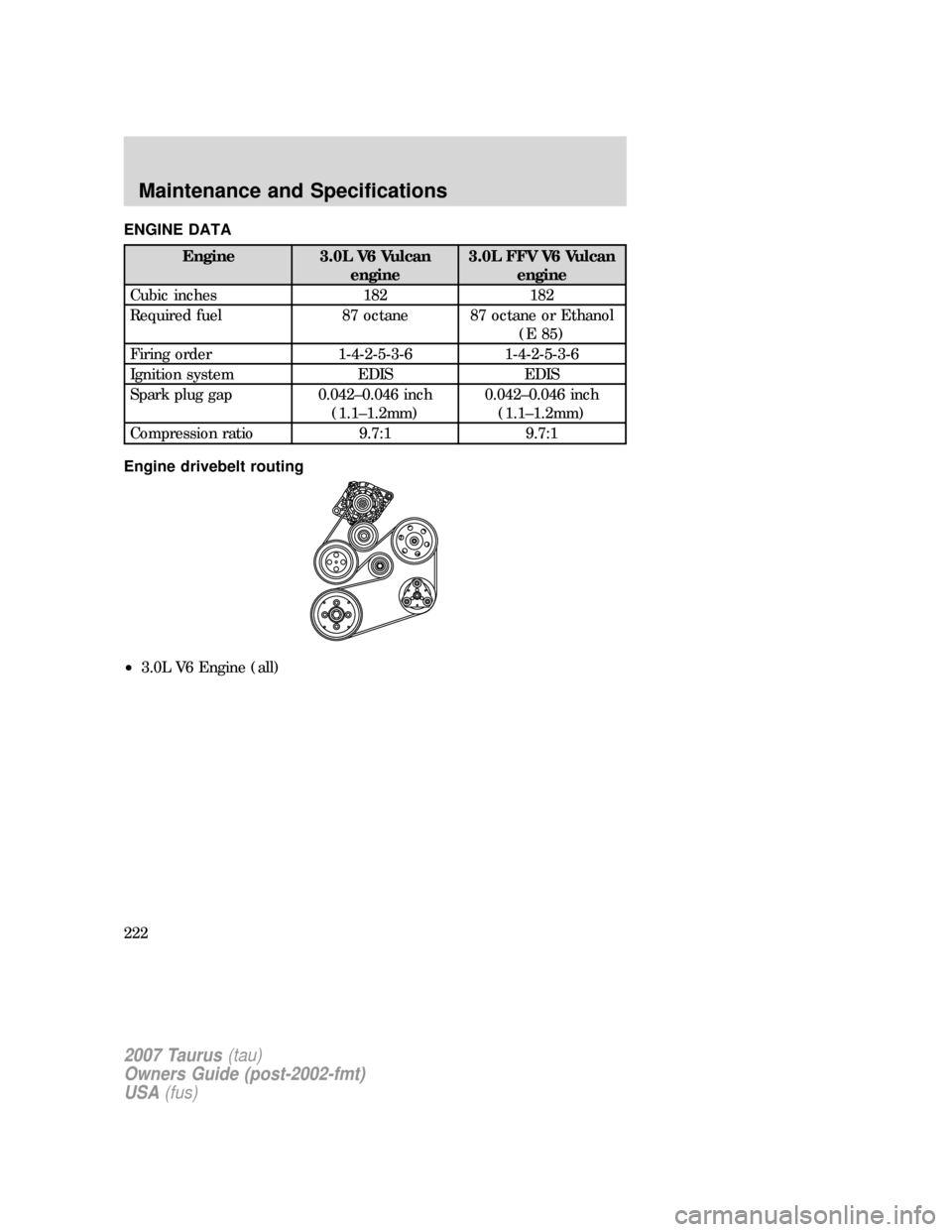

ENGINE DATA
Engine 3.0L V6 Vulcan
engine3.0L FFV V6 Vulcan
engine
Cubic inches 182 182
Required fuel 87 octane 87 octane or Ethanol
(E 85)
Firing order 1-4-2-5-3-6 1-4-2-5-3-6
Ignition system EDIS EDIS
Spark plug gap 0.042–0.046 inch
(1.1–1.2mm)0.042–0.046 inch
(1.1–1.2mm)
Compression ratio 9.7:1 9.7:1
Engine drivebelt routing
•3.0L V6 Engine (all)
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
222

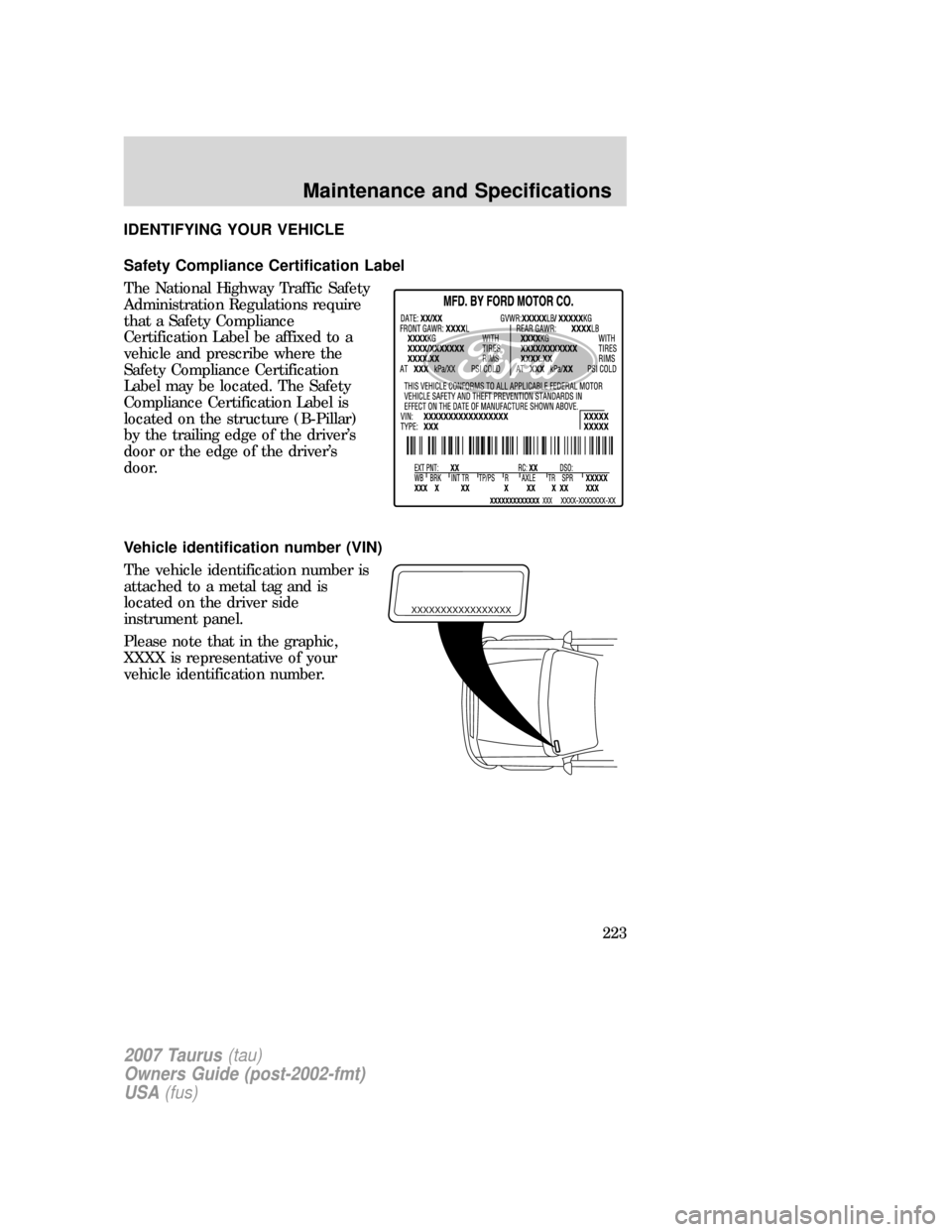

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
223

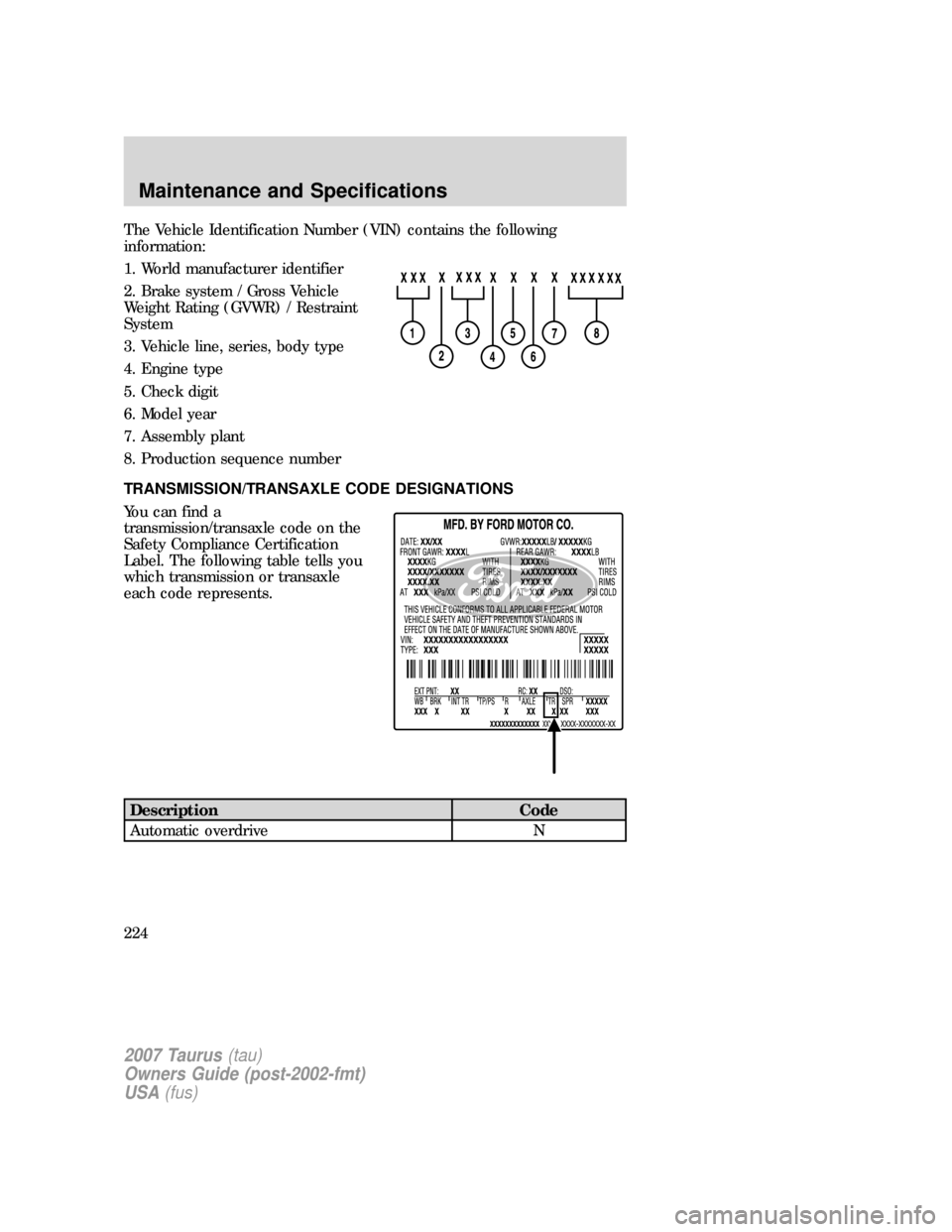

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Automatic overdrive N
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
224

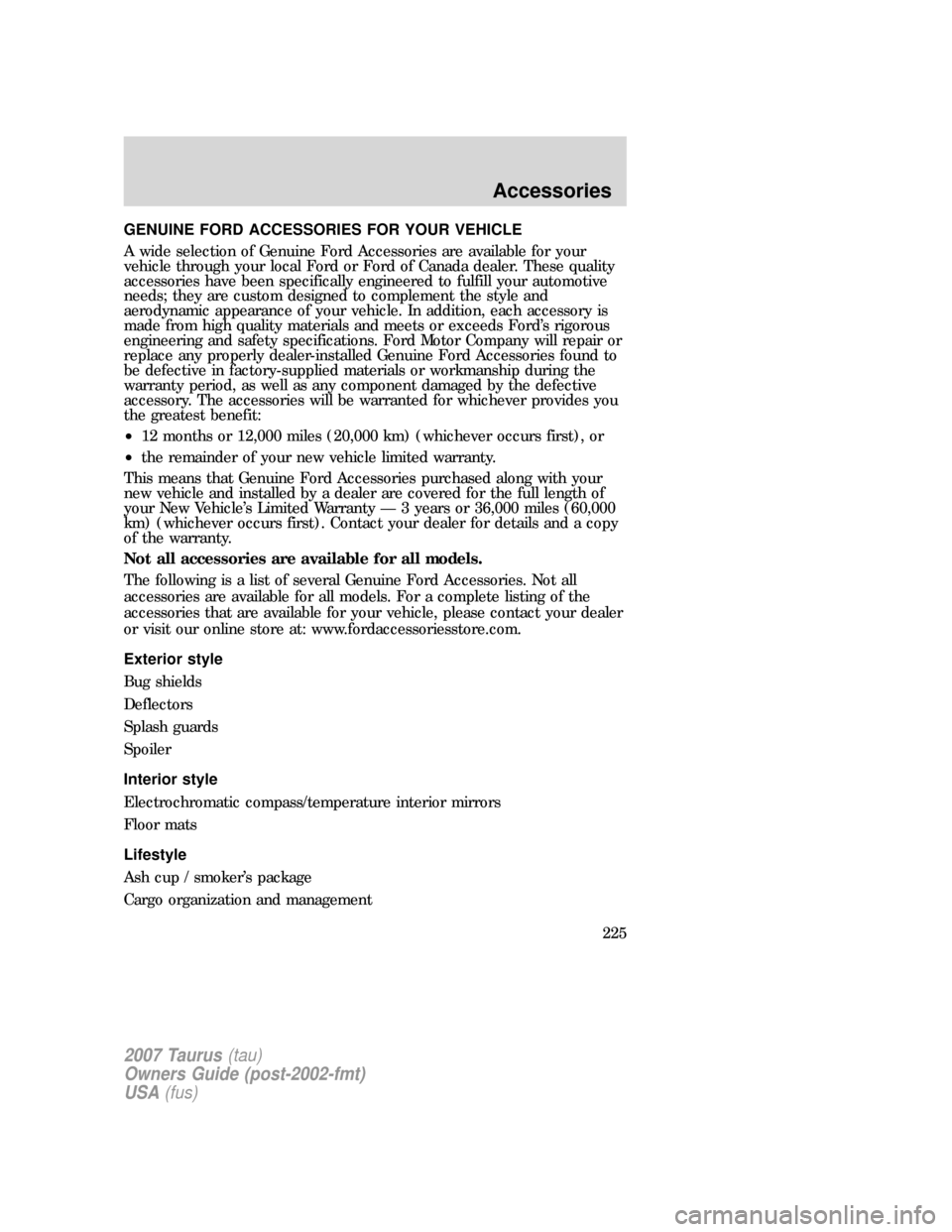

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessories will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by a dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Splash guards
Spoiler
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
225

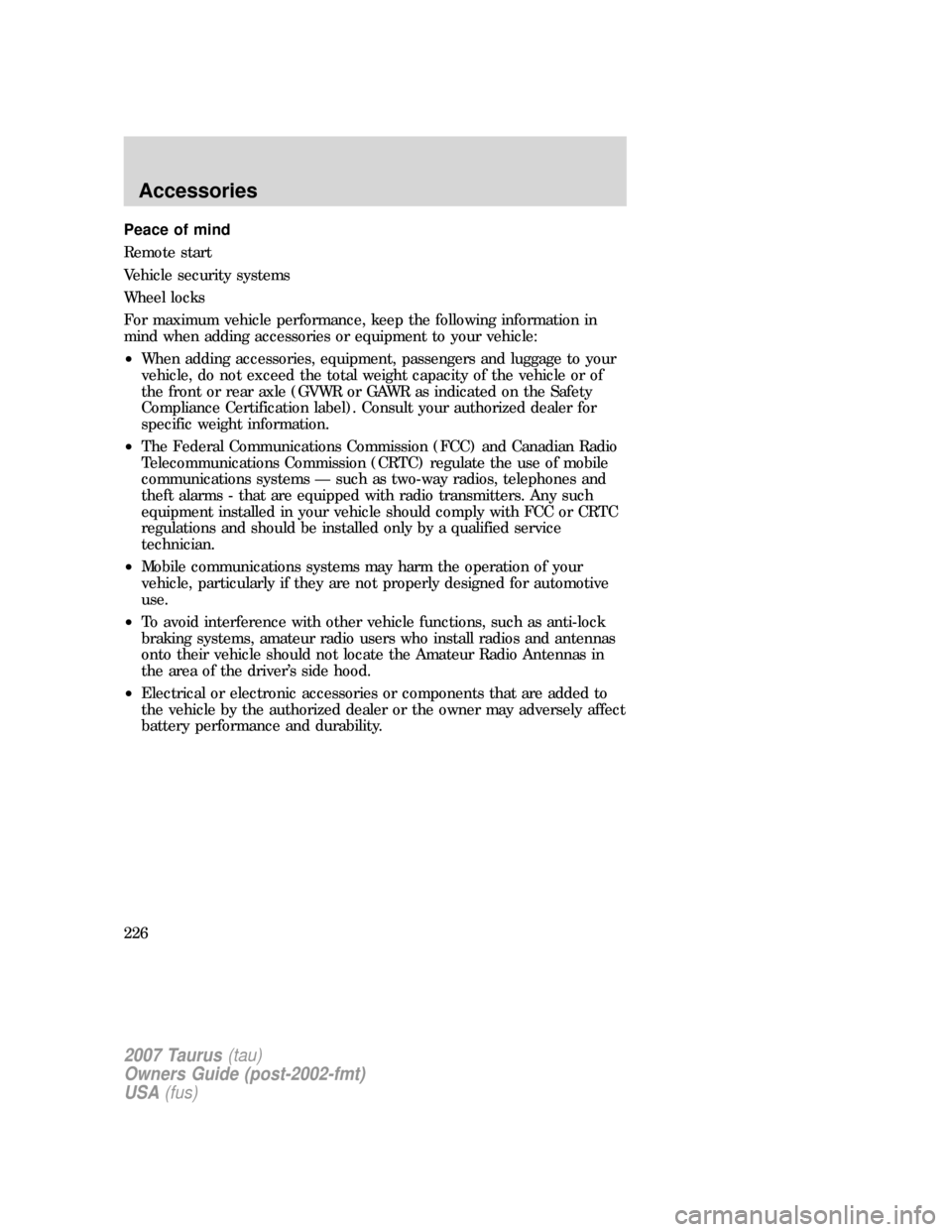

Peace of mind
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
226

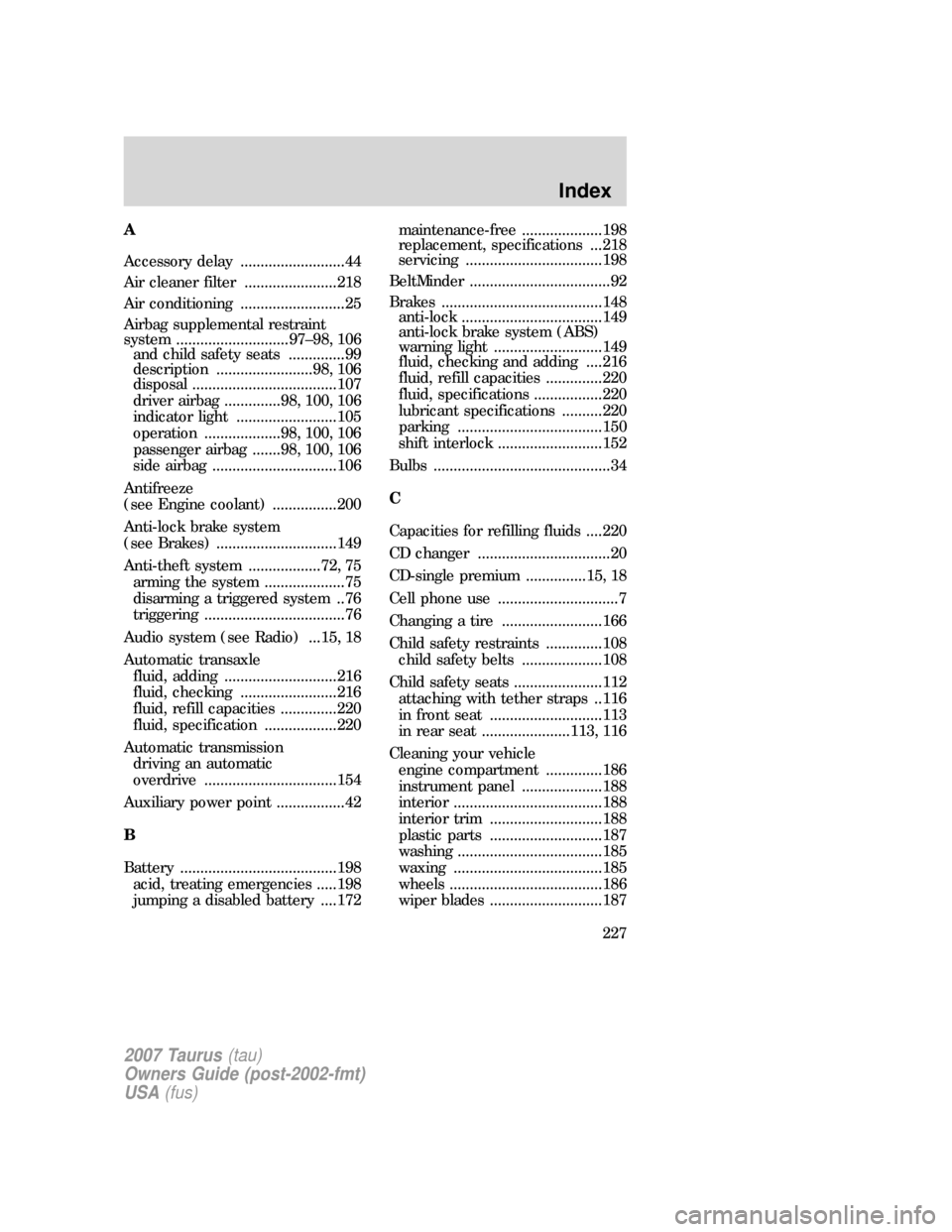

A
Accessory delay ..........................44
Air cleaner filter .......................218
Air conditioning ..........................25
Airbag supplemental restraint
system ............................97–98, 106
and child safety seats ..............99
description ........................98, 106
disposal ....................................107
driver airbag ..............98, 100, 106
indicator light .........................105
operation ...................98, 100, 106
passenger airbag .......98, 100, 106
side airbag ...............................106
Antifreeze
(see Engine coolant) ................200
Anti-lock brake system
(see Brakes) ..............................149
Anti-theft system ..................72, 75
arming the system ....................75
disarming a triggered system ..76
triggering ...................................76
Audio system (see Radio) ...15, 18
Automatic transaxle
fluid, adding ............................216
fluid, checking ........................216
fluid, refill capacities ..............220
fluid, specification ..................220
Automatic transmission
driving an automatic
overdrive .................................154
Auxiliary power point .................42
B
Battery .......................................198
acid, treating emergencies .....198
jumping a disabled battery ....172maintenance-free ....................198
replacement, specifications ...218
servicing ..................................198
BeltMinder ...................................92
Brakes ........................................148
anti-lock ...................................149
anti-lock brake system (ABS)
warning light ...........................149
fluid, checking and adding ....216
fluid, refill capacities ..............220
fluid, specifications .................220
lubricant specifications ..........220
parking ....................................150
shift interlock ..........................152
Bulbs ............................................34
C
Capacities for refilling fluids ....220
CD changer .................................20
CD-single premium ...............15, 18
Cell phone use ..............................7
Changing a tire .........................166
Child safety restraints ..............108
child safety belts ....................108
Child safety seats ......................112
attaching with tether straps ..116
in front seat ............................113
in rear seat ......................113, 116
Cleaning your vehicle
engine compartment ..............186
instrument panel ....................188
interior .....................................188
interior trim ............................188
plastic parts ............................187
washing ....................................185
waxing .....................................185
wheels ......................................186
wiper blades ............................187
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
227

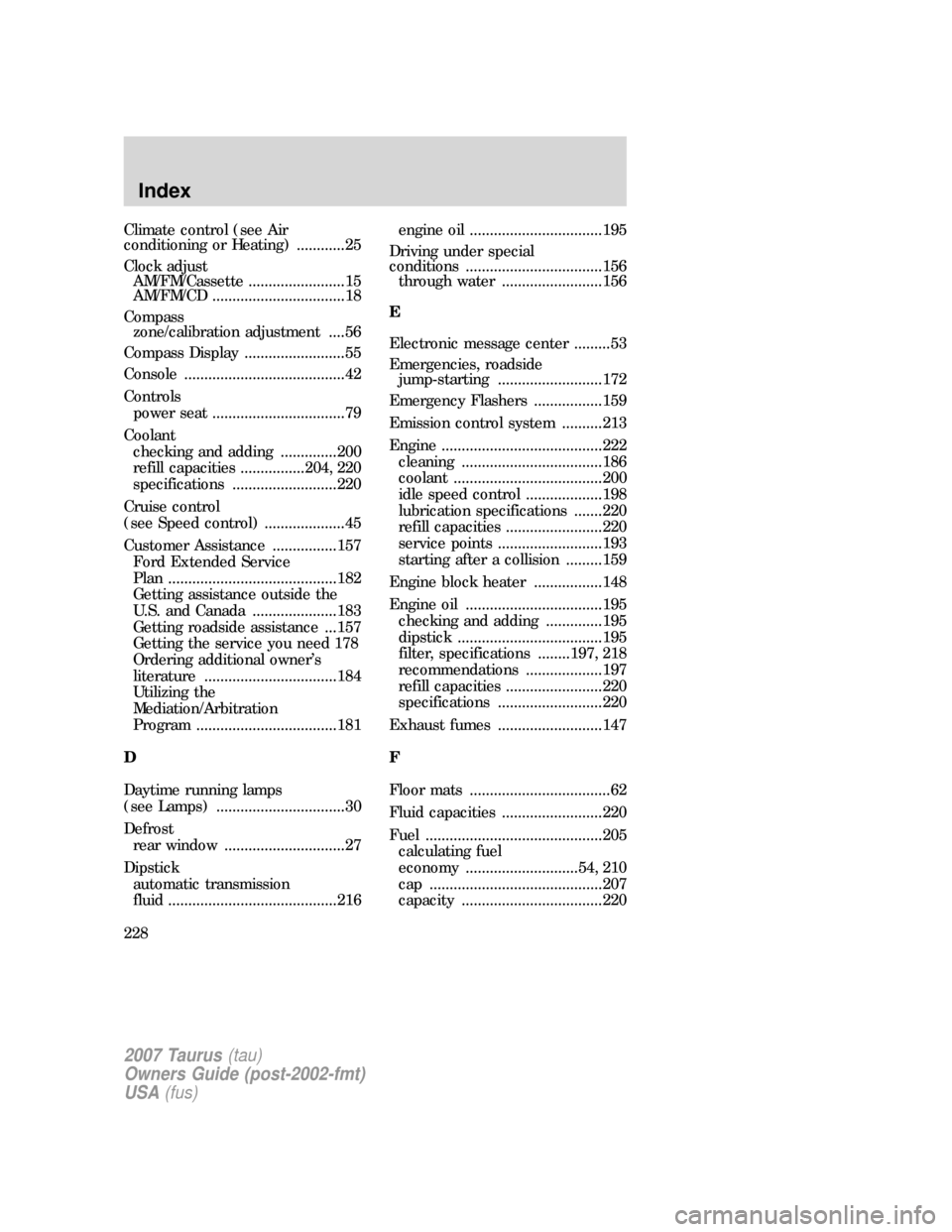

Climate control (see Air
conditioning or Heating) ............25
Clock adjust
AM/FM/Cassette ........................15
AM/FM/CD .................................18
Compass
zone/calibration adjustment ....56
Compass Display .........................55
Console ........................................42
Controls
power seat .................................79
Coolant
checking and adding ..............200
refill capacities ................204, 220
specifications ..........................220
Cruise control
(see Speed control) ....................45
Customer Assistance ................157
Ford Extended Service
Plan ..........................................182
Getting assistance outside the
U.S. and Canada .....................183
Getting roadside assistance ...157
Getting the service you need 178
Ordering additional owner’s
literature .................................184
Utilizing the
Mediation/Arbitration
Program ...................................181
D
Daytime running lamps
(see Lamps) ................................30
Defrost
rear window ..............................27
Dipstick
automatic transmission
fluid ..........................................216engine oil .................................195
Driving under special
conditions ..................................156
through water .........................156
E
Electronic message center .........53
Emergencies, roadside
jump-starting ..........................172
Emergency Flashers .................159
Emission control system ..........213
Engine ........................................222
cleaning ...................................186
coolant .....................................200
idle speed control ...................198
lubrication specifications .......220
refill capacities ........................220
service points ..........................193
starting after a collision .........159
Engine block heater .................148
Engine oil ..................................195
checking and adding ..............195
dipstick ....................................195
filter, specifications ........197, 218
recommendations ...................197
refill capacities ........................220
specifications ..........................220
Exhaust fumes ..........................147
F
Floor mats ...................................62
Fluid capacities .........................220
Fuel ............................................205
calculating fuel
economy ............................54, 210
cap ...........................................207
capacity ...................................220
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
228

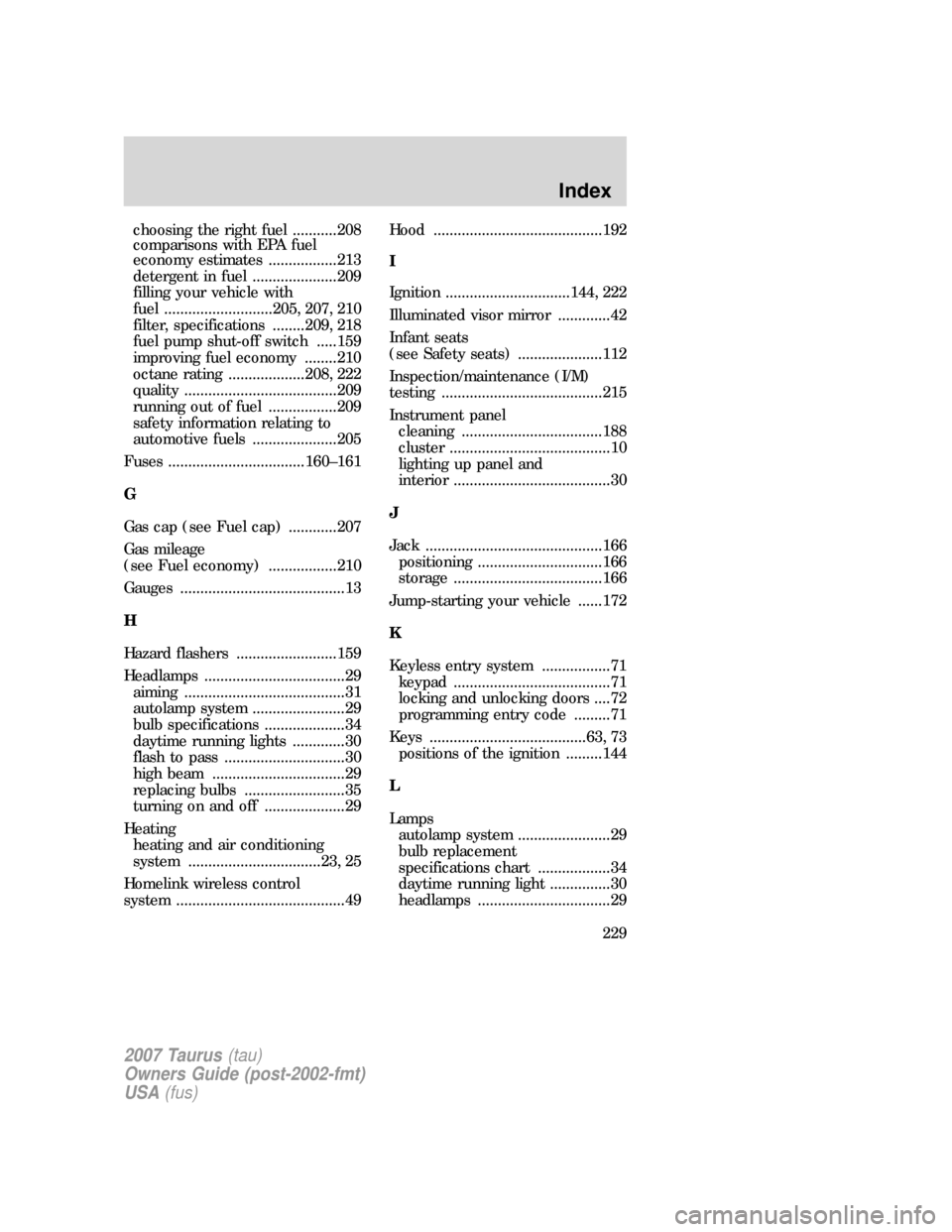

choosing the right fuel ...........208
comparisons with EPA fuel
economy estimates .................213
detergent in fuel .....................209
filling your vehicle with
fuel ...........................205, 207, 210
filter, specifications ........209, 218
fuel pump shut-off switch .....159
improving fuel economy ........210
octane rating ...................208, 222
quality ......................................209
running out of fuel .................209
safety information relating to
automotive fuels .....................205
Fuses ..................................160–161
G
Gas cap (see Fuel cap) ............207
Gas mileage
(see Fuel economy) .................210
Gauges .........................................13
H
Hazard flashers .........................159
Headlamps ...................................29
aiming ........................................31
autolamp system .......................29
bulb specifications ....................34
daytime running lights .............30
flash to pass ..............................30
high beam .................................29
replacing bulbs .........................35
turning on and off ....................29
Heating
heating and air conditioning
system .................................23, 25
Homelink wireless control
system ..........................................49Hood ..........................................192
I
Ignition ...............................144, 222
Illuminated visor mirror .............42
Infant seats
(see Safety seats) .....................112
Inspection/maintenance (I/M)
testing ........................................215
Instrument panel
cleaning ...................................188
cluster ........................................10
lighting up panel and
interior .......................................30
J
Jack ............................................166
positioning ...............................166
storage .....................................166
Jump-starting your vehicle ......172
K
Keyless entry system .................71
keypad .......................................71
locking and unlocking doors ....72
programming entry code .........71
Keys .......................................63, 73
positions of the ignition .........144
L
Lamps
autolamp system .......................29
bulb replacement
specifications chart ..................34
daytime running light ...............30
headlamps .................................29
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
229

headlamps, flash to pass ..........30
instrument panel, dimming .....30
interior lamps ...............32–33, 35
replacing bulbs .........................35
Lane change indicator
(see Turn signal) ........................32
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........149
Load limits .................................134
Locks
childproof ..................................64
doors ..........................................63
Lubricant specifications ...........220
Lug nuts ....................................171
Lumbar support, seats ...............78
M
Message center ...........................53
english/metric button ...............58
system check button ................58
warning messages .....................59
Mirrors .........................................45
automatic dimming rearview
mirror ........................................44
heated ........................................45
side view mirrors (power) .......45
Moon roof ....................................48
Motorcraft parts ........190, 209, 218
O
Octane rating ............................208
Oil (see Engine oil) ..................195
Overdrive ...................................153
P
Parking brake ............................150Parts (see Motorcraft parts) ....218
Passenger Occupant
Classification Sensor ...................83
Power distribution box
(see Fuses) ...............................164
Power door locks ........................63
Power mirrors .............................45
Power point .................................42
Power steering ..........................151
fluid, checking and adding ....215
fluid, refill capacity ................220
fluid, specifications .................220
Power Windows ...........................43
R
Radio ......................................15, 18
Rear window defroster ...............27
Relays ................................160, 166
Remote entry system .................66
illuminated entry ......................69
locking/unlocking doors .....66–67
opening the trunk .....................67
panic alarm ...............................67
replacing the batteries .............67
Roadside assistance ..................157
S
Safety Belt Maintenance ............91
Safety belts (see Safety
restraints) ........................81, 85–89
Safety defects, reporting ..........184
Safety restraints ..............81, 85–89
belt minder ...............................92
extension assembly ..................90
for adults .............................86–88
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Index
230
