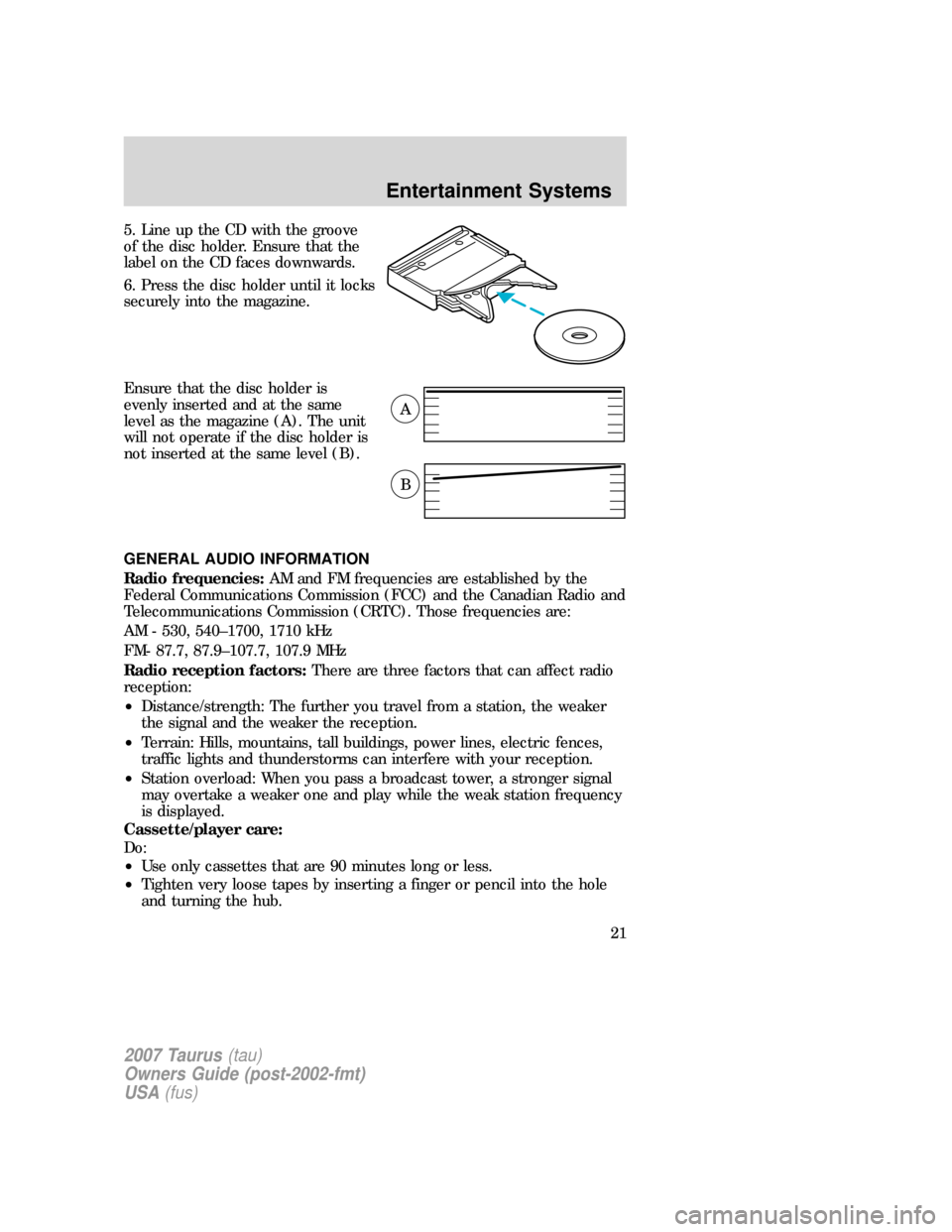

Page 21 of 232
5. Line up the CD with the groove
of the disc holder. Ensure that the
label on the CD faces downwards.
6. Press the disc holder until it locks
securely into the magazine.
Ensure that the disc holder is
evenly inserted and at the same
level as the magazine (A). The unit
will not operate if the disc holder is
not inserted at the same level (B).
GENERAL AUDIO INFORMATION
Radio frequencies:AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the Canadian Radio and
Telecommunications Commission (CRTC). Those frequencies are:
AM - 530, 540–1700, 1710 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:There are three factors that can affect radio
reception:
•Distance/strength: The further you travel from a station, the weaker
the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
Cassette/player care:
Do:
•Use only cassettes that are 90 minutes long or less.
•Tighten very loose tapes by inserting a finger or pencil into the hole
and turning the hub.
A
B
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
21

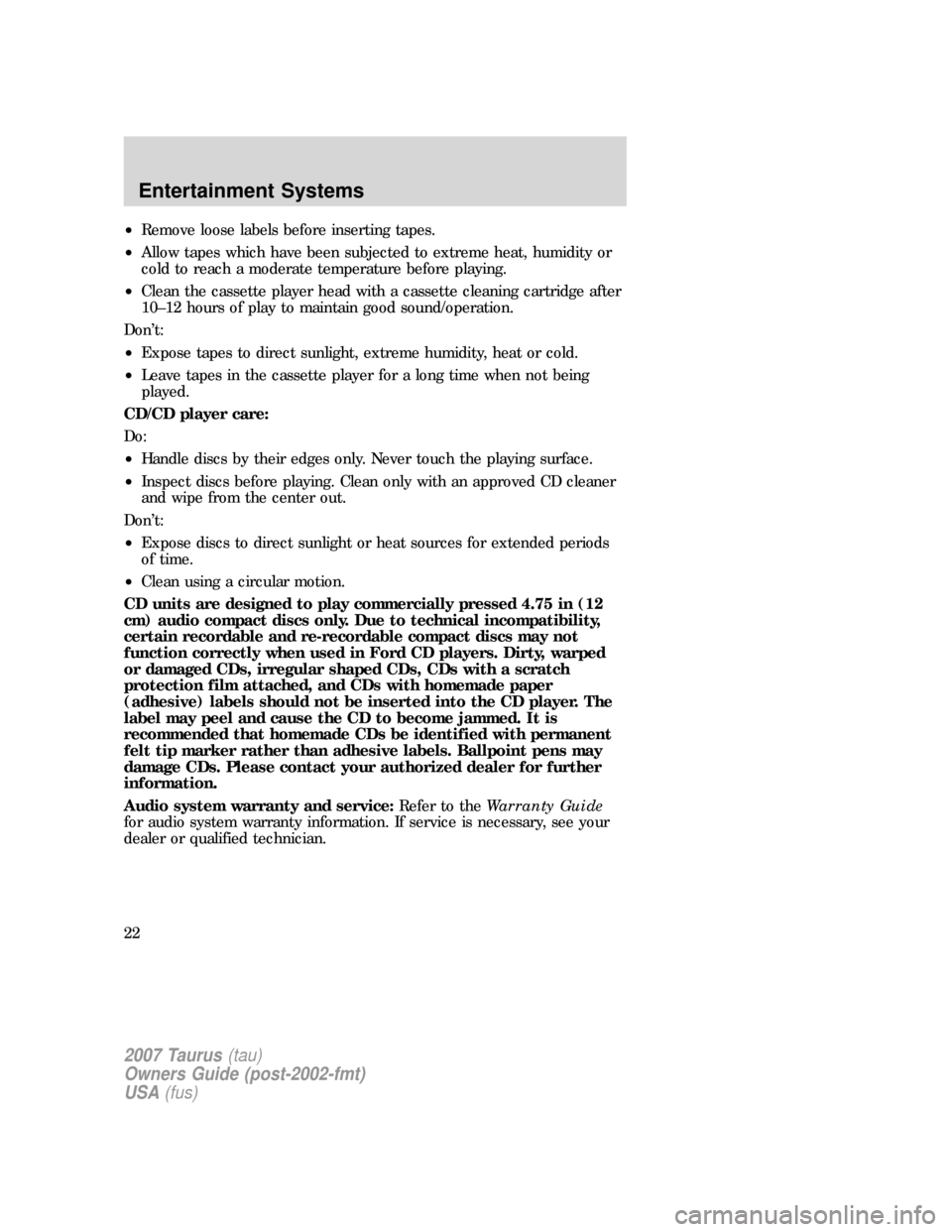

Page 22 of 232
•Remove loose labels before inserting tapes.
•Allow tapes which have been subjected to extreme heat, humidity or
cold to reach a moderate temperature before playing.
•Clean the cassette player head with a cassette cleaning cartridge after
10–12 hours of play to maintain good sound/operation.
Don’t:
•Expose tapes to direct sunlight, extreme humidity, heat or cold.
•Leave tapes in the cassette player for a long time when not being
played.
CD/CD player care:
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in (12
cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not
function correctly when used in Ford CD players. Dirty, warped
or damaged CDs, irregular shaped CDs, CDs with a scratch
protection film attached, and CDs with homemade paper
(adhesive) labels should not be inserted into the CD player. The
label may peel and cause the CD to become jammed. It is
recommended that homemade CDs be identified with permanent
felt tip marker rather than adhesive labels. Ballpoint pens may
damage CDs. Please contact your authorized dealer for further
information.
Audio system warranty and service:Refer to theWarranty Guide
for audio system warranty information. If service is necessary, see your
dealer or qualified technician.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
22

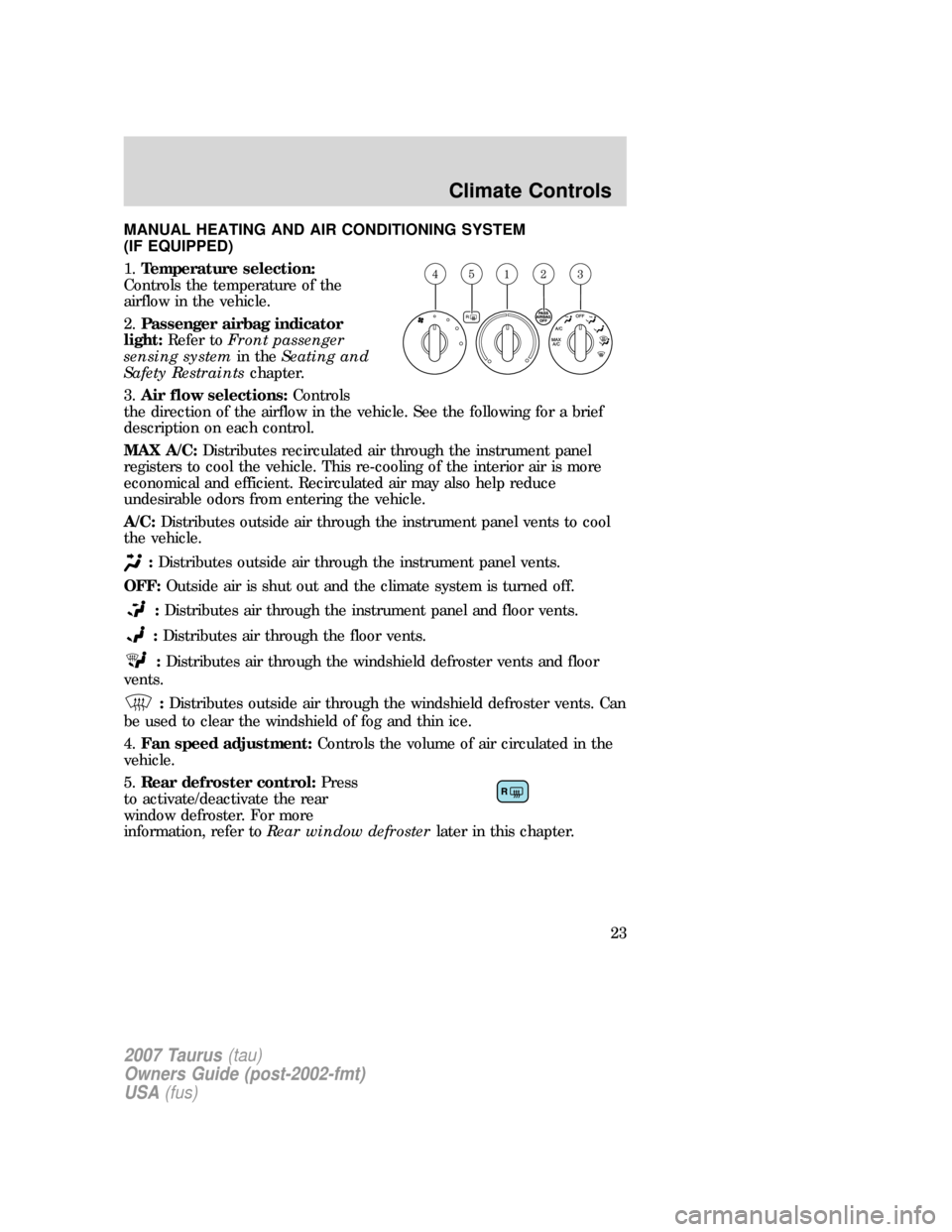

Page 23 of 232
MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)
1.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
2.Passenger airbag indicator
light:Refer toFront passenger
sensing systemin theSeating and
Safety Restraintschapter.
3.Air flow selections:Controls
the direction of the airflow in the vehicle. See the following for a brief
description on each control.
MAX A/C:Distributes recirculated air through the instrument panel
registers to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle.
A/C:Distributes outside air through the instrument panel vents to cool
the vehicle.
:Distributes outside air through the instrument panel vents.
OFF:Outside air is shut out and the climate system is turned off.
:Distributes air through the instrument panel and floor vents.
:Distributes air through the floor vents.
:Distributes air through the windshield defroster vents and floor
vents.
:Distributes outside air through the windshield defroster vents. Can
be used to clear the windshield of fog and thin ice.
4.Fan speed adjustment:Controls the volume of air circulated in the
vehicle.
5.Rear defroster control:Press
to activate/deactivate the rear
window defroster. For more
information, refer toRear window defrosterlater in this chapter.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
23

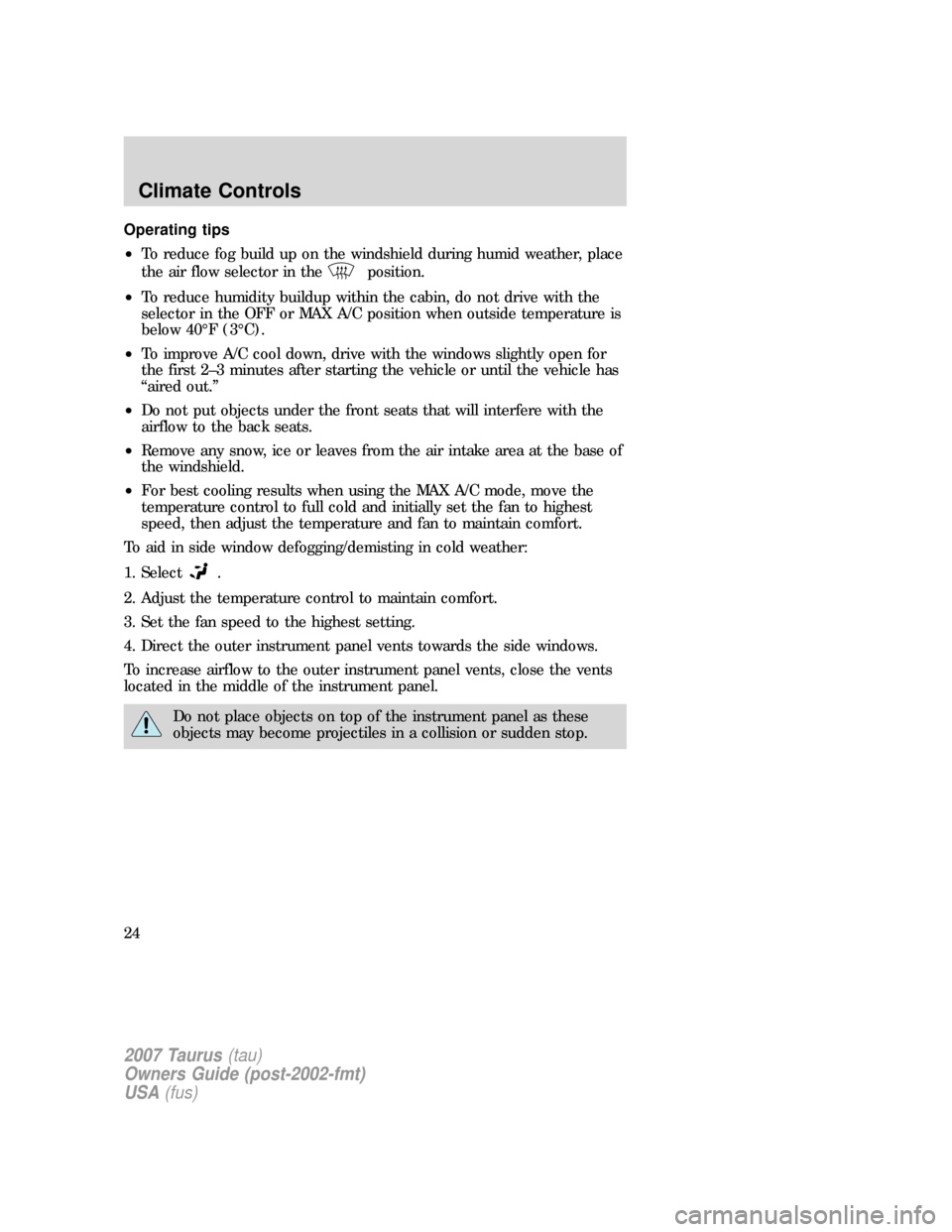

Page 24 of 232
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity buildup within the cabin, do not drive with the
selector in the OFF or MAX A/C position when outside temperature is
below 40°F (3°C).
•To improve A/C cool down, drive with the windows slightly open for
the first 2–3 minutes after starting the vehicle or until the vehicle has
“aired out.”
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•For best cooling results when using the MAX A/C mode, move the
temperature control to full cold and initially set the fan to highest
speed, then adjust the temperature and fan to maintain comfort.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Adjust the temperature control to maintain comfort.
3. Set the fan speed to the highest setting.
4. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
24

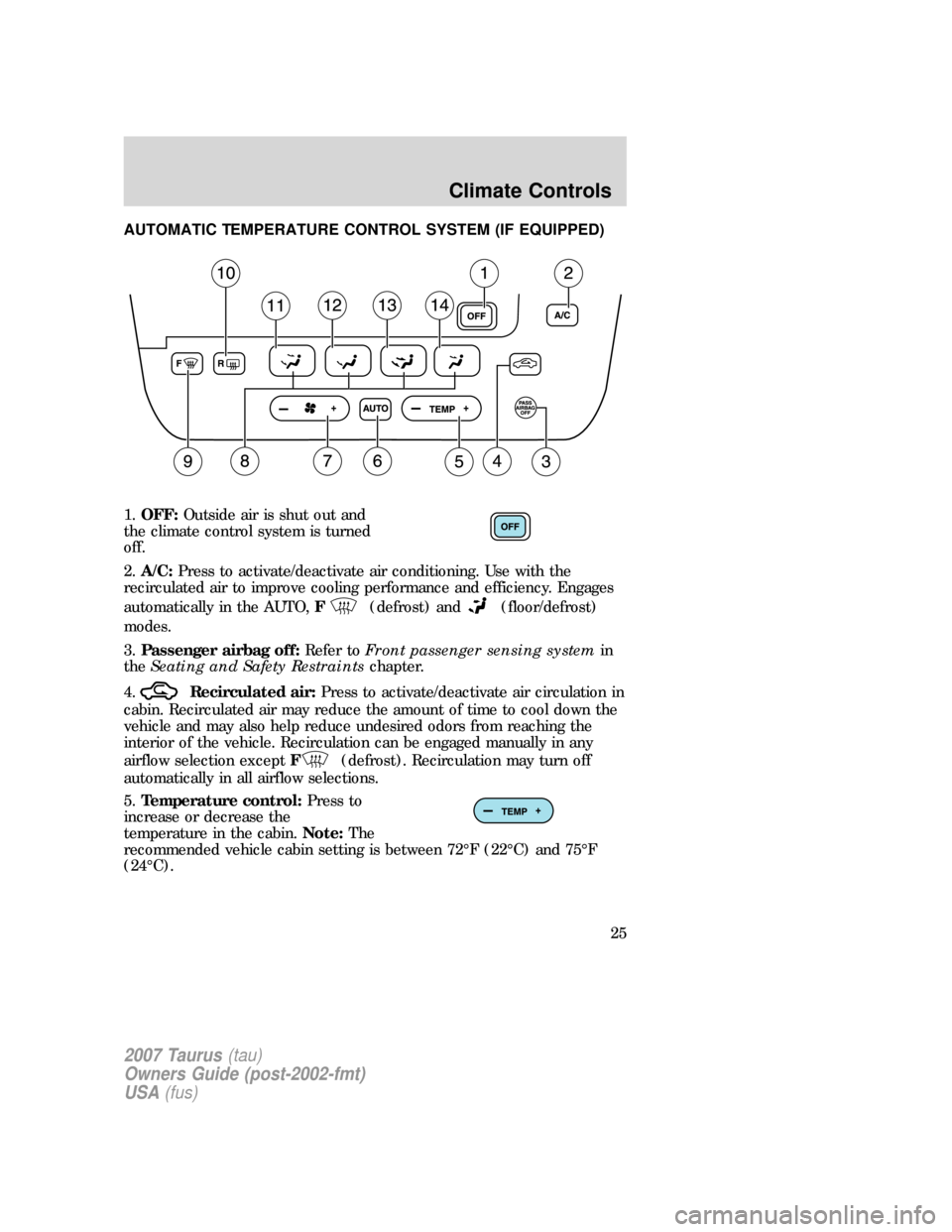

Page 25 of 232
AUTOMATIC TEMPERATURE CONTROL SYSTEM (IF EQUIPPED)
1.OFF:Outside air is shut out and
the climate control system is turned
off.
2.A/C:Press to activate/deactivate air conditioning. Use with the
recirculated air to improve cooling performance and efficiency. Engages
automatically in the AUTO,F
(defrost) and(floor/defrost)
modes.
3.Passenger airbag off:Refer toFront passenger sensing systemin
theSeating and Safety Restraintschapter.
4.
Recirculated air:Press to activate/deactivate air circulation in
cabin. Recirculated air may reduce the amount of time to cool down the
vehicle and may also help reduce undesired odors from reaching the
interior of the vehicle. Recirculation can be engaged manually in any
airflow selection exceptF
(defrost). Recirculation may turn off
automatically in all airflow selections.
5.Temperature control:Press to
increase or decrease the
temperature in the cabin.Note:The
recommended vehicle cabin setting is between 72°F (22°C) and 75°F
(24°C).
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
25

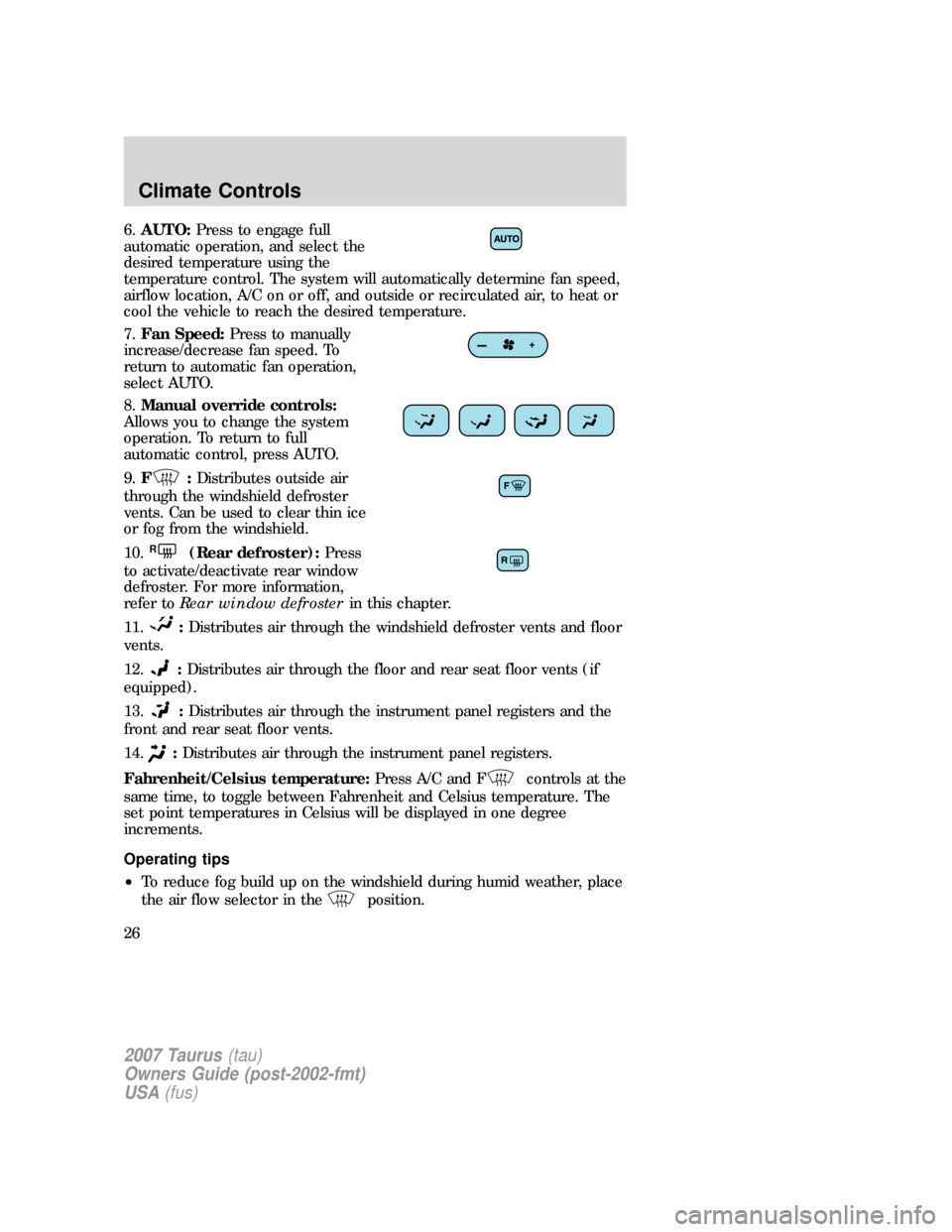

Page 26 of 232
6.AUTO:Press to engage full
automatic operation, and select the
desired temperature using the
temperature control. The system will automatically determine fan speed,
airflow location, A/C on or off, and outside or recirculated air, to heat or
cool the vehicle to reach the desired temperature.
7.Fan Speed:Press to manually
increase/decrease fan speed. To
return to automatic fan operation,
select AUTO.
8.Manual override controls:
Allows you to change the system
operation. To return to full
automatic control, press AUTO.
9.F
:Distributes outside air
through the windshield defroster
vents. Can be used to clear thin ice
or fog from the windshield.
10.
R(Rear defroster):Press
to activate/deactivate rear window
defroster. For more information,
refer toRear window defrosterin this chapter.
11.
:Distributes air through the windshield defroster vents and floor
vents.
12.
:Distributes air through the floor and rear seat floor vents (if
equipped).
13.
:Distributes air through the instrument panel registers and the
front and rear seat floor vents.
14.
:Distributes air through the instrument panel registers.
Fahrenheit/Celsius temperature:Press A/C and F
controls at the
same time, to toggle between Fahrenheit and Celsius temperature. The
set point temperatures in Celsius will be displayed in one degree
increments.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
26

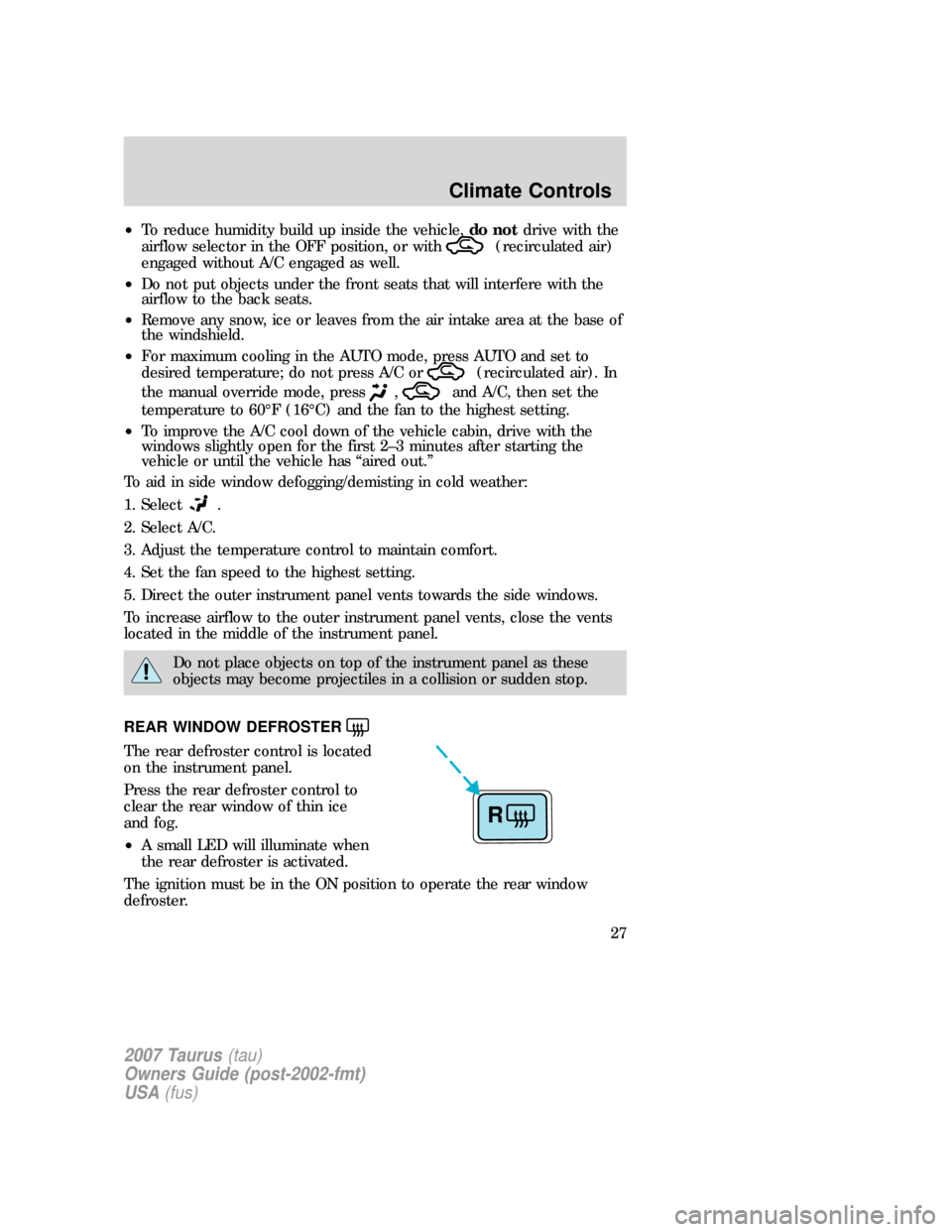

Page 27 of 232
•To reduce humidity build up inside the vehicle,do notdrive with the
airflow selector in the OFF position, or with
(recirculated air)
engaged without A/C engaged as well.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•For maximum cooling in the AUTO mode, press AUTO and set to
desired temperature; do not press A/C or
(recirculated air). In
the manual override mode, press
,and A/C, then set the
temperature to 60°F (16°C) and the fan to the highest setting.
•To improve the A/C cool down of the vehicle cabin, drive with the
windows slightly open for the first 2–3 minutes after starting the
vehicle or until the vehicle has “aired out.”
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
REAR WINDOW DEFROSTER
The rear defroster control is located
on the instrument panel.
Press the rear defroster control to
clear the rear window of thin ice
and fog.
•A small LED will illuminate when
the rear defroster is activated.
The ignition must be in the ON position to operate the rear window
defroster.
R
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
27

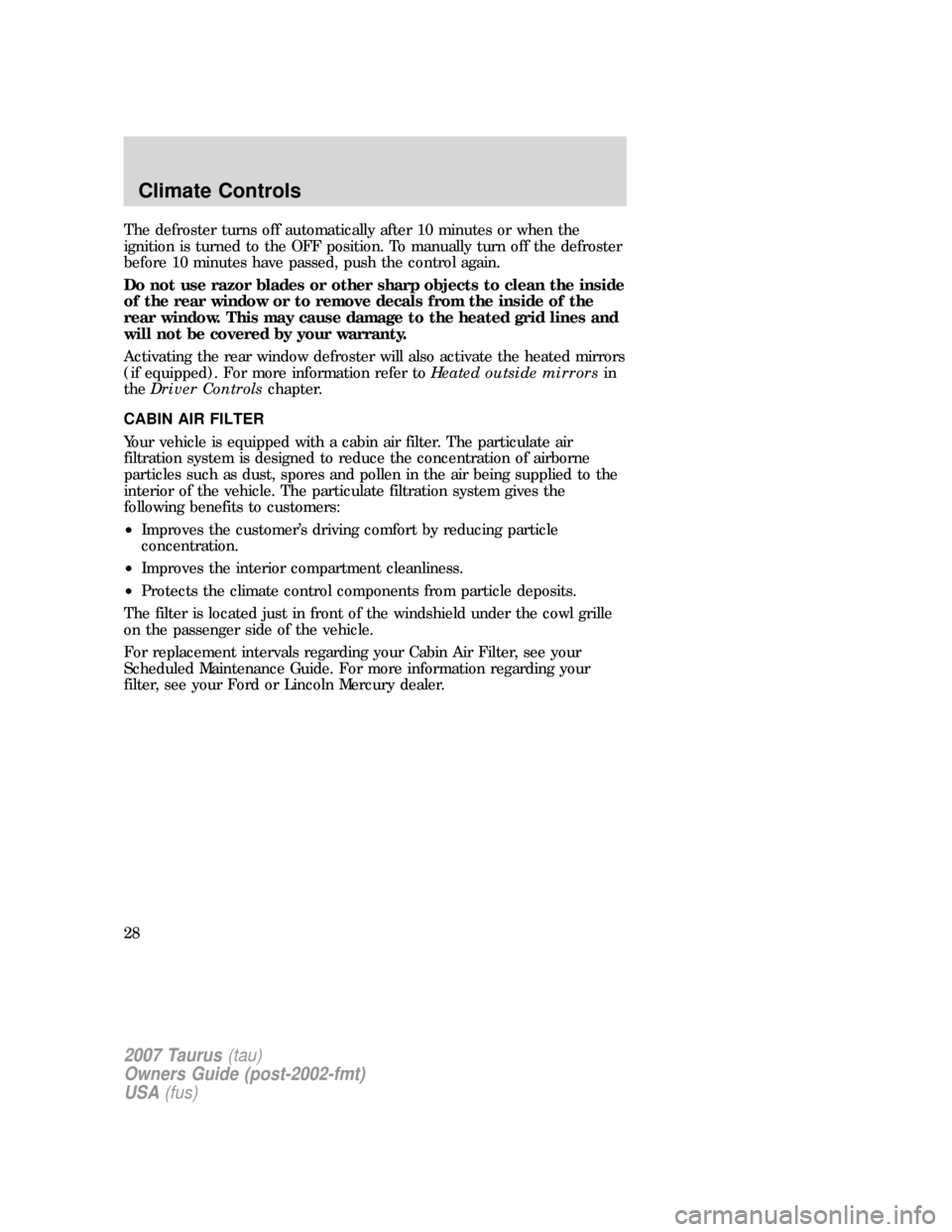

Page 28 of 232
The defroster turns off automatically after 10 minutes or when the
ignition is turned to the OFF position. To manually turn off the defroster
before 10 minutes have passed, push the control again.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
Activating the rear window defroster will also activate the heated mirrors
(if equipped). For more information refer toHeated outside mirrorsin
theDriver Controlschapter.
CABIN AIR FILTER
Your vehicle is equipped with a cabin air filter. The particulate air
filtration system is designed to reduce the concentration of airborne
particles such as dust, spores and pollen in the air being supplied to the
interior of the vehicle. The particulate filtration system gives the
following benefits to customers:
•Improves the customer’s driving comfort by reducing particle
concentration.
•Improves the interior compartment cleanliness.
•Protects the climate control components from particle deposits.
The filter is located just in front of the windshield under the cowl grille
on the passenger side of the vehicle.
For replacement intervals regarding your Cabin Air Filter, see your
Scheduled Maintenance Guide. For more information regarding your
filter, see your Ford or Lincoln Mercury dealer.
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
28
Page 29 of 232
HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The autolamp system also keeps the
lights on for a fixed period of time
after the ignition switch is turned to
OFF.
•To turn autolamps on, rotate the control counterclockwise to
.
•To turn autolamps off, rotate the control clockwise to
.
High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
A
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
29
Page 30 of 232
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the ON position,
•the headlamp control is in the OFF or parking lamp position and
•the parking brake must be disengaged.
Always remember to turn on your headlamps at dusk or during
inclement weather. The Daytime Running Lamp (DRL) system
does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
switches in the vehicle during
headlamp and parklamp operation.
Move the control to the full upright
position, past detent, to turn on the
interior lamps.
A
2007 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
30
