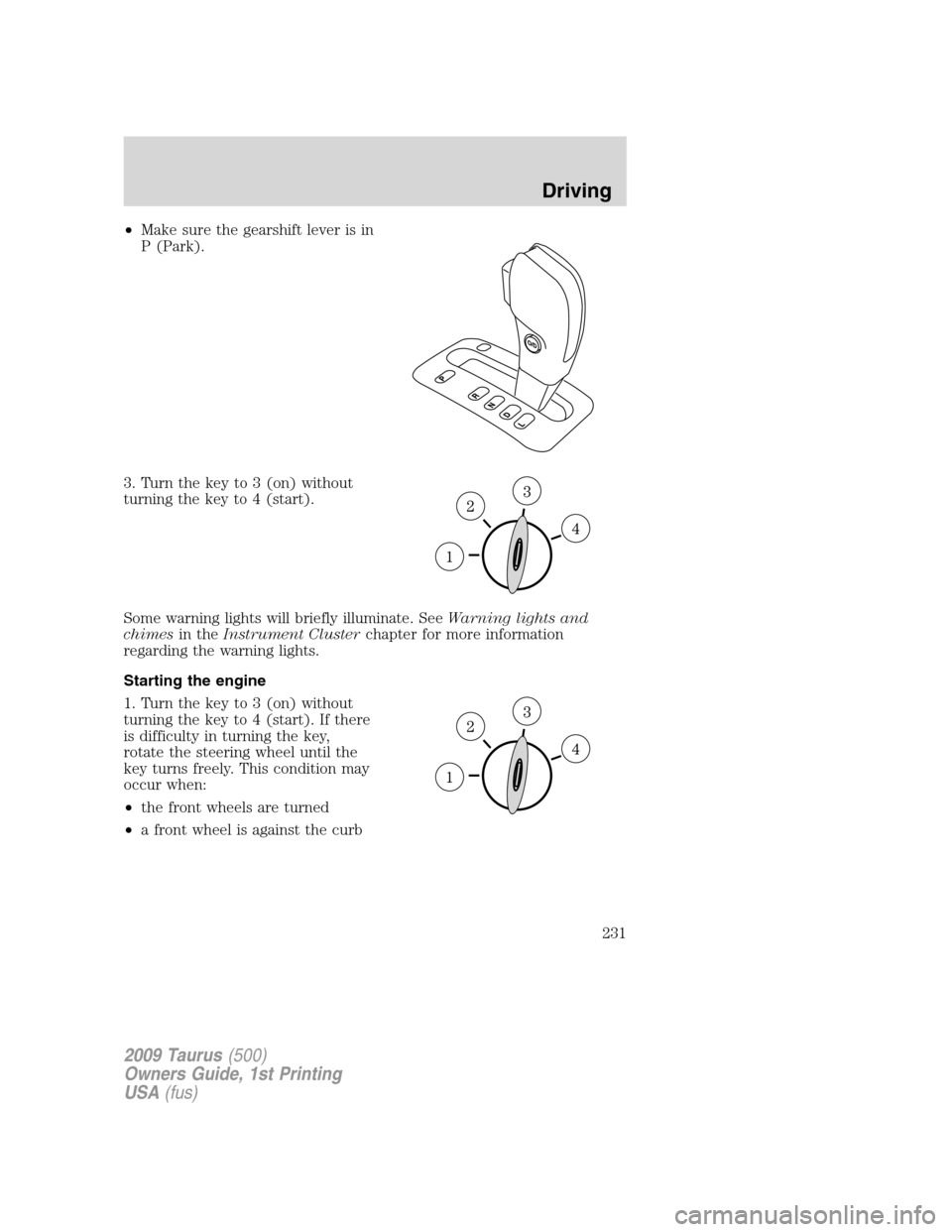

•Make sure the gearshift lever is in
P (Park).
3. Turn the key to 3 (on) without
turning the key to 4 (start).
Some warning lights will briefly illuminate. SeeWarning lights and
chimesin theInstrument Clusterchapter for more information
regarding the warning lights.
Starting the engine
1. Turn the key to 3 (on) without
turning the key to 4 (start). If there
is difficulty in turning the key,
rotate the steering wheel until the
key turns freely. This condition may
occur when:
•the front wheels are turned
•a front wheel is against the curb
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
231

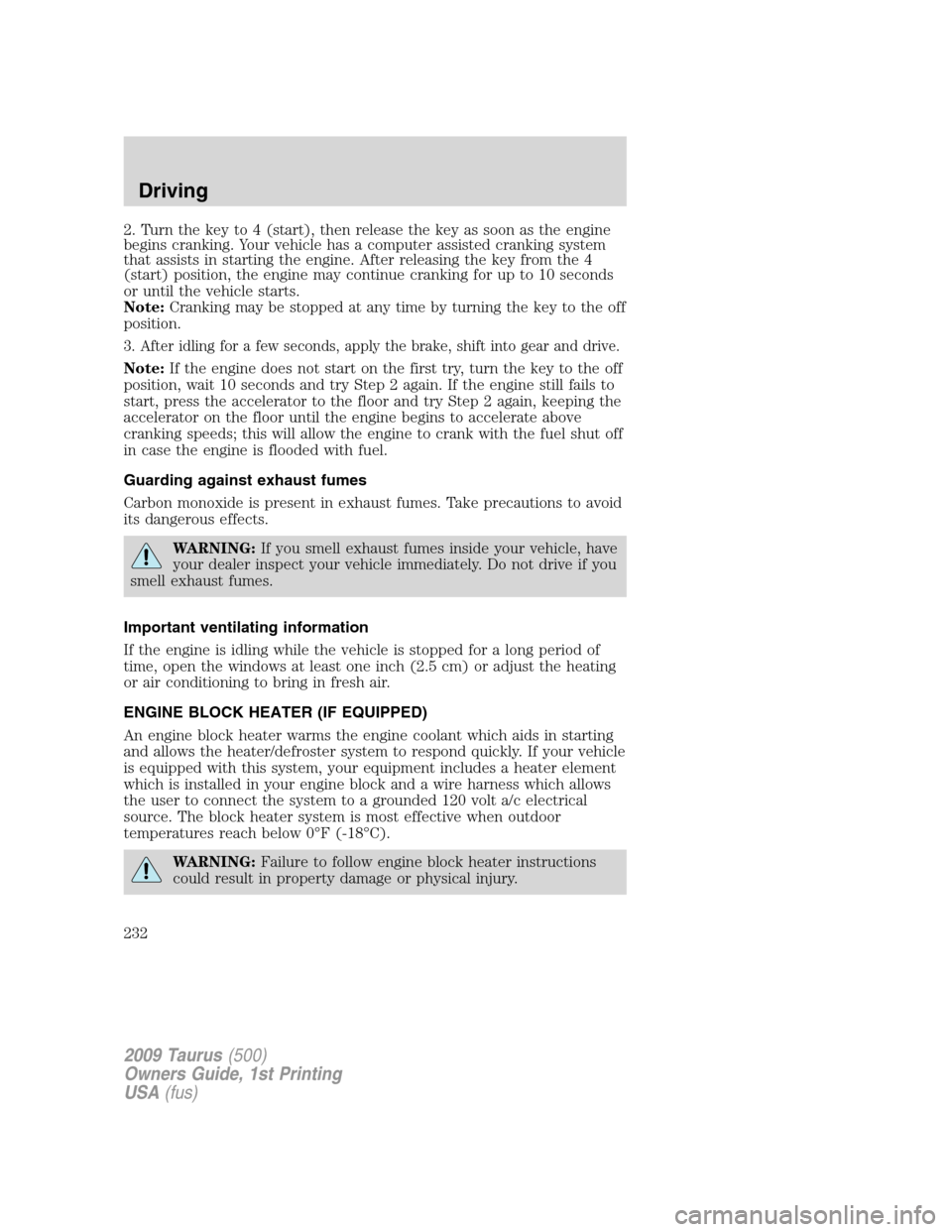

2. Turn the key to 4 (start), then release the key as soon as the engine
begins cranking. Your vehicle has a computer assisted cranking system
that assists in starting the engine. After releasing the key from the 4
(start) position, the engine may continue cranking for up to 10 seconds
or until the vehicle starts.
Note:Cranking may be stopped at any time by turning the key to the off
position.
3. After idling for a few seconds, apply the brake, shift into gear and drive.
Note:If the engine does not start on the first try, turn the key to the off
position, wait 10 seconds and try Step 2 again. If the engine still fails to
start, press the accelerator to the floor and try Step 2 again, keeping the
accelerator on the floor until the engine begins to accelerate above
cranking speeds; this will allow the engine to crank with the fuel shut off
in case the engine is flooded with fuel.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least one inch (2.5 cm) or adjust the heating
or air conditioning to bring in fresh air.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and allows the heater/defroster system to respond quickly. If your vehicle
is equipped with this system, your equipment includes a heater element
which is installed in your engine block and a wire harness which allows
the user to connect the system to a grounded 120 volt a/c electrical
source. The block heater system is most effective when outdoor
temperatures reach below 0°F (-18°C).
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
232

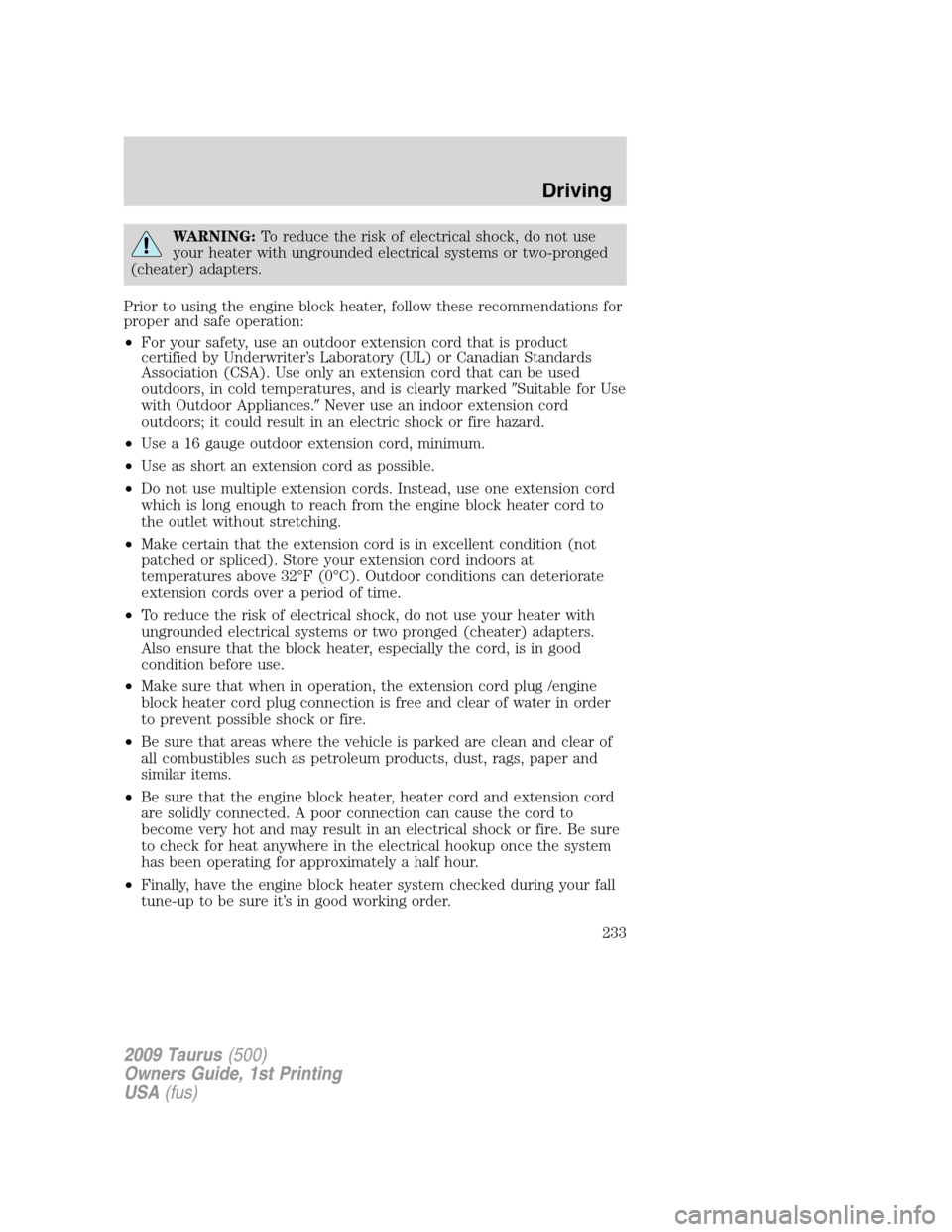

WARNING:To reduce the risk of electrical shock, do not use
your heater with ungrounded electrical systems or two-pronged
(cheater) adapters.
Prior to using the engine block heater, follow these recommendations for
proper and safe operation:
•For your safety, use an outdoor extension cord that is product
certified by Underwriter’s Laboratory (UL) or Canadian Standards
Association (CSA). Use only an extension cord that can be used
outdoors, in cold temperatures, and is clearly markedSuitable for Use
with Outdoor Appliances.Never use an indoor extension cord
outdoors; it could result in an electric shock or fire hazard.
•Use a 16 gauge outdoor extension cord, minimum.
•Use as short an extension cord as possible.
•Do not use multiple extension cords. Instead, use one extension cord
which is long enough to reach from the engine block heater cord to
the outlet without stretching.
•Make certain that the extension cord is in excellent condition (not
patched or spliced). Store your extension cord indoors at
temperatures above 32°F (0°C). Outdoor conditions can deteriorate
extension cords over a period of time.
•To reduce the risk of electrical shock, do not use your heater with
ungrounded electrical systems or two pronged (cheater) adapters.
Also ensure that the block heater, especially the cord, is in good
condition before use.
•Make sure that when in operation, the extension cord plug /engine
block heater cord plug connection is free and clear of water in order
to prevent possible shock or fire.
•Be sure that areas where the vehicle is parked are clean and clear of
all combustibles such as petroleum products, dust, rags, paper and
similar items.
•Be sure that the engine block heater, heater cord and extension cord
are solidly connected. A poor connection can cause the cord to
become very hot and may result in an electrical shock or fire. Be sure
to check for heat anywhere in the electrical hookup once the system
has been operating for approximately a half hour.
•Finally, have the engine block heater system checked during your fall
tune-up to be sure it’s in good working order.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
233

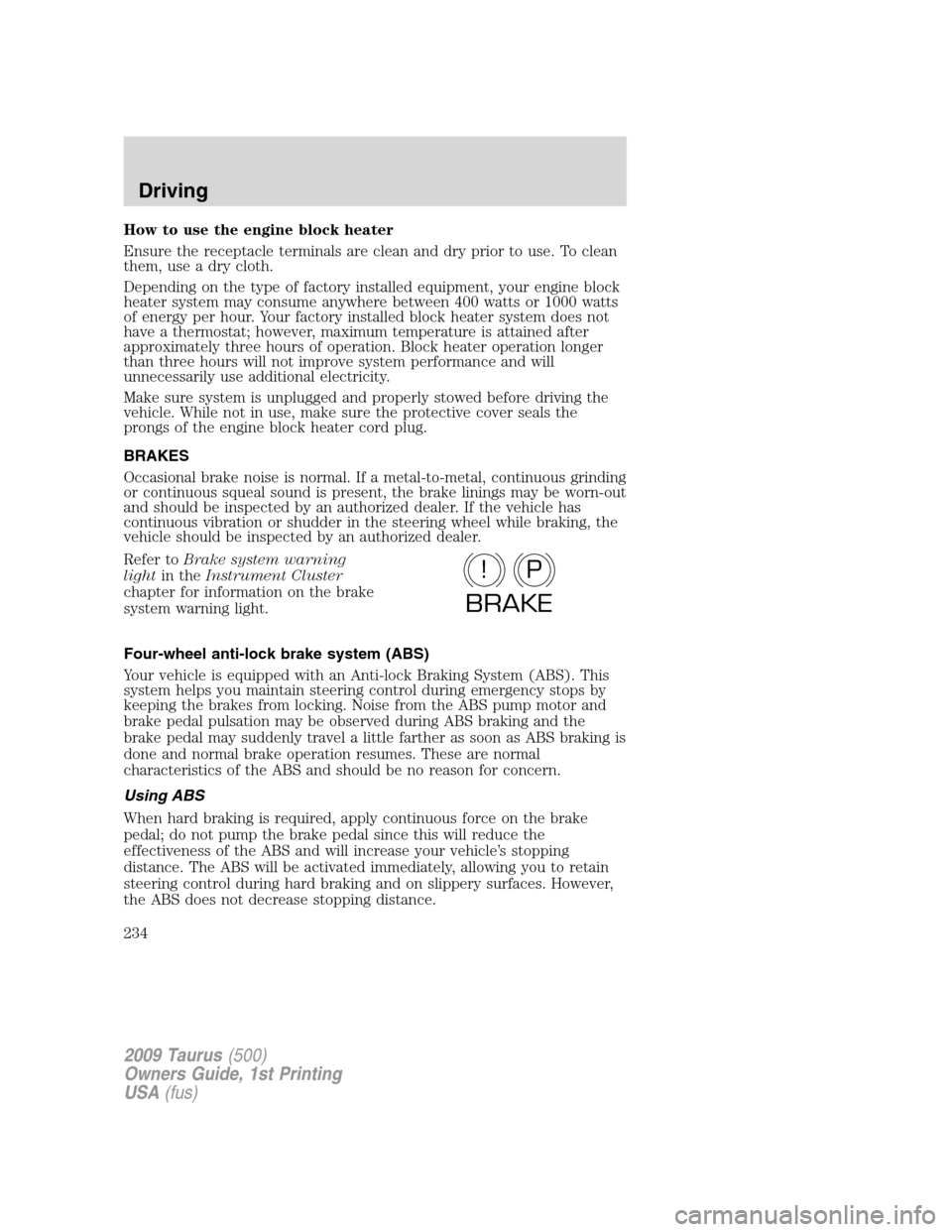

How to use the engine block heater
Ensure the receptacle terminals are clean and dry prior to use. To clean
them, use a dry cloth.
Depending on the type of factory installed equipment, your engine block
heater system may consume anywhere between 400 watts or 1000 watts
of energy per hour. Your factory installed block heater system does not
have a thermostat; however, maximum temperature is attained after
approximately three hours of operation. Block heater operation longer
than three hours will not improve system performance and will
unnecessarily use additional electricity.
Make sure system is unplugged and properly stowed before driving the
vehicle. While not in use, make sure the protective cover seals the
prongs of the engine block heater cord plug.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toBrake system warning
lightin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an Anti-lock Braking System (ABS). This
system helps you maintain steering control during emergency stops by
keeping the brakes from locking. Noise from the ABS pump motor and
brake pedal pulsation may be observed during ABS braking and the
brake pedal may suddenly travel a little farther as soon as ABS braking is
done and normal brake operation resumes. These are normal
characteristics of the ABS and should be no reason for concern.
Using ABS
When hard braking is required, apply continuous force on the brake
pedal; do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
steering control during hard braking and on slippery surfaces. However,
the ABS does not decrease stopping distance.
P!
BRAKE
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
234

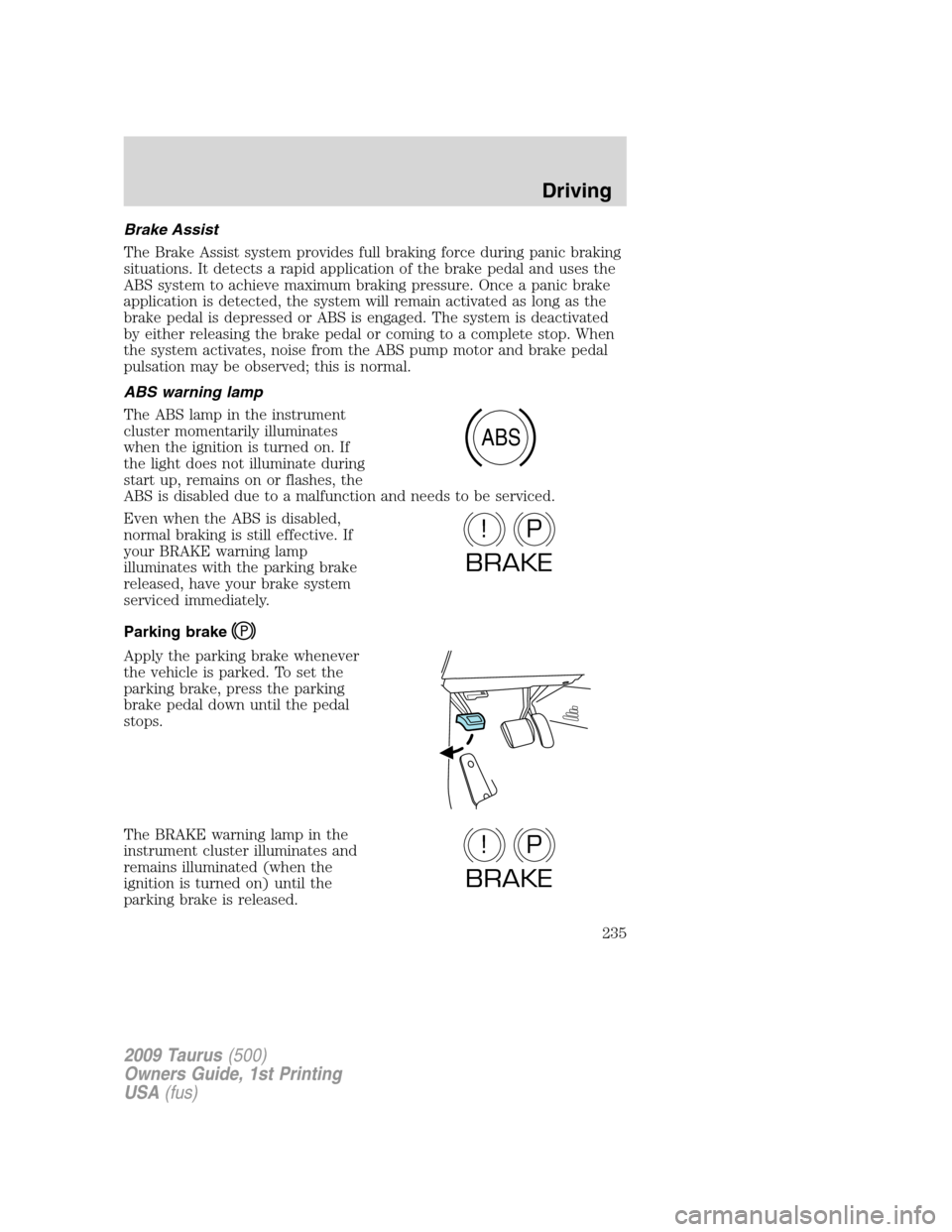

Brake Assist
The Brake Assist system provides full braking force during panic braking
situations. It detects a rapid application of the brake pedal and uses the
ABS system to achieve maximum braking pressure. Once a panic brake
application is detected, the system will remain activated as long as the
brake pedal is depressed or ABS is engaged. The system is deactivated
by either releasing the brake pedal or coming to a complete stop. When
the system activates, noise from the ABS pump motor and brake pedal
pulsation may be observed; this is normal.
ABS warning lamp
The ABS lamp in the instrument
cluster momentarily illuminates
when the ignition is turned on. If
the light does not illuminate during
start up, remains on or flashes, the
ABS is disabled due to a malfunction and needs to be serviced.
Even when the ABS is disabled,
normal braking is still effective. If
your BRAKE warning lamp
illuminates with the parking brake
released, have your brake system
serviced immediately.
Parking brake
Apply the parking brake whenever
the vehicle is parked. To set the
parking brake, press the parking
brake pedal down until the pedal
stops.
The BRAKE warning lamp in the
instrument cluster illuminates and
remains illuminated (when the
ignition is turned on) until the
parking brake is released.
ABS
P!
BRAKE
P!
BRAKE
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
235

WARNING:Always set the parking brake fully and make sure
that the gearshift is securely latched in P (Park).
The parking brake is not recommended to stop a moving vehicle.
However, if the normal brakes fail, the parking brake can be used to stop
your vehicle in an emergency. Since the parking brake applies only the
rear brakes, the vehicle’s stopping distance will increase greatly and the
handling of your vehicle will be adversely affected.
Push the parking brake pedal
downward again to release the
parking brake. Driving with the
parking brake on will cause the
brakes to wear out quickly and
reduce fuel economy.
Note:If the vehicle is driven with
the parking brake applied, a chime
will sound.
ADVANCETRACSTABILITY ENHANCEMENT SYSTEM
WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracsystem. In addition, installing any stereo
loudspeakers may interfere with and adversely affect the AdvanceTrac
system. Install any aftermarket stereo loudspeaker as far as possible
from the front center console, the tunnel, and the front seats in order
to minimize the risk of interfering with the Advance Trac sensors.
Reducing the effectiveness of the AdvanceTracsystem could lead to
an increased risk of loss of vehicle control, vehicle rollover, personal
injury and death.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
236

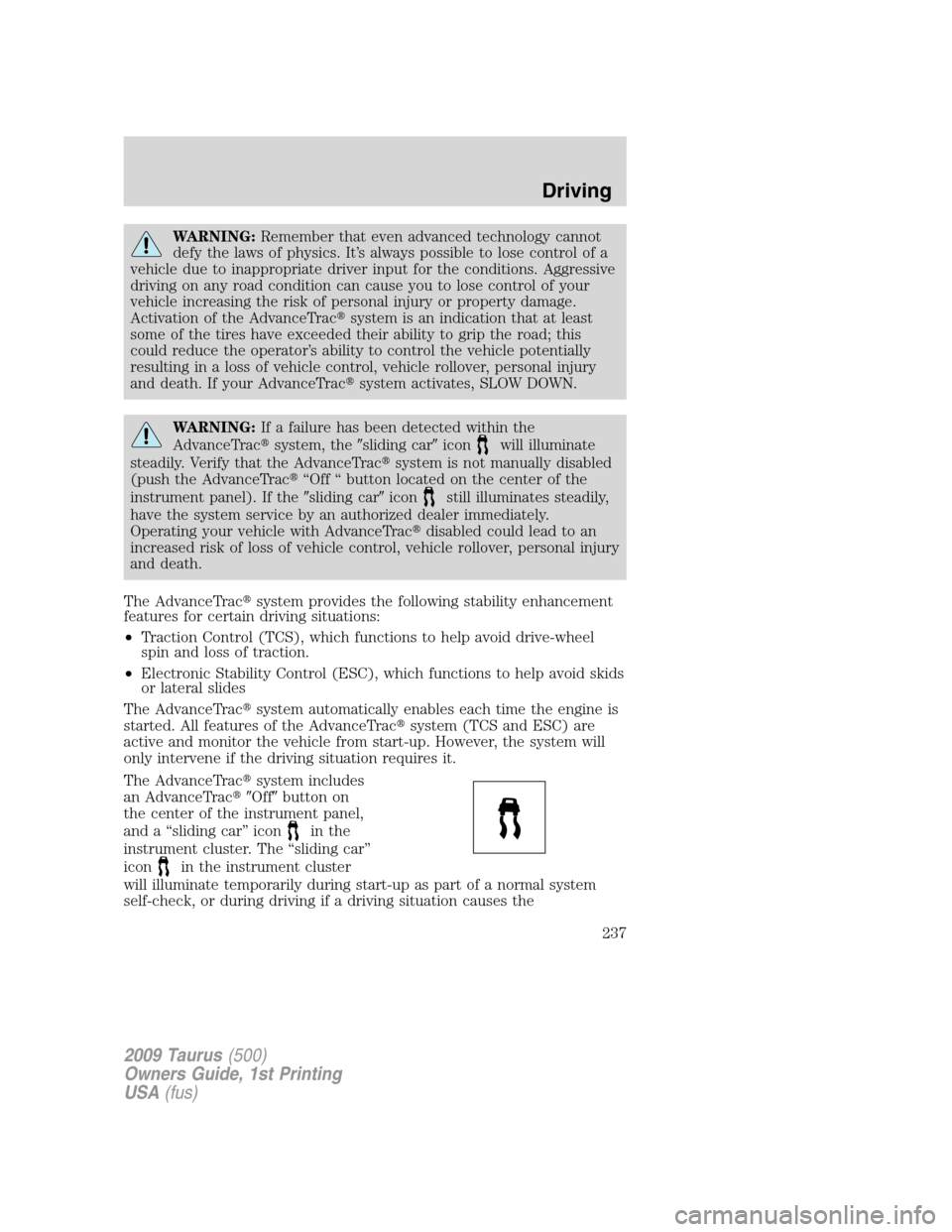

WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTracsystem is an indication that at least
some of the tires have exceeded their ability to grip the road; this
could reduce the operator’s ability to control the vehicle potentially
resulting in a loss of vehicle control, vehicle rollover, personal injury
and death. If your AdvanceTracsystem activates, SLOW DOWN.
WARNING:If a failure has been detected within the
AdvanceTracsystem, thesliding caricon
will illuminate
steadily. Verify that the AdvanceTracsystem is not manually disabled
(push the AdvanceTrac“Off “ button located on the center of the
instrument panel). If thesliding caricon
still illuminates steadily,
have the system service by an authorized dealer immediately.
Operating your vehicle with AdvanceTracdisabled could lead to an
increased risk of loss of vehicle control, vehicle rollover, personal injury
and death.
The AdvanceTracsystem provides the following stability enhancement
features for certain driving situations:
•Traction Control (TCS), which functions to help avoid drive-wheel
spin and loss of traction.
•Electronic Stability Control (ESC), which functions to help avoid skids
or lateral slides
The AdvanceTracsystem automatically enables each time the engine is
started. All features of the AdvanceTracsystem (TCS and ESC) are
active and monitor the vehicle from start-up. However, the system will
only intervene if the driving situation requires it.
The AdvanceTracsystem includes
an AdvanceTracOffbutton on
the center of the instrument panel,
and a “sliding car” icon
in the
instrument cluster. The “sliding car”
icon
in the instrument cluster
will illuminate temporarily during start-up as part of a normal system
self-check, or during driving if a driving situation causes the
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
237

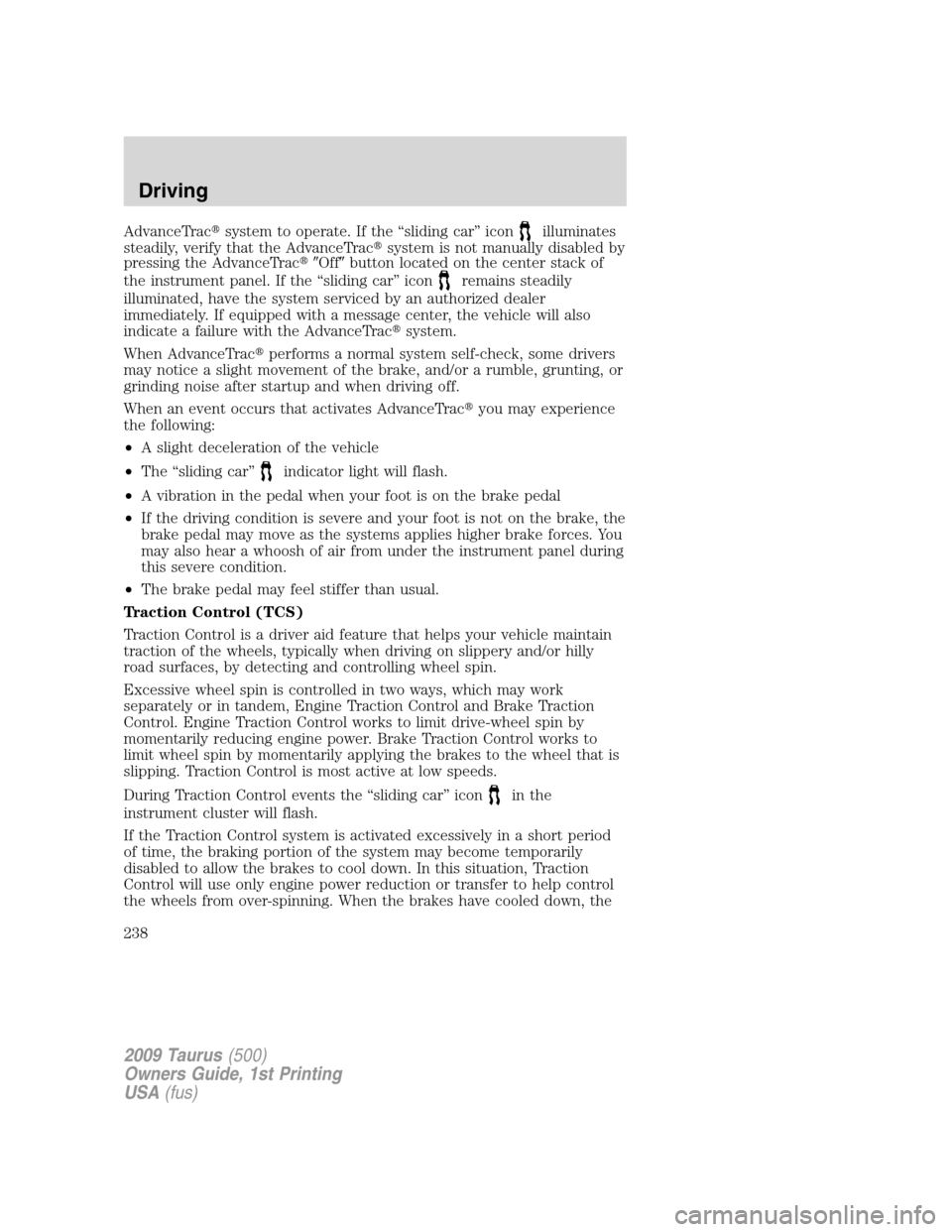

AdvanceTracsystem to operate. If the “sliding car” iconilluminates
steadily, verify that the AdvanceTracsystem is not manually disabled by
pressing the AdvanceTracOffbutton located on the center stack of
the instrument panel. If the “sliding car” icon
remains steadily
illuminated, have the system serviced by an authorized dealer
immediately. If equipped with a message center, the vehicle will also
indicate a failure with the AdvanceTracsystem.
When AdvanceTracperforms a normal system self-check, some drivers
may notice a slight movement of the brake, and/or a rumble, grunting, or
grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTracyou may experience
the following:
•A slight deceleration of the vehicle
•The “sliding car”
indicator light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction Control (TCS)
Traction Control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem, Engine Traction Control and Brake Traction
Control. Engine Traction Control works to limit drive-wheel spin by
momentarily reducing engine power. Brake Traction Control works to
limit wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction Control is most active at low speeds.
During Traction Control events the “sliding car” icon
in the
instrument cluster will flash.
If the Traction Control system is activated excessively in a short period
of time, the braking portion of the system may become temporarily
disabled to allow the brakes to cool down. In this situation, Traction
Control will use only engine power reduction or transfer to help control
the wheels from over-spinning. When the brakes have cooled down, the
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
238

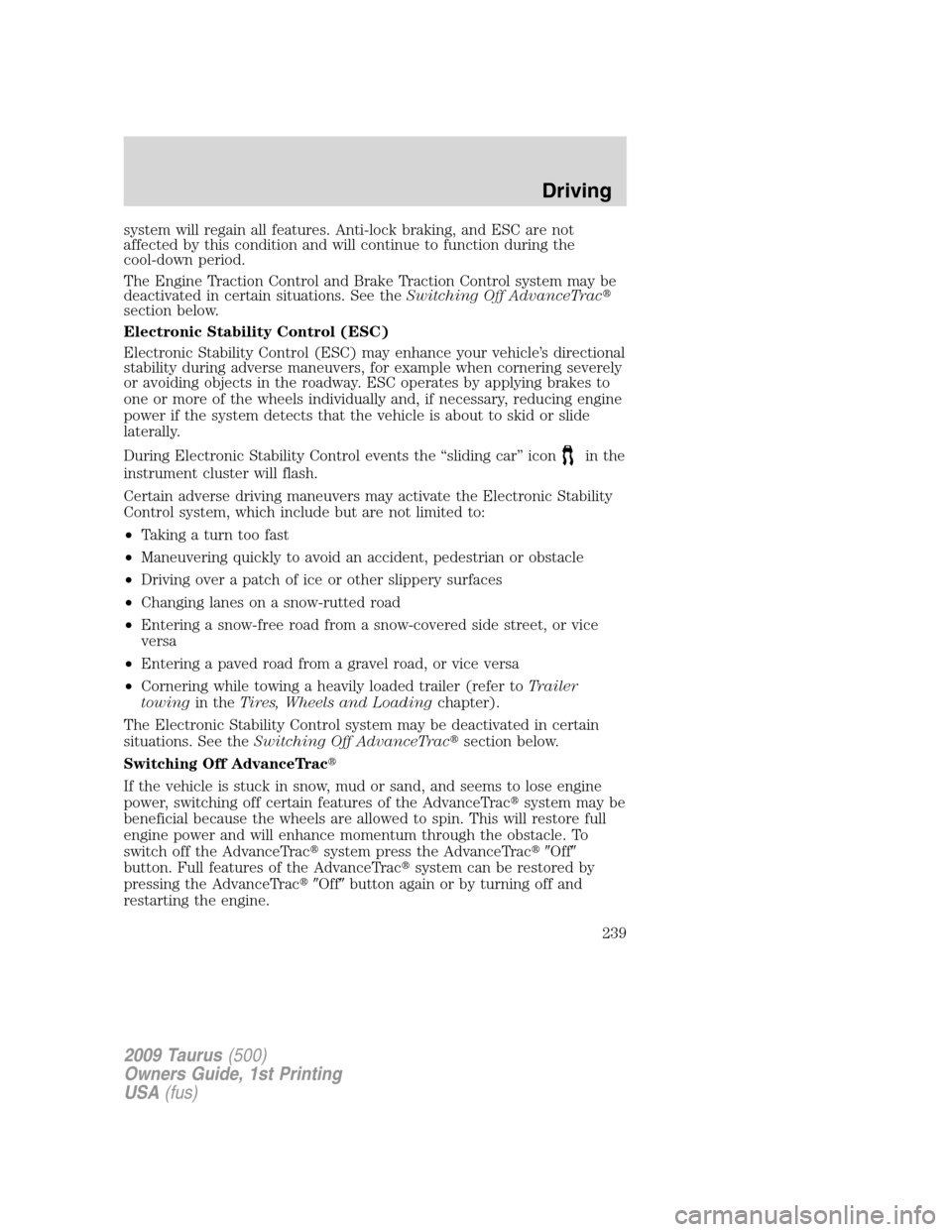

system will regain all features. Anti-lock braking, and ESC are not
affected by this condition and will continue to function during the
cool-down period.
The Engine Traction Control and Brake Traction Control system may be
deactivated in certain situations. See theSwitching Off AdvanceTrac
section below.
Electronic Stability Control (ESC)
Electronic Stability Control (ESC) may enhance your vehicle’s directional
stability during adverse maneuvers, for example when cornering severely
or avoiding objects in the roadway. ESC operates by applying brakes to
one or more of the wheels individually and, if necessary, reducing engine
power if the system detects that the vehicle is about to skid or slide
laterally.
During Electronic Stability Control events the “sliding car” icon
in the
instrument cluster will flash.
Certain adverse driving maneuvers may activate the Electronic Stability
Control system, which include but are not limited to:
•Taking a turn too fast
•Maneuvering quickly to avoid an accident, pedestrian or obstacle
•Driving over a patch of ice or other slippery surfaces
•Changing lanes on a snow-rutted road
•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter).
The Electronic Stability Control system may be deactivated in certain
situations. See theSwitching Off AdvanceTracsection below.
Switching Off AdvanceTrac
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off certain features of the AdvanceTracsystem may be
beneficial because the wheels are allowed to spin. This will restore full
engine power and will enhance momentum through the obstacle. To
switch off the AdvanceTracsystem press the AdvanceTracOff
button. Full features of the AdvanceTracsystem can be restored by
pressing the AdvanceTracOffbutton again or by turning off and
restarting the engine.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
239

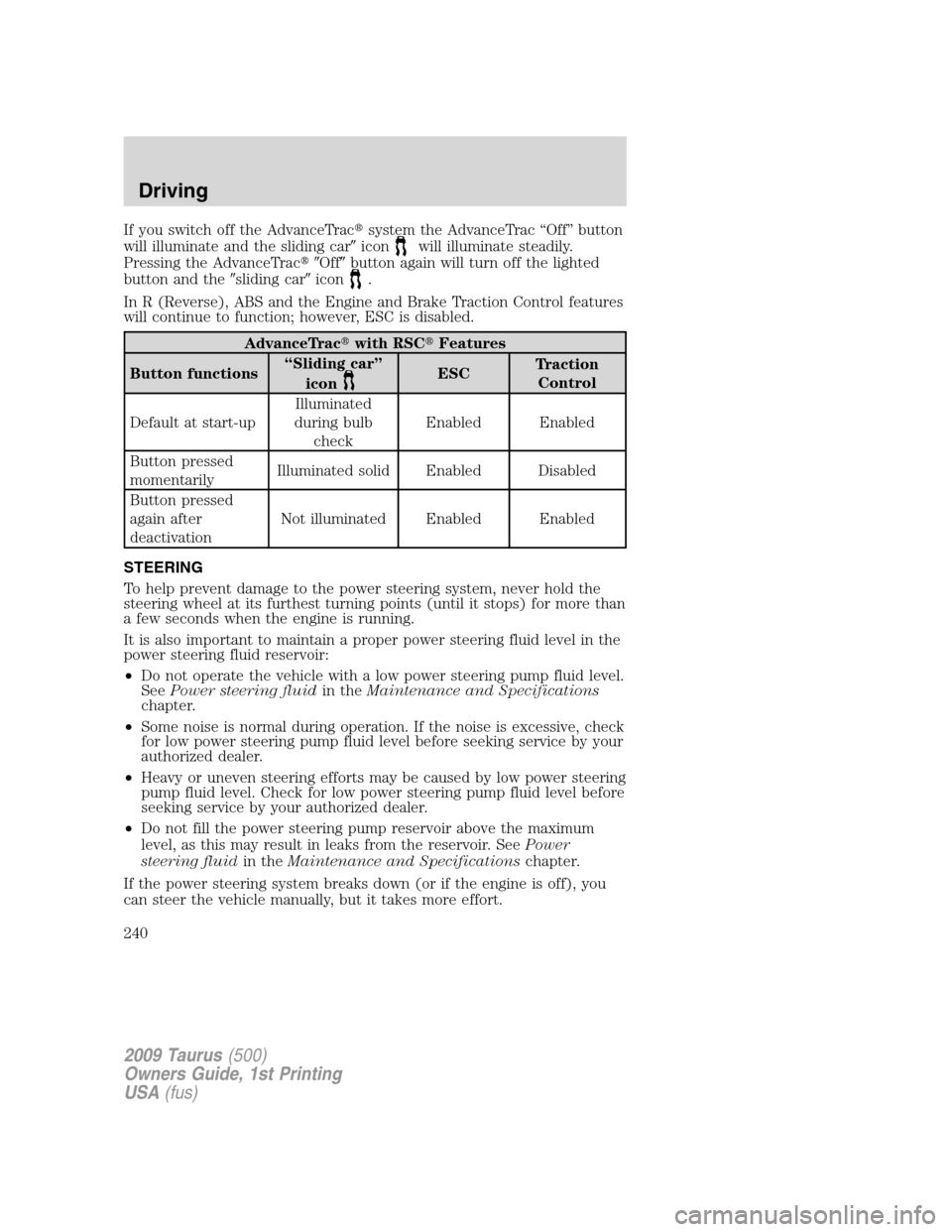

If you switch off the AdvanceTracsystem the AdvanceTrac “Off” button
will illuminate and the sliding caricon
will illuminate steadily.
Pressing the AdvanceTracOffbutton again will turn off the lighted
button and thesliding caricon
.
In R (Reverse), ABS and the Engine and Brake Traction Control features
will continue to function; however, ESC is disabled.
AdvanceTracwith RSCFeatures
Button functions“Sliding car”
icon
ESCTraction
Control
Default at start-upIlluminated
during bulb
checkEnabled Enabled
Button pressed
momentarilyIlluminated solid Enabled Disabled
Button pressed
again after
deactivationNot illuminated Enabled Enabled
STEERING
To help prevent damage to the power steering system, never hold the
steering wheel at its furthest turning points (until it stops) for more than
a few seconds when the engine is running.
It is also important to maintain a proper power steering fluid level in the
power steering fluid reservoir:
•Do not operate the vehicle with a low power steering pump fluid level.
SeePower steering fluidin theMaintenance and Specifications
chapter.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the maximum
level, as this may result in leaks from the reservoir. SeePower
steering fluidin theMaintenance and Specificationschapter.
If the power steering system breaks down (or if the engine is off), you
can steer the vehicle manually, but it takes more effort.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Driving
240
