Page 221 of 378

FORD TAURUS 2010 6.G Owners Manual Low Tire
Pressure
Warning LightPossible
causeCustomer Action Required
Flashing
Warning LightSpare tire in
useYour temporary spare tire is in use.
Repair the damaged road wheel and
re-mount it on the v

Page 222 of 378

FORD TAURUS 2010 6.G Owners Manual SNOW TIRES AND CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety an

Page 223 of 378

FORD TAURUS 2010 6.G Owners Manual SUMMER TIRES
Your Taurus SHO may be equipped with summer tires to provide
superior performance on wet and dry roads. Summer tires do not have
the Mud and Snow (M+S or M/S) tire traction rating on the

Page 224 of 378

FORD TAURUS 2010 6.G Owners Manual Payload– is the combined weight of cargo and passengers that the
vehicle is carrying. The maximum payload for your vehicle can be found
on the Tire Label on the B-Pillar or the edge of the driver’

Page 225 of 378

FORD TAURUS 2010 6.G Owners Manual Example only:
Cargo Weight– includes all weight added to the Base Curb Weight,
including cargo and optional equipment. When towing, trailer tongue load
weight is also part of cargo weight.
Tires, Wh

Page 226 of 378

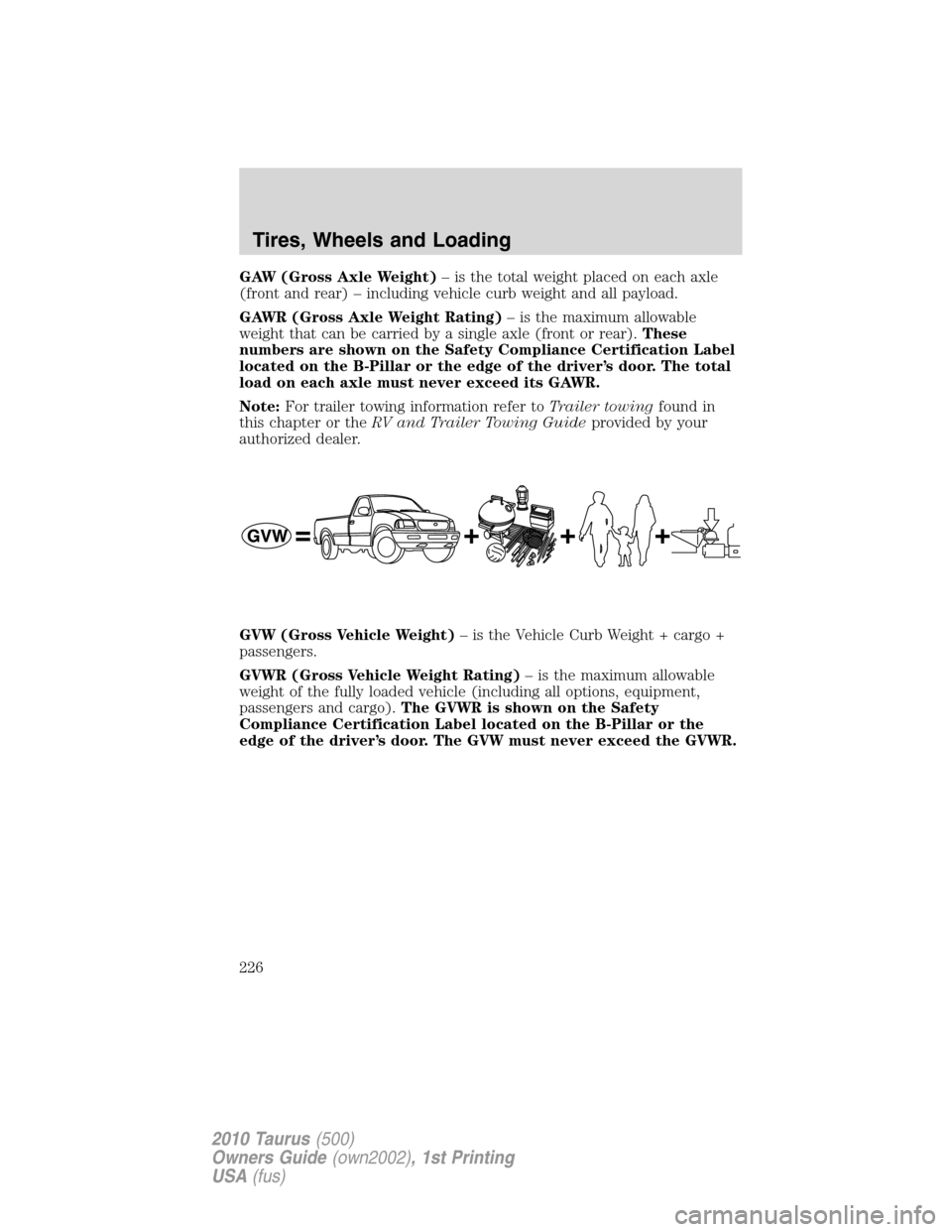

FORD TAURUS 2010 6.G Owners Manual GAW (Gross Axle Weight)– is the total weight placed on each axle
(front and rear) – including vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating)– is the maximum allowable
weigh

Page 227 of 378

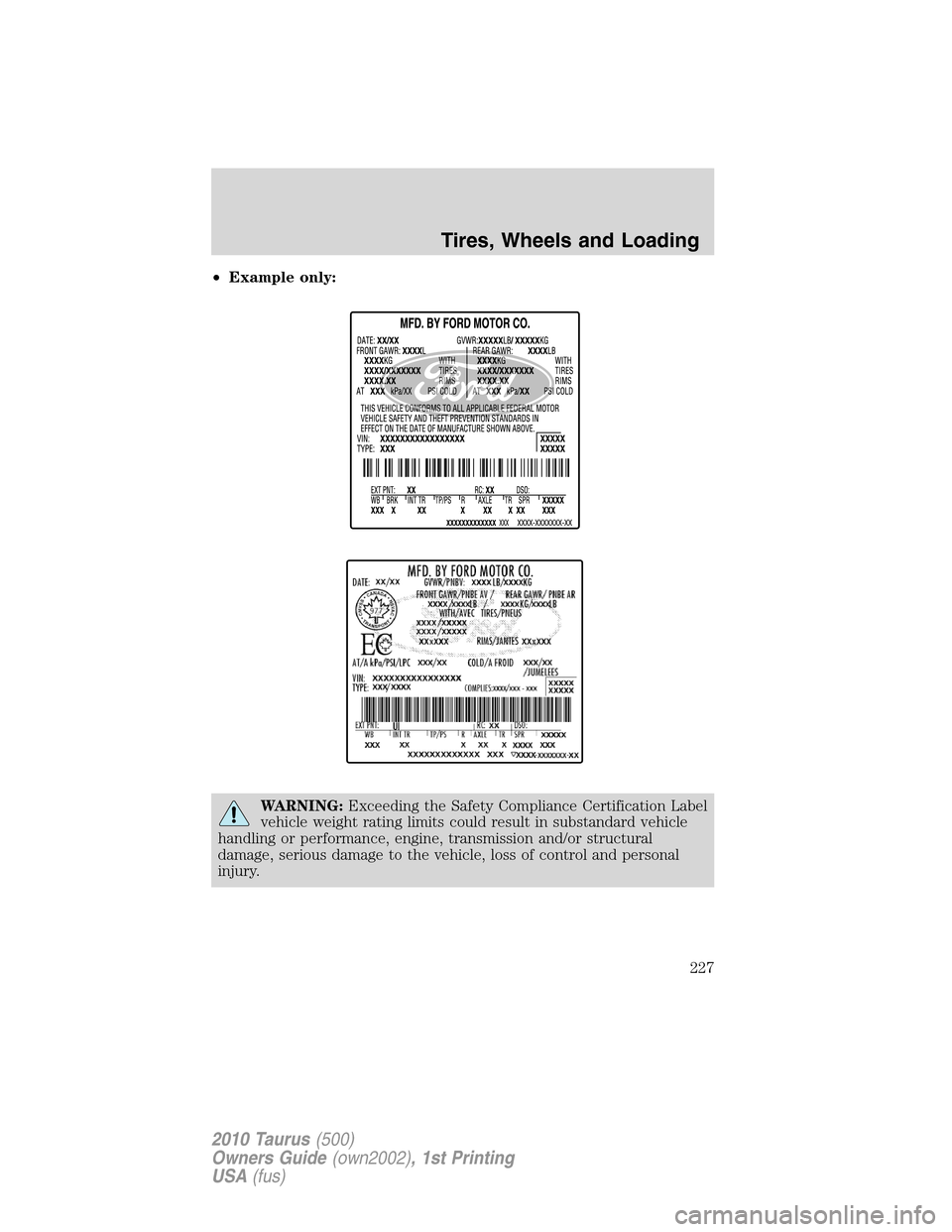

FORD TAURUS 2010 6.G Owners Manual •Example only:
WARNING:Exceeding the Safety Compliance Certification Label
vehicle weight rating limits could result in substandard vehicle
handling or performance, engine, transmission and/or struc

Page 228 of 378

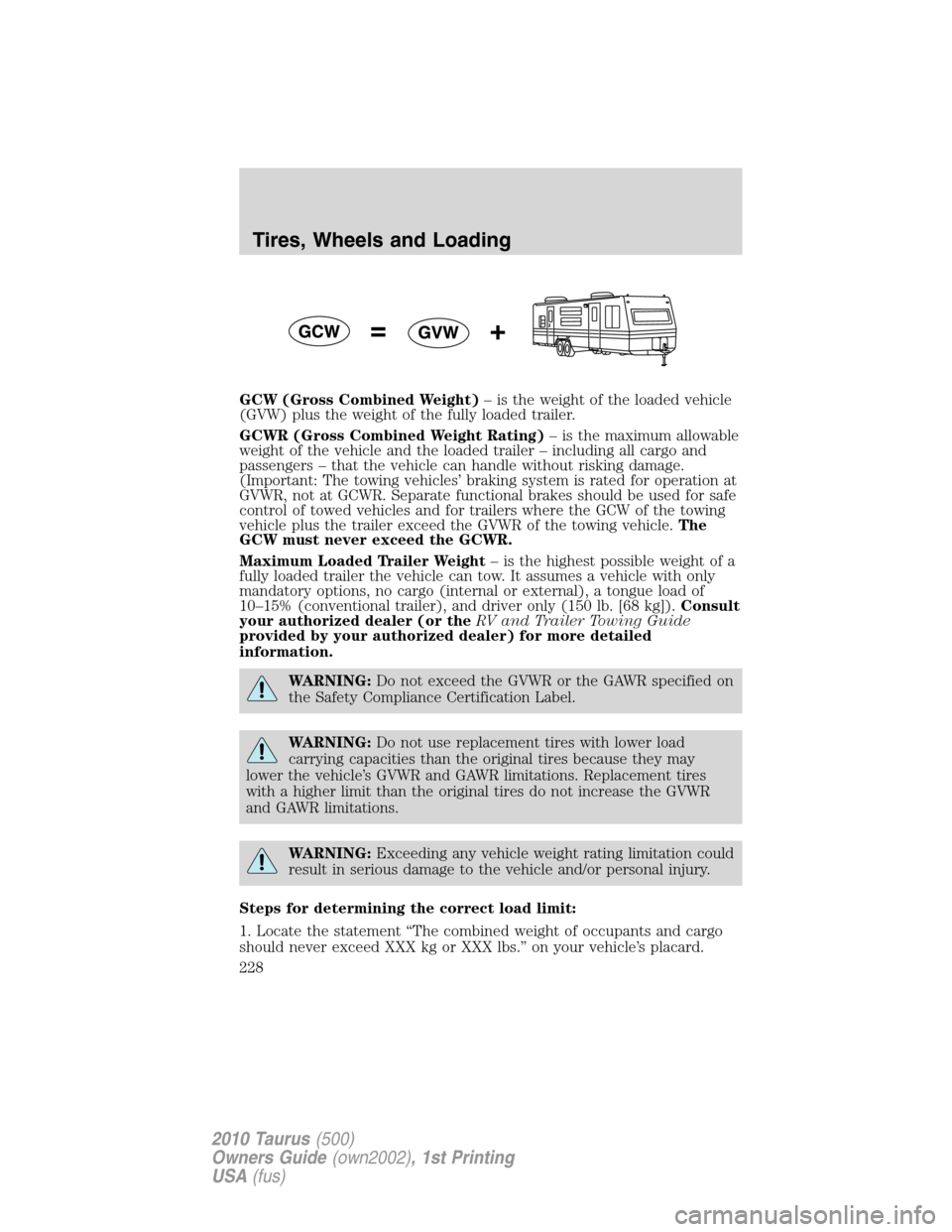

FORD TAURUS 2010 6.G Owners Manual GCW (Gross Combined Weight)– is the weight of the loaded vehicle
(GVW) plus the weight of the fully loaded trailer.
GCWR (Gross Combined Weight Rating)– is the maximum allowable
weight of the vehi

Page 229 of 378

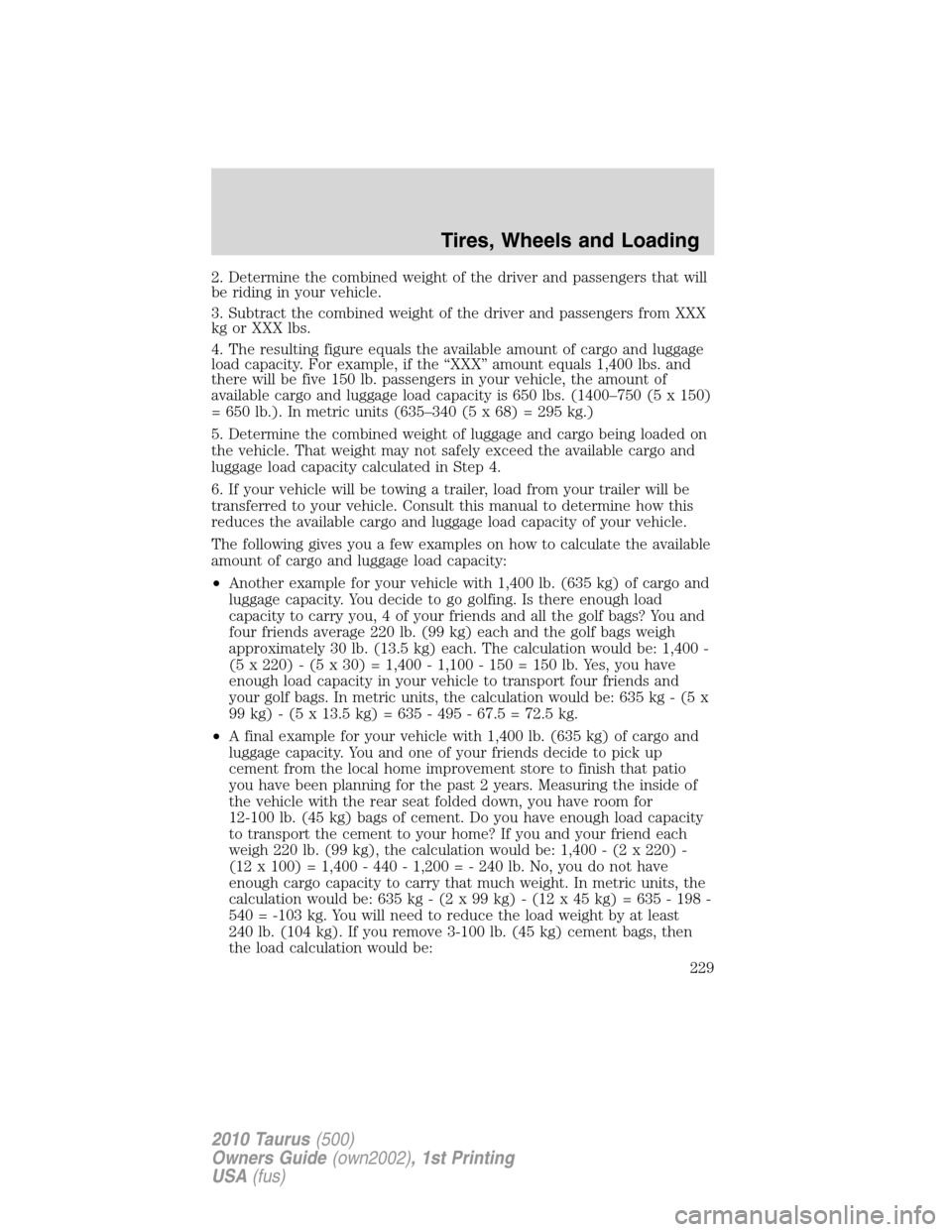

FORD TAURUS 2010 6.G Owners Manual 2. Determine the combined weight of the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of the driver and passengers from XXX
kg or XXX lbs.
4. The resulting

Page 230 of 378

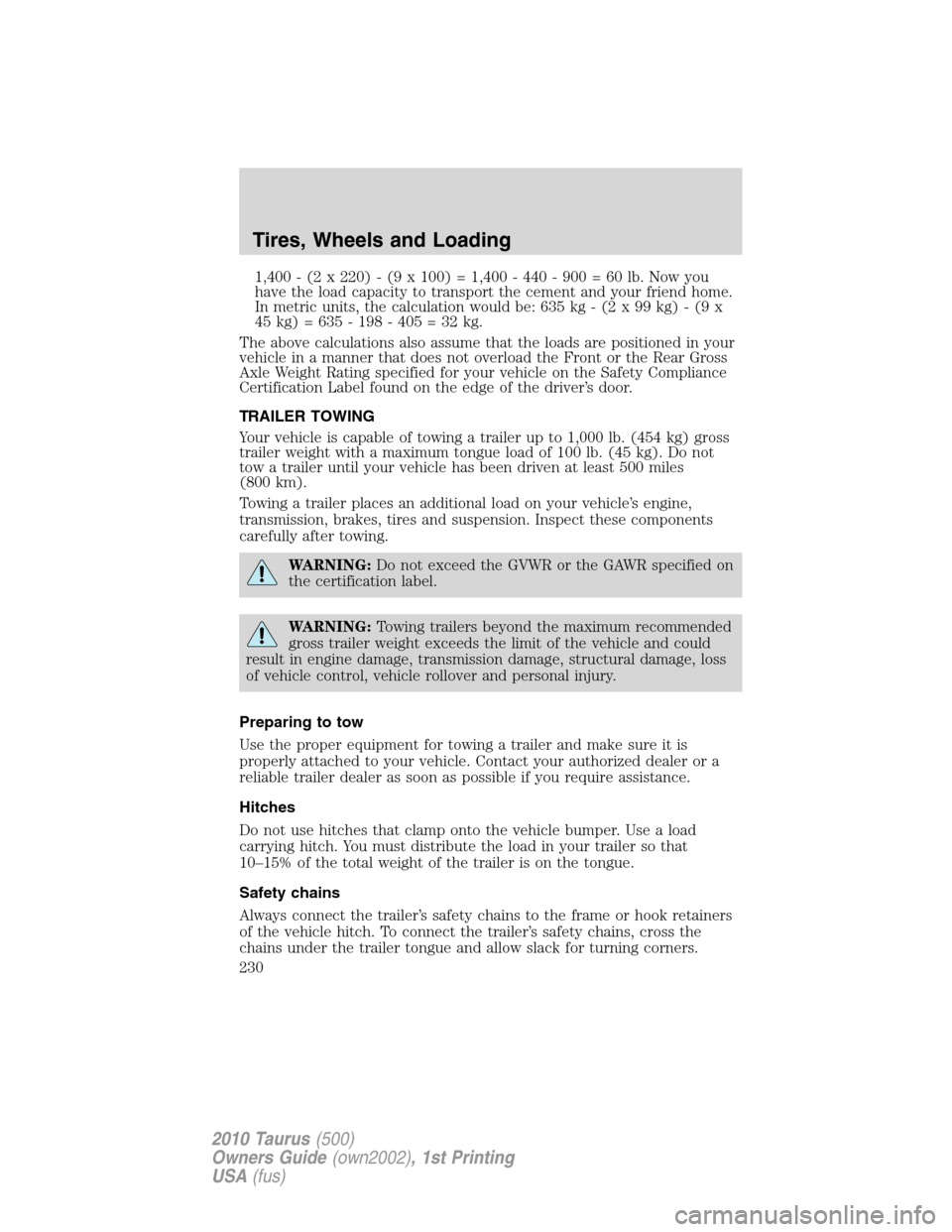

FORD TAURUS 2010 6.G Owners Manual 1,400 - (2 x 220) - (9 x 100) = 1,400 - 440 - 900 = 60 lb. Now you
have the load capacity to transport the cement and your friend home.
In metric units, the calculation would be: 635 kg - (2 x 99 kg)
