FORD TAURUS 2011 6.G Owners Manual

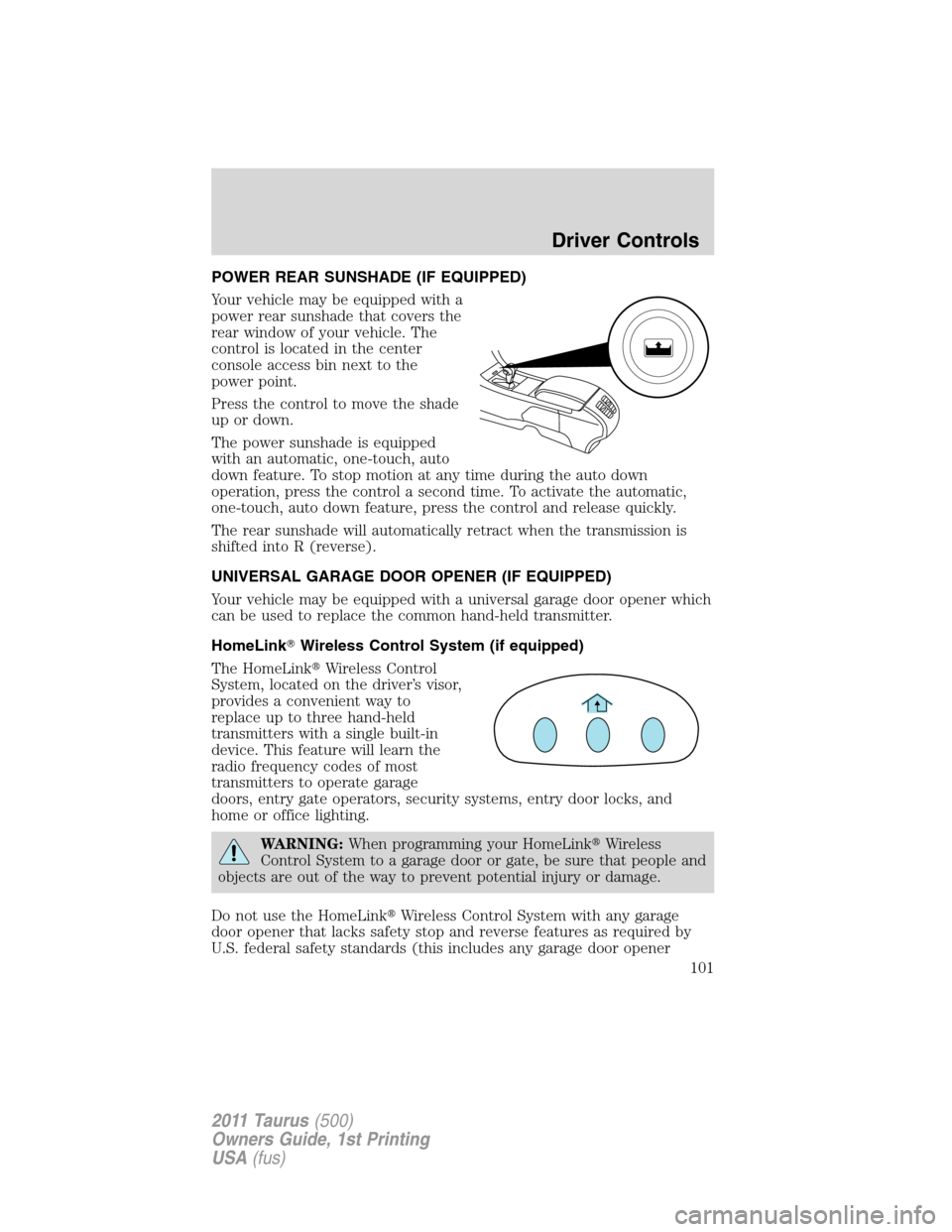

POWER REAR SUNSHADE (IF EQUIPPED)
Your vehicle may be equipped with a
power rear sunshade that covers the
rear window of your vehicle. The
control is located in the center
console access bin next to the
power point.
Press the control to move the shade
up or down.
The power sunshade is equipped
with an automatic, one-touch, auto
down feature. To stop motion at any time during the auto down
operation, press the control a second time. To activate the automatic,
one-touch, auto down feature, press the control and release quickly.
The rear sunshade will automatically retract when the transmission is
shifted into R (reverse).
UNIVERSAL GARAGE DOOR OPENER (IF EQUIPPED)
Your vehicle may be equipped with a universal garage door opener which
can be used to replace the common hand-held transmitter.
HomeLinkWireless Control System (if equipped)
The HomeLink
Wireless Control
System, located on the driver’s visor,
provides a convenient way to
replace up to three hand-held
transmitters with a single built-in
device. This feature will learn the
radio frequency codes of most
transmitters to operate garage
doors, entry gate operators, security systems, entry door locks, and
home or office lighting.
WARNING:When programming your HomeLink
Wireless
Control System to a garage door or gate, be sure that people and
objects are out of the way to prevent potential injury or damage.
Do not use the HomeLink
Wireless Control System with any garage
door opener that lacks safety stop and reverse features as required by
U.S. federal safety standards (this includes any garage door opener
Driver Controls
101
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

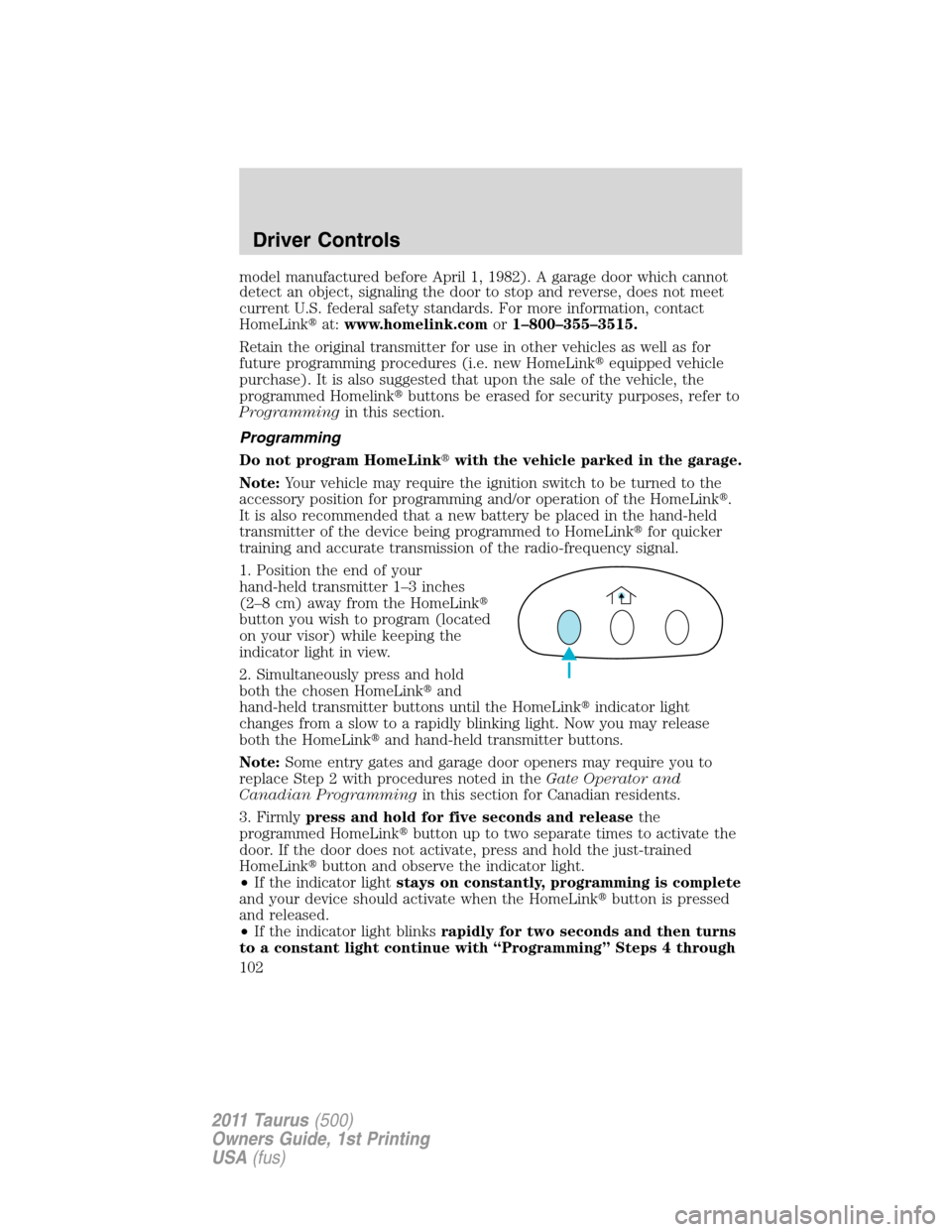

model manufactured before April 1, 1982). A garage door which cannot
detect an object, signaling the door to stop and reverse, does not meet
current U.S. federal safety standards. For more information, contact
HomeLink
at:www.homelink.comor1–800–355–3515.
Retain the original transmitter for use in other vehicles as well as for
future programming procedures (i.e. new HomeLink
equipped vehicle
purchase). It is also suggested that upon the sale of the vehicle, the
programmed Homelink
buttons be erased for security purposes, refer to
Programmingin this section.
Programming
Do not program HomeLink
with the vehicle parked in the garage.
Note:Your vehicle may require the ignition switch to be turned to the
accessory position for programming and/or operation of the HomeLink
.
It is also recommended that a new battery be placed in the hand-held
transmitter of the device being programmed to HomeLink
for quicker
training and accurate transmission of the radio-frequency signal.
1. Position the end of your
hand-held transmitter 1–3 inches
(2–8 cm) away from the HomeLink

button you wish to program (located
on your visor) while keeping the
indicator light in view.
2. Simultaneously press and hold
both the chosen HomeLink
and
hand-held transmitter buttons until the HomeLink
indicator light
changes from a slow to a rapidly blinking light. Now you may release
both the HomeLink
and hand-held transmitter buttons.
Note:Some entry gates and garage door openers may require you to
replace Step 2 with procedures noted in theGate Operator and
Canadian Programmingin this section for Canadian residents.
3. Firmlypress and hold for five seconds and releasethe
programmed HomeLink
button up to two separate times to activate the
door. If the door does not activate, press and hold the just-trained
HomeLink
button and observe the indicator light.
•If the indicator lightstays on constantly, programming is complete
and your device should activate when the HomeLink
button is pressed
and released.
•If the indicator light blinksrapidly for two seconds and then turns
to a constant light continue with “Programming” Steps 4 through
Driver Controls
102
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

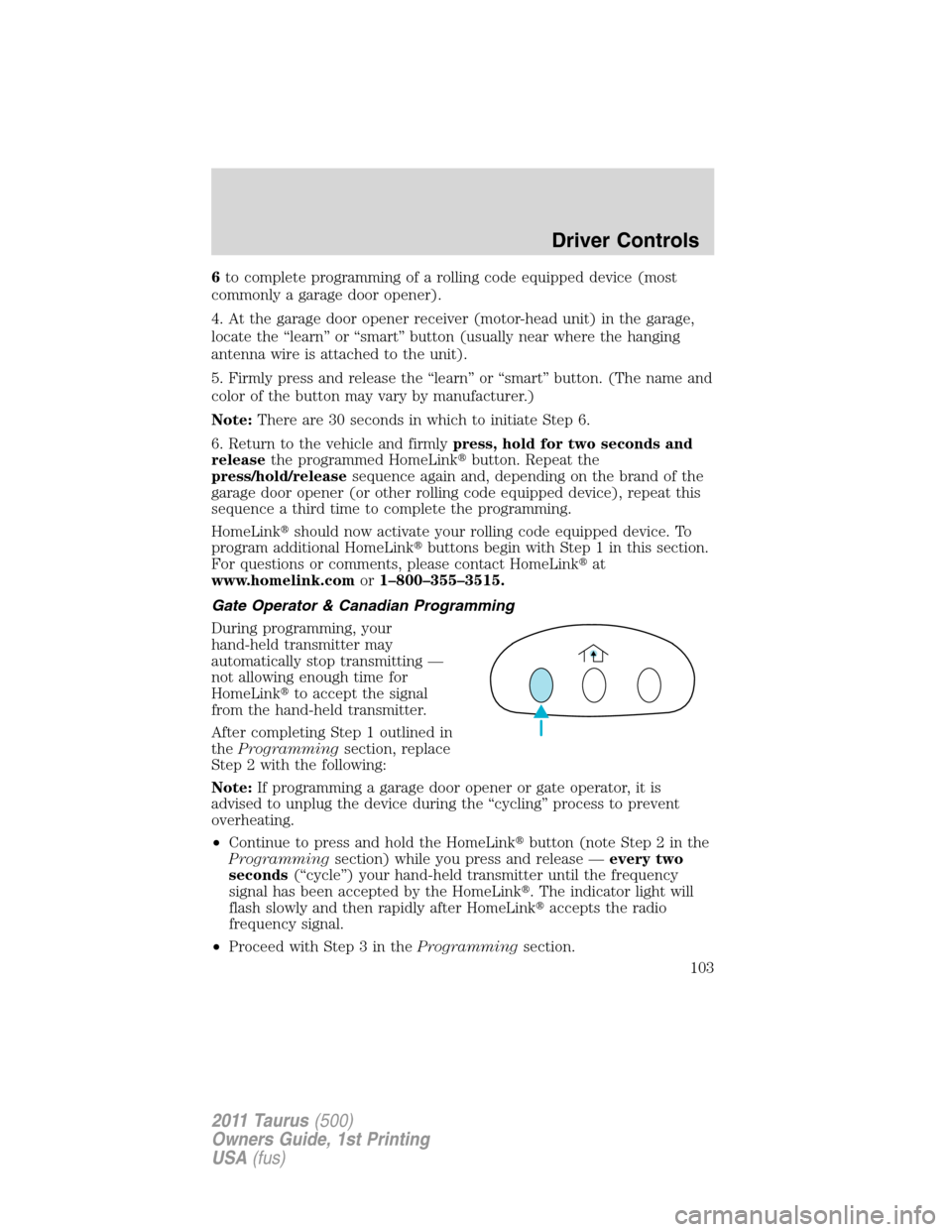

6to complete programming of a rolling code equipped device (most
commonly a garage door opener).
4. At the garage door opener receiver (motor-head unit) in the garage,
locate the “learn” or “smart” button (usually near where the hanging
antenna wire is attached to the unit).
5. Firmly press and release the “learn” or “smart” button. (The name and
color of the button may vary by manufacturer.)
Note:There are 30 seconds in which to initiate Step 6.
6. Return to the vehicle and firmlypress, hold for two seconds and
releasethe programmed HomeLink
button. Repeat the
press/hold/releasesequence again and, depending on the brand of the
garage door opener (or other rolling code equipped device), repeat this
sequence a third time to complete the programming.
HomeLink
should now activate your rolling code equipped device. To
program additional HomeLink
buttons begin with Step 1 in this section.
For questions or comments, please contact HomeLink
at
www.homelink.comor1–800–355–3515.
Gate Operator & Canadian Programming
During programming, your
hand-held transmitter may
automatically stop transmitting —
not allowing enough time for
HomeLink
to accept the signal
from the hand-held transmitter.
After completing Step 1 outlined in
theProgrammingsection, replace
Step 2 with the following:
Note:If programming a garage door opener or gate operator, it is
advised to unplug the device during the “cycling” process to prevent
overheating.
•Continue to press and hold the HomeLink
button (note Step 2 in the
Programmingsection) while you press and release —every two
seconds(“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink
. The indicator light will
flash slowly and then rapidly after HomeLink
accepts the radio
frequency signal.
•Proceed with Step 3 in theProgrammingsection.
Driver Controls
103
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

Operating the HomeLinkWireless Control System
To operate, simply press and release
the appropriate HomeLink
button.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLink
atwww.homelink.comor
1–800–355–3515.
Erasing HomeLinkbuttons
To erase the three programmed
buttons (individual buttons cannot
be erased):
•Press and hold the two outer
HomeLink
buttons until the
indicator light begins to
flash-after 20 seconds. Release
both buttons. Do not hold for
longer that 30 seconds.
HomeLink
is now in the train (or learning) mode and can be
programmed at any time beginning with Step 1 in theProgramming
section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLink
using a HomeLink
button previously
trained, follow these steps:
1. Press and hold the desired HomeLink
button.Do NOTrelease the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLink
button, follow Step 1 in theProgramming
section.
For questions or comments, contact HomeLink
atwww.homelink.com
or1–800–355–3515.
Driver Controls
104
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

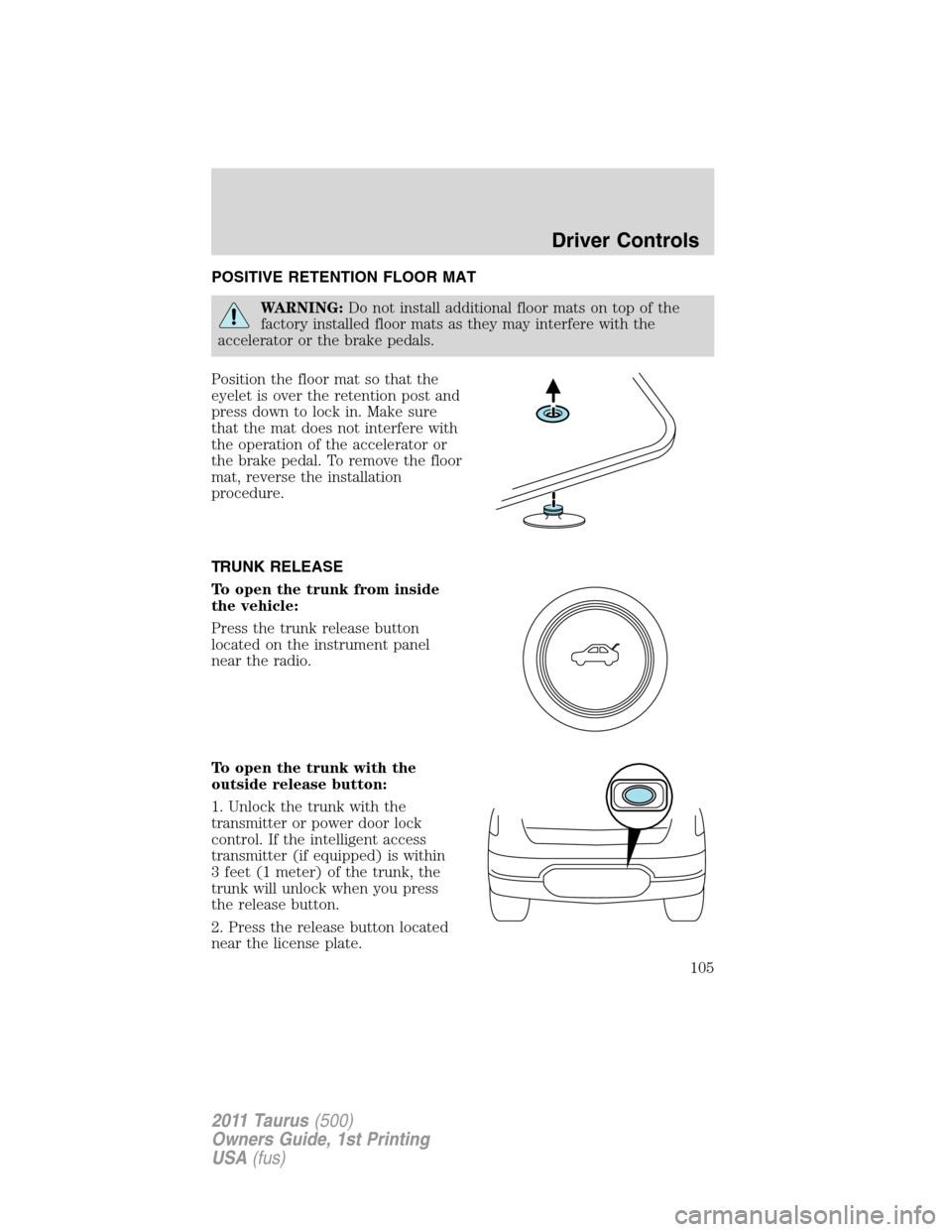

POSITIVE RETENTION FLOOR MAT
WARNING:Do not install additional floor mats on top of the
factory installed floor mats as they may interfere with the
accelerator or the brake pedals.
Position the floor mat so that the
eyelet is over the retention post and
press down to lock in. Make sure
that the mat does not interfere with
the operation of the accelerator or
the brake pedal. To remove the floor
mat, reverse the installation
procedure.
TRUNK RELEASE
To open the trunk from inside
the vehicle:
Press the trunk release button
located on the instrument panel
near the radio.
To open the trunk with the
outside release button:
1. Unlock the trunk with the
transmitter or power door lock
control. If the intelligent access
transmitter (if equipped) is within
3 feet (1 meter) of the trunk, the
trunk will unlock when you press
the release button.
2. Press the release button located
near the license plate.
Driver Controls
105
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

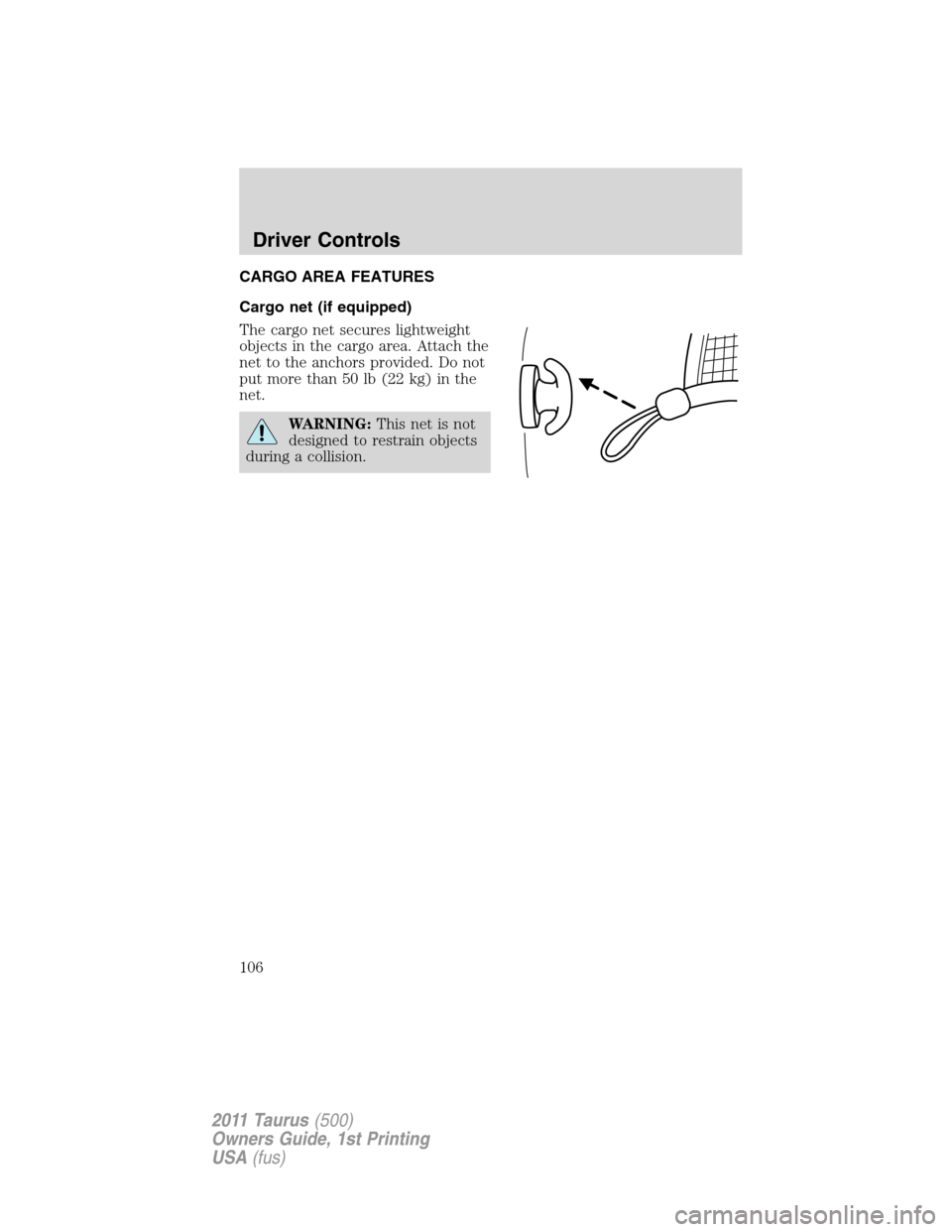

CARGO AREA FEATURES
Cargo net (if equipped)
The cargo net secures lightweight
objects in the cargo area. Attach the
net to the anchors provided. Do not
put more than 50 lb (22 kg) in the
net.
WARNING:This net is not
designed to restrain objects
during a collision.
Driver Controls
106
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

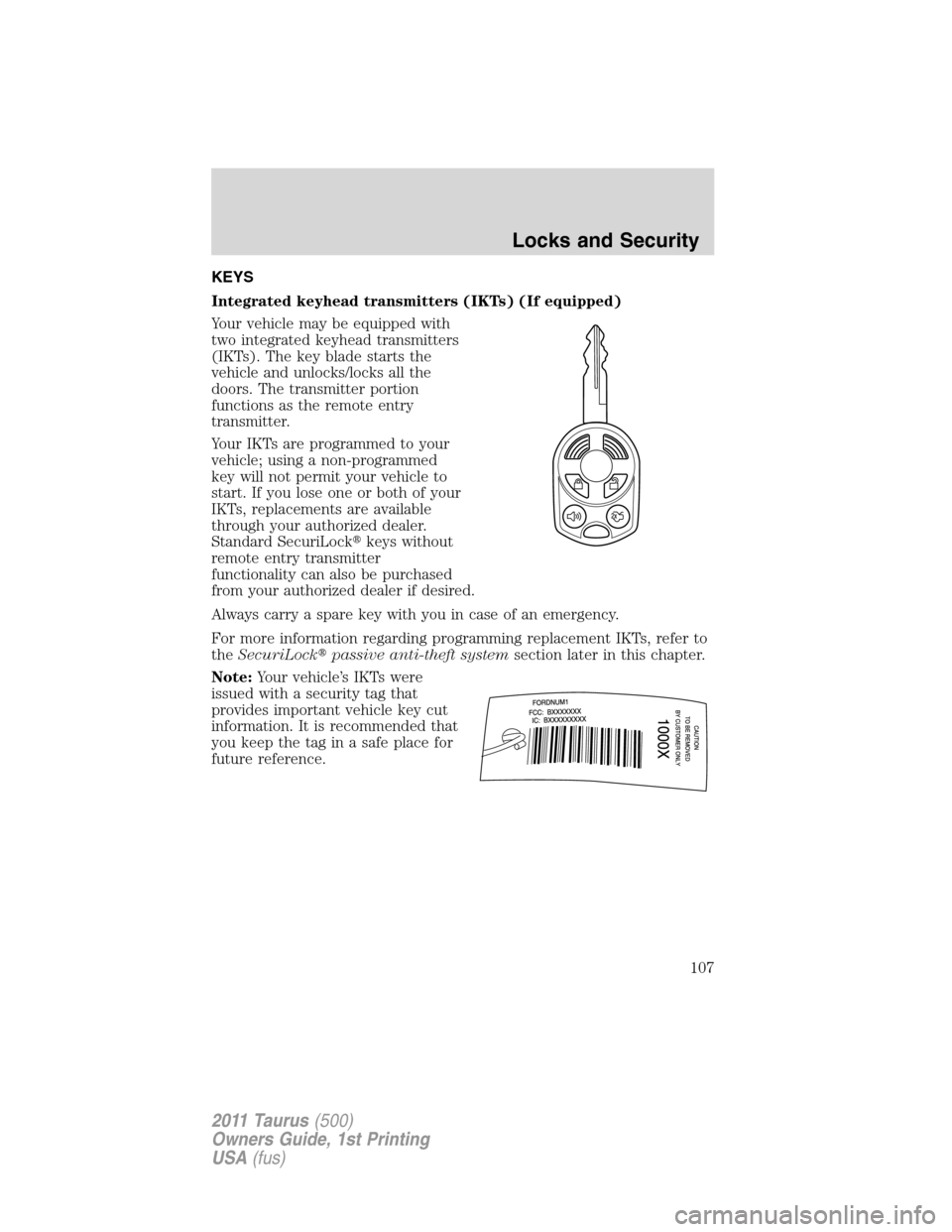

KEYS
Integrated keyhead transmitters (IKTs) (If equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters
(IKTs). The key blade starts the
vehicle and unlocks/locks all the
doors. The transmitter portion
functions as the remote entry
transmitter.
Your IKTs are programmed to your
vehicle; using a non-programmed
key will not permit your vehicle to
start. If you lose one or both of your
IKTs, replacements are available
through your authorized dealer.
Standard SecuriLock
keys without
remote entry transmitter
functionality can also be purchased
from your authorized dealer if desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
theSecuriLock
passive anti-theft systemsection later in this chapter.
Note:Your vehicle’s IKTs were
issued with a security tag that
provides important vehicle key cut
information. It is recommended that
you keep the tag in a safe place for
future reference.
Locks and Security
107
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

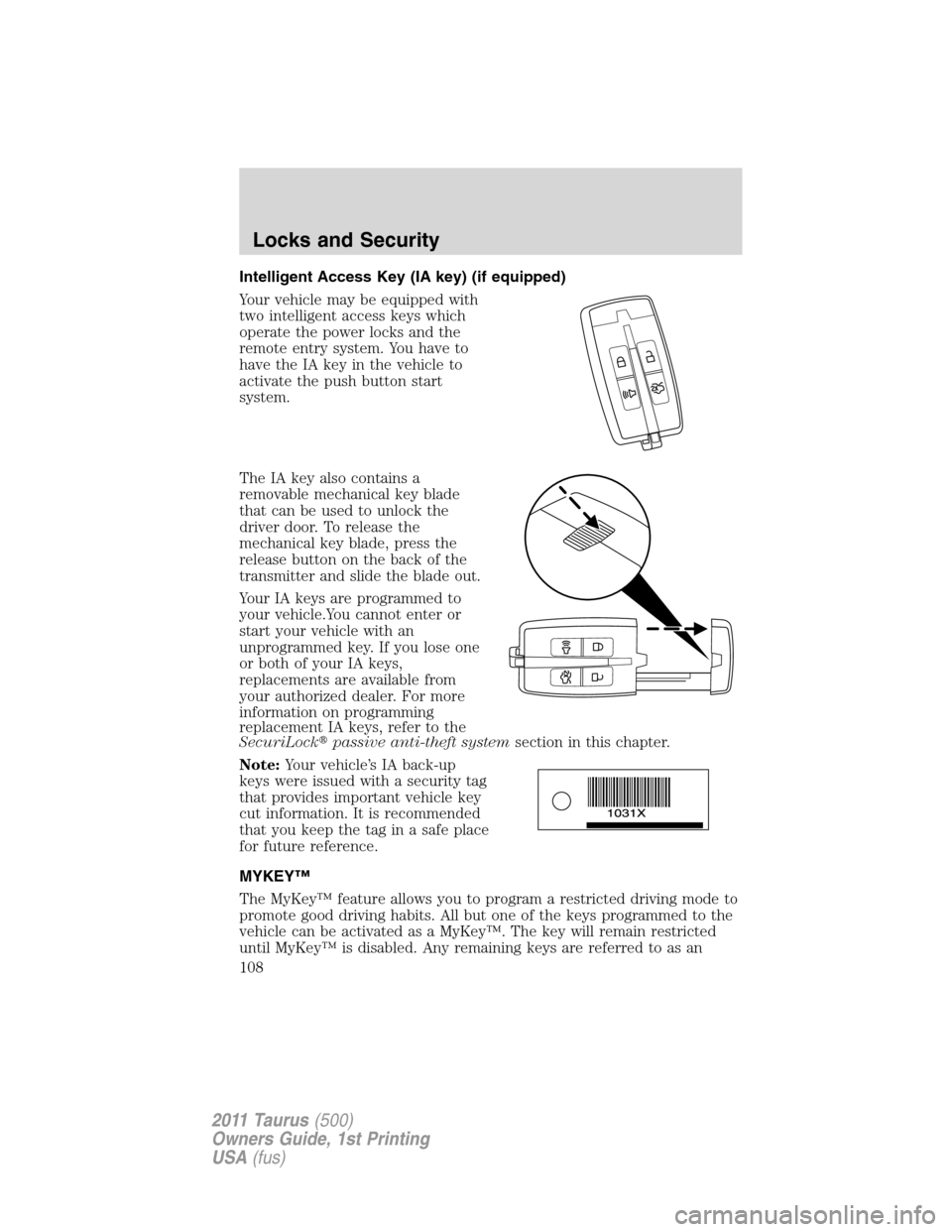

Intelligent Access Key (IA key) (if equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote entry system. You have to
have the IA key in the vehicle to
activate the push button start
system.
The IA key also contains a
removable mechanical key blade
that can be used to unlock the
driver door. To release the
mechanical key blade, press the
release button on the back of the
transmitter and slide the blade out.
Your IA keys are programmed to
your vehicle.You cannot enter or
start your vehicle with an
unprogrammed key. If you lose one
or both of your IA keys,
replacements are available from
your authorized dealer. For more
information on programming
replacement IA keys, refer to the
SecuriLock
passive anti-theft systemsection in this chapter.
Note:Your vehicle’s IA back-up
keys were issued with a security tag
that provides important vehicle key
cut information. It is recommended
that you keep the tag in a safe place
for future reference.
MYKEY™
The MyKey™ feature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey™. The key will remain restricted
until MyKey™ is disabled. Any remaining keys are referred to as an
Locks and Security
108
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

“administrator key” or admin key. The admin key can be used to create a
MyKey™, program optional MyKey™ settings, and clear the MyKey™
feature. When the MyKey™ feature is enabled the user can use system
check in the message center to see how many MyKeys™ and admin keys
are programmed to the vehicle, and see the total distance the vehicle has
been driven with the MyKey™ active.
MyKey™ restricted features
Standard settings – these settings cannot be changed
•Belt-Minder cannot be disabled. The audio system will be muted
whenever Belt-Minder
is activated until the safety belts are buckled.
Refer to theSeating and Safety Restraintschapter for a detailed
description of Belt-Minder
operation.
•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
•The following systems, if equipped, cannot be turned off: reverse
sensing system, Blind Spot Information System (BLIS
) with cross
traffic alert and collision warning system.
Optional settings – these settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the audio system display when
attempting to exceed the limited volume.
•The AdvanceTrac
system cannot be turned off. When this optional
setting is on, the MyKey™ user will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac

system if the vehicle is stuck in snow, mud or sand.
Create a MyKey™
To program MyKey™ on one of the keys programmed to the vehicle,
insert the key that you want to make a MyKey™ into the ignition. For
vehicles equipped with push button start, put the intelligent access key
in the backup slot; see theDrivingchapter for the location of the
backup slot. Turn the ignition on. Use the message center buttons to do
the following:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
Locks and Security
109
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

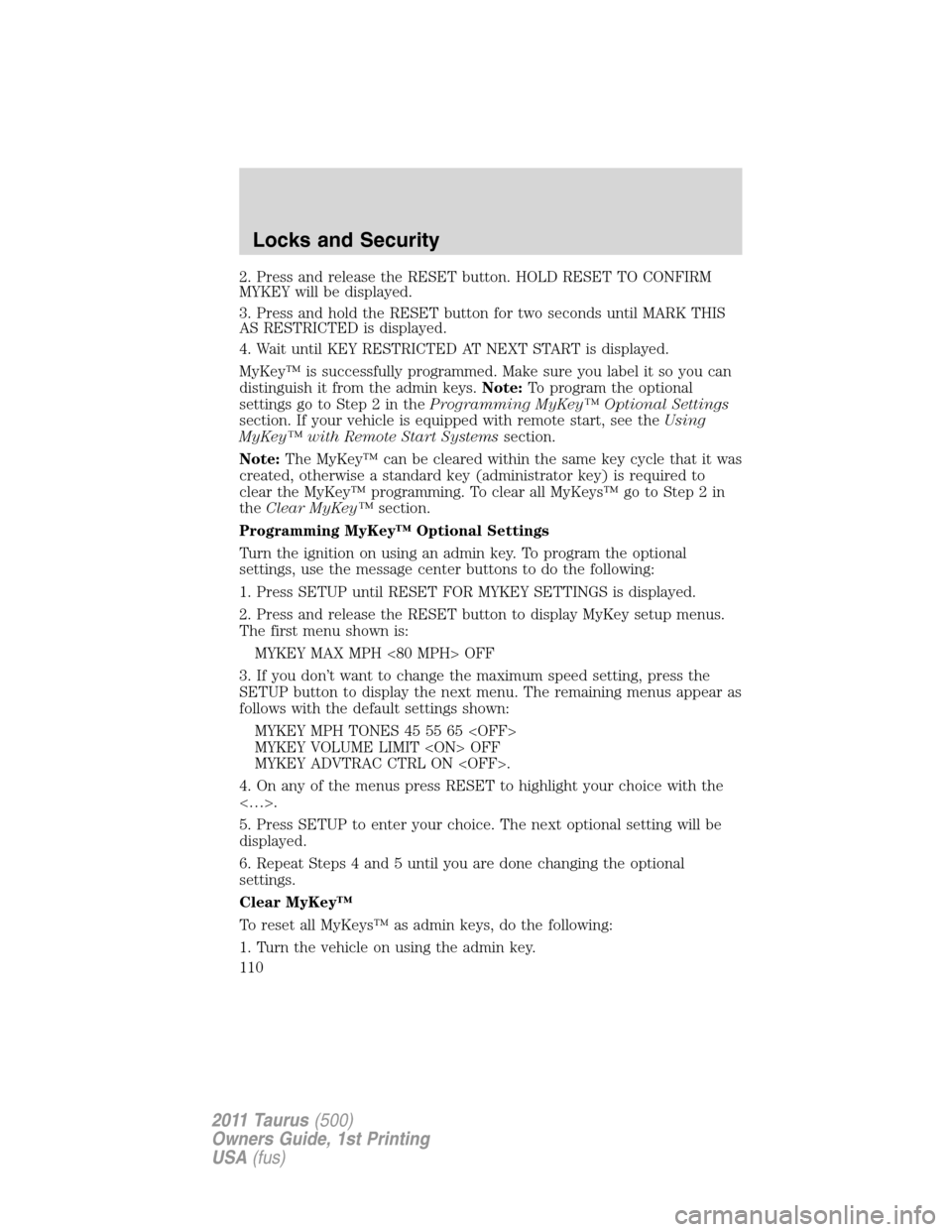

2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.
MyKey™ is successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKey™ Optional Settings
section. If your vehicle is equipped with remote start, see theUsing
MyKey™ with Remote Start Systemssection.
Note:The MyKey™ can be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKey™ programming. To clear all MyKeys™ go to Step 2 in
theClear MyKey™section.
Programming MyKey™ Optional Settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKey setup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional
settings.
Clear MyKey™
To reset all MyKeys™ as admin keys, do the following:
1. Turn the vehicle on using the admin key.
Locks and Security
110
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
