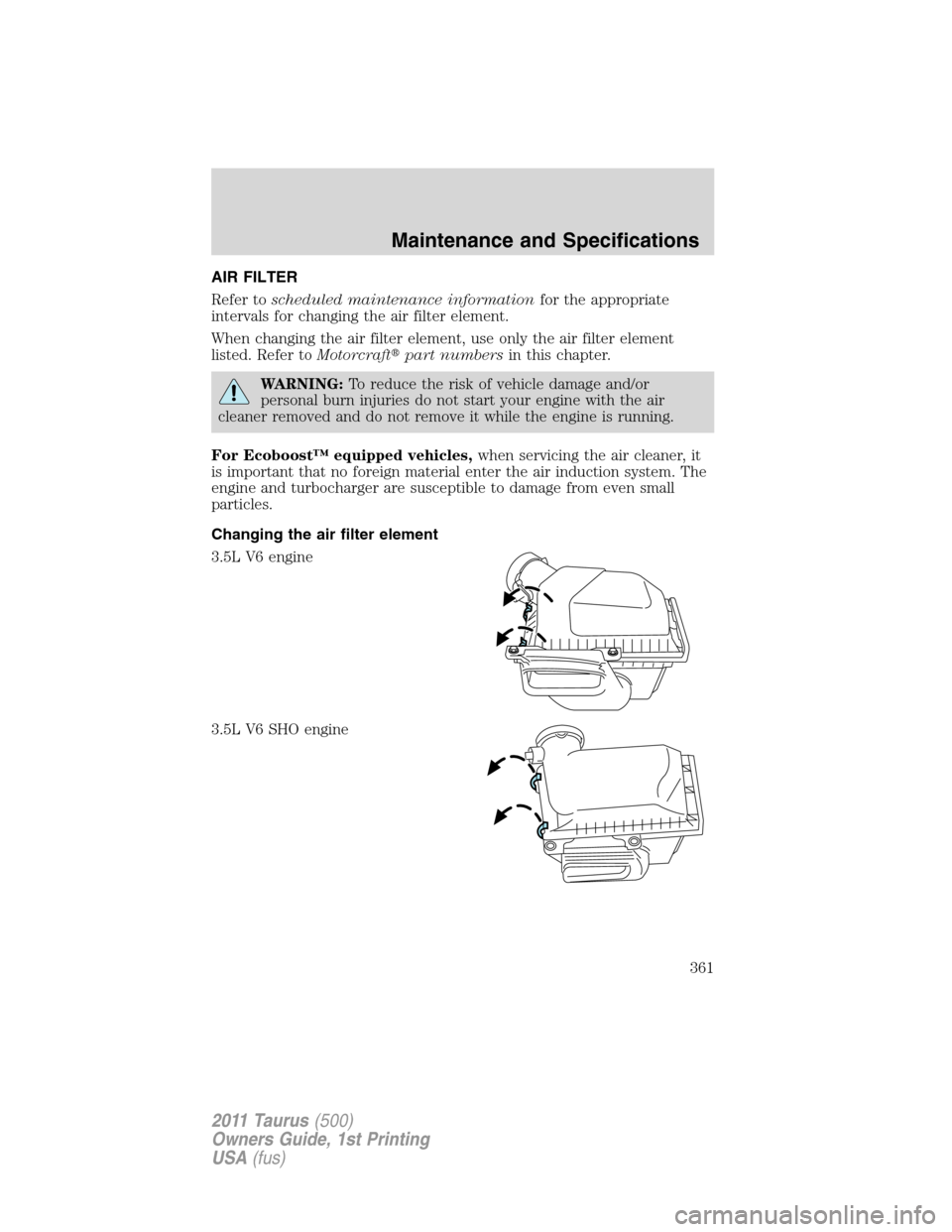

AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraft
part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
For Ecoboost™ equipped vehicles,when servicing the air cleaner, it
is important that no foreign material enter the air induction system. The
engine and turbocharger are susceptible to damage from even small
particles.
Changing the air filter element
3.5L V6 engine
3.5L V6 SHO engine
Maintenance and Specifications
361
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

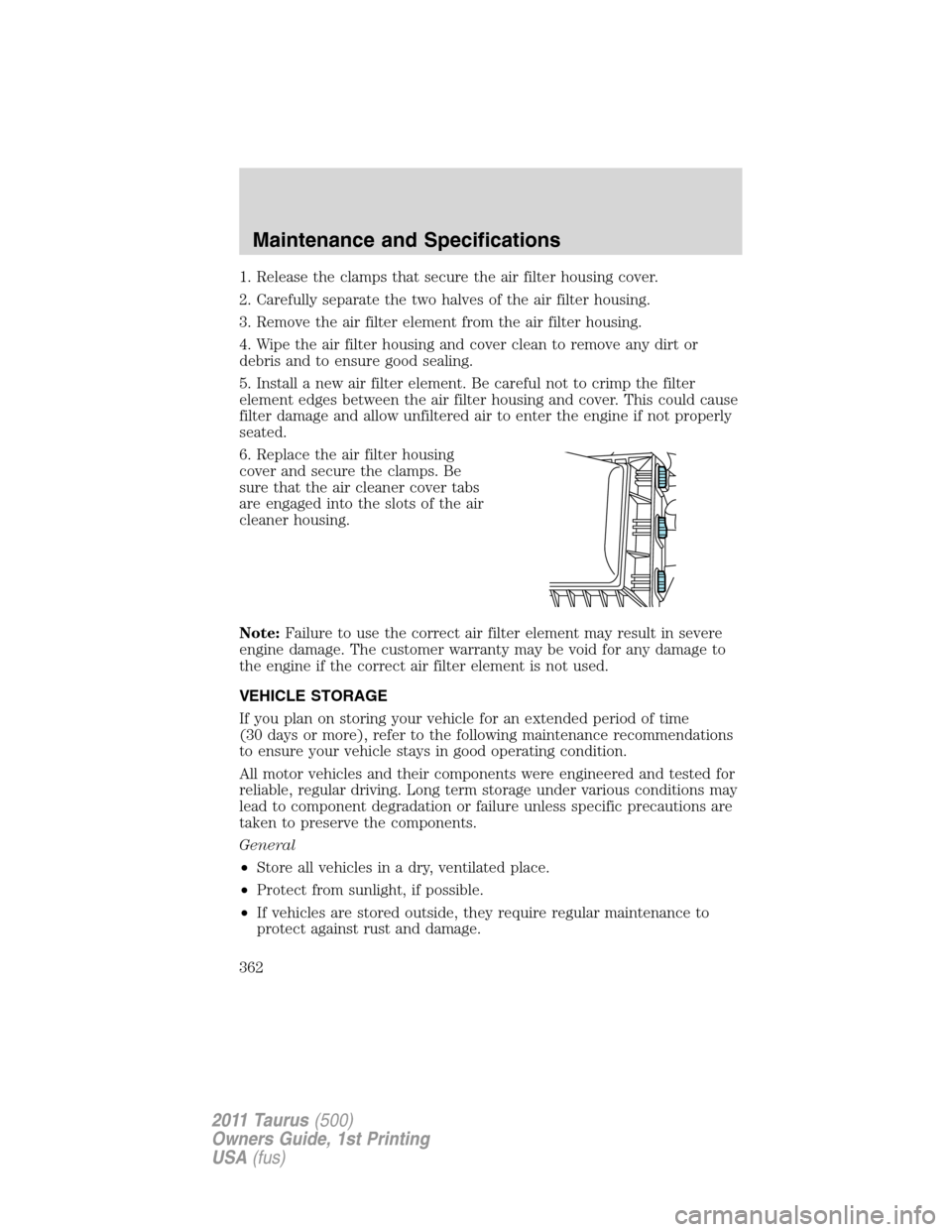

1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves of the air filter housing.
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover. This could cause
filter damage and allow unfiltered air to enter the engine if not properly
seated.
6. Replace the air filter housing
cover and secure the clamps. Be
sure that the air cleaner cover tabs
are engaged into the slots of the air
cleaner housing.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
VEHICLE STORAGE
If you plan on storing your vehicle for an extended period of time
(30 days or more), refer to the following maintenance recommendations
to ensure your vehicle stays in good operating condition.
All motor vehicles and their components were engineered and tested for
reliable, regular driving. Long term storage under various conditions may
lead to component degradation or failure unless specific precautions are
taken to preserve the components.
General
•Store all vehicles in a dry, ventilated place.
•Protect from sunlight, if possible.
•If vehicles are stored outside, they require regular maintenance to
protect against rust and damage.
Maintenance and Specifications
362
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

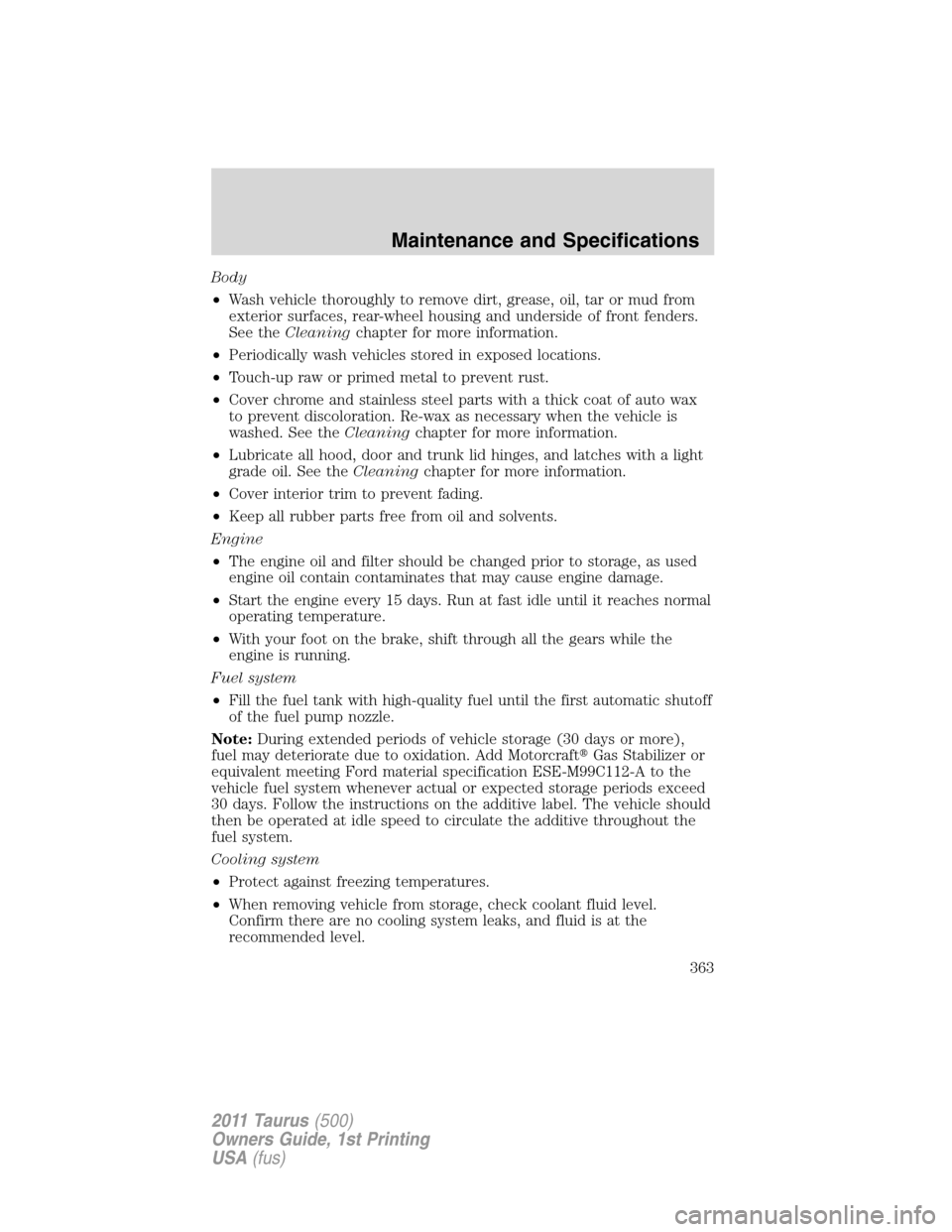

Body
•Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing and underside of front fenders.
See theCleaningchapter for more information.
•Periodically wash vehicles stored in exposed locations.
•Touch-up raw or primed metal to prevent rust.
•Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Re-wax as necessary when the vehicle is
washed. See theCleaningchapter for more information.
•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add Motorcraft
Gas Stabilizer or
equivalent meeting Ford material specification ESE-M99C112-A to the
vehicle fuel system whenever actual or expected storage periods exceed
30 days. Follow the instructions on the additive label. The vehicle should
then be operated at idle speed to circulate the additive throughout the
fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Maintenance and Specifications
363
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

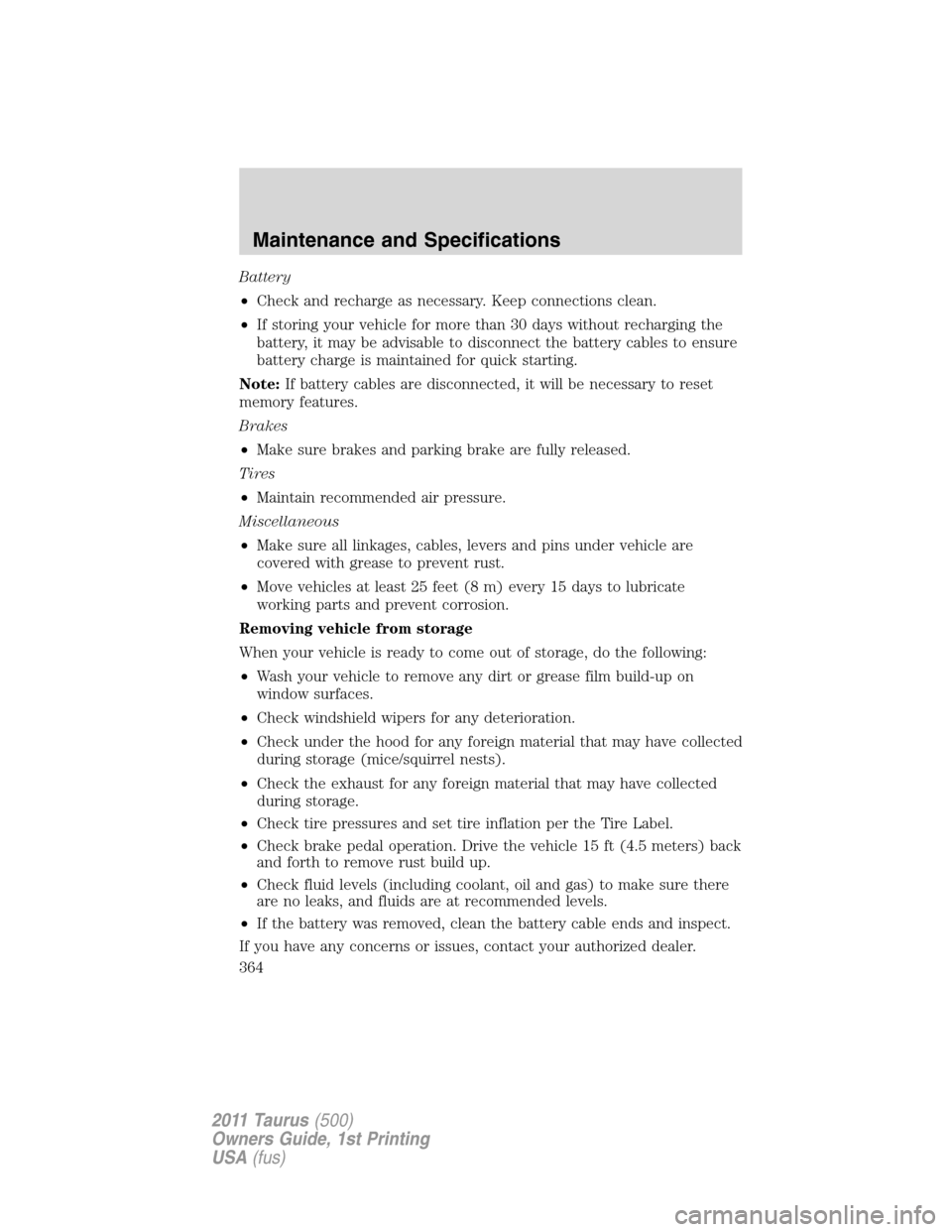

Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Removing vehicle from storage
When your vehicle is ready to come out of storage, do the following:
•Wash your vehicle to remove any dirt or grease film build-up on
window surfaces.
•Check windshield wipers for any deterioration.
•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
Maintenance and Specifications
364
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

MOTORCRAFT PART NUMBERS
Component 3.5L V6 Engine 3.5L V6 SHO engine
Air filter element FA-1884 FA-1884
Battery BXT-59 BXT-65–650
Oil filter FL-500-S FL-500-S
Spark plugs SP-411
1SP-512-A1
1
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft
or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
365
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

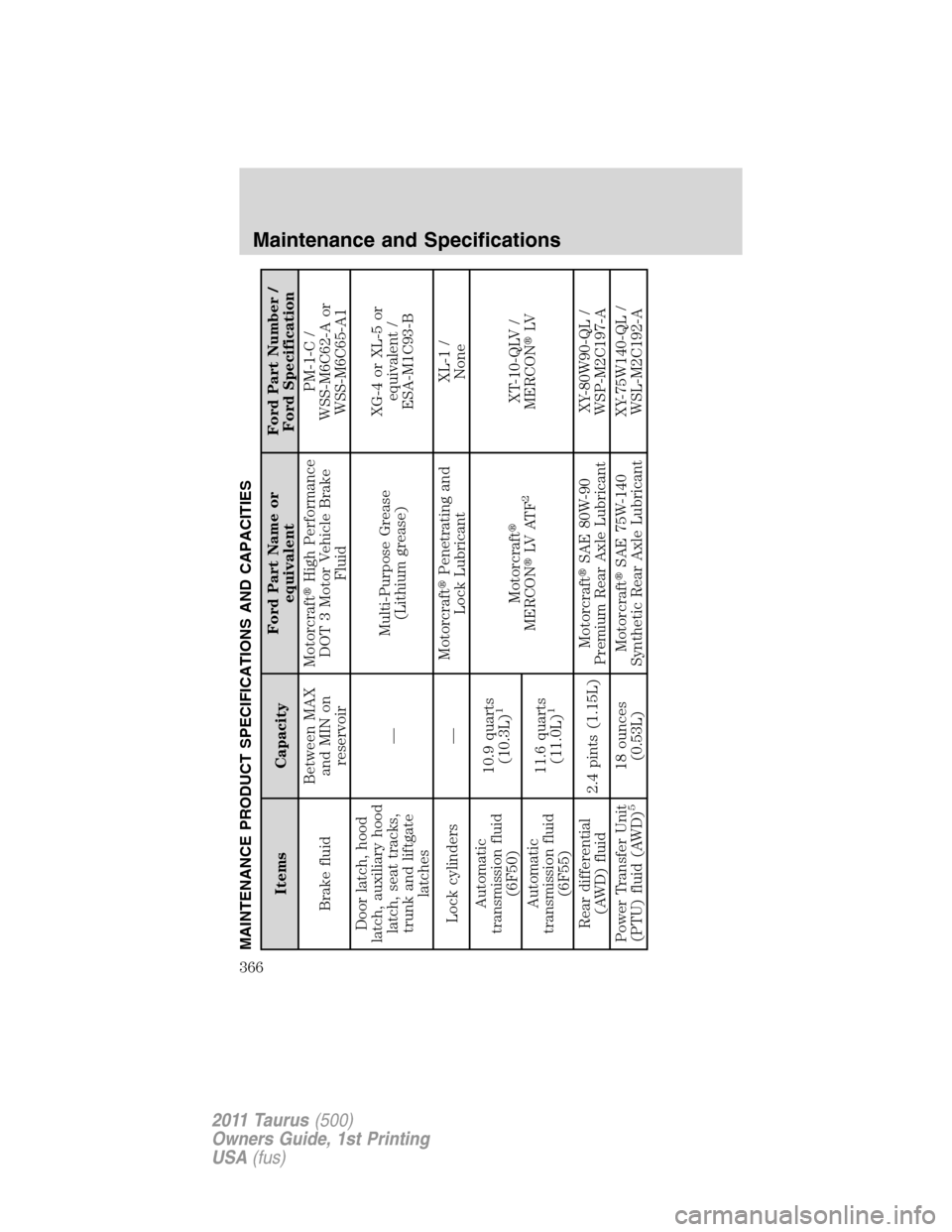

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluidBetween MAX
and MIN on
reservoirMotorcraft
High Performance
DOT 3 Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door latch, hood
latch, auxiliary hood
latch, seat tracks,
trunk and liftgate
latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESA-M1C93-B
Lock cylinders —Motorcraft
Penetrating and
Lock LubricantXL-1 /
None
Automatic
transmission fluid
(6F50)10.9 quarts
(10.3L)
1
Motorcraft

MERCON
LV AT F
2
XT-10-QLV /
MERCON
LV
Automatic
transmission fluid
(6F55)11.6 quarts
(11.0L)
1
Rear differential
(AWD) fluid2.4 pints (1.15L)Motorcraft
SAE 80W-90
Premium Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
5
18 ounces
(0.53L)Motorcraft
SAE 75W-140
Synthetic Rear Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Maintenance and Specifications
366
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

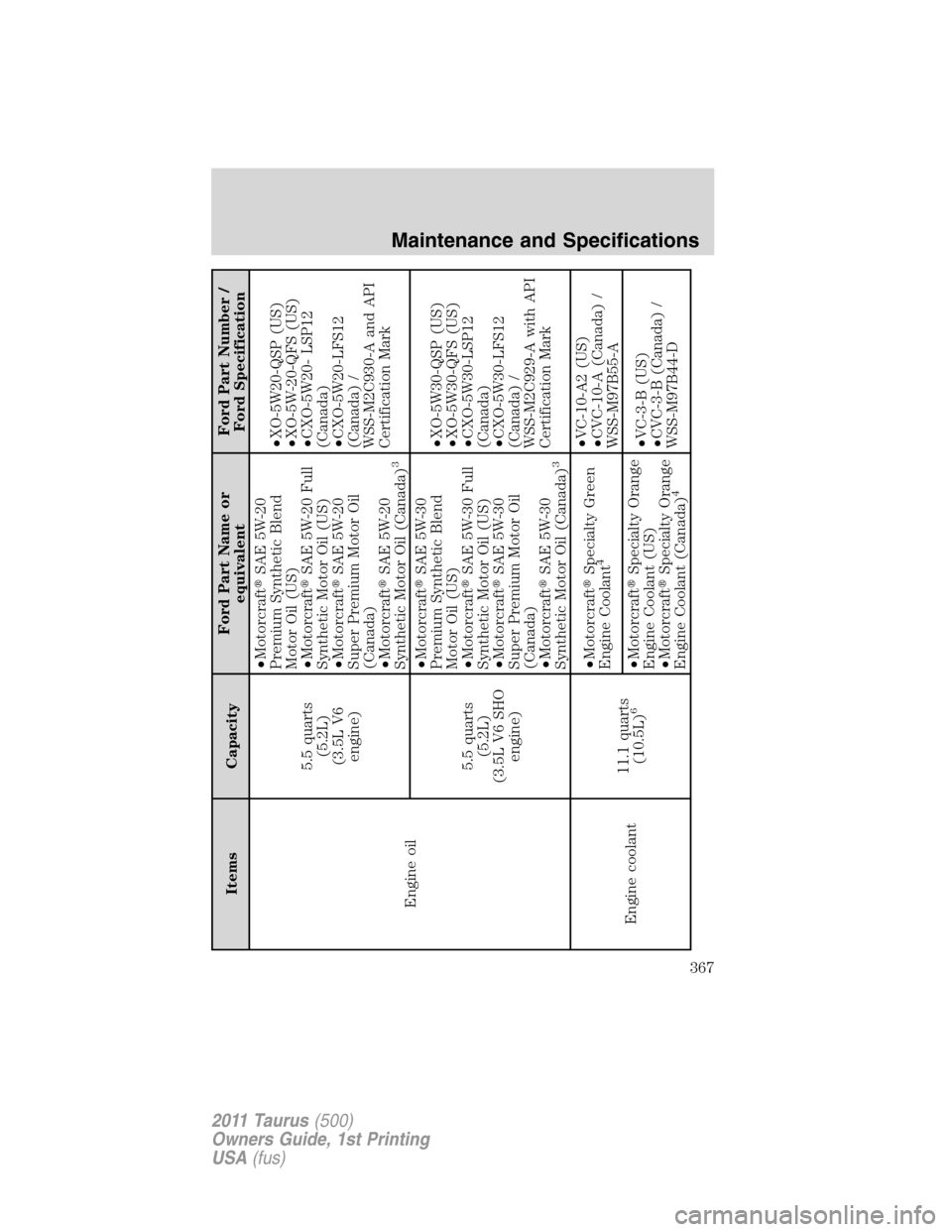

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil5.5 quarts
(5.2L)
(3.5L V6
engine)•Motorcraft
SAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
•Motorcraft
SAE 5W-20 Full
Synthetic Motor Oil (US)
•Motorcraft
SAE 5W-20
Super Premium Motor Oil
(Canada)
•Motorcraft
SAE 5W-20
Synthetic Motor Oil (Canada)
3
•XO-5W20-QSP (US)
•XO-5W-20-QFS (US)
•CXO-5W20- LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
5.5 quarts
(5.2L)
(3.5L V6 SHO
engine)•Motorcraft
SAE 5W-30
Premium Synthetic Blend
Motor Oil (US)
•Motorcraft
SAE 5W-30 Full
Synthetic Motor Oil (US)
•Motorcraft
SAE 5W-30
Super Premium Motor Oil
(Canada)
•Motorcraft
SAE 5W-30
Synthetic Motor Oil (Canada)
3
•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12
(Canada)
•CXO-5W30-LFS12
(Canada) /
WSS-M2C929-A with API
Certification Mark
Engine coolant11.1 quarts
(10.5L)
6
•Motorcraft
Specialty Green
Engine Coolant
4
•VC-10-A2 (US)
•CVC-10-A (Canada) /
WSS-M97B55-A
•Motorcraft
Specialty Orange
Engine Coolant (US)
•Motorcraft
Specialty Orange
Engine Coolant (Canada)
4
•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Maintenance and Specifications
367
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

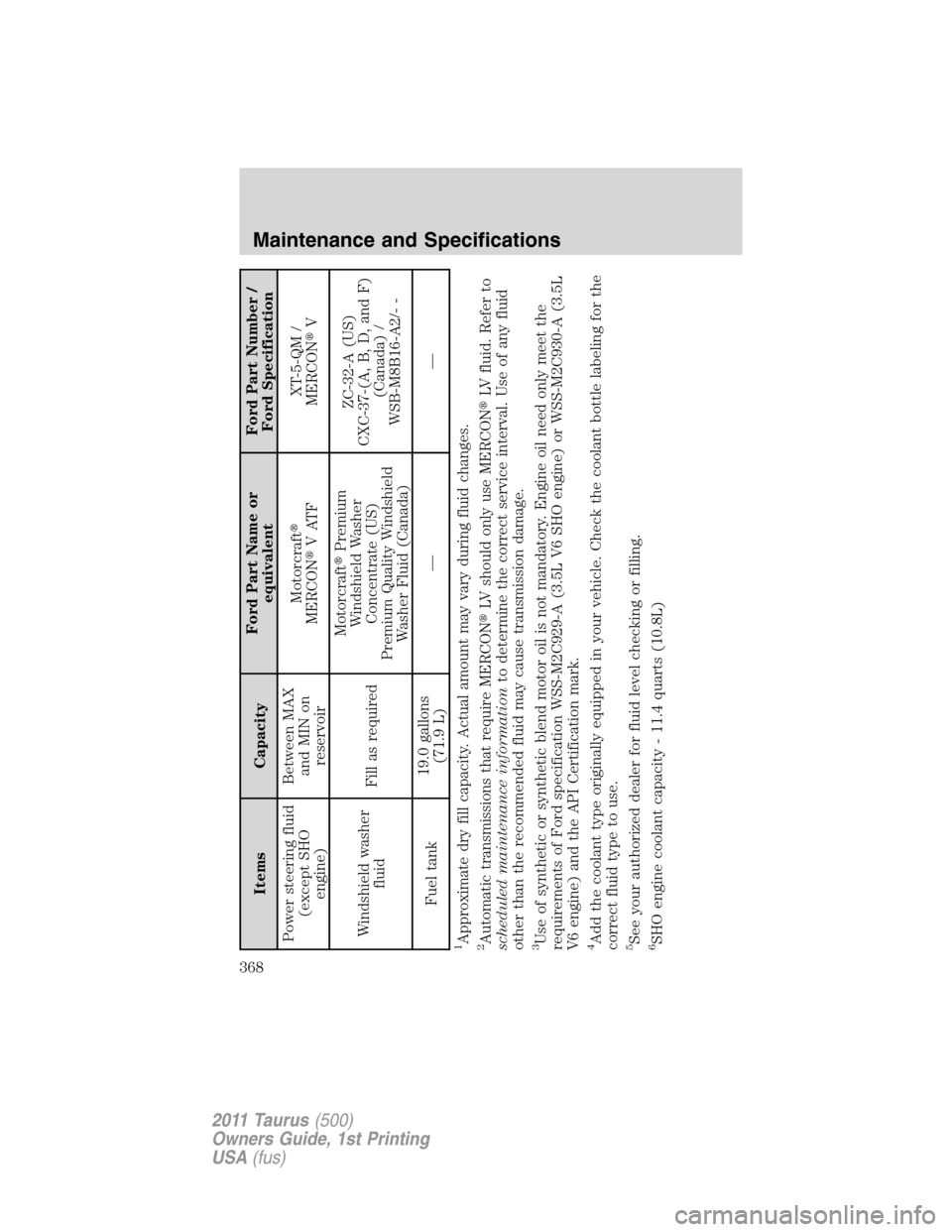

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Power steering fluid
(except SHO
engine)Between MAX
and MIN on
reservoirMotorcraft

MERCON
VATFXT-5-QM /
MERCON
V
Windshield washer
fluidFill as requiredMotorcraft
Premium
Windshield Washer
Concentrate (US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank19.0 gallons
(71.9 L)——
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C929-A (3.5L V6 SHO engine) or WSS-M2C930-A (3.5L
V6 engine) and the API Certification mark.4Add the coolant type originally equipped in your vehicle. Check the coolant bottle labeling for the
correct fluid type to use.5See your authorized dealer for fluid level checking or filling.6SHO engine coolant capacity - 11.4 quarts (10.8L)
Maintenance and Specifications
368
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine 3.5L V6 engine 3.5L V6 SHO engine
Cubic inches 214 214
FuelSeeOctane
recommendations
earlier in this chapter.SeeOctane
recommendationsearlier
in this chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Ignition system Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42 mm)0.033–0.037 inch
(.84–.94 mm)
Compression
ratio10.3:1 10.0:1
Engine drivebelt routing
3.5L V6 engine
1. Short drivebelt is on first pulley groove closest to engine (except
vehicles with electric power assisted steering).
2. Long drivebelt is on second pulley groove farthest from engine.
Maintenance and Specifications
369
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

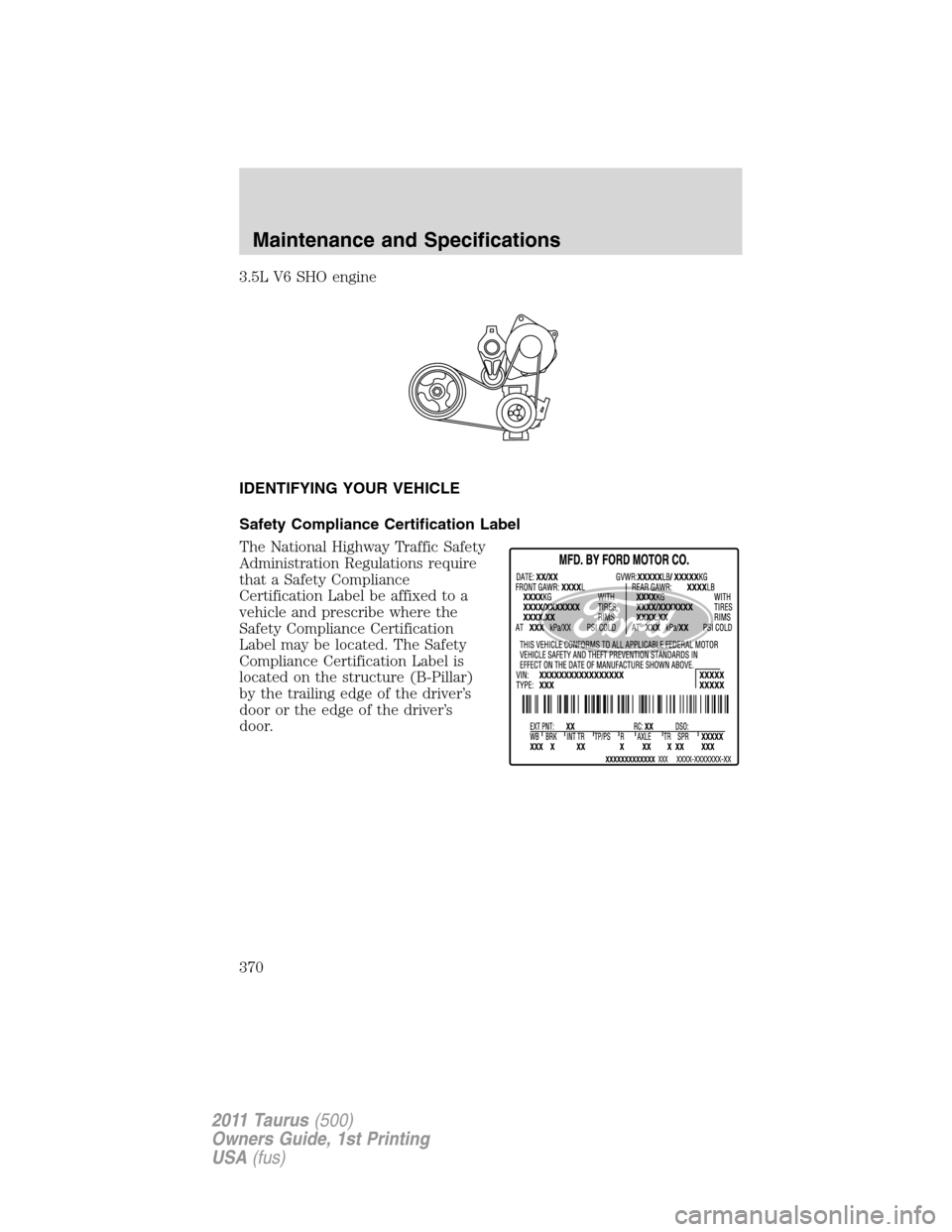

3.5L V6 SHO engine
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
370
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
