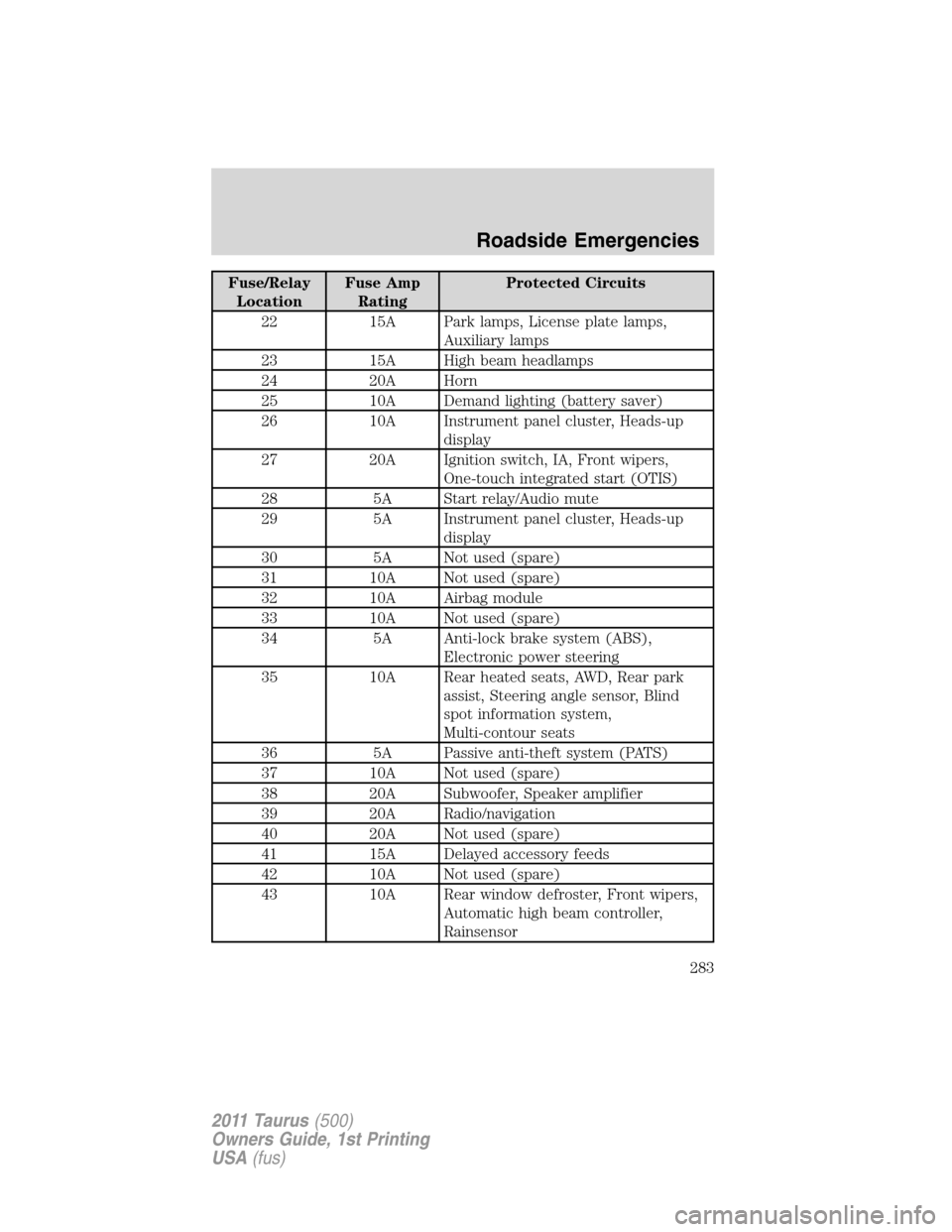

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
22 15A Park lamps, License plate lamps,
Auxiliary lamps
23 15A High beam headlamps
24 20A Horn
25 10A Demand lighting (battery saver)
26 10A Instrument panel cluster, Heads-up
display
27 20A Ignition switch, IA, Front wipers,
One-touch integrated start (OTIS)
28 5A Start relay/Audio mute
29 5A Instrument panel cluster, Heads-up
display
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Airbag module
33 10A Not used (spare)
34 5A Anti-lock brake system (ABS),
Electronic power steering
35 10A Rear heated seats, AWD, Rear park
assist, Steering angle sensor, Blind
spot information system,
Multi-contour seats
36 5A Passive anti-theft system (PATS)
37 10A Not used (spare)
38 20A Subwoofer, Speaker amplifier
39 20A Radio/navigation
40 20A Not used (spare)
41 15A Delayed accessory feeds
42 10A Not used (spare)
43 10A Rear window defroster, Front wipers,
Automatic high beam controller,
Rainsensor
Roadside Emergencies
283
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 284 of 406

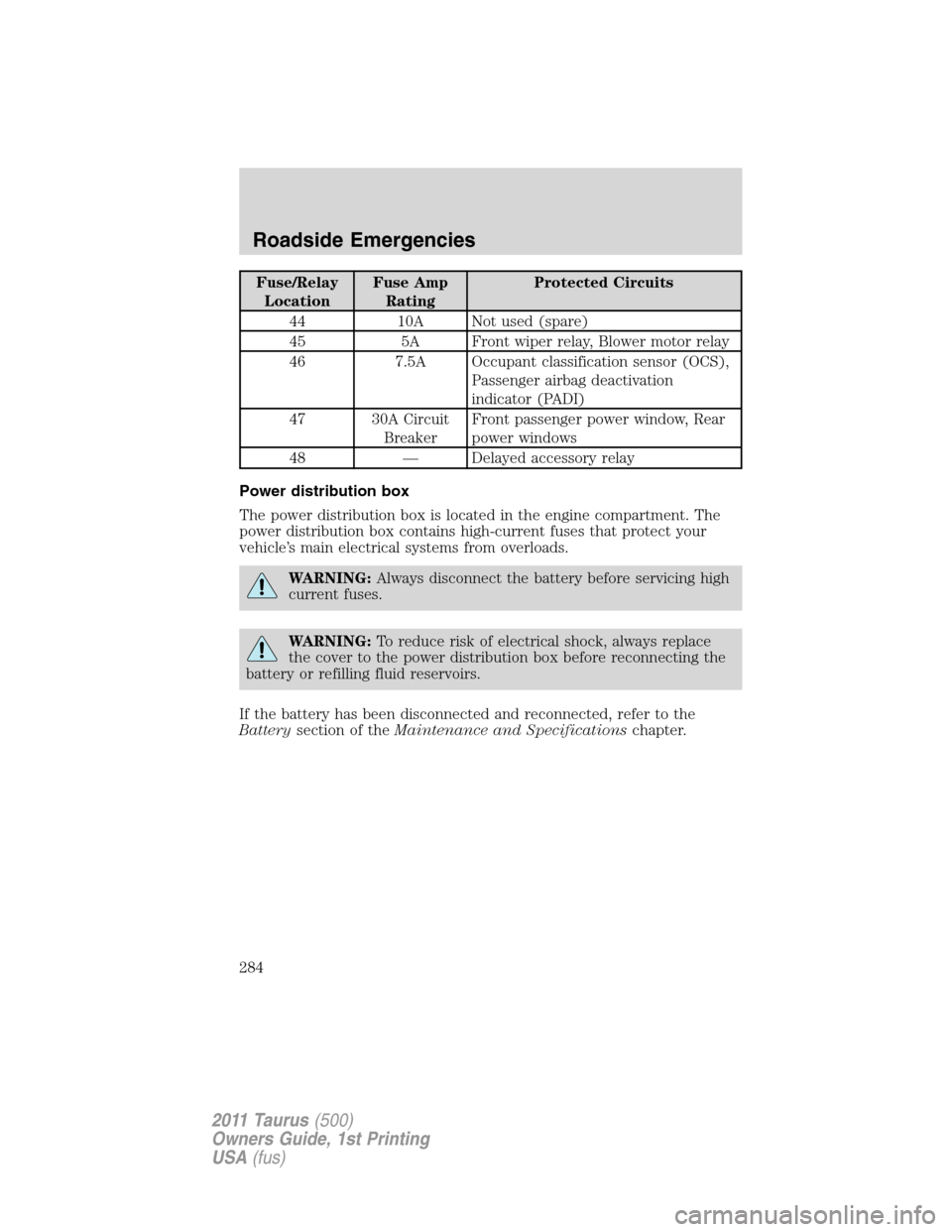

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
44 10A Not used (spare)
45 5A Front wiper relay, Blower motor relay
46 7.5A Occupant classification sensor (OCS),
Passenger airbag deactivation
indicator (PADI)
47 30A Circuit
BreakerFront passenger power window, Rear
power windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
284
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 288 of 406

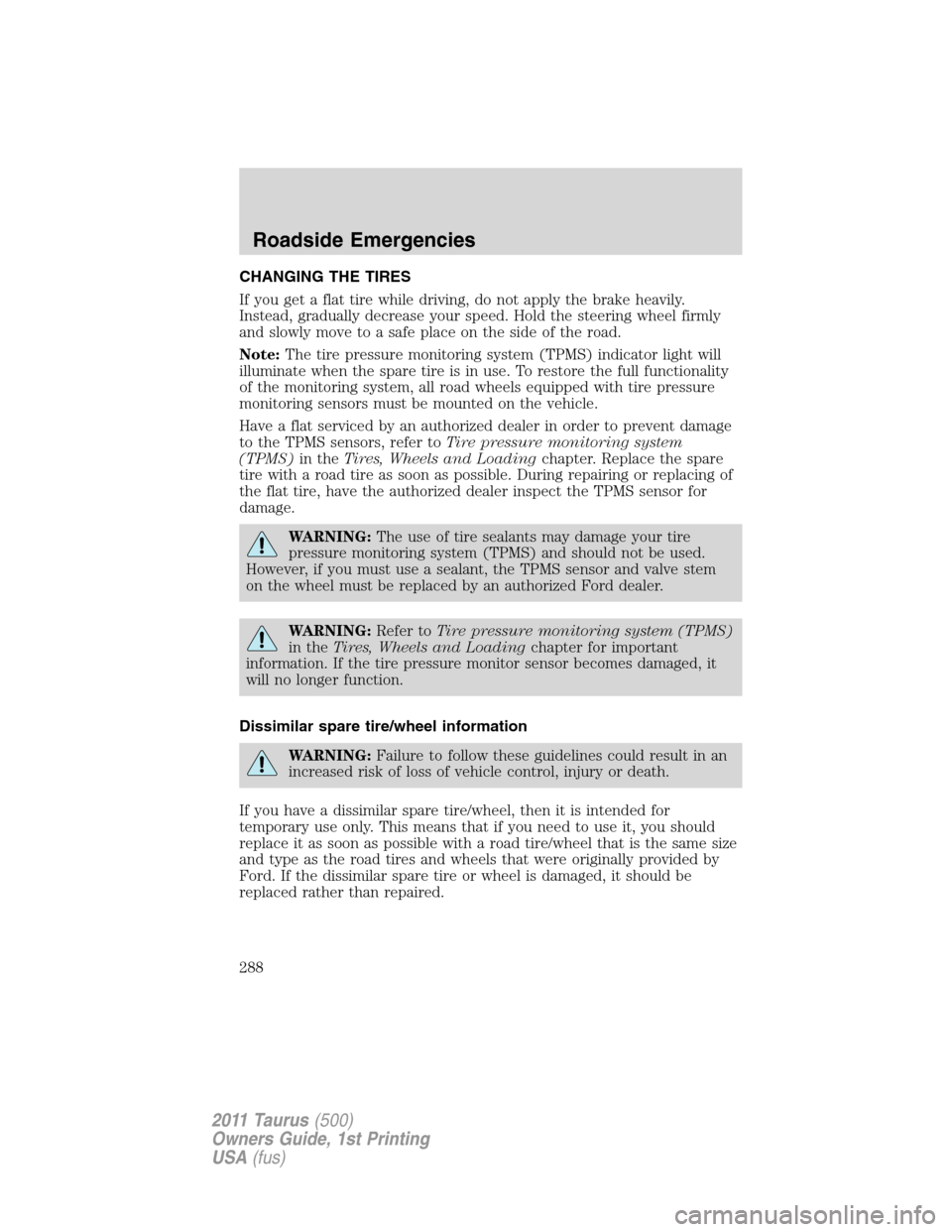

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
Roadside Emergencies
288
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 297 of 406

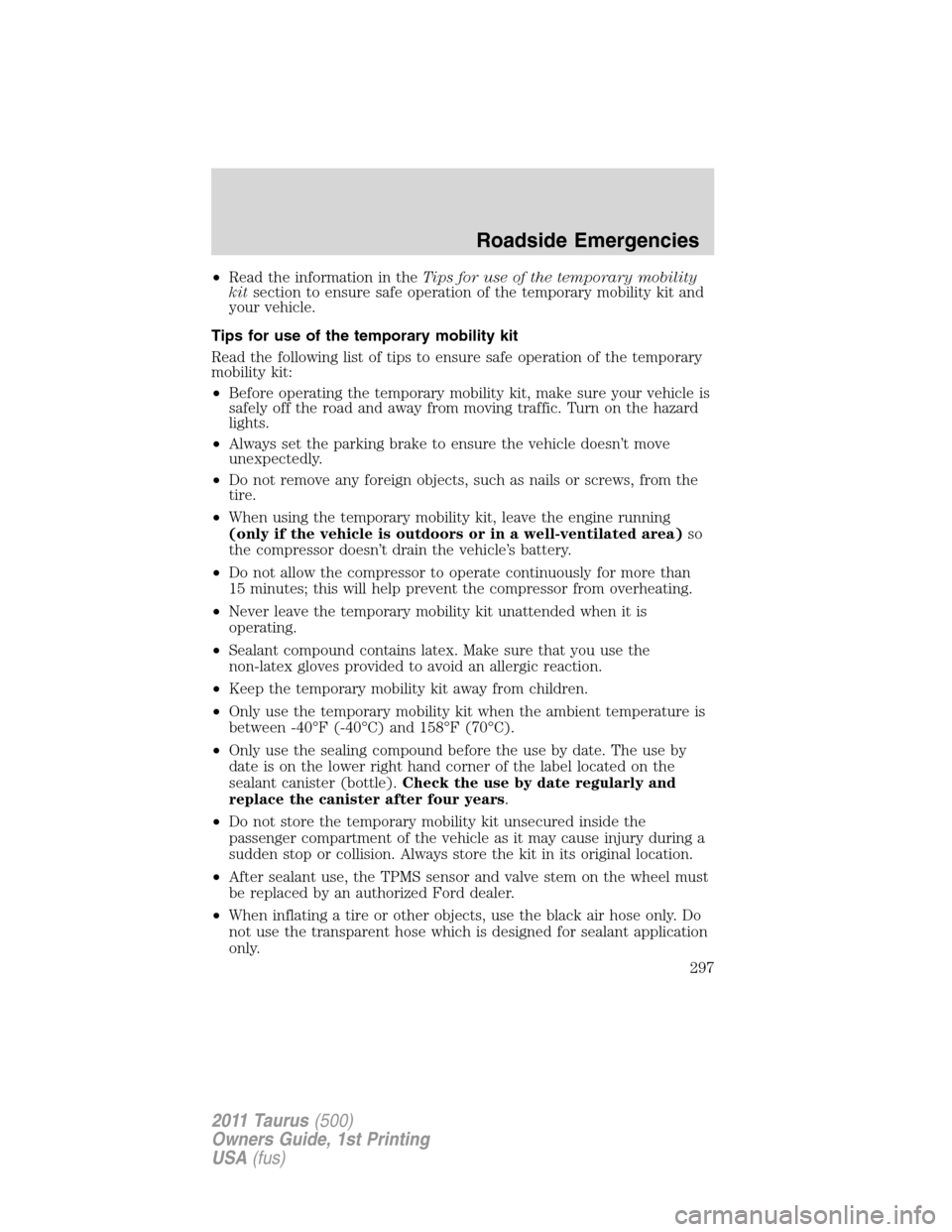

•Read the information in theTips for use of the temporary mobility
kitsection to ensure safe operation of the temporary mobility kit and
your vehicle.
Tips for use of the temporary mobility kit
Read the following list of tips to ensure safe operation of the temporary
mobility kit:
•Before operating the temporary mobility kit, make sure your vehicle is
safely off the road and away from moving traffic. Turn on the hazard
lights.
•Always set the parking brake to ensure the vehicle doesn’t move
unexpectedly.
•Do not remove any foreign objects, such as nails or screws, from the
tire.
•When using the temporary mobility kit, leave the engine running
(only if the vehicle is outdoors or in a well-ventilated area)so
the compressor doesn’t drain the vehicle’s battery.
•Do not allow the compressor to operate continuously for more than
15 minutes; this will help prevent the compressor from overheating.
•Never leave the temporary mobility kit unattended when it is
operating.
•Sealant compound contains latex. Make sure that you use the
non-latex gloves provided to avoid an allergic reaction.
•Keep the temporary mobility kit away from children.
•Only use the temporary mobility kit when the ambient temperature is
between -40°F (-40°C) and 158°F (70°C).
•Only use the sealing compound before the use by date. The use by
date is on the lower right hand corner of the label located on the
sealant canister (bottle).Check the use by date regularly and
replace the canister after four years.
•Do not store the temporary mobility kit unsecured inside the
passenger compartment of the vehicle as it may cause injury during a
sudden stop or collision. Always store the kit in its original location.
•After sealant use, the TPMS sensor and valve stem on the wheel must
be replaced by an authorized Ford dealer.
•When inflating a tire or other objects, use the black air hose only. Do
not use the transparent hose which is designed for sealant application
only.
Roadside Emergencies
297
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

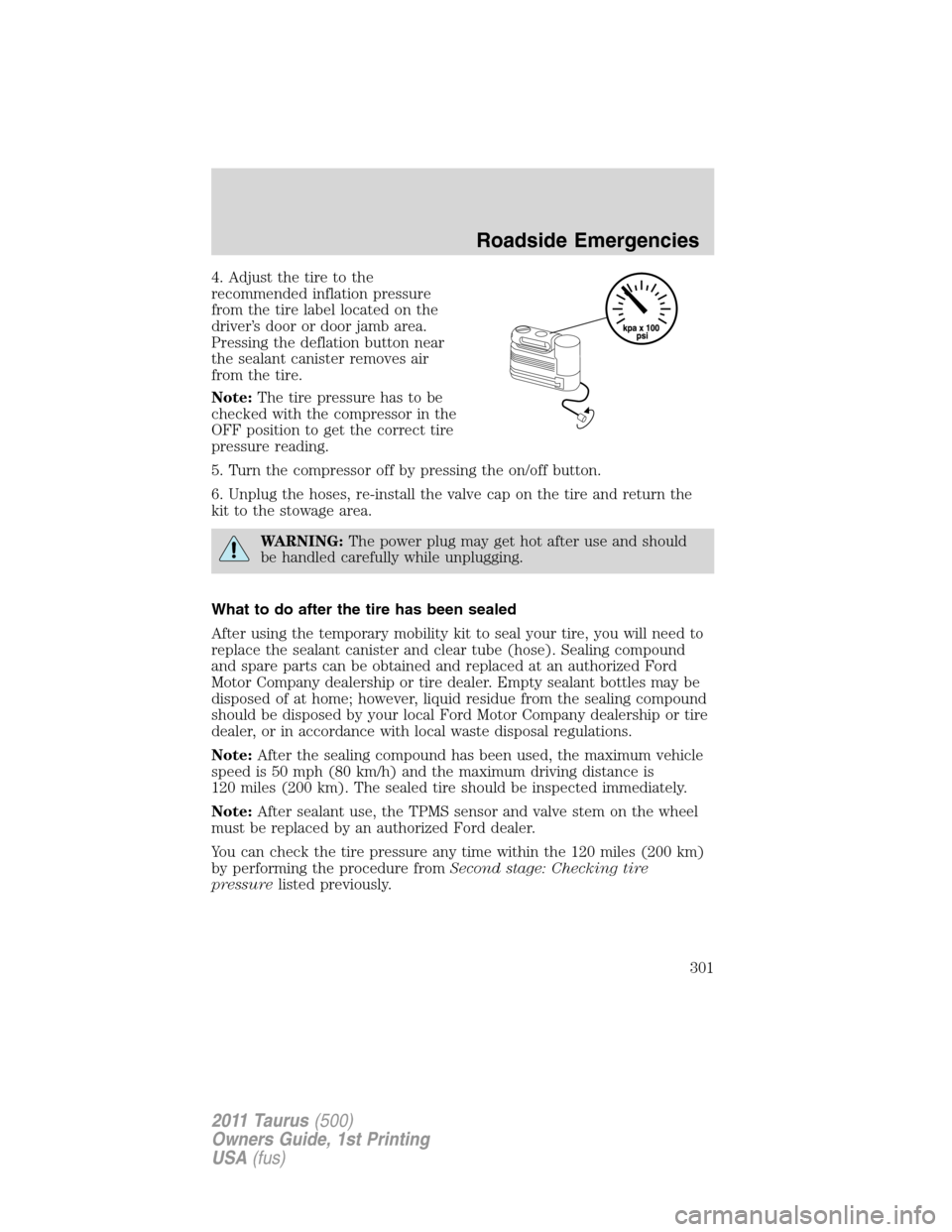

Page 301 of 406
4. Adjust the tire to the
recommended inflation pressure
from the tire label located on the
driver’s door or door jamb area.
Pressing the deflation button near
the sealant canister removes air
from the tire.
Note:The tire pressure has to be
checked with the compressor in the
OFF position to get the correct tire
pressure reading.
5. Turn the compressor off by pressing the on/off button.
6. Unplug the hoses, re-install the valve cap on the tire and return the
kit to the stowage area.
WARNING:The power plug may get hot after use and should
be handled carefully while unplugging.
What to do after the tire has been sealed
After using the temporary mobility kit to seal your tire, you will need to
replace the sealant canister and clear tube (hose). Sealing compound
and spare parts can be obtained and replaced at an authorized Ford
Motor Company dealership or tire dealer. Empty sealant bottles may be
disposed of at home; however, liquid residue from the sealing compound
should be disposed by your local Ford Motor Company dealership or tire
dealer, or in accordance with local waste disposal regulations.
Note:After the sealing compound has been used, the maximum vehicle
speed is 50 mph (80 km/h) and the maximum driving distance is
120 miles (200 km). The sealed tire should be inspected immediately.
Note:After sealant use, the TPMS sensor and valve stem on the wheel
must be replaced by an authorized Ford dealer.
You can check the tire pressure any time within the 120 miles (200 km)
by performing the procedure fromSecond stage: Checking tire
pressurelisted previously.
Roadside Emergencies
301
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

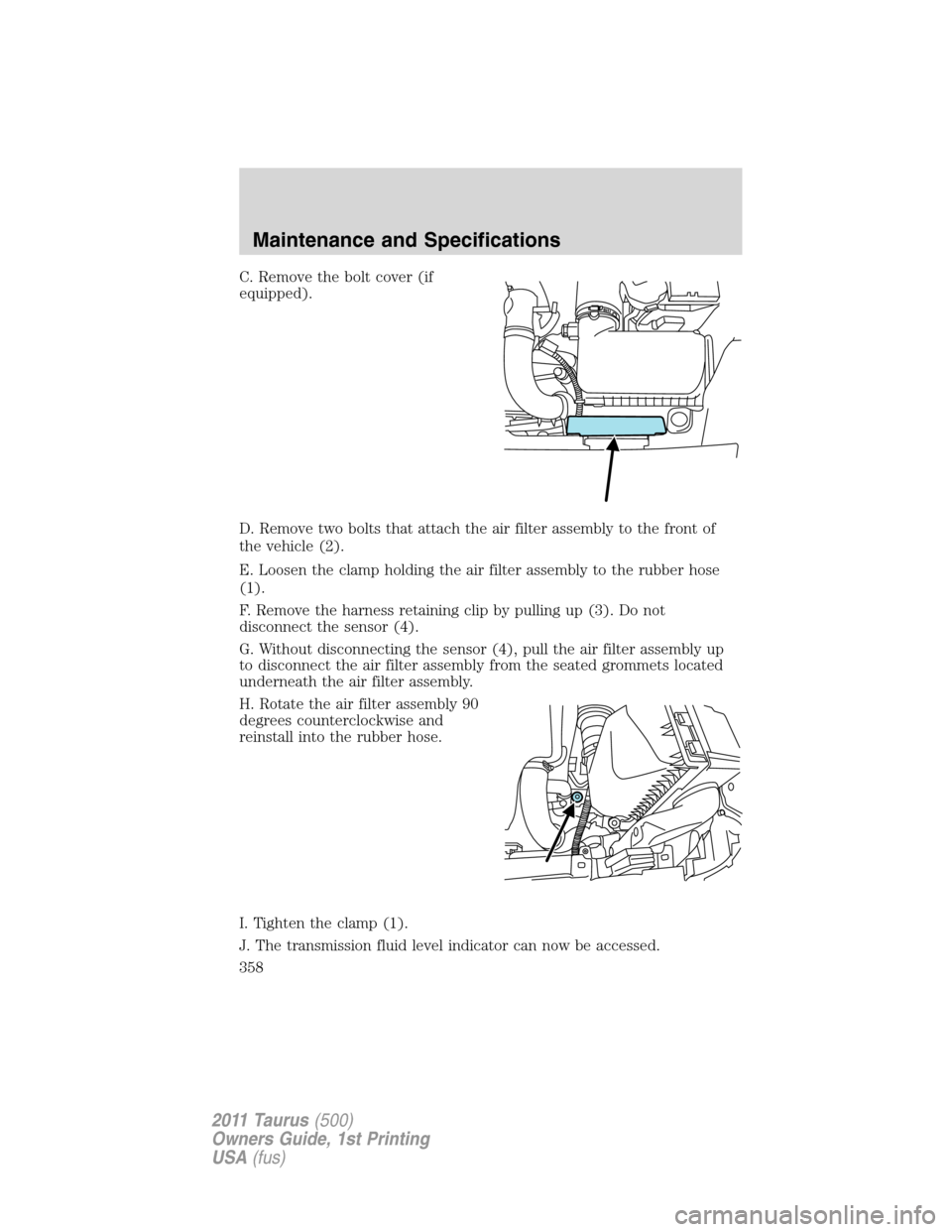

Page 358 of 406
C. Remove the bolt cover (if
equipped).
D. Remove two bolts that attach the air filter assembly to the front of
the vehicle (2).
E. Loosen the clamp holding the air filter assembly to the rubber hose
(1).
F. Remove the harness retaining clip by pulling up (3). Do not
disconnect the sensor (4).
G. Without disconnecting the sensor (4), pull the air filter assembly up
to disconnect the air filter assembly from the seated grommets located
underneath the air filter assembly.
H. Rotate the air filter assembly 90
degrees counterclockwise and
reinstall into the rubber hose.
I. Tighten the clamp (1).
J. The transmission fluid level indicator can now be accessed.
Maintenance and Specifications
358
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 360 of 406

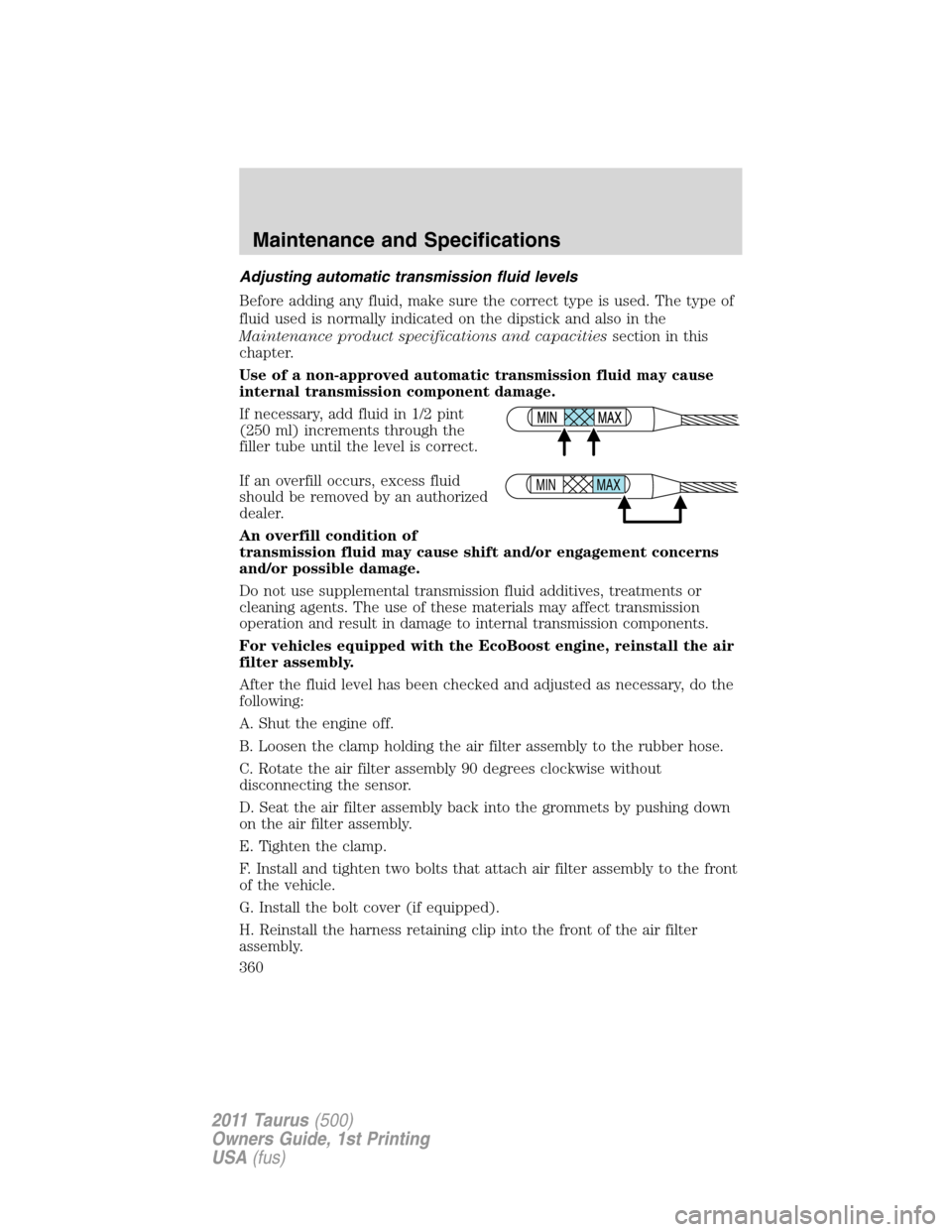

Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Maintenance product specifications and capacitiessection in this
chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint
(250 ml) increments through the
filler tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
For vehicles equipped with the EcoBoost engine, reinstall the air
filter assembly.
After the fluid level has been checked and adjusted as necessary, do the
following:
A. Shut the engine off.
B. Loosen the clamp holding the air filter assembly to the rubber hose.
C. Rotate the air filter assembly 90 degrees clockwise without
disconnecting the sensor.
D. Seat the air filter assembly back into the grommets by pushing down
on the air filter assembly.
E. Tighten the clamp.
F. Install and tighten two bolts that attach air filter assembly to the front
of the vehicle.
G. Install the bolt cover (if equipped).
H. Reinstall the harness retaining clip into the front of the air filter
assembly.
MAX MIN
Maintenance and Specifications
360
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

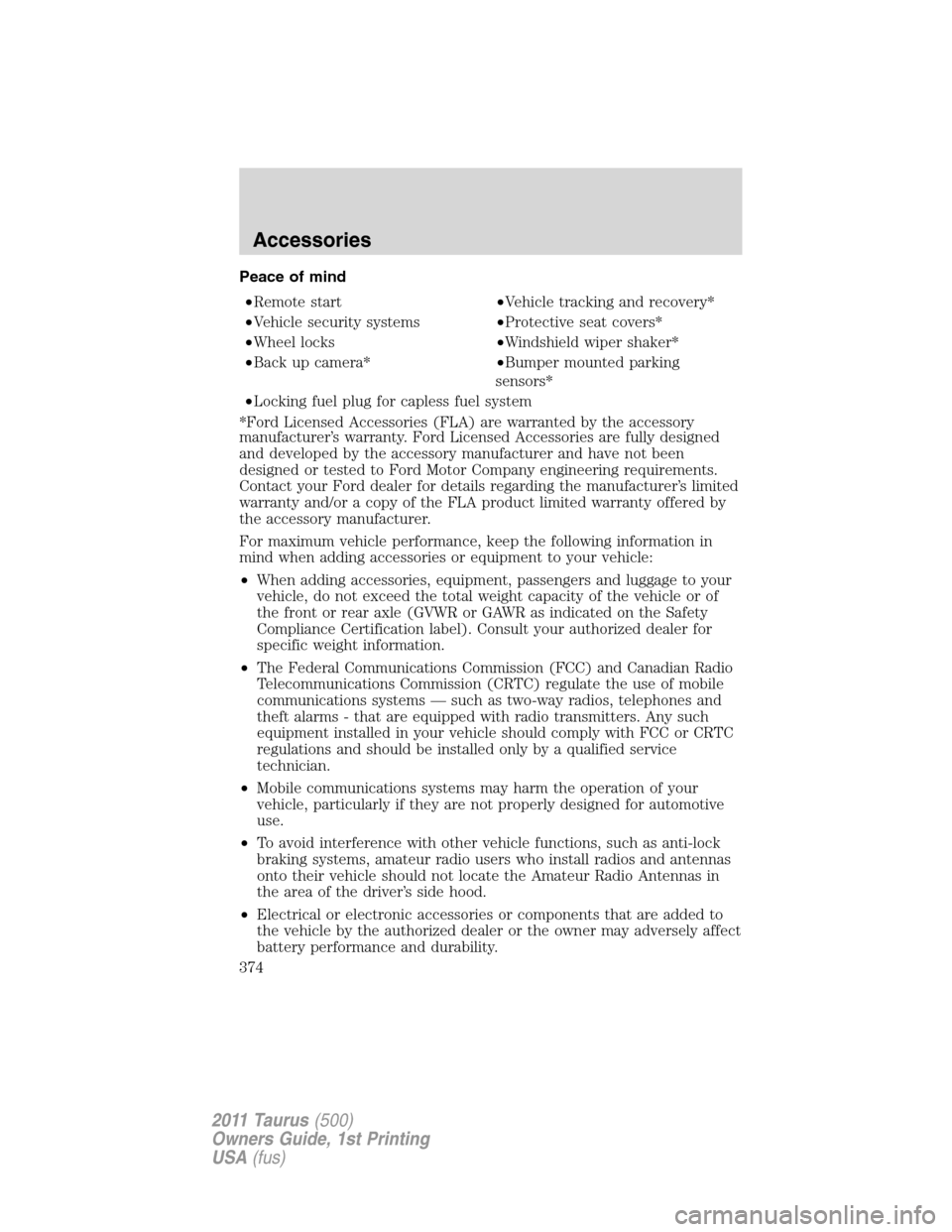

Page 374 of 406
Peace of mind
•Remote start•Vehicle tracking and recovery*
•Vehicle security systems•Protective seat covers*
•Wheel locks•Windshield wiper shaker*
•Back up camera*•Bumper mounted parking
sensors*
•Locking fuel plug for capless fuel system
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
374
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

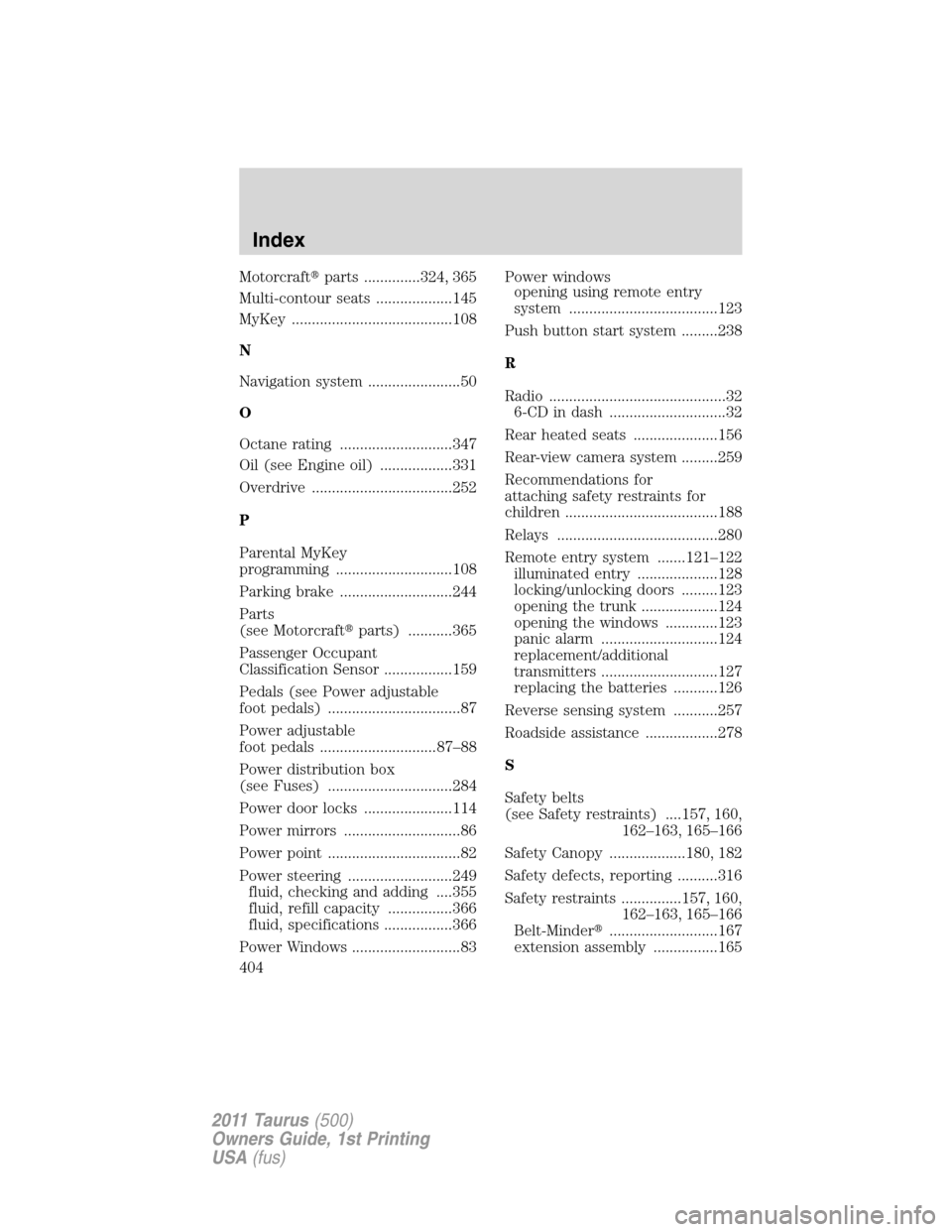

Page 404 of 406
Motorcraftparts ..............324, 365
Multi-contour seats ...................145
MyKey ........................................108
N
Navigation system .......................50
O
Octane rating ............................347
Oil (see Engine oil) ..................331
Overdrive ...................................252
P
Parental MyKey
programming .............................108
Parking brake ............................244
Parts
(see Motorcraftparts) ...........365
Passenger Occupant
Classification Sensor .................159
Pedals (see Power adjustable
foot pedals) .................................87
Power adjustable
foot pedals .............................87–88
Power distribution box
(see Fuses) ...............................284
Power door locks ......................114
Power mirrors .............................86
Power point .................................82
Power steering ..........................249
fluid, checking and adding ....355
fluid, refill capacity ................366
fluid, specifications .................366
Power Windows ...........................83Power windows
opening using remote entry
system .....................................123
Push button start system .........238
R
Radio ............................................32
6-CD in dash .............................32
Rear heated seats .....................156
Rear-view camera system .........259
Recommendations for
attaching safety restraints for
children ......................................188
Relays ........................................280
Remote entry system .......121–122
illuminated entry ....................128
locking/unlocking doors .........123
opening the trunk ...................124
opening the windows .............123
panic alarm .............................124
replacement/additional
transmitters .............................127
replacing the batteries ...........126
Reverse sensing system ...........257
Roadside assistance ..................278
S
Safety belts
(see Safety restraints) ....157, 160,
162–163, 165–166
Safety Canopy ...................180, 182
Safety defects, reporting ..........316
Safety restraints ...............157, 160,
162–163, 165–166
Belt-Minder...........................167
extension assembly ................165
Index
404
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

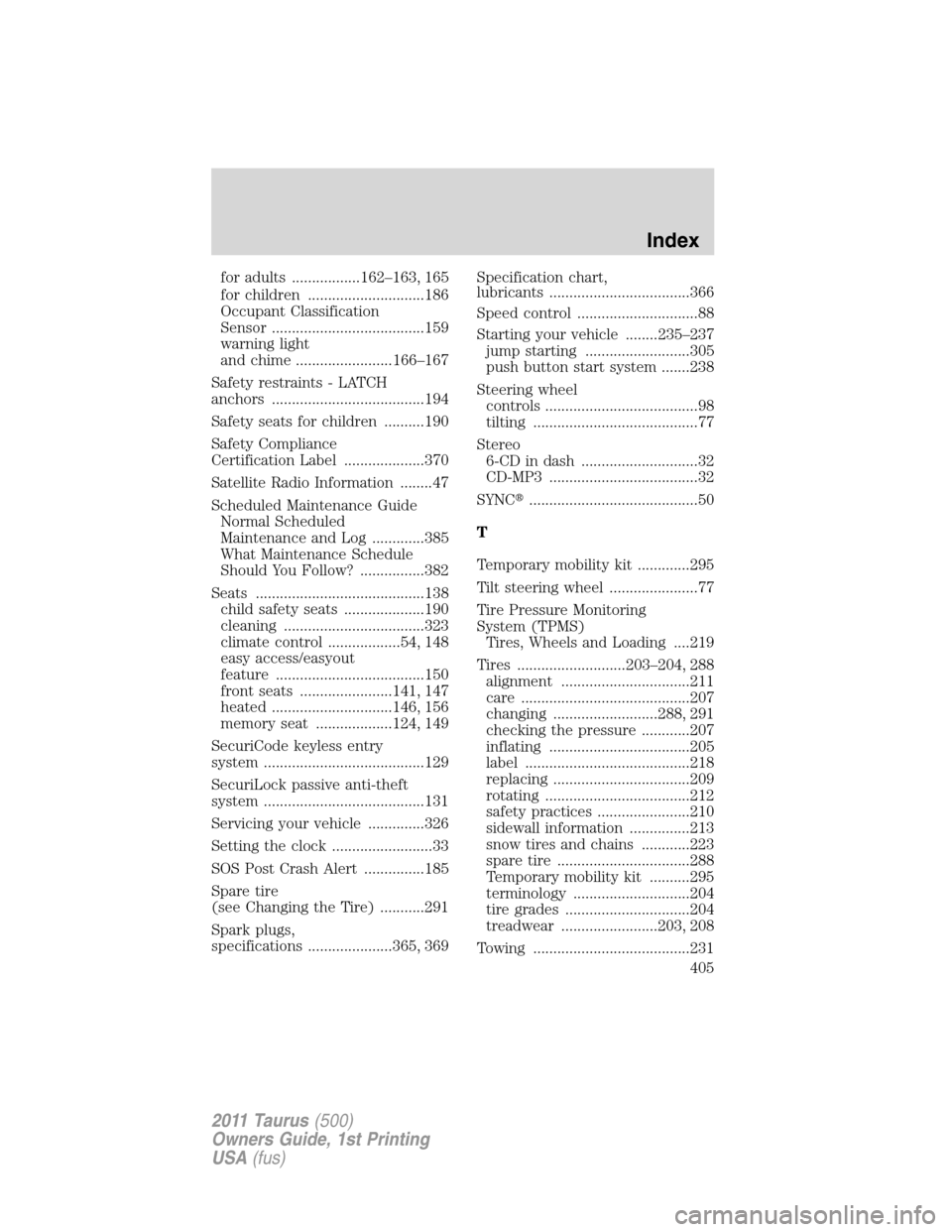

Page 405 of 406
for adults .................162–163, 165
for children .............................186
Occupant Classification
Sensor ......................................159
warning light
and chime ........................166–167
Safety restraints - LATCH
anchors ......................................194
Safety seats for children ..........190
Safety Compliance
Certification Label ....................370
Satellite Radio Information ........47
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............385
What Maintenance Schedule
Should You Follow? ................382
Seats ..........................................138
child safety seats ....................190
cleaning ...................................323
climate control ..................54, 148
easy access/easyout
feature .....................................150
front seats .......................141, 147
heated ..............................146, 156
memory seat ...................124, 149
SecuriCode keyless entry
system ........................................129
SecuriLock passive anti-theft
system ........................................131
Servicing your vehicle ..............326
Setting the clock .........................33
SOS Post Crash Alert ...............185
Spare tire
(see Changing the Tire) ...........291
Spark plugs,
specifications .....................365, 369Specification chart,
lubricants ...................................366
Speed control ..............................88
Starting your vehicle ........235–237
jump starting ..........................305
push button start system .......238
Steering wheel
controls ......................................98
tilting .........................................77
Stereo
6-CD in dash .............................32
CD-MP3 .....................................32
SYNC..........................................50
T
Temporary mobility kit .............295
Tilt steering wheel ......................77
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....219
Tires ...........................203–204, 288
alignment ................................211
care ..........................................207
changing ..........................288, 291
checking the pressure ............207
inflating ...................................205
label .........................................218
replacing ..................................209
rotating ....................................212
safety practices .......................210
sidewall information ...............213
snow tires and chains ............223
spare tire .................................288
Temporary mobility kit ..........295
terminology .............................204
tire grades ...............................204
treadwear ........................203, 208
Towing .......................................231
Index
405
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
