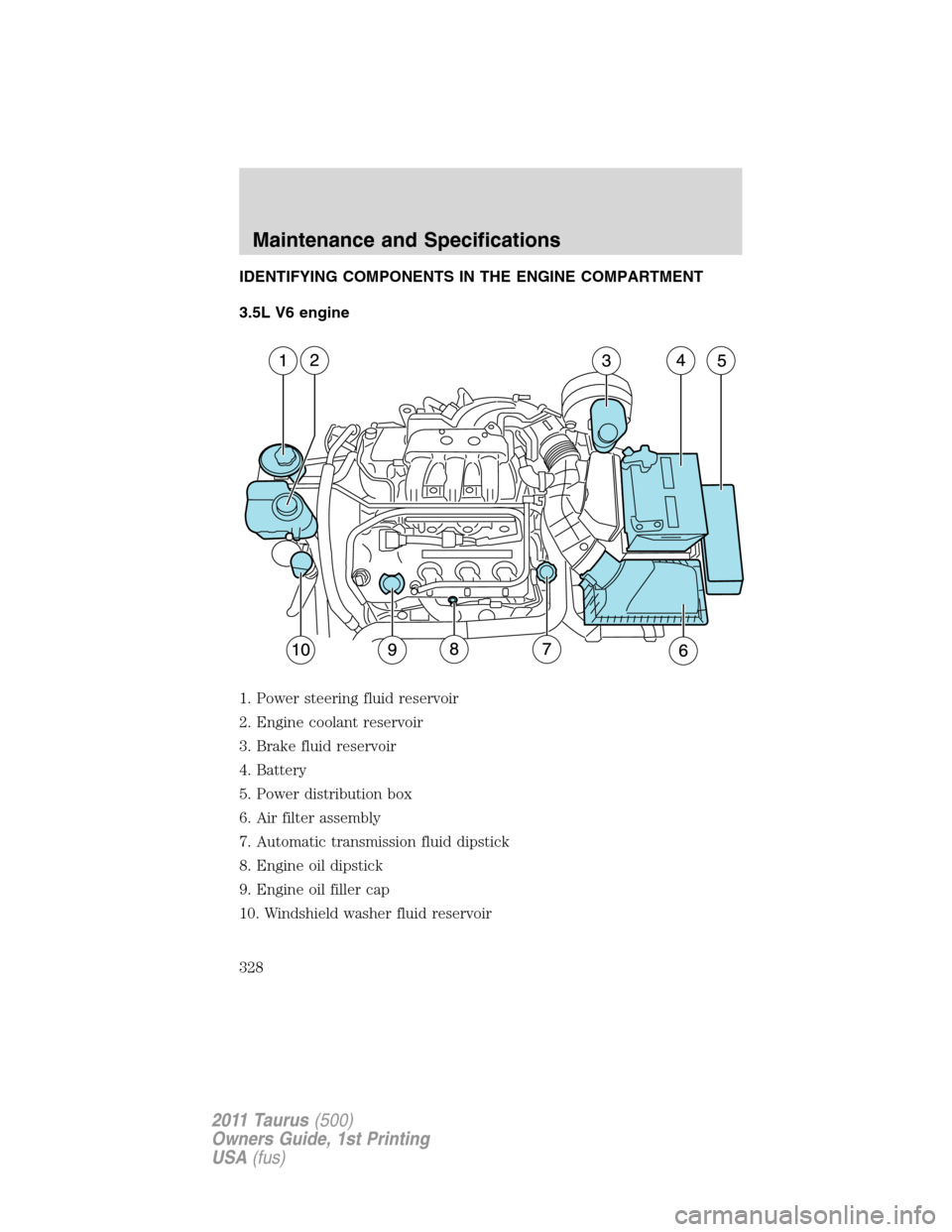

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.5L V6 engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery
5. Power distribution box
6. Air filter assembly
7. Automatic transmission fluid dipstick
8. Engine oil dipstick
9. Engine oil filler cap
10. Windshield washer fluid reservoir
Maintenance and Specifications
328
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 329 of 406

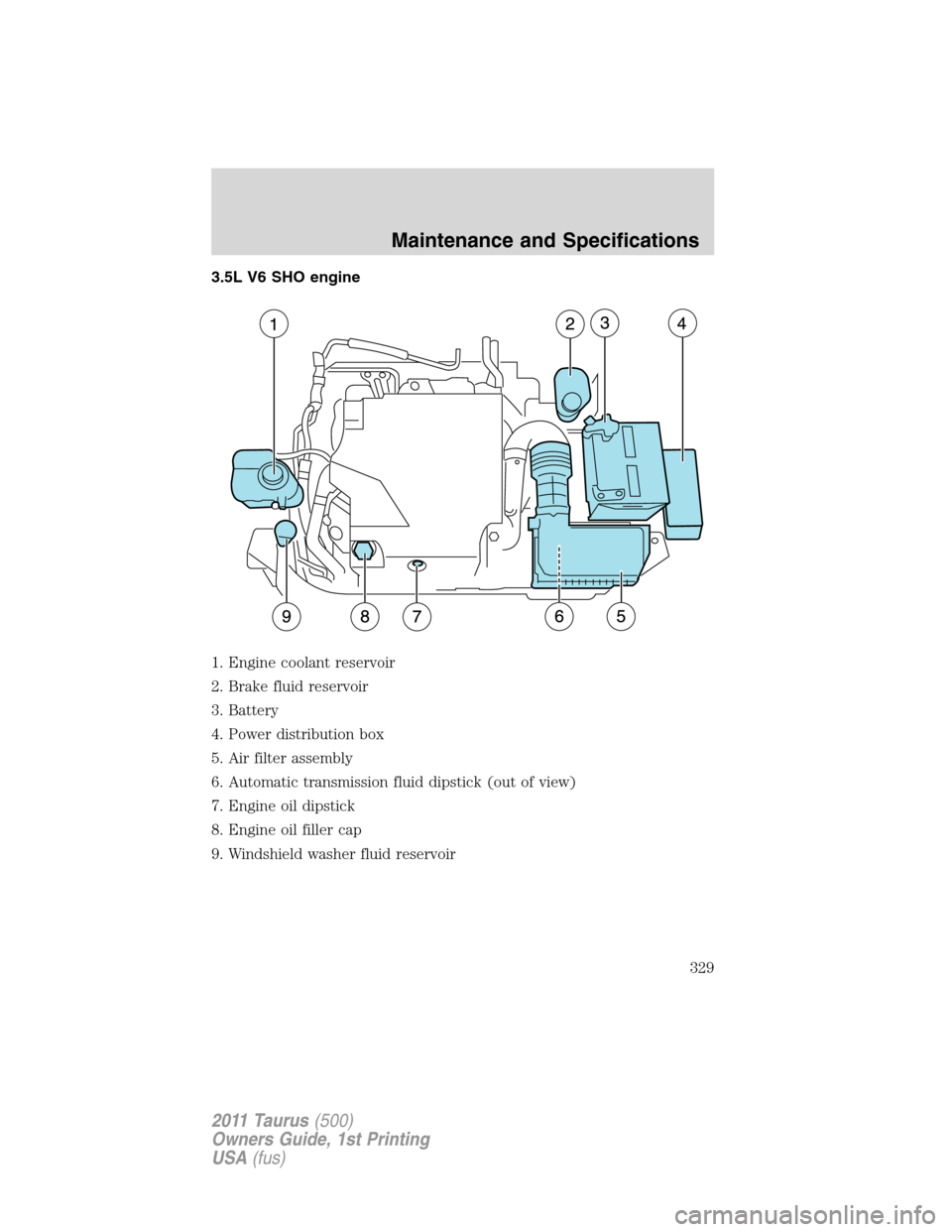

3.5L V6 SHO engine
1. Engine coolant reservoir
2. Brake fluid reservoir
3. Battery
4. Power distribution box
5. Air filter assembly
6. Automatic transmission fluid dipstick (out of view)
7. Engine oil dipstick
8. Engine oil filler cap
9. Windshield washer fluid reservoir
Maintenance and Specifications
329
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 332 of 406

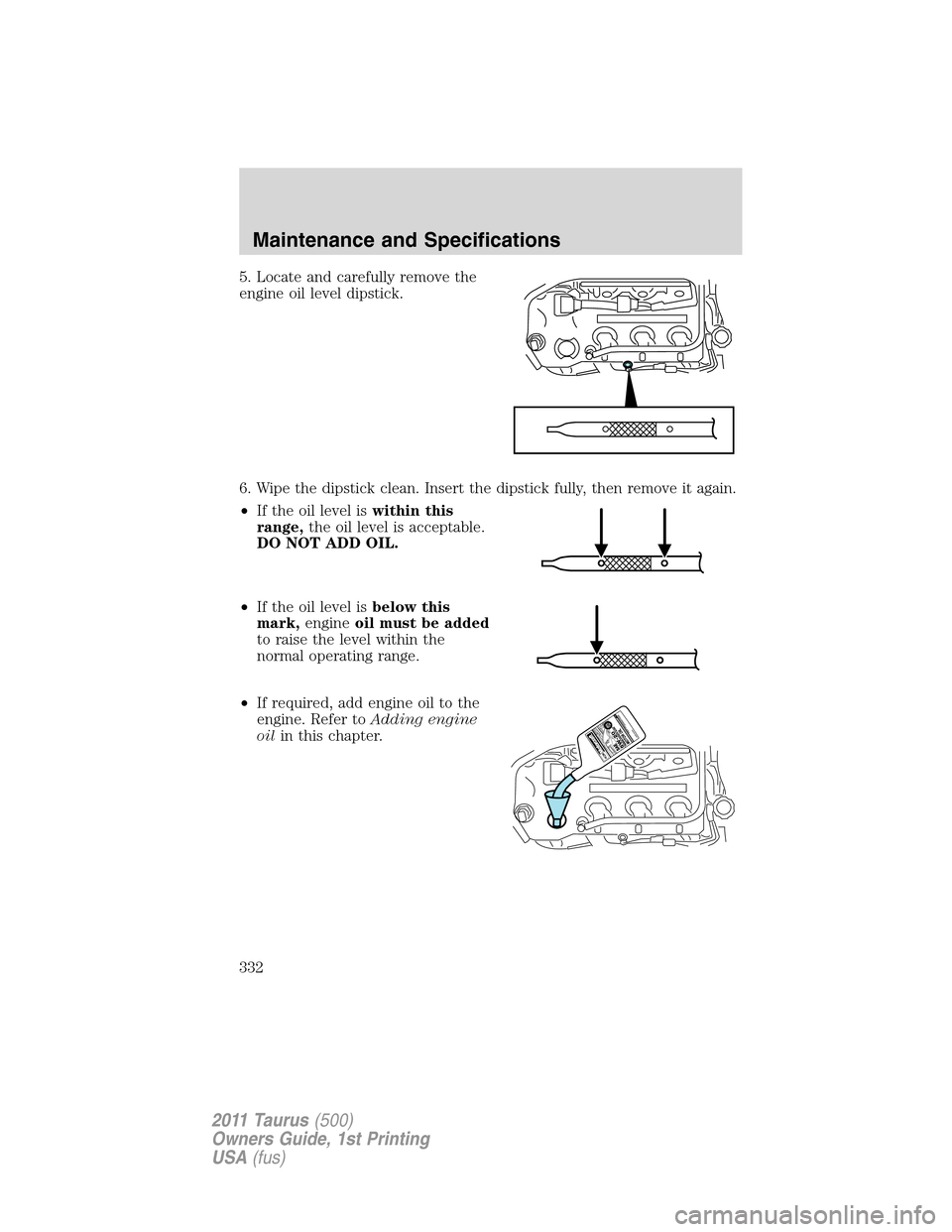

5. Locate and carefully remove the
engine oil level dipstick.
6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again.
•If the oil level iswithin this
range,the oil level is acceptable.
DO NOT ADD OIL.
•If the oil level isbelow this
mark,engineoil must be added
to raise the level within the
normal operating range.
•If required, add engine oil to the
engine. Refer toAdding engine
oilin this chapter.
Maintenance and Specifications
332
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 333 of 406

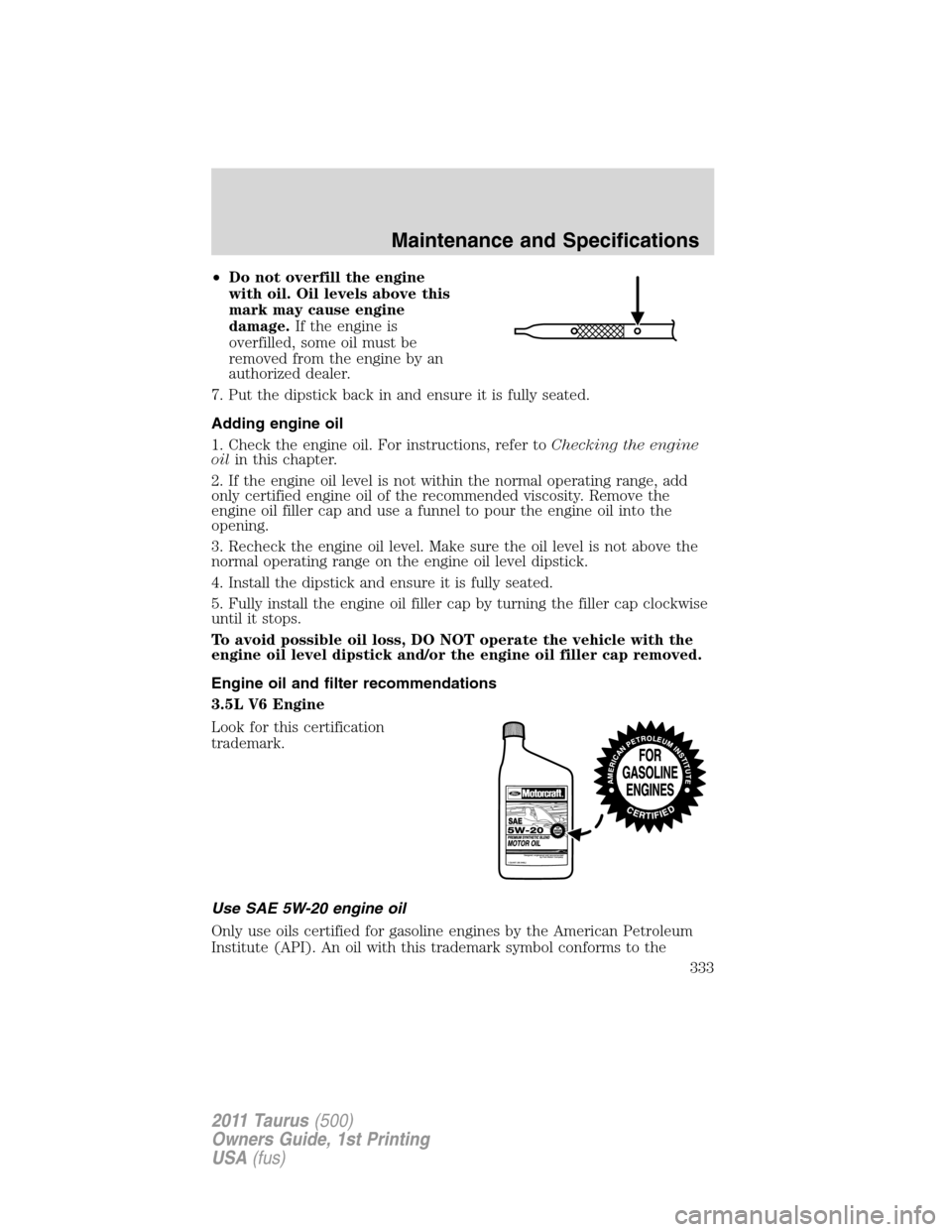

•Do not overfill the engine
with oil. Oil levels above this
mark may cause engine
damage.If the engine is
overfilled, some oil must be
removed from the engine by an
authorized dealer.
7. Put the dipstick back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal operating range, add
only certified engine oil of the recommended viscosity. Remove the
engine oil filler cap and use a funnel to pour the engine oil into the
opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level dipstick.
4. Install the dipstick and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
until it stops.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level dipstick and/or the engine oil filler cap removed.
Engine oil and filter recommendations
3.5L V6 Engine
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils certified for gasoline engines by the American Petroleum
Institute (API). An oil with this trademark symbol conforms to the
Maintenance and Specifications
333
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 383 of 406

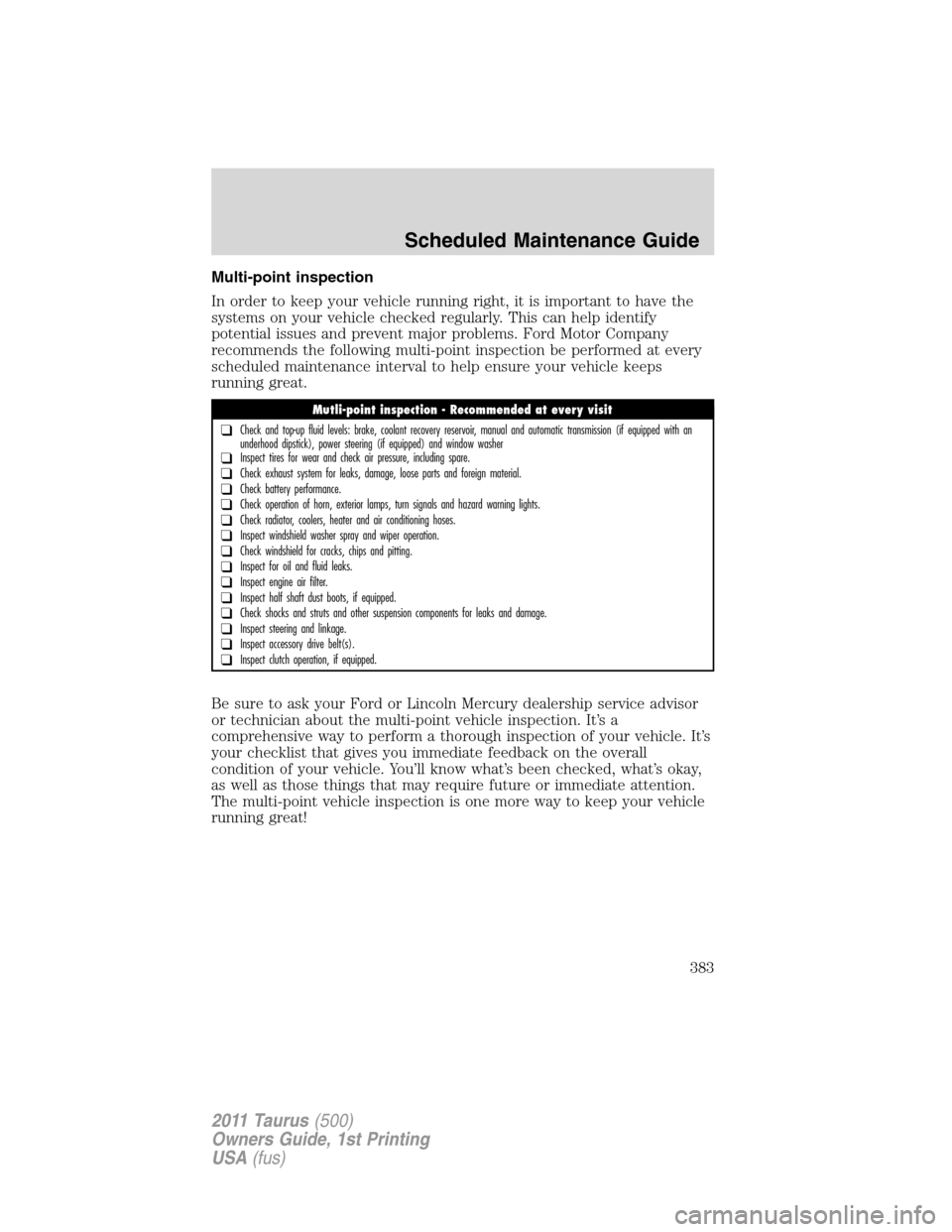

Multi-point inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help ensure your vehicle keeps
running great.
Be sure to ask your Ford or Lincoln Mercury dealership service advisor
or technician about the multi-point vehicle inspection. It’s a
comprehensive way to perform a thorough inspection of your vehicle. It’s
your checklist that gives you immediate feedback on the overall
condition of your vehicle. You’ll know what’s been checked, what’s okay,
as well as those things that may require future or immediate attention.
The multi-point vehicle inspection is one more way to keep your vehicle
running great!
Mutli-point inspection - Recommended at every visit
❑Check and top-up fluid levels: brake, coolant recovery reservoir, manual and automatic transmission (if equipped with an
underhood dipstick), power steering (if equipped) and window washer
❑Inspect tires for wear and check air pressure, including spare.
❑Check exhaust system for leaks, damage, loose parts and foreign material.
❑Check battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers, heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air filter.
❑Inspect half shaft dust boots, if equipped.
❑Check shocks and struts and other suspension components for leaks and damage.
❑Inspect steering and linkage.
❑Inspect accessory drive belt(s).
❑Inspect clutch operation, if equipped.
Scheduled Maintenance Guide
383
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 386 of 406

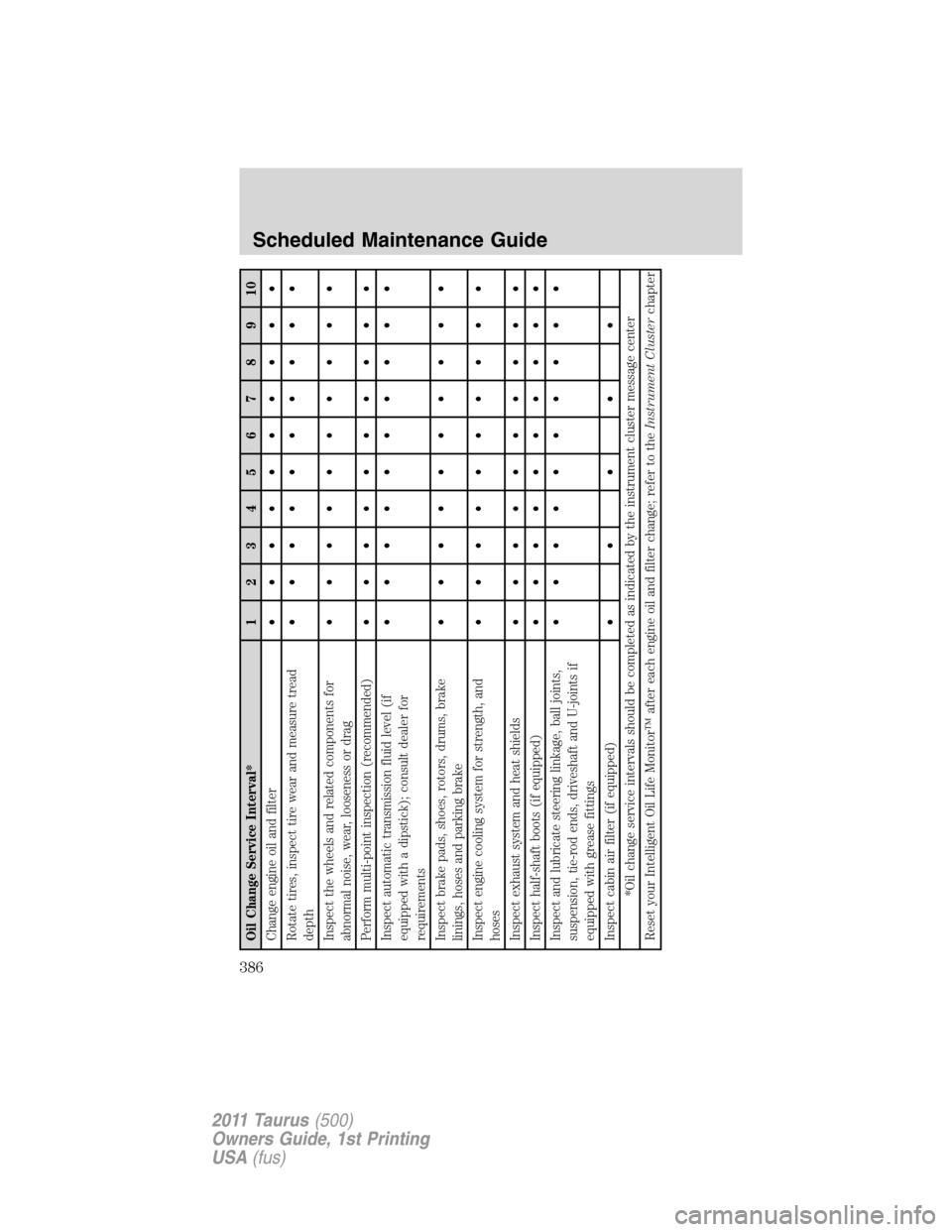

Oil Change Service Interval* 1 2 345678910
Change engine oil and filter• •••••••••
Rotate tires, inspect tire wear and measure tread
depth• •••••••••
Inspect the wheels and related components for
abnormal noise, wear, looseness or drag• •••••••••
Perform multi-point inspection (recommended)• •••••••••
Inspect automatic transmission fluid level (if
equipped with a dipstick); consult dealer for
requirements• •••••••••
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake• •••••••••
Inspect engine cooling system for strength, and
hoses• •••••••••
Inspect exhaust system and heat shields• •••••••••
Inspect half-shaft boots (if equipped)• •••••••••
Inspect and lubricate steering linkage, ball joints,
suspension, tie-rod ends, driveshaft and U-joints if
equipped with grease fittings• •••••••••
Inspect cabin air filter (if equipped)• ••••
*Oil change service intervals should be completed as indicated by the instrument cluster message center
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter change; refer to theInstrument Clusterchapter
Scheduled Maintenance Guide
386
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 387 of 406

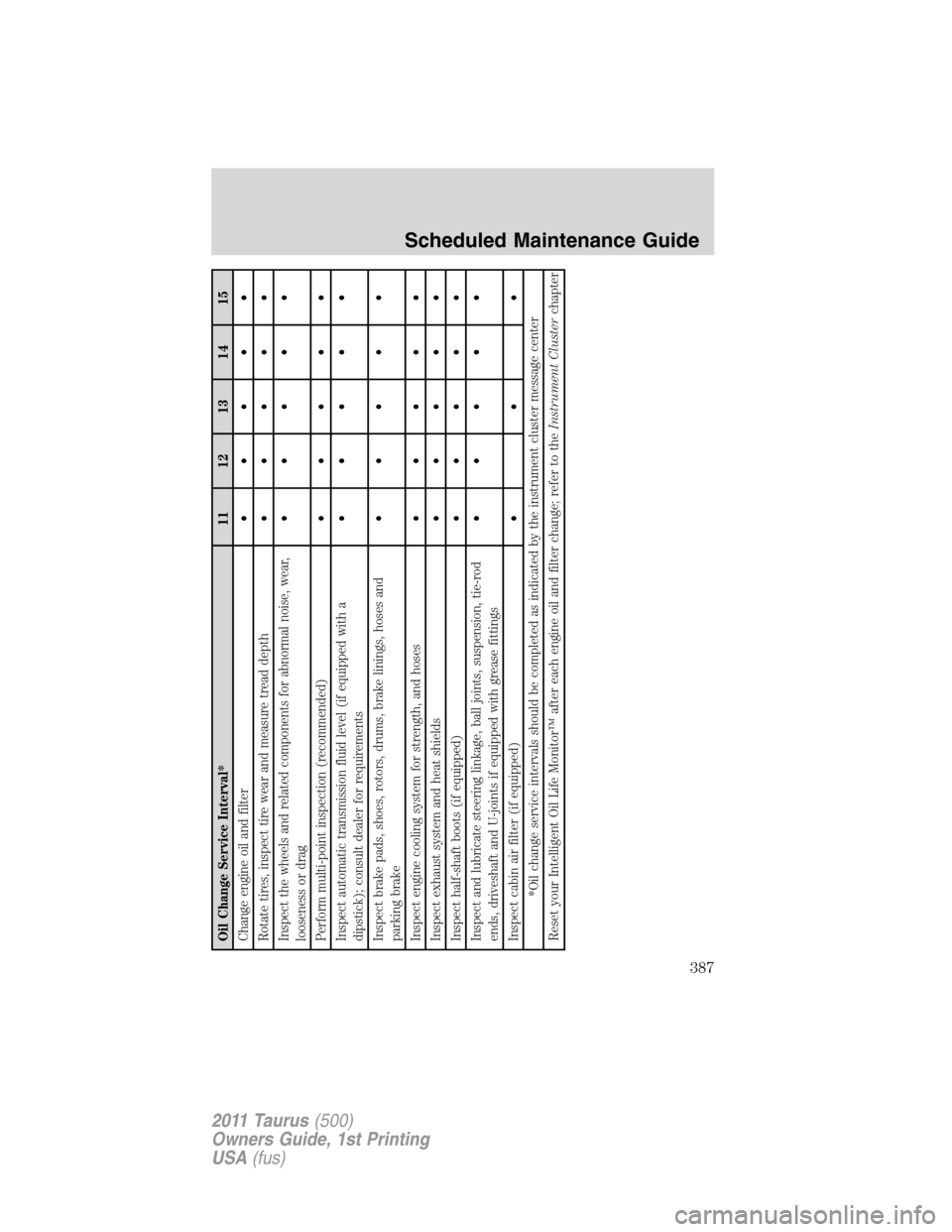

Oil Change Service Interval* 11 12 13 14 15
Change engine oil and filter•••••
Rotate tires, inspect tire wear and measure tread depth•••••
Inspect the wheels and related components for abnormal noise, wear,
looseness or drag•••••
Perform multi-point inspection (recommended)•••••
Inspect automatic transmission fluid level (if equipped with a
dipstick); consult dealer for requirements•••••
Inspect brake pads, shoes, rotors, drums, brake linings, hoses and
parking brake•••••
Inspect engine cooling system for strength, and hoses•••••
Inspect exhaust system and heat shields•••••
Inspect half-shaft boots (if equipped)•••••
Inspect and lubricate steering linkage, ball joints, suspension, tie-rod
ends, driveshaft and U-joints if equipped with grease fittings•••••
Inspect cabin air filter (if equipped)•••
*Oil change service intervals should be completed as indicated by the instrument cluster message center
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter change; refer to theInstrument Clusterchapter
Scheduled Maintenance Guide
387
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)

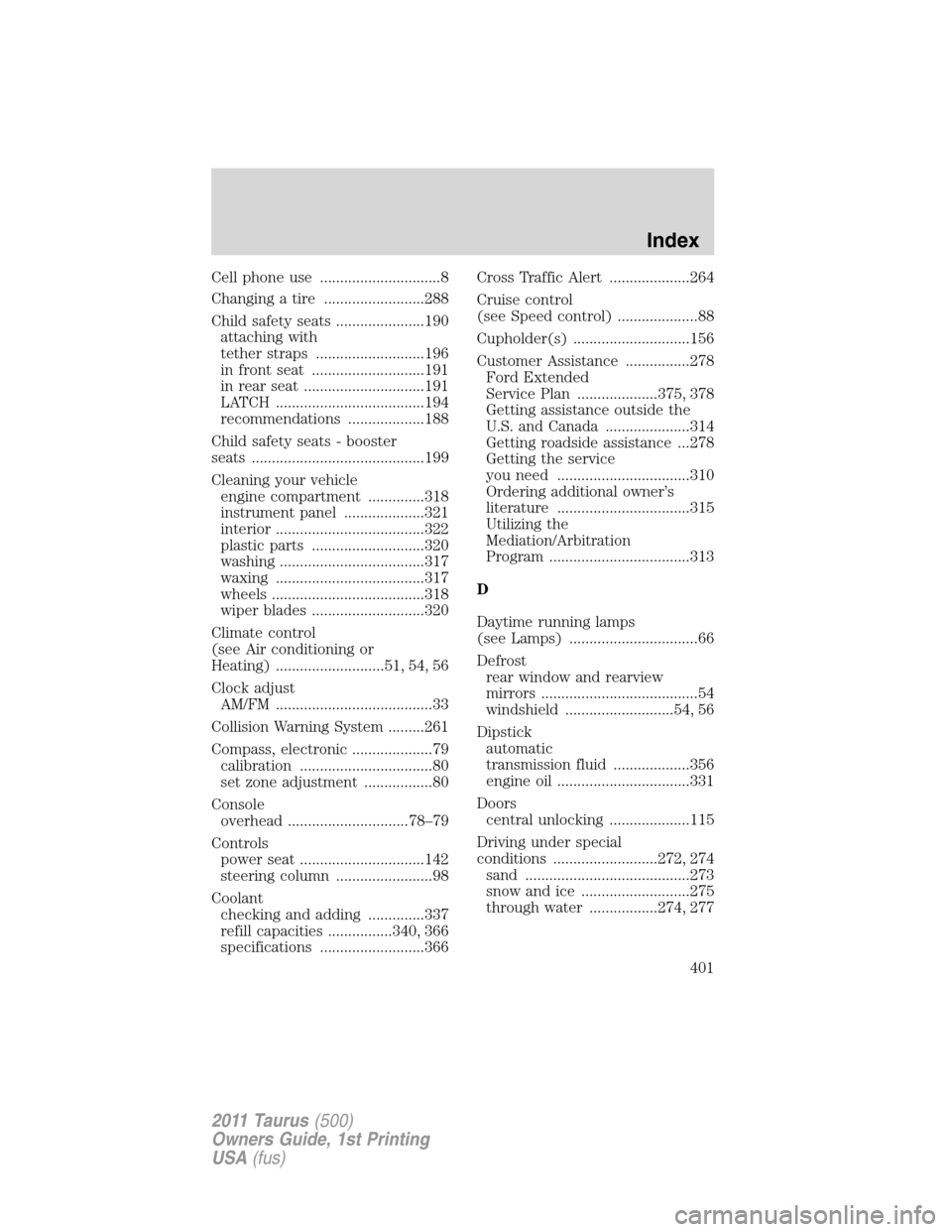

Page 401 of 406
Cell phone use ..............................8
Changing a tire .........................288
Child safety seats ......................190
attaching with
tether straps ...........................196
in front seat ............................191
in rear seat ..............................191
LATCH .....................................194
recommendations ...................188
Child safety seats - booster
seats ...........................................199
Cleaning your vehicle
engine compartment ..............318
instrument panel ....................321
interior .....................................322
plastic parts ............................320
washing ....................................317
waxing .....................................317
wheels ......................................318
wiper blades ............................320
Climate control
(see Air conditioning or
Heating) ...........................51, 54, 56
Clock adjust
AM/FM .......................................33
Collision Warning System .........261
Compass, electronic ....................79
calibration .................................80
set zone adjustment .................80
Console
overhead ..............................78–79
Controls
power seat ...............................142
steering column ........................98
Coolant
checking and adding ..............337
refill capacities ................340, 366
specifications ..........................366Cross Traffic Alert ....................264
Cruise control
(see Speed control) ....................88
Cupholder(s) .............................156
Customer Assistance ................278
Ford Extended
Service Plan ....................375, 378
Getting assistance outside the
U.S. and Canada .....................314
Getting roadside assistance ...278
Getting the service
you need .................................310
Ordering additional owner’s
literature .................................315
Utilizing the
Mediation/Arbitration
Program ...................................313
D
Daytime running lamps
(see Lamps) ................................66
Defrost
rear window and rearview
mirrors .......................................54
windshield ...........................54, 56
Dipstick
automatic
transmission fluid ...................356
engine oil .................................331
Doors
central unlocking ....................115
Driving under special
conditions ..........................272, 274
sand .........................................273
snow and ice ...........................275
through water .................274, 277
Index
401
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Page 402 of 406

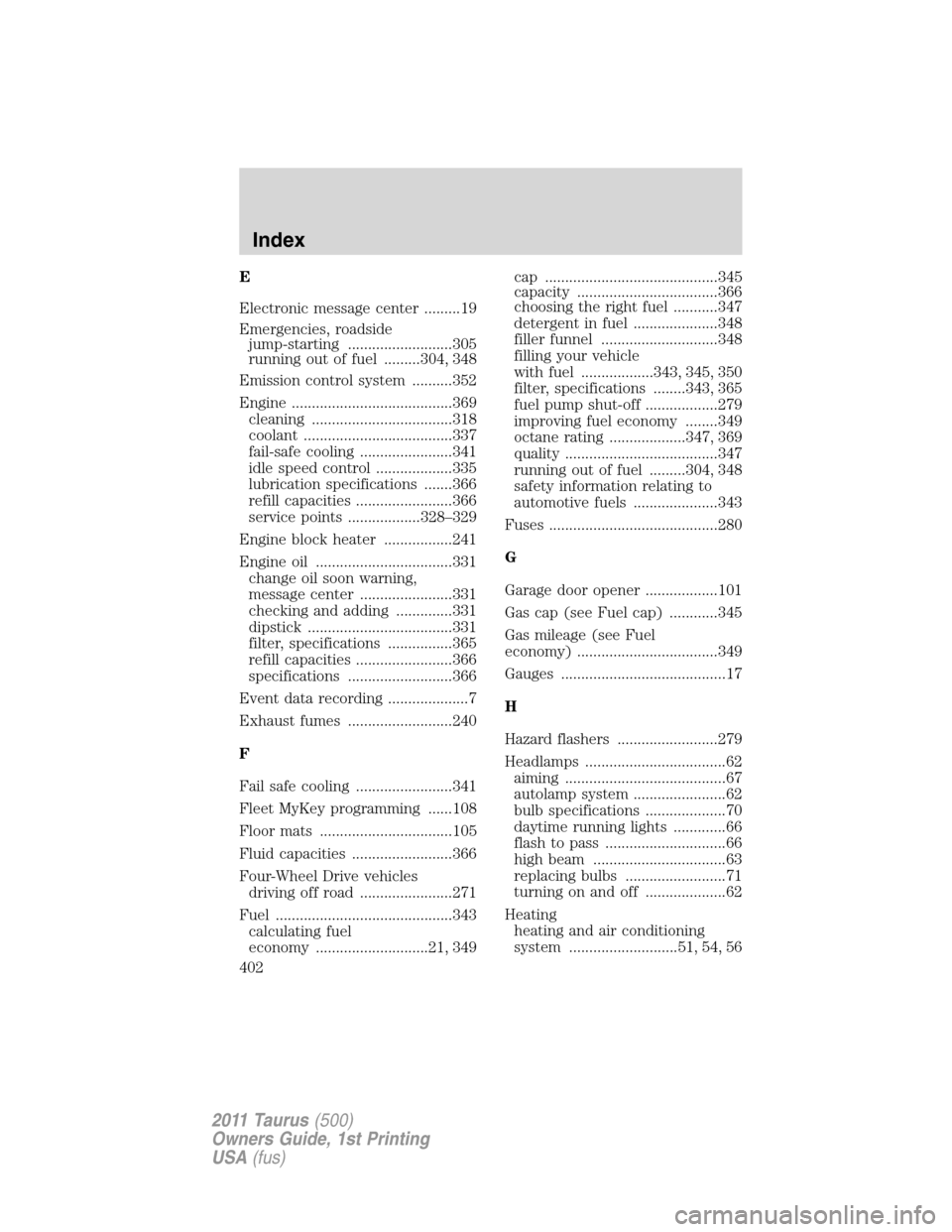

E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................305
running out of fuel .........304, 348
Emission control system ..........352
Engine ........................................369
cleaning ...................................318
coolant .....................................337
fail-safe cooling .......................341
idle speed control ...................335
lubrication specifications .......366
refill capacities ........................366
service points ..................328–329
Engine block heater .................241
Engine oil ..................................331
change oil soon warning,
message center .......................331
checking and adding ..............331
dipstick ....................................331
filter, specifications ................365
refill capacities ........................366
specifications ..........................366
Event data recording ....................7
Exhaust fumes ..........................240
F
Fail safe cooling ........................341
Fleet MyKey programming ......108
Floor mats .................................105
Fluid capacities .........................366
Four-Wheel Drive vehicles
driving off road .......................271
Fuel ............................................343
calculating fuel
economy ............................21, 349cap ...........................................345
capacity ...................................366
choosing the right fuel ...........347
detergent in fuel .....................348
filler funnel .............................348
filling your vehicle
with fuel ..................343, 345, 350
filter, specifications ........343, 365
fuel pump shut-off ..................279
improving fuel economy ........349
octane rating ...................347, 369
quality ......................................347
running out of fuel .........304, 348
safety information relating to
automotive fuels .....................343
Fuses ..........................................280
G
Garage door opener ..................101
Gas cap (see Fuel cap) ............345
Gas mileage (see Fuel
economy) ...................................349
Gauges .........................................17
H
Hazard flashers .........................279
Headlamps ...................................62
aiming ........................................67
autolamp system .......................62
bulb specifications ....................70
daytime running lights .............66
flash to pass ..............................66
high beam .................................63
replacing bulbs .........................71
turning on and off ....................62
Heating
heating and air conditioning
system ...........................51, 54, 56
Index
402
2011 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
