FORD TAURUS 2013 6.G Owners Manual

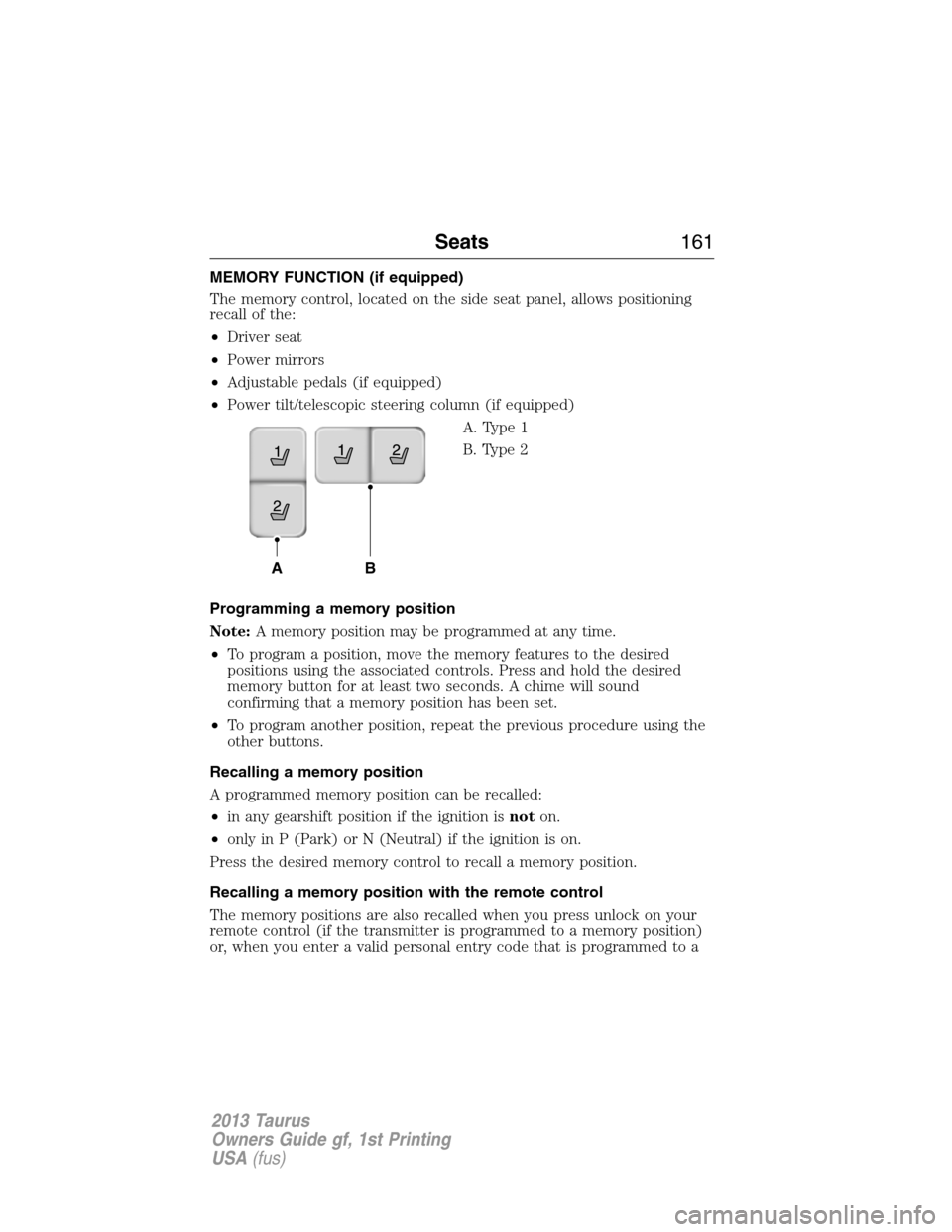

MEMORY FUNCTION (if equipped)
The memory control, located on the side seat panel, allows positioning
recall of the:
•Driver seat
•Power mirrors
•Adjustable pedals (if equipped)
•Power tilt/telescopic steering column (if equipped)
A. Type 1
B. Type 2
Programming a memory position
Note:A memory position may be programmed at any time.
•To program a position, move the memory features to the desired
positions using the associated controls. Press and hold the desired
memory button for at least two seconds. A chime will sound
confirming that a memory position has been set.
•To program another position, repeat the previous procedure using the
other buttons.
Recalling a memory position
A programmed memory position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
Press the desired memory control to recall a memory position.
Recalling a memory position with the remote control
The memory positions are also recalled when you press unlock on your
remote control (if the transmitter is programmed to a memory position)
or, when you enter a valid personal entry code that is programmed to a
AB
Seats161
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

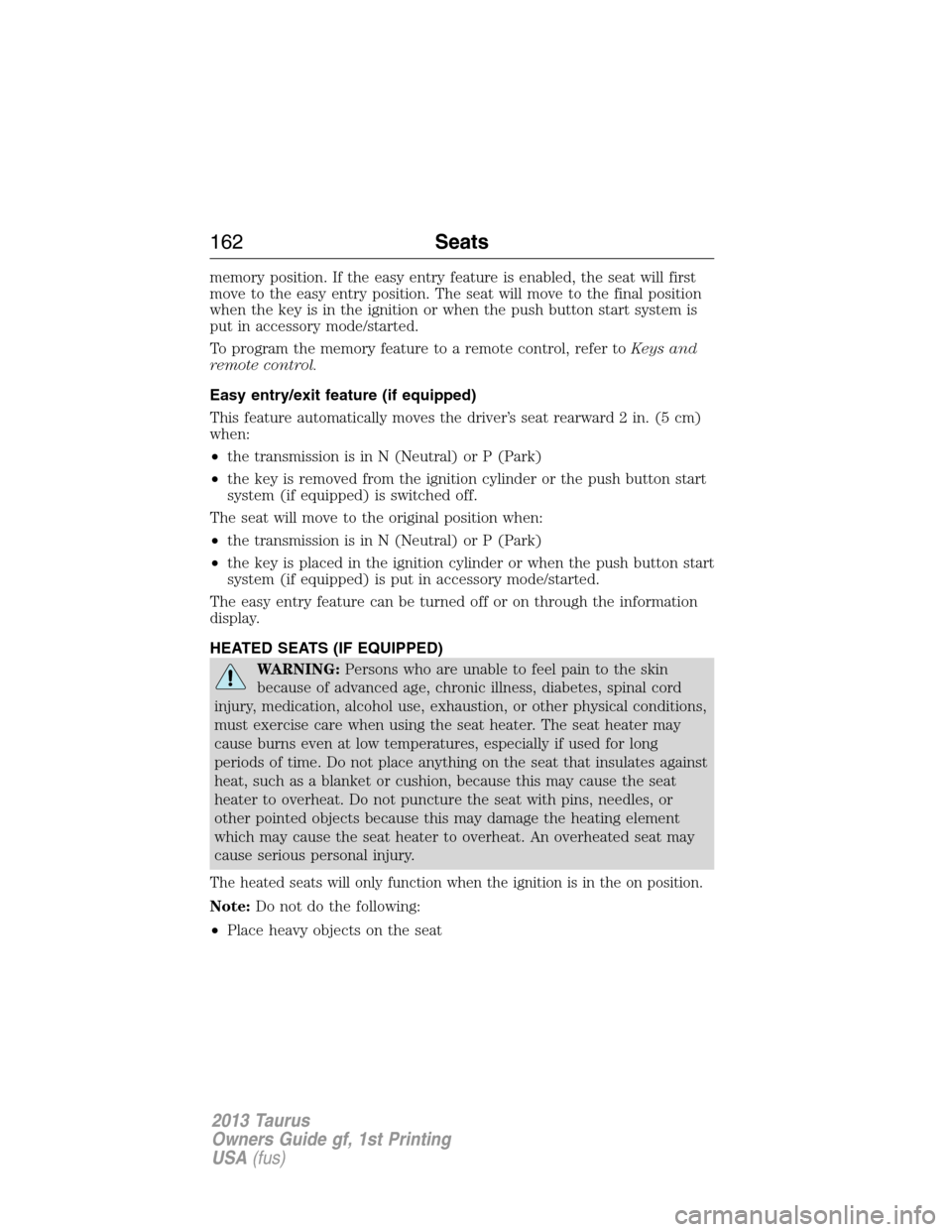

memory position. If the easy entry feature is enabled, the seat will first
move to the easy entry position. The seat will move to the final position
when the key is in the ignition or when the push button start system is
put in accessory mode/started.
To program the memory feature to a remote control, refer toKeys and
remote control.
Easy entry/exit feature (if equipped)
This feature automatically moves the driver’s seat rearward 2 in. (5 cm)
when:
•the transmission is in N (Neutral) or P (Park)
•the key is removed from the ignition cylinder or the push button start
system (if equipped) is switched off.
The seat will move to the original position when:
•the transmission is in N (Neutral) or P (Park)
•the key is placed in the ignition cylinder or when the push button start
system (if equipped) is put in accessory mode/started.
The easy entry feature can be turned off or on through the information
display.
HEATED SEATS (IF EQUIPPED)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
The heated seats will only function when the ignition is in the on position.
Note:Do not do the following:
•Place heavy objects on the seat
162Seats
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
To operate the heated seats:
Press the heated seat symbol/button to cycle through the
various heat settings and off. Warmer settings are indicated
by more indicator lights.

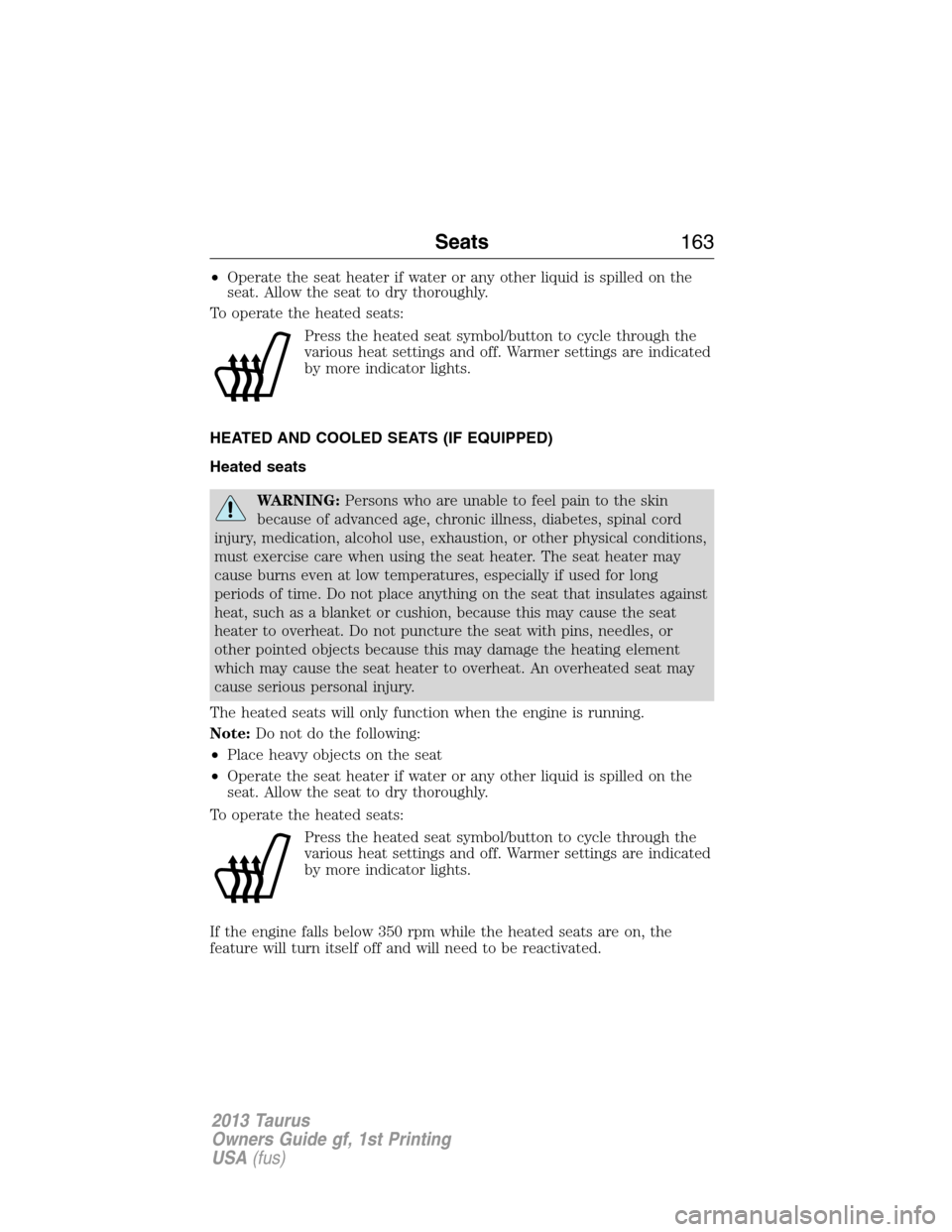

HEATED AND COOLED SEATS (IF EQUIPPED)
Heated seats
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
The heated seats will only function when the engine is running.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
To operate the heated seats:
Press the heated seat symbol/button to cycle through the
various heat settings and off. Warmer settings are indicated
by more indicator lights.
If the engine falls below 350 rpm while the heated seats are on, the
feature will turn itself off and will need to be reactivated.
Seats163
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

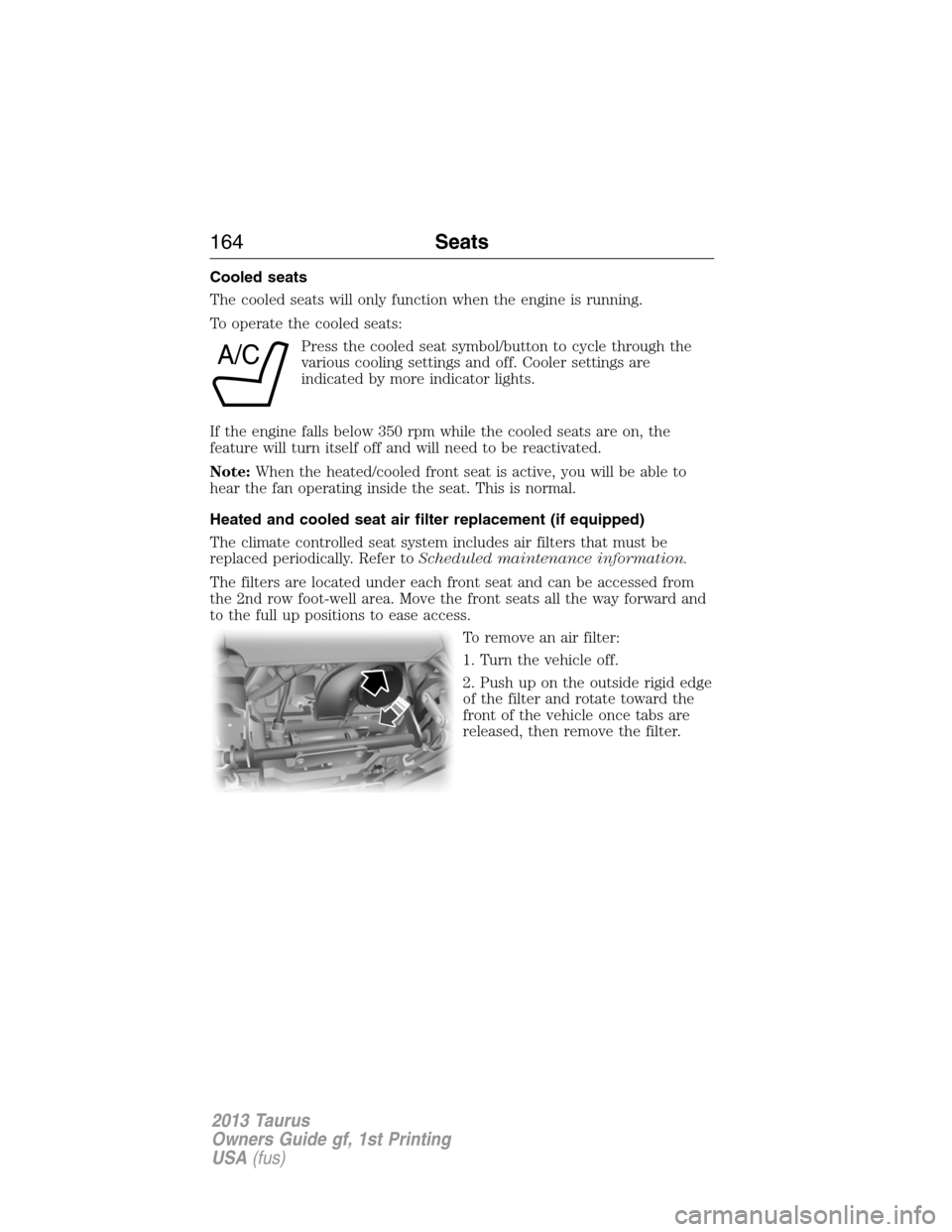

Cooled seats
The cooled seats will only function when the engine is running.
To operate the cooled seats:
Press the cooled seat symbol/button to cycle through the
various cooling settings and off. Cooler settings are
indicated by more indicator lights.
If the engine falls below 350 rpm while the cooled seats are on, the
feature will turn itself off and will need to be reactivated.
Note:When the heated/cooled front seat is active, you will be able to
hear the fan operating inside the seat. This is normal.
Heated and cooled seat air filter replacement (if equipped)
The climate controlled seat system includes air filters that must be
replaced periodically. Refer toScheduled maintenance information.
The filters are located under each front seat and can be accessed from
the 2nd row foot-well area. Move the front seats all the way forward and
to the full up positions to ease access.
To remove an air filter:
1. Turn the vehicle off.
2. Push up on the outside rigid edge
of the filter and rotate toward the
front of the vehicle once tabs are
released, then remove the filter.
A/C
164Seats
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

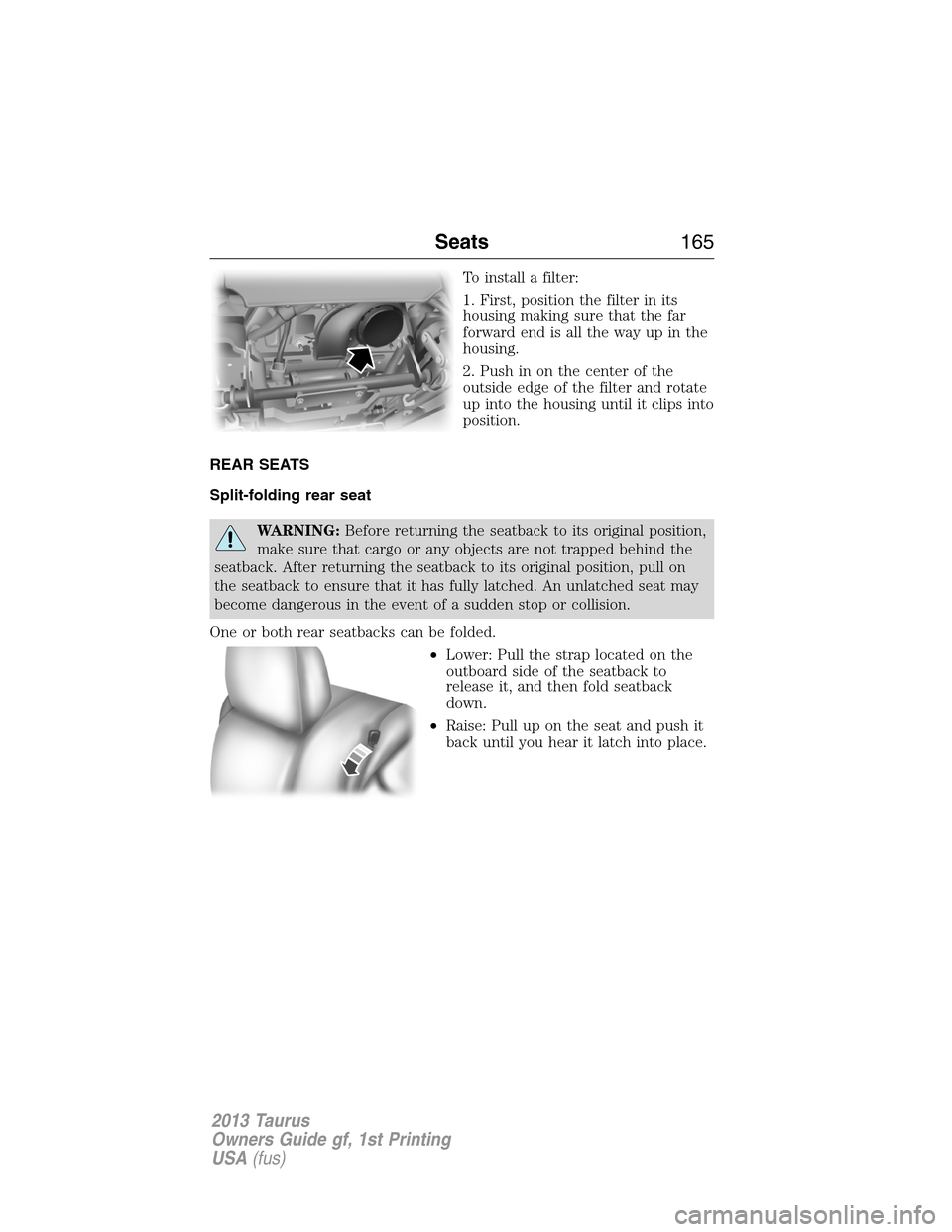

To install a filter:
1. First, position the filter in its
housing making sure that the far
forward end is all the way up in the
housing.
2. Push in on the center of the
outside edge of the filter and rotate
up into the housing until it clips into
position.
REAR SEATS
Split-folding rear seat
WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback. After returning the seatback to its original position, pull on
the seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
One or both rear seatbacks can be folded.
•Lower: Pull the strap located on the
outboard side of the seatback to
release it, and then fold seatback
down.
•Raise: Pull up on the seat and push it
back until you hear it latch into place.
Seats165
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

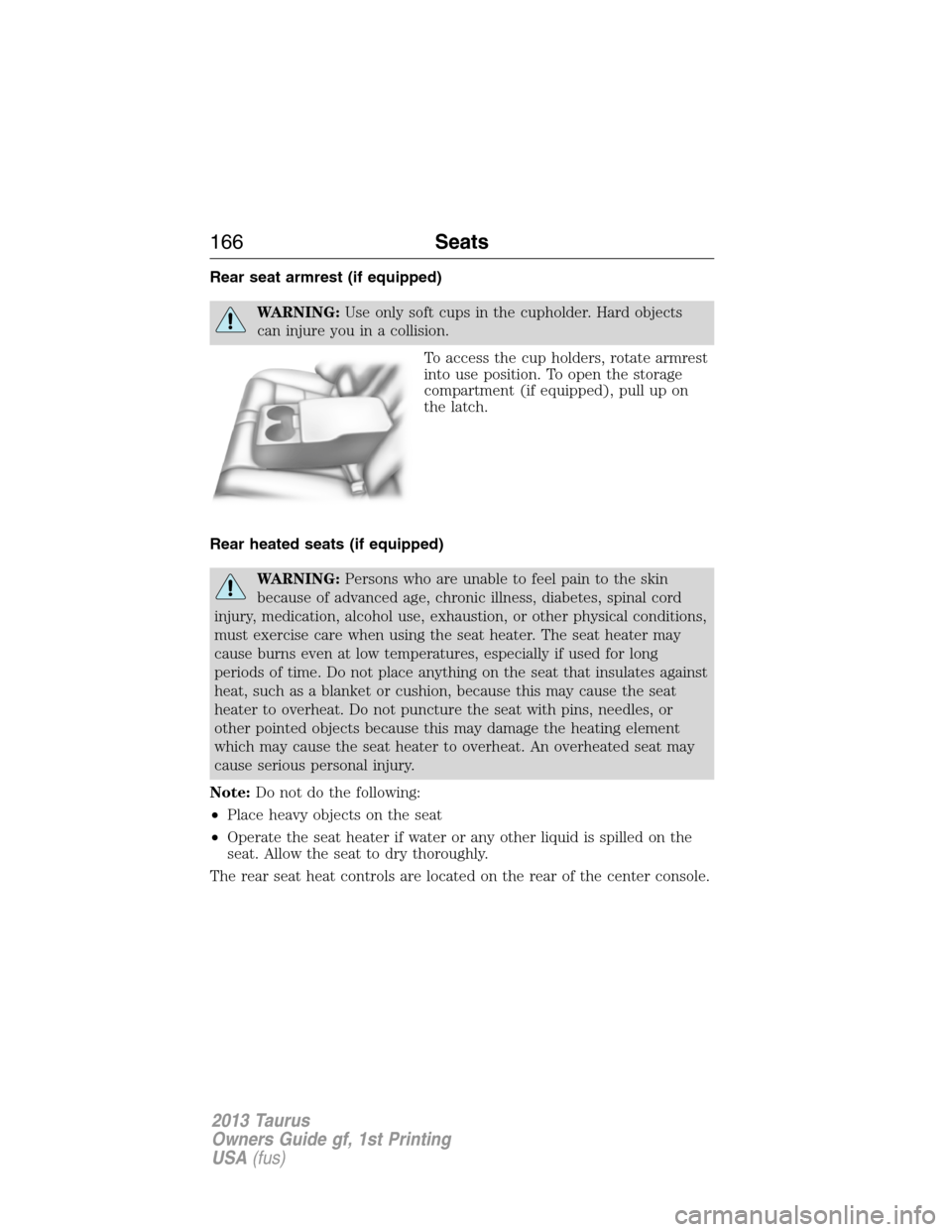

Rear seat armrest (if equipped)
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
To access the cup holders, rotate armrest
into use position. To open the storage
compartment (if equipped), pull up on
the latch.
Rear heated seats (if equipped)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The rear seat heat controls are located on the rear of the center console.
166Seats
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

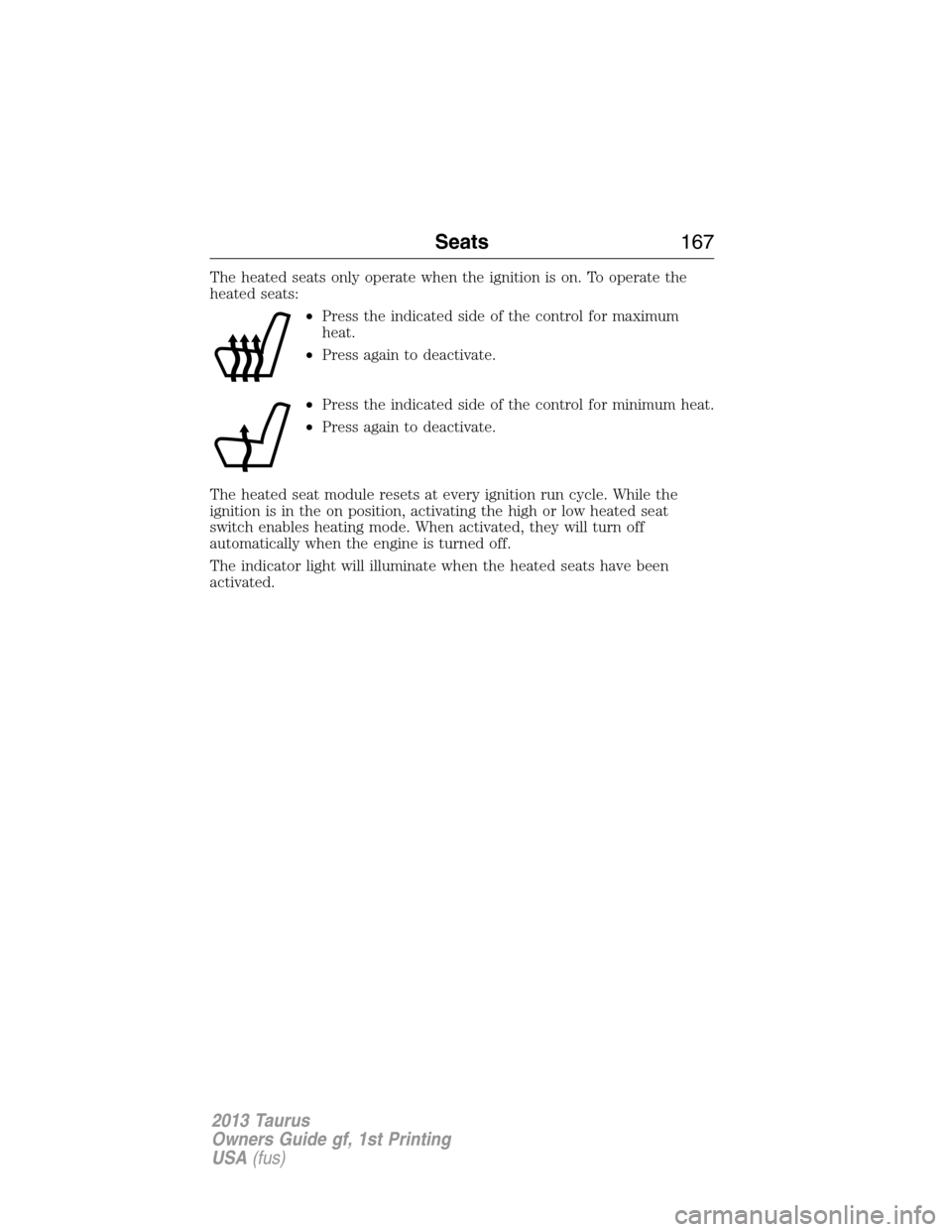

The heated seats only operate when the ignition is on. To operate the
heated seats:
•Press the indicated side of the control for maximum
heat.
•Press again to deactivate.
•Press the indicated side of the control for minimum heat.
•Press again to deactivate.
The heated seat module resets at every ignition run cycle. While the
ignition is in the on position, activating the high or low heated seat
switch enables heating mode. When activated, they will turn off
automatically when the engine is turned off.
The indicator light will illuminate when the heated seats have been
activated.
Seats167
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

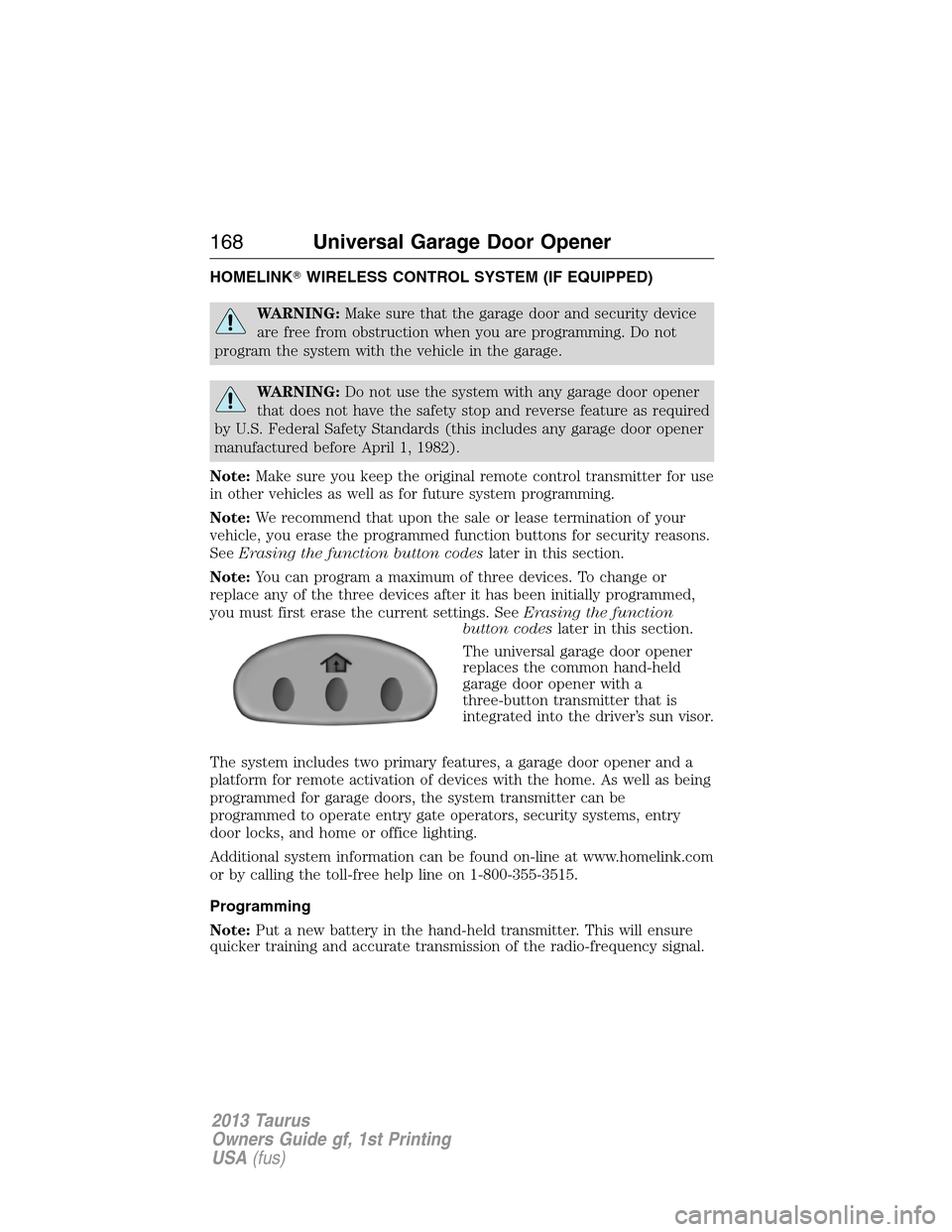

HOMELINKWIRELESS CONTROL SYSTEM (IF EQUIPPED)
WARNING:Make sure that the garage door and security device
are free from obstruction when you are programming. Do not
program the system with the vehicle in the garage.
WARNING:Do not use the system with any garage door opener
that does not have the safety stop and reverse feature as required
by U.S. Federal Safety Standards (this includes any garage door opener
manufactured before April 1, 1982).
Note:Make sure you keep the original remote control transmitter for use
in other vehicles as well as for future system programming.
Note:We recommend that upon the sale or lease termination of your
vehicle, you erase the programmed function buttons for security reasons.
SeeErasing the function button codeslater in this section.
Note:You can program a maximum of three devices. To change or
replace any of the three devices after it has been initially programmed,
you must first erase the current settings. SeeErasing the function
button codeslater in this section.
The universal garage door opener
replaces the common hand-held
garage door opener with a
three-button transmitter that is
integrated into the driver’s sun visor.
The system includes two primary features, a garage door opener and a
platform for remote activation of devices with the home. As well as being
programmed for garage doors, the system transmitter can be
programmed to operate entry gate operators, security systems, entry
door locks, and home or office lighting.
Additional system information can be found on-line at www.homelink.com
or by calling the toll-free help line on 1-800-355-3515.
Programming
Note:Put a new battery in the hand-held transmitter. This will ensure
quicker training and accurate transmission of the radio-frequency signal.
168Universal Garage Door Opener
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

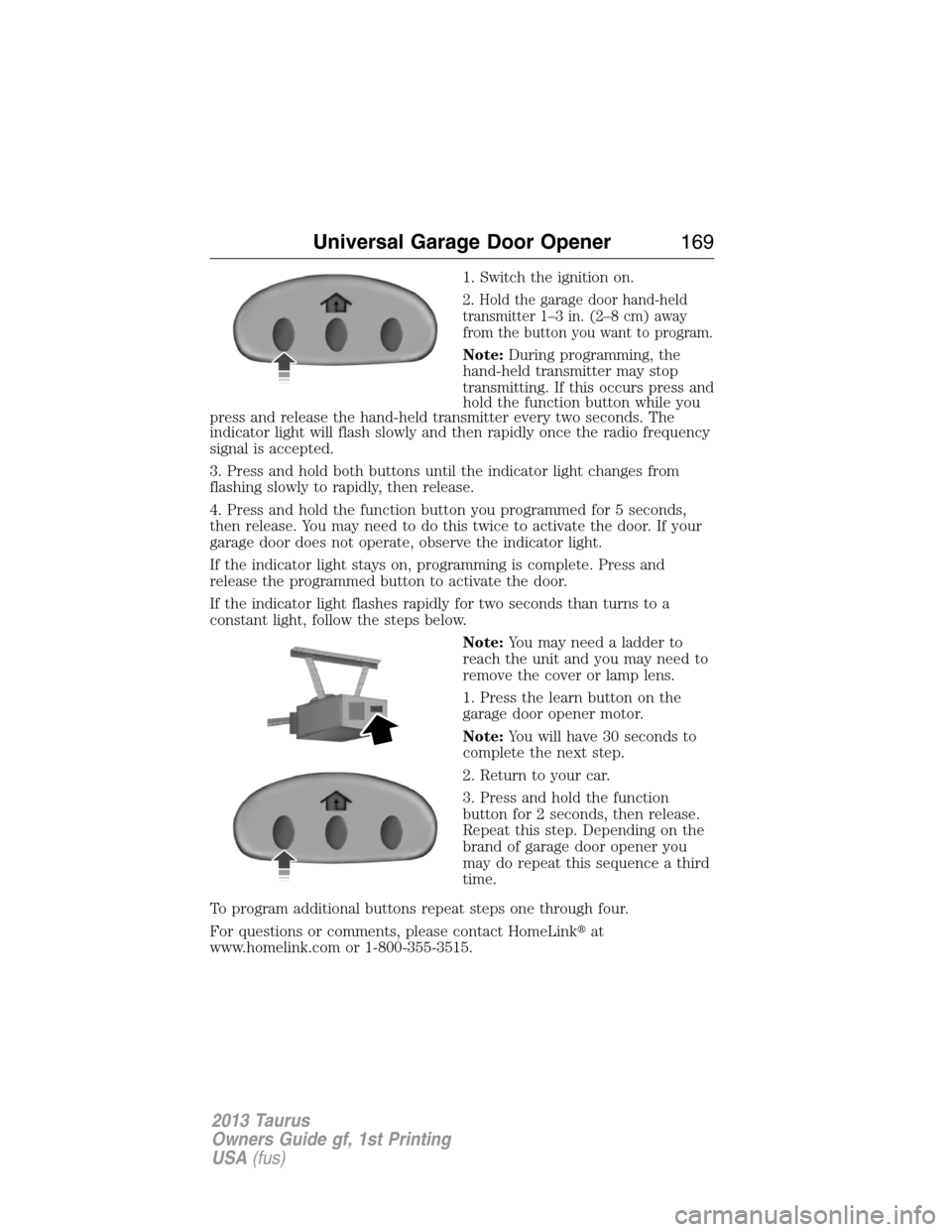

1. Switch the ignition on.
2. Hold the garage door hand-held
transmitter 1–3 in. (2–8 cm) away
from the button you want to program.
Note:During programming, the
hand-held transmitter may stop
transmitting. If this occurs press and
hold the function button while you
press and release the hand-held transmitter every two seconds. The
indicator light will flash slowly and then rapidly once the radio frequency
signal is accepted.
3. Press and hold both buttons until the indicator light changes from
flashing slowly to rapidly, then release.
4. Press and hold the function button you programmed for 5 seconds,
then release. You may need to do this twice to activate the door. If your
garage door does not operate, observe the indicator light.
If the indicator light stays on, programming is complete. Press and
release the programmed button to activate the door.
If the indicator light flashes rapidly for two seconds than turns to a
constant light, follow the steps below.
Note:You may need a ladder to
reach the unit and you may need to
remove the cover or lamp lens.
1. Press the learn button on the
garage door opener motor.
Note:You will have 30 seconds to
complete the next step.
2. Return to your car.
3. Press and hold the function
button for 2 seconds, then release.
Repeat this step. Depending on the
brand of garage door opener you
may do repeat this sequence a third
time.
To program additional buttons repeat steps one through four.
For questions or comments, please contact HomeLinkat
www.homelink.com or 1-800-355-3515.
Universal Garage Door Opener169
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

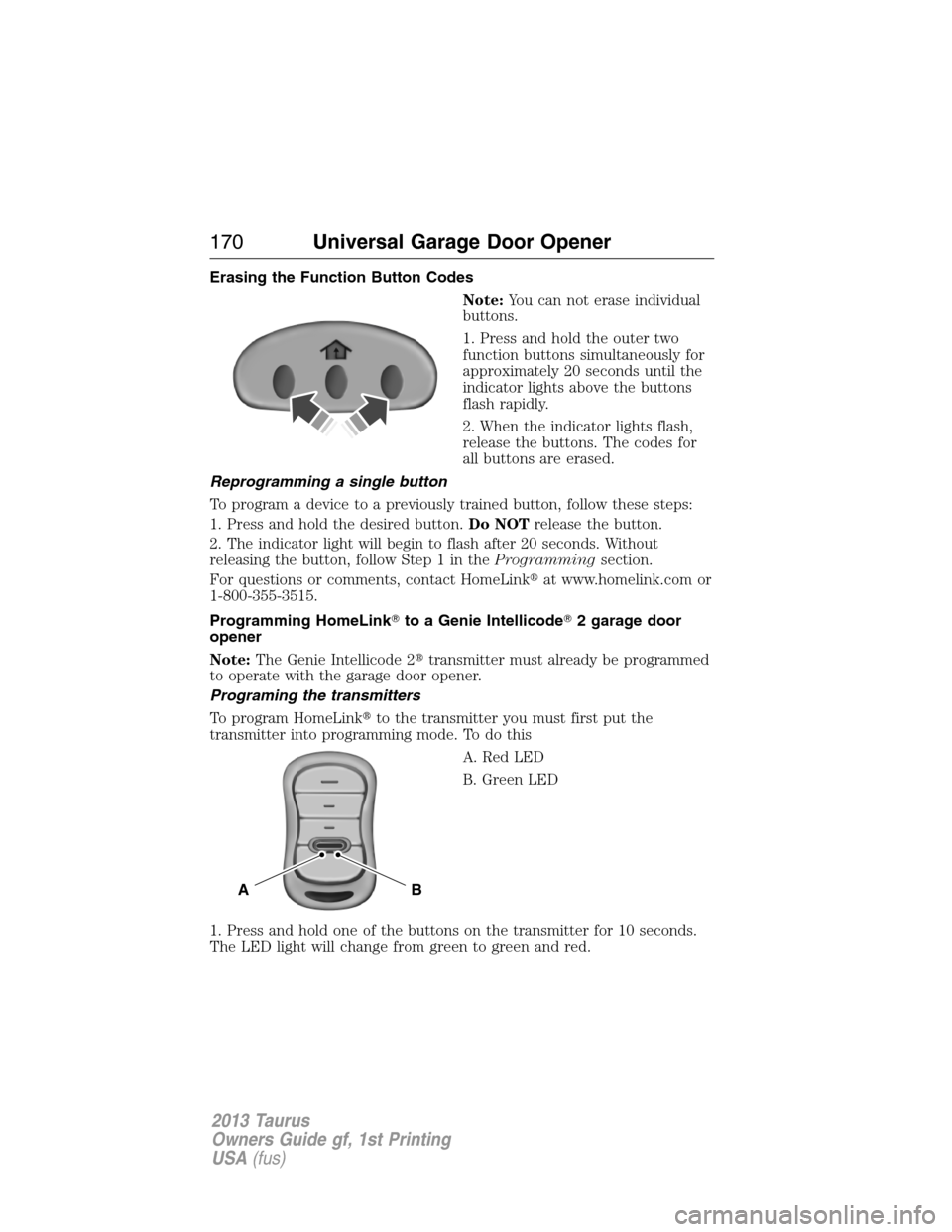

Erasing the Function Button Codes
Note:You can not erase individual
buttons.
1. Press and hold the outer two
function buttons simultaneously for
approximately 20 seconds until the
indicator lights above the buttons
flash rapidly.
2. When the indicator lights flash,
release the buttons. The codes for
all buttons are erased.
Reprogramming a single button
To program a device to a previously trained button, follow these steps:
1. Press and hold the desired button.Do NOTrelease the button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the button, follow Step 1 in theProgrammingsection.
For questions or comments, contact HomeLinkat www.homelink.com or
1-800-355-3515.
Programming HomeLinkto a Genie Intellicode2 garage door
opener
Note:The Genie Intellicode 2transmitter must already be programmed
to operate with the garage door opener.
Programing the transmitters
To program HomeLinkto the transmitter you must first put the
transmitter into programming mode. To do this
A. Red LED
B. Green LED
1. Press and hold one of the buttons on the transmitter for 10 seconds.
The LED light will change from green to green and red.
BA
170Universal Garage Door Opener
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)
