[LG12910( ALL)04/95]

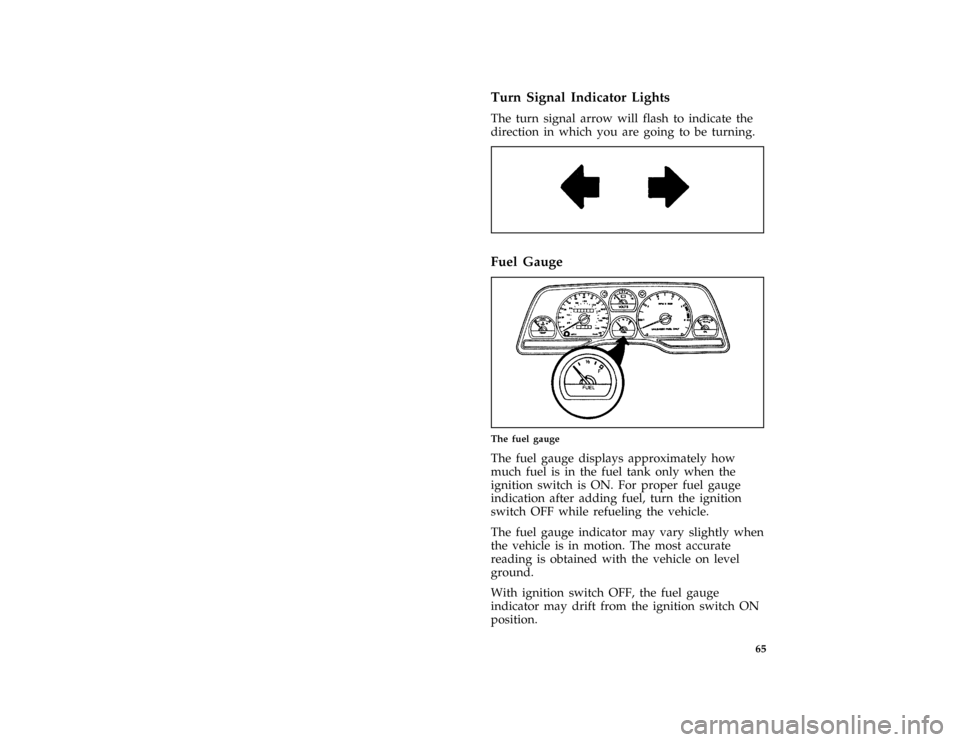

Turn Signal Indicator Lights
*
[LG12920( ALL)05/95]
The turn signal arrow will flash to indicate the
direction in which you are going to be turning.
[LG12950( ALL)06/93]
one inch art:0010525-A%*
[LG13000( ALL)01/95]
Fuel Gauge
[LG13025( BC )05/95]
one third page art:0011340-A
The fuel gauge
[LG13100( ALL)08/93]
The fuel gauge displays approximately how
much fuel is in the fuel tank only when the
ignition switch is ON. For proper fuel gauge
indication after adding fuel, turn the ignition
switch OFF while refueling the vehicle.
[LG13150( ALL)08/93]
The fuel gauge indicator may vary slightly when
the vehicle is in motion. The most accurate
reading is obtained with the vehicle on level
ground.
*
[LG13200( ALL)08/93]
With ignition switch OFF, the fuel gauge
indicator may drift from the ignition switch ON
position.
File:rclgb.ex
Update:Mon Feb 19 10:51:57 1996

68 %
*
[LG15200( ALL)11/94]
Trip Odometer
*
[LG15300( ALL)03/93]
If you want to track your mileage up to 999.9
miles (kilometers), use the trip odometer. Simply
set the trip odometer to zero by pressing the
reset button firmly when beginning the distance
you wish to measure.
*
[LG15350( ALL)01/95]
Since the trip odometer displays distance
independent of the odometer it will not always
advance to the next mile (kilometer) at the same
time as the odometer.
%*
[LG15450(MBC )02/95]
Tachometer
[LG15470( BC )05/95]
one third page art:0011342-A
The tachometer
*
[LG15600(MBC )01/95]
The tachometer displays the approximate engine
revolutions per minute (rpm), or how fast the
engine is running.
*
[LG15900( BC )01/95]
You can drive your vehicle at most rpm points
on the tachometer but you must stay out of the
red zone.
[LG16000( BC )03/90]
Regardless of the type of transmission in your
vehicle, if you drive with the tachometer pointer
in the red zone, you may damage the engine.
File:rclgb.ex
Update:Mon Feb 19 10:51:57 1996

78 [IP13900( BC )05/95]
one third page art:0010662-DThe controls for the Semi-Automatic Temperature Control
system
[IP14000( BC )03/95]
System Controls
[IP14100( BC )03/95]
Digital display
[IP14200( BC )07/93]
The temperature you select for your driving
comfort is displayed here. You can change the
temperature by pressing either the COOL or the
WARM button. You may also display outside
temperature for four seconds by depressing the
OUTSIDE TEMP button.
[IP14300( BC )03/95]
Cool button
[IP14400( BC )07/93]
This button is used to LOWER the temperature
setting. Press the button once to lower the
displayed temperature one degree. Holding the
button in will continuously reduce the
temperature setting in one degree increments
until you either release it or65ÊF (18ÊC) is
reached.
[IP14500( BC )05/94]
If the button is pressed after65ÊF (18ÊC) is
reached, only60ÊF (16ÊC)will be displayed and
the system will provide continuous maximum
cooling.
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

79 [IP14600( BC )03/95]
Warm button
[IP14700( BC )07/93]
This button is used to RAISE the temperature
setting. Press the button once to raise the
displayed temperature one degree. Holding the
button in will continuously increase the
temperature setting in one degree increments
until you either release it or85ÊF (29ÊC) is
reached.
[IP14800( BC )03/94]
If the button is pressed after85ÊF (29ÊC) is
reached, only90ÊF (32ÊC)will be displayed and
the system will provide continuous maximum
heating.
[IP14900( BC )03/95]
System Operation
[IP15000( BC )05/95]
To heat the inside of your vehicle, turn the
SELECT knob to FLOOR and turn the FAN
knob to AUTO. The fan will remain off until the
engine reaches operating temperature or until
3-1/2 minutes have elapsed. As the interior of
your vehicle warms up, the discharge air
temperature and the fan speed will be
automatically and gradually changed to maintain
the set temperature. If you prefer a fixed fan
speed, turn the fan speed switch to the desired
setting.
% [IP15100( BC )05/95]
To defrost the windshield and side windows,
turn the SELECT knob to DefrostV, turn the
FAN knob to HI and set the temperature as
necessary to clear the windshield.
[IP15200( BC )07/93]
To direct either cooled or heated air to the panel
registers and the floor at the same time, turn the
SELECT knob to PANEL & FLOOR, push the
COOL or WARM button for the desired
temperature and set the FAN speed as desired.
File:rcipb.ex
Update:Mon Feb 19 10:51:01 1996

132
%*
[AS01105(MBC )04/95]
Compact Disc Radio
*
[AS01175(MBC )05/95]
The Compact Disc Radio combines the Electronic
Stereo Radio with the Ford Compact Disc Player.
[AS01200(MBC )12/94]
Using the Controls on Your New Compact
Disc Radio
*
[AS01300(MBC )04/95]
Most of the features of this unit work for both
radio and CD operation. Also, some of the knobs
and buttons control several different functions,
so be sure to read all of the operating
instructions carefully.
*
[AS01400(MBC )04/95]
How to turn the radio on and off
*
[AS01500(MBC )04/95]
Press the ªPOWERº button to turn the radio on.
Press it again to turn it off.
*
[AS01600(MBC )04/95]
How to adjust the volume
*
[AS01700(MBC )04/95]
Press the (+/s) side of the ªVOLº button to
increase/decrease the volume. Bars illuminate in
the display to show the relative volume level.
*
[AS01800(MBC )04/95]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off (with the
ªPOWERº button), the volume will
remain in the position it was set at
when radio power is switched back on.
*
[AS01900(MBC )04/95]
Selecting the AM or FM frequency band
*
[AS02000(MBC )04/95]
Push the ªAM/FMº button to select the desired
frequency band. When in the radio mode,
pushing the button more than once will alternate
between AM, FM1 and FM2. These functions are
used with the station memory buttons described
underHow to tune radio stations.
File:rcasb.ex
Update:Mon Feb 19 10:49:06 1996

133 %
*
[AS02100(MBC )05/95]
How to tune radio stations
*
[AS02200(MBC )04/95]
There are four ways for you to tune in a
particular station. You can manually locate the
station using the ªSCAN/TUNEº button,
ªSEEKº the station, ªSCANº to the station or
select the station by using the memory buttons,
which you can set to any desired frequency.
These four methods are described below.
*
[AS02300(MBC )04/95]
q
Using the ªSCAN/TUNEº button to manually
tune
*
[AS02400(MBC )04/95]
You can change the frequency up or down
one increment at a time (FM changes in
increments of 200kHz; AM changes in
increments of 10kHz) by first pressing the
ªSCAN/TUNEº button twice (display shows
ªTUNEº), then Ðwithin approximately five
secondsÐpressing and releasing either the
top
aor bottom
bhalf of the ªSEEKº
button. To change frequencies quickly, press
andhold downeither the top or bottom half
of the ªSEEKº button. While you are
manually tuning, the display will show a
blinking ªMº.
*
[AS02500(MBC )04/95]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
*
[AS02600(MBC )04/95]
q
Using the ªSEEKº function
*
[AS02700(MBC )04/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the top
a
half of the ªSEEKº button to select the next
listenable station up the frequency band.
Press the bottom
bhalf of the button to
select the next listenable station down the
frequency band. By pressing and holding the
button, listenable stations can be passed over
to reach the desired station.
File:rcasb.ex
Update:Mon Feb 19 10:49:06 1996

134
*
[AS02800(MBC )04/95]
q
Using the ªSCAN/TUNEº button to scan
radio stations
*
[AS02900(MBC )04/95]
Pressing the ªSCAN/TUNEº button once
enters the scan mode (display will indicate
ªSCNº). Pushing the top
ahalf of the
ªSEEKº button will begin the scan mode up
the frequency band, stopping on each
listenable station for approximately five
seconds. Pushing the bottom
bhalf of the
ªSEEKº button will begin the scan mode
down the frequency band, again stopping on
each listenable station for approximately five
seconds.
*
[AS03000(MBC )04/95]
To stop the scan mode on the presently
sampled station press the ªSCAN/TUNEº
button again.
*
[AS03200(MBC )04/95]
q
Setting the Station Memory Preset buttons
*
[AS03300(MBC )02/95]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations and 12
FM stations (6 in FM1 and 6 in FM2).
[AS03350(MBC )05/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS03400(MBC )04/95]
1. Select a band, then select a frequency.
*
[AS03600(MBC )04/95]
2. Press one of the memory buttons and hold
the button until the sound returns. That
station is now held in memory on that
button.
*
[AS03700(MBC )04/95]
3. Follow the two steps above for each station
memory preset button you want to set.
File:rcasb.ex
Update:Mon Feb 19 10:49:06 1996

135
*
[AS03950(MBC )04/95]
q
Using the Automatic Memory Load feature
*
[AS04050(MBC )03/95]
If no stations are in memory preset, you can
activate theAuto Memory Loadfeature by
pressing and holding the ªAUTO PRESETº
buttonfor approximately three seconds.
Auto Memory Load sets all memory buttons
in AM, FM1 and FM2 sequentially by seeking
out the first six strong stations for the
respective band and storing them in memory
buttons 1-5. (FM2 will store the second set of
strong stations from the FM band.)
*
[AS04150(MBC )04/95]
With Auto Memory Store, you can
continually set strong stations into your
memory buttons without losing your existing
memory presets, which is especially handy
while traveling. Your radio will automatically
set your memory buttons to the strong local
stations so you don't have to continually
manually tune to existing stations.
*
[AS04250(MBC )02/95]
Activate Auto Memory Store by pushing the
ªAUTO PRESETº button once. Your radio
will set the first five strong stations of the
band you are in (AM, FM1 or FM2) into the
memory buttons. The display will show
ªAUTOº, then run through the frequencies,
stopping momentarily on the stations being
set into the memory buttons. The radio is
now in the ªAUTOº mode and this display
will show ªAUTOº each time a preset is
activated.
*
[AS04350(MBC )04/95]
NOTE: If there are fewer than five strong
stations in the frequency band, the
remaining unfilled buttons will store
the last strong station detected on the
band.
File:rcasb.ex
Update:Mon Feb 19 10:49:06 1996

136
*
[AS04450(MBC )04/95]
After all stations have been filled, the radio
will begin playing the station stored on
memory button 1.
*
[AS04550(MBC )04/95]
To deactivate the Auto Memory Store mode
and return to the manually-set memory
button stations (or those stations set using
Auto Memory Load), simply push the
ªAUTO PRESETº button. Display will show
ªAUTOº then ªOFFº. The next time Auto
Memory Store is activated on that band, the
radio will store the next set of five strong
stations.
*
[AS04600(MBC )02/95]
Adjusting the tone balance and speaker
output of your radio
*
[AS04700(MBC )04/95]
q
Increasing or decreasing bass response
[AS04750(MBC )05/94]
Push the ªAUDIOº button repeatedly until
the display reads ªBASSº. Push the top (+)
side of the ªVOLUMEº button to increase
bass (more ªlowsº), and push the bottom (±)
side to decrease bass (less ªlowsº).
*
[AS04800(MBC )04/95]
q
Increasing or decreasing treble response
[AS04900(MBC )05/94]
Push the ªAUDIOº button repeatedly until
the display reads ªTREBº. Push the top (+)
side of the ªVOLUMEº button to increase
treble (more ªhighsº), and push the bottom
(±) side to decrease treble (less ªhighsº).
*
[AS04950(MBC )04/95]
q
Adjusting speaker balance
[AS05000(MBC )05/94]
Balance control allows you to adjust the
sound distribution between the right and left
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªBALº.
Push the top (+) side of the ªVOLUMEº
button to shift the sound to the right
speakers, and push the bottom (±) side to
shift the sound to the left speakers.
File:rcasb.ex
Update:Mon Feb 19 10:49:06 1996

137
*
[AS05100(MBC )04/95]
q
Adjusting speaker fader
[AS05200(MBC )05/94]
Fade control allows you to adjust the sound
distribution between the front and rear
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªFADEº.
Push the top (+) side of the ªVOLUMEº
button to shift the sound to the front
speakers, and push the bottom (±) side to
shift the sound to the rear speakers.
*
[AS05300(MBC )04/95]
NOTE: Illuminated bars in the display show
relative levels of bass and treble, and
positions of speaker balance and fader
functions (left to right, front to rear).
*
[AS06800(MBC )04/95]
Using the Controls on Your New Compact
Disc Player
*
[AS07000(MBC )04/95]
Your new Ford Compact Disc Player is capable
of playing 12 cmor8 cm discs, without an
adapter! The Player operates when the power is
on and a disc is inserted (label side up). Handle
the disc by its edge only. (Be sure to read and
follow all of the care and cleaning instructions
underHow To Take Care of and Clean Your CD
Player and Discs.
*
[AS07100(MBC )04/95]
NOTE: If after you insert a disc, the disc is
ejected and ªERRORº begins scrolling
in the display, remove the disc and
reinsert it right side up (label side up).
[AS07200(MBC )03/95]
The digital display on your CD player will
either show the track (selection) number or the
elapsed time. (The display mode can be selected
by pressing the memory preset button #6.)
Indicators for play
b, stop
Xand compression
on (ªCº) are also in the display. (These features
are described later.)
*
[AS07300(MBC )04/95]
Once a disc is inserted, operation of the CD
player will override that of the radio.
File:rcasb.ex
Update:Mon Feb 19 10:49:06 1996
