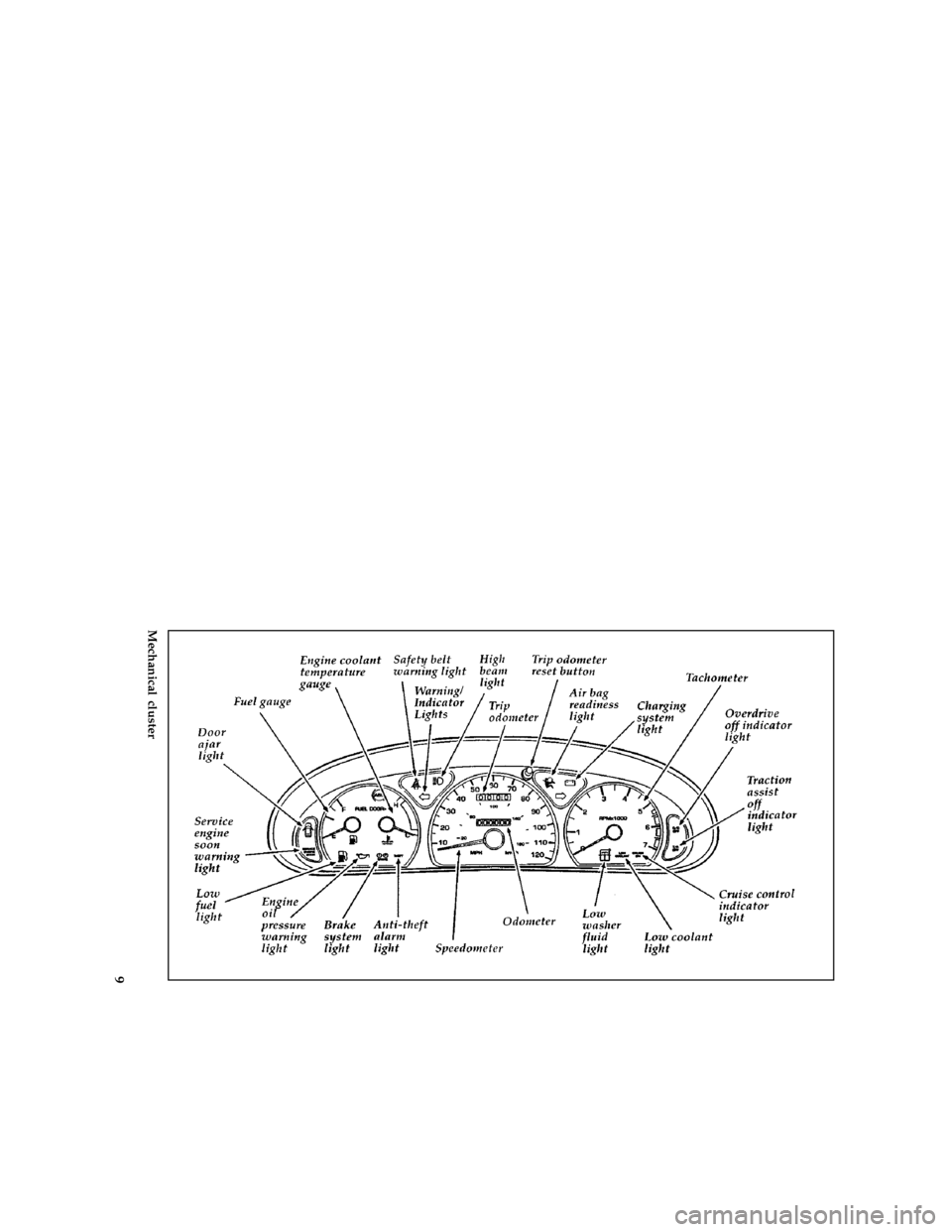

The instrument panel (dashboard) on your
vehicle is divided into several different sections.
The illustrations on the following pages show
the major parts of the instrument panel that are
described in this chapter. Some items shown
may not be on all vehicles.
*
[IS00800( BC )04/96]
In your vehicle, the warning lights and gauges
are grouped together on the instrument panel.
We call this grouping a cluster.
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

9 % [IS01400( BC )04/96]
full page art:0010109-R
Mechanical cluster
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

10
%*
[IS01700( BCGV)01/96]
The Mechanical Cluster
*
[IS02000( BCGV)01/96]
The following warning lights and gauges are on
the mechanical cluster. All of the warning lights
and gauges alert you to possible problems with
your vehicle. Some of the lights listed are
optional. The following sections detail what each
of these indicators means.
%*
[IS02600( ALL)01/96]
Brake System Warning Light
*
[IS02700( ALL)03/96]
The warning light for the brakes can show two
things Ð that the parking brake is not fully
released, or that the brake fluid level is low in
the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by a
qualified service technician.
[IS02800( BC )04/96]
one inch art:0000108-E
The brake system warning light
[IS03100( ALL)12/95]
This light comes on when the parking brake is
set, or if it is not set, it comes on briefly when
you turn the ignition key to START. It normally
goes off shortly after the engine starts and you
release the parking brake. If the light stays on
after you have fully released the parking brake,
have the hydraulic brake system serviced.
*
[IS03200( ALL)03/96]
RWARNING
The BRAKE light indicates that the brakes
may not be working properly. Have the
brakes checked immediately.
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

11 % [IS03300( ALL)04/96]
Anti-Lock Brake System Light
(If equipped)
[IS03400( ALL)12/95]
This warning light will go on each time you
start your vehicle. If it remains on for longer
than five seconds, you should shut off your
engine and restart. If the anti-lock brake light
stays on, this indicates that the anti-lock feature
is disabled and should receive immediate
attention by a qualified service technician.
Normal braking is not affected unless the brake
warning light is also lit.
*
[IS03500( ALL)03/96]
The Anti-Lock Brake System has self-check
capabilities. As previously described, the system
turns on the anti-lock light each time you start
your engine. After the engine is started and the
anti-lock light is out, the system performs
another test the first time the vehicle reaches
14 mph (22 km/h). The system turns on the
Anti-Lock Brake System (ABS) pump motor for
approximately 1/2 second. At this time a
mechanical noise may be heard. This is a normal
part of the self-check feature. If a malfunction is
found during this check the anti-lock light will
come on.
[IS03600( ALL)04/96]
one inch art:0011194-B
The anti-lock brake system light
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

12
*
[IS03700( ALL)03/96]
RWARNING
If the anti-lock brake system warning
light remains on or comes on while
driving, have the braking system checked
by a qualified service technician as soon
as possible.
*
[IS03800( ALL)03/96]
NOTE: If a fault occurs in the anti-lock
system, and the brake warning light is
not lit, the anti-lock system is disabled
but normal brake function remains
operational.
%*
[IS04600( ALL)03/96]
Safety Belt Warning Light and Chime
*
[IS04700( ALL)03/96]
This warning light and chime remind you to
fasten your safety belt. The following conditions
will take place:
[IS05000( BC )12/95]
q
If the safety belt is not buckled when the key
is turned to the ON position, the light will
come on for 1 to 2 minutes and the chime
will sound for 4 to 8 seconds.
*
[IS05100(MBC )01/96]
q
If the safety belt is buckled while the light is
on and the chime is sounding, both the light
and chime will turn off.
[IS05500( BC )04/96]
q
If the safety belt is buckled before the key is
turned to the ON position, the light will not
come on and the chime will not sound.
[IS05600( ALL)04/96]
one inch art:0010118-A
The safety belt warning light
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

13 %
*
[IS06300( ALL)03/96]
Air Bag Readiness Light
*
[IS06400( ALL)04/96]
The air bag system uses a readiness light and a
tone to indicate the condition of the system. The
readiness light is in the instrument cluster. When
you turn the ignition key to the ON position,
this light will light up for six (6) seconds and
then turn off. This indicates that the system is
operating normally. NOTE: Regularly scheduled
maintenance of the air bag system is not
required.
*
[IS06500( ALL)04/96]
If the light fails to illuminate, continues to flash,
remains on, or you hear a beeping sound, have
the system serviced at your Ford or
Lincoln-Mercury dealer immediately.
[IS06700( BC )04/96]
one inch art:0000653-C
The air bag readiness light
% [IS07150( BC )03/96]
Low Coolant Light
[IS07200(MBC )04/96]
This light tells you that the coolant is low inside
the coolant recovery bottle and that you should
add more coolant.
[IS07300(MBC )04/96]
This light comes on for a few seconds when
your ignition key is turned to start, but should
turn off when the engine starts. If this light stays
on, check the level of coolant inside the recovery
bottle. SeeEngine Coolantin the Index.
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

14 [IS07350( BC )03/96]
one inch art:0011209-AThe low coolant light
%*
[IS07500( ALL)01/96]
Charging System Light
*
[IS07600( ALL)01/96]
This light indicates that your battery is not being
charged and that you need to have the electrical
system checked.
[IS07700( ALL)04/96]
one inch art:0010119-B
The charging system light
*
[IS07800( ALL)03/96]
This light illuminates every time you turn the
ignition to the ON or START position (engine
off). The light should go off when the engine
starts and the alternator begins to charge.
*
[IS07900( ALL)03/96]
If the light stays on or illuminates when the
engine is running, have the electrical system
checked as soon as possible.
%*
[IS08400( BCGV)03/96]
Overdrive Off Indicator
[IS08600( ALL)04/96]
one inch art:0010730-B
The overdrive off indicator light
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

15
*
[IS08700( ALL)04/96]
This light tells you that the Transmission Control
Switch (TCS) has been pushed. When the light is
on, the transmission will not shift into overdrive.
Depressing the button will return the vehicle to
ªoverdrive onº mode. The transmission will be
in the ªoverdrive onº mode when the vehicle is
started even if the O/D OFF mode was selected
when the vehicle was last shut off.
[IS08900( ALL)05/96]
NOTE: If the light does not come on when the
TCS is depressed or if the light flashes
when you are driving, have your
vehicle serviced at the first
opportunity. If this condition persists,
damage could occur to the
transmission.
% [IS08905( BC )04/96]
Traction Assist Off Indicator
[IS08910( BC )04/96]
one inch art:0011389-A
The traction assist off indicator
[IS08915( BC )05/96]
This light comes on when the Traction Assist
system has been turned off.
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

16 %
*
[IS09000( ALL)03/96]
High Beam Light
*
[IS09100( ALL)03/96]
This light illuminates when the headlamps are
turned to high beam or when you flash the
lights.
[IS09200( ALL)04/96]
one inch art:0010125-B
The high beam light
%*
[IS11050( BC )12/95]
Service Engine Soon Warning Light
%*
[IS11100( ALL)05/96]
This light illuminates when the engine's
Emission Control System requires service. It will
also illuminate when the ignition key is in the
ON position and the engine is off.
[IS11350( BC )05/96]
one inch art:0000282-B
The service engine soon warning light
%*
[IS12100( BC )04/96]
Anti-Theft Alarm Light (If equipped)
[IS12150(MBC )04/96]
one inch art:0001389-A
Anti-theft alarm light
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

17 [IS12200(MBC )04/96]
This light is used when you set the anti-theft
alarm system. SeeAnti-Theft Systemin the
Controls and Featureschapter for more
information.
%*
[IS12300( ALL)03/96]
Turn Signal Indicator Lights
*
[IS12400( ALL)03/96]
The turn signal arrow will flash to indicate the
direction in which you are going to be turning.
[IS12500( ALL)04/96]
one inch art:0010525-A
The turn signal indicator light
%*
[IS12601( BC )03/96]
Cruise Control Indicator Light
[IS12701( BC )03/96]
This light comes on when the cruise control
system is actively maintaining the set speed. It
will go off when the brakes are used or if the
cruise control is turned off.
[IS12801( BC )05/96]
one inch art:0011390-A
The cruise control indicator light
[IS12901( BC )03/96]
This light does not indicate any problems but is
only a convenience to tell when the cruise
control is active.
