18 % [IS13001( BC )03/96]Door Ajar Light (If equipped)
[IS13101( BC )03/96]
This light tells you when any door is not
completely shut. It glows when the key is in the
ON position.
[IS13201( BC )03/96]
one inch art:0010126-C
The door ajar light
%*
[IS13250( BC )04/96]
Engine Oil Pressure Light
[IS13300( BC )05/96]
This light indicates the engine oil pressure, not
the oil level. However, if your engine's oil level
is low, it could affect the oil pressure. The light
should come on every time your ignition key is
turned to ON or START, and should go out
when the engine starts. If the light stays on or
turns on while the engine is running, you have
lost oil pressure andcontinued operation will
cause severe engine damage.
[IS13350( BC )05/96]
one inch art:0010532-A
The engine oil pressure light
*
[IS13400( BC )05/96]
If you lose engine oil pressure:
*
[IS13450( BC )04/96]
1. Pull off the road as soon as safely possible.
*
[IS13500( BC )05/96]
2. Shut off the engine immediately. If you do
not stop the engine as soon as safely
possible, severe engine damage could result.
File:03rcisb.ex
Update:Fri Jun 7 14:35:00 1996

32 [AS07200( BC )10/95]The digital display on your CD player will
either show the track (selection) number or the
elapsed time. (The display mode can be selected
by pressing the memory preset button #6.)
Indicators for play
b, stop
Xand compression
on (ªCº) are also in the display. (These features
are described later.)
*
[AS07300( BC )10/95]
Once a disc is inserted, operation of the CD
player will override that of the radio.
*
[AS07400( BC )09/95]
NOTE: The volume, bass, treble, balance and
fader controls on the radio are also
used with the CD player. Refer to
earlier operating instructions on these
controls.
*
[AS07500( BC )04/96]
How to insert a disc and begin play
*
[AS07550( BC )10/95]
Insert one disc,label side upinto the disc
opening. When inserted, the disc automatically
loads into the unit and play starts at the
beginning of the first track (selection).
*
[AS07600( BC )04/96]
When the disc reaches the end, the disc player
automatically returns to the beginning of the
disc and resumes playing.
*
[AS07610( BC )10/95]
How to change the track being played
[AS07620( BC )10/95]
Press the top
aside of the ªSEEKº button to
seek forward to the next track of the disc. If the
button is held and the last track is reached, the
disc player will automatically begin playing the
last track of the disc.
[AS07630( BC )10/95]
Press the bottom
bside of the ªSEEKº button
to seek the previous track on the disc.
[AS07650( BC )04/96]
NOTE: Once a disc is inserted, the disc
opening is secured to prevent the
accidental insertion of a second disc.
File:04rcasb.ex
Update:Thu May 30 10:55:25 1996

33
*
[AS07700( BC )10/95]
NOTE: The CD player has heat protection
circuitry to protect the laser diode. If
the temperature of the player reaches
167ÊF (75ÊC), theheat detection circuit
will shut off the player and ªTOO
HOTº will scroll in the display for
approximately five seconds (radio will
resume playing). When the temperature
returns to normal operating range, the
CD player will again be operational.
*
[AS07750( BC )10/95]
How to stop and restart the CD player
*
[AS07800( BC )04/96]
When a disc is loaded, the unit automatically
enters the play mode and the play indicator
a
illuminates. To stop temporarily, press the
ªPLAY/STOPº button or the ªAM/FMº button.
The stop indicator
Xin the display illuminates
and operation returns to the radio mode. To
resume CD play, press the ªPLAY/STOPº
button once again.
*
[AS07850( BC )10/95]
NOTE: If the ignition key is turned OFF
during play and then is set to the ON
or ACCESSORY position, the CD
player will resume playing in the mode
it was in when ignition was turned off.
*
[AS07900( BC )10/95]
How to fast forward or reverse your CD
player
*
[AS07950( BC )10/95]
To quickly search for a particular point in a
selection, press the ªFFº button (to fast forward)
or the ªREVº button (to reverse). While either
button is pressed, the disc goes forward or
backward at two different speeds depending on
how long the button is held down. (Pressing
either button for more than three seconds will
speed up the process.) Release the button at the
desired point (found by watching the elapsed
playing time in the display or by listening to the
File:04rcasb.ex
Update:Thu May 30 10:55:25 1996

52
*
[AS44100(MBC )12/95]
How to locate a desired track on the tape
*
[AS44110(MBC )08/95]
There are four ways to quickly locate a desired
selection on the tape. You can use the fast
forward, rewind, ªSEEKº or ªSCANº function.
Following are brief descriptions of each.
*
[AS44120(MBC )09/95]
q
Fast forwarding the tape
[AS44140(MBC )02/95]
To fast forward the tape, press the ªFFº
button. The radio will automatically begin
playing until fast forward is manually
stopped (by pushing the ªPLAY PROGº
button) or the end of the tape is reached.
*
[AS44160(MBC )01/95]
At the end of the tape, the direction
automatically reverses and plays the other
side of the tape.
[AS44170(MBC )02/95]
q
Fast rewinding the tape
[AS44180(MBC )02/95]
To rewind the tape, press the ªREWº button.
The radio will automatically begin playing
when rewind is manually stopped (by
pushing the ªPLAY PROGº button) or the
beginning of the tape is reached.
*
[AS44190(MBC )08/95]
q
Using the ªSEEKº function with your cassette
tape player
[AS44200(MBC )03/96]
While in the tape mode, push the right
a
side of the ªSEEKº button to seek forward to
the next selection on the tape. Push the left
bside to seek the beginning of the current
tape selection.
*
[AS44210(MBC )03/96]
NOTE: If you want to restart a currently
playing tape selection, press the left
b
side of the ªSEEKº button after
approximately three seconds into the
current selection.
*
[AS44220(MBC )03/96]
Whirling sprockets in the displaylindicate
the direction of tape travel.
File:04rcasb.ex
Update:Thu May 30 10:55:25 1996

93
*
[CF53700(MBC )01/96]
q
disable the starting circuit to prevent the
vehicle from being started
[CF53900(MBC )12/95]
To tell the difference between a PANIC alarm
and a triggered Anti-theft alarm:
[CF54000(MBC )12/95]
q
only the Anti-Theft alarm will cause the
alarm indicator lamp (located in the
instrument cluster) to flash on and off.
[CF54100(MBC )12/95]
q
only the Anti-Theft alarm will disable the
start circuit so that the vehicle can not be
started.
[CF54200(MBC )05/96]
q
the Anti-Theft alarm will not stop by pushing
the PANIC control on the Remote Entry
transmitter.
*
[CF54300(MBC )12/95]
For more information on the PANIC alarm, see
Remote Entry Systemin the Index.
%*
[CF54400(MBC )03/96]
Arming the system
[CF54500(MBC )12/95]
To arm the system, do the following steps in
sequence:
*
[CF54600(MBC )01/96]
1. Remove the key from the ignition. The hood
must be closed to arm the system.
[CF54700( BC )03/96]
At this point, the anti-theft system automatically
monitors the ignition keylock cylinder. If the
lock cylinder is forcibly removed, the anti-theft
alarm system will trigger. To arm the remaining
portion of the system, follow steps 2-4.
*
[CF54800(MBC )05/96]
2. Open any door. The alarm indicator light
will start flashing to remind you to arm the
system.
[CF54900(MBC )05/96]
3. Lock the doors by using the power door
lock switch or by pressing the remote entry
transmitter LOCK control.
[CF55000(MBC )12/95]
The alarm indicator will now glow steadily.
File:05rccfb.ex
Update:Fri Jun 7 14:36:35 1996

141 %
*
[TO02400( ALL)01/96]
For a warm engine:
*
[TO02500( ALL)01/96]
q
Do not hold the key in the START position
for more thanfive (5) secondsat a time. If
the engine does not start within five (5)
seconds on the first try, turn the key to the
OFF position. Wait a few seconds after the
starter stops, then try again.
*
[TO02600( ALL)01/96]
Whenever you start your vehicle, release the key
as soon as the engine starts. Excessive cranking
could damage the starter.
*
[TO02700( ALL)01/96]
After you start the engine, let it idle for a few
seconds. Keep your foot on the brake pedal and
put the gearshift lever in gear. Release the
parking brake. Slowly release the brake pedal
and drive away in the normal manner.
*
[TO02800( ALL)12/95]
NOTE: Your vehicle has an interlock that
prevents you from shifting out of P
(Park) unless your foot is on the brake
pedal.
%*
[TO02900( ALL)01/96]
If the engine does not start after two attempts:
*
[TO03000( ALL)01/96]
1. Turn the ignition key to the OFF position.
*
[TO03100( ALL)01/96]
2. Press the accelerator all the way to the floor
and hold it.
*
[TO03200( ALL)01/96]
3. Turn the ignition key to the START position.
*
[TO03300( ALL)01/96]
4. Release the ignition key when the engine
starts.
*
[TO03400( ALL)03/96]
5. Release the accelerator gradually as the
engine speeds up.
[TO03500( ALL)03/96]
If the engine still does not start, the fuel pump
shut-off switch may have been triggered. For
directions on how to reset the switch seeFuel
Pump Shut-Off Switchin the Index.
File:08rctob.ex
Update:Thu May 30 10:58:59 1996

144
*
[TO05100( ALL)01/96]
Have the exhaust and body ventilation systems
checked whenever:
*
[TO05200( ALL)01/96]
q
your vehicle is raised for service
*
[TO05300( ALL)01/96]
q
the sound of the exhaust system changes
*
[TO05400( ALL)01/96]
q
your vehicle has been damaged in a collision
*
[TO05500( ALL)01/96]
Improve your ventilation by keeping all air inlet
vents clear of snow, leaves, and other debris.
[TO05600( ALL)12/95]
If the engine is idling while you are stopped in
an open area for long periods of time, open the
windows at least one inch (2.5 cm). Also, the
heating or air conditioning system should be set
to any function except MAX A/C or AUTO.
[TO05800( BCGV)12/95]
q
If you use the heater, set the fan speed on
MEDIUM or HIGH with the function control
on any position except OFF and the
temperature control at any desired position.
[TO06000( BCGV)12/95]
q
If you use the air conditioner, set the fan
speed on MEDIUM or HIGH with the
function control on any position except OFF
or MAX and the temperature control at any
desired position.
*
[TO06100( ALL)01/96]
Pushing
[TO06300( BCGV)01/96]
Vehicles with automatic transmissions cannot be
started by pushing. Follow the directions under
If Your Vehicle Needs a Jump-Start.
File:08rctob.ex
Update:Thu May 30 10:58:59 1996

153 % [GF08600( BC )12/95]
half page art:0010307-F

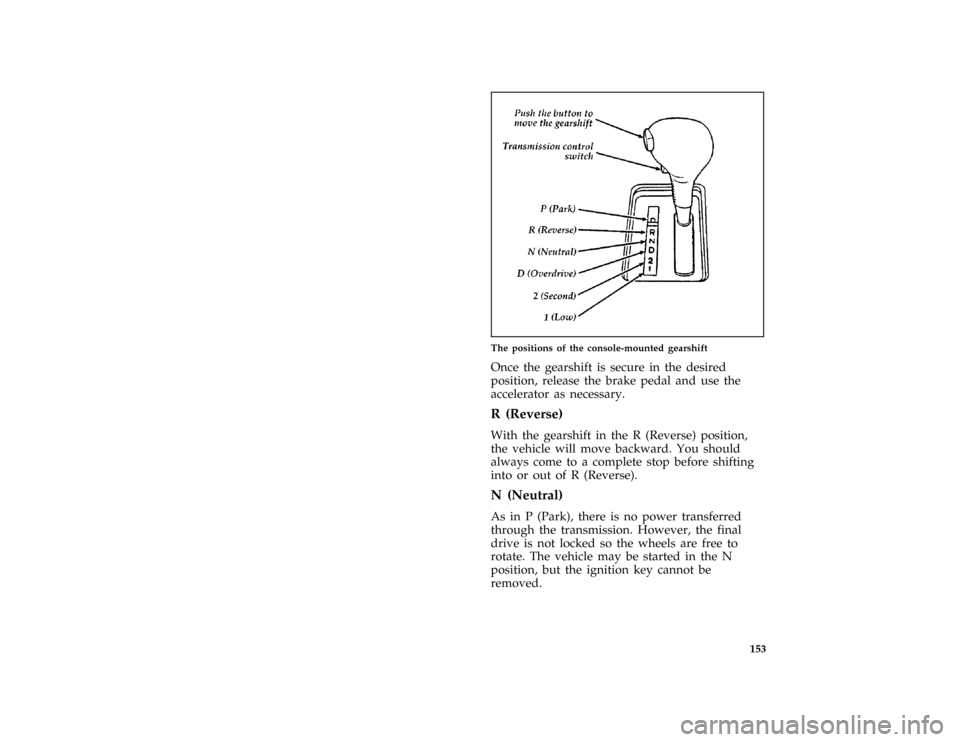

The positions of the console-mounted gearshift
*
[GF08700( ALL)01/96]
Once the gearshift is secure in the desired
position, release the brake pedal and use the
accelerator as necessary.
%*
[GF08800( ALL)05/96]
R (Reverse)
*
[GF08900( ALL)05/96]
With the gearshift in the R (Reverse) position,
the vehicle will move backward. You should
always come to a complete stop before shifting
into or out of R (Reverse).
*
[GF09000( ALL)01/96]
N (Neutral)
[GF09100( ALL)12/95]
As in P (Park), there is no power transferred
through the transmission. However, the final
drive is not locked so the wheels are free to
rotate. The vehicle may be started in the N
position, but the ignition key cannot be
removed.
File:09rcgfb.ex
Update:Thu May 30 10:59:34 1996

155
*
[GF10400( ALL)12/95]
However, Overdrive also shifts into a fourth
gear Ðan overdrive gear Ð when your vehicle
cruises at an appropriate consistent speed for
any length of time. This fourth gear will increase
your fuel economy when you travel at cruising
speeds.
% [GF10500(MBC )12/95]
When to use D (Overdrive) Ð with
transmission control switch activated (O/D
OFF light illuminated)
*
[GF10700(MBC )12/95]
Overdrive may not be appropriate for certain
terrain. If the transmission shifts back and forth
between Third and Fourth gears while you are
driving on hilly roads or if your vehicle does
not have adequate power for climbing hills,
depress the TCS.
*
[GF10900( BCGV)12/95]
You can depress the TCS at any speed.
*
[GF11100( ALL)05/96]
When to use 2 (Second)
*
[GF11200( ALL)12/95]
Use 2 (Second) for start-up on slippery roads or
to give you more engine braking to slow your
vehicle on downgrades.
*
[GF11300( ALL)05/96]
When to use 1 (Low)
*
[GF11400( ALL)12/95]
Use 1 (Low) when driving down steep grades. It
gives more engine braking to slow your vehicle
than 2 (Second) on the downgrades. You can
upshift from 1 (Low) to 2 (Second) or from 1
(Low) to Overdrive at any speed.
*
[GF11500( ALL)05/96]
P (Park)
*
[GF11600( ALL)12/95]
Always come to a complete stop before you shift
into P (Park). Make sure that the gearshift is
securely latched in P (Park). This locks the
transmission and prevents the rear wheels from
rotating.
File:09rcgfb.ex
Update:Thu May 30 10:59:34 1996

174
%*
[ER07300( ALL)01/96]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
% [ER07400( ALL)12/95]
Fuel System Shut-off Switch
[ER07500( ALL)05/96]
If the engine cranks but does not start or does
not start after a collision, the fuel system shut-off
switch may have been activated. The shut-off
switch is a device intended to stop the fuel
system when your vehicle has been involved in
a substantial jolt.
*
[ER07600( BCGV)04/96]
Once the shut-off switch is activated, you must
reset the switch by hand before you can start
your vehicle. The switch is on the left side of the
trunk.
[ER07900( BC )12/95]
one third page art:0010013-E
The fuel pump shut-off switch
*
[ER08100( ALL)03/96]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
File:10rcerb.ex
Update:Thu May 30 11:01:08 1996
