alternator FORD THUNDERBIRD 2002 11.G Owners Manual

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
8 5A Right-hand Turn/Park/Side Marker
9 15A Right-hand Headlamp
10 5A Left-hand Turn/Park/Side Marker
11 15A Left-hand Headlamp
12 10A Pad switch
13 5A Cluster
14 10A Air Bag, Vehicle ID
15 5A Not Used (Spare)
16 5A Not used (Spare)
17 5A Alternator and Airbag Warning
18 20A Radio
19 20A Tilt/Tele Motors
20 10A FEM, DATC, Cluster
21 10A Not used (Spare)
22 10A Not used (Spare)
23 10A Not used (Spare)
24 5A PATS Transceiver
25 10A Washer pump
26 3A Windshield Wiper Relay
27 10A Radio, Cellphone
28 10A Not used (Spare)
29 5A DATC
30 5A FEM VBATT2
31 10A Map lamps, interior lighting, S/JB
32 20A Cigar Lighter
33 10A FEM, Ill M.
34 5A Outside mirror
35 5A DGB Brake Pedal Switch, Stoplamp Switch
Roadside emergencies
158

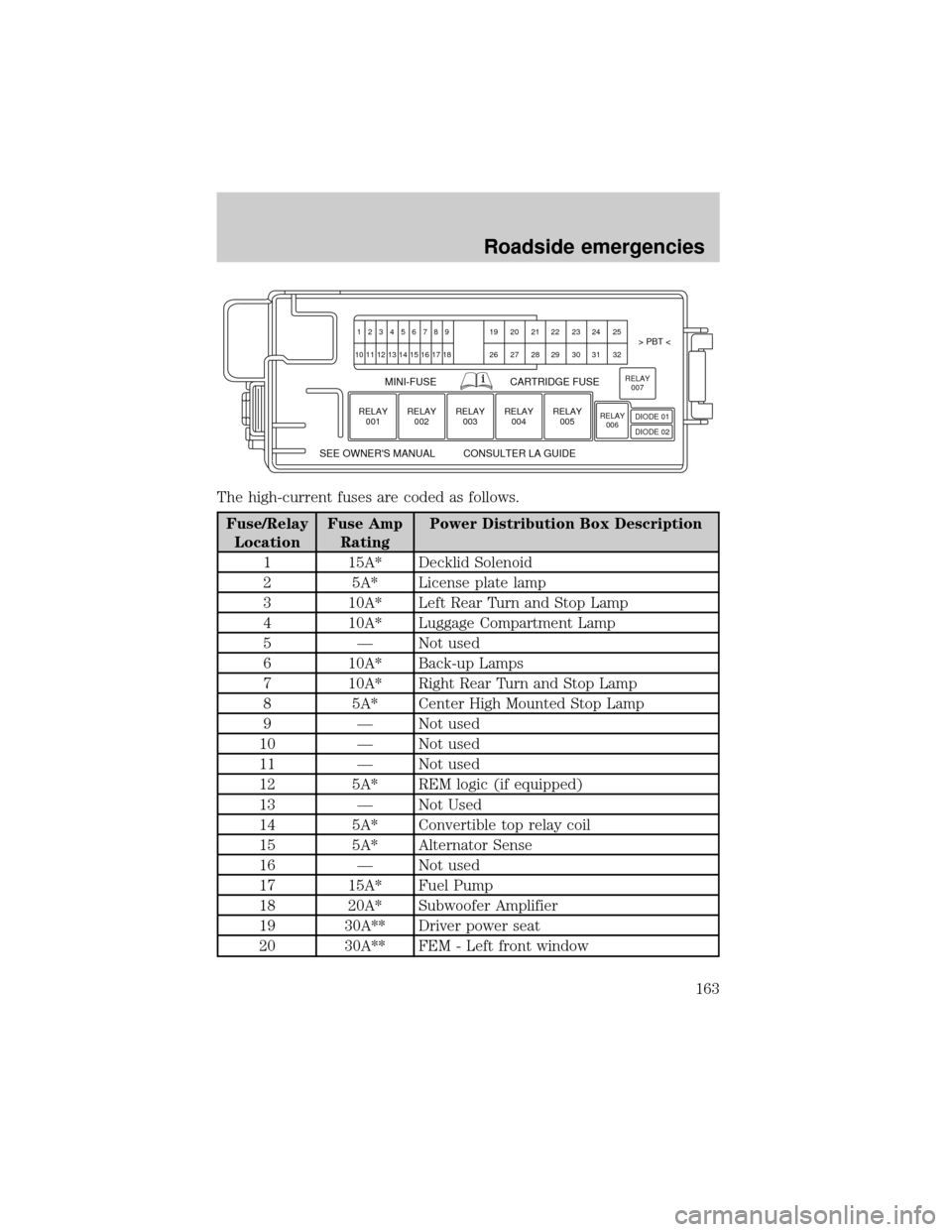

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1 15A* Decklid Solenoid
2 5A* License plate lamp
3 10A* Left Rear Turn and Stop Lamp
4 10A* Luggage Compartment Lamp
5 Ð Not used
6 10A* Back-up Lamps
7 10A* Right Rear Turn and Stop Lamp
8 5A* Center High Mounted Stop Lamp
9 Ð Not used
10 Ð Not used
11 Ð Not used
12 5A* REM logic (if equipped)
13 Ð Not Used
14 5A* Convertible top relay coil
15 5A* Alternator Sense
16 Ð Not used
17 15A* Fuel Pump
18 20A* Subwoofer Amplifier
19 30A** Driver power seat
20 30A** FEM - Left front window
123456789 19 20 21 22 23 24 25> PBT <
MINI-FUSE
SEE OWNER'S MANUAL CONSULTER LA GUIDECARTRIDGE FUSE
26 27 28 29 30 31 32 10 11
RELAY
001
12 13 14 15 16 17 18
RELAY
002RELAY
003RELAY
004RELAY
005RELAY
006RELAY
007
DIODE 01
DIODE 02
Roadside emergencies
163
