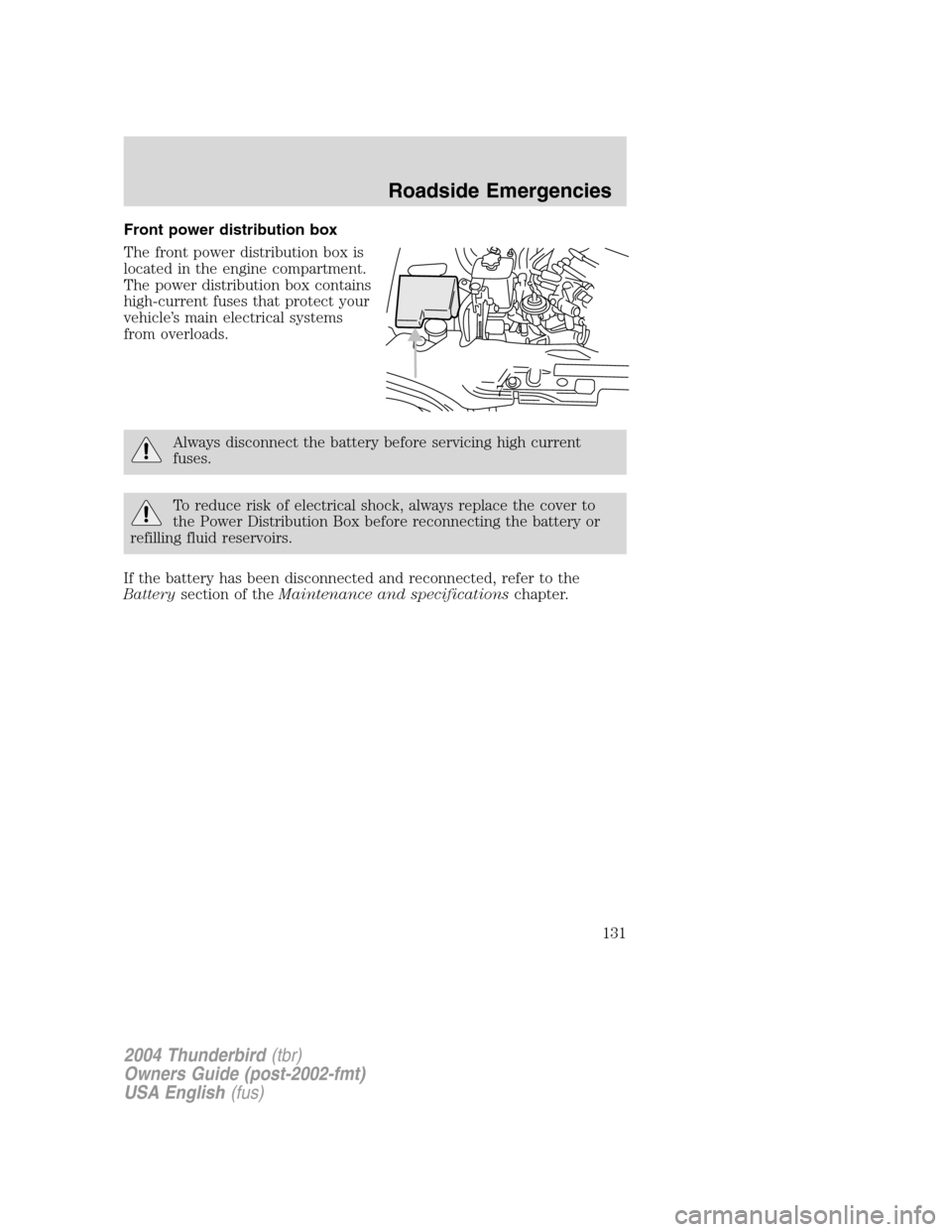

Front power distribution box
The front power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and specifications chapter.
7
2004 Thunderbird(tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
131
Page 132 of 216

The high-current fuses are coded as follows.
Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
1 10A* A/C clutch
2 15A* Heated wiper park
3 10A* Park lamp
4 15A* Horn
5 15A* Fuel injectors
6 15A* Transmission solenoids
7 —Not used
8 20A* Power point
9 —Not used
10 —Not used
11 15A* Heated Exhaust Gas Oxygen (HEGO) sensors
12 15A* Coil-on-plug
RELAY 14 RELAY
15
RELAY11 RELAY
12
RELAY10 13
1234
5678
9 10111214 15 16 17 18
19 20 21 22 23 24
RELAY 13RELAY 08 DIODE
RELAY 04 RELAY 05
RELAY 01
RELAY 09
RELAY 06 RELAY 02RELAY 07
RELAY 03
2004 Thunderbird
(tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
132
Page 133 of 216

Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
13 —Not used
14 30A** ABS module power
15 —Not used
16 30A** Blower motor
17 —Not used
18 40A** PCM
19 —Not used
20 —Not used
21 30A** Starter solenoid
22 40A** ABS pump
23 —Not used (fuse plug)
24 30A** Wiper module
Relay 01 —Not used
Relay 02 —Not used
Relay 03 1/2 ISO Relay Coil-on-plug and HEGOs
Relay 04 1/2 ISO Relay Heated wiper park relay
Relay 05 1/2 ISO Relay Auxiliary coolant pump
Relay 06 1/2 ISO Relay Horn
Relay 07 —Not used
Relay 08 1/2 ISO Relay A/C clutch
Relay 09 60A** Cooling fan motor
Relay 10 Full ISO Relay Blower motor
Relay 11 —Not used
Relay 12 —Not used
Relay 13 —Not used
Relay 14 Full ISO Relay PCM
Relay 15 Full ISO Relay Starter motor Diode —PCM relay coil
*Mini fuses **Cartridge fuses
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
133
Page 134 of 216

Rear power distribution box
The rear power distribution box is
located in the luggage compartment
under the spare tire well cover. The
power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and specifications chapter.
123456789 19 20 21 22 23 24 25> PBT <
MINI-FUSE
SEE OWNER'S MANUAL CONSULTER LA GUIDE CARTRIDGE FUSE
26 27 28 29 30 31 32
10 11
RELAY
001
12 13 14 15 16 17 18
RELAY002RELAY003RELAY004RELAY005RELAY
006 RELAY
007
DIODE 01
DIODE 02
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
134
Page 135 of 216

The high-current fuses are coded as follows.
Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
1 15A* Rear Electronics Module (REM)
2 5A* License plate lamp and rear side markers
3 10A* Left rear stop/turn/tail lamp
4 10A* Luggage compartment lamp, Map/courtesy overhead lamp,
Homelink transmitter
5 5A* REM - Hard top sense
6 10A* Back-up lamps
7 10A* Right rear stop/turn/tail lamp
8 5A* Center high-mounted stop lamp
9 —Not used
10 15A* Passenger heated seat
11 15A* Driver heated seat
12 5A* REM
13 —Not used
14 5A* Convertible top relay coil
15 5A* Alternator sense
16 —Not used
17 15A* Fuel pump
18 20A* Subwoofer amplifier
19 30A** Driver power seat
20 30A** FEM - Left front window
21 —Not used
22 20A** Ignition switch
23 30A** SSP4
24 30A** SSP3
25 40A** Passenger compartment fuse panel
26 30A** Passenger power seat
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
135
Page 136 of 216

Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
27 30A** SSP1
28 30A** REM -Right front window
29 30A** Rear defroster
30 —Not used
31 40A** Convertible top motor
32 30A** SSP2
Relay 001 Full ISO SSP1
Relay 002 Full ISO SSP4
Relay 003 Full ISO Rear defroster
Relay 004 Full ISO SSP3
Relay 005 Full ISO SSP2
Relay 006 —Not used
Relay 007 1/2 ISO Fuel pump Diode 01 —Not used
Diode 02 1A Fuel pump relay coil
*Mini fuses **Cartridge fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
The use of tire sealants may damage your tires.
Temporary spare tire information
Your vehicle may have a temporary or full-size spare tire. The temporary
spare tire for your vehicle is labeled as such. It is smaller than a regular
tire and is designed for emergency use only. Drive cautiously and replace
the temporary spare tire as soon as possible.
If you use the temporary spare tire continuously or do not follow
these precautions, the tire could fail, causing you to lose control
of the vehicle, possibly injuring yourself or others.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
136
Page 137 of 216

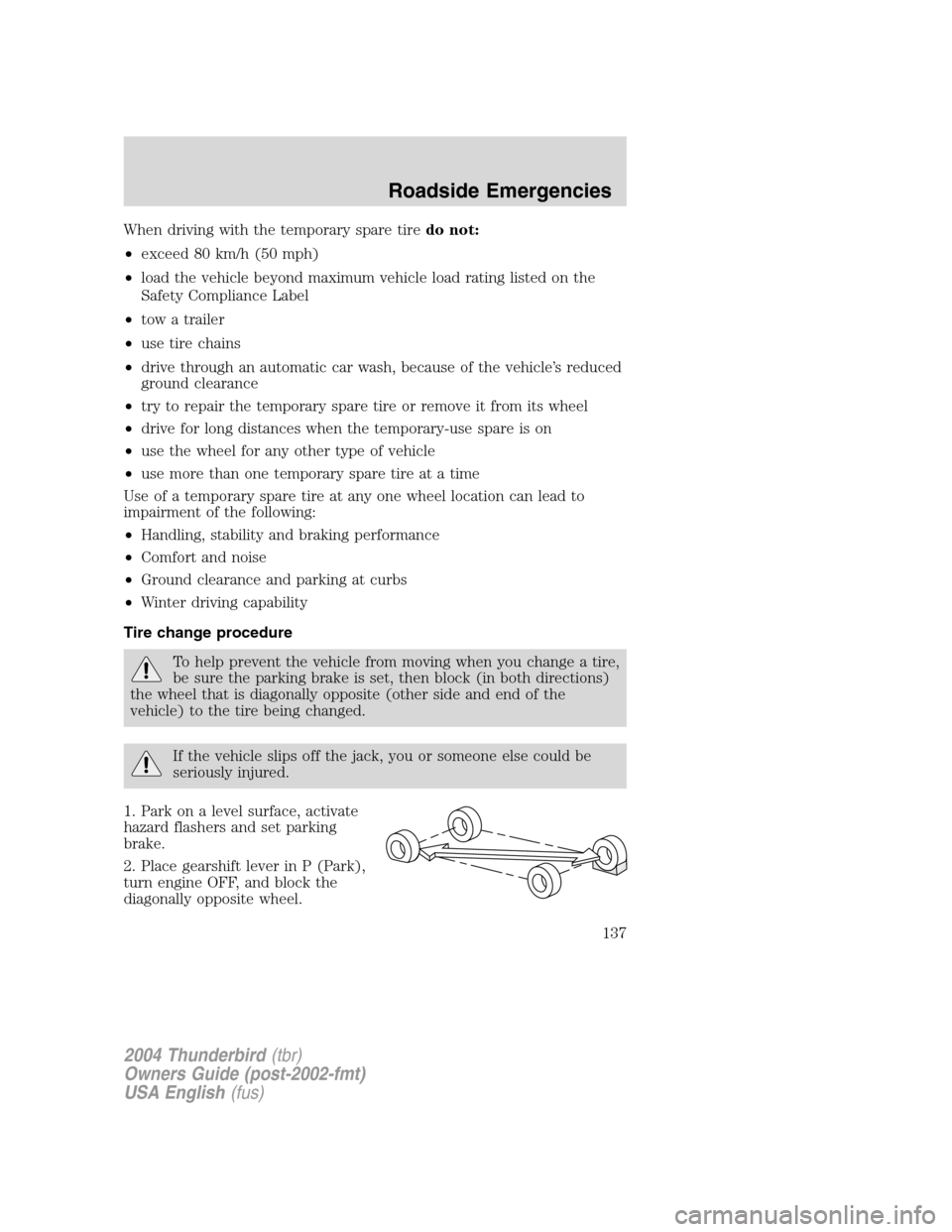

When driving with the temporary spare tiredo not:
• exceed 80 km/h (50 mph)
• load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
• tow a trailer
• use tire chains
• drive through an automatic car wash, because of the vehicle ’s reduced
ground clearance
• try to repair the temporary spare tire or remove it from its wheel
• drive for long distances when the temporary-use spare is on
• use the wheel for any other type of vehicle
• use more than one temporary spare tire at a time
Use of a temporary spare tire at any one wheel location can lead to
impairment of the following:
• Handling, stability and braking performance
• Comfort and noise
• Ground clearance and parking at curbs
• Winter driving capability
Tire change procedure
To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)
the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.
If the vehicle slips off the jack, you or someone else could be
seriously injured.
1. Park on a level surface, activate
hazard flashers and set parking
brake.
2. Place gearshift lever in P (Park),
turn engine OFF, and block the
diagonally opposite wheel.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
137
Page 138 of 216

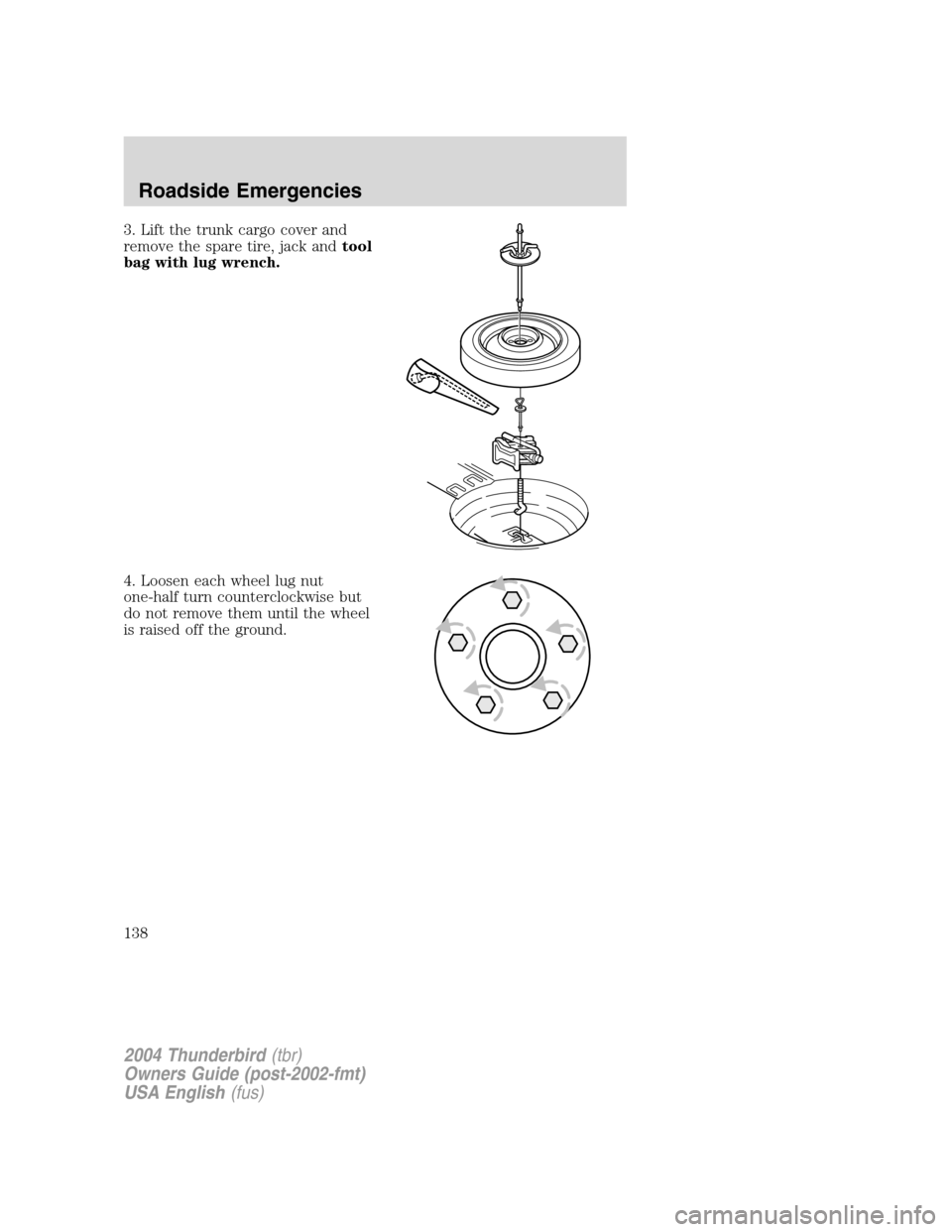

3. Lift the trunk cargo cover and
remove the spare tire, jack andtool
bag with lug wrench.
4. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
138
Page 139 of 216

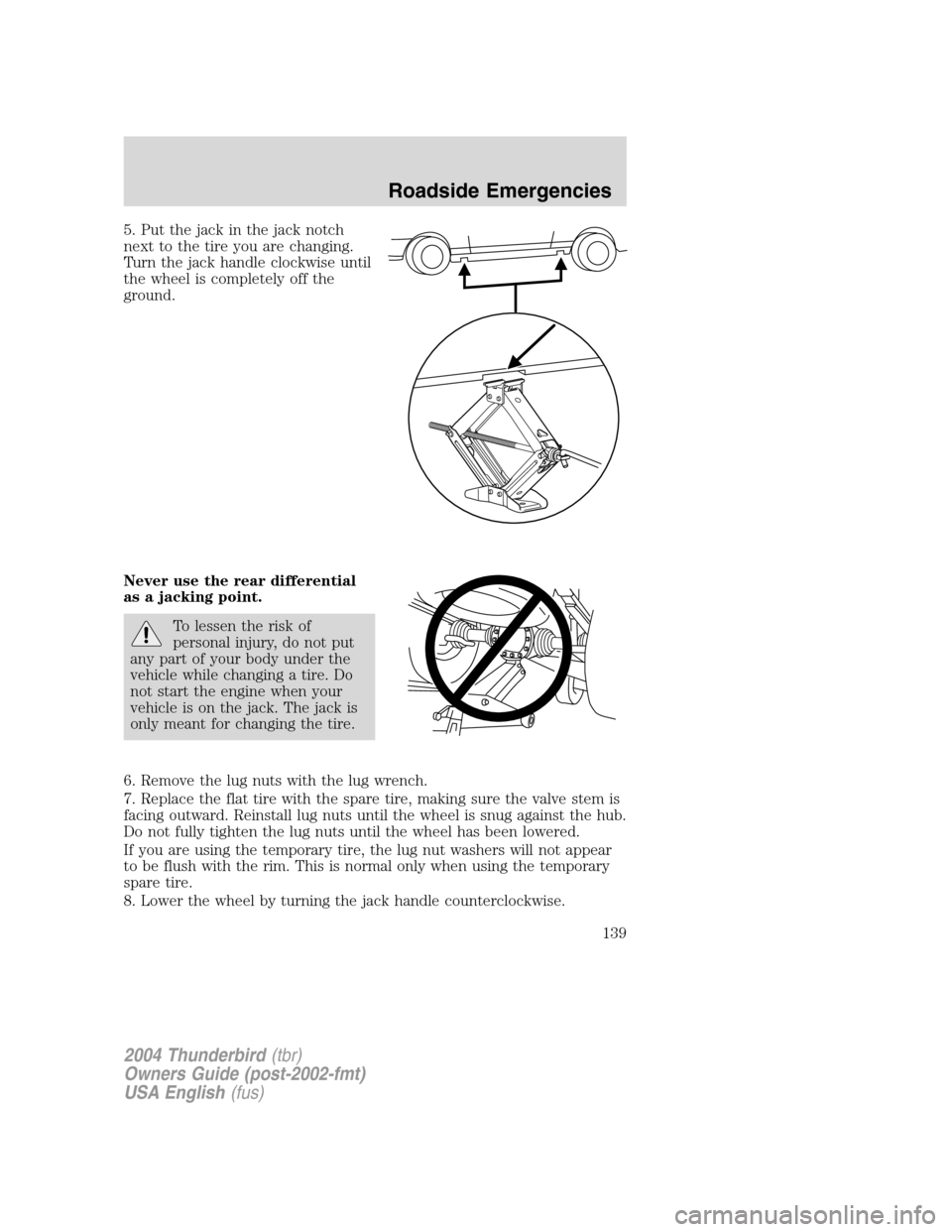

5. Put the jack in the jack notch
next to the tire you are changing.
Turn the jack handle clockwise until
the wheel is completely off the
ground.
Never use the rear differential
as a jacking point.
To lessen the risk of
personal injury, do not put
any part of your body under the
vehicle while changing a tire. Do
not start the engine when your
vehicle is on the jack. The jack is
only meant for changing the tire.
6. Remove the lug nuts with the lug wrench.
7. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall lug nuts until the wheel is snug against the hub.
Do not fully tighten the lug nuts until the wheel has been lowered.
If you are using the temporary tire, the lug nut washers will not appear
to be flush with the rim. This is normal only when using the temporary
spare tire.
8. Lower the wheel by turning the jack handle counterclockwise.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
139
Page 140 of 216

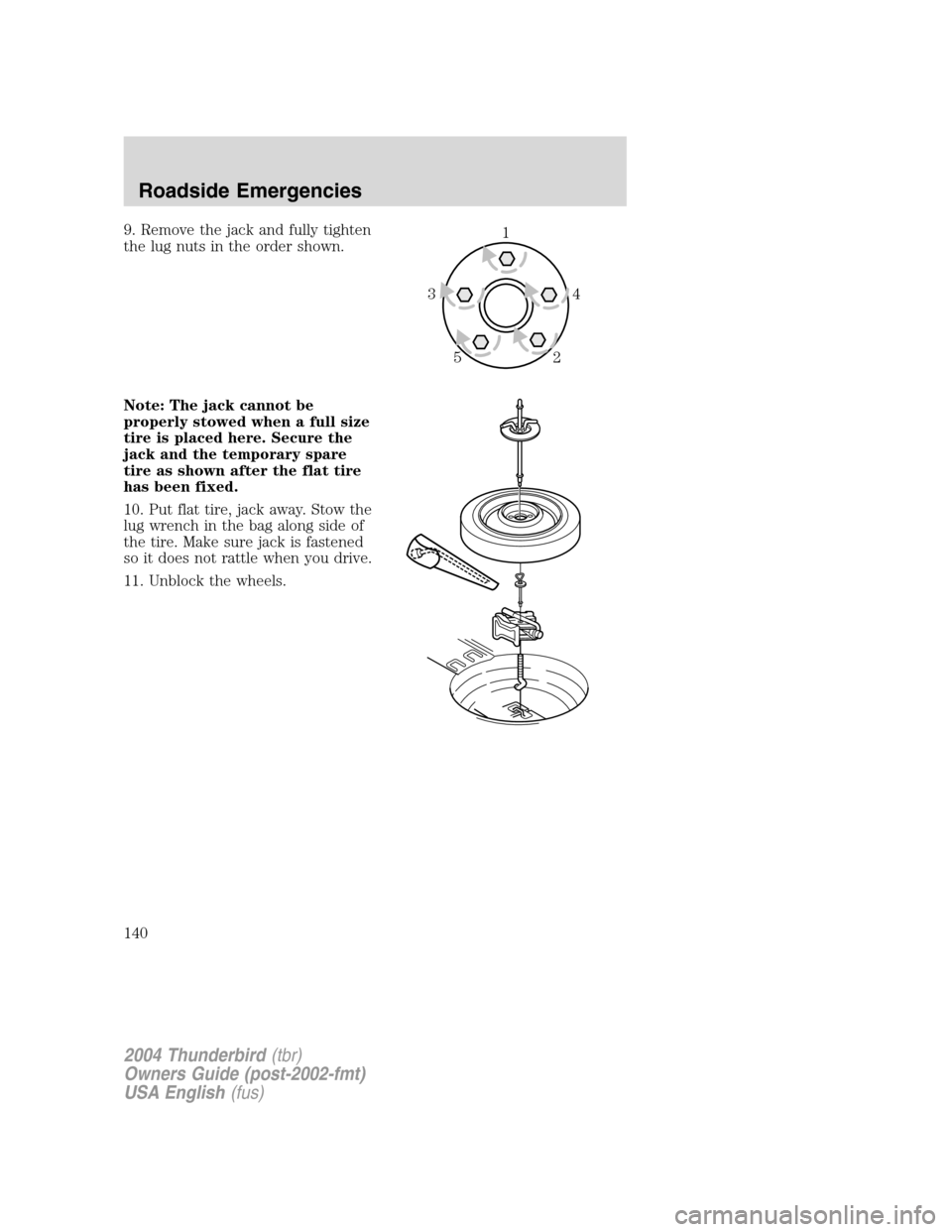

9. Remove the jack and fully tighten
the lug nuts in the order shown.
Note: The jack cannot be
properly stowed when a full size
tire is placed here. Secure the
jack and the temporary spare
tire as shown after the flat tire
has been fixed.
10. Put flat tire, jack away. Stow the
lug wrench in the bag along side of
the tire. Make sure jack is fastened
so it does not rattle when you drive.
11. Unblock the wheels.14
3
2
5
