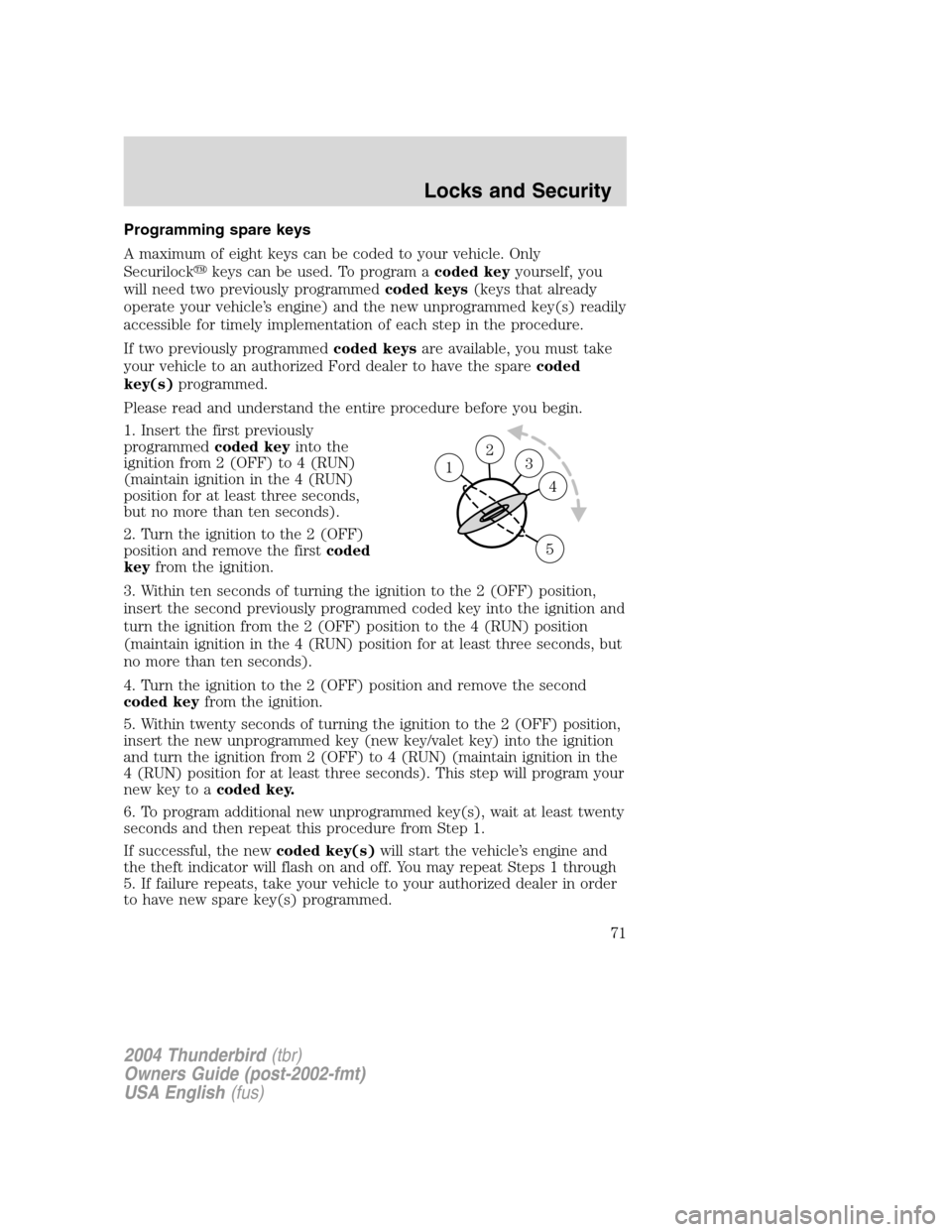

Programming spare keys
A maximum of eight keys can be coded to your vehicle. Only
Securilock
keys can be used. To program a coded keyyourself, you
will need two previously programmed coded keys(keys that already
operate your vehicle ’s engine) and the new unprogrammed key(s) readily
accessible for timely implementation of each step in the procedure.
If two previously programmed coded keysare available, you must take
your vehicle to an authorized Ford dealer to have the spare coded
key(s) programmed.
Please read and understand the entire procedure before you begin.
1. Insert the first previously
programmed coded keyinto the
ignition from 2 (OFF) to 4 (RUN)
(maintain ignition in the 4 (RUN)
position for at least three seconds,
but no more than ten seconds).
2. Turn the ignition to the 2 (OFF)
position and remove the first coded
key from the ignition.
3. Within ten seconds of turning the ignition to the 2 (OFF) position,
insert the second previously programmed coded key into the ignition and
turn the ignition from the 2 (OFF) position to the 4 (RUN) position
(maintain ignition in the 4 (RUN) position for at least three seconds, but
no more than ten seconds).
4. Turn the ignition to the 2 (OFF) position and remove the second
coded key from the ignition.
5. Within twenty seconds of turning the ignition to the 2 (OFF) position,
insert the new unprogrammed key (new key/valet key) into the ignition
and turn the ignition from 2 (OFF) to 4 (RUN) (maintain ignition in the
4 (RUN) position for at least three seconds). This step will program your
new key to a coded key.
6. To program additional new unprogrammed key(s), wait at least twenty
seconds and then repeat this procedure from Step 1.
If successful, the new coded key(s)will start the vehicle ’s engine and
the theft indicator will flash on and off. You may repeat Steps 1 through
5. If failure repeats, take your vehicle to your authorized dealer in order
to have new spare key(s) programmed.
23 1
4
5
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
71

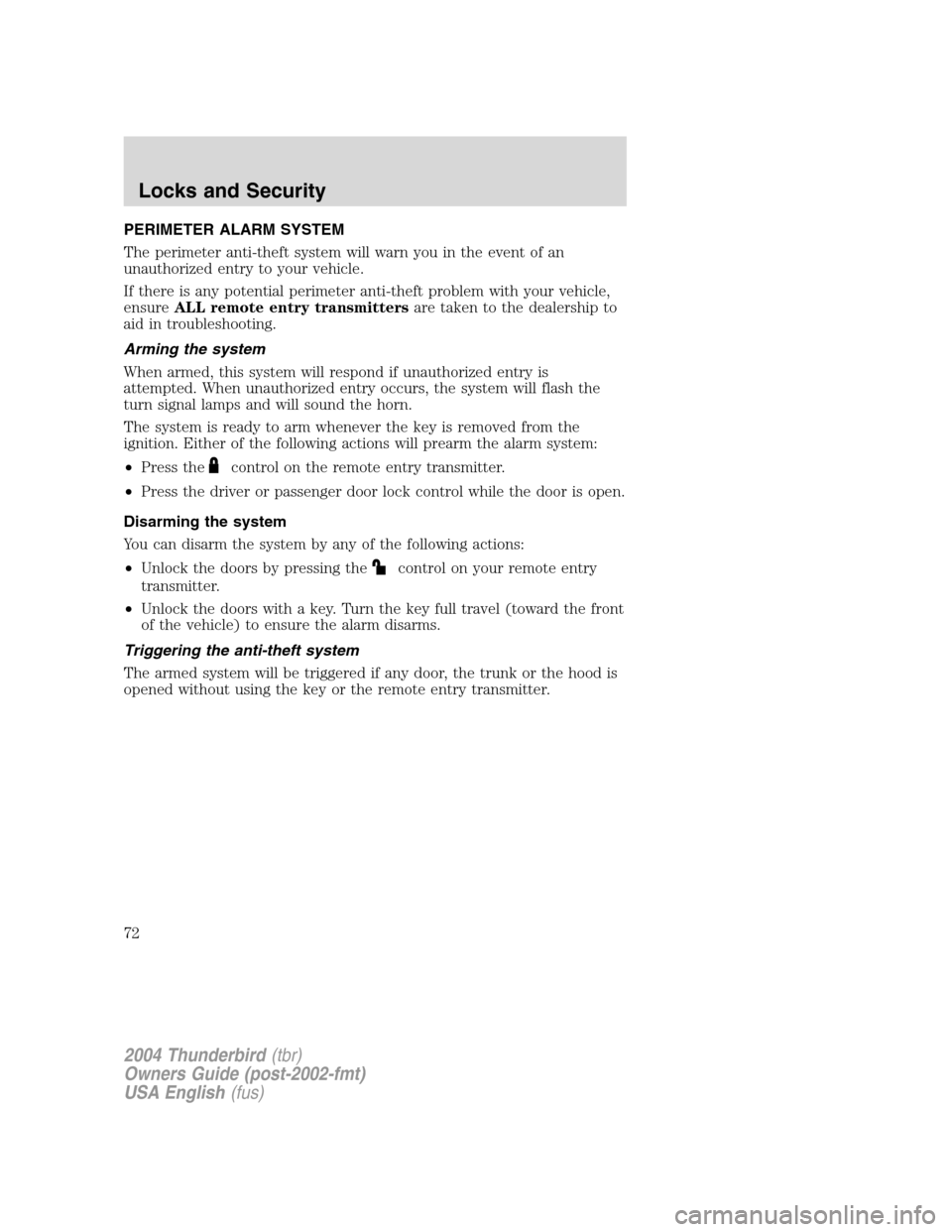

PERIMETER ALARM SYSTEM
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmitters are taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
• Press the
control on the remote entry transmitter.
• Press the driver or passenger door lock control while the door is open.
Disarming the system
You can disarm the system by any of the following actions:
• Unlock the doors by pressing the
control on your remote entry
transmitter.
• Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
Triggering the anti-theft system
The armed system will be triggered if any door, the trunk or the hood is
opened without using the key or the remote entry transmitter.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
72

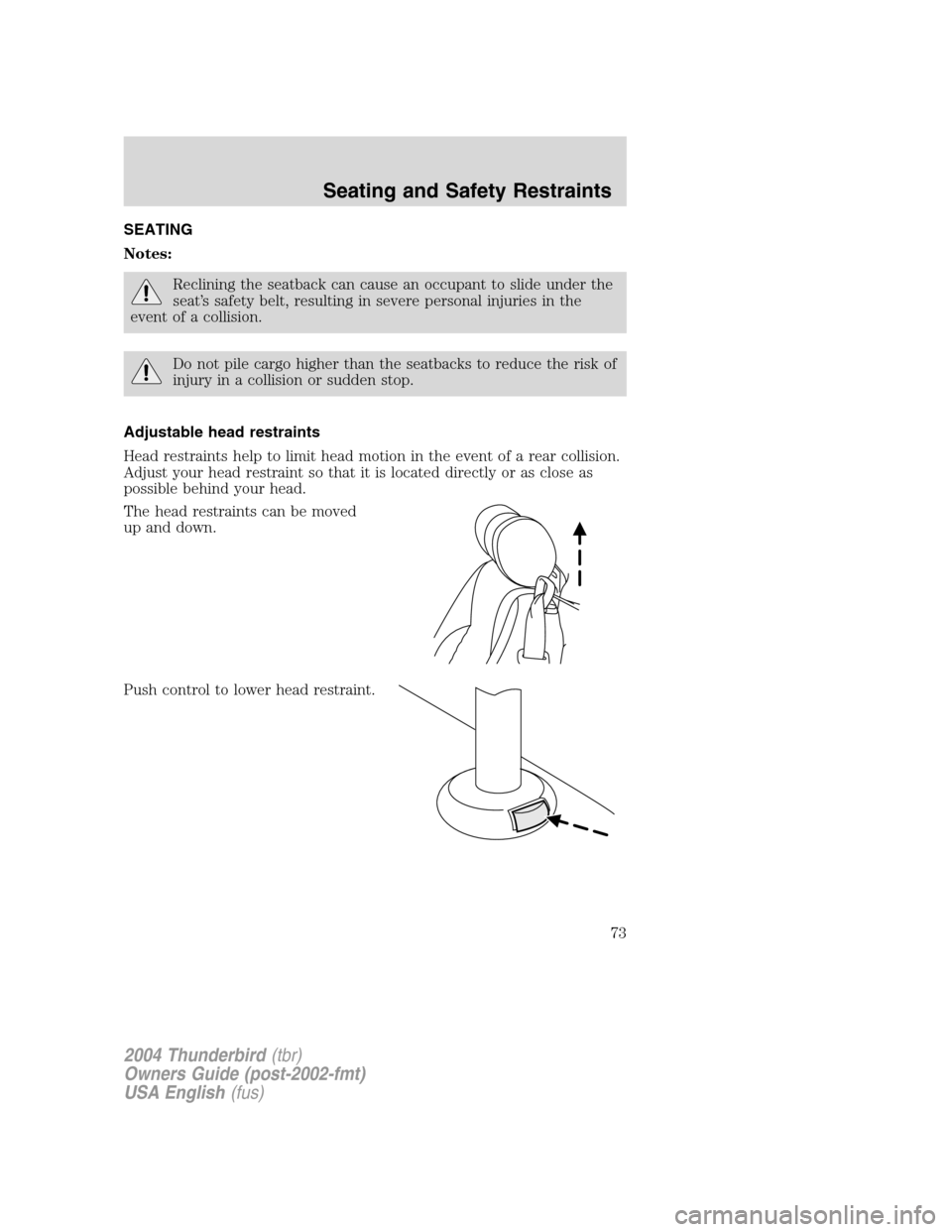

SEATING
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.
Adjustable head restraints
Head restraints help to limit head motion in the event of a rear collision.
Adjust your head restraint so that it is located directly or as close as
possible behind your head.
The head restraints can be moved
up and down.
Push control to lower head restraint.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
Seating and Safety Restraints
73

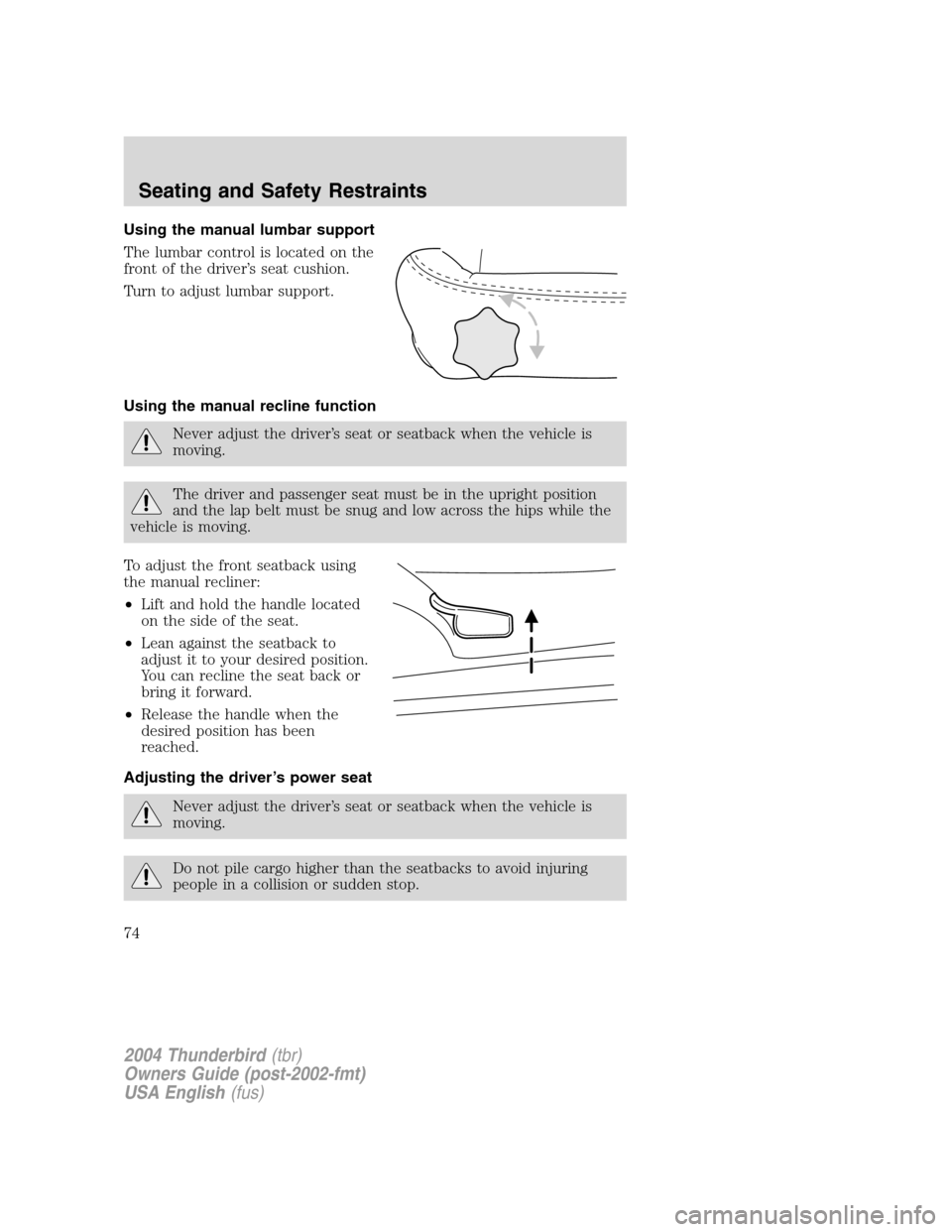

Using the manual lumbar support
The lumbar control is located on the
front of the driver’s seat cushion.
Turn to adjust lumbar support.
Using the manual recline function
Never adjust the driver ’s seat or seatback when the vehicle is
moving.
The driver and passenger seat must be in the upright position
and the lap belt must be snug and low across the hips while the
vehicle is moving.
To adjust the front seatback using
the manual recliner:
• Lift and hold the handle located
on the side of the seat.
• Lean against the seatback to
adjust it to your desired position.
You can recline the seat back or
bring it forward.
• Release the handle when the
desired position has been
reached.
Adjusting the driver’s power seat
Never adjust the driver ’s seat or seatback when the vehicle is
moving.
Do not pile cargo higher than the seatbacks to avoid injuring
people in a collision or sudden stop.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
74

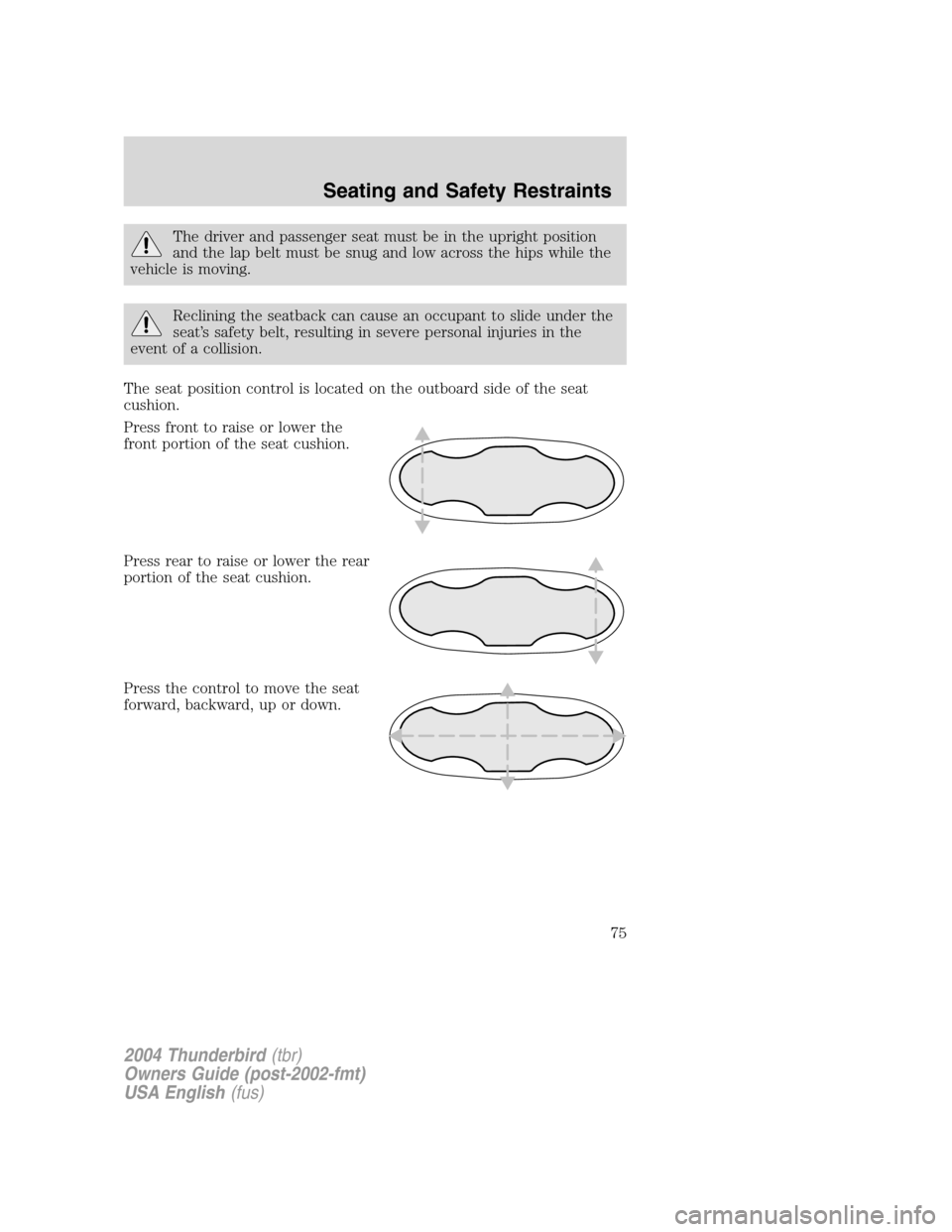

The driver and passenger seat must be in the upright position
and the lap belt must be snug and low across the hips while the
vehicle is moving.
Reclining the seatback can cause an occupant to slide under the
seat ’s safety belt, resulting in severe personal injuries in the
event of a collision.
The seat position control is located on the outboard side of the seat
cushion.
Press front to raise or lower the
front portion of the seat cushion.
Press rear to raise or lower the rear
portion of the seat cushion.
Press the control to move the seat
forward, backward, up or down.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
75

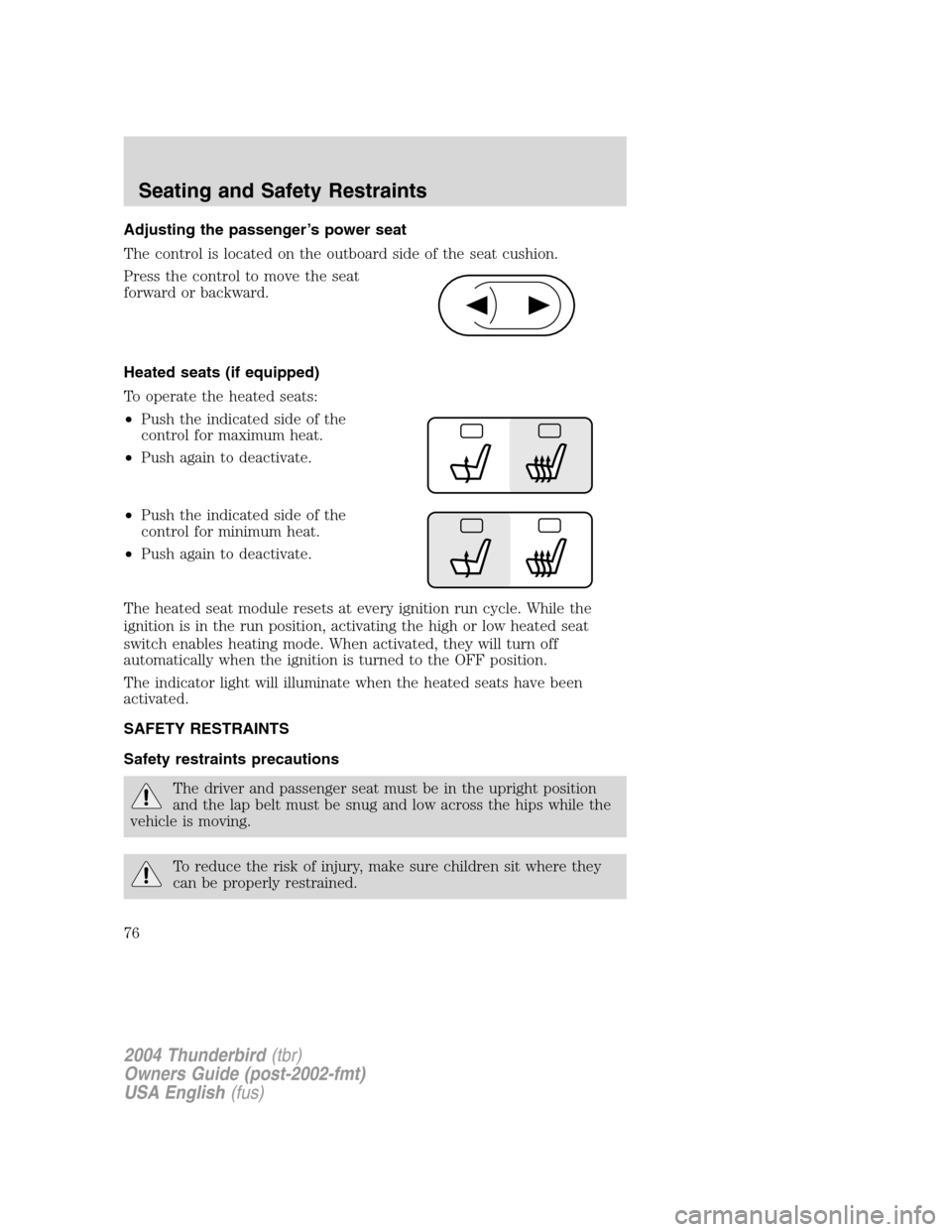

Adjusting the passenger’s power seat
The control is located on the outboard side of the seat cushion.
Press the control to move the seat
forward or backward.
Heated seats (if equipped)
To operate the heated seats:
• Push the indicated side of the
control for maximum heat.
• Push again to deactivate.
• Push the indicated side of the
control for minimum heat.
• Push again to deactivate.
The heated seat module resets at every ignition run cycle. While the
ignition is in the run position, activating the high or low heated seat
switch enables heating mode. When activated, they will turn off
automatically when the ignition is turned to the OFF position.
The indicator light will illuminate when the heated seats have been
activated.
SAFETY RESTRAINTS
Safety restraints precautions
The driver and passenger seat must be in the upright position
and the lap belt must be snug and low across the hips while the
vehicle is moving.
To reduce the risk of injury, make sure children sit where they
can be properly restrained.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
76

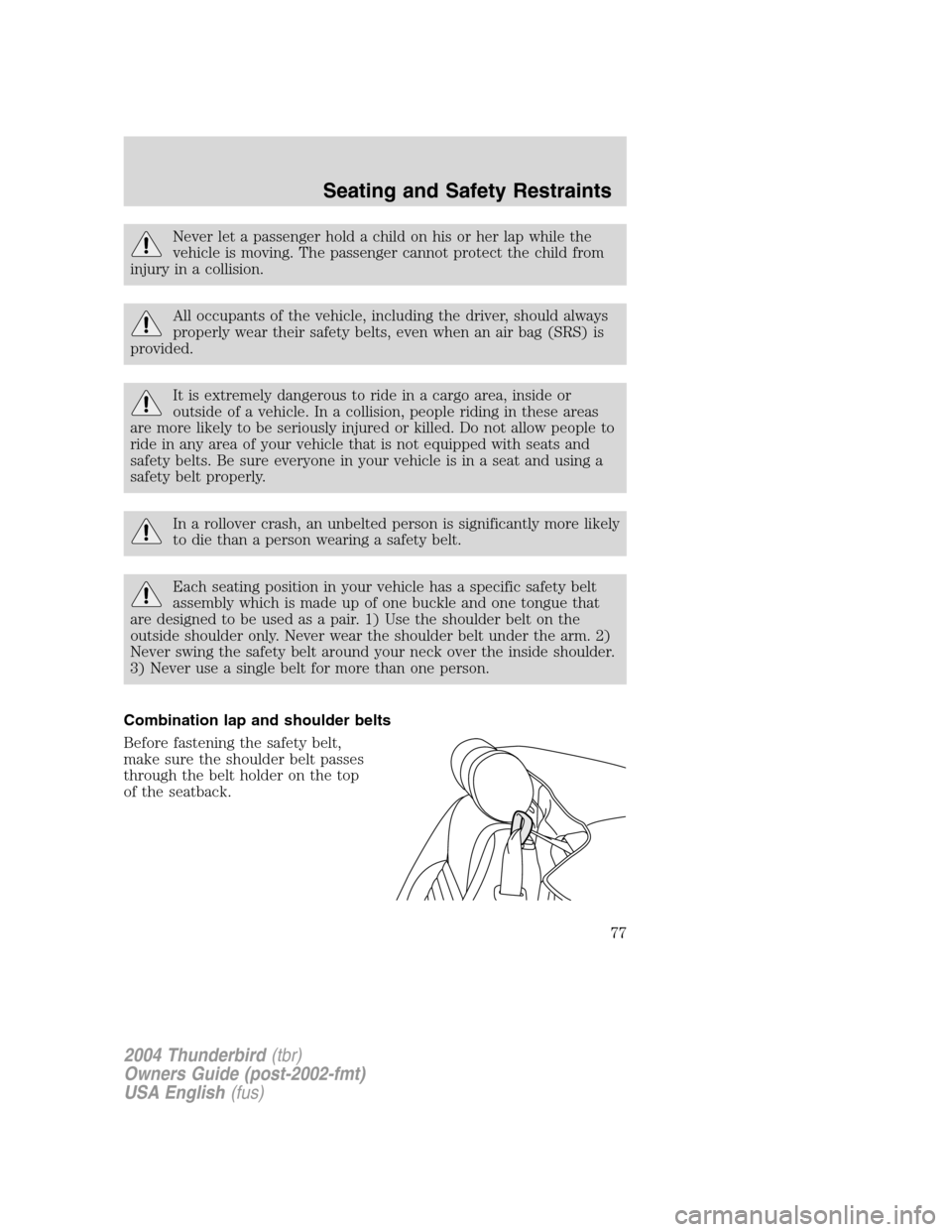

Never let a passenger hold a child on his or her lap while the
vehicle is moving. The passenger cannot protect the child from
injury in a collision.
All occupants of the vehicle, including the driver, should always
properly wear their safety belts, even when an air bag (SRS) is
provided.
It is extremely dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in these areas
are more likely to be seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not equipped with seats and
safety belts. Be sure everyone in your vehicle is in a seat and using a
safety belt properly.
In a rollover crash, an unbelted person is significantly more likely
to die than a person wearing a safety belt.
Each seating position in your vehicle has a specific safety belt
assembly which is made up of one buckle and one tongue that
are designed to be used as a pair. 1) Use the shoulder belt on the
outside shoulder only. Never wear the shoulder belt under the arm. 2)
Never swing the safety belt around your neck over the inside shoulder.
3) Never use a single belt for more than one person.
Combination lap and shoulder belts
Before fastening the safety belt,
make sure the shoulder belt passes
through the belt holder on the top
of the seatback.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
77

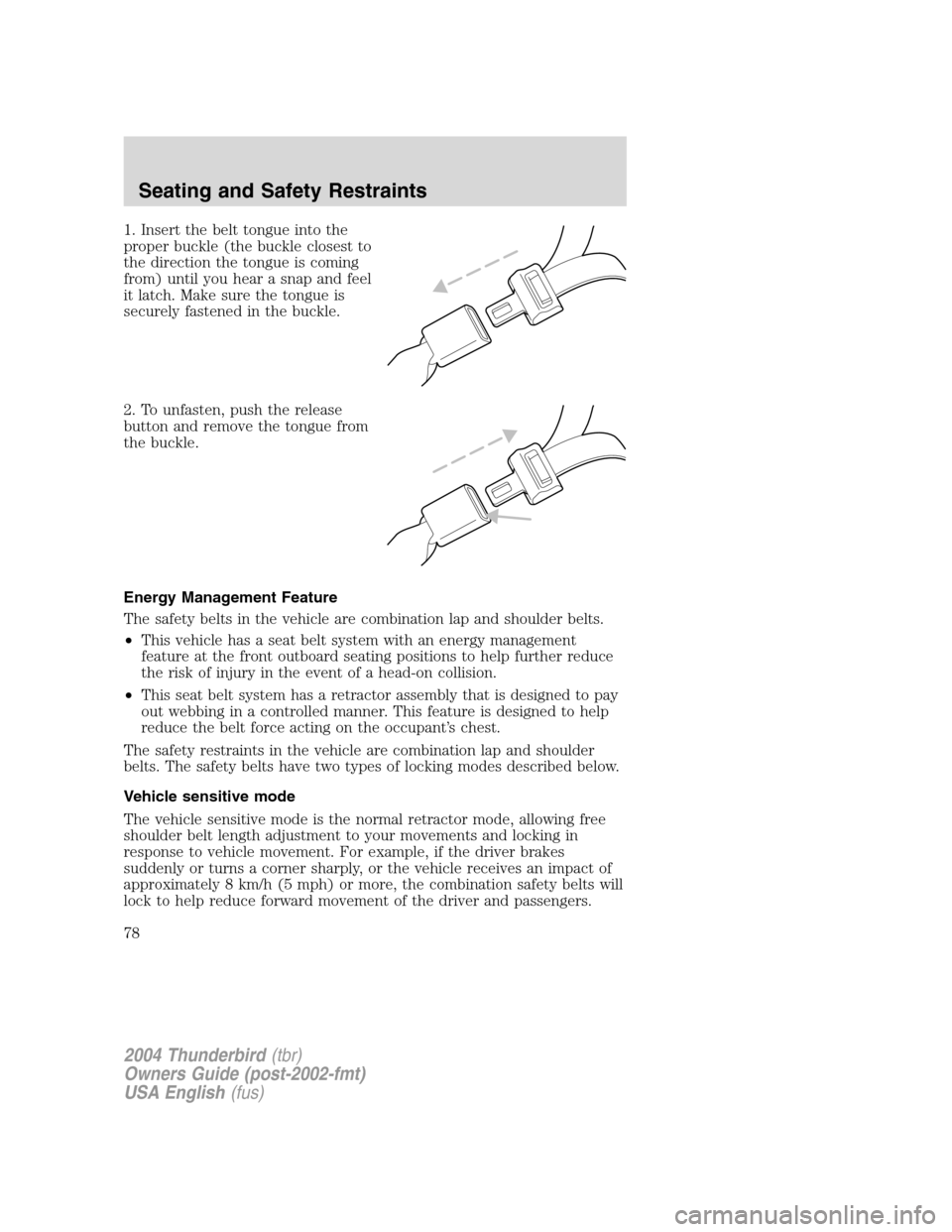

1. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) until you hear a snap and feel
it latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, push the release
button and remove the tongue from
the buckle.
Energy Management Feature
The safety belts in the vehicle are combination lap and shoulder belts.
•This vehicle has a seat belt system with an energy management
feature at the front outboard seating positions to help further reduce
the risk of injury in the event of a head-on collision.
• This seat belt system has a retractor assembly that is designed to pay
out webbing in a controlled manner. This feature is designed to help
reduce the belt force acting on the occupant ’s chest.
The safety restraints in the vehicle are combination lap and shoulder
belts. The safety belts have two types of locking modes described below.
Vehicle sensitive mode
The vehicle sensitive mode is the normal retractor mode, allowing free
shoulder belt length adjustment to your movements and locking in
response to vehicle movement. For example, if the driver brakes
suddenly or turns a corner sharply, or the vehicle receives an impact of
approximately 8 km/h (5 mph) or more, the combination safety belts will
lock to help reduce forward movement of the driver and passengers.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
78

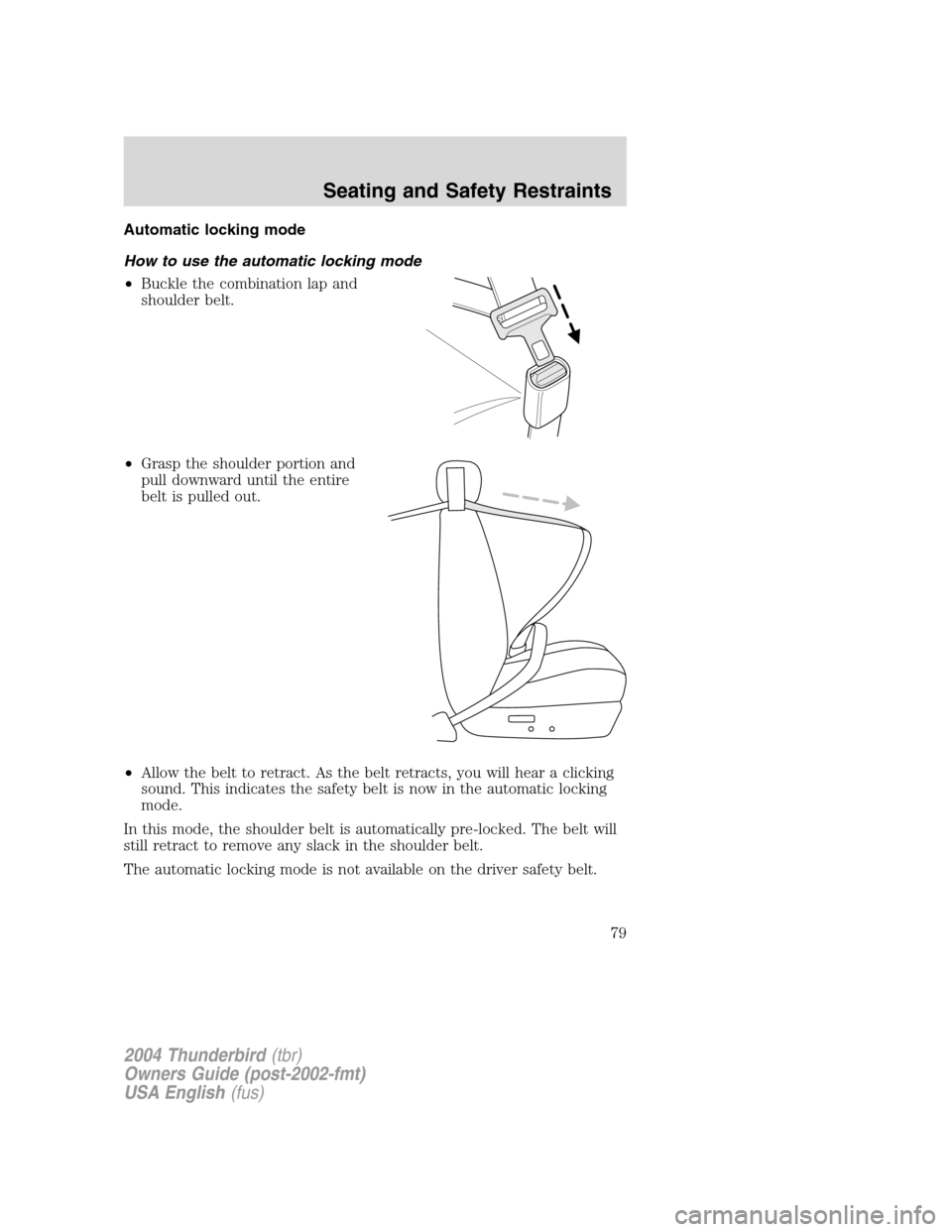

Automatic locking mode
How to use the automatic locking mode
•Buckle the combination lap and
shoulder belt.
• Grasp the shoulder portion and
pull downward until the entire
belt is pulled out.
• Allow the belt to retract. As the belt retracts, you will hear a clicking
sound. This indicates the safety belt is now in the automatic locking
mode.
In this mode, the shoulder belt is automatically pre-locked. The belt will
still retract to remove any slack in the shoulder belt.
The automatic locking mode is not available on the driver safety belt.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
79

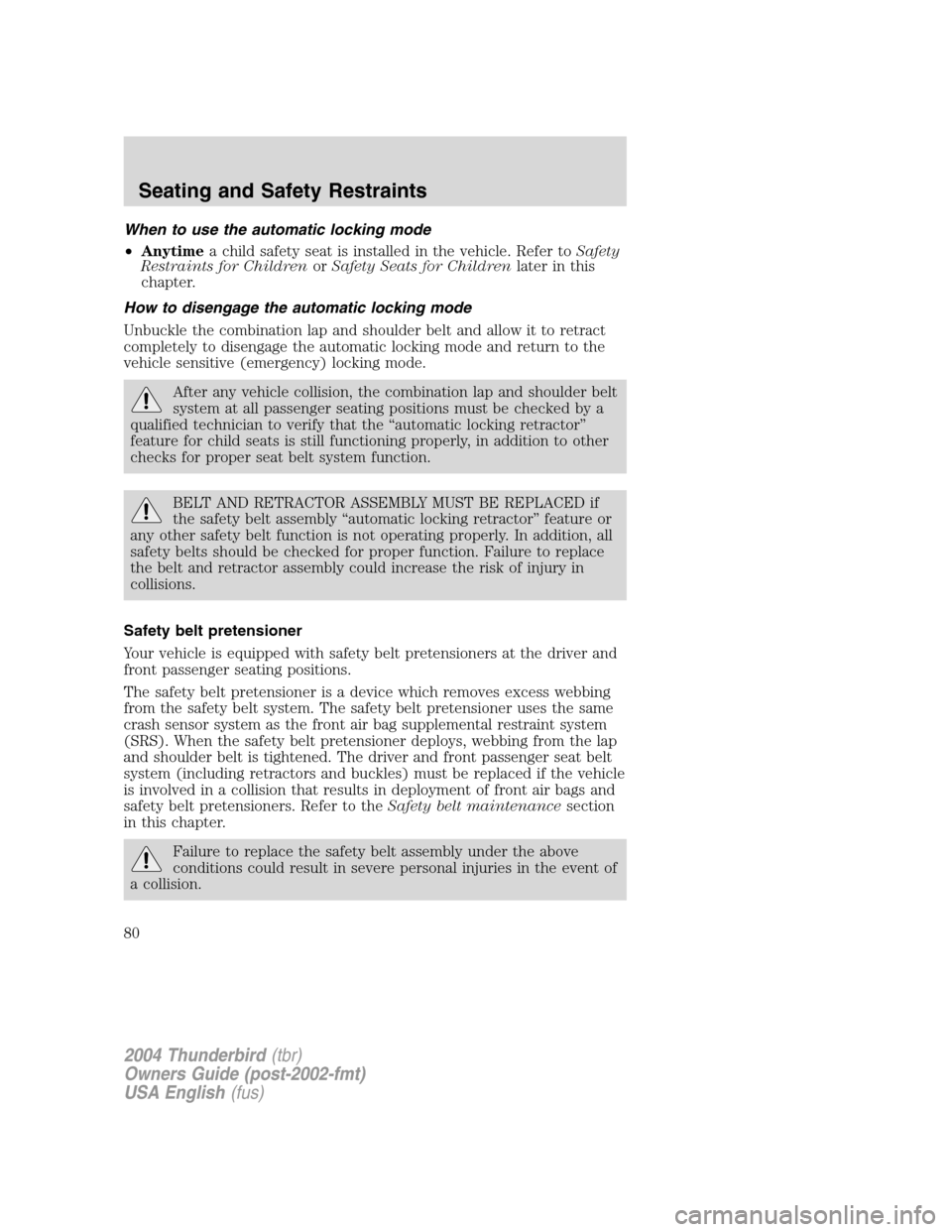

When to use the automatic locking mode
•Anytime a child safety seat is installed in the vehicle. Refer to Safety
Restraints for Children orSafety Seats for Children later in this
chapter.
How to disengage the automatic locking mode
Unbuckle the combination lap and shoulder belt and allow it to retract
completely to disengage the automatic locking mode and return to the
vehicle sensitive (emergency) locking mode.
After any vehicle collision, the combination lap and shoulder belt
system at all passenger seating positions must be checked by a
qualified technician to verify that the “automatic locking retractor ”
feature for child seats is still functioning properly, in addition to other
checks for proper seat belt system function.
BELT AND RETRACTOR ASSEMBLY MUST BE REPLACED if
the safety belt assembly “automatic locking retractor ”feature or
any other safety belt function is not operating properly. In addition, all
safety belts should be checked for proper function. Failure to replace
the belt and retractor assembly could increase the risk of injury in
collisions.
Safety belt pretensioner
Your vehicle is equipped with safety belt pretensioners at the driver and
front passenger seating positions.
The safety belt pretensioner is a device which removes excess webbing
from the safety belt system. The safety belt pretensioner uses the same
crash sensor system as the front air bag supplemental restraint system
(SRS). When the safety belt pretensioner deploys, webbing from the lap
and shoulder belt is tightened. The driver and front passenger seat belt
system (including retractors and buckles) must be replaced if the vehicle
is involved in a collision that results in deployment of front air bags and
safety belt pretensioners. Refer to the Safety belt maintenancesection
in this chapter.
Failure to replace the safety belt assembly under the above
conditions could result in severe personal injuries in the event of
a collision.
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
80
