dimensions FORD THUNDERBIRD 2004 11.G Owners Manual

ENGINE DATA
Engine 3.9L-4V V8 engine
Displacement 3 949 cc (241 cid)
Required fuel 91 octane
Firing order 1-5-4-2-6-3-7-8
Spark plug gap 0.99-1.09 mm (0.039-0.043 inch)
Ignition system Coil on plug
Compression ratio 10.75:1
VEHICLE DIMENSIONS
Vehicle dimensions mm (in)
(1) Overall length 4732mm (186.3 in)
(2) Overall width 1829mm (72.0 in)
(3) Overall height 1323 mm (52.1 in)
(4) Wheelbase 2722 mm (107.2 in)
(5) Track - Front 1537 mm (60.5 in)
(5) Track - Rear 1529 mm (60.2 in)
4
1
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
205

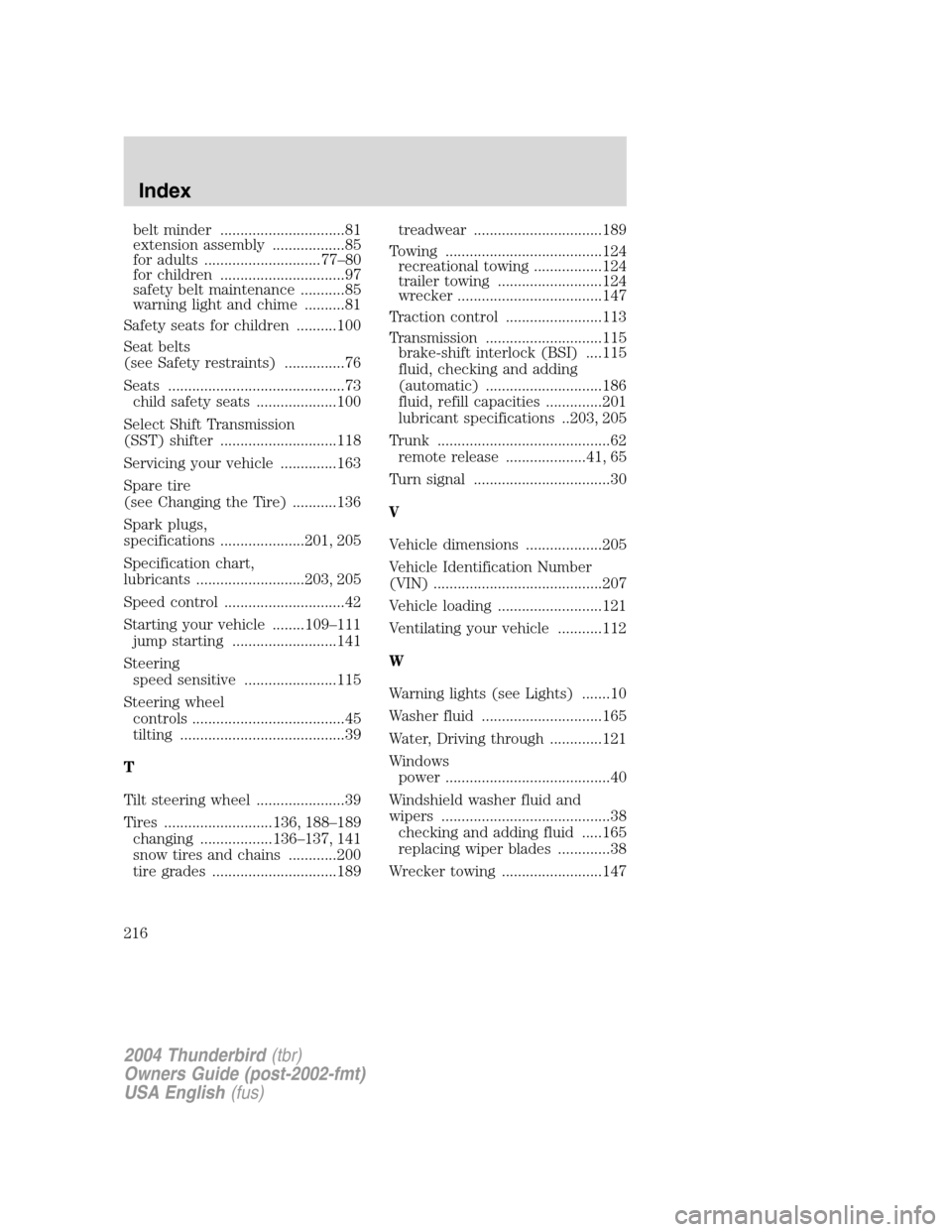

belt minder ...............................81
extension assembly ..................85
for adults .............................77–80
for children ...............................97
safety belt maintenance ...........85
warning light and chime ..........81
Safety seats for children ..........100
Seat belts
(see Safety restraints) ...............76
Seats ............................................73 child safety seats ....................100
Select Shift Transmission
(SST) shifter .............................118
Servicing your vehicle ..............163
Spare tire
(see Changing the Tire) ...........136
Spark plugs,
specifications .....................201, 205
Specification chart,
lubricants ...........................203, 205
Speed control ..............................42
Starting your vehicle ........109 –111
jump starting ..........................141
Steering speed sensitive .......................115
Steering wheel controls ......................................45
tilting .........................................39
T
Tilt steering wheel ......................39
Tires ...........................136, 188 –189
changing ..................136 –137, 141
snow tires and chains ............200
tire grades ...............................189 treadwear ................................189
Towing .......................................124 recreational towing .................124
trailer towing ..........................124
wrecker ....................................147
Traction control ........................113
Transmission .............................115 brake-shift interlock (BSI) ....115
fluid, checking and adding
(automatic) .............................186
fluid, refill capacities ..............201
lubricant specifications ..203, 205
Trunk ...........................................62 remote release ....................41, 65
Turn signal ..................................30
V
Vehicle dimensions ...................205
Vehicle Identification Number
(VIN) ..........................................207
Vehicle loading ..........................121
Ventilating your vehicle ...........112
W
Warning lights (see Lights) .......10
Washer fluid ..............................165
Water, Driving through .............121
Windows power .........................................40
Windshield washer fluid and
wipers ..........................................38 checking and adding fluid .....165
replacing wiper blades .............38
Wrecker towing .........................147
2004 Thunderbird (tbr)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
216
