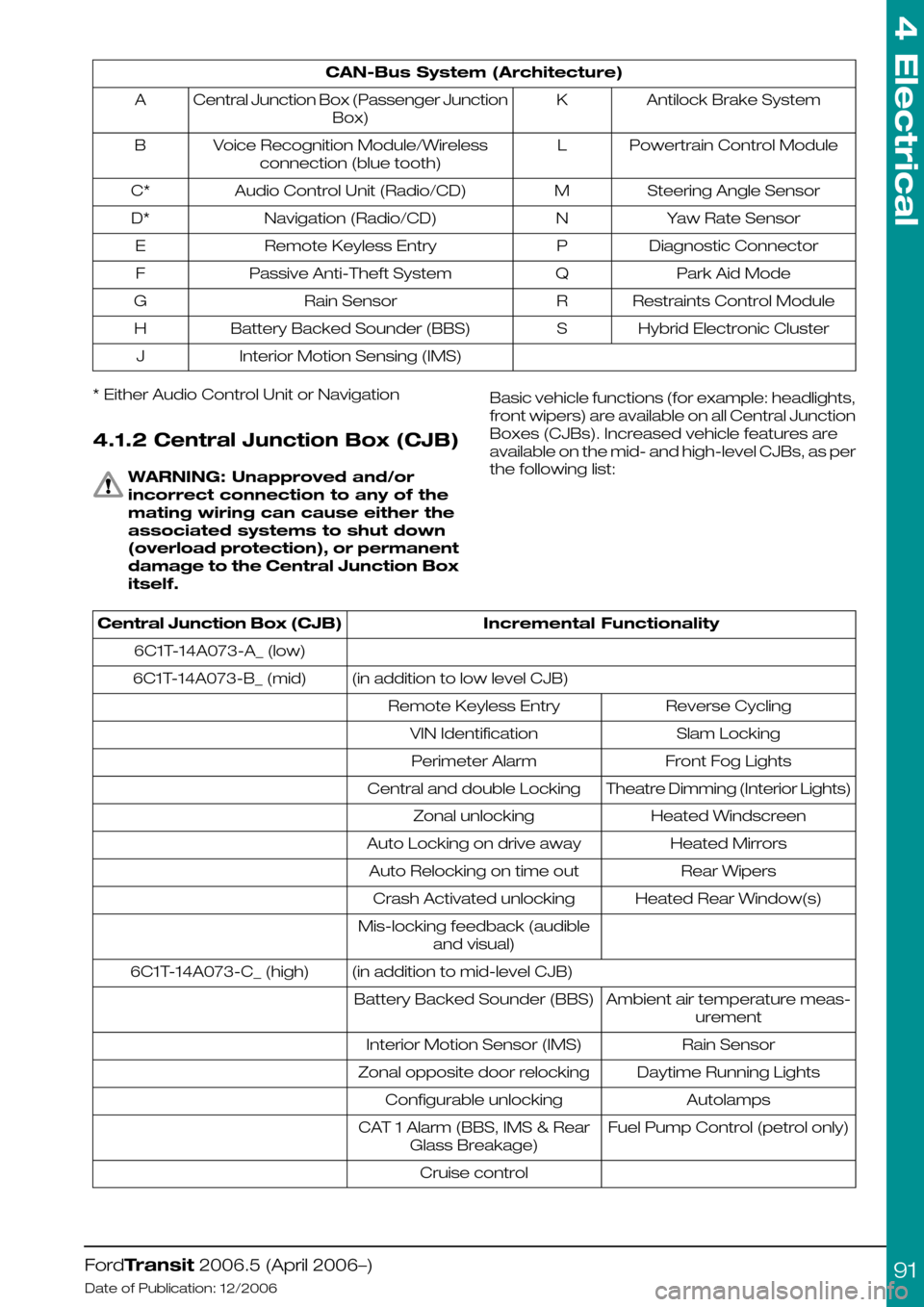

CAN-Bus System (Architecture)
Antilock Brake SystemKCentral Junction Box (Passenger Junction
Box)
A
Powertrain Control ModuleLVoice Recognition Module/Wireless
connection (blue tooth)
B
Steering Angle SensorMAudio Control Unit (Radio/CD)C*
Yaw Rate SensorNNavigation (Radio/CD)D*
Diagnostic ConnectorPRemote Keyless EntryE
Park Aid ModeQPassive Anti-Theft SystemF
Restraints Control ModuleRRain SensorG
Hybrid Electronic ClusterSBattery Backed Sounder (BBS)H
Interior Motion Sensing (IMS)J
* Either Audio Control Unit or Navigation
4.1.2 Central Junction Box (CJB)
WARNING: Unapproved and/or
incorrect connection to any of the
mating wiring can cause either the
associated systems to shut down
(overload protection), or permanent
damage to the Central Junction Box
itself.
Basic vehicle functions (for example: headlights,
front wipers) are available on all Central Junction
Boxes (CJBs). Increased vehicle features are
available on the mid- and high-level CJBs, as per
the following list:
Incremental FunctionalityCentral Junction Box (CJB)
6C1T-14A073-A_ (low)
(in addition to low level CJB)6C1T-14A073-B_ (mid)
Reverse CyclingRemote Keyless Entry
Slam LockingVIN Identification
Front Fog LightsPerimeter Alarm
Theatre Dimming (Interior Lights)Central and double Locking
Heated WindscreenZonal unlocking
Heated MirrorsAuto Locking on drive away
Rear WipersAuto Relocking on time out
Heated Rear Window(s)Crash Activated unlocking
Mis-locking feedback (audible
and visual)
(in addition to mid-level CJB)6C1T-14A073-C_ (high)
Ambient air temperature meas-
urement
Battery Backed Sounder (BBS)
Rain SensorInterior Motion Sensor (IMS)
Daytime Running LightsZonal opposite door relocking
AutolampsConfigurable unlocking
Fuel Pump Control (petrol only)CAT 1 Alarm (BBS, IMS & Rear
Glass Breakage)
Cruise control
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
91

4.9 Information and Entertainment System - General
Information—Specifications

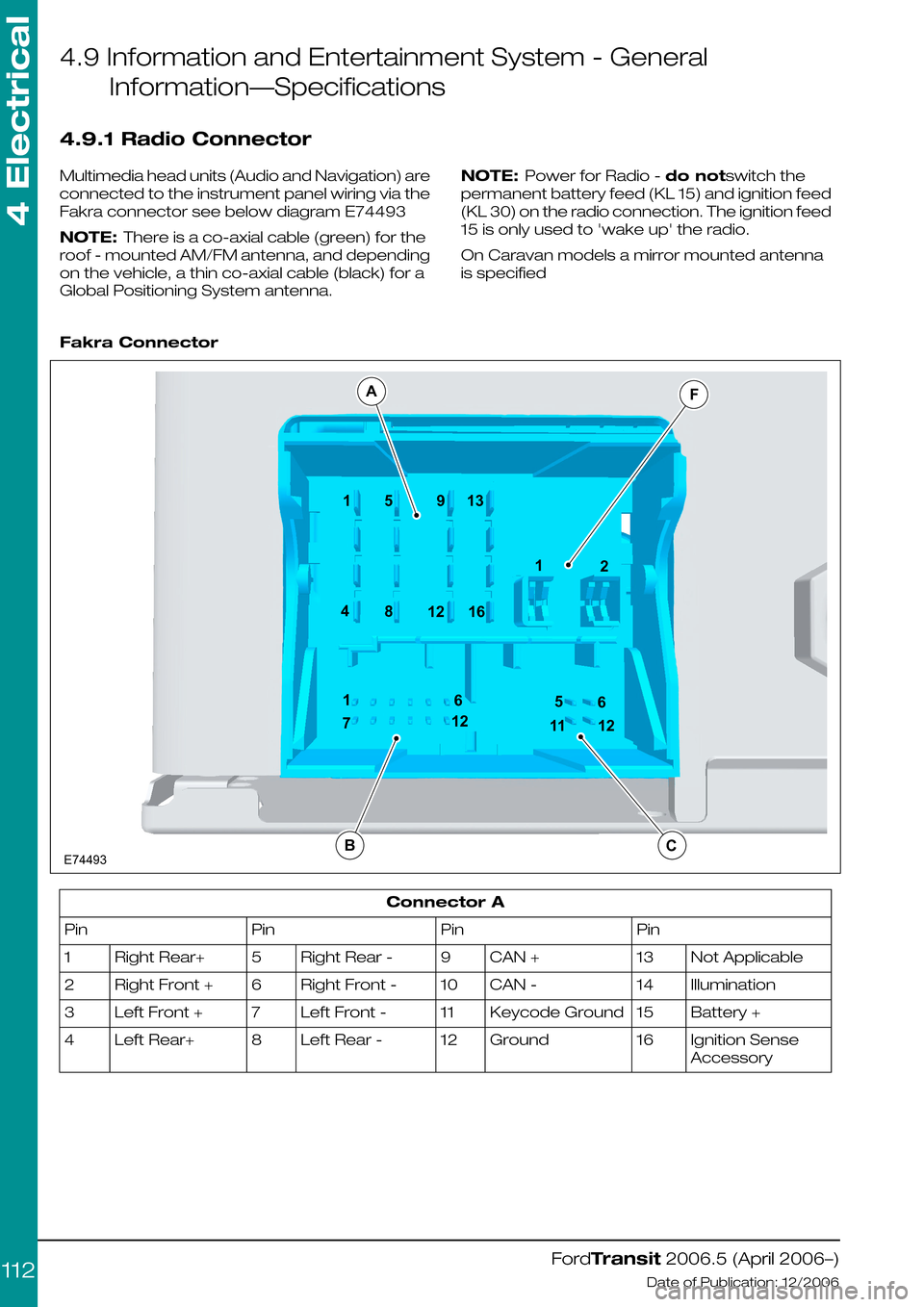

4.9.1 Radio Connector
Multimedia head units (Audio and Navigation) are
connected to the instrument panel wiring via the
Fakra connector see below diagram E74493
NOTE: There is a co-axial cable (green) for the
roof - mounted AM/FM antenna, and depending
on the vehicle, a thin co-axial cable (black) for a
Global Positioning System antenna.
NOTE: Power for Radio - do notswitch the
permanent battery feed (KL 15) and ignition feed
(KL 30) on the radio connection. The ignition feed
15 is only used to 'wake up' the radio.
On Caravan models a mirror mounted antenna
is specified
Fakra Connector
Connector A
PinPinPinPin
Not Applicable13CAN +9Right Rear -5Right Rear+1
Illumination14CAN -10Right Front -6Right Front +2
Battery +15Keycode Ground11Left Front -7Left Front +3
Ignition Sense
Accessory
16Ground12Left Rear -8Left Rear+4
FordTransit 2006.5 (April 2006–)
Date of Publication: 12/2006
4 Electrical
112154891213161216712511612E74493AFCB

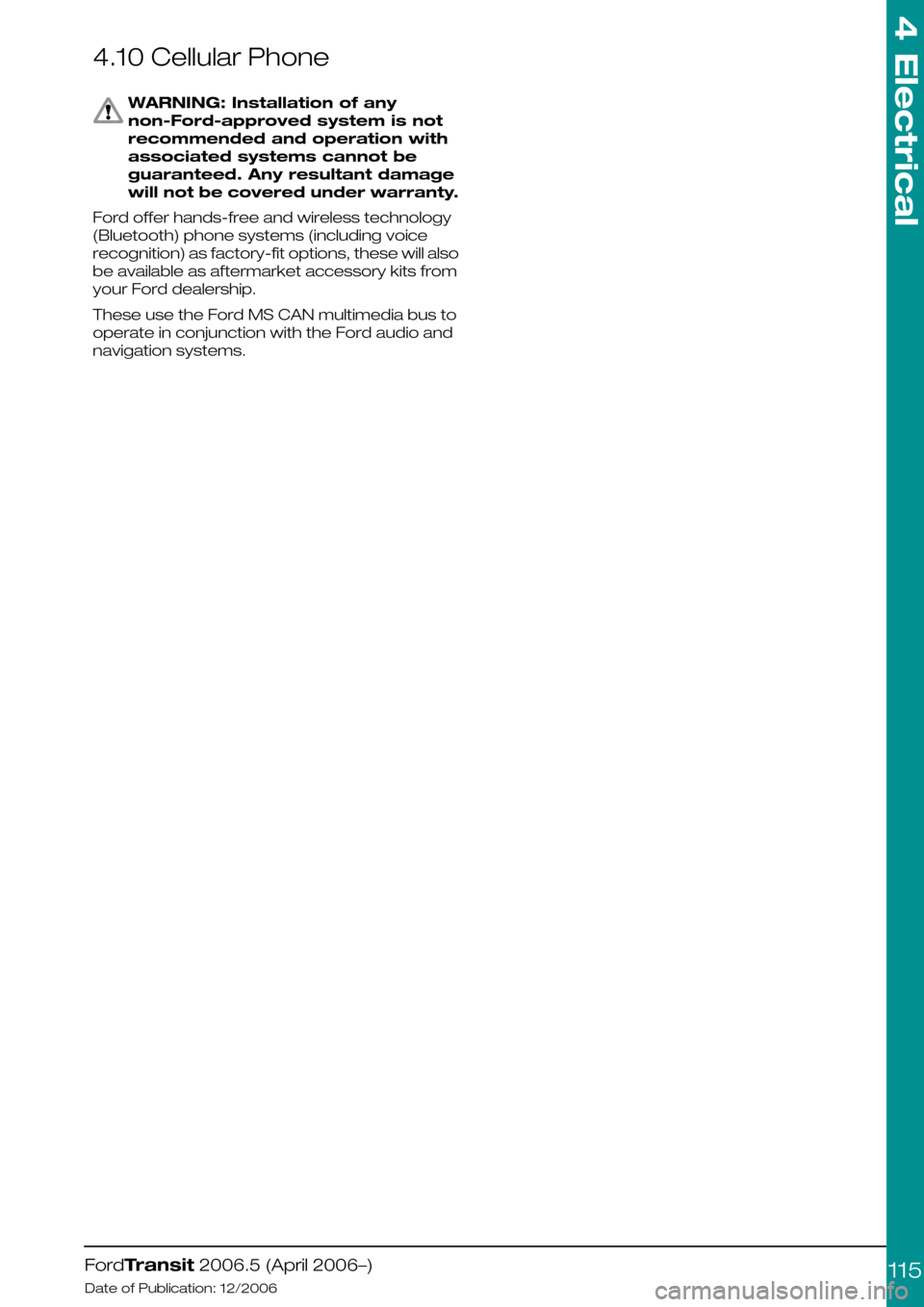

4.10 Cellular Phone
