Fuse/Relay
LocationFuse Amp
RatingProtected circuits
13 30A* Heater blower motor
14 10A* PCM relay
15 20A** ABS/RSC valves
16 30A** Cooling fan – low
17 50A** Cooling fan – high
18 25A** Daytime running lamps (DRL),
Low beam interrupt relay
19 50A** Passenger compartment fuse
panel III
20 — A/C clutch relay
21A — Right heated windshield relay,
Modified vehicle — Rear fan relay
21B — Starter lock relay
21C — High beam headlamp relay
21D — PCM relay
22 10A* PCM, Auxiliary connector, Fuel
injectors
23 10A* Right low beam headlamp
24 10A* A/C clutch solenoid
25 10A* Left low beam headlamp
26 10A* Mass air flow sensor, Brake
switch, Backup lamps relay, EGR
stepper motor, EVAP canister
purge valve, Heated oxygen
sensors, Floor shifter,
Transmission range sensor
27 — Not used
28 15A* PCM vehicle power 1
29 15A* Auxiliary connector, Coil on plugs
30A 70A Relay Cooling fan high relay
30B
30C — Cooling fan low relay
Roadside Emergencies
194
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
30D — Left heated windshield relay
31A — Backup lamp relay
31B — Fuel pump relay
31C — DRL relay
31D — Low beam headlamps relay
31E — Modified vehicle — Right rear
turn signal relay
31F — Front fog lamps
32 — Cooling fan diode
33 — Fuel pump relay diode
34 — Gear shifter diode
35 30A* Start lock relay
36 — Modified vehicle — Left rear turn
signal relay
*Mini fuse **Cartridge fuse
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
Roadside Emergencies
195
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

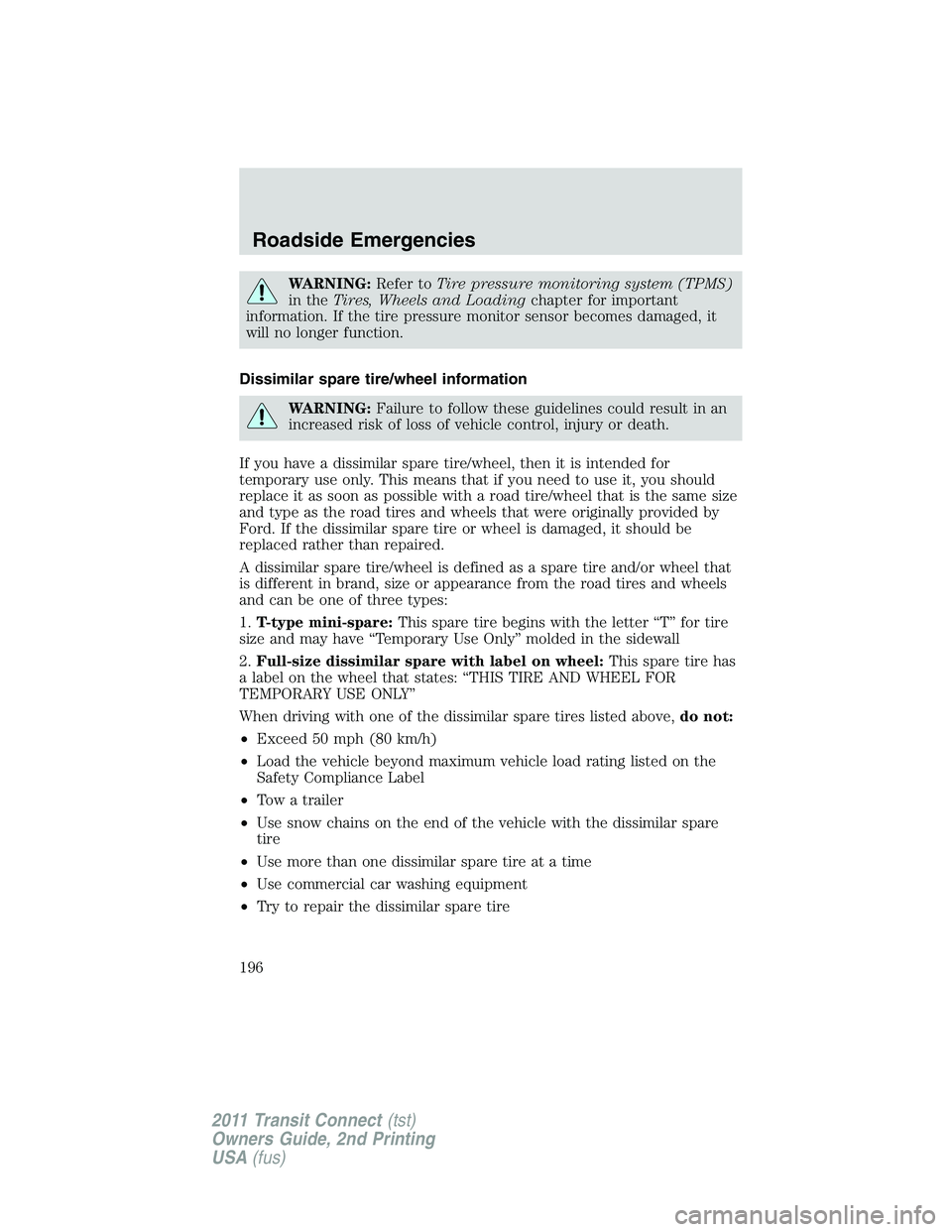

WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Roadside Emergencies
196
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

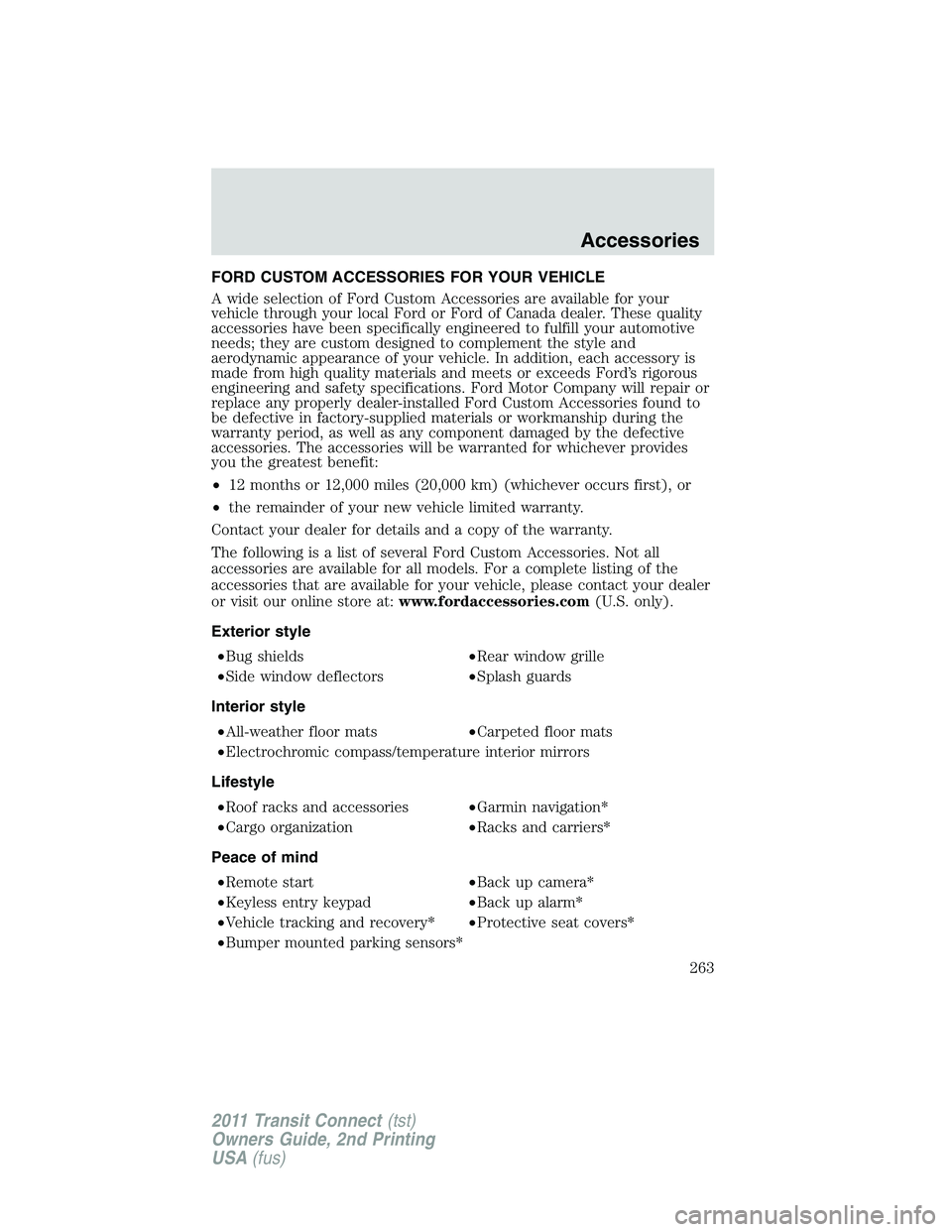

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at:www.fordaccessories.com(U.S. only).
Exterior style
•Bug shields•Rear window grille
•Side window deflectors•Splash guards
Interior style
•All-weather floor mats•Carpeted floor mats
•Electrochromic compass/temperature interior mirrors
Lifestyle
•Roof racks and accessories•Garmin navigation*
•Cargo organization•Racks and carriers*
Peace of mind
•Remote start•Back up camera*
•Keyless entry keypad•Back up alarm*
•Vehicle tracking and recovery*•Protective seat covers*
•Bumper mounted parking sensors*
Accessories
263
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

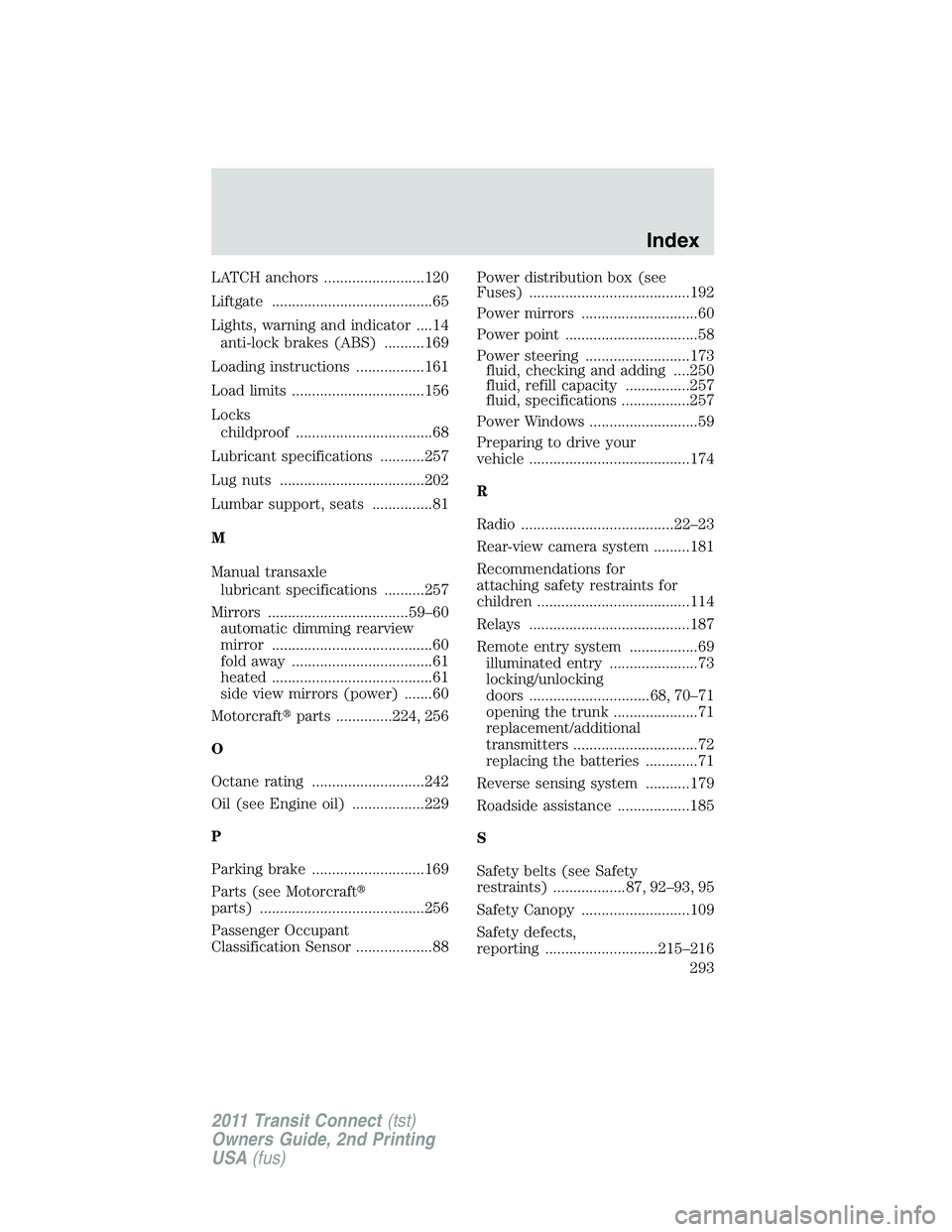

LATCH anchors .........................120
Liftgate ........................................65
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........169
Loading instructions .................161
Load limits .................................156
Locks
childproof ..................................68
Lubricant specifications ...........257
Lug nuts ....................................202
Lumbar support, seats ...............81
M
Manual transaxle
lubricant specifications ..........257
Mirrors ...................................59–60
automatic dimming rearview
mirror ........................................60
fold away ...................................61
heated ........................................61
side view mirrors (power) .......60
Motorcraftparts ..............224, 256
O
Octane rating ............................242
Oil (see Engine oil) ..................229
P
Parking brake ............................169
Parts (see Motorcraft
parts) .........................................256
Passenger Occupant
Classification Sensor ...................88Power distribution box (see
Fuses) ........................................192
Power mirrors .............................60
Power point .................................58
Power steering ..........................173
fluid, checking and adding ....250
fluid, refill capacity ................257
fluid, specifications .................257
Power Windows ...........................59
Preparing to drive your
vehicle ........................................174
R
Radio ......................................22–23
Rear-view camera system .........181
Recommendations for
attaching safety restraints for
children ......................................114
Relays ........................................187
Remote entry system .................69
illuminated entry ......................73
locking/unlocking
doors ..............................68, 70–71
opening the trunk .....................71
replacement/additional
transmitters ...............................72
replacing the batteries .............71
Reverse sensing system ...........179
Roadside assistance ..................185
S
Safety belts (see Safety
restraints) ..................87, 92–93, 95
Safety Canopy ...........................109
Safety defects,
reporting ............................215–216
Index
293
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

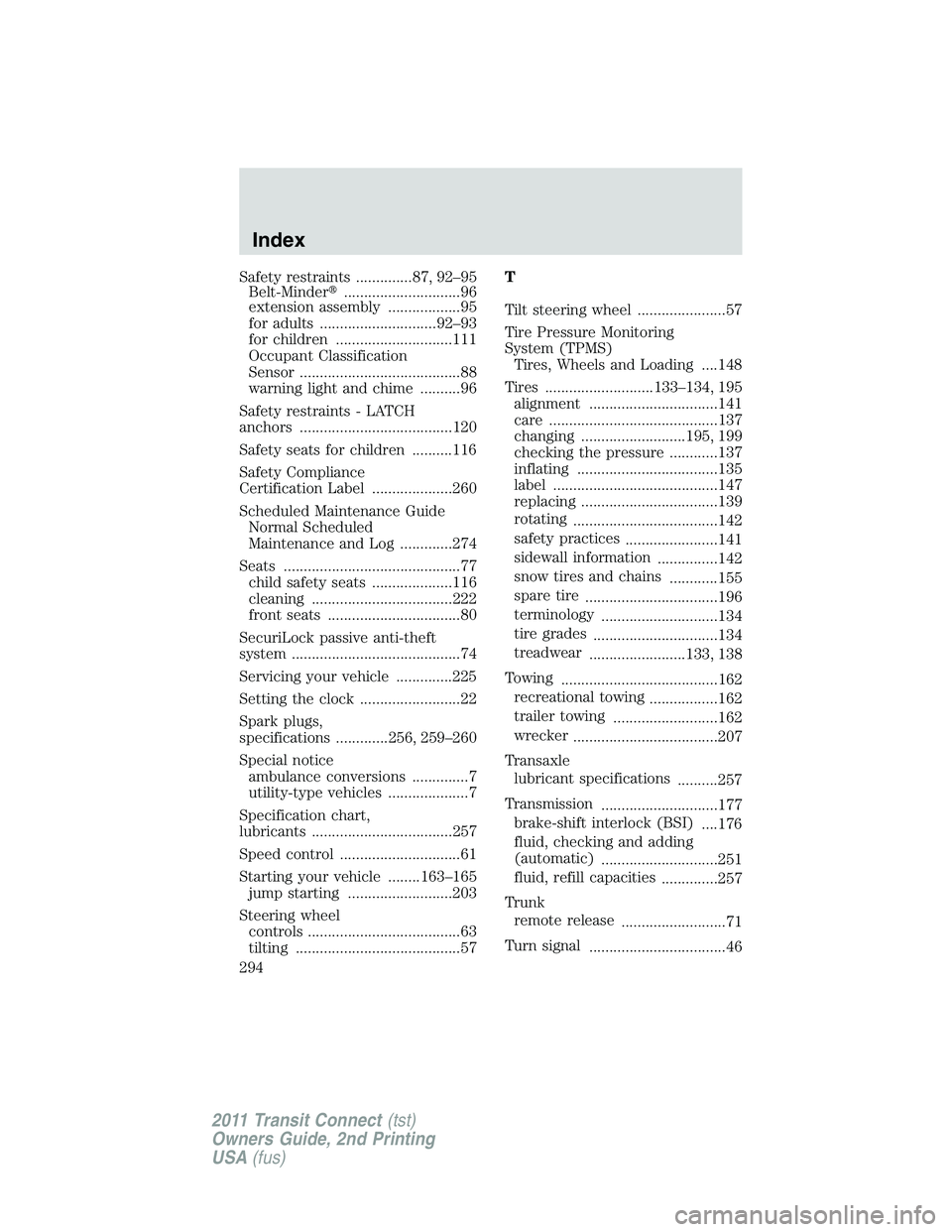

Safety restraints ..............87, 92–95
Belt-Minder.............................96
extension assembly ..................95
for adults .............................92–93
for children .............................111
Occupant Classification
Sensor ........................................88
warning light and chime ..........96
Safety restraints - LATCH
anchors ......................................120
Safety seats for children ..........116
Safety Compliance
Certification Label ....................260
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............274
Seats ............................................77
child safety seats ....................116
cleaning ...................................222
front seats .................................80
SecuriLock passive anti-theft
system ..........................................74
Servicing your vehicle ..............225
Setting the clock .........................22
Spark plugs,
specifications .............256, 259–260
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................257
Speed control ..............................61
Starting your vehicle ........163–165
jump starting ..........................203
Steering wheel
controls ......................................63
tilting .........................................57T
Tilt steering wheel ......................57
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....148
Tires ...........................133–134, 195
alignment ................................141
care ..........................................137
changing ..........................195, 199
checking the pressure ............137
inflating ...................................135
label .........................................147
replacing ..................................139
rotating
....................................142
safety practices
.......................141
sidewall information
...............142
snow tires and chains
............155
spare tire
.................................196
terminology
.............................134
tire grades
...............................134
treadwear
........................133, 138
Towing
.......................................162
recreational towing
.................162
trailer towing
..........................162
wrecker
....................................207
Transaxle
lubricant specifications
..........257
Transmission
.............................177
brake-shift interlock (BSI)
....176
fluid, checking and adding
(automatic)
.............................251
fluid, refill capacities
..............257
Trunk
remote release
..........................71
Turn signal
..................................46
Index
294
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)
