heating FORD TRANSIT 2011 Owners Manual

Introduction 4
Instrument Cluster 14
Warning lights and chimes 14
Gauges 19
Entertainment Systems 22
AM/FM stereo 22
AM/FM stereo with CD 23
Auxiliary input jack (Line in) 25
Bluetooth system 27
Climate Controls 38
Manual heating and air conditioning 38
Rear window defroster 41
Lights 43
Headlamps 43
Turn signal control 46
Bulb replacement 47
Driver Controls 56
Windshield wiper/washer control 56
Steering wheel adjustment 57
Power windows 59
Mirrors 59
Speed control 61
Locks and Security 68
Keys 68
Anti-theft system 74
Table of Contents
1
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range.If it enters the
red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch
off the engine and let the engine cool.If it enters the red section
and the service engine soon indicator light illuminates, refer toHow fail
safe cooling worksin theMaintenance and Specificationschapter.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Fuel gauge:Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the on position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
The symbol of the fuel pump with
the arrow points to the side of the
vehicle that the fuel filler inlet is located.
Refer toFilling the tankin theMaintenance and Specifications
chapter for more information.
Information display type 1
54
1
3
2
Instrument Cluster
20
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

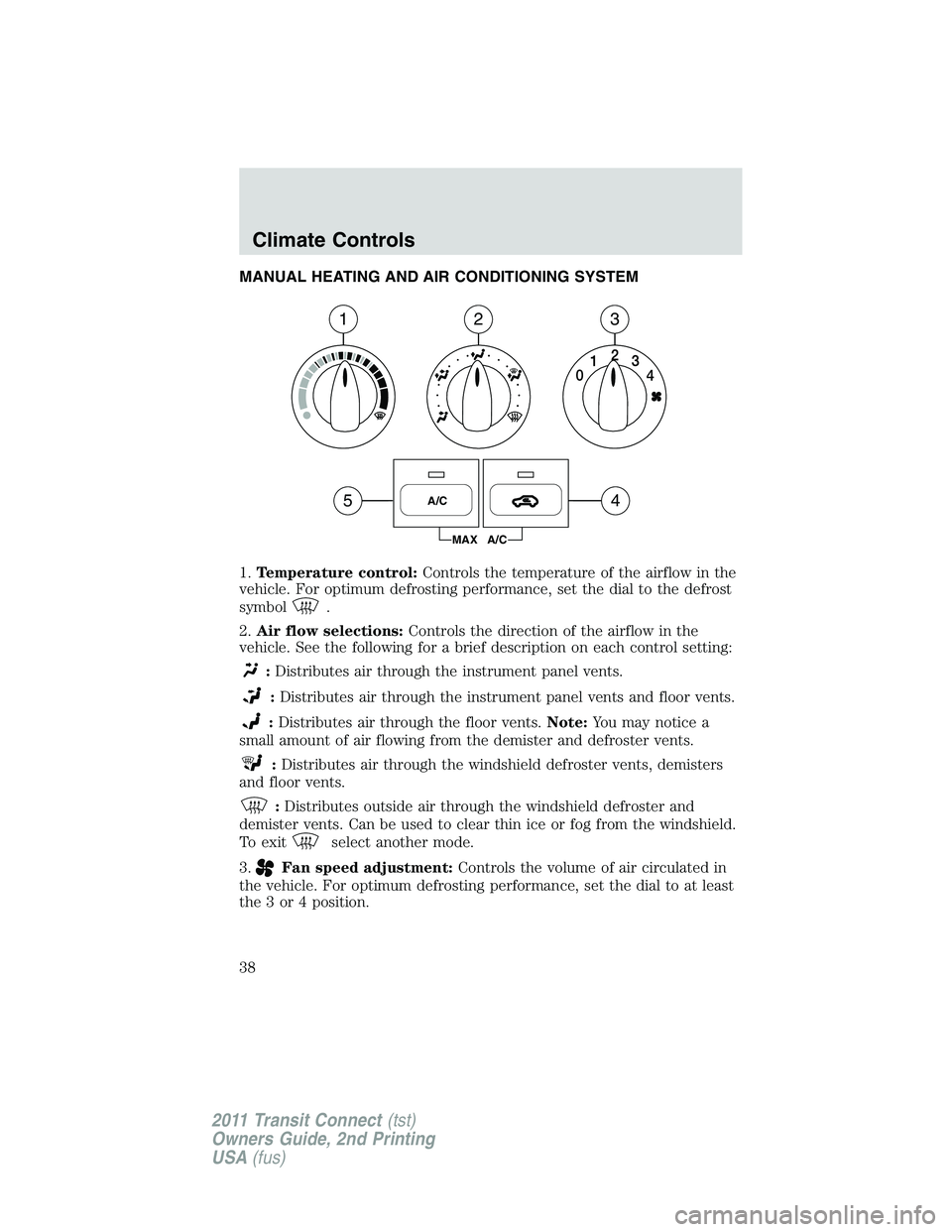

MANUAL HEATING AND AIR CONDITIONING SYSTEM
1.Temperature control:Controls the temperature of the airflow in the
vehicle. For optimum defrosting performance, set the dial to the defrost
symbol
.
2.Air flow selections:Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control setting:
:Distributes air through the instrument panel vents.
:Distributes air through the instrument panel vents and floor vents.
:Distributes air through the floor vents.Note:You may notice a
small amount of air flowing from the demister and defroster vents.
:Distributes air through the windshield defroster vents, demisters
and floor vents.
:Distributes outside air through the windshield defroster and
demister vents. Can be used to clear thin ice or fog from the windshield.
To exit
select another mode.
3.
Fan speed adjustment:Controls the volume of air circulated in
the vehicle. For optimum defrosting performance, set the dial to at least
the 3 or 4 position.
54A/C
MAX A/C
231
Climate Controls
38
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Note:If the engine does not start on the first try, turn the key to the O
(off) position, wait 10 seconds and try Step 2 again. If the engine still
fails to start, press the accelerator to the floor and try Step 2 again,
keeping the accelerator on the floor until the engine begins to accelerate
above cranking speeds; this will allow the engine to crank with the fuel
shut off in case the engine is flooded with fuel.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least 1 inch (2.5 cm) or adjust the heating or
air conditioning to bring in fresh air.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and allows the heater/defroster system to respond quickly. If your vehicle
is equipped with this system, your equipment includes a heater element
which is installed in your engine block and a wire harness which allows
the user to connect the system to a grounded 120 volt A/C electrical
source. The block heater system is most effective when outdoor
temperatures reach below 0°F (-18°C).
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
WARNING:To reduce the risk of electrical shock, do not use
your heater with ungrounded electrical systems or two-pronged
(cheater) adapters.
Driving
166
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

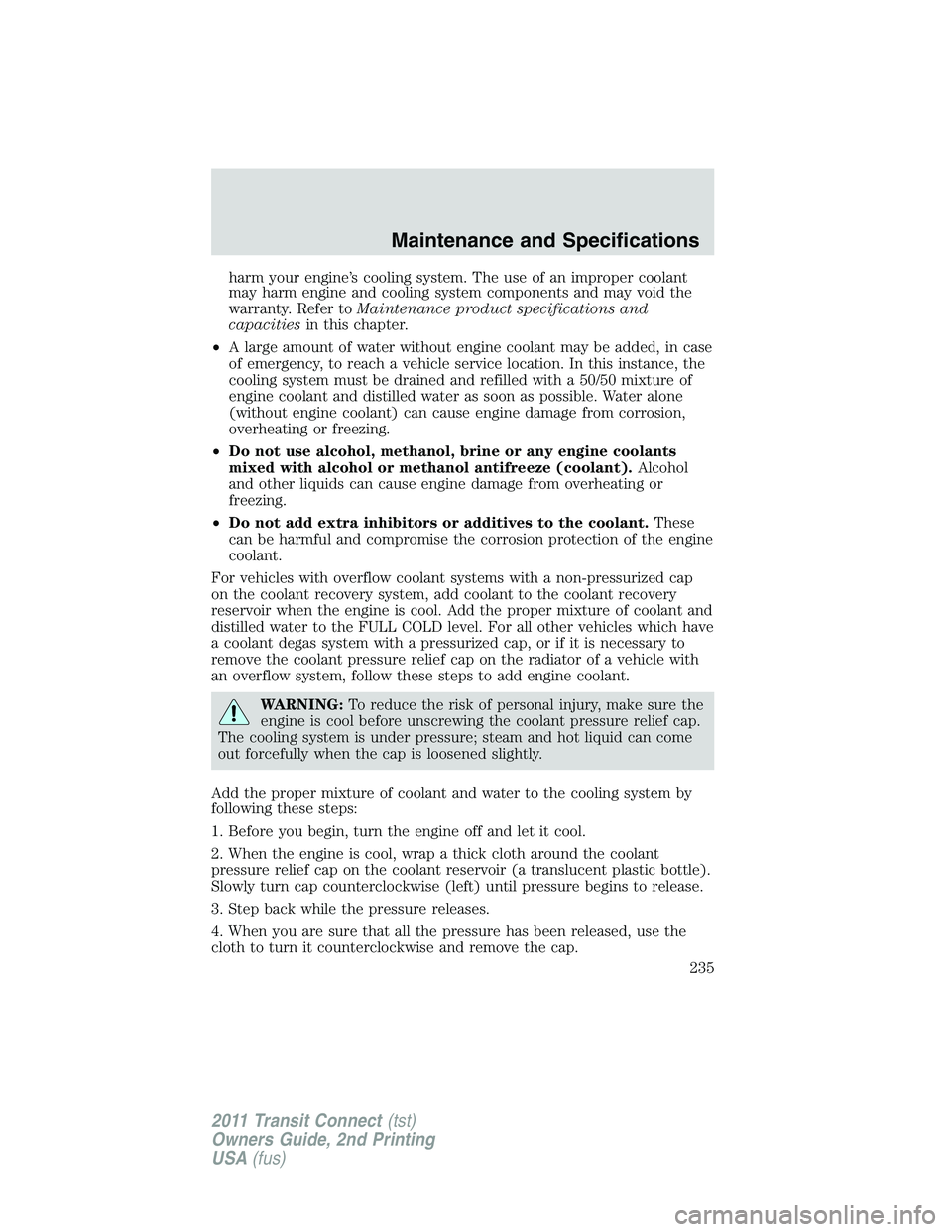

harm your engine’s cooling system. The use of an improper coolant
may harm engine and cooling system components and may void the
warranty. Refer toMaintenance product specifications and
capacitiesin this chapter.
•A large amount of water without engine coolant may be added, in case
of emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained and refilled with a 50/50 mixture of
engine coolant and distilled water as soon as possible. Water alone
(without engine coolant) can cause engine damage from corrosion,
overheating or freezing.
•Do not use alcohol, methanol, brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol
and other liquids can cause engine damage from overheating or
freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
For vehicles with overflow coolant systems with a non-pressurized cap
on the coolant recovery system, add coolant to the coolant recovery
reservoir when the engine is cool. Add the proper mixture of coolant and
distilled water to the FULL COLD level. For all other vehicles which have
a coolant degas system with a pressurized cap, or if it is necessary to
remove the coolant pressure relief cap on the radiator of a vehicle with
an overflow system, follow these steps to add engine coolant.
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
Maintenance and Specifications
235
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

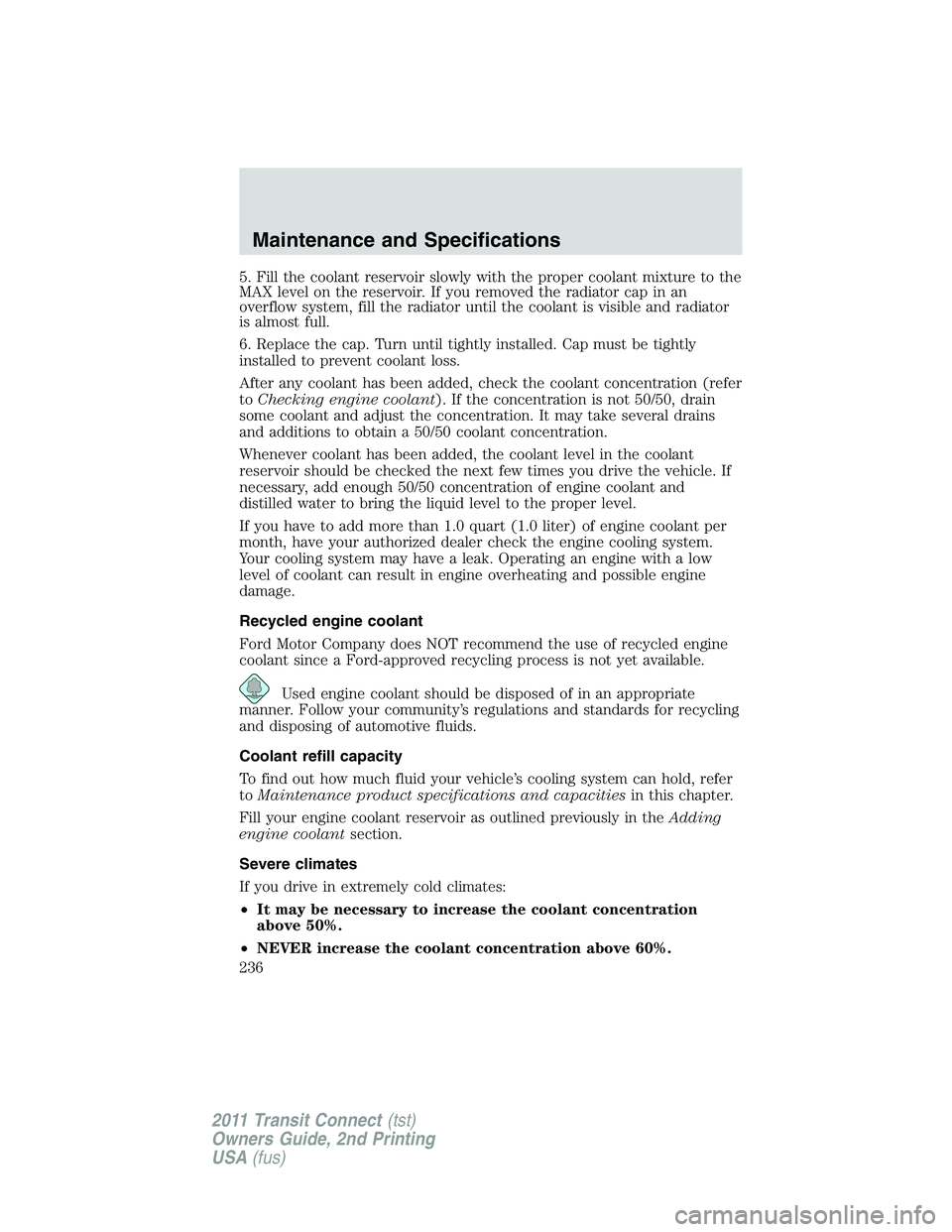

5. Fill the coolant reservoir slowly with the proper coolant mixture to the
MAX level on the reservoir. If you removed the radiator cap in an
overflow system, fill the radiator until the coolant is visible and radiator
is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50, drain
some coolant and adjust the concentration. It may take several drains
and additions to obtain a 50/50 coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toMaintenance product specifications and capacitiesin this chapter.
Fill your engine coolant reservoir as outlined previously in theAdding
engine coolantsection.
Severe climates
If you drive in extremely cold climates:
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
Maintenance and Specifications
236
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

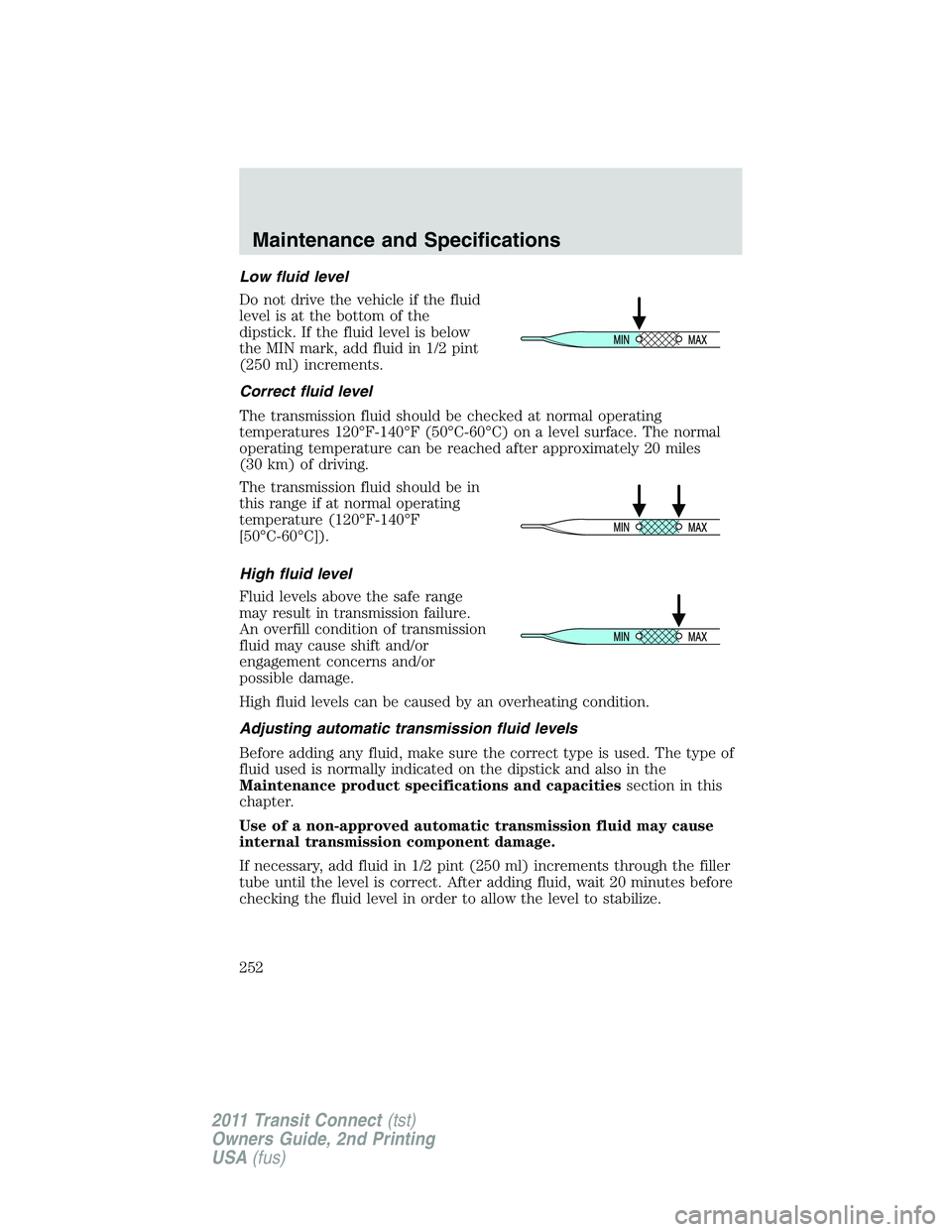

Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the
dipstick. If the fluid level is below
the MIN mark, add fluid in 1/2 pint
(250 ml) increments.
Correct fluid level
The transmission fluid should be checked at normal operating
temperatures 120°F-140°F (50°C-60°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
The transmission fluid should be in
this range if at normal operating
temperature (120°F-140°F
[50°C-60°C]).
High fluid level
Fluid levels above the safe range
may result in transmission failure.
An overfill condition of transmission
fluid may cause shift and/or
engagement concerns and/or
possible damage.
High fluid levels can be caused by an overheating condition.
Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Maintenance product specifications and capacitiessection in this
chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint (250 ml) increments through the filler
tube until the level is correct. After adding fluid, wait 20 minutes before
checking the fluid level in order to allow the level to stabilize.
Maintenance and Specifications
252
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Ford strongly recommends the use of genuine Ford replacement parts.
Parts other than Ford, Motorcraftor Ford-authorized remanufactured
parts that are used for maintenance replacement or for the service of
components affecting emission control must be equivalent to genuine
Ford Motor Company parts in performance and durability. It is the
owner’s responsibility to determine the equivalency of such parts. Please
consult yourWarranty Guidefor complete warranty information.
Chemicals or additives not approved by Ford are not required for factory
recommended maintenance. In fact, Ford Motor Company recommends
against the use of such additive products unless specifically
recommended by Ford for a particular application.
Oils, fluids and flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and/or foreign material contamination should be inspected
immediately by a qualified expert such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Genuine Ford parts and service
When planning your maintenance services, consider your dealership for
all your vehicle’s needs.
There are a lot of reasons why visiting your dealership for all your
service needs is a great way to help keep your vehicle running great.
Convenience
Many dealerships have extended evening and Saturday hours to make
your service visit more convenient. How’s that for quality service?
Factory-trained technicians
Service technicians participate in extensive factory-sponsored
certification training to help them become experts on the operation of
your vehicle. Ask your dealership about the training and certification
their technicians have received.
Scheduled Maintenance
270
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................174
Fuel ............................................239
calculating fuel economy .......243
cap ...........................................241
capacity ...................................257
choosing the right fuel ...........242
detergent in fuel .....................243
filling your vehicle with
fuel ...........................239, 241, 244
filter, specifications ........238, 256
fuel pump shut-off switch .....186
improving fuel economy ........243
octane rating ...........242, 259–260
quality ......................................242
running out of fuel .................243
safety information relating to
automotive fuels .....................239
Fuel pump shut-off switch .......186
Fuses ..........................................187
G
Gas cap (see Fuel cap) ............241
Gas mileage (see Fuel
economy) ...................................243
Gauges .........................................19
H
Hazard flashers .........................186
Headlamps ...................................43
aiming ........................................45
bulb specifications ....................48
daytime running lights .............44
flash to pass ..............................44
high beam .................................44
replacing bulbs .........................50
turning on and off ....................43Heating
heating and air conditioning
system .......................................38
Hood ..........................................226
I
Ignition .......................163, 259–260
Infant seats (see Safety
seats) .........................................116
Inspection/maintenance (I/M)
testing ........................................248
Instrument panel
cleaning ...................................220
cluster ........................................14
lighting up panel and
interior .......................................45
J
Jack ............................................195
positioning ...............................195
storage .....................................195
Jump-starting your vehicle ......203
K
Keys .............................................75
positions of the ignition .........163
L
Lamps
bulb replacement
specifications chart ..................48
daytime running light ...............44
headlamps .................................43
headlamps, flash to pass ..........44
instrument panel, dimming .....45
interior lamps .....................47–48
replacing bulbs .........................50
Index
292
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)
