Table of Contents
1
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemParking Brake System
Brake Fluid -
Non-Petroleum BasedParking Aid System
Stability Control SystemSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Introduction
12
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
13
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Phonebook entries:Once theBluetoothsystem connects to your
phone, it will attempt to automatically download your Phonebook entries
so that you can easily access them later. The maximum number of
entries vary depending on the information attached to the number.
Voice recognition
YourBluetoothsystem is equipped with a voice recognition system
which allows you to perform some operations by speaking certain
commands to the system. The system will respond with a series of beeps,
confirmations or questions when necessary. At any time, you can say,
“Cancel” if you do not wish to continue, or “Help” for a list of possible
voice commands in your current mode. Speak the command clearly to
ensure that the system is able to recognize and perform the desired
function.
For best system performance:
•After pressing VOICE on the
stalk, wait until the beep is heard
before speaking a command. Any
command spoken prior to this will
not register with the system.
•Speak naturally without large
pauses in between words.
•Ensure that the interior of the
vehicle is as quiet as possible.
Wind noise from open windows and road vibrations may prevent the
system from correctly recognizing spoken voice commands.
At any time, you can say these commands:
•Phone•Radio
•CD player•Cancel
•External device•Help
External device:Auxiliary input jack
Note:This system is language specific. If you would like the system to
operate in another language, please contact your authorized dealer.
VOICE
SEEK
VOL
VOL
MODE
Entertainment Systems
29
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

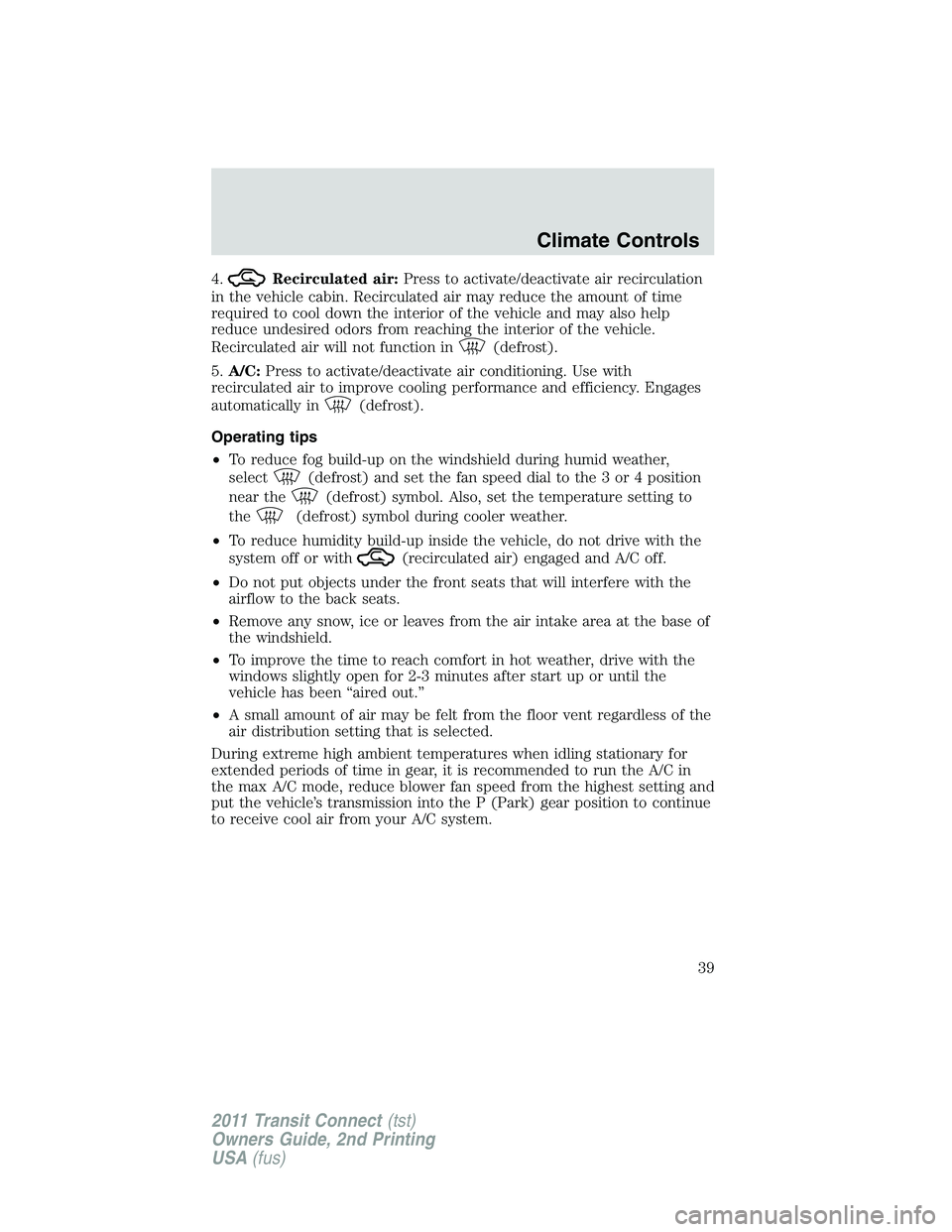

4.Recirculated air:Press to activate/deactivate air recirculation
in the vehicle cabin. Recirculated air may reduce the amount of time
required to cool down the interior of the vehicle and may also help
reduce undesired odors from reaching the interior of the vehicle.
Recirculated air will not function in
(defrost).
5.A/C:Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. Engages
automatically in
(defrost).
Operating tips
•To reduce fog build-up on the windshield during humid weather,
select
(defrost) and set the fan speed dial to the 3 or 4 position
near the
(defrost) symbol. Also, set the temperature setting to
the
(defrost) symbol during cooler weather.
•To reduce humidity build-up inside the vehicle, do not drive with the
system off or with
(recirculated air) engaged and A/C off.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•To improve the time to reach comfort in hot weather, drive with the
windows slightly open for 2-3 minutes after start up or until the
vehicle has been “aired out.”
•A small amount of air may be felt from the floor vent regardless of the
air distribution setting that is selected.
During extreme high ambient temperatures when idling stationary for
extended periods of time in gear, it is recommended to run the A/C in
the max A/C mode, reduce blower fan speed from the highest setting and
put the vehicle’s transmission into the P (Park) gear position to continue
to receive cool air from your A/C system.
Climate Controls
39
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

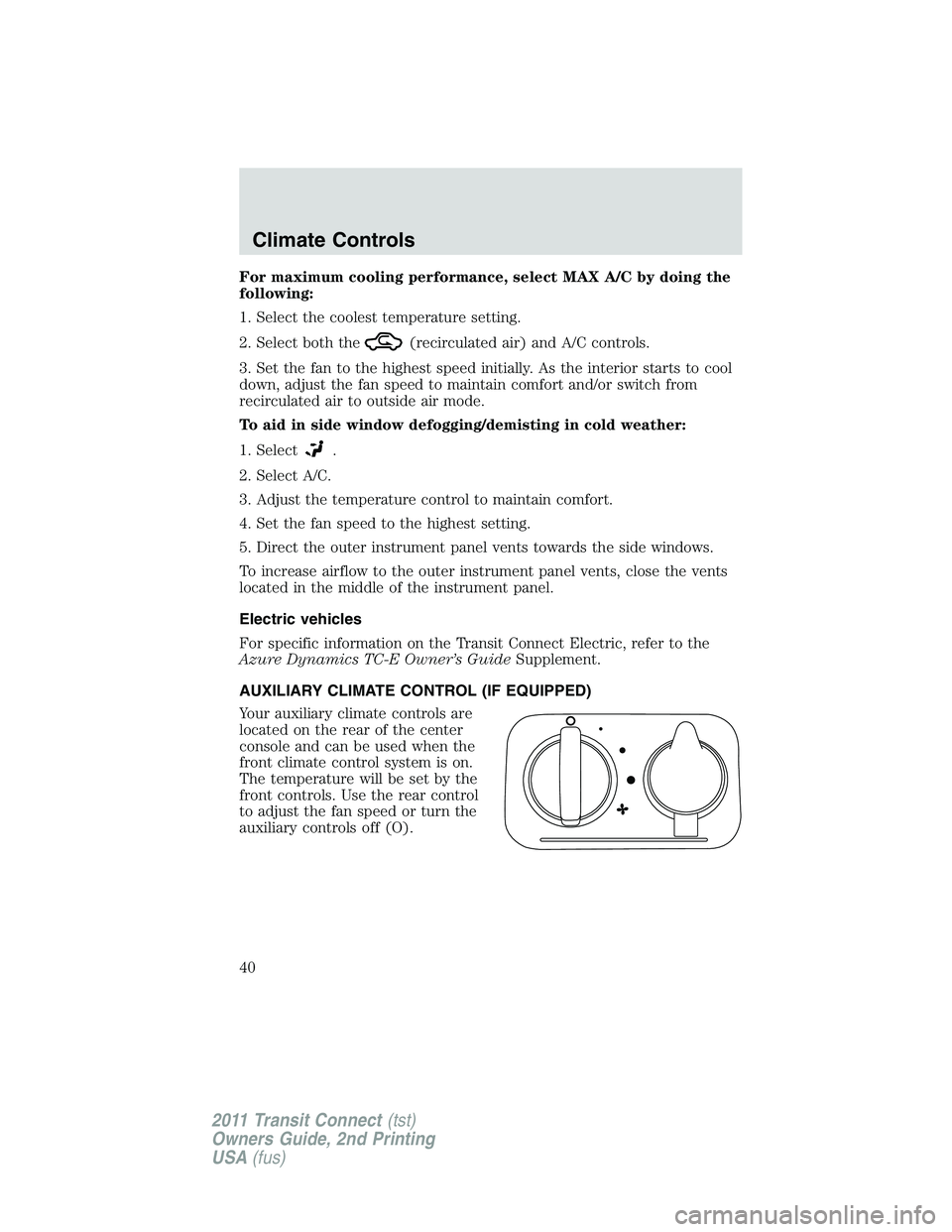

For maximum cooling performance, select MAX A/C by doing the
following:
1. Select the coolest temperature setting.
2. Select both the
(recirculated air) and A/C controls.
3. Set the fan to the highest speed initially. As the interior starts to cool
down, adjust the fan speed to maintain comfort and/or switch from
recirculated air to outside air mode.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Electric vehicles
For specific information on the Transit Connect Electric, refer to the
Azure Dynamics TC-E Owner’s GuideSupplement.
AUXILIARY CLIMATE CONTROL (IF EQUIPPED)
Your auxiliary climate controls are
located on the rear of the center
console and can be used when the
front climate control system is on.
The temperature will be set by the
front controls. Use the rear control
to adjust the fan speed or turn the
auxiliary controls off (O).
Climate Controls
40
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

Note:In order to supply heat or
cool air to this rear auxiliary climate
unit, the front airflow control must
be set in one of these three
positions:
(Floor/vent),
(Floor) or(Defrost/floor).
REAR WINDOW DEFROSTER (IF EQUIPPED) / HEATED MIRRORS
(IF EQUIPPED)
The rear defroster control is located
on the instrument panel above the
radio and works to clear the rear
windows of fog and thin ice.
The ignition must be on to operate the rear window defroster.
Press
to turn the rear window defroster on. An indicator light on the
button will illuminate when active. The rear window defroster turns off
automatically after a predetermined amount of time, if a low battery
condition is detected or when the ignition is turned off. To manually turn
off the rear window defroster at any time, press the control again.
If your vehicle is equipped with heated mirrors, this button will activate
them. Refer toExterior mirrorsin theDriver Controlschapter.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside or the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
Climate Controls
41
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

WINDSHIELD WIPERS
Move the lever down for a single
wipe.
For intermittent operation,
move control up one position and
adjust the rotary control to the
desired speed.
For normal operation, move
control up two positions and up three positions for high-speed wiping.
Windshield washer
To activate the windshield washer, press the windshield washer
control in. Release control to stop washer fluid spray. The wipers will
operate for a short time after the wash is turned off.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Rear window wiper/washer (if equipped)
Wiper
Pull the lever towards you for intermittent wiping.
Washer
Pull the lever farther to operate the washer. The wiper will operate
for a short time and will activate once more after pausing to clear the
windshield.
Reverse gear wipe
The rear wiper will be activated automatically when shifting into R
(Reverse) if the front wiper is activated.
Driver Controls
56
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

TILT AND TELESCOPE STEERING COLUMN
Release the locking lever to adjust
the height of the steering wheel and
its distance from the driver.
Return the lever to its original
position to secure the wheel.
WARNING:Never adjust the steering wheel when the vehicle is
moving.
CENTER CONSOLE
Your vehicle has a variety of console features. These include:
•Cupholders
•Storage area
•Power window switches (if equipped)
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
Driver Controls
57
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
USA(fus)

•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
POWER WINDOWS (IF EQUIPPED)
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Press/pull the window switches,
located on the center console near
the cupholders, to open/close the
windows.
One-touch down
Allows the driver’s window to open fully without holding the control
down. Press the switch down and release quickly. The window will open
fully. Press it again to stop the window.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror up or down and from side to side.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
Driver Controls
59
2011 Transit Connect(tst)
Owners Guide, 2nd Printing
