headlamp FORD TRANSIT 2018 User Guide

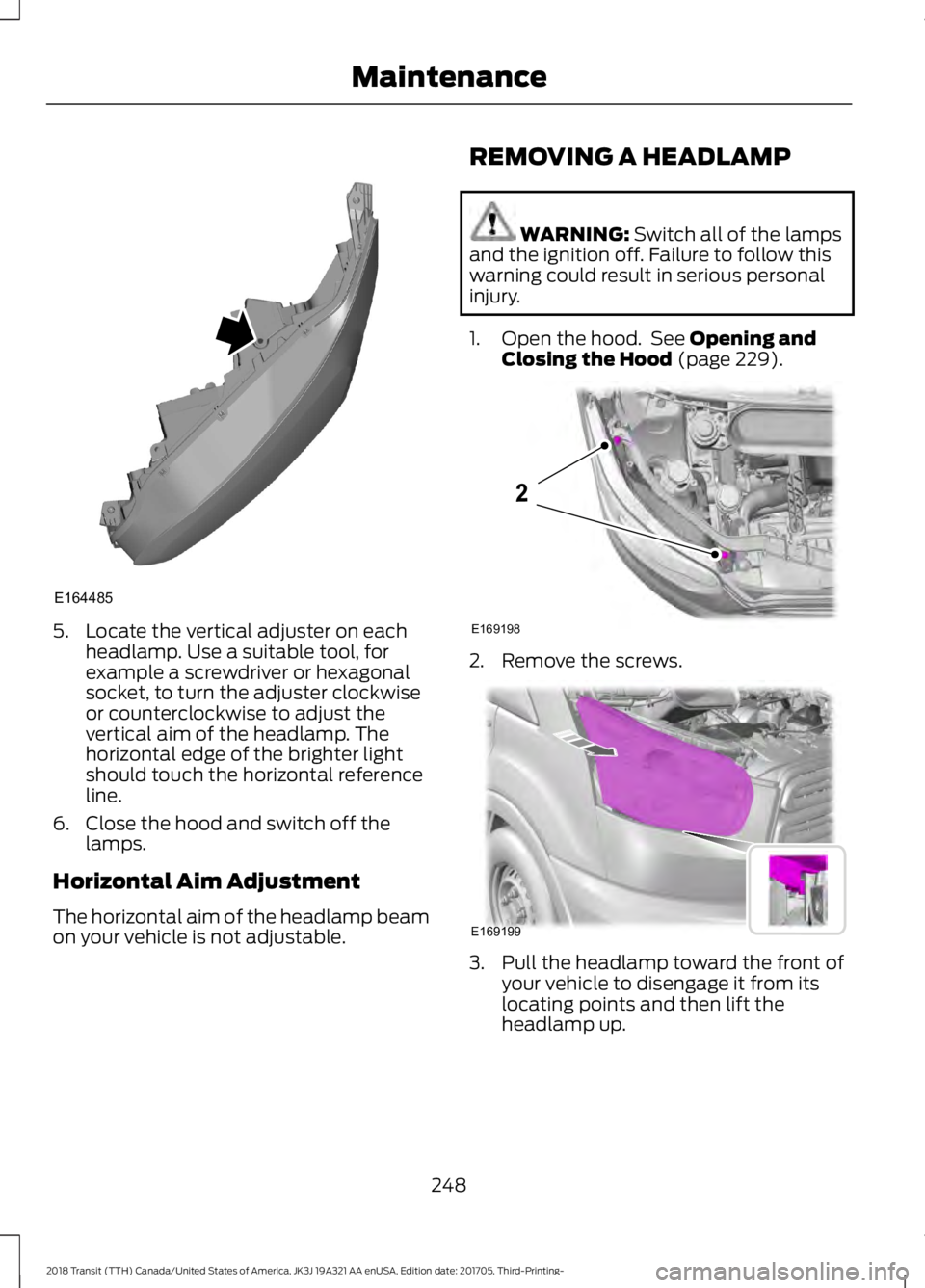

5. Locate the vertical adjuster on each
headlamp. Use a suitable tool, for
example a screwdriver or hexagonal
socket, to turn the adjuster clockwise
or counterclockwise to adjust the
vertical aim of the headlamp. The
horizontal edge of the brighter light
should touch the horizontal reference
line.
6. Close the hood and switch off the lamps.
Horizontal Aim Adjustment
The horizontal aim of the headlamp beam
on your vehicle is not adjustable. REMOVING A HEADLAMP WARNING: Switch all of the lamps
and the ignition off. Failure to follow this
warning could result in serious personal
injury.
1. Open the hood. See
Opening and
Closing the Hood (page 229). 2. Remove the screws.
3. Pull the headlamp toward the front of
your vehicle to disengage it from its
locating points and then lift the
headlamp up.
248
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- MaintenanceE164485 E169198
2 E169199

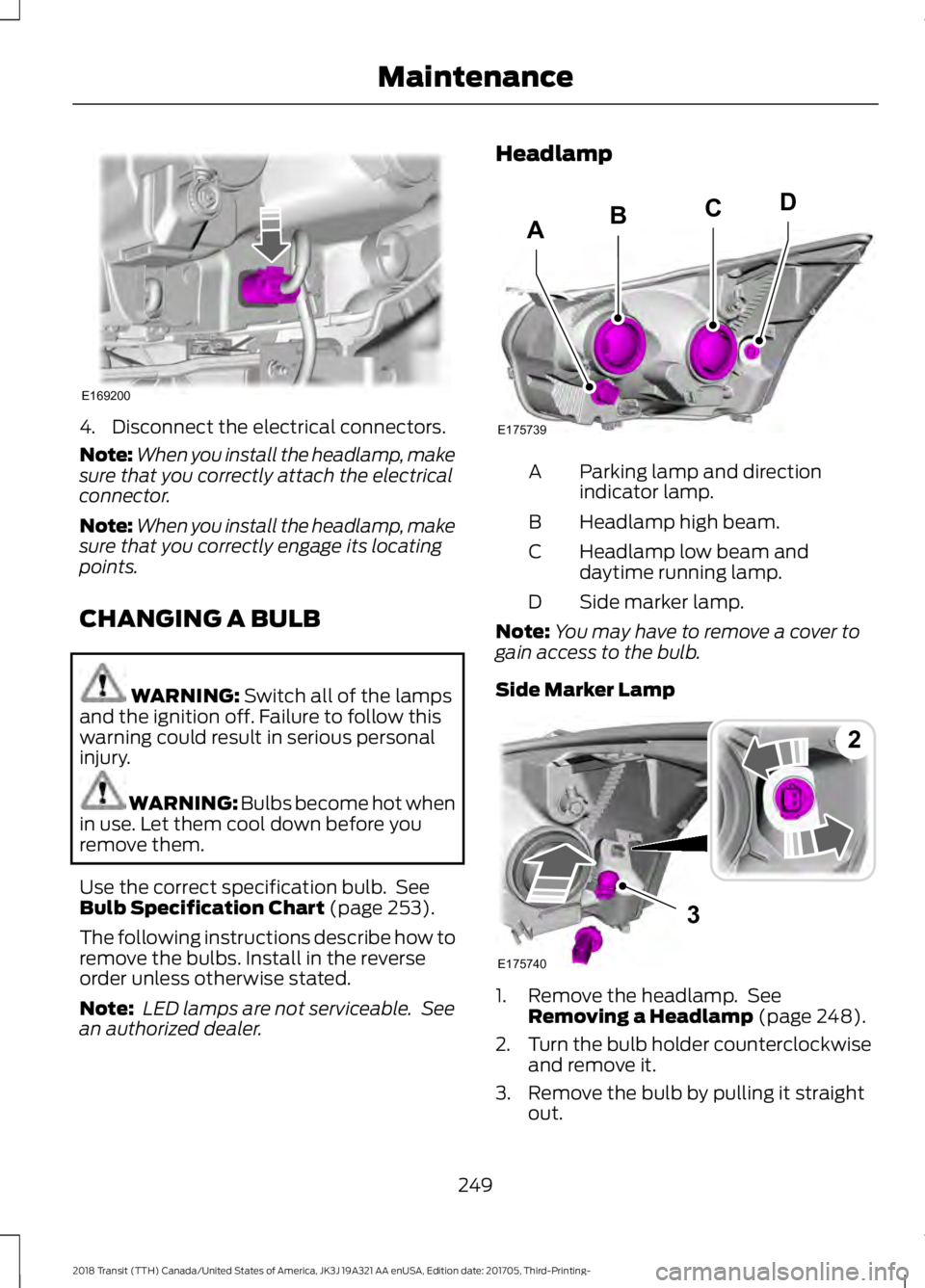

4. Disconnect the electrical connectors.
Note:
When you install the headlamp, make
sure that you correctly attach the electrical
connector.
Note: When you install the headlamp, make
sure that you correctly engage its locating
points.
CHANGING A BULB WARNING: Switch all of the lamps
and the ignition off. Failure to follow this
warning could result in serious personal
injury. WARNING: Bulbs become hot when
in use. Let them cool down before you
remove them.
Use the correct specification bulb. See
Bulb Specification Chart
(page 253).
The following instructions describe how to
remove the bulbs. Install in the reverse
order unless otherwise stated.
Note: LED lamps are not serviceable. See
an authorized dealer. Headlamp
Parking lamp and direction
indicator lamp.
A
Headlamp high beam.
B
Headlamp low beam and
daytime running lamp.
C
Side marker lamp.
D
Note: You may have to remove a cover to
gain access to the bulb.
Side Marker Lamp 1. Remove the headlamp. See
Removing a Headlamp
(page 248).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight out.
249
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- MaintenanceE169200 E175739
BCD
A 3
E175740
2

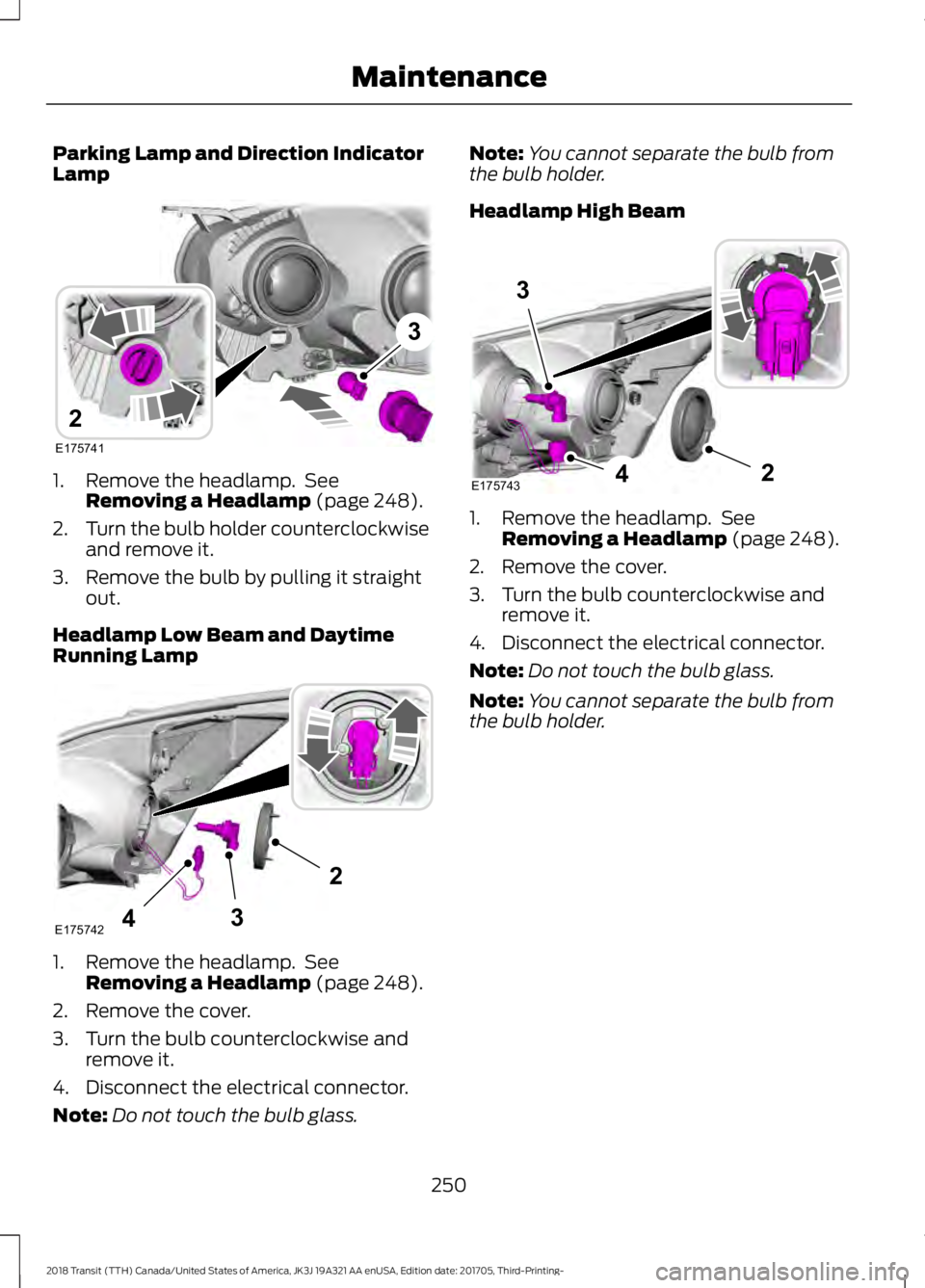

Parking Lamp and Direction Indicator
Lamp
1. Remove the headlamp. See
Removing a Headlamp (page 248).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight out.
Headlamp Low Beam and Daytime
Running Lamp 1. Remove the headlamp. See
Removing a Headlamp
(page 248).
2. Remove the cover.
3. Turn the bulb counterclockwise and remove it.
4. Disconnect the electrical connector.
Note: Do not touch the bulb glass. Note:
You cannot separate the bulb from
the bulb holder.
Headlamp High Beam 1. Remove the headlamp. See
Removing a Headlamp
(page 248).
2. Remove the cover.
3. Turn the bulb counterclockwise and remove it.
4. Disconnect the electrical connector.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
250
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Maintenance3
E175741
2 43
2
E175742 4
3
2E175743

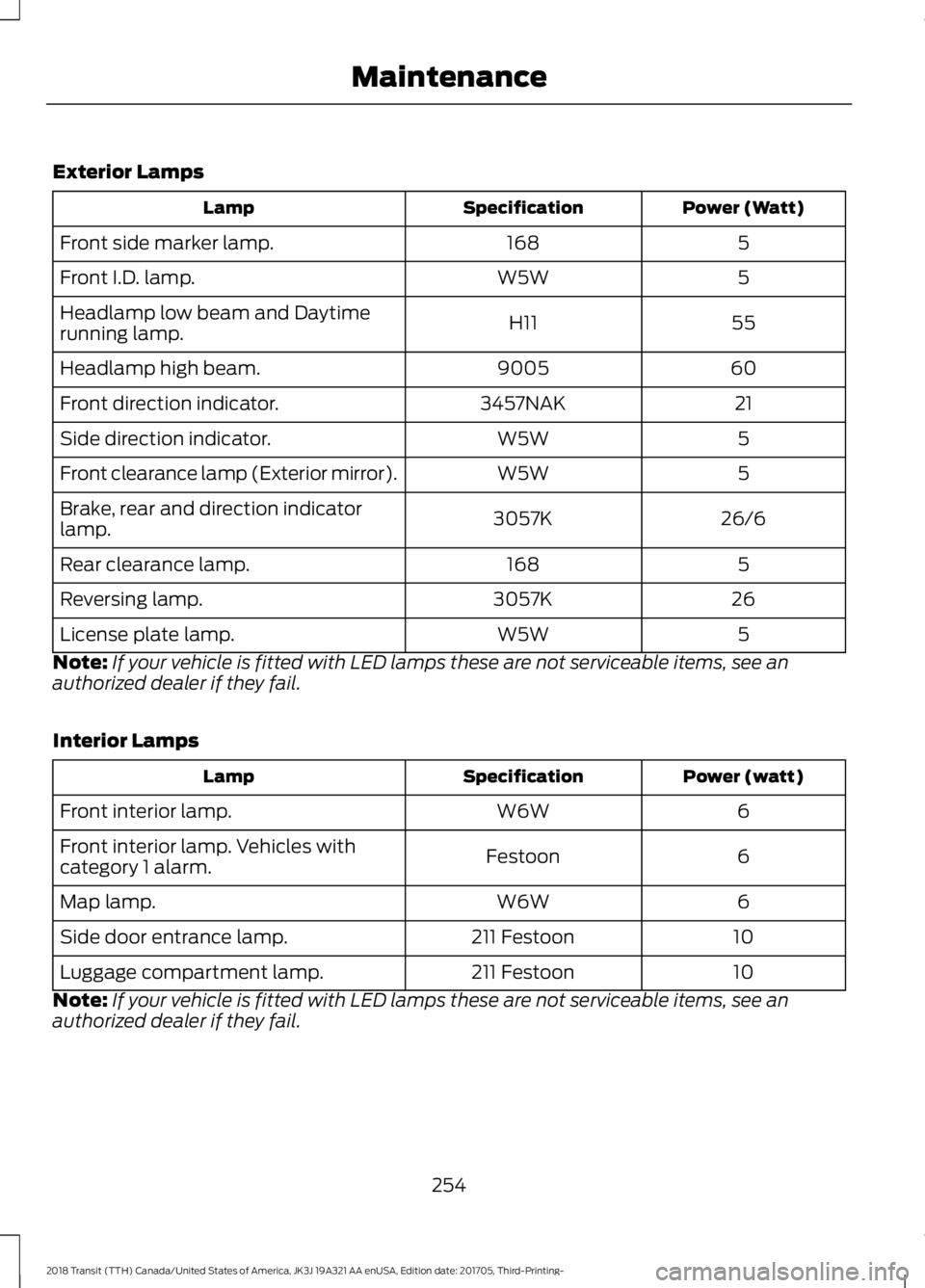

Exterior Lamps
Power (Watt)
Specification
Lamp
5
168
Front side marker lamp.
5
W5W
Front I.D. lamp.
55
H11
Headlamp low beam and Daytime
running lamp.
60
9005
Headlamp high beam.
21
3457NAK
Front direction indicator.
5
W5W
Side direction indicator.
5
W5W
Front clearance lamp (Exterior mirror).
26/6
3057K
Brake, rear and direction indicator
lamp.
5
168
Rear clearance lamp.
26
3057K
Reversing lamp.
5
W5W
License plate lamp.
Note: If your vehicle is fitted with LED lamps these are not serviceable items, see an
authorized dealer if they fail.
Interior Lamps Power (watt)
Specification
Lamp
6
W6W
Front interior lamp.
6
Festoon
Front interior lamp. Vehicles with
category 1 alarm.
6
W6W
Map lamp.
10
211 Festoon
Side door entrance lamp.
10
211 Festoon
Luggage compartment lamp.
Note: If your vehicle is fitted with LED lamps these are not serviceable items, see an
authorized dealer if they fail.
254
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Maintenance

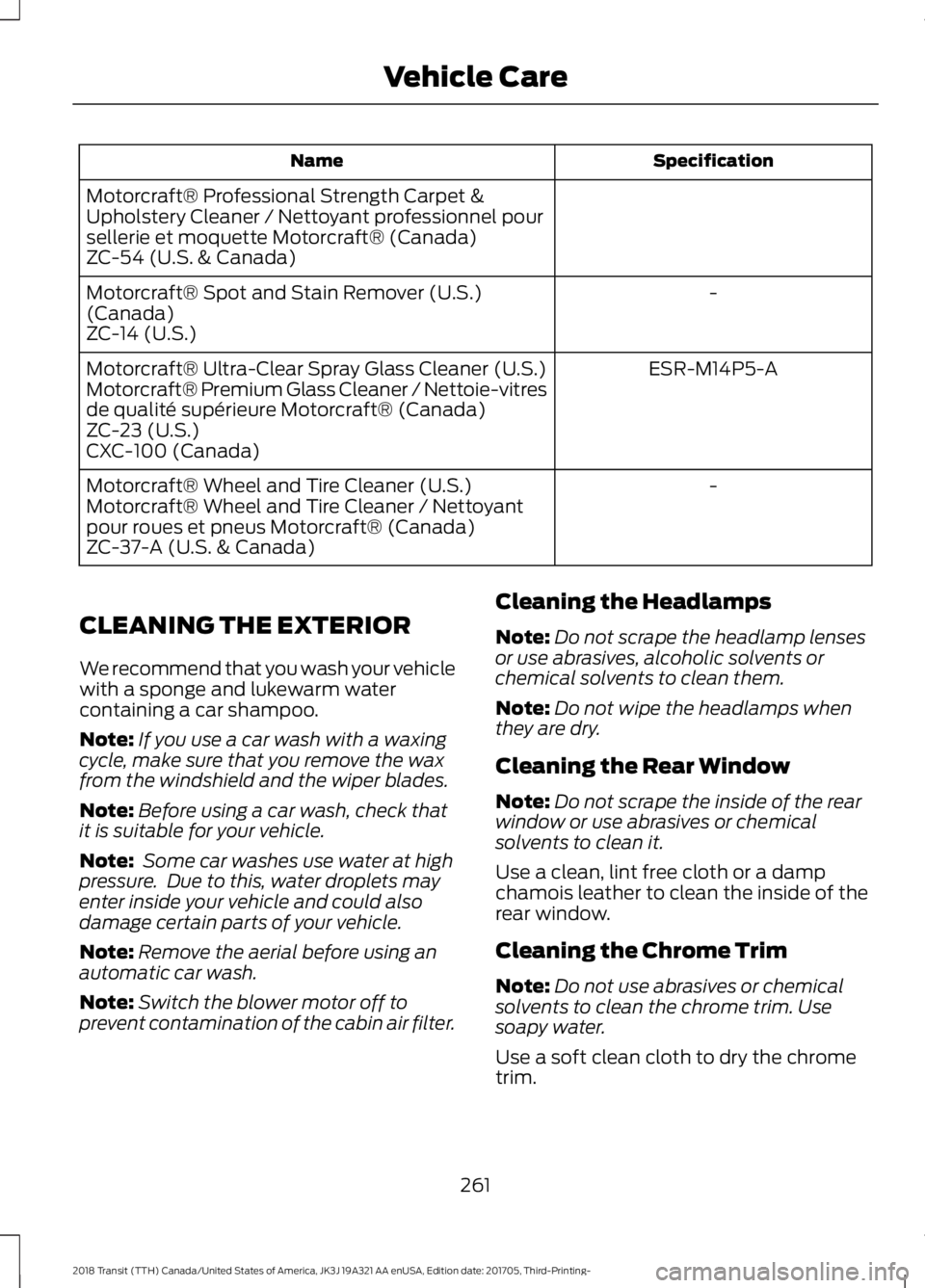

Specification
Name
Motorcraft® Professional Strength Carpet &
Upholstery Cleaner / Nettoyant professionnel pour
sellerie et moquette Motorcraft® (Canada)
ZC-54 (U.S. & Canada) -
Motorcraft® Spot and Stain Remover (U.S.)
(Canada)
ZC-14 (U.S.)
ESR-M14P5-A
Motorcraft® Ultra-Clear Spray Glass Cleaner (U.S.)
Motorcraft® Premium Glass Cleaner / Nettoie-vitres
de qualité supérieure Motorcraft® (Canada)
ZC-23 (U.S.)
CXC-100 (Canada)
-
Motorcraft® Wheel and Tire Cleaner (U.S.)
Motorcraft® Wheel and Tire Cleaner / Nettoyant
pour roues et pneus Motorcraft® (Canada)
ZC-37-A (U.S. & Canada)
CLEANING THE EXTERIOR
We recommend that you wash your vehicle
with a sponge and lukewarm water
containing a car shampoo.
Note: If you use a car wash with a waxing
cycle, make sure that you remove the wax
from the windshield and the wiper blades.
Note: Before using a car wash, check that
it is suitable for your vehicle.
Note: Some car washes use water at high
pressure. Due to this, water droplets may
enter inside your vehicle and could also
damage certain parts of your vehicle.
Note: Remove the aerial before using an
automatic car wash.
Note: Switch the blower motor off to
prevent contamination of the cabin air filter. Cleaning the Headlamps
Note:
Do not scrape the headlamp lenses
or use abrasives, alcoholic solvents or
chemical solvents to clean them.
Note: Do not wipe the headlamps when
they are dry.
Cleaning the Rear Window
Note: Do not scrape the inside of the rear
window or use abrasives or chemical
solvents to clean it.
Use a clean, lint free cloth or a damp
chamois leather to clean the inside of the
rear window.
Cleaning the Chrome Trim
Note: Do not use abrasives or chemical
solvents to clean the chrome trim. Use
soapy water.
Use a soft clean cloth to dry the chrome
trim.
261
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Vehicle Care

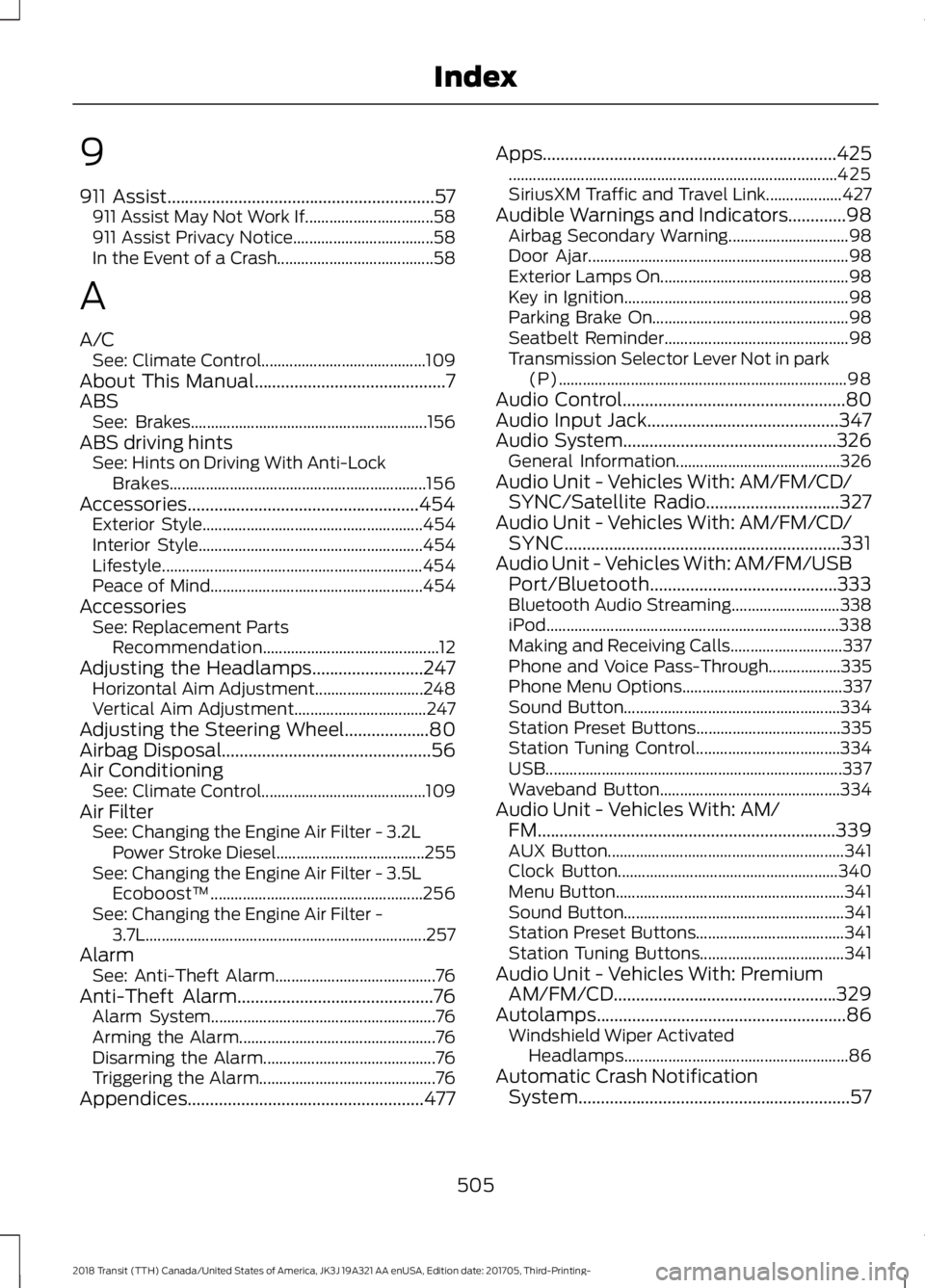

9
911 Assist............................................................57
911 Assist May Not Work If................................ 58
911 Assist Privacy Notice................................... 58
In the Event of a Crash....................................... 58
A
A/C See: Climate Control......................................... 109
About This Manual
...........................................7
ABS See: Brakes........................................................... 156
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 156
Accessories....................................................454 Exterior Style....................................................... 454
Interior Style........................................................ 454
Lifestyle................................................................. 454
Peace of Mind..................................................... 454
Accessories See: Replacement Parts
Recommendation............................................ 12
Adjusting the Headlamps.........................247 Horizontal Aim Adjustment........................... 248
Vertical Aim Adjustment................................. 247
Adjusting the Steering Wheel...................80
Airbag Disposal
...............................................56
Air Conditioning See: Climate Control......................................... 109
Air Filter See: Changing the Engine Air Filter - 3.2L
Power Stroke Diesel..................................... 255
See: Changing the Engine Air Filter - 3.5L Ecoboost™..................................................... 256
See: Changing the Engine Air Filter - 3.7L...................................................................... 257
Alarm See: Anti-Theft Alarm........................................ 76
Anti-Theft Alarm
............................................76
Alarm System........................................................ 76
Arming the Alarm................................................. 76
Disarming the Alarm........................................... 76
Triggering the Alarm............................................ 76
Appendices.....................................................477 Apps
..................................................................425
........................................................................\
.......... 425
SiriusXM Traffic and Travel Link................... 427
Audible Warnings and Indicators
.............98
Airbag Secondary Warning.............................. 98
Door Ajar................................................................. 98
Exterior Lamps On............................................... 98
Key in Ignition........................................................ 98
Parking Brake On................................................. 98
Seatbelt Reminder.............................................. 98
Transmission Selector Lever Not in park (P)........................................................................\
98
Audio Control
..................................................80
Audio Input Jack...........................................347
Audio System................................................326 General Information......................................... 326
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Satellite Radio..............................327
Audio Unit - Vehicles With: AM/FM/CD/ SYNC..............................................................331
Audio Unit - Vehicles With: AM/FM/USB Port/Bluetooth
..........................................333
Bluetooth Audio Streaming........................... 338
iPod........................................................................\
. 338
Making and Receiving Calls............................ 337
Phone and Voice Pass-Through.................. 335
Phone Menu Options........................................ 337
Sound Button...................................................... 334
Station Preset Buttons.................................... 335
Station Tuning Control.................................... 334
USB........................................................................\
.. 337
Waveband Button............................................. 334
Audio Unit - Vehicles With: AM/ FM...................................................................339
AUX Button........................................................... 341
Clock Button....................................................... 340
Menu Button......................................................... 341
Sound Button....................................................... 341
Station Preset Buttons..................................... 341
Station Tuning Buttons.................................... 341
Audio Unit - Vehicles With: Premium AM/FM/CD..................................................329
Autolamps
........................................................86
Windshield Wiper Activated
Headlamps........................................................ 86
Automatic Crash Notification System.............................................................57
505
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

Automatic Transmission.............................151
Automatic Transmission Adaptive
Learning............................................................. 154
Brake-Shift Interlock......................................... 153
If Your Vehicle Gets Stuck in Mud or Snow.................................................................. 154
SelectShift Automatic ™
Transmission................................................... 152
Understanding the Positions of Your Automatic Transmission.............................. 151
Automatic Transmission Fluid Check............................................................240
Autowipers.......................................................83
Auxiliary Power Points................................122
12 Volt DC Power Point...................................... 122
AC Power Point.................................................... 122
Locations................................................................ 122
Auxiliary Switches
.......................................455
B
Battery See: Changing the 12V Battery..................... 244
Bonnet Lock See: Opening and Closing the Hood..........229
Booster Seats..................................................33 Types of Booster Seats...................................... 34
Bottle Holder
..................................................125
Brake Fluid Check.........................................241
Brakes
...............................................................156
General Information.......................................... 156
Breaking-In.......................................................191
Bulb Specification Chart...........................253
C
Capacities and Specifications - 3.2L Power Stroke Diesel..................................313
Capacities.............................................................. 313
Specifications...................................................... 314
Capacities and Specifications - 3.5L Ecoboost™..................................................316
Alternative Engine Oil for Extremely Cold Climates........................................................... 320
Capacities.............................................................. 317
Specifications...................................................... 318Capacities and Specifications -
3.7L
..................................................................321
Alternative Engine Oil for Extremely Cold
Climates........................................................... 324
Capacities.............................................................. 321
Specifications...................................................... 322
Capacities and Specifications
...............305
Cargo Lamps...................................................88
Switching the Cargo Lamps Off..................... 88
Switching the Cargo Lamps On..................... 88
Car Wash See: Cleaning the Exterior............................... 261
Catalytic Converter - 3.5L/3.7L................142 On-Board Diagnostics System...................... 142
Changing a Bulb...........................................249 Central High Mounted Brake Lamp............252
Front Clearance Lamp...................................... 251
Headlamp............................................................. 249
Interior Lamp....................................................... 252
License Plate Lamp........................................... 252
Reading Lamps................................................... 253
Rear Lamps........................................................... 251
Side Direction Indicator.................................... 251
Sun Visor Mirror Lamp..................................... 253
Changing a Fuse...........................................227 Fuses....................................................................... 227
Changing a Road Wheel...........................292 Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 293
Front Jacking Points......................................... 298
Installing a Road Wheel.................................. 302
Locking Lug Nuts............................................... 294
Rear Jacking Points........................................... 299
Removing a Road Wheel................................. 301
Removing a Wheel Trim.................................. 299
Stowing the Wheel and Vehicle Jack.........303
Vehicle Jack......................................................... 296
Vehicles With a Spare Wheel....................... 294
Changing the 12V Battery.........................244 Removing the Battery...................................... 244
Replacing the Battery...................................... 246
Changing the Engine Air Filter - 3.2L Power Stroke Diesel.................................255
Changing the Engine Air Filter - 3.5L Ecoboost™.................................................256
Changing the Engine Air Filter - 3.7L..................................................................257
506
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

Changing the Engine Oil and Oil
Filter...............................................................235
Engine Lubrication for Severe Service
Operation
......................................................... 235
Changing the Front Wiper Blades.........246
Checking MyKey System Status..............66
Checking the Wiper Blades.....................246
Child Restraint and Seatbelt Maintenance.................................................44
Child Restraint Positioning.........................35
Child Safety
........................................................17
General Information............................................. 17
Child Safety Locks..........................................37 Left-Hand Side..................................................... 38
Right-Hand Side................................................... 38
Cigar Lighter
....................................................123
Cleaning Products......................................260
Cleaning the Engine....................................262
Cleaning the Exterior...................................261 Body Paintwork Preservation........................ 262
Cleaning the Chrome Trim.............................. 261
Cleaning the Headlamps................................. 261
Cleaning the Rear Window............................. 261
Sliding Door Tracks........................................... 262
Cleaning the Instrument Panel and Instrument Cluster Lens........................265
Cleaning the Interior...................................263 Fabric, Carpets, Cloth Seats, Headliners
and Floor Mats............................................... 263
Instrument Cluster Screens, LCD Screens and Radio Screens....................................... 264
Leather Interior................................................... 264
Rear Windows..................................................... 264
Seatbelts.............................................................. 264
Storage Compartments, Cup Holders and Ashtrays........................................................... 264
Suede Micro Fiber Fabric................................ 264
Cleaning the Wheels
..................................266
Cleaning the Windows and Wiper Blades...........................................................263
Clearing All MyKeys.......................................66
Climate Control
............................................109
Cold Weather Precautions.........................191
Coolant Check See: Engine Coolant Check............................ 236
Crash Sensors and Airbag Indicator........55 Creating a MyKey
...........................................65
Programming/Changing Configurable
Settings.............................................................. 66
Cruise Control
...................................................81
Principle of Operation...................................... 168
Cruise control See: Using Cruise Control................................ 168
Cup Holders
....................................................125
Customer Assistance..................................201
D
Data Recording
..................................................9
Event Data Recording.......................................... 10
Service Data Recording........................................ 9
Daytime Running Lamps
.............................87
Diesel Particulate Filter - 3.2L Diesel..............................................................145
Diesel Particulate Filter Automatic Regeneration................................................... 146
Diesel Particulate Filter Manual Regeneration................................................... 148
On-Board Diagnostics System...................... 146
Digital Radio..................................................342 HD Radio Reception and Station
Troubleshooting............................................ 343
Direction Indicators
........................................87
Doors and Locks.............................................70
Draining the Fuel Filter Water Trap - 3.2L Power Stroke Diesel.................................242
Changing the Fuel Filter.................................. 242
Purging Air From the Fuel System...............243
Drive Belt Routing - 3.2L Power Stroke Diesel.............................................................258
Drive Belt Routing - 3.5L Ecoboost™/ 3.7L
.................................................................258
Driver Alert......................................................169
Principle of Operation...................................... 169
Using Driver Alert................................................ 169
Driver and Passenger Airbags....................47 Children and Airbags........................................... 52
Passenger Airbag On and Off Switch ..........47
Proper Driver and Front Passenger Seating Adjustment........................................................ 52
Driving Aids
.....................................................169
Driving Hints....................................................191
Driving Through Water................................192
507
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

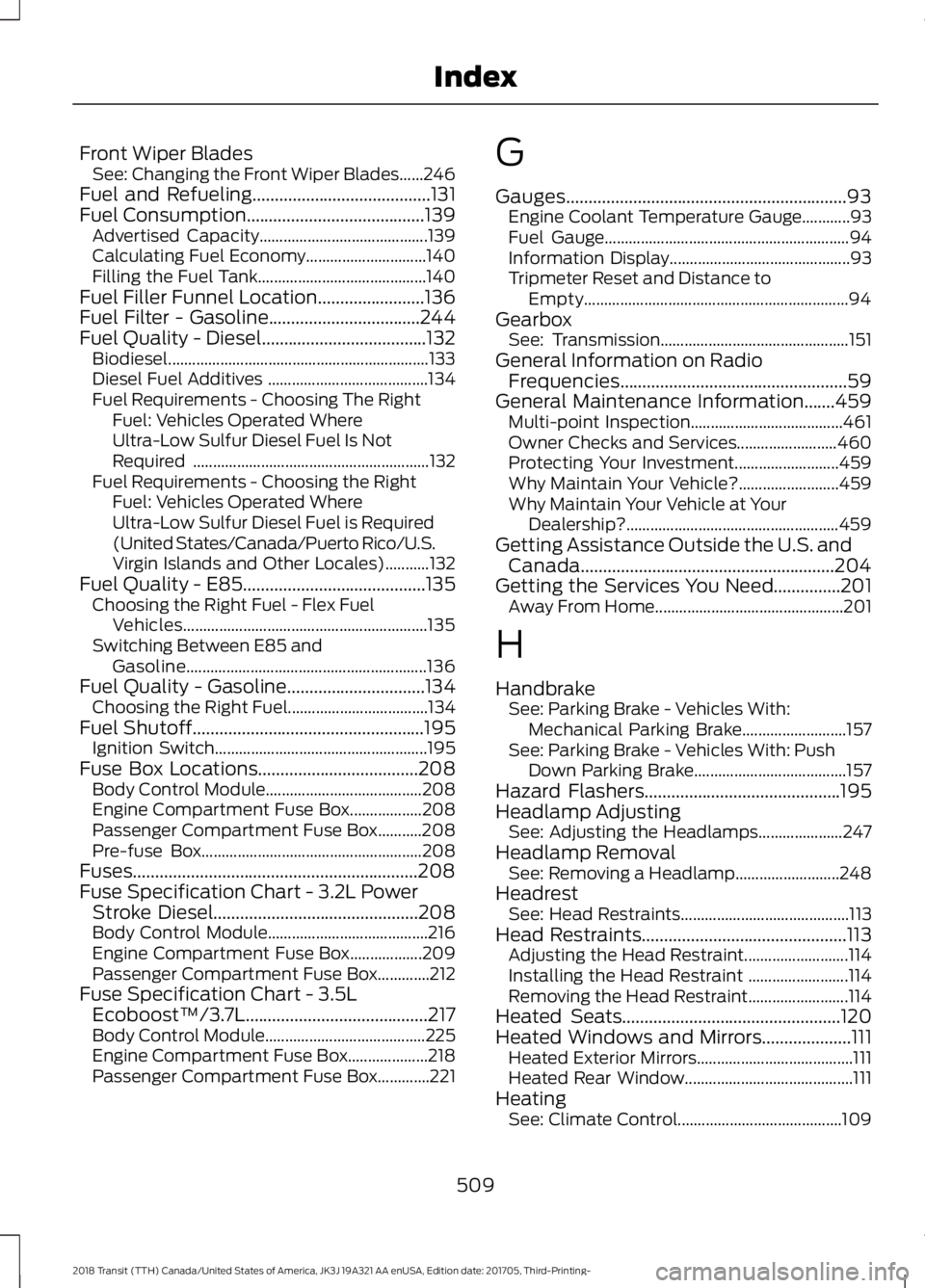

Front Wiper Blades
See: Changing the Front Wiper Blades......246
Fuel and Refueling........................................131
Fuel Consumption........................................139
Advertised Capacity.......................................... 139
Calculating Fuel Economy.............................. 140
Filling the Fuel Tank.......................................... 140
Fuel Filler Funnel Location........................136
Fuel Filter - Gasoline..................................244
Fuel Quality - Diesel.....................................132 Biodiesel................................................................. 133
Diesel Fuel Additives ........................................ 134
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where
Ultra-Low Sulfur Diesel Fuel Is Not
Required ........................................................... 132
Fuel Requirements - Choosing the Right Fuel: Vehicles Operated Where
Ultra-Low Sulfur Diesel Fuel is Required
(United States/Canada/Puerto Rico/U.S.
Virgin Islands and Other Locales)...........132
Fuel Quality - E85
.........................................135
Choosing the Right Fuel - Flex Fuel
Vehicles............................................................. 135
Switching Between E85 and Gasoline............................................................ 136
Fuel Quality - Gasoline...............................134 Choosing the Right Fuel................................... 134
Fuel Shutoff
....................................................195
Ignition Switch..................................................... 195
Fuse Box Locations....................................208 Body Control Module....................................... 208
Engine Compartment Fuse Box.................. 208
Passenger Compartment Fuse Box...........208
Pre-fuse Box....................................................... 208
Fuses................................................................208
Fuse Specification Chart - 3.2L Power Stroke Diesel..............................................208
Body Control Module........................................ 216
Engine Compartment Fuse Box.................. 209
Passenger Compartment Fuse Box.............212
Fuse Specification Chart - 3.5L Ecoboost™/3.7L.........................................217
Body Control Module........................................ 225
Engine Compartment Fuse Box.................... 218
Passenger Compartment Fuse Box.............221 G
Gauges...............................................................93
Engine Coolant Temperature Gauge............93
Fuel Gauge............................................................. 94
Information Display............................................. 93
Tripmeter Reset and Distance to Empty.................................................................. 94
Gearbox See: Transmission............................................... 151
General Information on Radio Frequencies...................................................59
General Maintenance Information.......459 Multi-point Inspection...................................... 461
Owner Checks and Services......................... 460
Protecting Your Investment.......................... 459
Why Maintain Your Vehicle?......................... 459
Why Maintain Your Vehicle at Your Dealership?..................................................... 459
Getting Assistance Outside the U.S. and Canada.........................................................204
Getting the Services You Need...............201 Away From Home............................................... 201
H
Handbrake See: Parking Brake - Vehicles With:
Mechanical Parking Brake.......................... 157
See: Parking Brake - Vehicles With: Push Down Parking Brake...................................... 157
Hazard Flashers............................................195
Headlamp Adjusting See: Adjusting the Headlamps..................... 247
Headlamp Removal See: Removing a Headlamp.......................... 248
Headrest See: Head Restraints.......................................... 113
Head Restraints..............................................113 Adjusting the Head Restraint.......................... 114
Installing the Head Restraint ......................... 114
Removing the Head Restraint......................... 114
Heated Seats
.................................................120
Heated Windows and Mirrors....................111 Heated Exterior Mirrors....................................... 111
Heated Rear Window.......................................... 111
Heating See: Climate Control......................................... 109
509
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

Hill Start Assist..............................................158
Switching the System On and Off...............159
Using Hill Start Assist....................................... 158
Hints on Controlling the Interior Climate...........................................................110
Cooling the Interior Quickly............................. 110
General Hints........................................................ 110
Heating the Interior Quickly............................. 110
Maximum Cooling Performance in Instrument Panel or Instrument Panel
and Footwell Positions.................................. 111
Recommended Settings for Cooling ..........110
Recommended Settings for Heating...........110
Side Window Defogging in Cold Weather............................................................... 111
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures................................................... 110
Hints on Driving With Anti-Lock Brakes............................................................156
Home Screen................................................396
Hood Lock See: Opening and Closing the Hood..........229
I
Ignition Switch...............................................126
In California (U.S. Only)............................202
Information Display Control.......................82
Information Displays....................................99 General Information........................................... 99
Information Messages
................................103
Installing Child Restraints............................18
Child Safety Restraint.......................................... 18
Using Lap and Shoulder Belts.......................... 19
Using Lower Anchors and Tethers for Children (LATCH)............................................. 21
Using Tether Straps............................................. 27
Instrument Cluster
.........................................93
Instrument Lighting Dimmer......................87
Interior Lamps
.................................................88
Courtesy Lamp..................................................... 88
Reading Lamps..................................................... 88
Interior Mirror
...................................................92
Automatic Dimming Mirror............................... 92
Manual Dimming Mirror..................................... 92
Introduction.........................................................7 J
Jump Starting the Vehicle.........................196
Connecting the Jumper Cables..................... 197
Jump Starting....................................................... 197
Preparing Your Vehicle..................................... 196
Removing the Jumper Cables........................ 197
K
Keys and Remote Controls
.........................59
Principle of Operation........................................ 59
L
Lane Keeping System.................................170 Lane Keeping Alert............................................. 170
Lighting Control
..............................................85
Headlamp Flasher............................................... 86
Headlamp High Beam....................................... 86
Lighting Control Positions................................ 85
Parking Lamps...................................................... 85
Lighting..............................................................85 General Information............................................ 85
Load Carrying
..................................................174
Load Limit........................................................174
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles.............................................................. 179
Vehicle Loading - with and without a Trailer.................................................................. 174
Load Retaining Fixtures
..............................174
Securing Cargo..................................................... 174
Locking and Unlocking.................................70 Autolock................................................................... 73
Autounlock.............................................................. 74
Configurable Unlocking...................................... 74
Locking..................................................................... 70
Locking and Unlocking the Doors From Inside.................................................................... 70
One-Stage Unlocking.......................................... 74
Opening and Closing the Sliding Door..........71
Opening the Double Rear Doors..................... 72
Rear Emergency Exit............................................ 73
Two-Stage Unlocking......................................... 74
Unlocking................................................................. 70
Zone Re-Locking................................................... 74
510
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index
