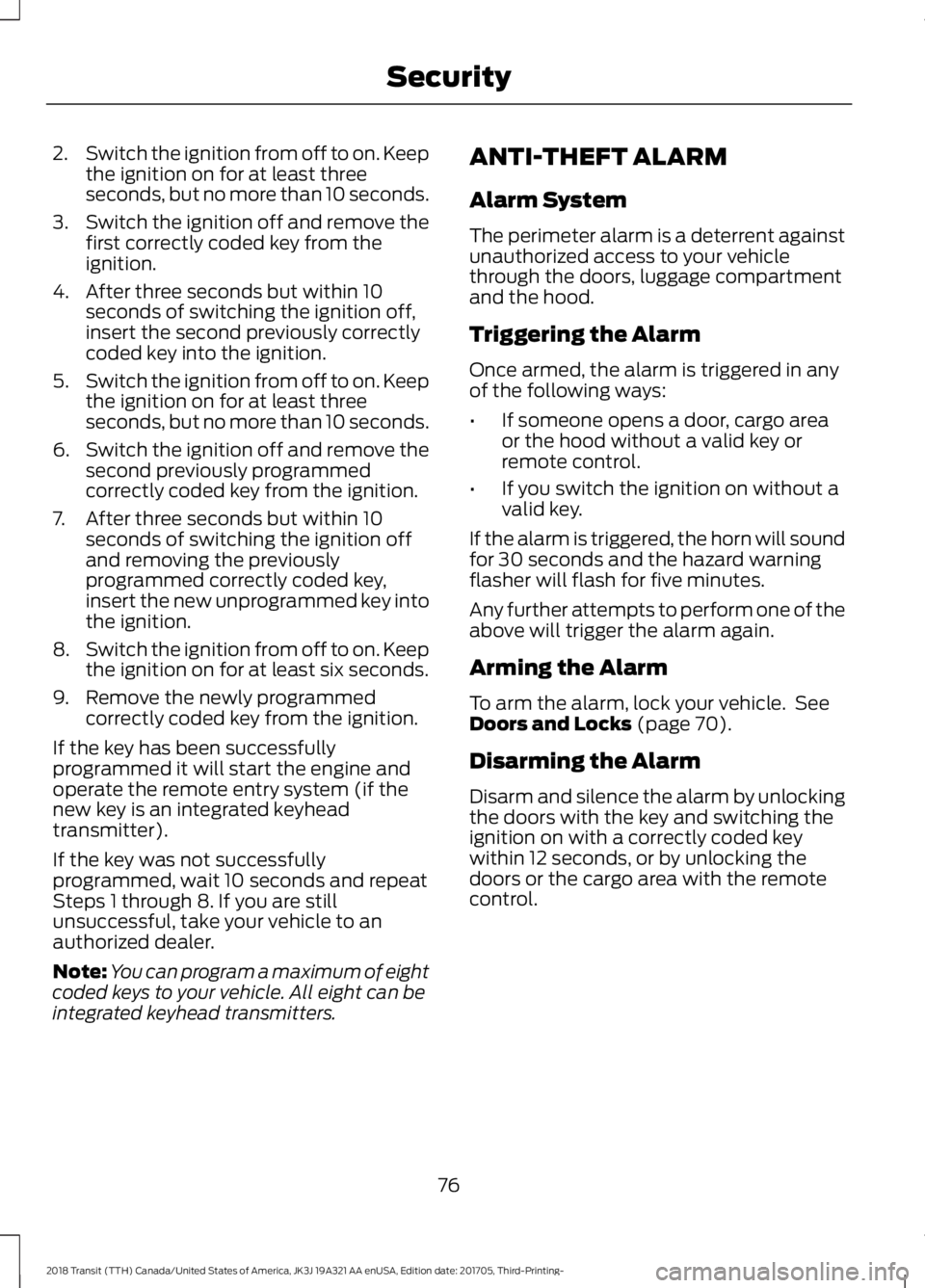

2.
Switch the ignition from off to on. Keep
the ignition on for at least three
seconds, but no more than 10 seconds.
3. Switch the ignition off and remove the
first correctly coded key from the
ignition.
4. After three seconds but within 10 seconds of switching the ignition off,
insert the second previously correctly
coded key into the ignition.
5. Switch the ignition from off to on. Keep
the ignition on for at least three
seconds, but no more than 10 seconds.
6. Switch the ignition off and remove the
second previously programmed
correctly coded key from the ignition.
7. After three seconds but within 10 seconds of switching the ignition off
and removing the previously
programmed correctly coded key,
insert the new unprogrammed key into
the ignition.
8. Switch the ignition from off to on. Keep
the ignition on for at least six seconds.
9. Remove the newly programmed correctly coded key from the ignition.
If the key has been successfully
programmed it will start the engine and
operate the remote entry system (if the
new key is an integrated keyhead
transmitter).
If the key was not successfully
programmed, wait 10 seconds and repeat
Steps 1 through 8. If you are still
unsuccessful, take your vehicle to an
authorized dealer.
Note: You can program a maximum of eight
coded keys to your vehicle. All eight can be
integrated keyhead transmitters. ANTI-THEFT ALARM
Alarm System
The perimeter alarm is a deterrent against
unauthorized access to your vehicle
through the doors, luggage compartment
and the hood.
Triggering the Alarm
Once armed, the alarm is triggered in any
of the following ways:
•
If someone opens a door, cargo area
or the hood without a valid key or
remote control.
• If you switch the ignition on without a
valid key.
If the alarm is triggered, the horn will sound
for 30 seconds and the hazard warning
flasher will flash for five minutes.
Any further attempts to perform one of the
above will trigger the alarm again.
Arming the Alarm
To arm the alarm, lock your vehicle. See
Doors and Locks (page 70).
Disarming the Alarm
Disarm and silence the alarm by unlocking
the doors with the key and switching the
ignition on with a correctly coded key
within 12 seconds, or by unlocking the
doors or the cargo area with the remote
control.
76
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Security

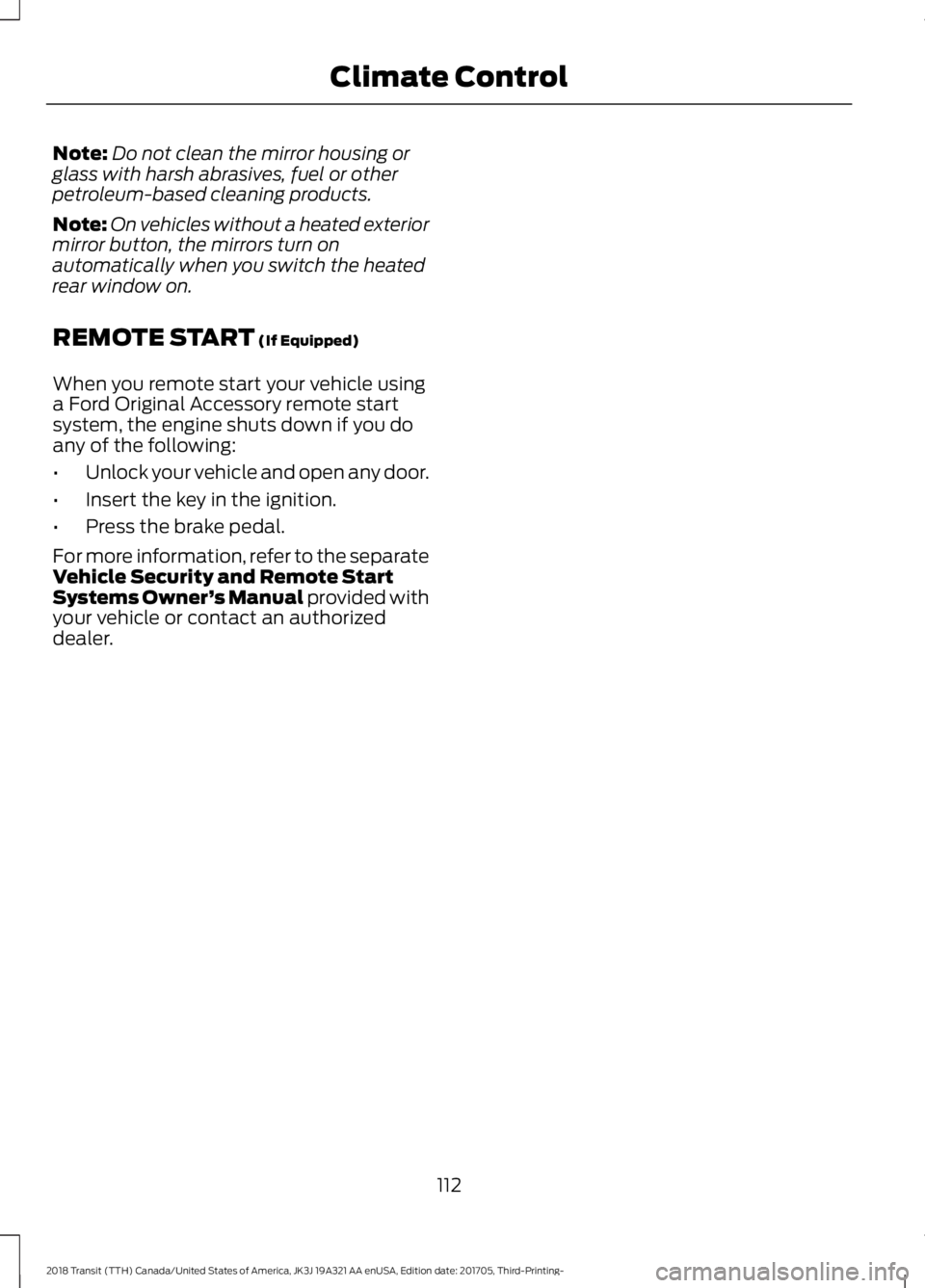

Note:
Do not clean the mirror housing or
glass with harsh abrasives, fuel or other
petroleum-based cleaning products.
Note: On vehicles without a heated exterior
mirror button, the mirrors turn on
automatically when you switch the heated
rear window on.
REMOTE START (If Equipped)
When you remote start your vehicle using
a Ford Original Accessory remote start
system, the engine shuts down if you do
any of the following:
• Unlock your vehicle and open any door.
• Insert the key in the ignition.
• Press the brake pedal.
For more information, refer to the separate
Vehicle Security and Remote Start
Systems Owner ’s Manual
provided with
your vehicle or contact an authorized
dealer.
112
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Climate Control

1. Remove the jumper cable from the
grounding connection point of the
vehicle with the discharged battery.
2. Remove the jumper cable on the negative (-) terminal of the booster
vehicle's battery.
3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle's battery.
4. Remove the jumper cable from the positive (+) access terminal of the
vehicle with the discharged battery.
After you start the disabled vehicle and
remove the jumper cables, allow your
vehicle to idle for several minutes so the
battery can recharge. POST-CRASH ALERT SYSTEM
The system flashes the direction indicators
and sounds the horn (intermittently) in the
event of a serious impact that deploys an
airbag (front, side, side curtain or Safety
Canopy) or the seatbelt pretensioners.
The horn and indicators turn off when:
•
You press the hazard control button.
• You press the panic button on the
remote entry transmitter (if equipped).
• Your vehicle runs out of power.
• Sounding of the horn is only enabled
in specific markets.
TRANSPORTING THE VEHICLE 198
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Roadside Emergencies4
1
3
2
E142665 E143886

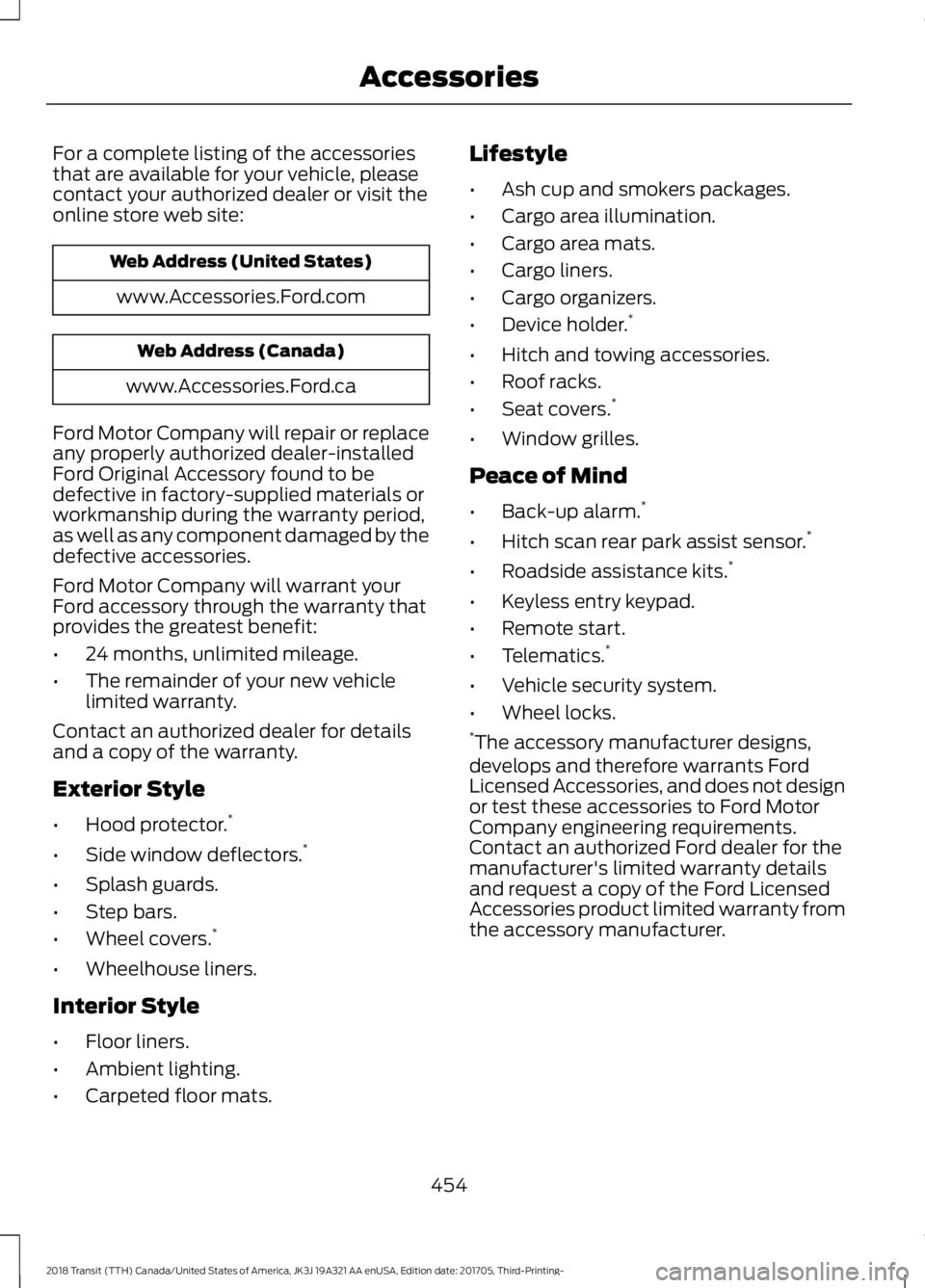

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit the
online store web site:
Web Address (United States)
www.Accessories.Ford.com Web Address (Canada)
www.Accessories.Ford.ca
Ford Motor Company will repair or replace
any properly authorized dealer-installed
Ford Original Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period,
as well as any component damaged by the
defective accessories.
Ford Motor Company will warrant your
Ford accessory through the warranty that
provides the greatest benefit:
• 24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Exterior Style
• Hood protector. *
• Side window deflectors. *
• Splash guards.
• Step bars.
• Wheel covers. *
• Wheelhouse liners.
Interior Style
• Floor liners.
• Ambient lighting.
• Carpeted floor mats. Lifestyle
•
Ash cup and smokers packages.
• Cargo area illumination.
• Cargo area mats.
• Cargo liners.
• Cargo organizers.
• Device holder. *
• Hitch and towing accessories.
• Roof racks.
• Seat covers. *
• Window grilles.
Peace of Mind
• Back-up alarm. *
• Hitch scan rear park assist sensor. *
• Roadside assistance kits. *
• Keyless entry keypad.
• Remote start.
• Telematics. *
• Vehicle security system.
• Wheel locks.
* The accessory manufacturer designs,
develops and therefore warrants Ford
Licensed Accessories, and does not design
or test these accessories to Ford Motor
Company engineering requirements.
Contact an authorized Ford dealer for the
manufacturer's limited warranty details
and request a copy of the Ford Licensed
Accessories product limited warranty from
the accessory manufacturer.
454
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Accessories

Hill Start Assist..............................................158
Switching the System On and Off...............159
Using Hill Start Assist....................................... 158
Hints on Controlling the Interior Climate...........................................................110
Cooling the Interior Quickly............................. 110
General Hints........................................................ 110
Heating the Interior Quickly............................. 110
Maximum Cooling Performance in Instrument Panel or Instrument Panel
and Footwell Positions.................................. 111
Recommended Settings for Cooling ..........110
Recommended Settings for Heating...........110
Side Window Defogging in Cold Weather............................................................... 111
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures................................................... 110
Hints on Driving With Anti-Lock Brakes............................................................156
Home Screen................................................396
Hood Lock See: Opening and Closing the Hood..........229
I
Ignition Switch...............................................126
In California (U.S. Only)............................202
Information Display Control.......................82
Information Displays....................................99 General Information........................................... 99
Information Messages
................................103
Installing Child Restraints............................18
Child Safety Restraint.......................................... 18
Using Lap and Shoulder Belts.......................... 19
Using Lower Anchors and Tethers for Children (LATCH)............................................. 21
Using Tether Straps............................................. 27
Instrument Cluster
.........................................93
Instrument Lighting Dimmer......................87
Interior Lamps
.................................................88
Courtesy Lamp..................................................... 88
Reading Lamps..................................................... 88
Interior Mirror
...................................................92
Automatic Dimming Mirror............................... 92
Manual Dimming Mirror..................................... 92
Introduction.........................................................7 J
Jump Starting the Vehicle.........................196
Connecting the Jumper Cables..................... 197
Jump Starting....................................................... 197
Preparing Your Vehicle..................................... 196
Removing the Jumper Cables........................ 197
K
Keys and Remote Controls
.........................59
Principle of Operation........................................ 59
L
Lane Keeping System.................................170 Lane Keeping Alert............................................. 170
Lighting Control
..............................................85
Headlamp Flasher............................................... 86
Headlamp High Beam....................................... 86
Lighting Control Positions................................ 85
Parking Lamps...................................................... 85
Lighting..............................................................85 General Information............................................ 85
Load Carrying
..................................................174
Load Limit........................................................174
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles.............................................................. 179
Vehicle Loading - with and without a Trailer.................................................................. 174
Load Retaining Fixtures
..............................174
Securing Cargo..................................................... 174
Locking and Unlocking.................................70 Autolock................................................................... 73
Autounlock.............................................................. 74
Configurable Unlocking...................................... 74
Locking..................................................................... 70
Locking and Unlocking the Doors From Inside.................................................................... 70
One-Stage Unlocking.......................................... 74
Opening and Closing the Sliding Door..........71
Opening the Double Rear Doors..................... 72
Rear Emergency Exit............................................ 73
Two-Stage Unlocking......................................... 74
Unlocking................................................................. 70
Zone Re-Locking................................................... 74
510
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

Power Seats....................................................116
Power Lumbar...................................................... 118
Power Steering Fluid Check......................241 Adding Power Steering Fluid.......................... 241
Power Windows.............................................90 Accessory Delay................................................... 90
Bounce-Back......................................................... 90
Driver Side One-Touch Down......................... 90
Driver Side One-Touch Up............................... 90
Protecting the Environment........................16
Puncture See: Changing a Road Wheel........................ 292
R
Rear Passenger Climate Controls.............111 Adjusting the Blower Motor Speed................111
Directing Air to the Footwell Air Vents..........111
Directing Air to the Overhead Air
Vents..................................................................... 111
Directing Air to the Overhead Air Vents and the Footwell Air Vents.................................... 111
Rear Quarter Windows
.................................92
Closing the Rear Quarter Windows...............92
Opening the Rear Quarter Windows.............92
Rear Seats........................................................118 Installing the Seats............................................ 120
Recline Adjustment............................................ 118
Removing Seats (Passenger Vehicles)............................................................ 119
Rear View Camera.......................................165 Manual Zoom....................................................... 167
Rear View Camera Delay.................................. 167
Rear View Camera Locations......................... 165
Using the Rear View Camera System.........165
Vehicles with Parking Aid................................. 167
Rear View Camera See: Rear View Camera.................................... 165
Recommended Towing Weights.............181 Calculating the Maximum Loaded Trailer
Weight for Your Vehicle............................... 183
Reduced Engine Performance..................191
Refueling..........................................................137 System Warnings................................................ 139
Remote Control - Vehicles With: Passive Anti-Theft System (PATS).......................61
Changing the Remote Control Battery........62
Integrated Keyhead Transmitter..................... 61Locating Your Vehicle.........................................
62
Programming a New Remote Control..........62
Switching the Panic Alarm On and Off........................................................................\
. 63
Remote Control - Vehicles Without: Passive Anti-Theft System
(PATS)............................................................60
Changing the Remote Control Battery........60
Integrated Keyhead Transmitter.................... 60
Locating Your Vehicle.......................................... 61
Programming a New Remote Control.........60
Switching the Panic Alarm On and Off........61
Remote Start
...................................................112
Removing a Headlamp.............................248
Repairing Minor Paint Damage..............265
Replacement Parts Recommendation........................................12
Collision Repairs.................................................... 12
Scheduled Maintenance and Mechanical Repairs.................................................................. 12
Warranty on Replacement Parts..................... 13
Replacing a Lost Key or Remote Control............................................................63
Reporting Safety Defects (Canada Only).............................................................206
Reporting Safety Defects (U.S. Only).............................................................206
Roadside Assistance
...................................194
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 195
Vehicles Sold in Canada: Roadside Assistance Program Coverage.................195
Vehicles Sold in Canada: Using Roadside Assistance........................................................ 195
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 194
Vehicles Sold in the United States: Using Roadside Assistance.................................... 194
Roadside Emergencies
...............................194
Running-In See: Breaking-In................................................... 191
Running Out of Fuel
....................................136
Adding Fuel From a Portable Fuel
Container........................................................... 137
Filling a Portable Fuel Container.................. 136
512
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index

T
Technical Specifications
See: Capacities and Specifications............305
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................203
Tire Care..........................................................269 Glossary of Tire Terminology.......................... 271
Inflating the Tires............................................... 278
Information About Uniform Tire Quality Grades.............................................................. 269
Information Contained on the Tire Sidewall............................................................ 272
Inspecting the Tires and Wheel Valve Stems................................................................. 281
Location of the Tire Label............................... 278
Tire Age.................................................................. 282
Tire and Wheel Alignment............................. 284
Tire Damage......................................................... 281
Tire Pressure Monitoring System.................283
Tire Replacement Requirements.................282
Tire Rotation........................................................ 285
Tire Safety Practices......................................... 283
Tire Wear................................................................ 281
United States Department of Transportation Tire Quality
Grades............................................................... 270
Tire Pressure Monitoring System...........287 Changing Tires With a Tire Pressure
Monitoring System....................................... 289
Tire Pressure Monitoring System Reset Procedure......................................................... 291
Understanding the Tire Pressure Monitoring System.............................................................. 289
Tires See: Wheels and Tires..................................... 268
Tow/Haul.........................................................154
Towing a Trailer.............................................180 Load Placement................................................. 180
Towing Points................................................199
Front Towing Point............................................. 199
Rear Towing Point.............................................. 199
Towing Eye Location........................................ 200
Towing the Vehicle on Four Wheels..........................................................189
Emergency Towing............................................ 189
Recreational Towing......................................... 190
Towing..............................................................180 Traction Control
............................................160
Principle of Operation...................................... 160
Trailer Sway Control.....................................181
Transmission Code Designation.............312
Transmission...................................................151
Transporting the Vehicle
...........................198
Trip Computer................................................102 All Values............................................................... 102
Average Fuel Consumption............................ 102
Digital Speedometer......................................... 102
Distance to Empty............................................. 102
Outside Air Temperature................................. 102
Resetting the Trip Computer.......................... 102
Trip Odometer..................................................... 102
Trip Timer.............................................................. 102
U
Under Hood Overview - 3.2L Power Stroke Diesel
..............................................230
Under Hood Overview - 3.5L Ecoboost™..................................................231
Under Hood Overview - 3.7L....................232
USB Port
..........................................................347
Using Cruise Control...................................168 Switching Cruise Control Off......................... 168
Switching Cruise Control On.......................... 168
Using MyKey With Remote Start Systems..........................................................68
Using Power Running Boards.....................77 Automatic Power Deploy................................... 77
Automatic Power Stow....................................... 77
Bounce-back.......................................................... 78
Enabling and Disabling...................................... 78
Manual Operation................................................ 78
Manual Power Deploy......................................... 77
Resetting the System.......................................... 79
Using Snow Chains
.....................................286
Using Stability Control................................162
Using SYNC™ With Your Media Player.............................................................370
Accessing Your USB Song Library................374
Bluetooth Devices and System Settings............................................................. 376
Connecting Your Digital Media Player to the USB Port........................................................... 370
Media Menu Features....................................... 373
Media Voice Commands.................................. 371
514
2018 Transit (TTH) Canada/United States of America, JK3J 19A321 AA enUSA, Edition date: 201705, Third-Printing- Index
