Introduction
About This Manual
..........................................7
Symbols Glossary ............................................
7
Data Recording .................................................
9
Perchlorate .......................................................
13
Ford Credit ........................................................
13
Replacement Parts Recommendation ........................................................................\
....
13
Special Notices ...............................................
14
Mobile Communications Equipment ........................................................................\
....
15
Export Unique Options ................................
16
Environment
Protecting the Environment .......................
17
Child Safety
General Information ......................................
18
Installing Child Restraints ...........................
19
Booster Seats .................................................
35
Child Restraint Positioning .........................
37
Child Safety Locks ........................................
39
Seatbelts
Principle of Operation ..................................
41
Fastening the Seatbelts ..............................
42
Seatbelt Height Adjustment ....................
44
Seatbelt Warning Lamp and Indicator Chime ............................................................
44
Seatbelt Reminder .......................................
45
Child Restraint and Seatbelt Maintenance ...............................................
46
Seatbelt Extension ........................................
47
Supplementary Restraints System
Principle of Operation .................................
48
Driver and Passenger Airbags ..................
49
Side Airbags ....................................................
55
Safety Canopy ™...........................................
56 Crash Sensors and Airbag Indicator
.......
57
Airbag Disposal ..............................................
58
911 Assist
About 911 Assist .............................................
59
Emergency Call Requirements ................
59
Emergency Call Limitations .....................
60
MyKey ™
Principle of Operation ..................................
61
Creating a MyKey ...........................................
62
Clearing All MyKeys ......................................
63
Checking MyKey System Status ..............
63
Using MyKey With Remote Start Systems ........................................................
65
MyKey – Troubleshooting ..........................
65
Keys and Remote Controls
Principle of Operation ..................................
67
General Information on Radio Frequencies .................................................
67
Remote Control - Vehicles Without: Passive Anti-Theft System (PATS)
........................................................................\
..
68
Remote Control - Vehicles With: Passive Anti-Theft System (PATS) ....................
69
Replacing a Lost Key or Remote Control ........................................................................\
....
71
Doors and Locks
Locking and Unlocking ................................
72
Security
Passive Anti-Theft System .........................
77
Anti-Theft Alarm ...........................................
78
Steering Wheel
Adjusting the Steering Wheel ...................
79
Horn ....................................................................
79
1
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Table of Contents

Pregnant women should always wear their
seatbelt. The lap belt portion of a
combination lap and shoulder belt should
be positioned low across the hips below
the belly and worn as tight as comfort
allows. The shoulder belt should be
positioned to cross the middle of the
shoulder and the center of the chest.
Seatbelt Locking Modes
WARNING: After a crash, have a
qualified technician check all the
seatbelts to make sure the seatbelts
including the automatic locking retractor
feature for child restraints operate
properly. We recommend replacing any
system that has damage or does not
operate properly. Failure to do so can
result in personal injury or death in the
event of a sudden stop or another crash. WARNING:
You must replace the
seatbelt if the automatic locking
retractor or any other seatbelt function
is not operating correctly. Failure to
replace the seatbelt and retractor
assembly could increase the risk of injury
in a crash.
All seatbelts in your vehicle are
combination lap and shoulder belts. The
driver seatbelt has the first type of locking
mode, and the front outermost passenger
and rear seat seatbelts have both types of
locking modes described as follows: Vehicle Sensitive Mode
This is the normal retractor mode which
allows free shoulder belt length
adjustment to your movements and
locking in response to vehicle movement.
For example, if you brake suddenly or turn
a corner sharply, or your vehicle receives
an impact of approximately
5 mph
(8 km/h) or more, the combination
seatbelts lock to help reduce forward
movement of the driver and passengers.
In addition, the retractor is designed to lock
if you pull the webbing out too quickly. If
the seatbelt retractor locks, slowly lower
the height adjuster to allow the seatbelt
to retract. If the retractor does not unlock,
pull the seatbelt out slowly then feed a
small length of webbing back toward the
stowed position. For rear seatbelts, recline
the rear seat backrest or push the seat
backrest cushion away from the seatbelt.
Feed a small length of webbing back
toward the stowed position.
Automatic Locking Mode
In this mode, the shoulder belt
automatically pre-locks. The seatbelt still
retracts to remove any slack in the
shoulder belt. The automatic locking mode
is not available on the driver seatbelt.
Using Automatic Locking Mode
You should use automatic locking mode
when a child safety seat, except a booster,
is on the front passenger seat or rear seat.
Children 12 years old and under should be
correctly restrained in a rear seating
position whenever possible. See
Child
Safety (page 18).
43
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Seatbelts

1. Buckle the combination lap and
shoulder belt.
2. Grasp the shoulder portion and pull downward until you pull the entire
seatbelt out.
3. Let the seatbelt retract.
Note: As the seatbelt retracts, you will hear
a clicking sound. This indicates the seatbelt
is now in the automatic locking mode.
Disengaging Automatic Locking Mode
Unbuckle the combination lap and
shoulder belt and allow it to retract
completely to disengage the automatic
locking mode and return the seatbelt to
the vehicle sensitive mode.
SEATBELT HEIGHT
ADJUSTMENT WARNING: Position the seatbelt
height adjuster so that the seatbelt rests
across the middle of your shoulder.
Failure to adjust the seatbelt correctly
could reduce its effectiveness and
increase the risk of injury in a crash. 1. Press the button.
2. Slide the height adjuster up or down.
3. Release the button and pull down on
the height adjuster to make sure it is
locked in place.
SEATBELT WARNING LAMP
AND INDICATOR CHIME This lamp illuminates and an
indicator chime will sound if the
driver seatbelt has not been
fastened when the vehicle's ignition is
turned on.
44
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing SeatbeltsE142591 E165022
1
2
2
3 E71880

•
My vehicle has no rear seat;
• Athough children age 12 and under ride
in the rear seat whenever possible,
children age 12 and under have no
option but to sometimes ride in the
front seat because rear seat space is
insufficient;
• The child has a medical condition that,
according to the child's physician,
makes it necessary for the child to ride
in the front seat so that the driver can
monitor the child's condition.
3. Medical condition: A passenger has a
medical condition that, according to his or
her physician:
• Poses a special risk for the passenger
if the airbag deploys; and
• Makes the potential harm from the
passenger airbag deployment greater
than the potential harm from turning
off the airbag and experiencing a crash
without the protection offered by the
airbag
Proper Driver and Front Passenger
Seating Adjustment WARNING:
National Highway
Traffic Safety Administration (NHTSA)
recommends a minimum distance of at
least
10 in (25 cm) between an
occupant's chest and the driver airbag
module.
To properly position yourself away from
the airbag:
• Move your seat to the rear as far as you
can while still reaching the pedals
comfortably.
• Recline the seat slightly (one or two
degrees) from the upright position. After all occupants have adjusted their
seats and put on seatbelts, it is very
important that they continue to sit
properly. Properly seated occupants sit
upright, lean against the seat back, and
center themselves on the seat cushion,
with their feet comfortably extended on
the floor. Sitting improperly can increase
the chance of injury in a crash event. For
example, if an occupant slouches, lies
down, turns sideways, sits forward, leans
forward or sideways, or puts one or both
feet up, the chance of injury during a crash
is greatly increased.
Children and Airbags
WARNING:
Do not place a
rearward facing child restraint in front of
an active airbag. Failure to follow this
instruction could result in personal injury
or death. WARNING:
Properly secure
children 12 years old and under in a rear
seating position whenever possible. If
you are unable to properly secure all
children in a rear seating position,
properly secure the largest child on the
front seat. If you must use a forward
facing child restraint on the front seat,
move the seat as far back as possible.
Failure to follow these instructions could
result in personal injury or death.
54
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Supplementary Restraints System

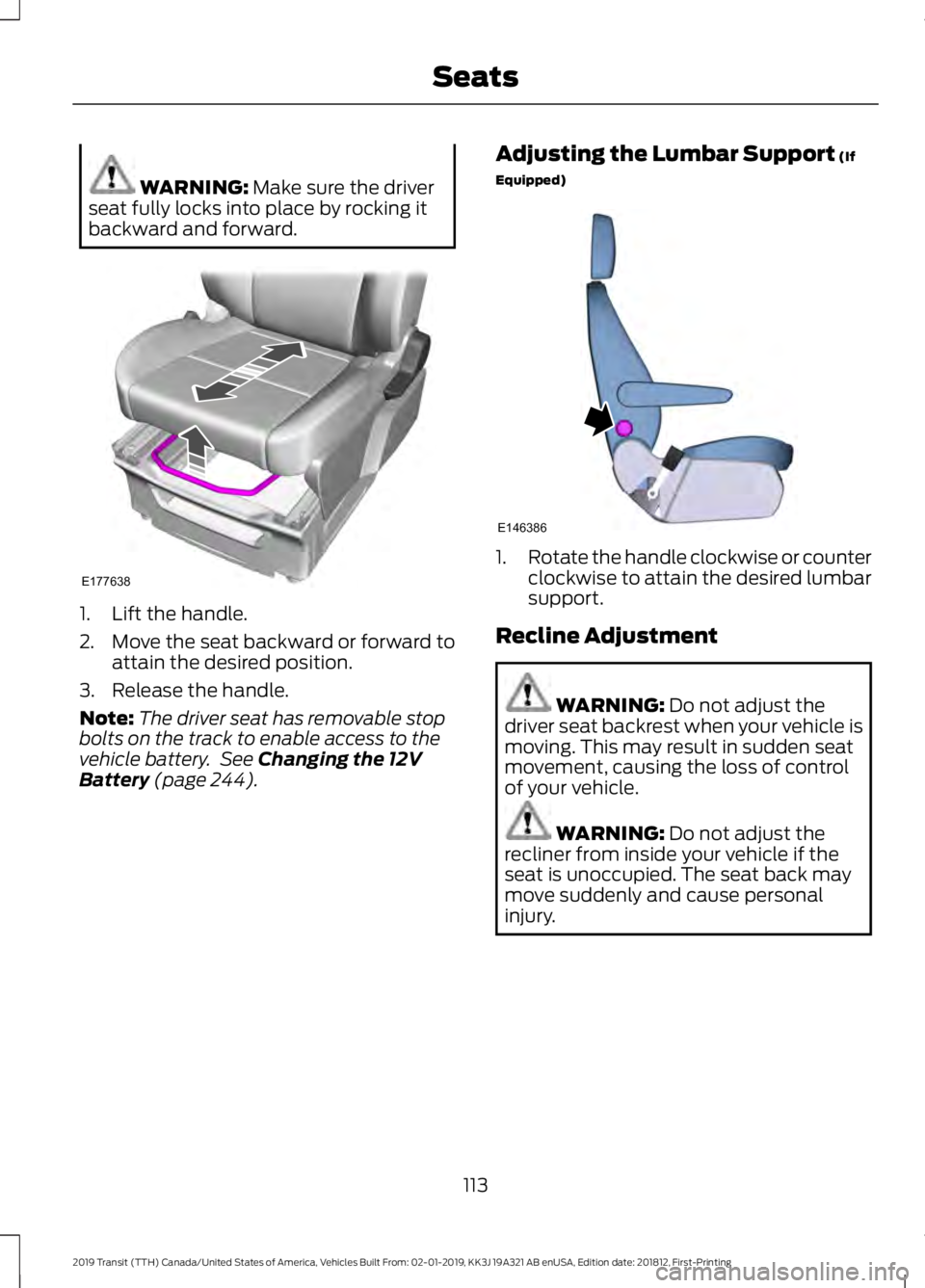

WARNING: Make sure the driver
seat fully locks into place by rocking it
backward and forward. 1. Lift the handle.
2. Move the seat backward or forward to
attain the desired position.
3. Release the handle.
Note: The driver seat has removable stop
bolts on the track to enable access to the
vehicle battery. See
Changing the 12V
Battery (page 244). Adjusting the Lumbar Support
(If
Equipped) 1.
Rotate the handle clockwise or counter
clockwise to attain the desired lumbar
support.
Recline Adjustment WARNING:
Do not adjust the
driver seat backrest when your vehicle is
moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle. WARNING:
Do not adjust the
recliner from inside your vehicle if the
seat is unoccupied. The seat back may
move suddenly and cause personal
injury.
113
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing SeatsE177638 E146386

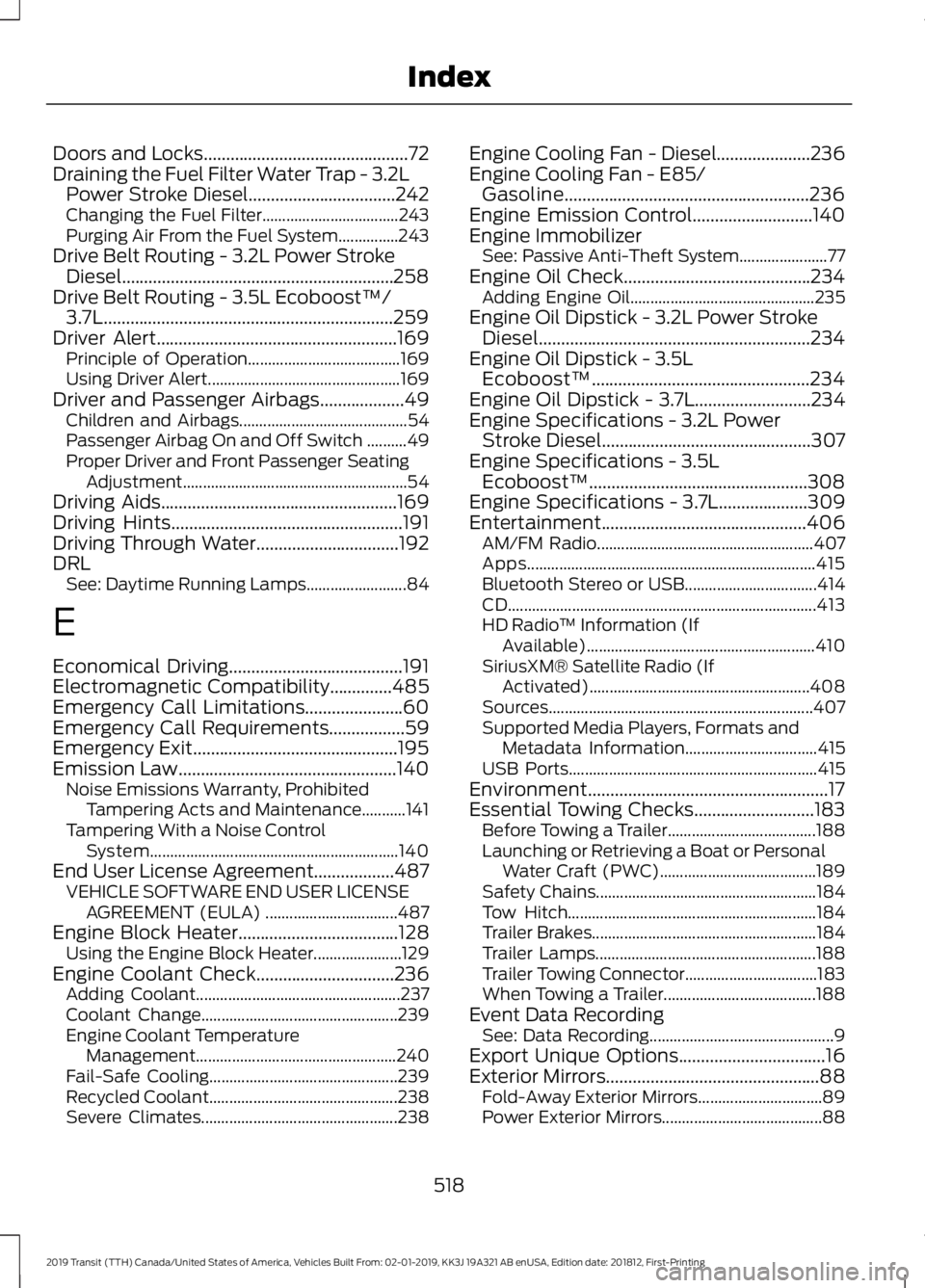

Doors and Locks..............................................72
Draining the Fuel Filter Water Trap - 3.2L
Power Stroke Diesel.................................242
Changing the Fuel Filter.................................. 243
Purging Air From the Fuel System...............243
Drive Belt Routing - 3.2L Power Stroke Diesel.............................................................258
Drive Belt Routing - 3.5L Ecoboost™/ 3.7L.................................................................259
Driver Alert......................................................169
Principle of Operation...................................... 169
Using Driver Alert................................................ 169
Driver and Passenger Airbags...................49 Children and Airbags.......................................... 54
Passenger Airbag On and Off Switch ..........49
Proper Driver and Front Passenger Seating Adjustment........................................................ 54
Driving Aids
.....................................................169
Driving Hints....................................................191
Driving Through Water................................192
DRL See: Daytime Running Lamps......................... 84
E
Economical Driving
.......................................191
Electromagnetic Compatibility..............485
Emergency Call Limitations......................60
Emergency Call Requirements.................59
Emergency Exit..............................................195
Emission Law
.................................................140
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance...........141
Tampering With a Noise Control System.............................................................. 140
End User License Agreement
..................487
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 487
Engine Block Heater
....................................128
Using the Engine Block Heater...................... 129
Engine Coolant Check
...............................236
Adding Coolant................................................... 237
Coolant Change................................................. 239
Engine Coolant Temperature Management.................................................. 240
Fail-Safe Cooling............................................... 239
Recycled Coolant............................................... 238
Severe Climates................................................. 238Engine Cooling Fan - Diesel.....................236
Engine Cooling Fan - E85/
Gasoline.......................................................236
Engine Emission Control...........................140
Engine Immobilizer See: Passive Anti-Theft System...................... 77
Engine Oil Check..........................................234 Adding Engine Oil.............................................. 235
Engine Oil Dipstick - 3.2L Power Stroke Diesel.............................................................234
Engine Oil Dipstick - 3.5L Ecoboost™.................................................234
Engine Oil Dipstick - 3.7L
..........................234
Engine Specifications - 3.2L Power Stroke Diesel
...............................................307
Engine Specifications - 3.5L Ecoboost™.................................................308
Engine Specifications - 3.7L....................309
Entertainment..............................................406 AM/FM Radio...................................................... 407
Apps........................................................................\
415
Bluetooth Stereo or USB................................. 414
CD........................................................................\
..... 413
HD Radio ™ Information (If
Available)......................................................... 410
SiriusXM® Satellite Radio (If Activated)....................................................... 408
Sources.................................................................. 407
Supported Media Players, Formats and Metadata Information................................. 415
USB Ports.............................................................. 415
Environment......................................................17
Essential Towing Checks
...........................183
Before Towing a Trailer..................................... 188
Launching or Retrieving a Boat or Personal Water Craft (PWC)....................................... 189
Safety Chains....................................................... 184
Tow Hitch.............................................................. 184
Trailer Brakes........................................................ 184
Trailer Lamps....................................................... 188
Trailer Towing Connector................................. 183
When Towing a Trailer...................................... 188
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options
.................................16
Exterior Mirrors................................................88
Fold-Away Exterior Mirrors............................... 89
Power Exterior Mirrors........................................ 88
518
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Index

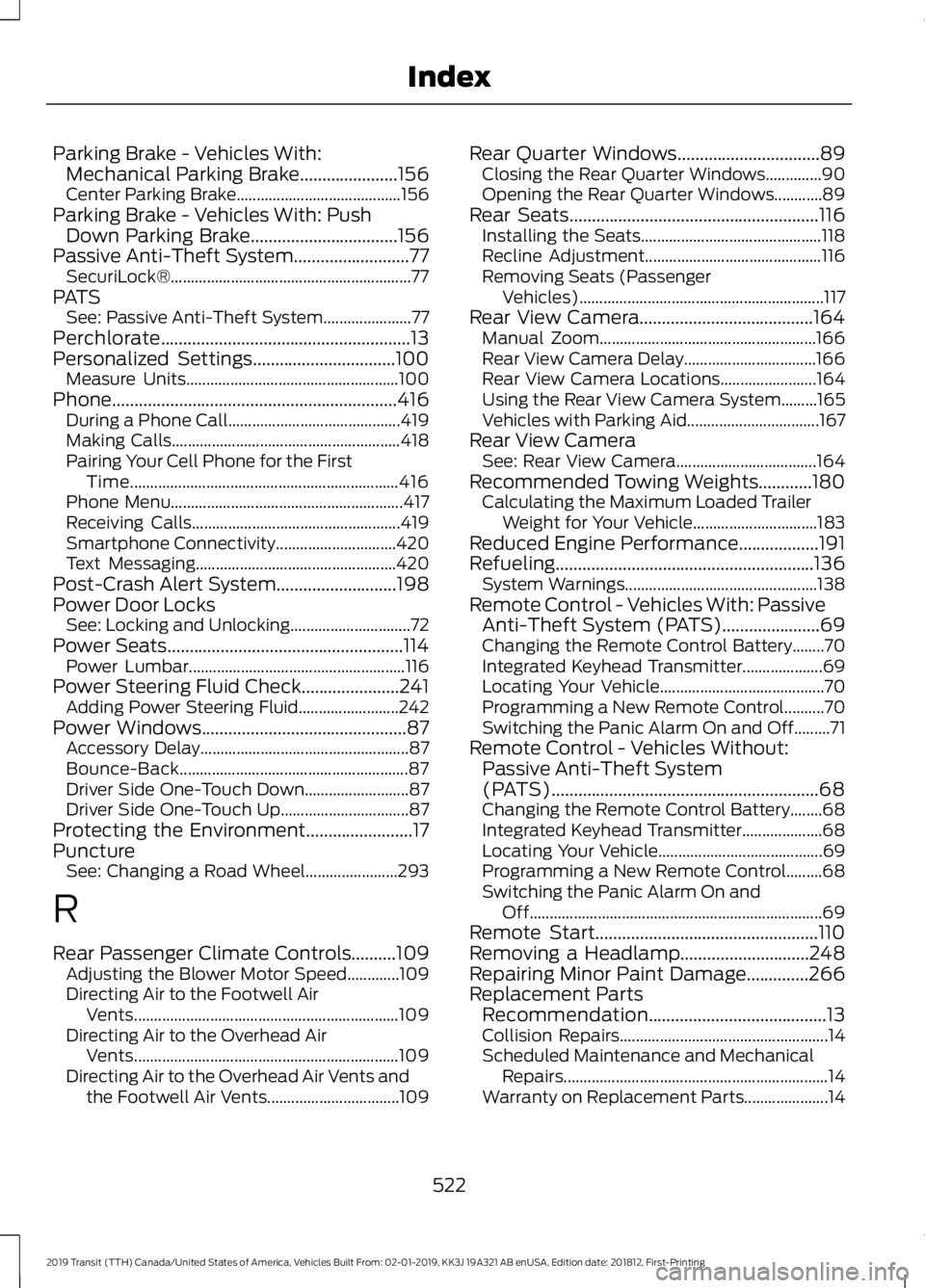

Parking Brake - Vehicles With:
Mechanical Parking Brake......................156
Center Parking Brake......................................... 156
Parking Brake - Vehicles With: Push Down Parking Brake.................................156
Passive Anti-Theft System..........................77
SecuriLock®............................................................ 77
PATS See: Passive Anti-Theft System...................... 77
Perchlorate........................................................13
Personalized Settings
................................100
Measure Units..................................................... 100
Phone................................................................416 During a Phone Call........................................... 419
Making Calls......................................................... 418
Pairing Your Cell Phone for the First Time................................................................... 416
Phone Menu.......................................................... 417
Receiving Calls.................................................... 419
Smartphone Connectivity.............................. 420
Text Messaging.................................................. 420
Post-Crash Alert System
...........................198
Power Door Locks See: Locking and Unlocking.............................. 72
Power Seats
.....................................................114
Power Lumbar...................................................... 116
Power Steering Fluid Check......................241 Adding Power Steering Fluid......................... 242
Power Windows
..............................................87
Accessory Delay.................................................... 87
Bounce-Back......................................................... 87
Driver Side One-Touch Down.......................... 87
Driver Side One-Touch Up................................ 87
Protecting the Environment........................17
Puncture See: Changing a Road Wheel....................... 293
R
Rear Passenger Climate Controls
..........109
Adjusting the Blower Motor Speed.............109
Directing Air to the Footwell Air
Vents.................................................................. 109
Directing Air to the Overhead Air Vents.................................................................. 109
Directing Air to the Overhead Air Vents and the Footwell Air Vents................................. 109Rear Quarter Windows................................89
Closing the Rear Quarter Windows..............90
Opening the Rear Quarter Windows............89
Rear Seats........................................................116 Installing the Seats............................................. 118
Recline Adjustment............................................ 116
Removing Seats (Passenger Vehicles)............................................................. 117
Rear View Camera.......................................164 Manual Zoom...................................................... 166
Rear View Camera Delay................................. 166
Rear View Camera Locations........................ 164
Using the Rear View Camera System.........165
Vehicles with Parking Aid................................. 167
Rear View Camera See: Rear View Camera................................... 164
Recommended Towing Weights............180 Calculating the Maximum Loaded Trailer
Weight for Your Vehicle............................... 183
Reduced Engine Performance..................191
Refueling..........................................................136 System Warnings................................................ 138
Remote Control - Vehicles With: Passive Anti-Theft System (PATS)......................69
Changing the Remote Control Battery........70
Integrated Keyhead Transmitter.................... 69
Locating Your Vehicle......................................... 70
Programming a New Remote Control..........70
Switching the Panic Alarm On and Off.........71
Remote Control - Vehicles Without: Passive Anti-Theft System
(PATS)............................................................68
Changing the Remote Control Battery........68
Integrated Keyhead Transmitter.................... 68
Locating Your Vehicle......................................... 69
Programming a New Remote Control.........68
Switching the Panic Alarm On and Off........................................................................\
. 69
Remote Start..................................................110
Removing a Headlamp.............................248
Repairing Minor Paint Damage..............266
Replacement Parts Recommendation........................................13
Collision Repairs.................................................... 14
Scheduled Maintenance and Mechanical Repairs.................................................................. 14
Warranty on Replacement Parts..................... 14
522
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Index
