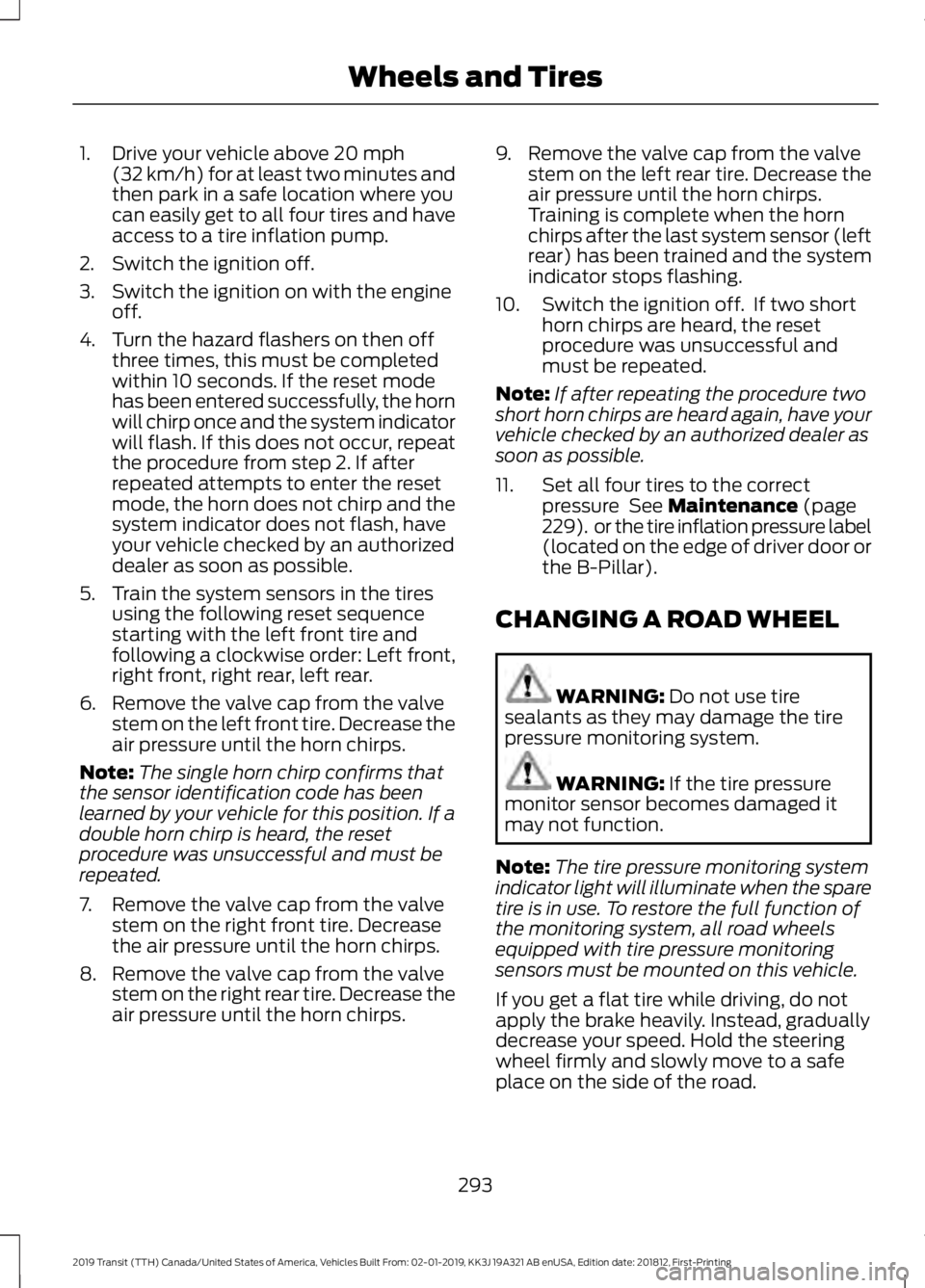

1. Drive your vehicle above 20 mph
(32 km/h) for at least two minutes and
then park in a safe location where you
can easily get to all four tires and have
access to a tire inflation pump.
2. Switch the ignition off.
3. Switch the ignition on with the engine off.
4. Turn the hazard flashers on then off three times, this must be completed
within 10 seconds. If the reset mode
has been entered successfully, the horn
will chirp once and the system indicator
will flash. If this does not occur, repeat
the procedure from step 2. If after
repeated attempts to enter the reset
mode, the horn does not chirp and the
system indicator does not flash, have
your vehicle checked by an authorized
dealer as soon as possible.
5. Train the system sensors in the tires using the following reset sequence
starting with the left front tire and
following a clockwise order: Left front,
right front, right rear, left rear.
6. Remove the valve cap from the valve stem on the left front tire. Decrease the
air pressure until the horn chirps.
Note: The single horn chirp confirms that
the sensor identification code has been
learned by your vehicle for this position. If a
double horn chirp is heard, the reset
procedure was unsuccessful and must be
repeated.
7. Remove the valve cap from the valve stem on the right front tire. Decrease
the air pressure until the horn chirps.
8. Remove the valve cap from the valve stem on the right rear tire. Decrease the
air pressure until the horn chirps. 9. Remove the valve cap from the valve
stem on the left rear tire. Decrease the
air pressure until the horn chirps.
Training is complete when the horn
chirps after the last system sensor (left
rear) has been trained and the system
indicator stops flashing.
10. Switch the ignition off. If two short horn chirps are heard, the reset
procedure was unsuccessful and
must be repeated.
Note: If after repeating the procedure two
short horn chirps are heard again, have your
vehicle checked by an authorized dealer as
soon as possible.
11. Set all four tires to the correct pressure
See Maintenance (page
229). or the tire inflation pressure label
(located on the edge of driver door or
the B-Pillar).
CHANGING A ROAD WHEEL WARNING:
Do not use tire
sealants as they may damage the tire
pressure monitoring system. WARNING:
If the tire pressure
monitor sensor becomes damaged it
may not function.
Note: The tire pressure monitoring system
indicator light will illuminate when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on this vehicle.
If you get a flat tire while driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.
293
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Wheels and Tires

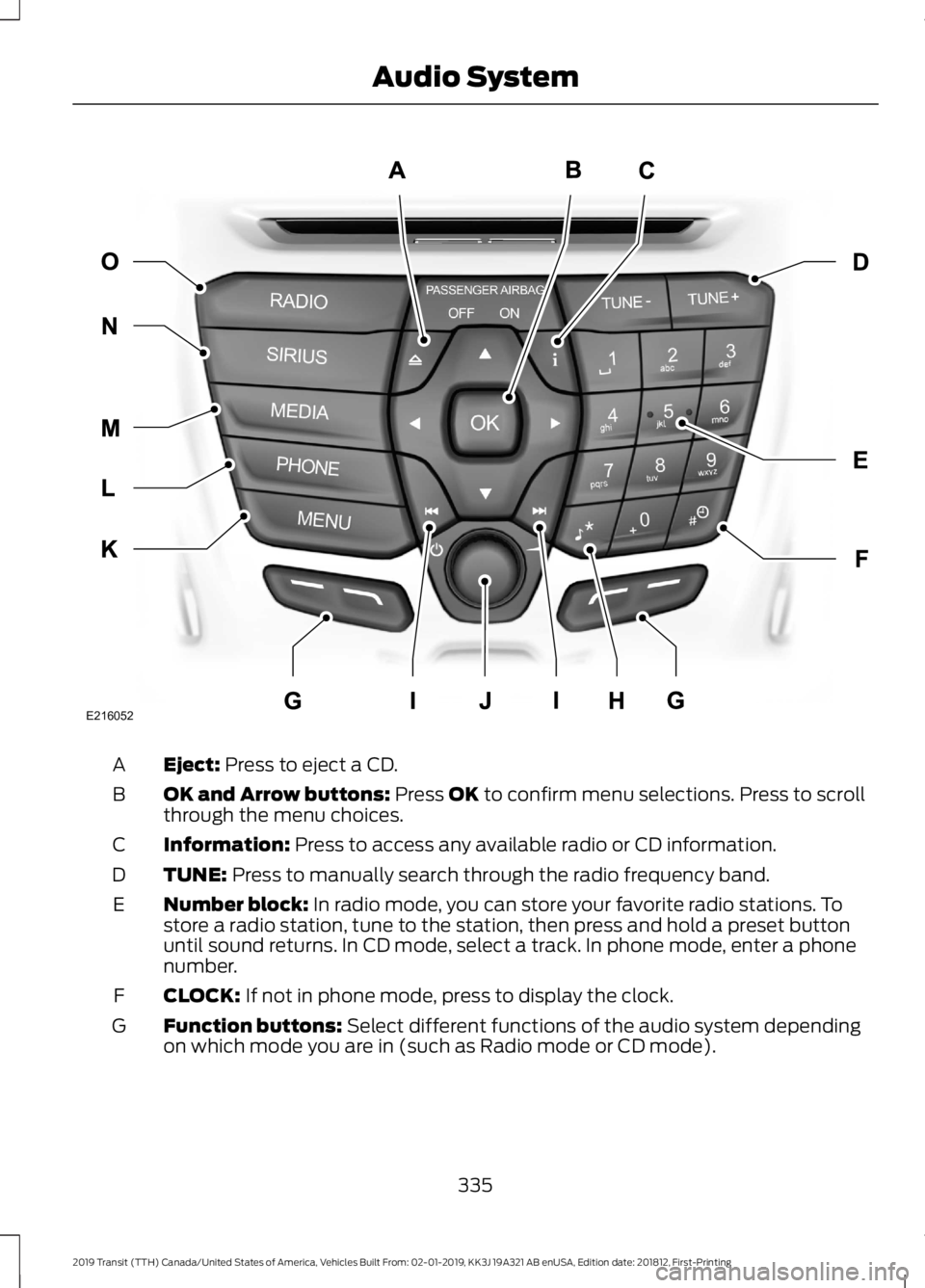

Eject: Press to eject a CD.
A
OK and Arrow buttons:
Press OK to confirm menu selections. Press to scroll
through the menu choices.
B
Information:
Press to access any available radio or CD information.
C
TUNE:
Press to manually search through the radio frequency band.
D
Number block:
In radio mode, you can store your favorite radio stations. To
store a radio station, tune to the station, then press and hold a preset button
until sound returns. In CD mode, select a track. In phone mode, enter a phone
number.
E
CLOCK:
If not in phone mode, press to display the clock.
F
Function buttons:
Select different functions of the audio system depending
on which mode you are in (such as Radio mode or CD mode).
G
335
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Audio SystemE216052

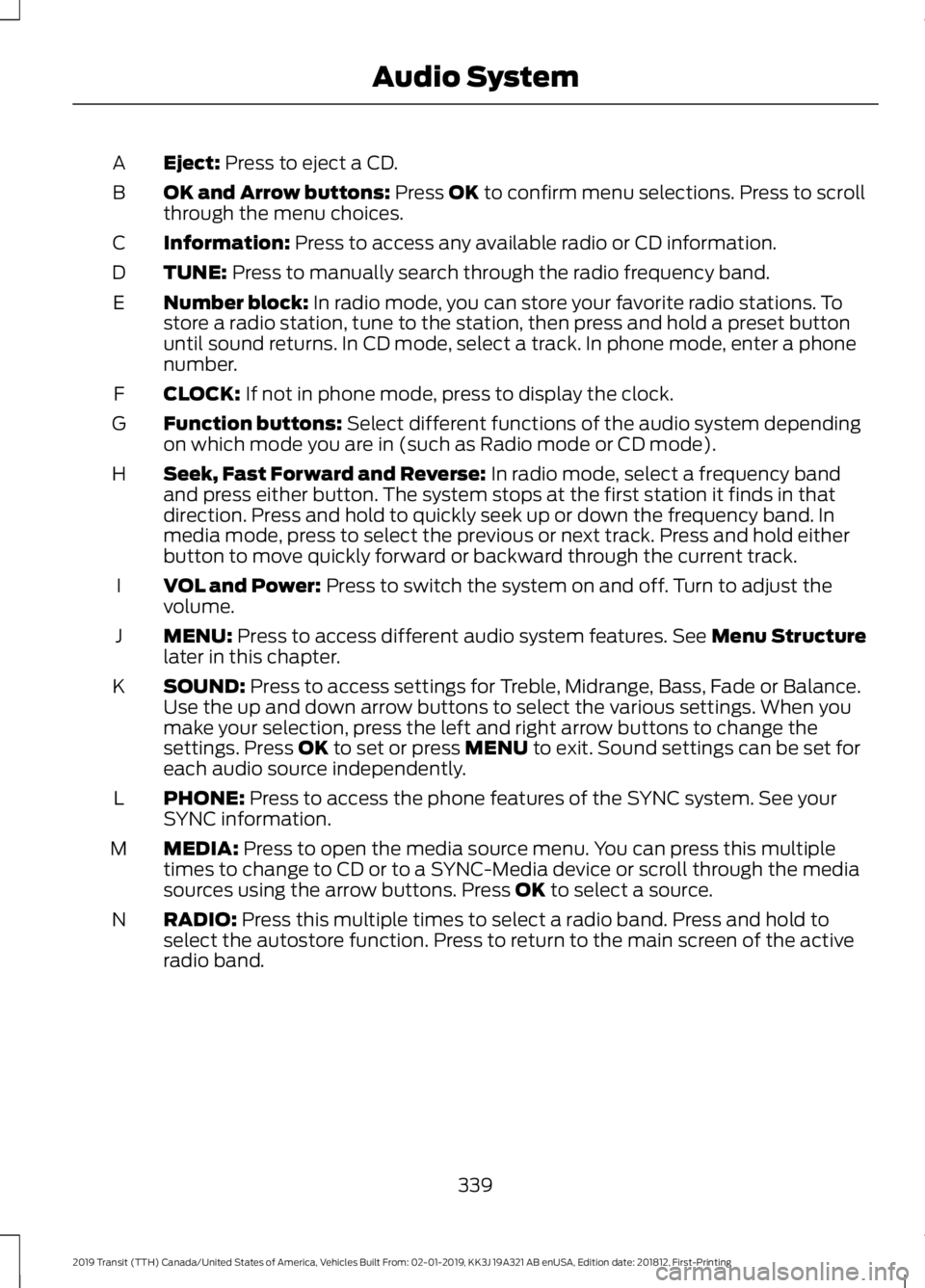

Eject: Press to eject a CD.
A
OK and Arrow buttons:
Press OK to confirm menu selections. Press to scroll
through the menu choices.
B
Information:
Press to access any available radio or CD information.
C
TUNE:
Press to manually search through the radio frequency band.
D
Number block:
In radio mode, you can store your favorite radio stations. To
store a radio station, tune to the station, then press and hold a preset button
until sound returns. In CD mode, select a track. In phone mode, enter a phone
number.
E
CLOCK:
If not in phone mode, press to display the clock.
F
Function buttons:
Select different functions of the audio system depending
on which mode you are in (such as Radio mode or CD mode).
G
Seek, Fast Forward and Reverse:
In radio mode, select a frequency band
and press either button. The system stops at the first station it finds in that
direction. Press and hold to quickly seek up or down the frequency band. In
media mode, press to select the previous or next track. Press and hold either
button to move quickly forward or backward through the current track.
H
VOL and Power:
Press to switch the system on and off. Turn to adjust the
volume.
I
MENU:
Press to access different audio system features. See Menu Structure
later in this chapter.
J
SOUND:
Press to access settings for Treble, Midrange, Bass, Fade or Balance.
Use the up and down arrow buttons to select the various settings. When you
make your selection, press the left and right arrow buttons to change the
settings. Press
OK to set or press MENU to exit. Sound settings can be set for
each audio source independently.
K
PHONE:
Press to access the phone features of the SYNC system. See your
SYNC information.
L
MEDIA:
Press to open the media source menu. You can press this multiple
times to change to CD or to a SYNC-Media device or scroll through the media
sources using the arrow buttons. Press
OK to select a source.
M
RADIO:
Press this multiple times to select a radio band. Press and hold to
select the autostore function. Press to return to the main screen of the active
radio band.
N
339
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Audio System

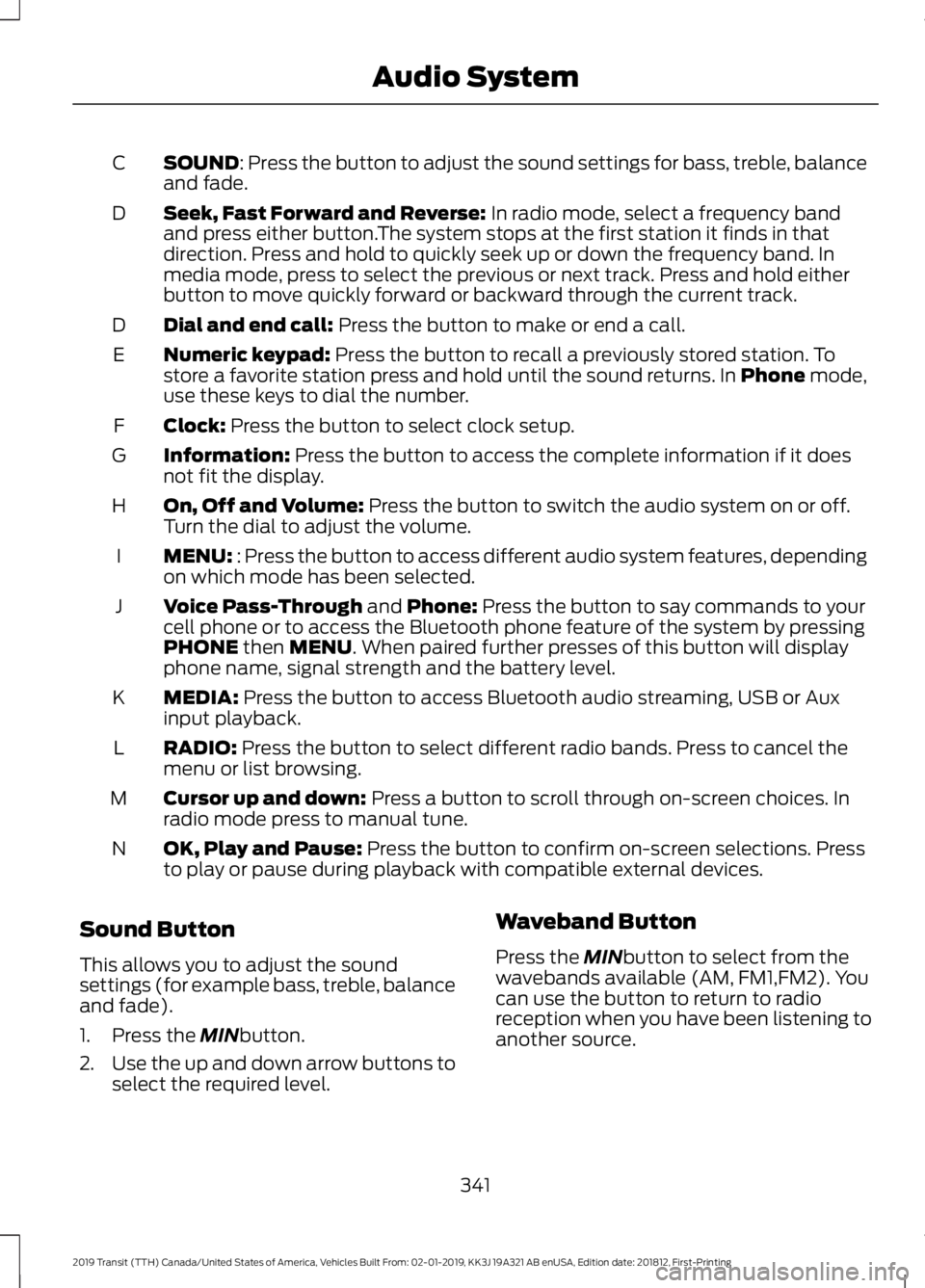

SOUND: Press the button to adjust the sound settings for bass, treble, balance
and fade.
C
Seek, Fast Forward and Reverse:
In radio mode, select a frequency band
and press either button.The system stops at the first station it finds in that
direction. Press and hold to quickly seek up or down the frequency band. In
media mode, press to select the previous or next track. Press and hold either
button to move quickly forward or backward through the current track.
D
Dial and end call:
Press the button to make or end a call.
D
Numeric keypad:
Press the button to recall a previously stored station. To
store a favorite station press and hold until the sound returns. In Phone mode,
use these keys to dial the number.
E
Clock:
Press the button to select clock setup.
F
Information:
Press the button to access the complete information if it does
not fit the display.
G
On, Off and Volume:
Press the button to switch the audio system on or off.
Turn the dial to adjust the volume.
H
MENU:
: Press the button to access different audio system features, depending
on which mode has been selected.
I
Voice Pass-Through
and Phone: Press the button to say commands to your
cell phone or to access the Bluetooth phone feature of the system by pressing
PHONE
then MENU. When paired further presses of this button will display
phone name, signal strength and the battery level.
J
MEDIA:
Press the button to access Bluetooth audio streaming, USB or Aux
input playback.
K
RADIO:
Press the button to select different radio bands. Press to cancel the
menu or list browsing.
L
Cursor up and down:
Press a button to scroll through on-screen choices. In
radio mode press to manual tune.
M
OK, Play and Pause:
Press the button to confirm on-screen selections. Press
to play or pause during playback with compatible external devices.
N
Sound Button
This allows you to adjust the sound
settings (for example bass, treble, balance
and fade).
1. Press the
MINbutton.
2. Use the up and down arrow buttons to
select the required level. Waveband Button
Press the
MINbutton to select from the
wavebands available (AM, FM1,FM2). You
can use the button to return to radio
reception when you have been listening to
another source.
341
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Audio System

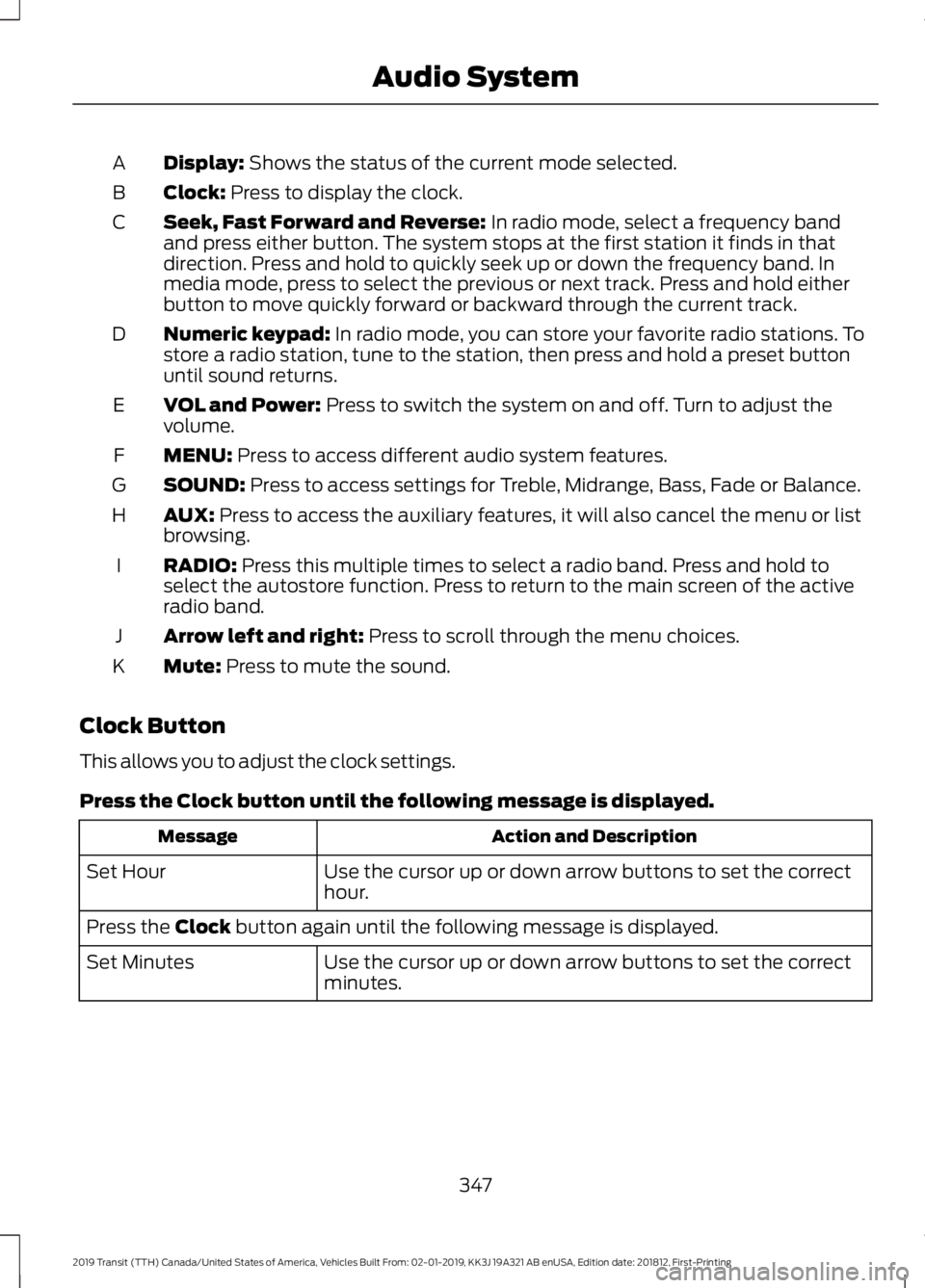

Display: Shows the status of the current mode selected.
A
Clock:
Press to display the clock.
B
Seek, Fast Forward and Reverse:
In radio mode, select a frequency band
and press either button. The system stops at the first station it finds in that
direction. Press and hold to quickly seek up or down the frequency band. In
media mode, press to select the previous or next track. Press and hold either
button to move quickly forward or backward through the current track.
C
Numeric keypad:
In radio mode, you can store your favorite radio stations. To
store a radio station, tune to the station, then press and hold a preset button
until sound returns.
D
VOL and Power:
Press to switch the system on and off. Turn to adjust the
volume.
E
MENU:
Press to access different audio system features.
F
SOUND:
Press to access settings for Treble, Midrange, Bass, Fade or Balance.
G
AUX:
Press to access the auxiliary features, it will also cancel the menu or list
browsing.
H
RADIO:
Press this multiple times to select a radio band. Press and hold to
select the autostore function. Press to return to the main screen of the active
radio band.
I
Arrow left and right:
Press to scroll through the menu choices.
J
Mute:
Press to mute the sound.
K
Clock Button
This allows you to adjust the clock settings.
Press the
Clock button until the following message is displayed. Action and Description
Message
Use the cursor up or down arrow buttons to set the correct
hour.
Set Hour
Press the
Clock button again until the following message is displayed.
Use the cursor up or down arrow buttons to set the correct
minutes.
Set Minutes
347
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Audio System

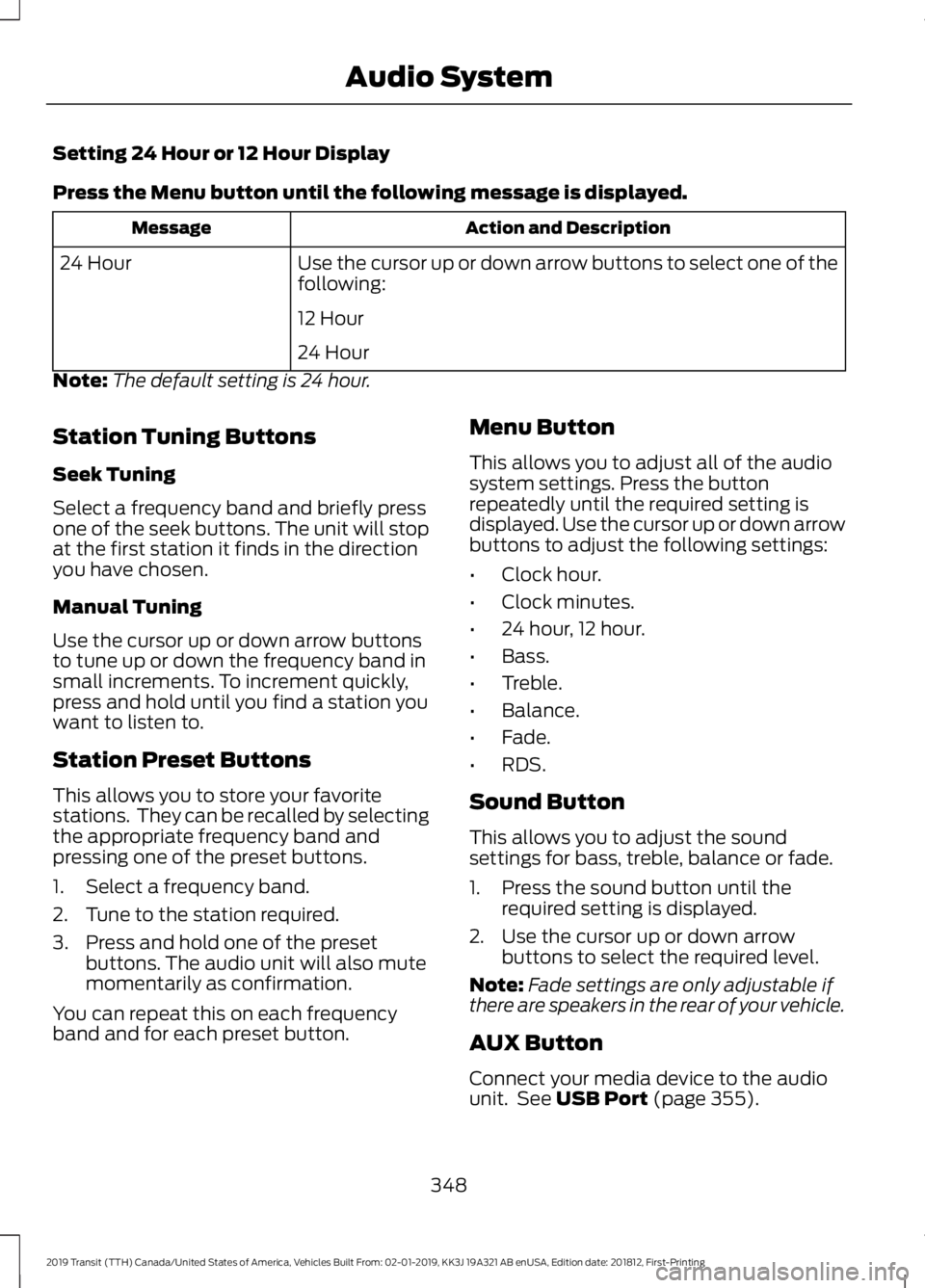

Setting 24 Hour or 12 Hour Display
Press the Menu button until the following message is displayed.
Action and Description
Message
Use the cursor up or down arrow buttons to select one of the
following:
24 Hour
12 Hour
24 Hour
Note: The default setting is 24 hour.
Station Tuning Buttons
Seek Tuning
Select a frequency band and briefly press
one of the seek buttons. The unit will stop
at the first station it finds in the direction
you have chosen.
Manual Tuning
Use the cursor up or down arrow buttons
to tune up or down the frequency band in
small increments. To increment quickly,
press and hold until you find a station you
want to listen to.
Station Preset Buttons
This allows you to store your favorite
stations. They can be recalled by selecting
the appropriate frequency band and
pressing one of the preset buttons.
1. Select a frequency band.
2. Tune to the station required.
3. Press and hold one of the preset buttons. The audio unit will also mute
momentarily as confirmation.
You can repeat this on each frequency
band and for each preset button. Menu Button
This allows you to adjust all of the audio
system settings. Press the button
repeatedly until the required setting is
displayed. Use the cursor up or down arrow
buttons to adjust the following settings:
•
Clock hour.
• Clock minutes.
• 24 hour, 12 hour.
• Bass.
• Treble.
• Balance.
• Fade.
• RDS.
Sound Button
This allows you to adjust the sound
settings for bass, treble, balance or fade.
1. Press the sound button until the required setting is displayed.
2. Use the cursor up or down arrow buttons to select the required level.
Note: Fade settings are only adjustable if
there are speakers in the rear of your vehicle.
AUX Button
Connect your media device to the audio
unit. See
USB Port (page 355).
348
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Audio System

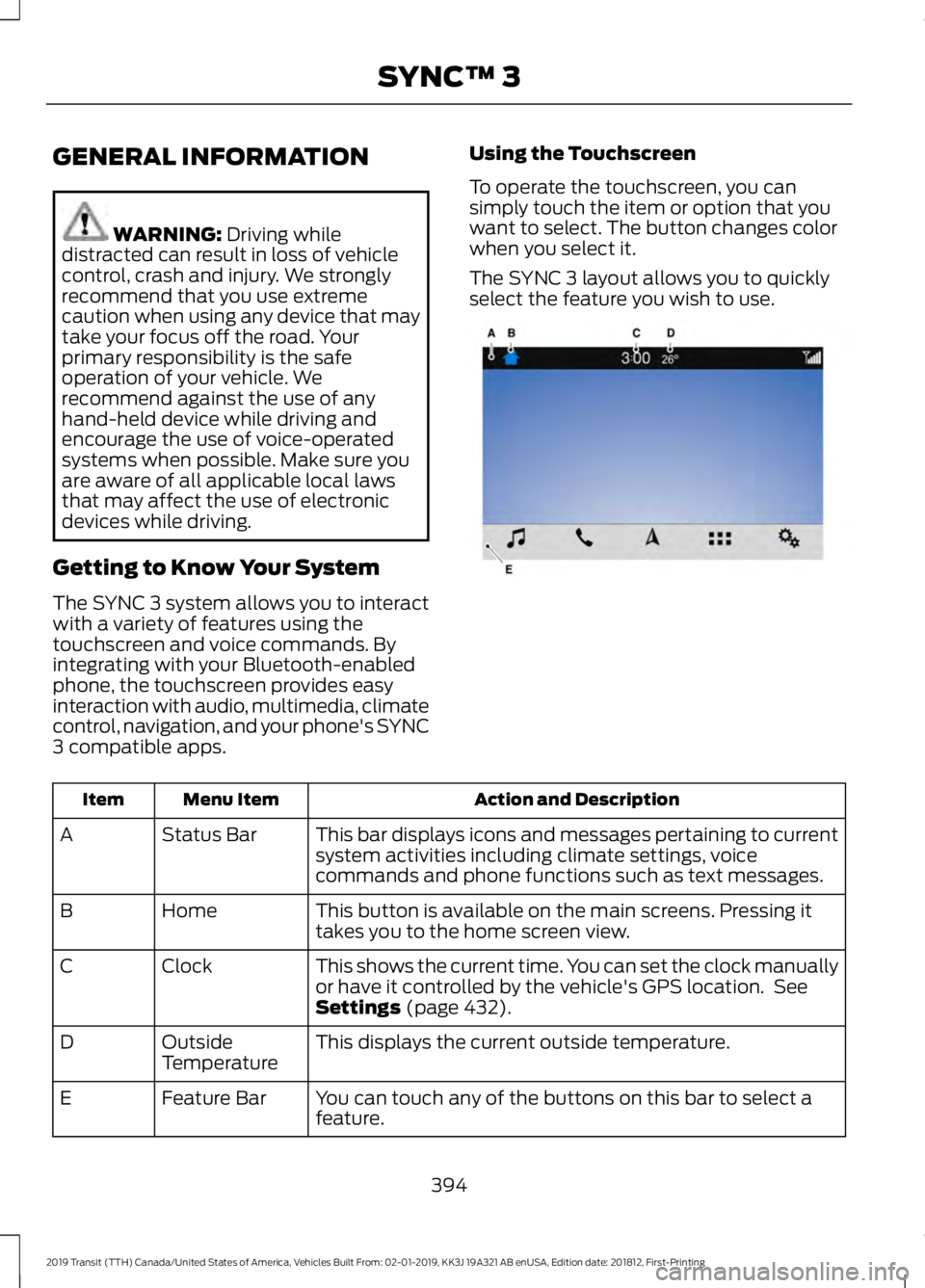

GENERAL INFORMATION
WARNING: Driving while
distracted can result in loss of vehicle
control, crash and injury. We strongly
recommend that you use extreme
caution when using any device that may
take your focus off the road. Your
primary responsibility is the safe
operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.
Getting to Know Your System
The SYNC 3 system allows you to interact
with a variety of features using the
touchscreen and voice commands. By
integrating with your Bluetooth-enabled
phone, the touchscreen provides easy
interaction with audio, multimedia, climate
control, navigation, and your phone's SYNC
3 compatible apps. Using the Touchscreen
To operate the touchscreen, you can
simply touch the item or option that you
want to select. The button changes color
when you select it.
The SYNC 3 layout allows you to quickly
select the feature you wish to use.
Action and Description
Menu Item
Item
This bar displays icons and messages pertaining to current
system activities including climate settings, voice
commands and phone functions such as text messages.
Status Bar
A
This button is available on the main screens. Pressing it
takes you to the home screen view.
Home
B
This shows the current time. You can set the clock manually
or have it controlled by the vehicle's GPS location. See
Settings
(page 432).
Clock
C
This displays the current outside temperature.
Outside
Temperature
D
You can touch any of the buttons on this bar to select a
feature.
Feature Bar
E
394
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing SYNC™ 3E270673

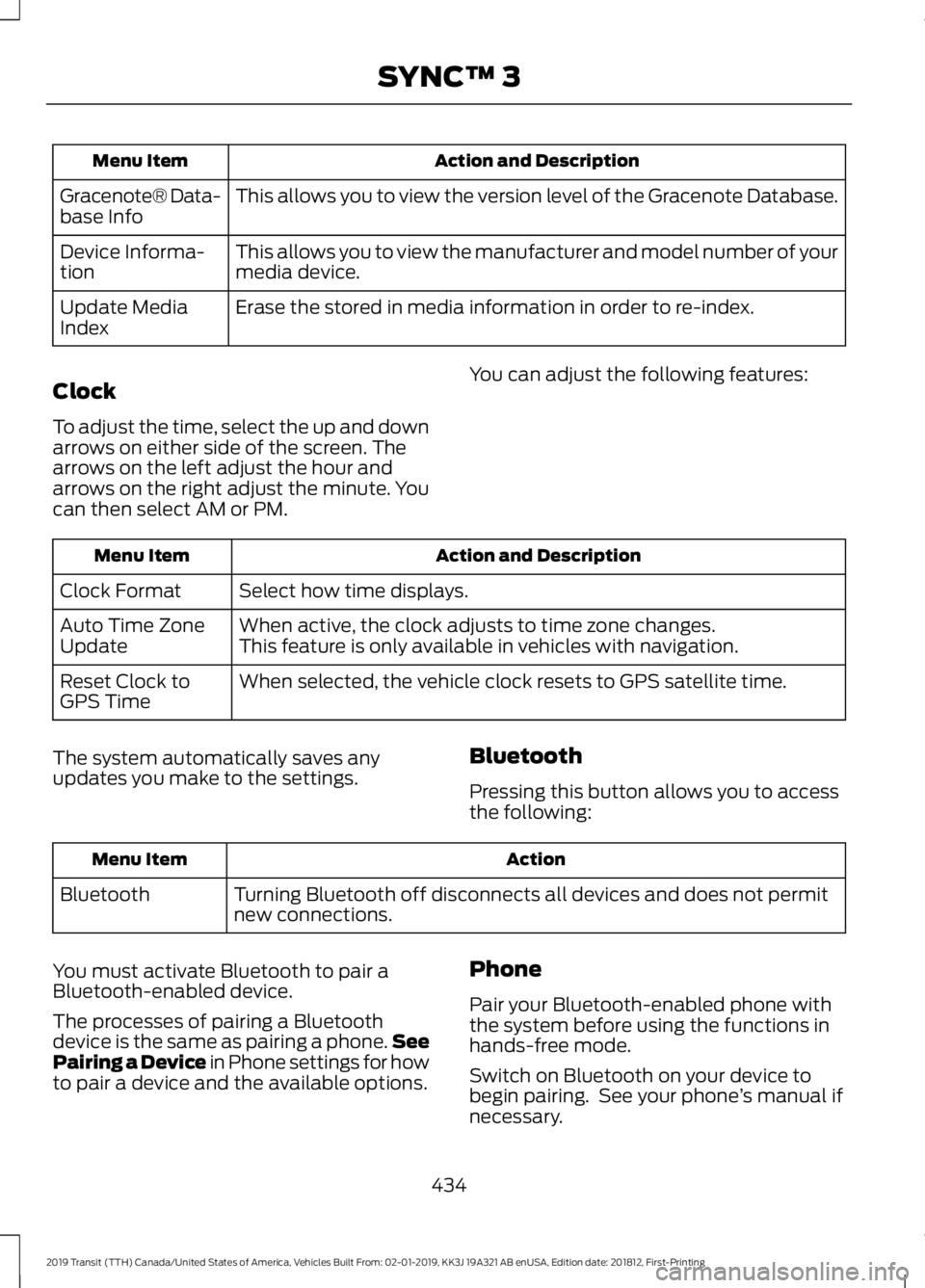

Action and Description
Menu Item
This allows you to view the version level of the Gracenote Database.
Gracenote® Data-
base Info
This allows you to view the manufacturer and model number of your
media device.
Device Informa-
tion
Erase the stored in media information in order to re-index.
Update Media
Index
Clock
To adjust the time, select the up and down
arrows on either side of the screen. The
arrows on the left adjust the hour and
arrows on the right adjust the minute. You
can then select AM or PM. You can adjust the following features:Action and Description
Menu Item
Select how time displays.
Clock Format
When active, the clock adjusts to time zone changes.
Auto Time Zone
Update This feature is only available in vehicles with navigation.
When selected, the vehicle clock resets to GPS satellite time.
Reset Clock to
GPS Time
The system automatically saves any
updates you make to the settings. Bluetooth
Pressing this button allows you to access
the following: Action
Menu Item
Turning Bluetooth off disconnects all devices and does not permit
new connections.
Bluetooth
You must activate Bluetooth to pair a
Bluetooth-enabled device.
The processes of pairing a Bluetooth
device is the same as pairing a phone. See
Pairing a Device in Phone settings for how
to pair a device and the available options. Phone
Pair your Bluetooth-enabled phone with
the system before using the functions in
hands-free mode.
Switch on Bluetooth on your device to
begin pairing. See your phone
’s manual if
necessary.
434
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing SYNC™ 3

9
911 Assist...........................................................59
A
A/C See: Climate Control......................................... 107
About 911 Assist..............................................59
About This Manual
...........................................7
ABS See: Brakes............................................................ 155
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 155
Accessories....................................................459 Exterior Style....................................................... 459
Interior Style........................................................ 459
Lifestyle................................................................. 459
Peace of Mind..................................................... 459
Accessories See: Replacement Parts
Recommendation............................................ 13
Adjusting the Headlamps.........................247 Horizontal Aim Adjustment........................... 248
Vertical Aim Adjustment................................. 247
Adjusting the Steering Wheel
....................79
Airbag Disposal...............................................58
Air Conditioning See: Climate Control......................................... 107
Air Filter See: Changing the Engine Air Filter - 3.2L
Power Stroke Diesel..................................... 255
See: Changing the Engine Air Filter - 3.5L Ecoboost™..................................................... 256
See: Changing the Engine Air Filter - 3.7L...................................................................... 257
Alarm See: Anti-Theft Alarm........................................ 78
Anti-Theft Alarm............................................78 Alarm System........................................................ 78
Arming the Alarm................................................. 78
Disarming the Alarm........................................... 78
Triggering the Alarm............................................ 78
Appendices....................................................485
Apps.................................................................429 ........................................................................\
.......... 429
SiriusXM Traffic and Travel Link.................... 431Audible Warnings and Indicators.............96
Airbag Secondary Warning.............................. 96
Door Ajar................................................................. 96
Exterior Lamps On............................................... 96
Key in Ignition........................................................ 96
Parking Brake On................................................. 96
Seatbelt Reminder.............................................. 96
Transmission Selector Lever Not in park (P)........................................................................\
96
Audio Input Jack...........................................354
Audio System
................................................333
General Information......................................... 333
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Satellite Radio.............................334
Audio Unit - Vehicles With: AM/FM/CD/ SYNC.............................................................338
Audio Unit - Vehicles With: AM/FM/USB Port/Bluetooth..........................................340
Bluetooth Audio Streaming........................... 345
iPod........................................................................\
. 345
Making and Receiving Calls........................... 344
Phone and Voice Pass-Through.................. 342
Phone Menu Options....................................... 344
Sound Button....................................................... 341
Station Preset Buttons.................................... 342
Station Tuning Control..................................... 342
USB........................................................................\
. 345
Waveband Button.............................................. 341
Audio Unit - Vehicles With: AM/ FM
..................................................................346
AUX Button.......................................................... 348
Clock Button........................................................ 347
Menu Button....................................................... 348
Sound Button..................................................... 348
Station Preset Buttons.................................... 348
Station Tuning Buttons................................... 348
Audio Unit - Vehicles With: Premium AM/FM/CD..................................................336
Autolamps
........................................................83
Windshield Wiper Activated
Headlamps........................................................ 84
Automatic Transmission.............................151 Automatic Transmission Adaptive
Learning............................................................. 154
Brake-Shift Interlock......................................... 152
If Your Vehicle Gets Stuck in Mud or Snow.................................................................. 154
515
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Index

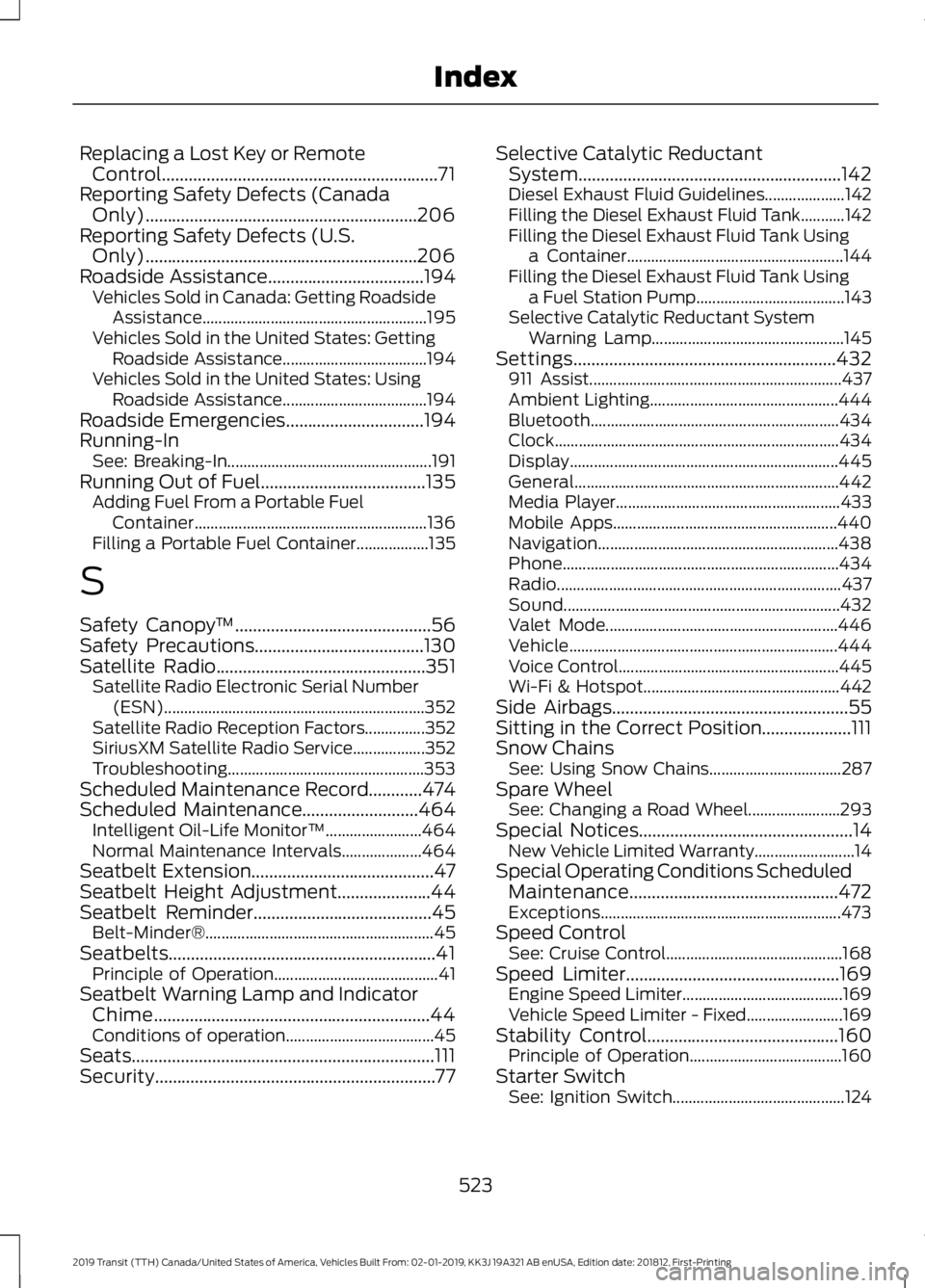

Replacing a Lost Key or Remote
Control..............................................................71
Reporting Safety Defects (Canada Only).............................................................206
Reporting Safety Defects (U.S. Only).............................................................206
Roadside Assistance...................................194
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 195
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 194
Vehicles Sold in the United States: Using Roadside Assistance.................................... 194
Roadside Emergencies
...............................194
Running-In See: Breaking-In................................................... 191
Running Out of Fuel.....................................135 Adding Fuel From a Portable Fuel
Container.......................................................... 136
Filling a Portable Fuel Container.................. 135
S
Safety Canopy ™
............................................56
Safety Precautions......................................130
Satellite Radio...............................................351
Satellite Radio Electronic Serial Number
(ESN)................................................................. 352
Satellite Radio Reception Factors...............352
SiriusXM Satellite Radio Service.................. 352
Troubleshooting................................................. 353
Scheduled Maintenance Record............474
Scheduled Maintenance
..........................464
Intelligent Oil-Life Monitor™........................ 464
Normal Maintenance Intervals.................... 464
Seatbelt Extension
.........................................47
Seatbelt Height Adjustment.....................44
Seatbelt Reminder........................................45 Belt-Minder®......................................................... 45
Seatbelts............................................................41 Principle of Operation......................................... 41
Seatbelt Warning Lamp and Indicator Chime..............................................................44
Conditions of operation..................................... 45
Seats....................................................................111
Security...............................................................77 Selective Catalytic Reductant
System...........................................................142
Diesel Exhaust Fluid Guidelines.................... 142
Filling the Diesel Exhaust Fluid Tank...........142
Filling the Diesel Exhaust Fluid Tank Using a Container...................................................... 144
Filling the Diesel Exhaust Fluid Tank Using a Fuel Station Pump..................................... 143
Selective Catalytic Reductant System Warning Lamp................................................ 145
Settings...........................................................432 911 Assist............................................................... 437
Ambient Lighting............................................... 444
Bluetooth.............................................................. 434
Clock....................................................................... 434
Display................................................................... 445
General.................................................................. 442
Media Player........................................................ 433
Mobile Apps........................................................ 440
Navigation............................................................ 438
Phone..................................................................... 434
Radio....................................................................... 437
Sound..................................................................... 432
Valet Mode.......................................................... 446
Vehicle................................................................... 444
Voice Control....................................................... 445
Wi-Fi & Hotspot................................................. 442
Side Airbags
.....................................................55
Sitting in the Correct Position....................111
Snow Chains See: Using Snow Chains................................. 287
Spare Wheel See: Changing a Road Wheel....................... 293
Special Notices
................................................14
New Vehicle Limited Warranty......................... 14
Special Operating Conditions Scheduled Maintenance...............................................472
Exceptions............................................................ 473
Speed Control See: Cruise Control............................................ 168
Speed Limiter................................................169 Engine Speed Limiter........................................ 169
Vehicle Speed Limiter - Fixed........................ 169
Stability Control...........................................160 Principle of Operation...................................... 160
Starter Switch See: Ignition Switch........................................... 124
523
2019 Transit (TTH) Canada/United States of America, Vehicles Built From: 02-01-2019, KK3J 19A321 AB enUSA, Edition date: 201812, First-Printing Index
