Body
•
Wash your vehicle thoroughly to
remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing
and the underside of front fenders.
• Periodically wash your vehicle if it is
stored in exposed locations.
• Touch-up exposed or primed metal to
prevent rust.
• Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration. Re-wax as necessary
when you wash your vehicle.
• Lubricate all hood, door and luggage
compartment hinges and latches with
a light grade oil.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and
solvents.
Engine
• Change the engine oil and filter prior to
storage because used engine oil
contains contaminates which may
cause engine damage.
• Start the engine every 15 days for a
minimum of 15 minutes. Run at fast idle
with the climate controls set to defrost
until the engine reaches normal
operating temperature.
• With your foot on the brake, shift
through all the gears while the engine
is running.
• We recommend that you change the
engine oil before you use your vehicle
again.
Fuel system
• Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the
fuel pump nozzle. Cooling system
•
Protect against freezing temperatures.
• When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling
system leaks and that fluid is at the
recommended level.
Battery
• Check and recharge as necessary. Keep
connections clean.
• If storing your vehicle for more than 30
days without recharging the battery,
we recommend that you disconnect
the battery cables to maintain battery
charge for quick starting.
Note: It is necessary to reset memory
features if battery cables are disconnected.
Brakes
• Make sure the brakes and parking brake
release fully.
Tires
• Maintain recommended air pressure.
Miscellaneous
• Make sure all linkages, cables, levers
and pins under your vehicle are covered
with grease to prevent rust.
• Move vehicles at least 25 ft (7.5 m)
every 15 days to lubricate working parts
and prevent corrosion.
Removing Vehicle From Storage
When your vehicle is ready to come out of
storage, do the following:
• Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.
• Check windshield wipers for any
deterioration.
309
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Vehicle Care

2. Peel off the label G showing the
maximum permissible speed of 50
mph (80 km/h) from the casing and
attach it to the instrument panel in the
driver ’s field of view. Make sure the
label does not obscure anything
important.
3. Take the hose C and the power plug with cable E out of the temporary
mobility kit.
4. Screw the hose C onto the sealant bottle.
5. Remove the valve cap from the damaged tire.
6. Remove the protective cap A from the sealant bottle hose and screw the hose
firmly onto the valve of the damaged
tire.
7. Make sure that the compressor switch
F is in position 0.
8. Insert the power plug E into the auxiliary power point. See Auxiliary
Power Points (page 138).
9. Start the engine.
10. Move the compressor switch F to position 1.
11. After a minimum of two minutes move the compressor switch F to
position 0 and unscrew the hose C
from the sealant bottle. Unscrew the
sealant bottle hose from the tire
valve.
12. Screw the hose C onto the tire valve and move the compressor switch F
to position 1.
13. Inflate the tire to the recommended inflation pressure, but do not use the
inflator for longer than 10 minutes.
Move the compressor switch F to
position 0 and check the current tire
pressure with pressure gauge D.
Unscrew the hose C from the tire
valve. 14. Remove the power plug E from the
auxiliary power point.
15. Make sure the tire sealant and inflator
kit, the bottle lid and the orange cap
are stored safely, but still easily
accessible in your vehicle. The tire
sealant and inflator kit will be
required again when you check the
tire pressure.
16. Immediately drive approximately six miles (10 kilometers) so that the
sealant can seal the damaged area.
Note: When pumping in the sealant through
the tire valve, the pressure may rise up to 87
psi (6 bar) but will drop again after about
30 seconds.
Note: : If the tire pressure has dropped to
26 psi (1.8 bar) or below, the tire could be
damaged beyond a temporary repair. Have
your vehicle immediately checked. Do not
drive your vehicle.
Note: If the tire pressure has dropped but
is still above 26 psi (1.8 bar), use the kit to
inflate the tire again.
After Using the Tire Sealant and
Inflator Kit WARNING:
If you experience any
unusual vibration, ride disturbance or
noise while driving, reduce your speed
until you can safely pull off to the side of
the road and call for roadside assistance.
Failure to do so could cause you to lose
control of your vehicle and increase the
risk of personal injury or death.
1. Stop your vehicle after driving approximately six miles (10
kilometers). Check, and where
necessary, adjust the pressure of the
damaged tire.
314
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Wheels and Tires

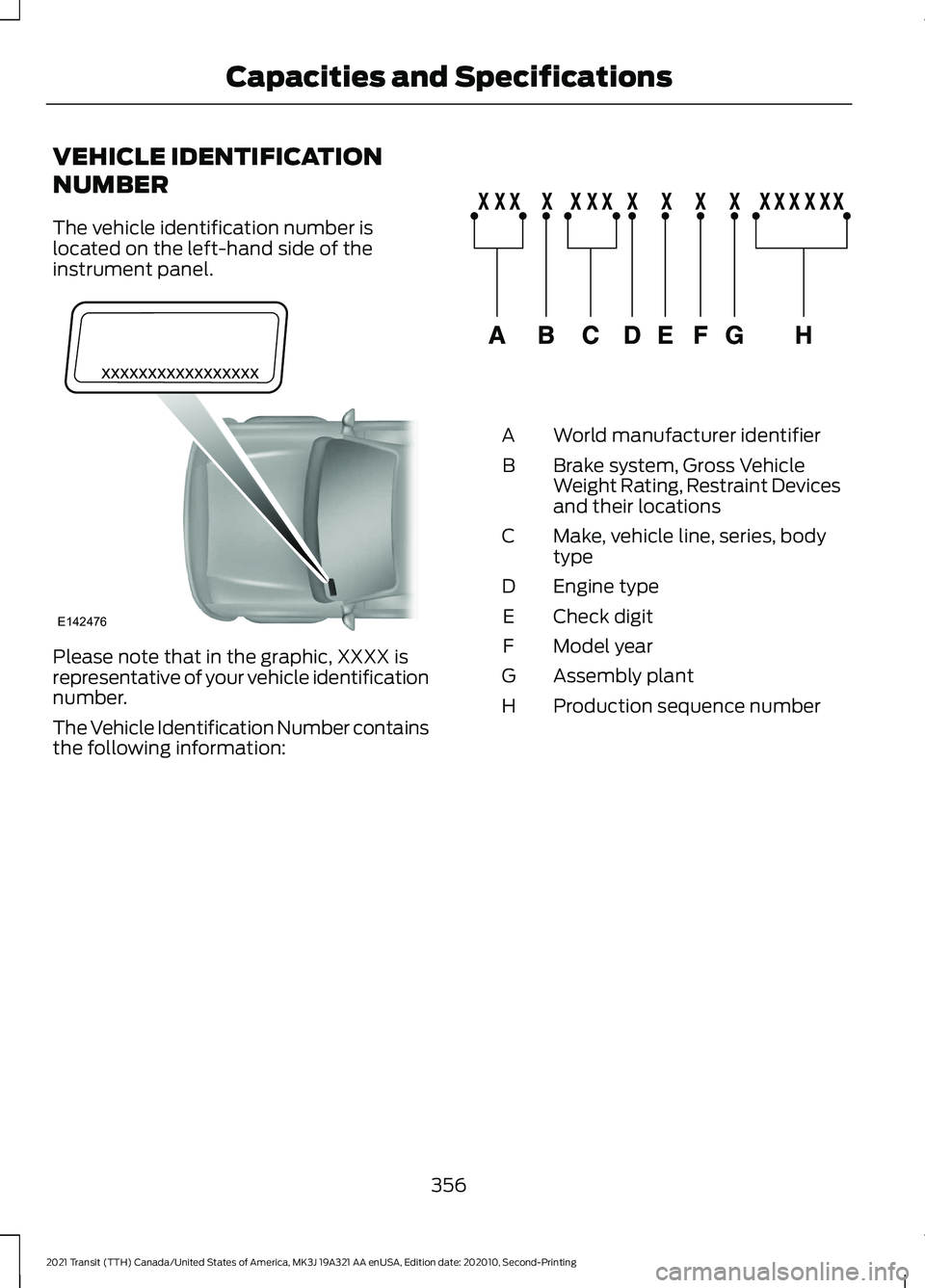

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information: World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
356
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Capacities and SpecificationsE142476 E142477

Less Cost to Properly Maintain Your
Vehicle
Ford Protect extended service plan also
offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle
’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• The clutch disc (if equipped).
• Brake pads and linings.
• Shock absorbers.
• Struts.
• Engine Belts.
• Engine coolant hoses, clamps and
o-rings.
• Diesel exhaust fluid replenishment (if
equipped).
• Cabin air filter replacement every
20,000 mi (32,000 km) (electric
vehicles only).
Interest Free Finance Options
Just a 5% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.
Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232 Ford Protect Extended Service
Plan (CANADA ONLY)
You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:
•
Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.
• Roadside Assistance benefits.
There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.
Note: Repairs performed outside of Canada
and the United States are not eligible for
Ford Protect extended service plan
coverage.
This information is subject to change. For
more information; visit your local Ford of
Canada dealer or www.ford.ca to find the
Ford Protect extended service plan that is
right for you.
445
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Ford Protect

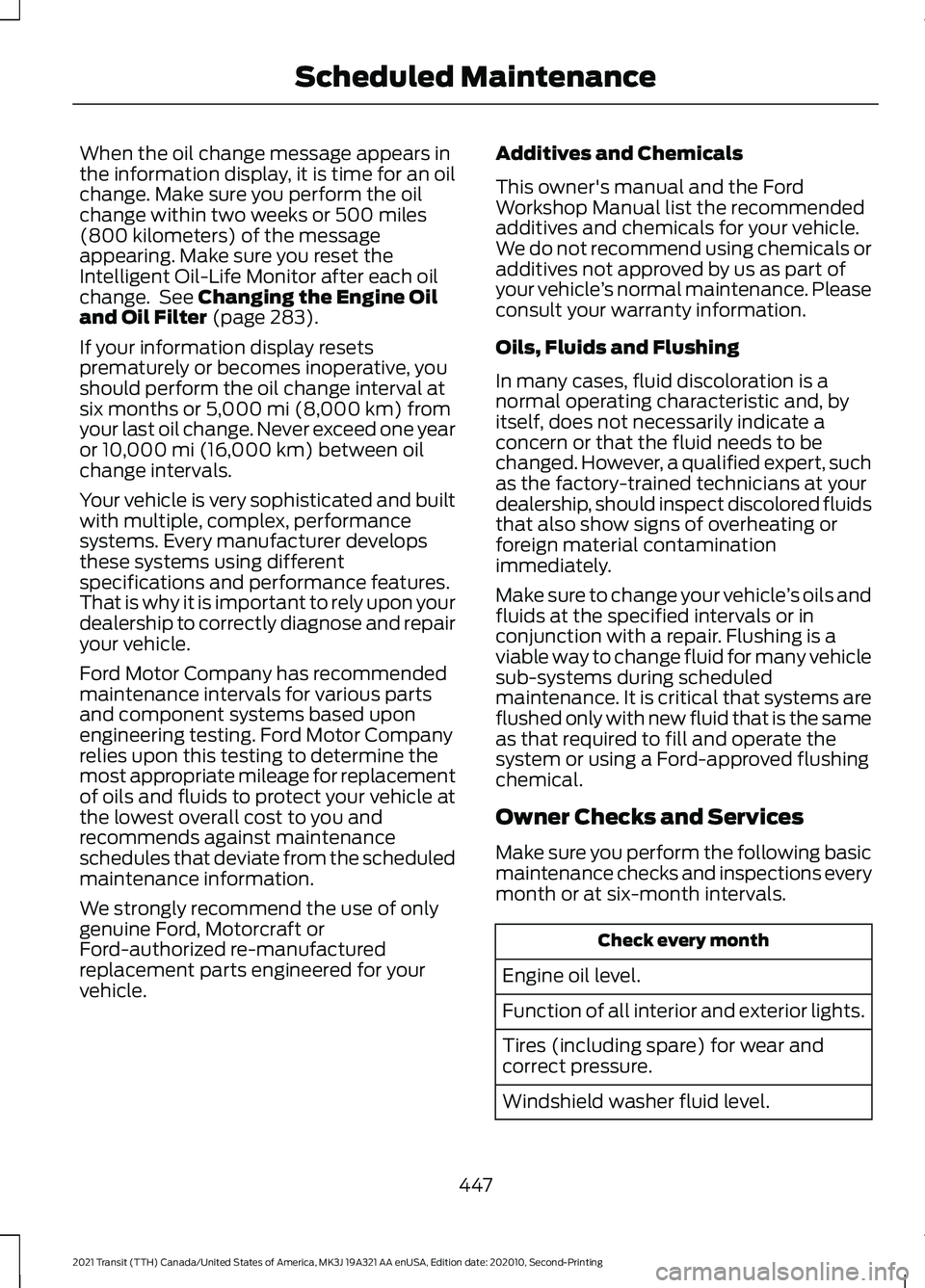

When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 miles
(800 kilometers) of the message
appearing. Make sure you reset the
Intelligent Oil-Life Monitor after each oil
change. See Changing the Engine Oil
and Oil Filter (page 283).
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals.
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to correctly diagnose and repair
your vehicle.
Ford Motor Company has recommended
maintenance intervals for various parts
and component systems based upon
engineering testing. Ford Motor Company
relies upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
We strongly recommend the use of only
genuine Ford, Motorcraft or
Ford-authorized re-manufactured
replacement parts engineered for your
vehicle. Additives and Chemicals
This owner's manual and the Ford
Workshop Manual list the recommended
additives and chemicals for your vehicle.
We do not recommend using chemicals or
additives not approved by us as part of
your vehicle
’s normal maintenance. Please
consult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle ’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using a Ford-approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals. Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and
correct pressure.
Windshield washer fluid level.
447
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Scheduled Maintenance

Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstruc-
tions. Clean if necessary.
Cooling system fluid level and coolant
strength.
Door weatherstrips for wear. Lubricate if
necessary.
Front door check arms for correct opera-
tion.
Hinges, latches and outside locks for
correct operation. Lubricate if necessary.
Parking brake for correct operation.
Seatbelts and seat latches for wear and
function.
Safety warning lamps (brake, ABS, airbag
and seatbelt) for operation.
Washer spray and wiper operation. Clean
or replace blades as necessary.
Multi-point Inspection
In order to keep your vehicle running
correctly, it is important to have the
systems on your vehicle checked regularly.
This can help identify potential issues and
prevent major problems. We recommend
having the following multi-point inspection
performed at every scheduled
maintenance interval to help make sure
your vehicle keeps running correctly. Multi-point inspection
Accessory drive belt(s).
Battery performance.
Engine air filter. Multi-point inspection
Exhaust system.
Exterior lamps and hazard warning
system operation.
Fluid levels *
; fill if necessary.
For oil and fluid leaks.
Horn operation.
Radiator, cooler, heater and A/C hoses.
Suspension component for leaks or
damage.
Steering and linkage.
Tires (including spare) for wear and
correct pressure **
.
Windshield for cracks, chips or pits.
Washer spray and wiper operation.
* Brake, coolant recovery reservoir,
automatic transmission, power steering (if
equipped with hydraulic power assist
steering) and window washer.
** If your vehicle is equipped with a
temporary mobility kit, check the tire
sealant expiration Use By date on the
canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.
448
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Scheduled Maintenance

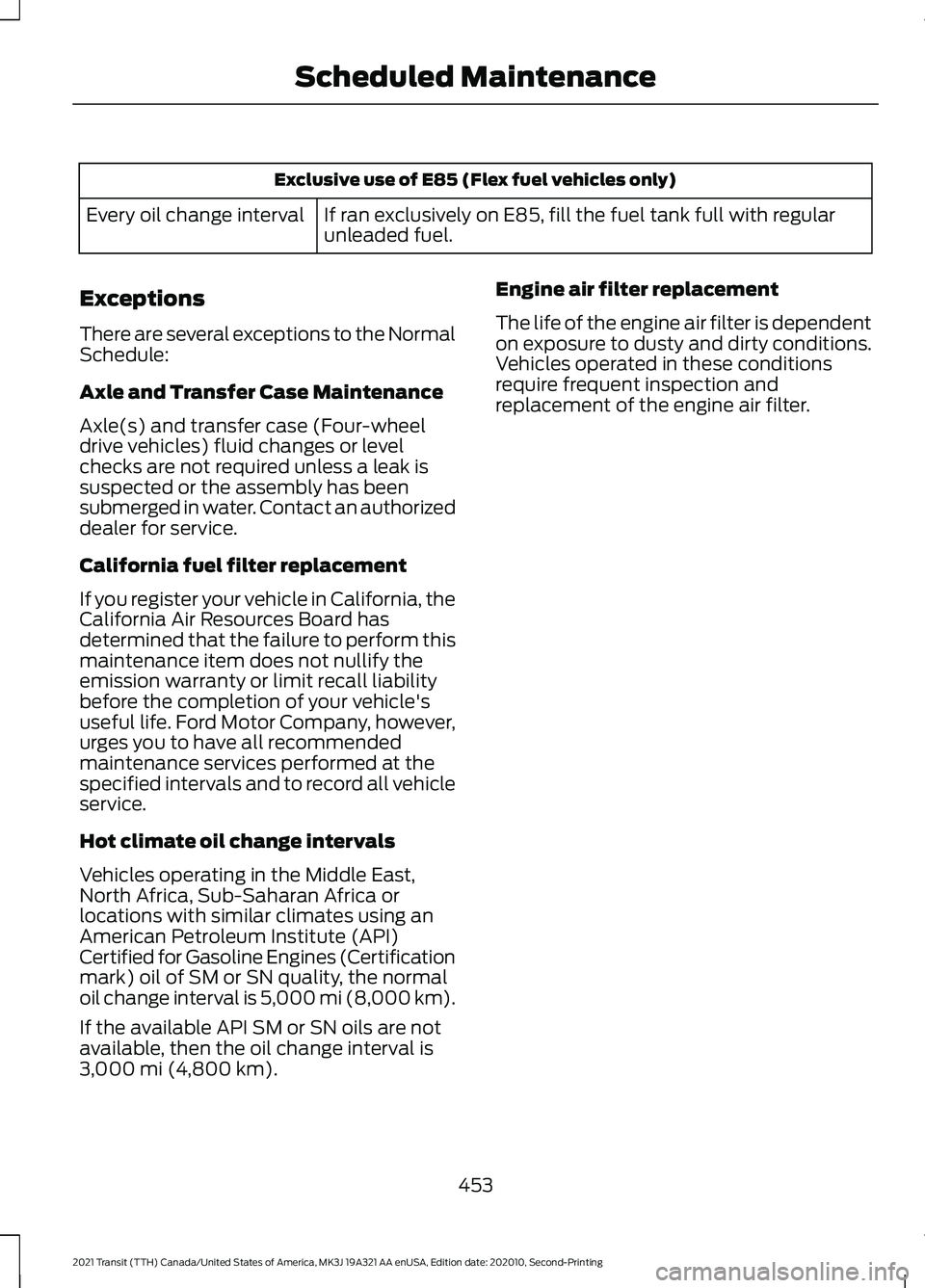

Exclusive use of E85 (Flex fuel vehicles only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change interval
Exceptions
There are several exceptions to the Normal
Schedule:
Axle and Transfer Case Maintenance
Axle(s) and transfer case (Four-wheel
drive vehicles) fluid changes or level
checks are not required unless a leak is
suspected or the assembly has been
submerged in water. Contact an authorized
dealer for service.
California fuel filter replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service.
Hot climate oil change intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 5,000 mi (8,000 km).
If the available API SM or SN oils are not
available, then the oil change interval is
3,000 mi (4,800 km)
. Engine air filter replacement
The life of the engine air filter is dependent
on exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and
replacement of the engine air filter.
453
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Scheduled Maintenance

C
California Proposition 65 - United States
of America..................................................458
Capacities and Specifications - 3.5L Duratec.........................................................358
Air Conditioning System................................. 358
Brake System....................................................... 361
Engine.................................................................... 359
Engine Coolant................................................... 360
Fuel Tank................................................................ 361
Grease.................................................................... 362
Locks...................................................................... 362
Rear Axle............................................................... 362
Washer Reservoir................................................ 361
Capacities and Specifications - 3.5L Ecoboost™.................................................363
Air Conditioning System................................. 363
Brake System....................................................... 367
Engine.................................................................... 364
Engine Coolant................................................... 366
Fuel Tank.............................................................. 366
Grease....................................................................368
Locks...................................................................... 368
Rear Axle............................................................... 367
Washer Reservoir............................................... 366
Capacities and Specifications................352
Cargo Lamps.................................................106 Switching the Cargo Lamps Off................... 106
Switching the Cargo Lamps On.................... 106
Car Wash See: Cleaning the Exterior.............................. 303
Catalytic Converter - 3.5L Duratec/3.5L Ecoboost™..................................................159
On-Board Diagnostics System..................... 160
Changing a Bulb..........................................296 Front Clearance Lamp..................................... 298
Headlamp............................................................ 296
High Mounted Stoplamps.............................. 299
Interior Lamp....................................................... 299
License Plate Lamp.......................................... 299
Reading Lamps.................................................. 300
Rear Lamps......................................................... 298
Side Direction Indicator................................... 298
Sun Visor Mirror Lamp.................................... 300
Changing a Fuse
...........................................276
Fuses....................................................................... 276Changing a Road Wheel...........................339
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 340
Front Jacking Points......................................... 345
Installing a Road Wheel.................................. 348
Locking Lug Nuts................................................ 341
Rear Jacking Points........................................... 345
Removing a Road Wheel................................ 348
Removing a Wheel Trim.................................. 346
Stowing the Wheel and Vehicle Jack.........350
Vehicle Jack......................................................... 344
Vehicles With a Spare Wheel......................... 341
Changing the 12V Battery.........................290 Removing the Battery....................................... 291
Replacing the Battery....................................... 292
Changing the Engine Air Filter................284
Changing the Engine Oil and Oil Filter...............................................................283
Engine Lubrication for Severe Service Operation......................................................... 283
Changing the Front Wiper Blades
.........295
Changing the Vehicle Wi-Fi Hotspot Name or Password...................................375
Checking MyKey System Status
...............74
Checking the Wiper Blades.....................294
Child Restraint and Seatbelt Maintenance.................................................49
Child Restraint Positioning.........................39
Child Safety
.......................................................19
General Information............................................. 19
Child Safety Locks..........................................41 Left-Hand Side...................................................... 42
Right-Hand Side................................................... 42
Cigar Lighter
...................................................140
Cleaning Products.......................................302
Cleaning the Engine
...................................304
Cleaning the Exterior..................................303 Body Paintwork Preservation....................... 304
Cleaning the Chrome Trim............................. 303
Cleaning the Headlamps................................ 303
Cleaning the Rear Window............................ 303
Sliding Door Tracks........................................... 304
Cleaning the Instrument Panel and Instrument Cluster Lens
.........................307
Cleaning the Interior...................................305 Fabric, Carpets, Cloth Seats, Headliners
and Floor Mats.............................................. 305
493
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Index

Instrument Cluster Screens, LCD Screens
and Radio Screens....................................... 306
Leather Interior................................................... 306
Mirrors.................................................................... 307
Rear Windows..................................................... 307
Seatbelts.............................................................. 306
Storage Compartments, Cup Holders and Ashtrays............................................................ 307
Suede Micro Fiber Fabric................................ 306
Cleaning the Wheels..................................308
Cleaning the Windows and Wiper Blades...........................................................305
Clearing All MyKeys.......................................73
Climate Control.............................................122
Closing the Sliding Door.............................80
Closing the Sliding Door From Inside Your
Vehicle................................................................ 80
Closing the Sliding Door From Outside Your Vehicle.................................................................. 81
Closing the Sliding Door With the Remote Control................................................................ 84
Cold Weather Precautions.......................246
Connected Vehicle
........................................371
Connecting the Vehicle to a Mobile
Network............................................................. 371
Connected Vehicle Data - Vehicles With: Modem.............................................................16
Connected Vehicle Limitations................371
Connected Vehicle Requirements..........371
Connected Vehicle – Troubleshooting - Vehicles With: Modem............................372
Connected Vehicle – Troubleshooting - Vehicles With: SYNC/SYNC 3..............373
Connecting a Bluetooth® Device - Vehicles Without: SYNC
........................380
Pairing a Device................................................. 380
Connecting the Vehicle to a Mobile Network.........................................................371
Connecting FordPass to the Modem...........371
Enabling and Disabling the Modem.............371
What Is the Modem............................................ 371
Connecting the Vehicle to a Wi-Fi Network........................................................372
Coolant Check See: Engine Coolant Check........................... 285
Crash and Breakdown Information.......255 Post-Crash Alert System................................ 255
Crash Sensors and Airbag Indicator.......59 Creating a MyKey.............................................71
MyKey Information Messages........................... 71
Creating a Vehicle Wi-Fi Hotspot...........375 Connecting a Device to the Wi-Fi
Hotspot............................................................. 375
Finding the Wi-Fi Hotspot Name and Password.......................................................... 375
Cross Traffic Alert.........................................216 Cross Traffic Alert behavior when trailer is
attached............................................................ 218
Cross Traffic Alert Indicator............................ 218
Cross Traffic Alert Information Messages.......................................................... 218
Cross Traffic Alert System Limitations........................................................ 217
Cross Traffic Alert System Sensors..............217
Switching the System On and Off...............218
Using Cross Traffic Alert................................... 216
Cruise Control
................................................198
Principle of Operation...................................... 198
Cruise control See: Using Cruise Control................................ 198
Customer Assistance.................................256
Customer Information
...............................454
D
Data Privacy
......................................................14
Services That Third Parties Provide...............14
Services That We Provide.................................. 14
Daytime Running Lamps...........................102 Type 1 - Conventional
(Non-Configurable)...................................... 102
Type 2 - Configurable........................................ 102
Declaration of Conformity
.......................489
Radio Frequency Statement........................ 489
Direction Indicators
.....................................105
Direction Indicator.............................................. 105
Switching the Direction Indicators On and Off....................................................................... 105
Doors and Locks.............................................76
Drive Belt Routing - Vehicles With: Dual Generators...................................................301
Drive Belt Routing - Vehicles With: Single Generator.....................................................301
Drive Control..................................................226 Selectable Drive Modes.................................. 226
494
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Index

Selectable Drive Modes Information
Messages.......................................................... 227
Driver Alert......................................................207
Driver Alert System Display............................ 207
Driver Alert System Messages...................... 208
Driver Alert System Warnings....................... 207
Switching Driver Alert On and Off..............208
Driver and Passenger Airbags.....................51 Children and Airbags.......................................... 56
Passenger Airbag On and Off Switch ...........51
Proper Driver and Front Passenger Seating Adjustment........................................................ 56
Driving Aids....................................................206
Driving Hints
..................................................246
Driving Through Water...............................247
DRL See: Daytime Running Lamps....................... 102
E
Eco......................................................................219 Eco Mode............................................................... 219
Efficient Drive Mode.......................................... 219
Economical Driving
.....................................246
Electric Parking Brake Audible Warning.........................................................178
Electric Parking Brake..................................177 Electric Parking Brake –
Troubleshooting............................................. 178
Electric Parking Brake – Troubleshooting.........................................178
Electric Parking Brake – Information Messages.......................................................... 178
Electric Parking Brake – Warning Lamps................................................................ 178
Electromagnetic Compatibility
...............461
Emergency Call Limitations.......................62
Emergency Call Requirements..................61
Emergency Call System Data
.....................17
Emergency Exit - M2 Bus..........................250
Emission Law.................................................158 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........159
Tampering With a Noise Control System............................................................... 158
Enabling Remote Start...............................120 End User License Agreement
.................464
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 464
Engine Block Heater
....................................146
Using the Engine Block Heater....................... 147
Engine Coolant Check...............................285 Adding Coolant.................................................. 286
Coolant Change.................................................. 287
Engine Coolant Temperature Management.................................................. 289
Fail-Safe Cooling................................................ 287
Recycled Coolant............................................... 287
Severe Climates.................................................. 287
Engine Cooling Fan.....................................285
Engine Emission Control...........................158
Engine Immobilizer See: Passive Anti-Theft System - Vehicles
With: Passive Anti-Theft System
(PATS)................................................................. 89
Engine Oil Check..........................................282 Adding Engine Oil.............................................. 282
Engine Oil Pressure Warning Lamp............283
Engine Oil Dipstick - 3.5L Duratec.........282
Engine Oil Dipstick - 3.5L Ecoboost™.................................................282
Engine Specifications - 3.5L Duratec.........................................................352
Engine Specifications - 3.5L Ecoboost™.................................................353
Entertainment..............................................408 AM/FM Radio..................................................... 409
Apps........................................................................\
. 417
CD........................................................................\
..... 415
HD Radio ™ Information (If
Available).......................................................... 412
SiriusXM® Satellite Radio (If Activated)........................................................ 410
Sources................................................................. 409
Stereo or USB...................................................... 416
Supported Media Players, Formats and Metadata Information.................................. 417
USB Ports............................................................... 417
Environment.....................................................18
Essential Towing Checks..........................239 Before Towing a Trailer.................................... 244
Launching or Retrieving a Boat or Personal Water Craft (PWC)...................................... 245
Safety Chains...................................................... 240
495
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Index
