jacking points FORD TRANSIT 2021 Owners Manual

USING POWER RUNNING
BOARDS
WARNING: In extreme climates,
excessive ice buildup may occur, causing
the running boards not to deploy. Make
sure that the running boards have
deployed, and have finished moving
before attempting to step on them. The
running boards will resume normal
function once the blockage is cleared. WARNING:
Switch off the running
boards before jacking or placing any
object under your vehicle. Never place
your hand between the extended running
board and your vehicle. A moving running
board may cause injury.
Note: Do not use the power running boards,
front and rear hinge assemblies, running
board motors or the running board
underbody mounts to lift your vehicle when
jacking. Always use proper jacking points.
Note: The power running boards may
operate more slowly in cool temperatures.
Note: The running board mechanism may
trap debris such as mud, dirt, snow, ice and
salt. This may cause unwanted noise. If this
happens, manually set the power running
boards to the deployed position. Then wash
the system in particular the front and rear
hinge arms with a high-pressure car wash
wand.
Note: If you drive off when the power
running boards are deployed the engine may
stop. Note:
In the event of a malfunction you can
stow the power running boards manually.
Automatic Power Deploy The power running board extends when
you open the door.
Automatic Power Stow
When you close the door, the power
running board returns to the stowed
position after a two-second delay.
93
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Power Running BoardsE171469 E171470

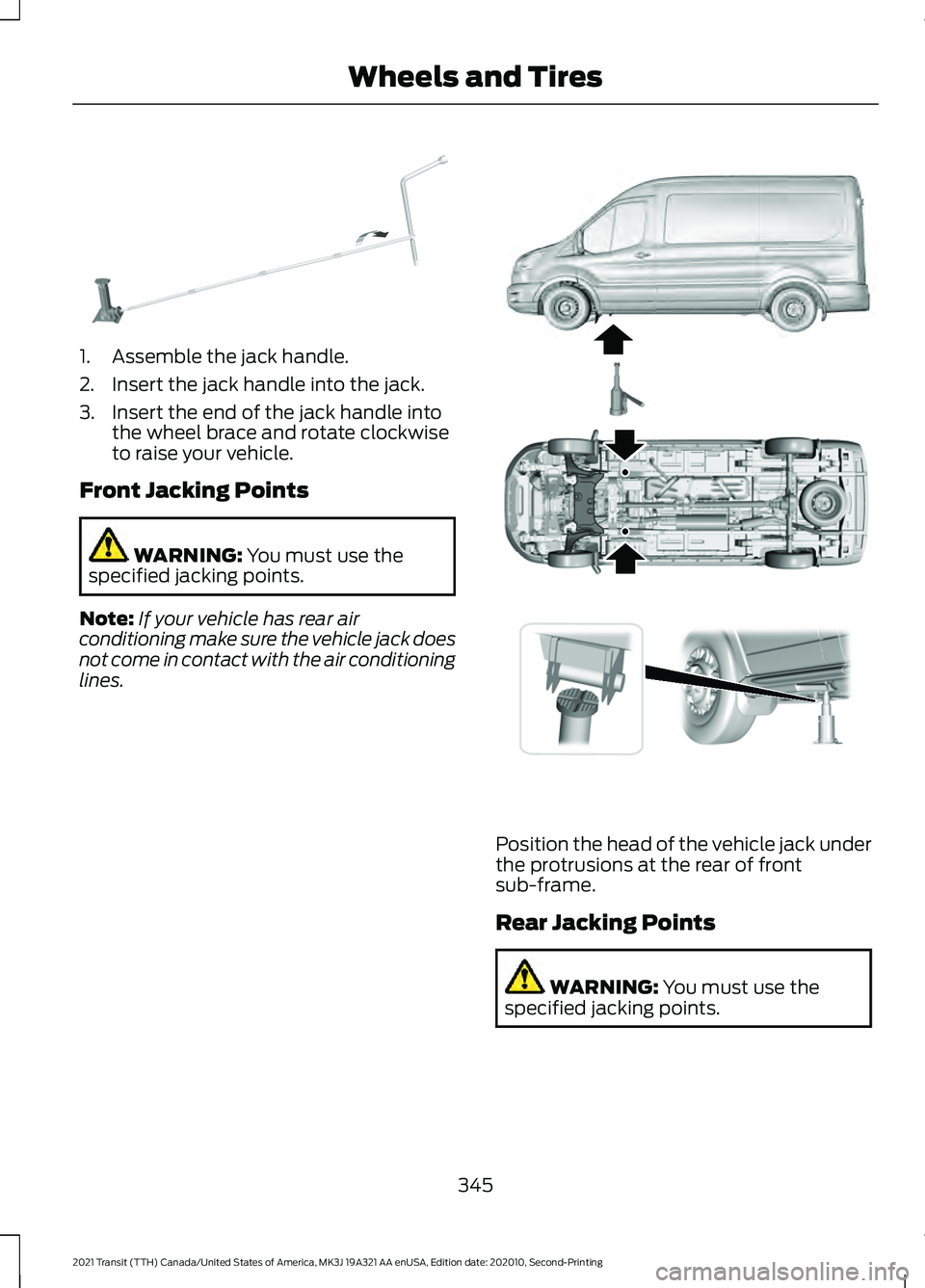

1. Assemble the jack handle.
2. Insert the jack handle into the jack.
3. Insert the end of the jack handle into
the wheel brace and rotate clockwise
to raise your vehicle.
Front Jacking Points WARNING: You must use the
specified jacking points.
Note: If your vehicle has rear air
conditioning make sure the vehicle jack does
not come in contact with the air conditioning
lines. Position the head of the vehicle jack under
the protrusions at the rear of front
sub-frame.
Rear Jacking Points
WARNING:
You must use the
specified jacking points.
345
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Wheels and TiresE297495 E171405

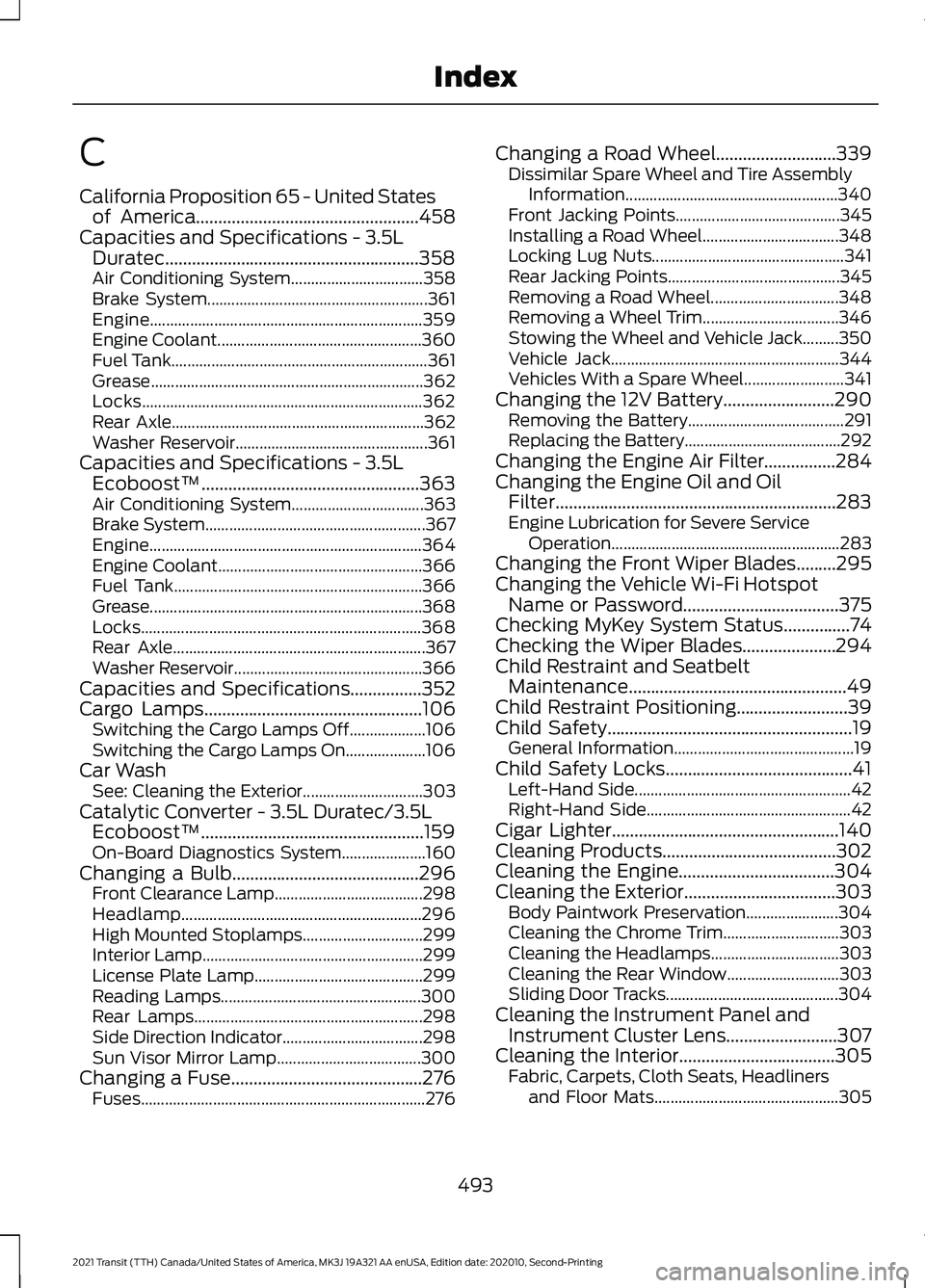

C
California Proposition 65 - United States
of America..................................................458
Capacities and Specifications - 3.5L Duratec.........................................................358
Air Conditioning System................................. 358
Brake System....................................................... 361
Engine.................................................................... 359
Engine Coolant................................................... 360
Fuel Tank................................................................ 361
Grease.................................................................... 362
Locks...................................................................... 362
Rear Axle............................................................... 362
Washer Reservoir................................................ 361
Capacities and Specifications - 3.5L Ecoboost™.................................................363
Air Conditioning System................................. 363
Brake System....................................................... 367
Engine.................................................................... 364
Engine Coolant................................................... 366
Fuel Tank.............................................................. 366
Grease....................................................................368
Locks...................................................................... 368
Rear Axle............................................................... 367
Washer Reservoir............................................... 366
Capacities and Specifications................352
Cargo Lamps.................................................106 Switching the Cargo Lamps Off................... 106
Switching the Cargo Lamps On.................... 106
Car Wash See: Cleaning the Exterior.............................. 303
Catalytic Converter - 3.5L Duratec/3.5L Ecoboost™..................................................159
On-Board Diagnostics System..................... 160
Changing a Bulb..........................................296 Front Clearance Lamp..................................... 298
Headlamp............................................................ 296
High Mounted Stoplamps.............................. 299
Interior Lamp....................................................... 299
License Plate Lamp.......................................... 299
Reading Lamps.................................................. 300
Rear Lamps......................................................... 298
Side Direction Indicator................................... 298
Sun Visor Mirror Lamp.................................... 300
Changing a Fuse
...........................................276
Fuses....................................................................... 276Changing a Road Wheel...........................339
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 340
Front Jacking Points......................................... 345
Installing a Road Wheel.................................. 348
Locking Lug Nuts................................................ 341
Rear Jacking Points........................................... 345
Removing a Road Wheel................................ 348
Removing a Wheel Trim.................................. 346
Stowing the Wheel and Vehicle Jack.........350
Vehicle Jack......................................................... 344
Vehicles With a Spare Wheel......................... 341
Changing the 12V Battery.........................290 Removing the Battery....................................... 291
Replacing the Battery....................................... 292
Changing the Engine Air Filter................284
Changing the Engine Oil and Oil Filter...............................................................283
Engine Lubrication for Severe Service Operation......................................................... 283
Changing the Front Wiper Blades
.........295
Changing the Vehicle Wi-Fi Hotspot Name or Password...................................375
Checking MyKey System Status
...............74
Checking the Wiper Blades.....................294
Child Restraint and Seatbelt Maintenance.................................................49
Child Restraint Positioning.........................39
Child Safety
.......................................................19
General Information............................................. 19
Child Safety Locks..........................................41 Left-Hand Side...................................................... 42
Right-Hand Side................................................... 42
Cigar Lighter
...................................................140
Cleaning Products.......................................302
Cleaning the Engine
...................................304
Cleaning the Exterior..................................303 Body Paintwork Preservation....................... 304
Cleaning the Chrome Trim............................. 303
Cleaning the Headlamps................................ 303
Cleaning the Rear Window............................ 303
Sliding Door Tracks........................................... 304
Cleaning the Instrument Panel and Instrument Cluster Lens
.........................307
Cleaning the Interior...................................305 Fabric, Carpets, Cloth Seats, Headliners
and Floor Mats.............................................. 305
493
2021 Transit (TTH) Canada/United States of America, MK3J 19A321 AA enUSA, Edition date: 202010, Second-Printing Index
