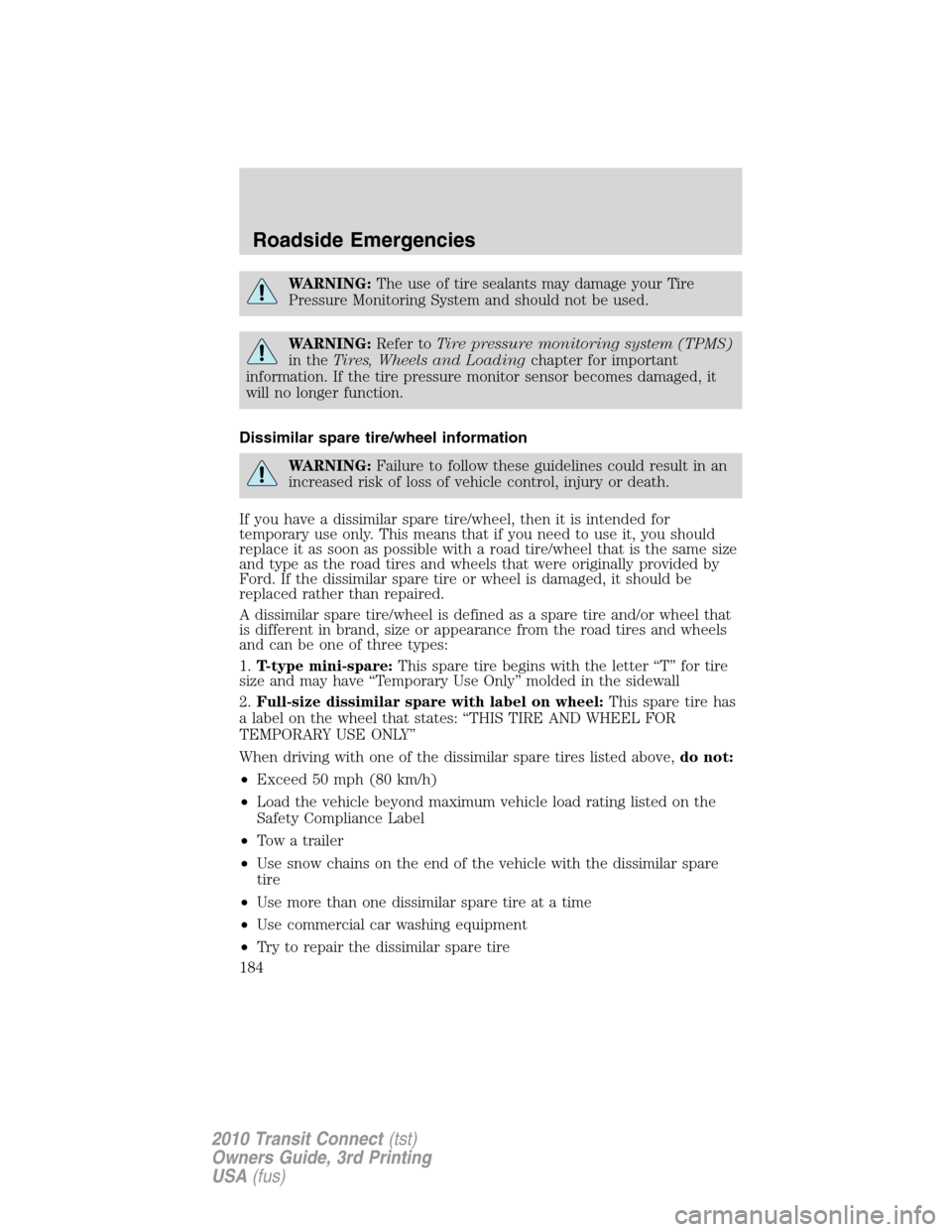

WARNING:The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Roadside Emergencies
184
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........160
Load limits .................................148
Loading instructions .................153
Locks
childproof ..................................62
Lubricant specifications ...........242
Lug nuts ....................................191
Lumbar support, seats ...............75
M
Manual transaxle
lubricant specifications ..........242
Mirrors .........................................55
fold away ...................................55
heated ........................................55
side view mirrors (power) .......55
Motorcraftparts ..............211, 241
O
Octane rating ............................229
Oil (see Engine oil) ..................216
P
Parking brake ............................161
Parts (see Motorcraft
parts) .........................................241
Passenger Occupant
Classification Sensor ...................83
Power distribution box
(see Fuses) ...............................180
Power mirrors .............................55
Power point .................................53
Power steering ..........................165fluid, checking and adding ....237
fluid, refill capacity ................242
fluid, specifications .................242
Power Windows ...........................54
Preparing to drive your
vehicle ........................................166
R
Radio ......................................20–21
Recommendations for
attaching safety restraints for
children ......................................108
Relays ........................................176
Remote entry system .................63
illuminated entry ......................67
locking/unlocking doors .....62, 64
opening the trunk .....................64
replacement/additional
transmitters ...............................66
replacing the batteries .............64
Reverse sensing system ...........171
Roadside assistance ..................174
S
Safety belts (see Safety
restraints) ........................81, 85–89
Safety Canopy ...........................103
Safety defects, reporting ..........205
Safety restraints ..............81, 85–89
Belt-Minder.............................90
for adults .............................86–88
for children .............................105
Occupant Classification
Sensor ........................................83
warning light and chime ....89–90
Index
256
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)
