FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
The fuel pump shut-off switch is
accessible from behind the glove
box. The button will be raised when
the switch is activated.
To reset the switch:
1. Turn the ignition off.
2. Check the fuel system for leaks.
3. If no leaks are apparent, open the
glove box then push in the sides
and swing the glove box down.
4. Reset the switch by pushing in
the reset button.
5. Turn the ignition on.
6. Wait a few seconds and return
the key to off.
7. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
176
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black
Passenger compartment fuse panel
The fuse panel and relay box are located below the instrument panel to
the left of the steering wheel.
Roadside Emergencies
177
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
161 7.5A Anti-lock brake system
(ABS)/Traction control, Steering
angle sensor
162 7.5A Airbag module, Passenger airbag
off indicator
163 20A Locks
164 — Not used
165 — Not used
166 25A Front power windows
167 7.5A Rear window defroster/heated
mirror switch
168 — Not used
169 15A Second power point
170 — Not used
171 — Not used
172 — Not used
173 — Not used
174 15A Rear power point
175 7.5A Left park lamps/tail lamps
176 — Not used
177 — Not used
178 25A Rear window defroster
179 7.5A Instrument cluster, Passive
anti-theft system (PATS),
Accelerator pedal sensor, TPMS
180 20A Front and rear window washer
181 — Not used
182 — Not used
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Roadside Emergencies
180
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Note:To remove the power distribution box cover, the battery negative
cable clip needs to be removed first. Pull up on the clip to detach it from
the battery tray.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
1 — Not used
2 40A** Passenger compartment fuse
panel
3 20A** Ignition switch
4 20A** Fuel pump
5 10A* Powertrain control module (PCM)
keep alive power, Canister
solenoid
6 15A* PCM, Data link connector
7 10A* Backup lamps
25
24
22 2326 2728
29
21A
21B21C
21D
30A
30B30C 30D
31A
31B31C 31D31E 31F
32 3334 35 36
15
16 17
18 19 20
10 11 12
9
3 4
1
25
67 81314
Roadside Emergencies
181
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

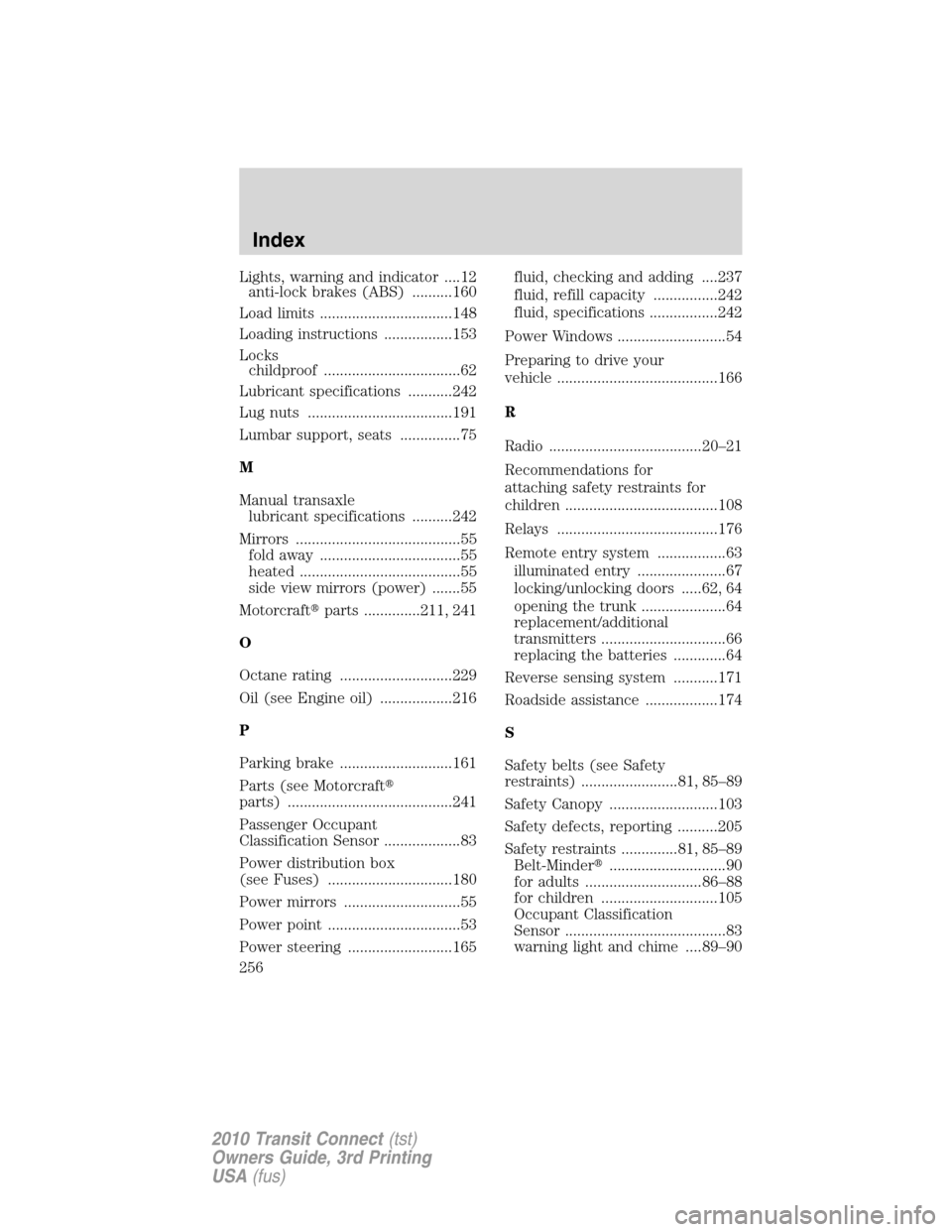

Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........160
Load limits .................................148
Loading instructions .................153
Locks
childproof ..................................62
Lubricant specifications ...........242
Lug nuts ....................................191
Lumbar support, seats ...............75
M
Manual transaxle
lubricant specifications ..........242
Mirrors .........................................55
fold away ...................................55
heated ........................................55
side view mirrors (power) .......55
Motorcraftparts ..............211, 241
O
Octane rating ............................229
Oil (see Engine oil) ..................216
P
Parking brake ............................161
Parts (see Motorcraft
parts) .........................................241
Passenger Occupant
Classification Sensor ...................83
Power distribution box
(see Fuses) ...............................180
Power mirrors .............................55
Power point .................................53
Power steering ..........................165fluid, checking and adding ....237
fluid, refill capacity ................242
fluid, specifications .................242
Power Windows ...........................54
Preparing to drive your
vehicle ........................................166
R
Radio ......................................20–21
Recommendations for
attaching safety restraints for
children ......................................108
Relays ........................................176
Remote entry system .................63
illuminated entry ......................67
locking/unlocking doors .....62, 64
opening the trunk .....................64
replacement/additional
transmitters ...............................66
replacing the batteries .............64
Reverse sensing system ...........171
Roadside assistance ..................174
S
Safety belts (see Safety
restraints) ........................81, 85–89
Safety Canopy ...........................103
Safety defects, reporting ..........205
Safety restraints ..............81, 85–89
Belt-Minder.............................90
for adults .............................86–88
for children .............................105
Occupant Classification
Sensor ........................................83
warning light and chime ....89–90
Index
256
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)
