check engine light FORD TRANSIT CONNECT 2010 1.G Owners Manual

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Service engine soon:TheService
engine soonindicator light
illuminates when the ignition is first
turned to the on position to check
the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. Normally, the “Service engine
soon” light will stay on until the engine is cranked, then turn itself off if
no malfunctions are present. However, if after 15 seconds the “Service
engine soon” light blinks eight times, it means that the vehicle is not
ready for I/M testing. See theReadiness for Inspection/Maintenance
(I/M) testingin theMaintenance and Specificationschapter.
Solid illumination after the engine is started indicates the On Board
Diagnostics System (OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
Instrument Cluster
12
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

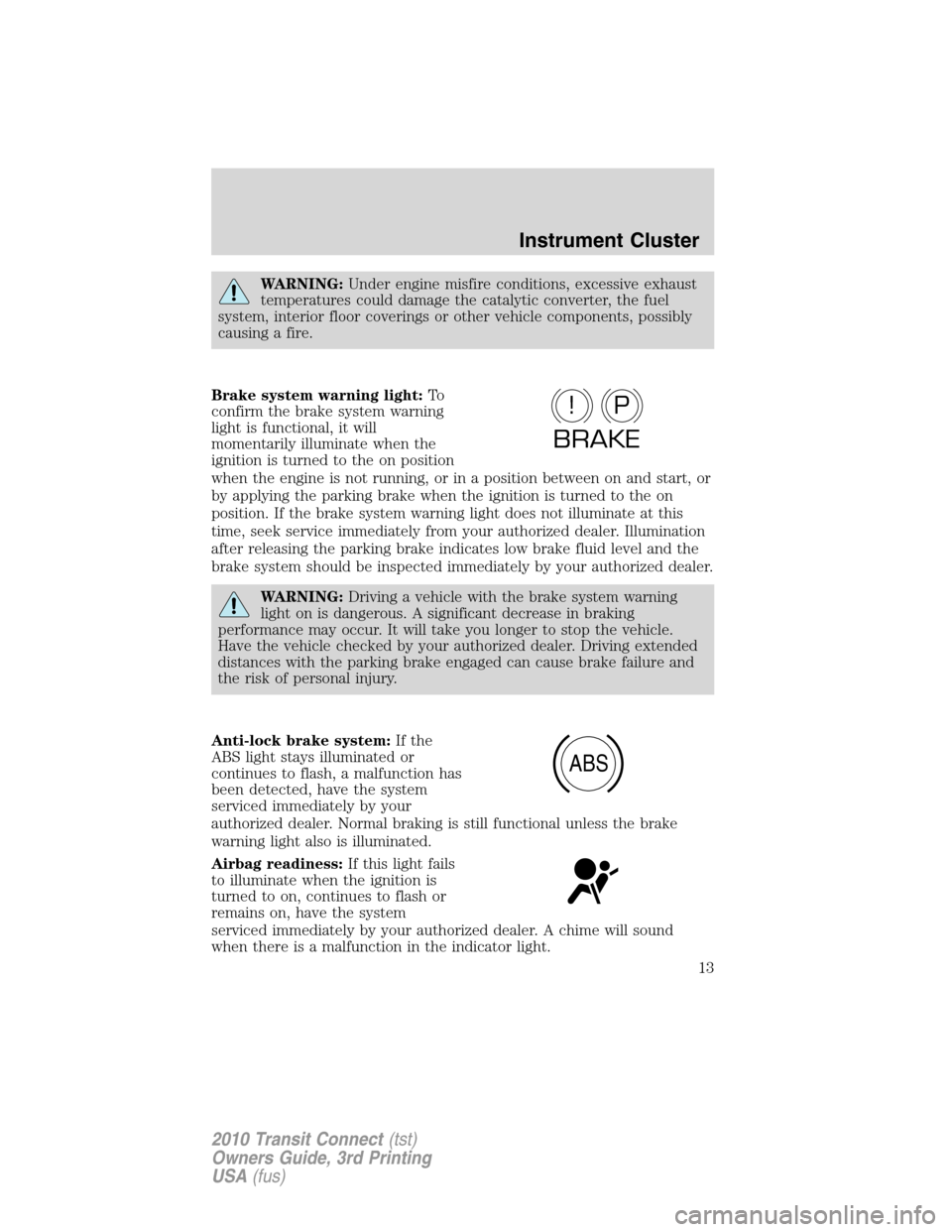

WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the on position
when the engine is not running, or in a position between on and start, or
by applying the parking brake when the ignition is turned to the on
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your authorized dealer. Illumination
after releasing the parking brake indicates low brake fluid level and the
brake system should be inspected immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
Airbag readiness:If this light fails
to illuminate when the ignition is
turned to on, continues to flash or
remains on, have the system
serviced immediately by your authorized dealer. A chime will sound
when there is a malfunction in the indicator light.
P!
BRAKE
ABS
Instrument Cluster
13
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

The AdvanceTracwith RSCsystem provides the following stability
enhancement features for certain driving situations:
•Traction Control (TCS), which functions to help avoid drive-wheel
spin and loss of traction.
•Electronic Stability Control (ESC), which functions to help avoid skids
or lateral slides
•Roll Stability Control™ (RSC), which functions to help avoid a
vehicle roll-over.
The AdvanceTracwith RSCsystem automatically enables each time
the engine is started. All features of the AdvanceTracwith RSCsystem
(TCS, ESC, and RSC) are active and monitor the vehicle from start-up.
However, the system will only intervene if the driving situation requires
it.
The “sliding car” icon
in the instrument cluster will illuminate
temporarily during start-up as part of a normal system self-check, or
during driving if a driving situation causes the AdvanceTracwith RSC
system to operate. If the “sliding car” icon
remains steadily
illuminated, have the system serviced by an authorized dealer
immediately.
When AdvanceTracwith RSCperforms a normal system self-check,
some drivers may notice a slight movement of the brake, and/or a
rumble, grunting, or grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTracwith RSCyou may
experience the following:
•A slight deceleration of the vehicle
•The “sliding car”
indicator light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction Control (TCS)
Traction Control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Driving
163
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski racks) may reduce
fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
Maintenance and Specifications
233
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

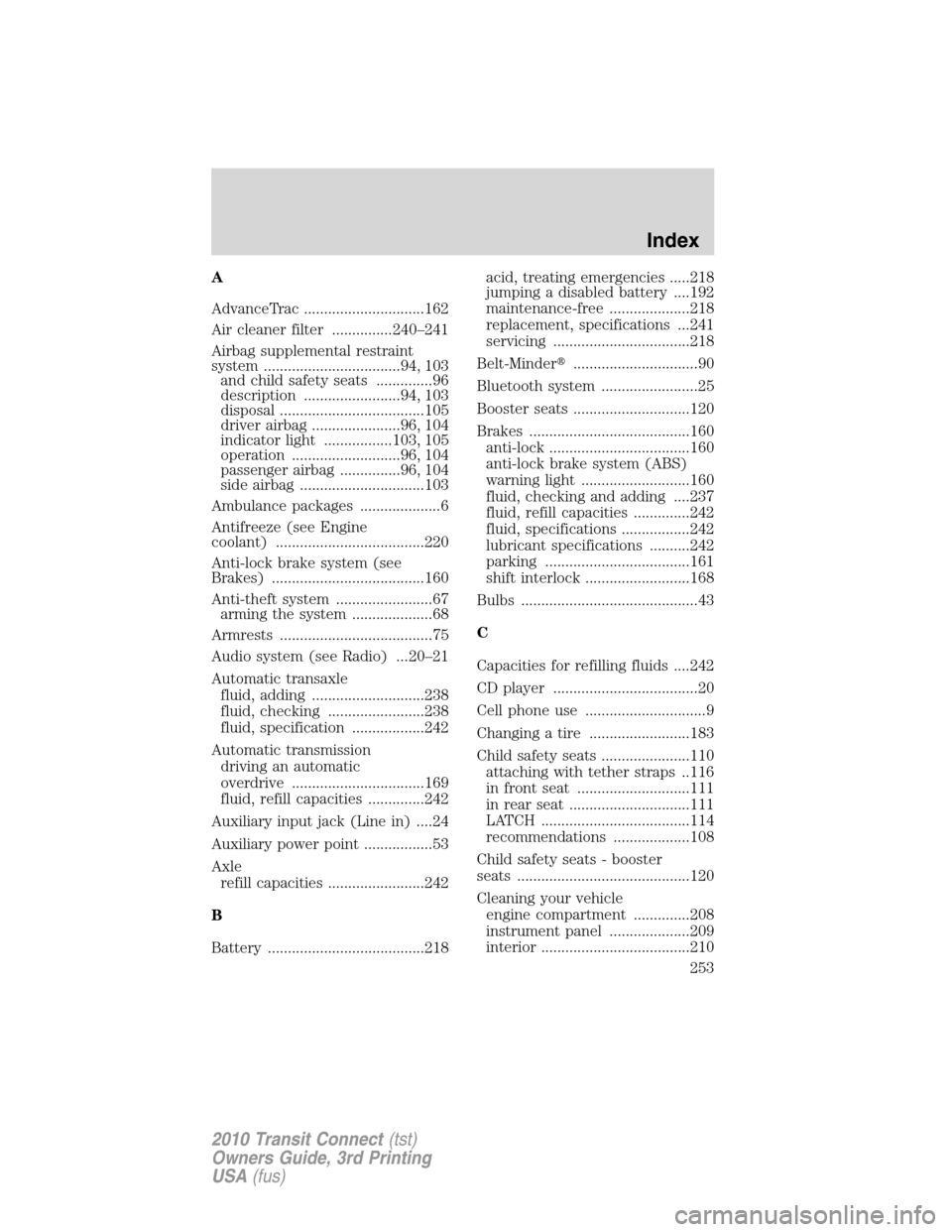

A
AdvanceTrac ..............................162
Air cleaner filter ...............240–241
Airbag supplemental restraint
system ..................................94, 103
and child safety seats ..............96
description ........................94, 103
disposal ....................................105
driver airbag ......................96, 104
indicator light .................103, 105
operation ...........................96, 104
passenger airbag ...............96, 104
side airbag ...............................103
Ambulance packages ....................6
Antifreeze (see Engine
coolant) .....................................220
Anti-lock brake system (see
Brakes) ......................................160
Anti-theft system ........................67
arming the system ....................68
Armrests ......................................75
Audio system (see Radio) ...20–21
Automatic transaxle
fluid, adding ............................238
fluid, checking ........................238
fluid, specification ..................242
Automatic transmission
driving an automatic
overdrive .................................169
fluid, refill capacities ..............242
Auxiliary input jack (Line in) ....24
Auxiliary power point .................53
Axle
refill capacities ........................242
B
Battery .......................................218acid, treating emergencies .....218
jumping a disabled battery ....192
maintenance-free ....................218
replacement, specifications ...241
servicing ..................................218
Belt-Minder...............................90
Bluetooth system ........................25
Booster seats .............................120
Brakes ........................................160
anti-lock ...................................160
anti-lock brake system (ABS)
warning light ...........................160
fluid, checking and adding ....237
fluid, refill capacities ..............242
fluid, specifications .................242
lubricant specifications ..........242
parking ....................................161
shift interlock ..........................168
Bulbs ............................................43
C
Capacities for refilling fluids ....242
CD player ....................................20
Cell phone use ..............................9
Changing a tire .........................183
Child safety seats ......................110
attaching with tether straps ..116
in front seat ............................111
in rear seat ..............................111
LATCH .....................................114
recommendations ...................108
Child safety seats - booster
seats ...........................................120
Cleaning your vehicle
engine compartment ..............208
instrument panel ....................209
interior .....................................210
Index
253
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)

Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........160
Load limits .................................148
Loading instructions .................153
Locks
childproof ..................................62
Lubricant specifications ...........242
Lug nuts ....................................191
Lumbar support, seats ...............75
M
Manual transaxle
lubricant specifications ..........242
Mirrors .........................................55
fold away ...................................55
heated ........................................55
side view mirrors (power) .......55
Motorcraftparts ..............211, 241
O
Octane rating ............................229
Oil (see Engine oil) ..................216
P
Parking brake ............................161
Parts (see Motorcraft
parts) .........................................241
Passenger Occupant
Classification Sensor ...................83
Power distribution box
(see Fuses) ...............................180
Power mirrors .............................55
Power point .................................53
Power steering ..........................165fluid, checking and adding ....237
fluid, refill capacity ................242
fluid, specifications .................242
Power Windows ...........................54
Preparing to drive your
vehicle ........................................166
R
Radio ......................................20–21
Recommendations for
attaching safety restraints for
children ......................................108
Relays ........................................176
Remote entry system .................63
illuminated entry ......................67
locking/unlocking doors .....62, 64
opening the trunk .....................64
replacement/additional
transmitters ...............................66
replacing the batteries .............64
Reverse sensing system ...........171
Roadside assistance ..................174
S
Safety belts (see Safety
restraints) ........................81, 85–89
Safety Canopy ...........................103
Safety defects, reporting ..........205
Safety restraints ..............81, 85–89
Belt-Minder.............................90
for adults .............................86–88
for children .............................105
Occupant Classification
Sensor ........................................83
warning light and chime ....89–90
Index
256
2010 Transit Connect(tst)
Owners Guide, 3rd Printing
USA(fus)
